yiher 8051 1142020 3 yiher 1142020 INT 0

  • Slides: 41
Download presentation

yiher 8051之中斷 11/4/2020 例說８０５１ 3

yiher 8051之中斷 11/4/2020 例說８０５１ 3

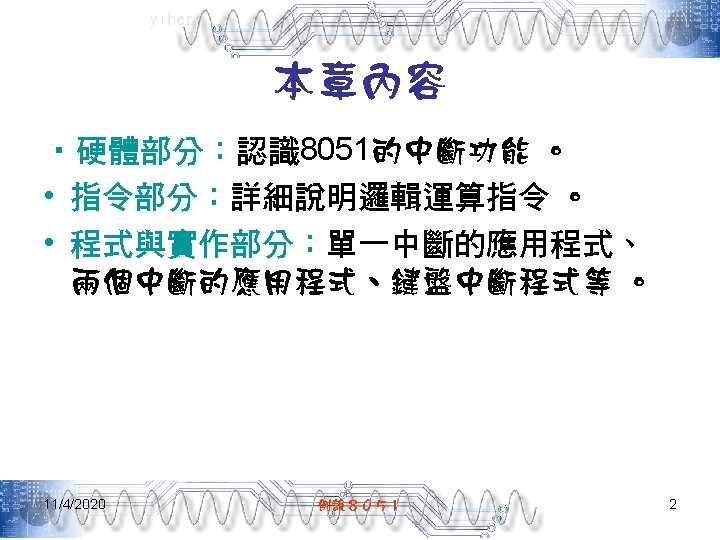

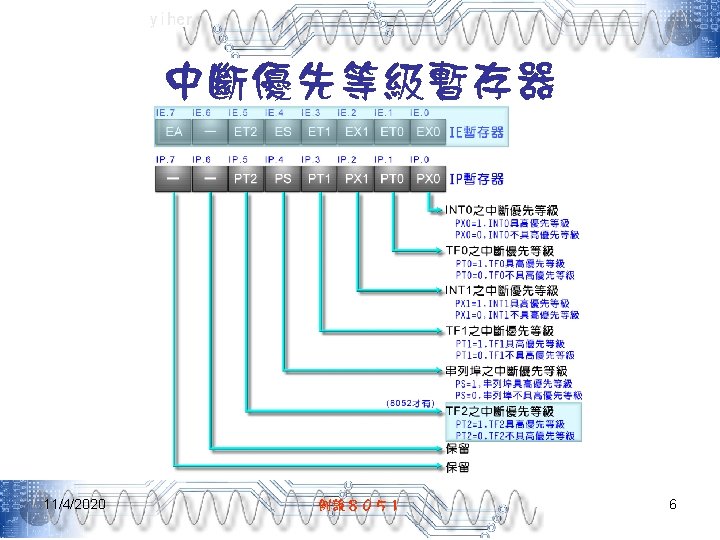

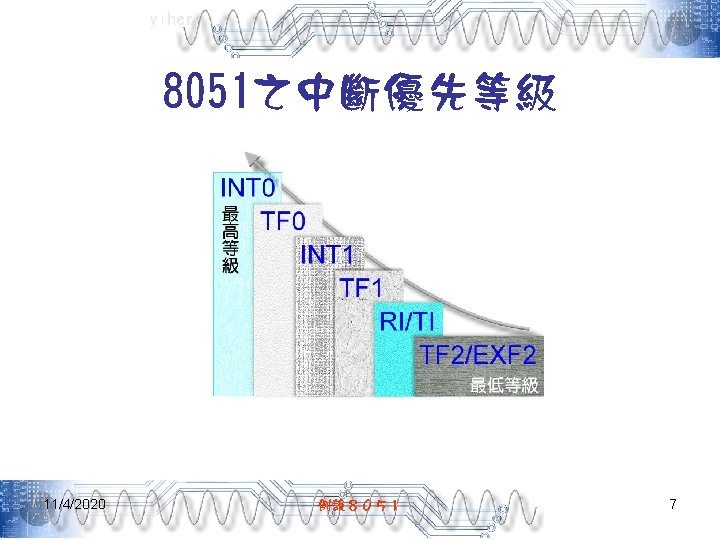

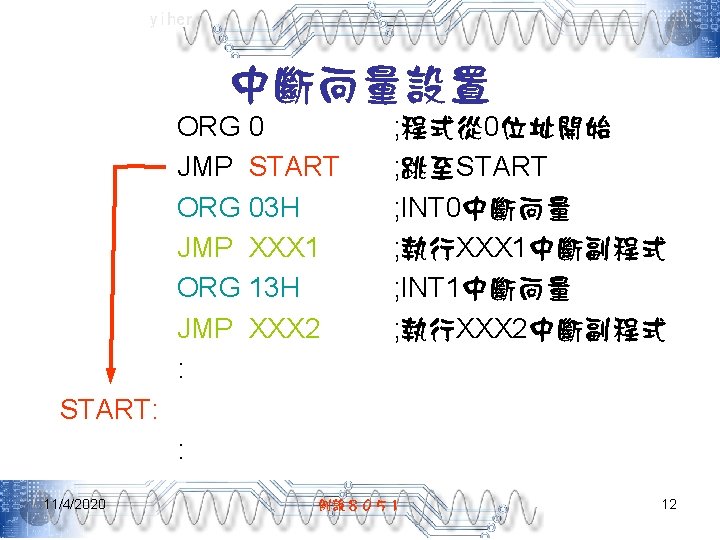

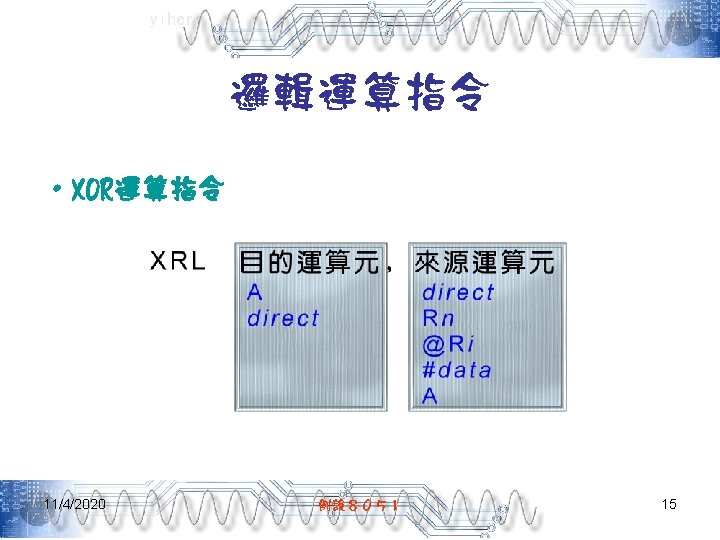

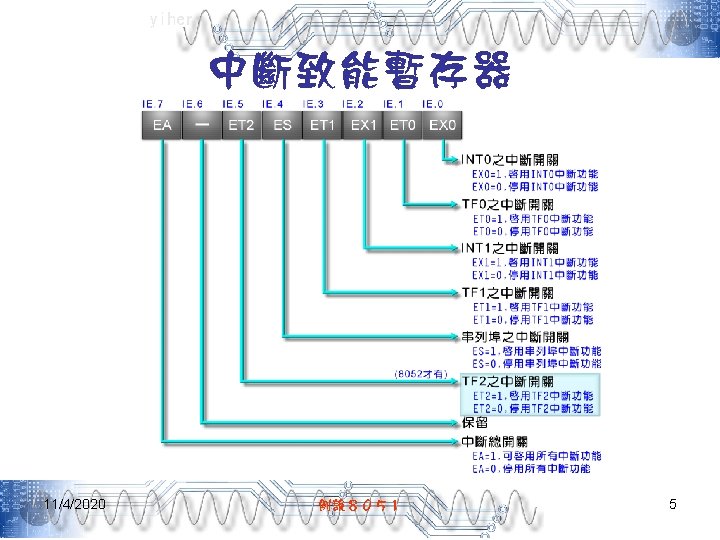

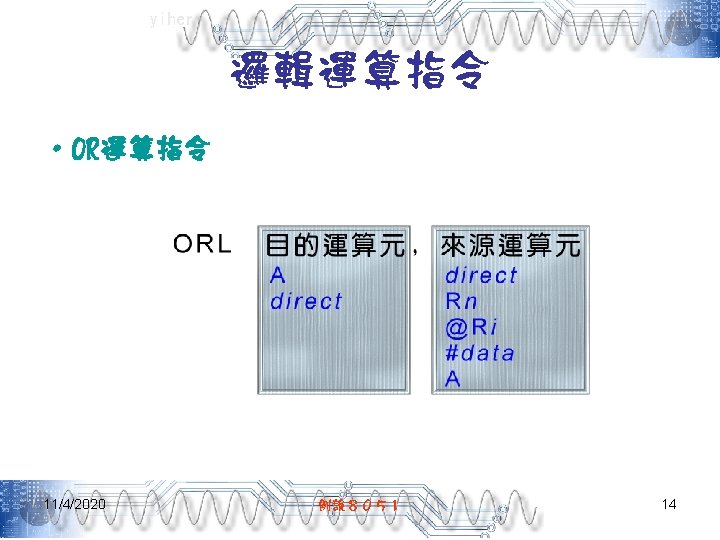

yiher 中斷向量 11/4/2020 中斷源 中斷向量 INT 0 03 H TF 0 0 BH INT

yiher 中斷向量 11/4/2020 中斷源 中斷向量 INT 0 03 H TF 0 0 BH INT 1 13 H TF 1 1 BH RI/TI 23 H TF 2/EXF 2 2 BH 例說８０５１ 11

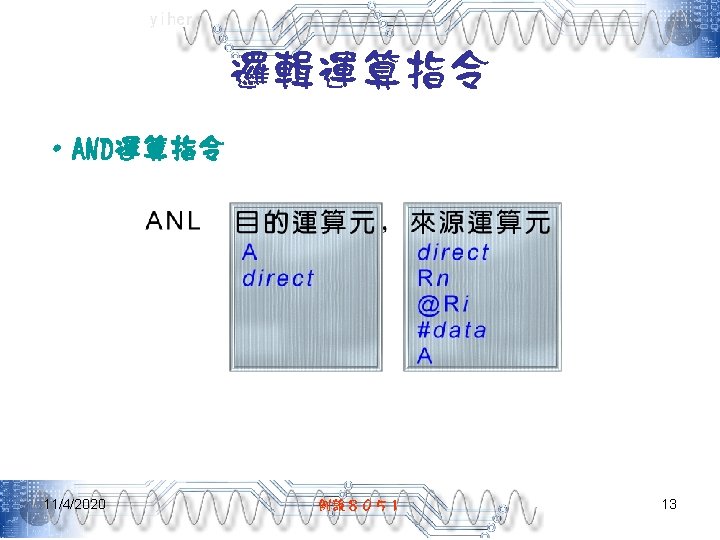

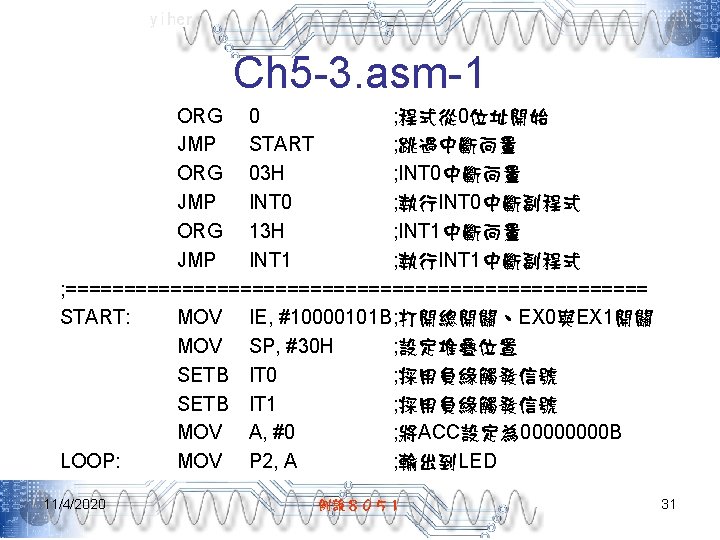

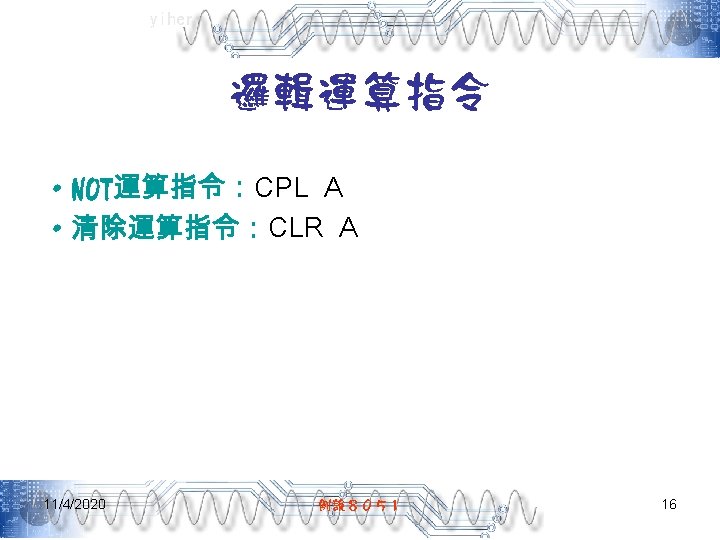

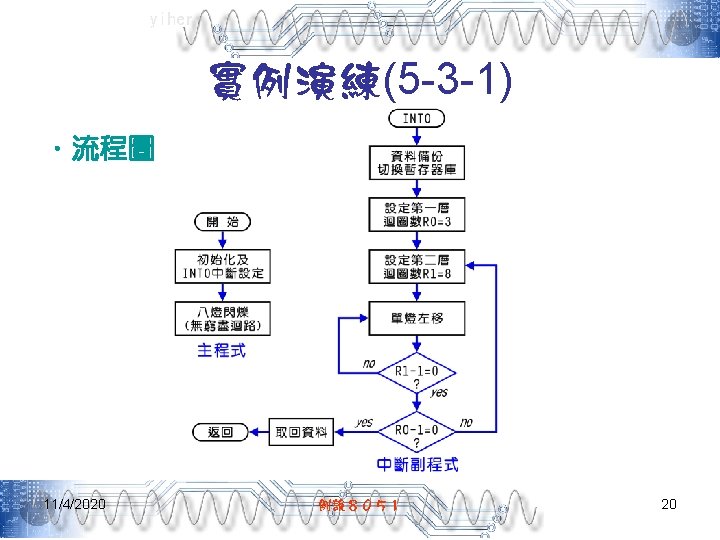

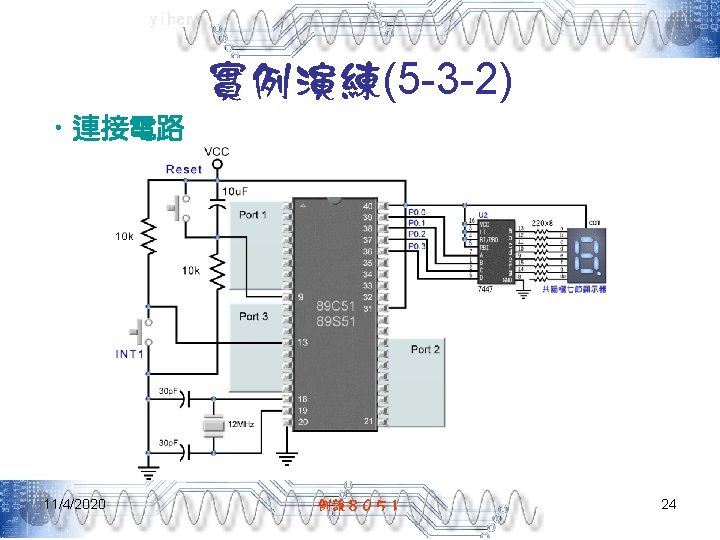

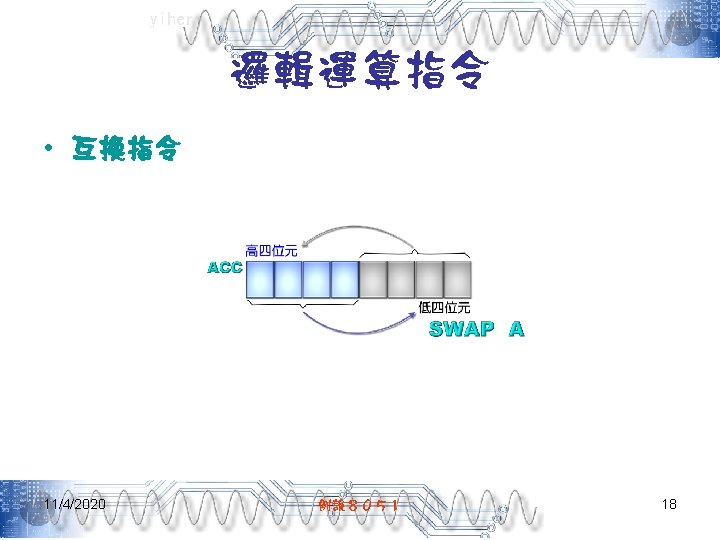

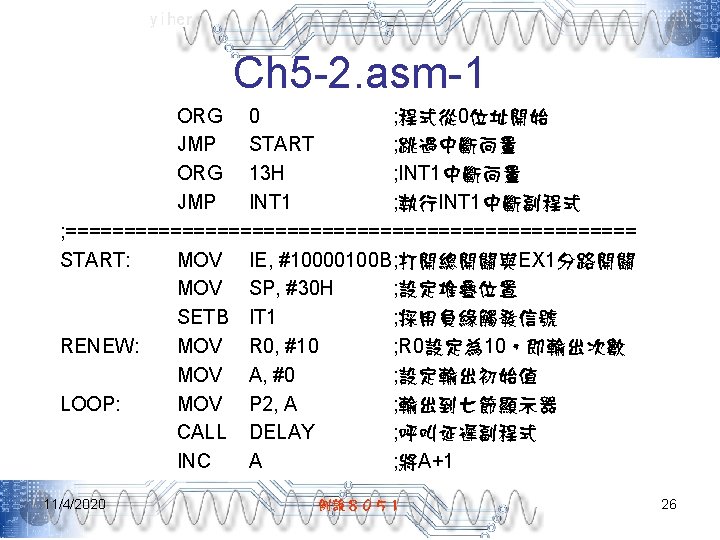

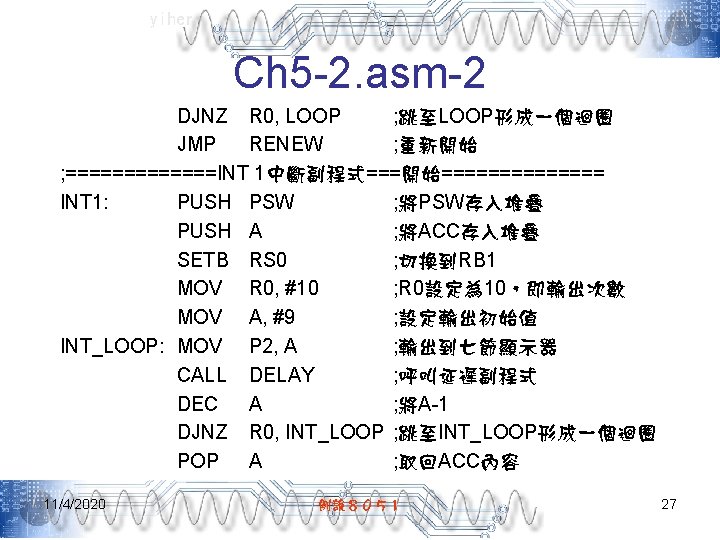

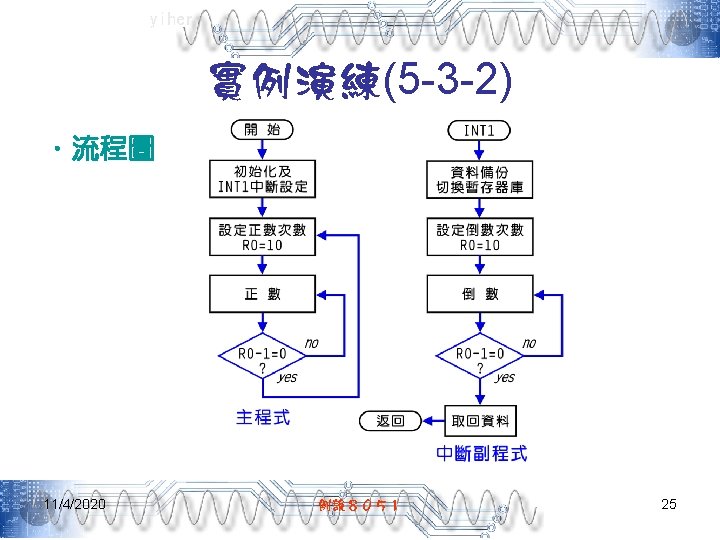

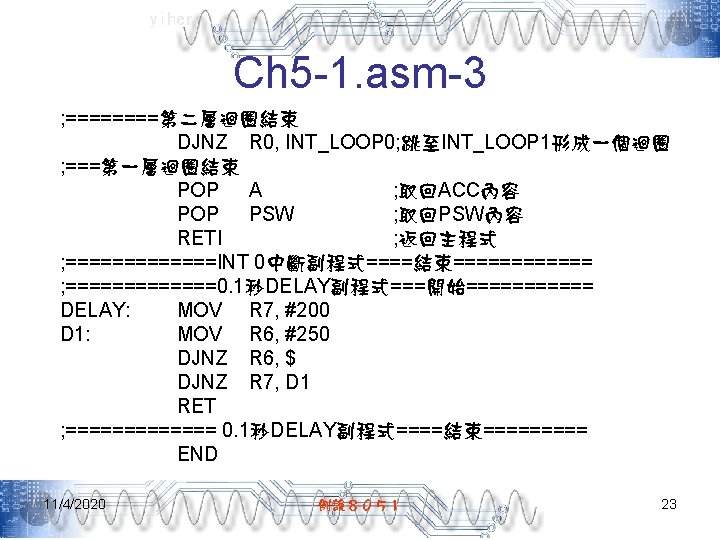

yiher Ch 5 -2. asm-3 POP PSW ; 取回PSW內容 RETI ; 返回主程式 ; =======INT

yiher Ch 5 -2. asm-3 POP PSW ; 取回PSW內容 RETI ; 返回主程式 ; =======INT 0中斷副程式====結束====== ; =======0. 5秒DELAY副程式===開始====== DELAY: MOV R 7, #5 D 1: MOV R 6, #200 D 2: MOV R 5, #250 DJNZ R 5, $ DJNZ R 6, D 2 DJNZ R 7, D 1 RET ; ======= 0. 5秒DELAY副程式====結束===== END 11/4/2020 例說８０５１ 28

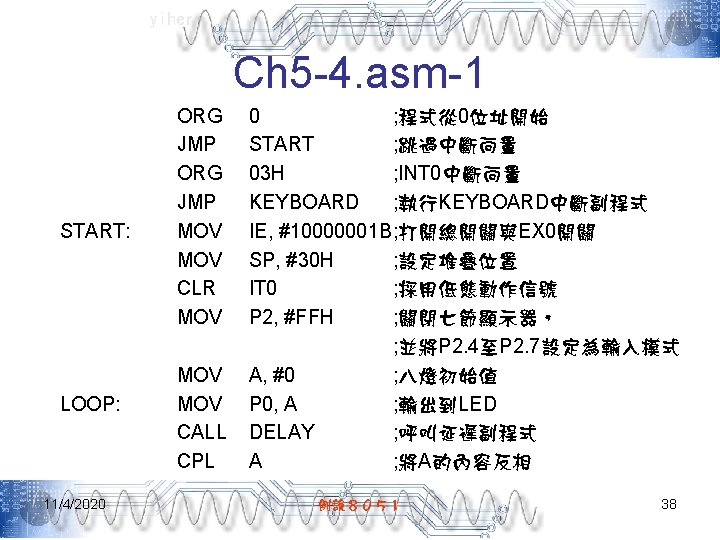

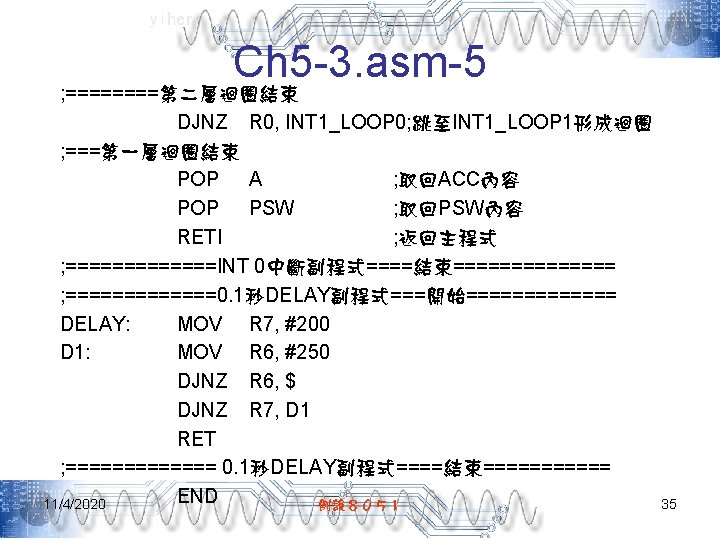

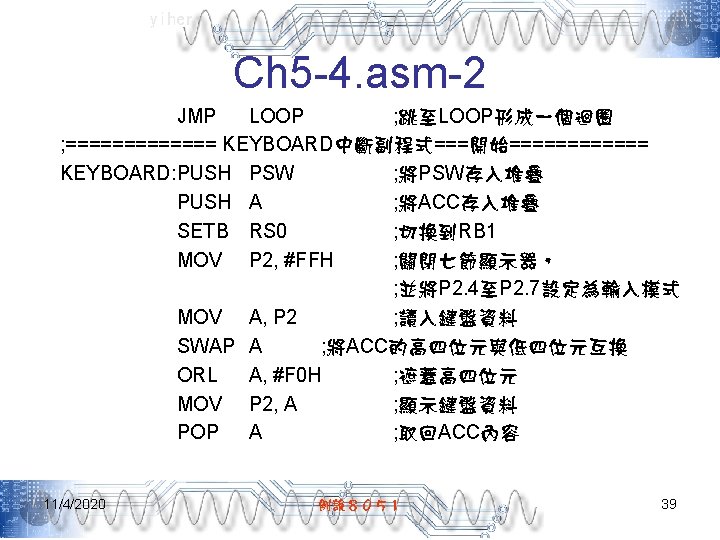

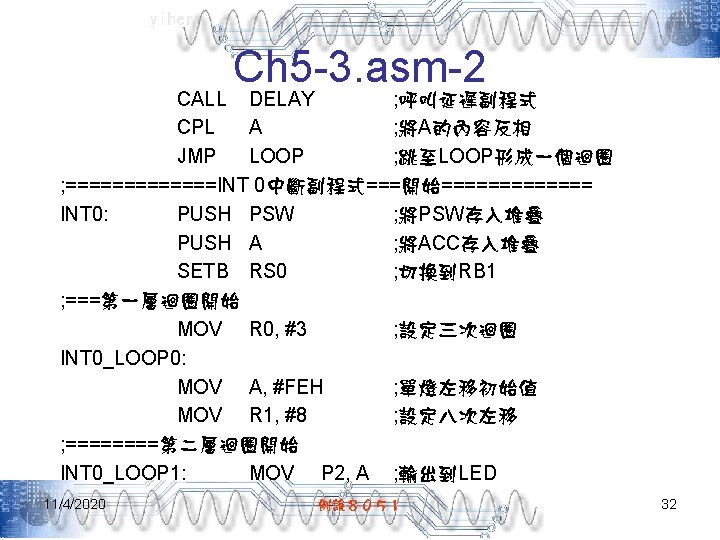

yiher Ch 5 -4. asm-3 POP PSW ; 取回PSW內容 RETI ; 返回主程式 ; =======0.

yiher Ch 5 -4. asm-3 POP PSW ; 取回PSW內容 RETI ; 返回主程式 ; =======0. 1秒DELAY副程式===開始======= DELAY: MOV R 7, #200 D 1: MOV R 6, #250 DJNZ R 6, $ DJNZ R 7, D 1 RET END 11/4/2020 例說８０５１ 40

中斷之應用 Bye… 11/4/2020 41

中斷之應用 Bye… 11/4/2020 41
