Virtualizing Network IO on EndHost OS Takashi taka

Virtualizing Network I/O on End-Host OS Takashi “taka” Okumura Department of Computer Science University of Pittsburgh

Who’s taka? . D. h D/P M • A Ph. D. student • Working with Dr. Mosse' • Semantics-aware Control of Medical Network • Virtualization of network I/O on end-host OS

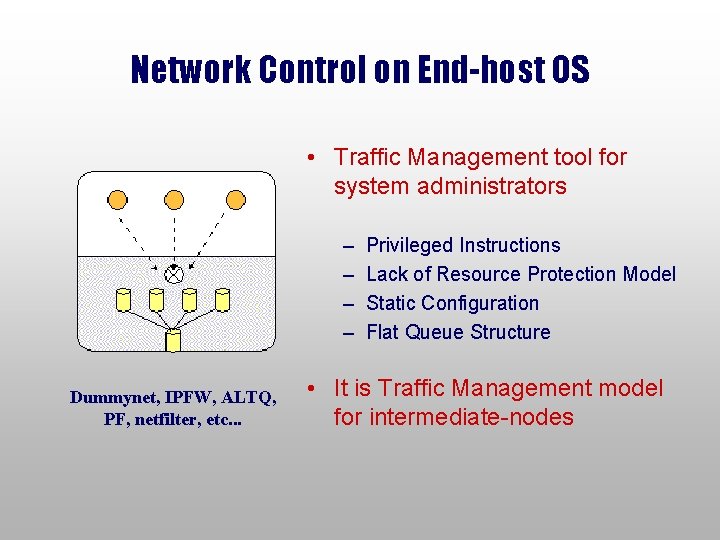

Network Control on End-host OS • Traffic Management tool for system administrators – – Dummynet, IPFW, ALTQ, PF, netfilter, etc. . . Privileged Instructions Lack of Resource Protection Model Static Configuration Flat Queue Structure • It is Traffic Management model for intermediate-nodes

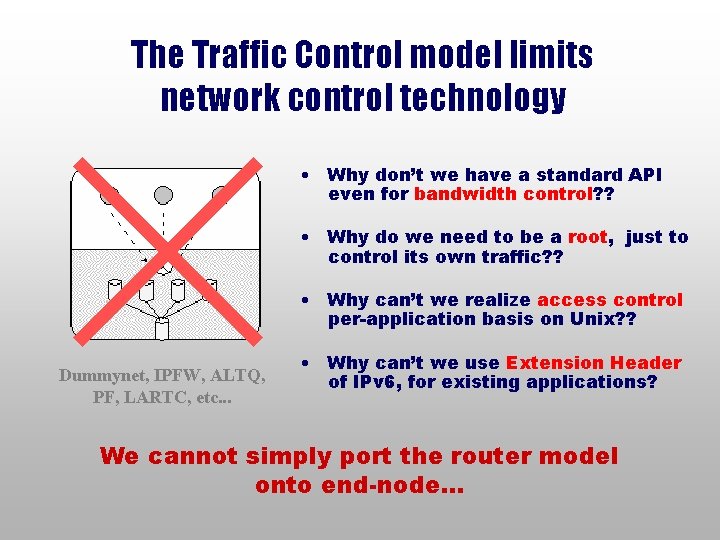

The Traffic Control model limits network control technology • Why don’t we have a standard API even for bandwidth control? ? • Why do we need to be a root, just to control its own traffic? ? • Why can’t we realize access control per-application basis on Unix? ? Dummynet, IPFW, ALTQ, PF, LARTC, etc. . . • Why can’t we use Extension Header of IPv 6, for existing applications? We cannot simply port the router model onto end-node. . .

What can we do ?

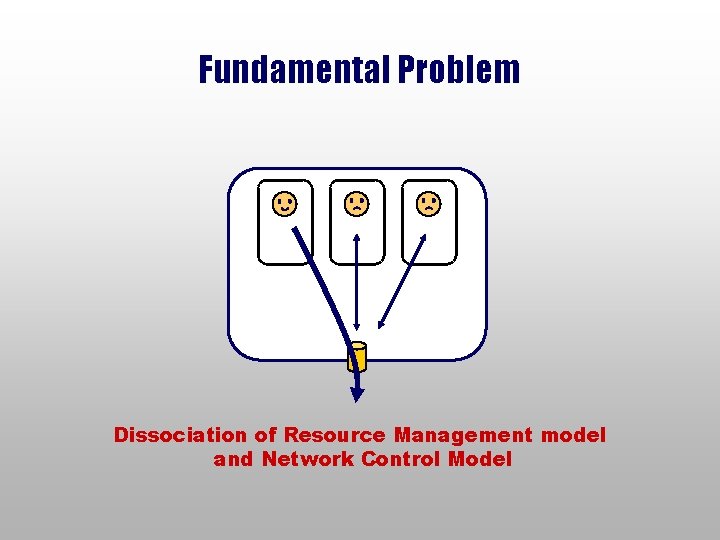

Fundamental Problem Dissociation of Resource Management model and Network Control Model

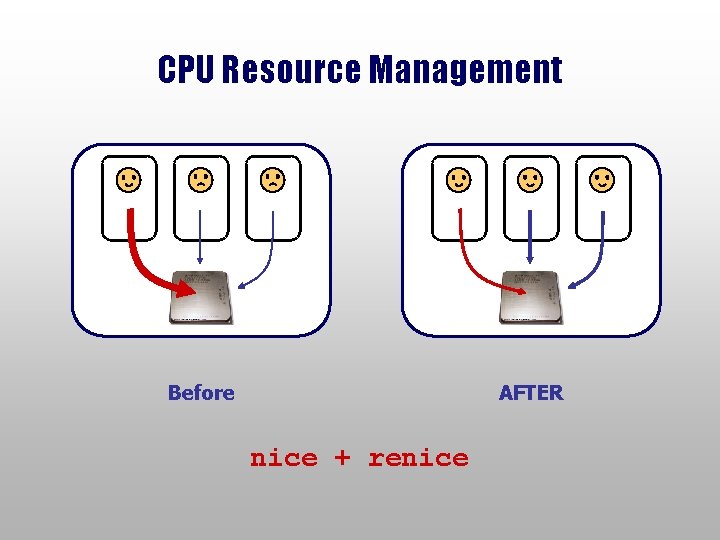

CPU Resource Management Before AFTER nice + renice

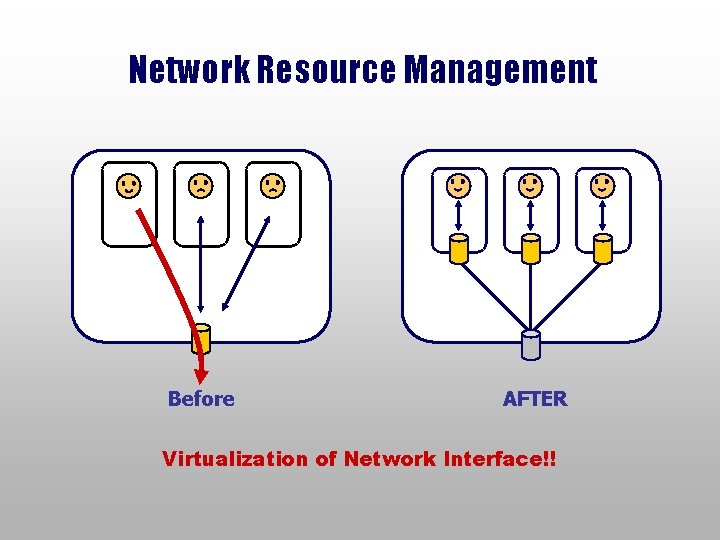

Network Resource Management Before AFTER Virtualization of Network Interface!!

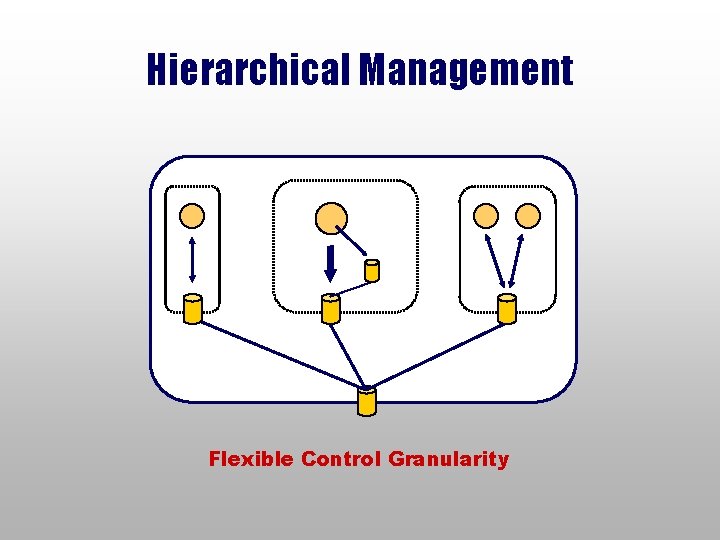

Hierarchical Management Flexible Control Granularity

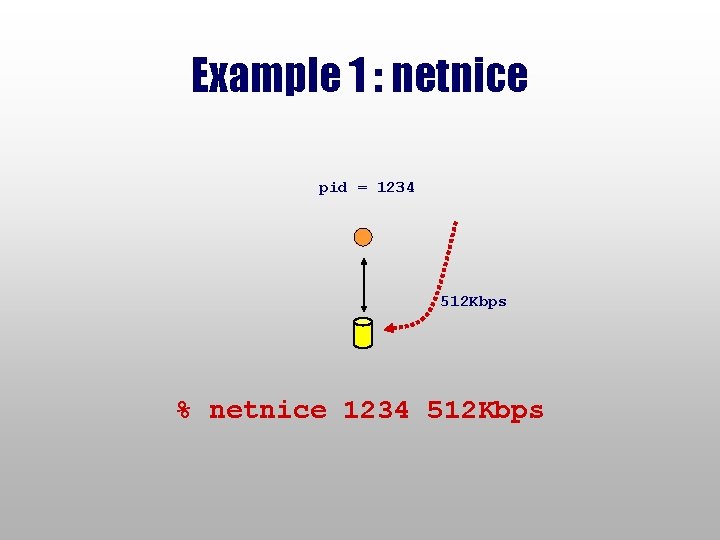

Example 1 : netnice pid = 1234 512 Kbps % netnice 1234 512 Kbps

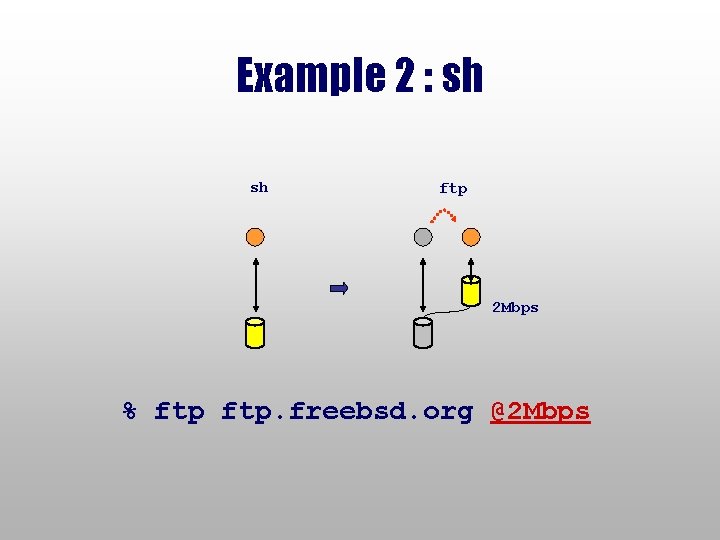

Example 2 : sh sh ftp 2 Mbps % ftp. freebsd. org @2 Mbps

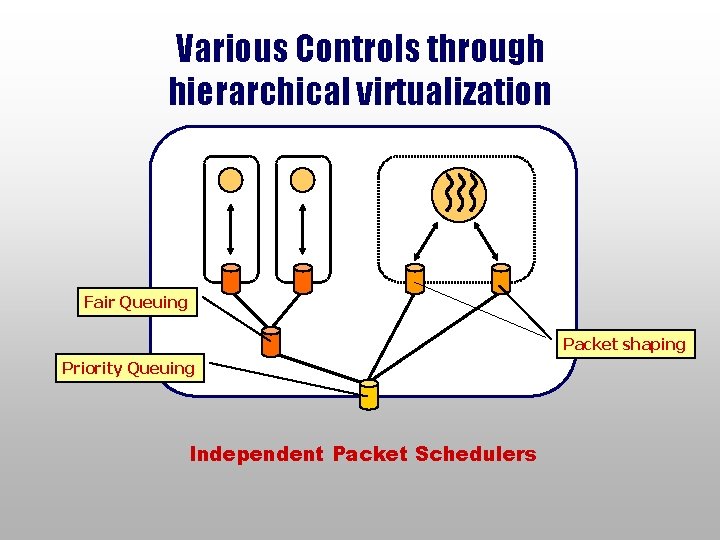

Various Controls through hierarchical virtualization Fair Queuing Packet shaping Priority Queuing Independent Packet Schedulers

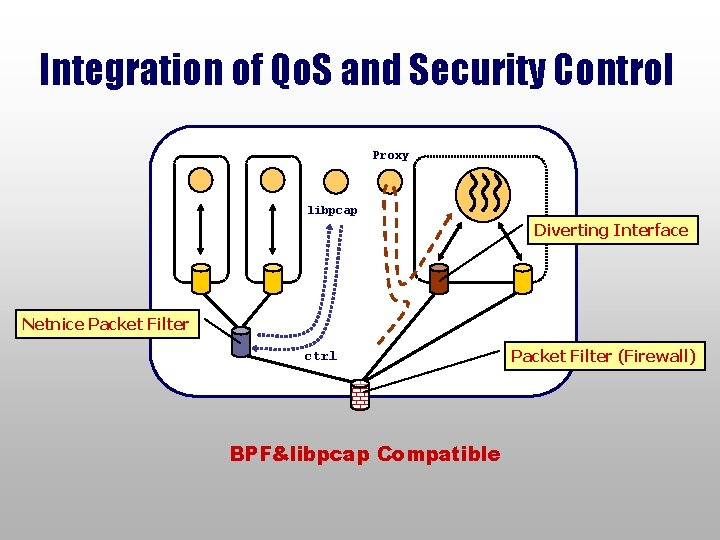

Integration of Qo. S and Security Control Proxy libpcap Diverting Interface Netnice Packet Filter ctrl BPF&libpcap Compatible Packet Filter (Firewall)

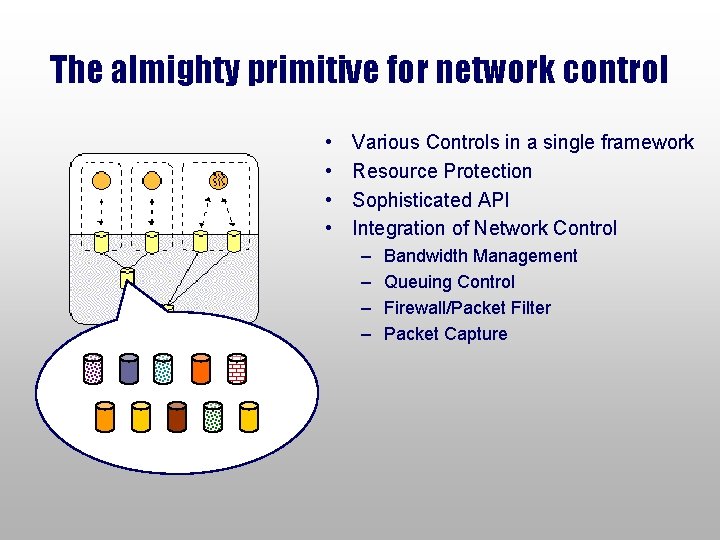

The almighty primitive for network control • • Various Controls in a single framework Resource Protection Sophisticated API Integration of Network Control – – Bandwidth Management Queuing Control Firewall/Packet Filter Packet Capture

Intermission - Project Status -

India Gate, Bombay (Mumbai)

Why did Taka go to India? • Loves Indian Food! • To collaborate with Indian Hackers! Gate Taka

Netnice ORG an Opensource Project • Kernel Development - Porting • Application Development - Porting • (Research Division; discussed later)

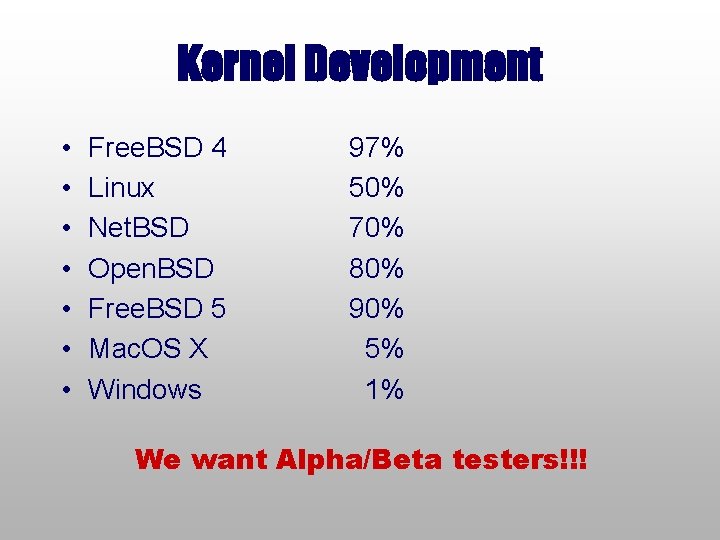

Kernel Development • • Free. BSD 4 Linux Net. BSD Open. BSD Free. BSD 5 Mac. OS X Windows 97% 50% 70% 80% 90% 5% 1% We want Alpha/Beta testers!!!

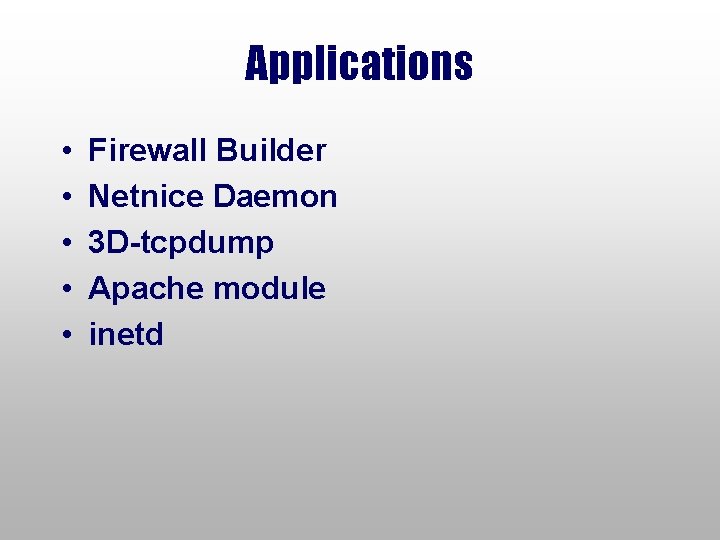

Applications • • • Firewall Builder Netnice Daemon 3 D-tcpdump Apache module inetd

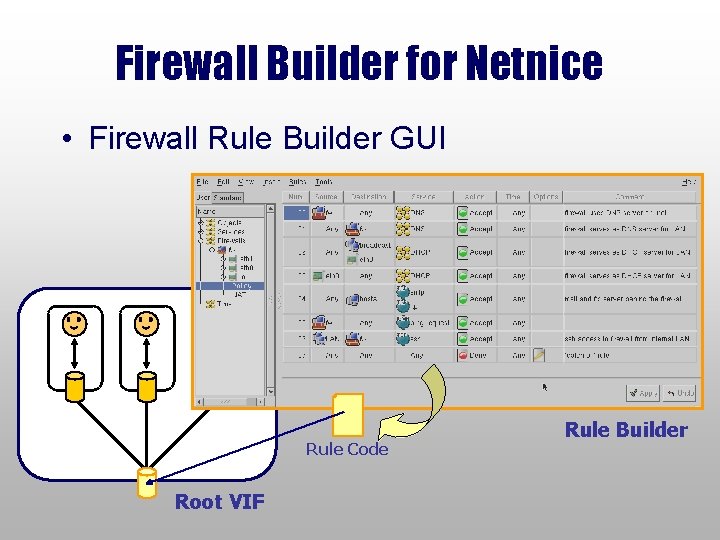

Firewall Builder for Netnice • Firewall Rule Builder GUI Rule Code Root VIF Rule Builder

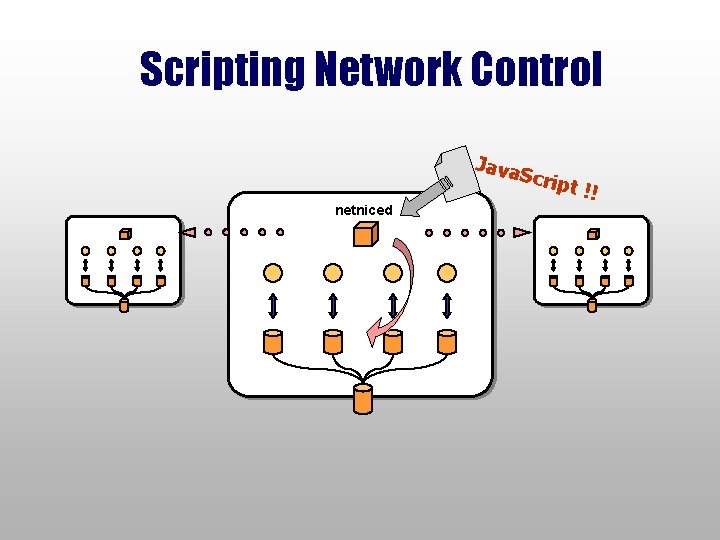

Scripting Network Control Java netniced Scrip t !!

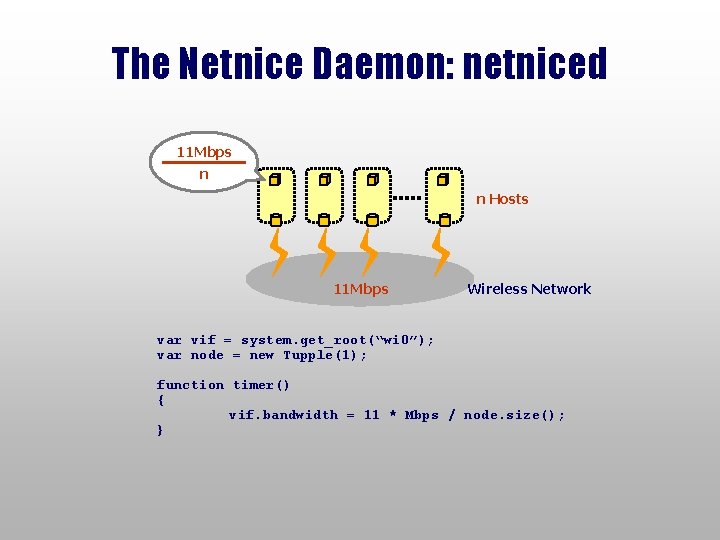

The Netnice Daemon: netniced 11 Mbps n n Hosts 11 Mbps Wireless Network var vif = system. get_root(“wi 0”); var node = new Tupple(1); function timer() { vif. bandwidth = 11 * Mbps / node. size(); }

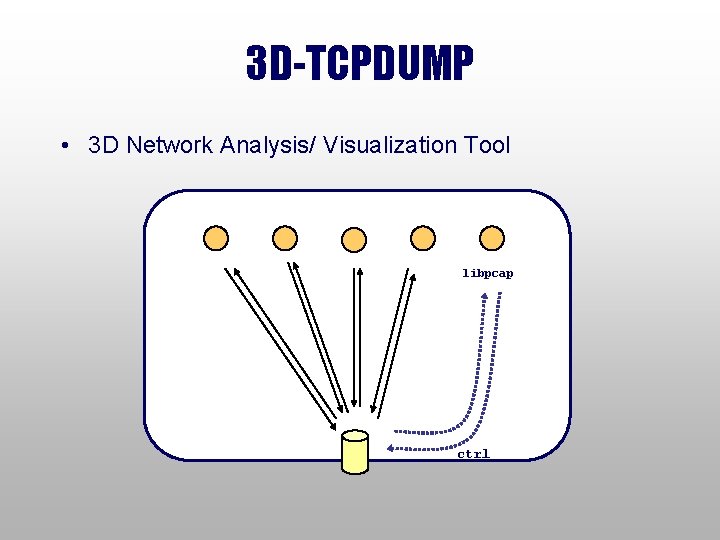

3 D-TCPDUMP • 3 D Network Analysis/ Visualization Tool libpcap ctrl

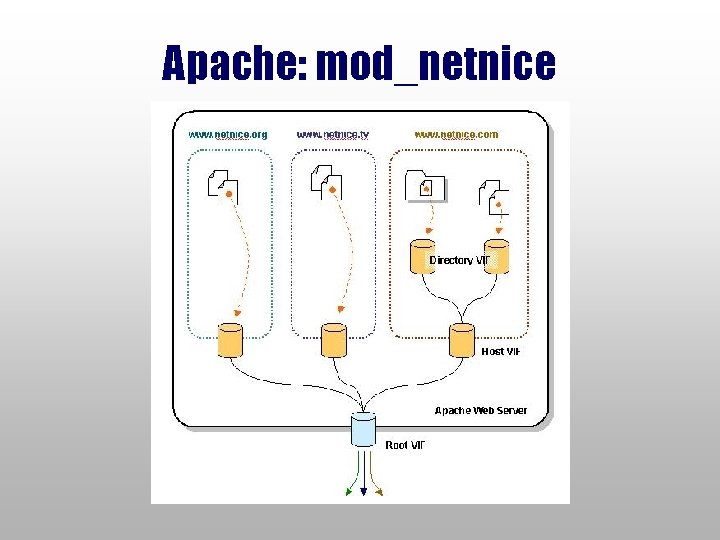

Apache: mod_netnice

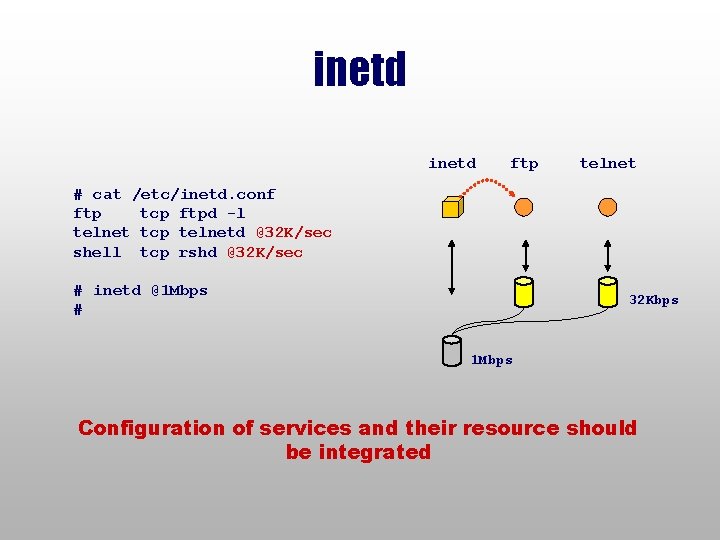

inetd ftp telnet #　cat /etc/inetd. conf ftp tcp ftpd -l telnet tcp telnetd @32 K/sec shell tcp rshd @32 K/sec #　inetd @1 Mbps # 32 Kbps 1 Mbps Configuration of services and their resource should be integrated

Got bored?

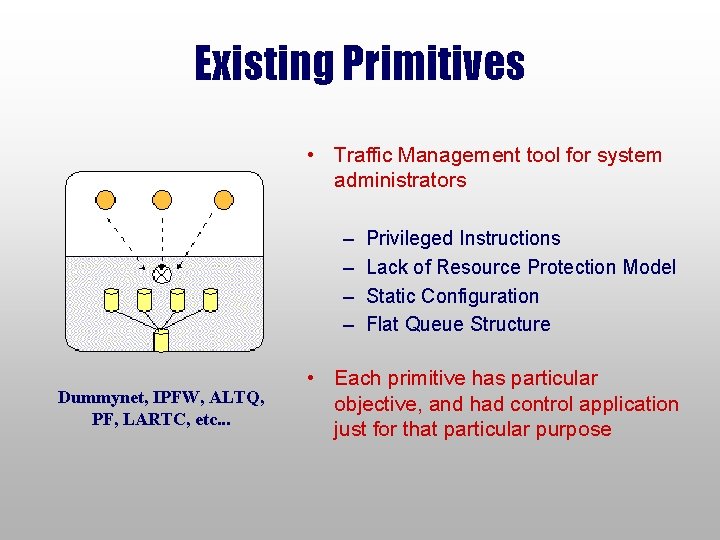

Existing Primitives • Traffic Management tool for system administrators – – Dummynet, IPFW, ALTQ, PF, LARTC, etc. . . Privileged Instructions Lack of Resource Protection Model Static Configuration Flat Queue Structure • Each primitive has particular objective, and had control application just for that particular purpose

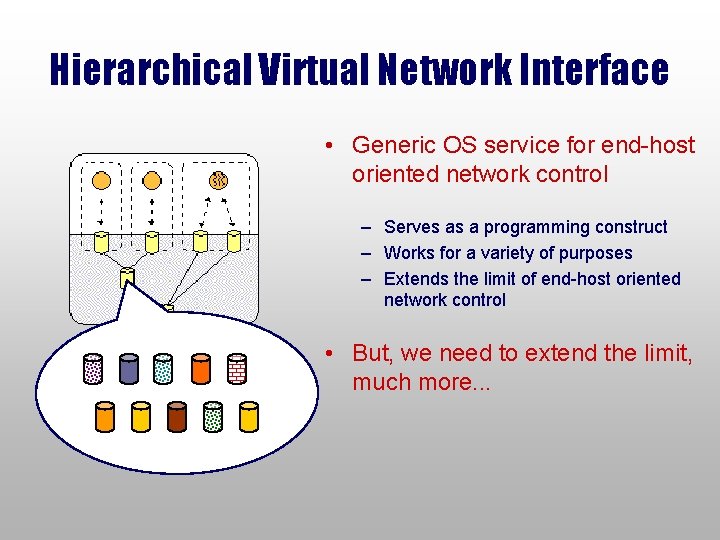

Hierarchical Virtual Network Interface • Generic OS service for end-host oriented network control – Serves as a programming construct – Works for a variety of purposes – Extends the limit of end-host oriented network control • But, we need to extend the limit, much more. . .

Research

TOPICS • • • Architecture Compiler Algorithm Operating System Artificial Intelligence

Architecture Dynamic Extension of Protocol Stack by Virtual Machine technology

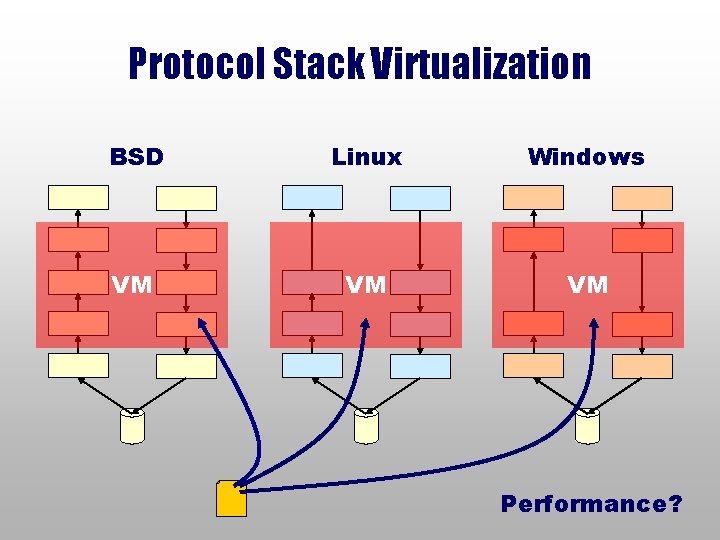

Protocol Stack Virtualization BSD Linux Windows VM VM VM Performance?

Compiler for High-performance Firewall

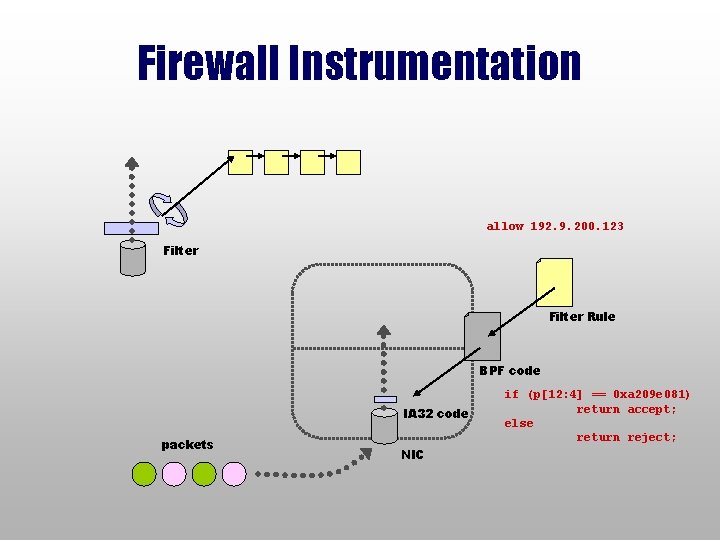

Firewall Instrumentation allow 192. 9. 200. 123 Filter Rule BPF code IA 32 code packets NIC if (p[12: 4] == 0 xa 209 e 081) return accept; else return reject;

Algorithm Distributed Caching and Traffic Control Algorithm for Fermi FS

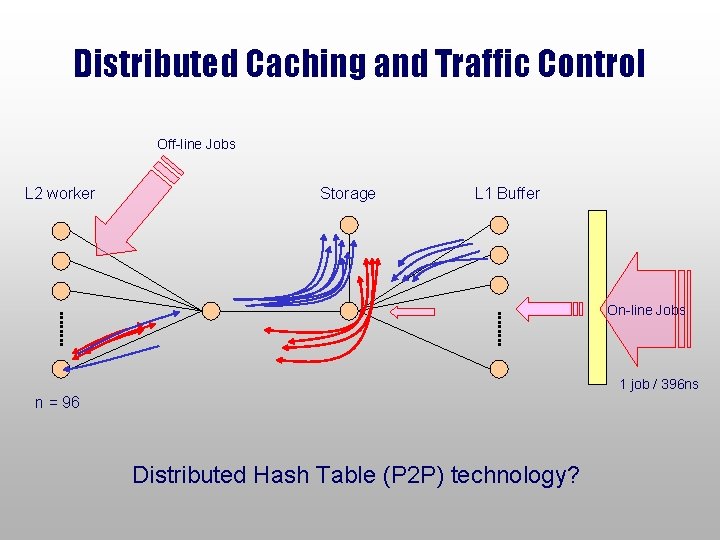

Distributed Caching and Traffic Control Off-line Jobs L 2 worker Storage L 1 Buffer On-line Jobs 1 job / 396 ns n = 96 Distributed Hash Table (P 2 P) technology?

Operating System Coupled Scheduling Mechanism for CPU and Network

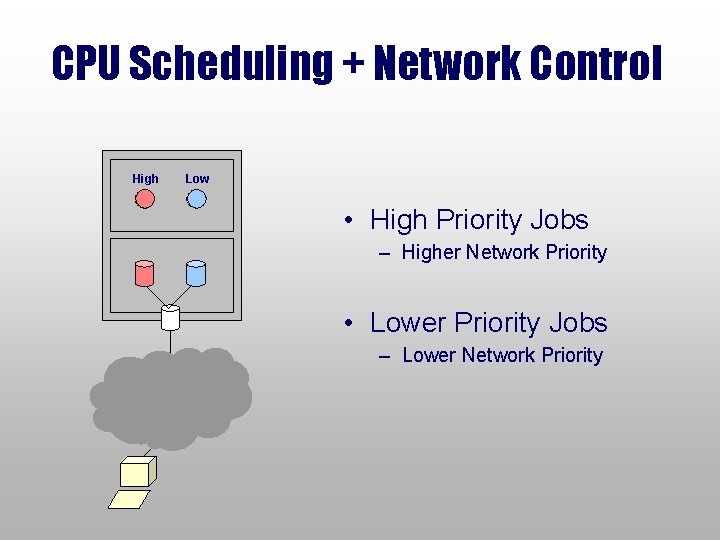

CPU Scheduling + Network Control High Low • High Priority Jobs – Higher Network Priority • Lower Priority Jobs – Lower Network Priority

Artificial Intelligence Traffic Control based on Semantics analysis of on-going communication

Semantics-Aware Medical Network • Needs for better fairness, safety, and security – ex) Resource contention between traffic for. . . • Emergency Case (such as Acute MI) • Common cold

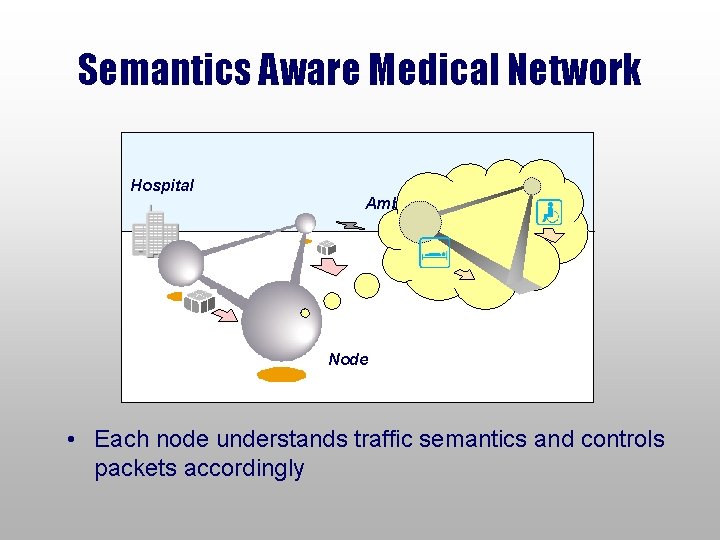

Semantics Aware Medical Network Hospital Ambulance Node • Each node understands traffic semantics and controls packets accordingly

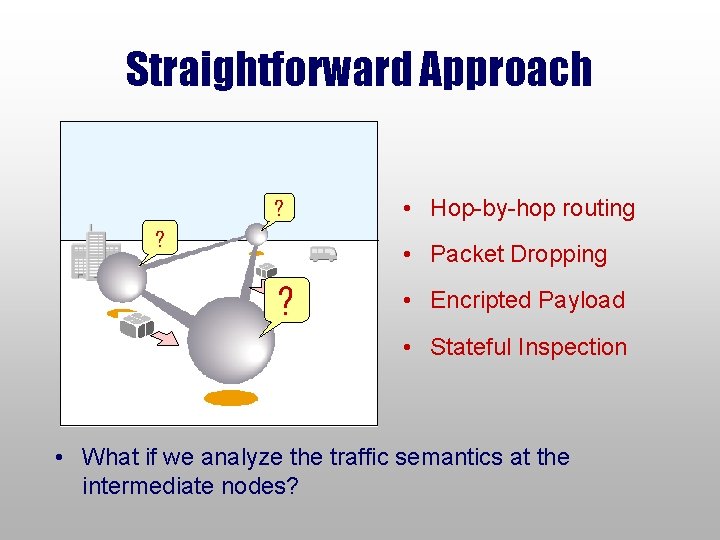

Straightforward Approach ? ? • Hop-by-hop routing • Packet Dropping ? • Encripted Payload • Stateful Inspection • What if we analyze the traffic semantics at the intermediate nodes?

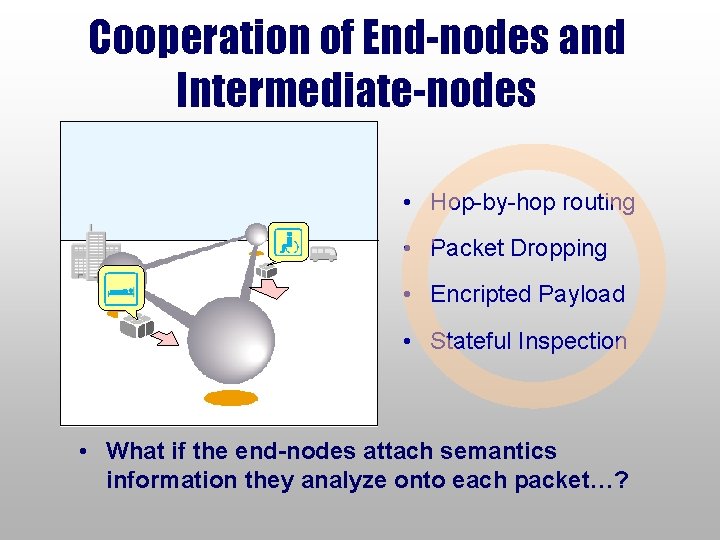

Cooperation of End-nodes and Intermediate-nodes • Hop-by-hop routing • Packet Dropping • Encripted Payload • Stateful Inspection • What if the end-nodes attach semantics information they analyze onto each packet…?

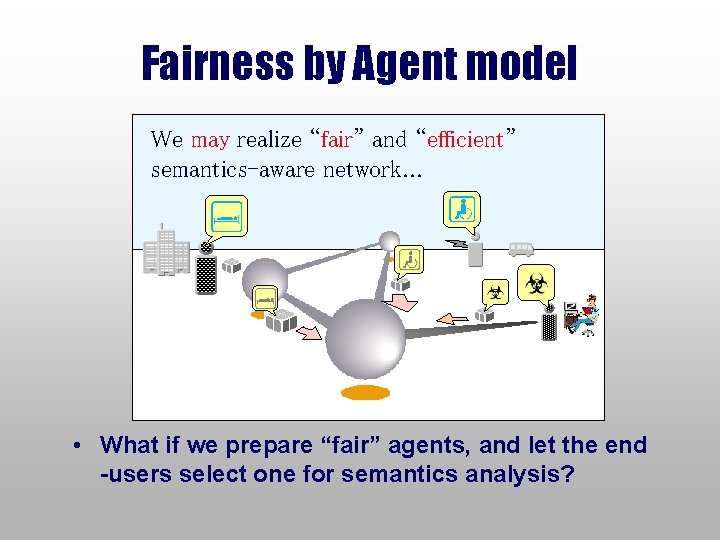

Fairness by Agent model We may realize “fair” and “efficient” semantics-aware network. . . • What if we prepare “fair” agents, and let the end -users select one for semantics analysis?

To realize such a technology, we need an end-node mechanism! which allows analysis of flows at flexible granularity and active control of them just monitored.
