IP Addressable Network Audio System for Hotel Control

IP Addressable Network Audio System for Hotel Control Room Lobby T-67120 T-2221 T-2 S 01 T-6702 T-6700 R T-6702 T-200 B LAN Network Switch T-67120 T-778 P T-105 U Client Room Floor-1 T-105 U Client Room Floor-2 T-720 A Restaurant Parking www. itc-pa. com. cn, info@itc-pa. com. cn

IP Addressable Network Audio System for Hotel System Features: • • • Digital audio system over LAN network Minimum cable wiring system Simplest cable layout & maintenance & future upgrade Different programs for different zones Versatile specified zone, group zone and all zone paging Two way communication system between remote paging microphones Local music and microphone input Terminal user with remote control to select program Remote PC log in, remote control, set up and trouble shoot Expansion only by add network audio adapter Capacity of up to 500 zones www. itc-pa. com. cn, info@itc-pa. com. cn

IP Addressable Network Audio System for Hotel-Bill of Material S. N. Model 1 N/A 2 Description Unit Qty Remark PC Unit 1 Server of the IP network audio system, could be replaced by any PC T-6700 R IP Network Audio Software Set 1 IP network audio software for parameter set up, status monitoring, program and signal encoding. 3 T-2221 CD/Mp 3 Player with Tuner Unit 1 Audio source two inputs 4 T-2 S 01 Stereo Mixer Pre Amplifier Unit 1 Input the audio sources to PC for digital source transmission 5 T-6702 IP Network Paging Microphone Unit 2 One mic for control room, one for receiption desk remote voice announcement use. 6 T-67120 IP Network 120 W Amplifier Unit 5 Each area one amplifier like each client room floor public corrior sound system, restaurant and parking arear sound system. 7 T-105 U 5” 6 W Ceiling Speaker, 100 V Pcs 240 8 T-778 P 8” Two Way 40 W Wall Mount Loudspeaker, 100 V Pcs 2 Hi-fi quality wall mount speaker for restaurant life performance and light background music system use. 9 T-720 A 30 W Waterproof Horn Speaker, 100 V Pcs 3 Waterproof horn speaker for outdoor moist parking area use, horn is used for especially super long distance clear and loud voice speech use. 10 T-200 B 15 W Pendant Speaker, 100 V pcs 4 The lobby where roof is very high, the pendant speaker could be suspended to it, while its directional sound dispersion will be focus on the waiting area and receiption desk background music and speech use. 11 N/A LAN Switch Unit 1 The LAN switch shall be more than 5 channels, which is used to built-up the LAN network, the system could be set up by non-dedicated existing network system. Economy ceiling speaker of quick installation for public corridor background music system use. www. itc-pa. com. cn, info@itc-pa. com. cn

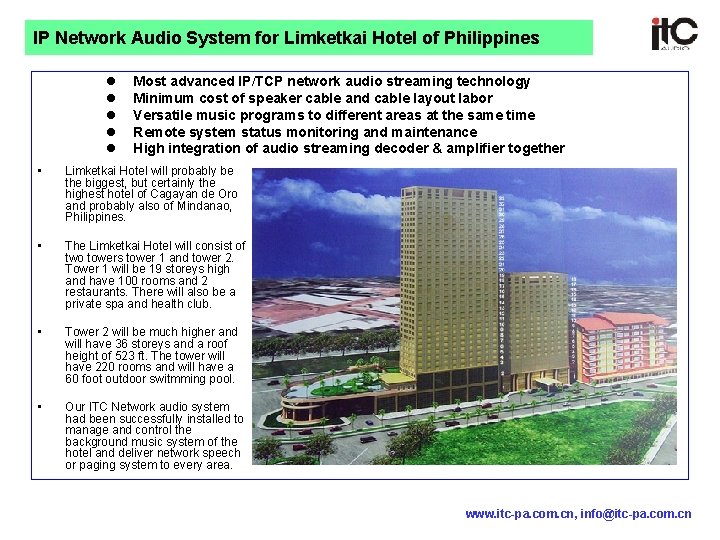

IP Network Audio System for Limketkai Hotel of Philippines l l l Most advanced IP/TCP network audio streaming technology Minimum cost of speaker cable and cable layout labor Versatile music programs to different areas at the same time Remote system status monitoring and maintenance High integration of audio streaming decoder & amplifier together • Limketkai Hotel will probably be the biggest, but certainly the highest hotel of Cagayan de Oro and probably also of Mindanao, Philippines. • The Limketkai Hotel will consist of two towers tower 1 and tower 2. Tower 1 will be 19 storeys high and have 100 rooms and 2 restaurants. There will also be a private spa and health club. • Tower 2 will be much higher and will have 36 storeys and a roof height of 523 ft. The tower will have 220 rooms and will have a 60 foot outdoor switmming pool. • Our ITC Network audio system had been successfully installed to manage and control the background music system of the hotel and deliver network speech or paging system to every area. www. itc-pa. com. cn, info@itc-pa. com. cn

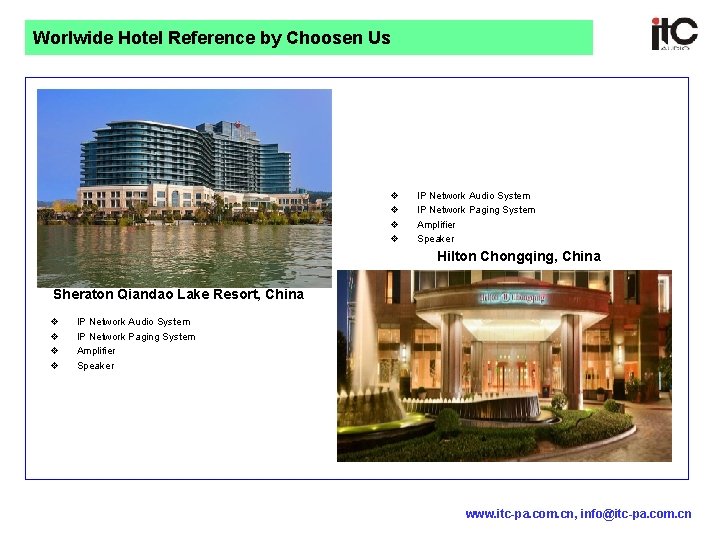

Worlwide Hotel Reference by Choosen Us v v IP Network Audio System IP Network Paging System Amplifier Speaker Hilton Chongqing, China Sheraton Qiandao Lake Resort, China v v IP Network Audio System IP Network Paging System Amplifier Speaker www. itc-pa. com. cn, info@itc-pa. com. cn

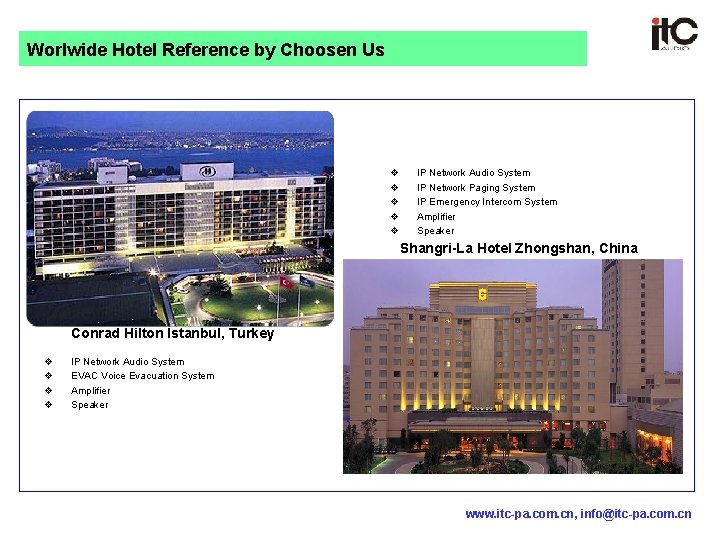

Worlwide Hotel Reference by Choosen Us v v v IP Network Audio System IP Network Paging System IP Emergency Intercom System Amplifier Speaker Shangri-La Hotel Zhongshan, China Conrad Hilton Istanbul, Turkey v v IP Network Audio System EVAC Voice Evacuation System Amplifier Speaker www. itc-pa. com. cn, info@itc-pa. com. cn

IP Network Audio System Software-T-6700 R l l l l l Compatible with Windows 2000, Windows XP and Windows 7 system Full duplex communication system software Compatible of network audio system and intercom two systems Standard TCP/IP communication protocol for industrial applications Parameters set up center and administrator management center Built-in decoder to transfer analog signal through sound card into digital Head of the network audio system Collect and delivery sound over the internet Built-in weekly timer to program over music or sound files to automatically broadcast to designated zone at pre-set time Built-in system status display to surveillance each unit is working conditions Direct manual selected priority music broadcast or zone paging License code registration software Password protection to change configuration and log in Remote set up and easy maintenance Support more than 1, 00 tasks transmitted simultaneously Nine priority levels for different users Customized-mapped connection diagram is available Easy to inter-work with third party system like CCTV, door access system and home automation system www. itc-pa. com. cn, info@itc-pa. com. cn

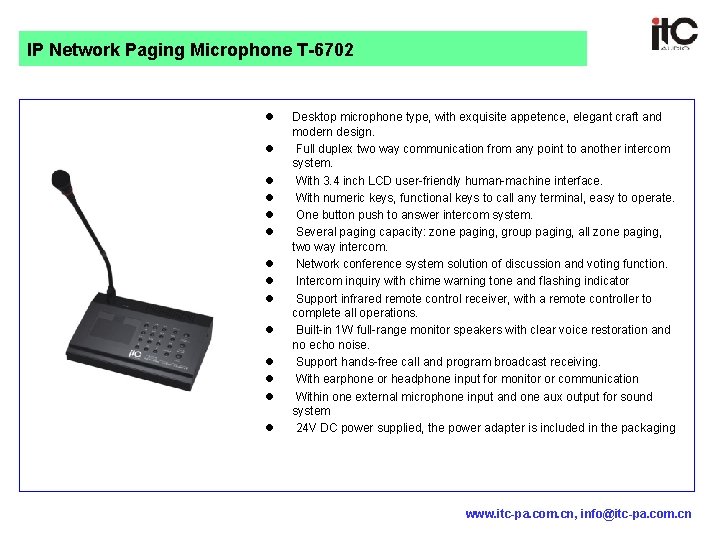

IP Network Paging Microphone T-6702 l l l l Desktop microphone type, with exquisite appetence, elegant craft and modern design. Full duplex two way communication from any point to another intercom system. With 3. 4 inch LCD user-friendly human-machine interface. With numeric keys, functional keys to call any terminal, easy to operate. One button push to answer intercom system. Several paging capacity: zone paging, group paging, all zone paging, two way intercom. Network conference system solution of discussion and voting function. Intercom inquiry with chime warning tone and flashing indicator Support infrared remote control receiver, with a remote controller to complete all operations. Built-in 1 W full-range monitor speakers with clear voice restoration and no echo noise. Support hands-free call and program broadcast receiving. With earphone or headphone input for monitor or communication Within one external microphone input and one aux output for sound system 24 V DC power supplied, the power adapter is included in the packaging www. itc-pa. com. cn, info@itc-pa. com. cn

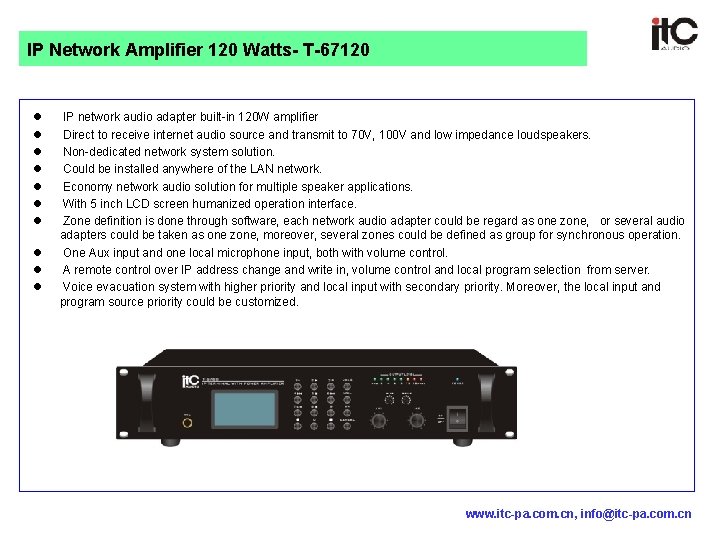

IP Network Amplifier 120 Watts- T-67120 l l l l l IP network audio adapter built-in 120 W amplifier Direct to receive internet audio source and transmit to 70 V, 100 V and low impedance loudspeakers. Non-dedicated network system solution. Could be installed anywhere of the LAN network. Economy network audio solution for multiple speaker applications. With 5 inch LCD screen humanized operation interface. Zone definition is done through software, each network audio adapter could be regard as one zone, or several audio adapters could be taken as one zone, moreover, several zones could be defined as group for synchronous operation. One Aux input and one local microphone input, both with volume control. A remote control over IP address change and write in, volume control and local program selection from server. Voice evacuation system with higher priority and local input with secondary priority. Moreover, the local input and program source priority could be customized. www. itc-pa. com. cn, info@itc-pa. com. cn

CD/Mp 3 Player with Tuner-T-2221 l l l l l 1 U height and both tabletop & rack mount type Built-in CD player, MP 3, tuner & remote control USB & SD inputs on front panel for MP 3 player AM/FM tuner each memory of 99 bands One CD/MP 3 stereo output and one tuner stereo output Two florescent screens to display in English CD/MP 3 and tuner separated Eject, play, stop, play mode, prev, next, USB/SD & mute functional buttons for CD/MP 3 player AM/FM, ST/MON, MEO, Auto/Manual, Up, down & 1 -6 number buttons for tuner Remote control over music selection and volume control www. itc-pa. com. cn, info@itc-pa. com. cn

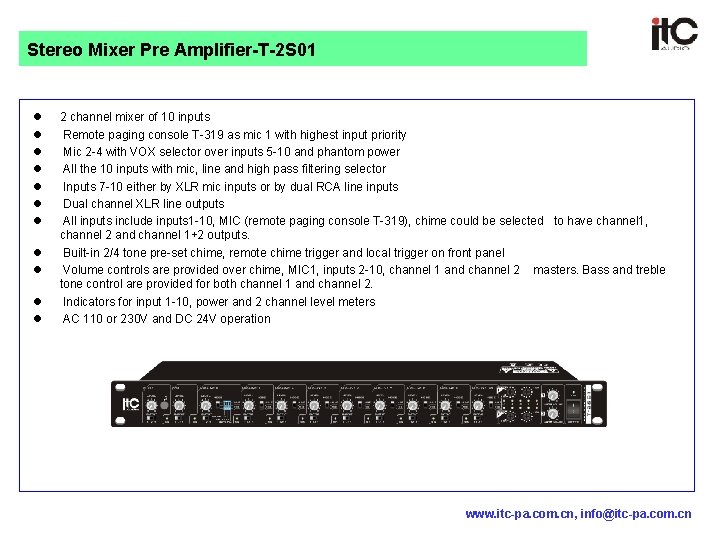

Stereo Mixer Pre Amplifier-T-2 S 01 l l l 2 channel mixer of 10 inputs Remote paging console T-319 as mic 1 with highest input priority Mic 2 -4 with VOX selector over inputs 5 -10 and phantom power All the 10 inputs with mic, line and high pass filtering selector Inputs 7 -10 either by XLR mic inputs or by dual RCA line inputs Dual channel XLR line outputs All inputs include inputs 1 -10, MIC (remote paging console T-319), chime could be selected to have channel 1, channel 2 and channel 1+2 outputs. Built-in 2/4 tone pre-set chime, remote chime trigger and local trigger on front panel Volume controls are provided over chime, MIC 1, inputs 2 -10, channel 1 and channel 2 masters. Bass and treble tone control are provided for both channel 1 and channel 2. Indicators for input 1 -10, power and 2 channel level meters AC 110 or 230 V and DC 24 V operation www. itc-pa. com. cn, info@itc-pa. com. cn

Ceiling Speaker-T-150 U l l l 2 channel mixer of 10 inputs Remote paging console T-319 as mic 1 with highest input priority Mic 2 -4 with VOX selector over inputs 5 -10 and phantom power All the 10 inputs with mic, line and high pass filtering selector Inputs 7 -10 either by XLR mic inputs or by dual RCA line inputs Dual channel XLR line outputs All inputs include inputs 1 -10, MIC (remote paging console T-319), chime could be selected to have channel 1, channel 2 and channel 1+2 outputs. Built-in 2/4 tone pre-set chime, remote chime trigger and local trigger on front panel Volume controls are provided over chime, MIC 1, inputs 2 -10, channel 1 and channel 2 masters. Bass and treble tone control are provided for both channel 1 and channel 2. Indicators for input 1 -10, power and 2 channel level meters AC 110 or 230 V and DC 24 V operation www. itc-pa. com. cn, info@itc-pa. com. cn

Ceiling Speaker-T-105 U l l l l l Built-in 100 v/70 v transformer In-ceiling type loudspeaker 5” speaker unit Power taps 1. 5 W, 3 W & 6 W @100 V Metal grille & ABS baffle Paint in RAL 9016 white Power Taps @100 V 1. 5 W, 3 W, 6 W Power Taps @70 V 0. 75 W, 1. 5 W, 3 W Impedance Black: Com Red: 6. 7 KΩ Green: 3. 3 KΩ White: 1. 7 KΩ SPL(1 W/1 M) 89 d. B Max. SPL (Rated W/1 M) 96 d. B Frequency Response (-10 d. B) 80 -16 KHz Finish Baffle: ABS, White Grille: Steel, White Speaker Driver 5" × 1 Cutout Size 145 mm Dimensions 170 × 80 mm Weight 0. 75 Kg Mounting Spring-clip www. itc-pa. com. cn, info@itc-pa. com. cn

Wall Mount Speaker-T-778 P l l l l Built-in 100 v/70 v transformer Wall mount type loudspeaker 8” +2” two ways speaker unit Power taps 5 w-10 w-20 w-40 w-80 w @100 V Metal grille, ABS enclosure and stainless mounting kit Power Taps @100 V 5 W, 10 W, 20 W, 40 W, 80 W Power Taps @70 V 2. 5 W, 10 W, 20 W, 40 W Impedance Balck: Com Red: 2 KΩ/1 KΩ/500Ω/250Ω/125Ω SPL(1 W/1 M) 94 d. B Max. SPL (Rated W/1 M) 113 d. B Frequency Response (-10 d. B) 100 -17 KHz Finish Baffle: ABS, Black/White Grille: Steel, Black/White Speaker Driver 8" × 1 2" × 1 Dimensions 280× 225× 375 mm Weight 6. 2 Kg Mounting With mounting bracket fixed by screw www. itc-pa. com. cn, info@itc-pa. com. cn

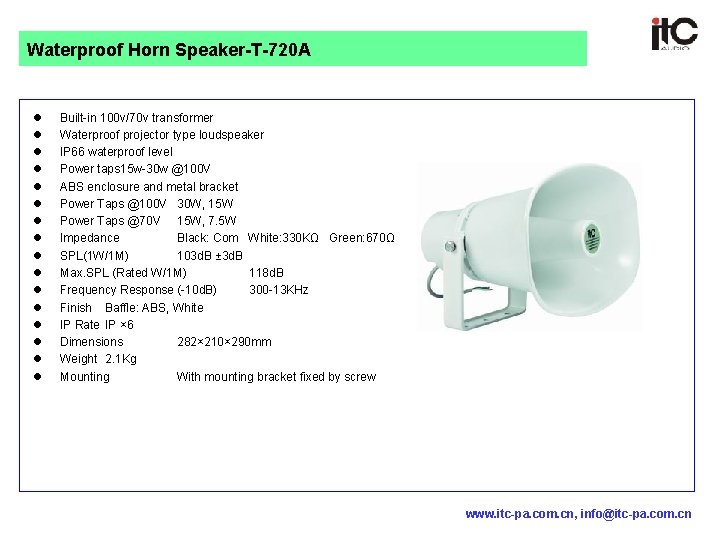

Waterproof Horn Speaker-T-720 A l l l l Built-in 100 v/70 v transformer Waterproof projector type loudspeaker IP 66 waterproof level Power taps 15 w-30 w @100 V ABS enclosure and metal bracket Power Taps @100 V 30 W, 15 W Power Taps @70 V 15 W, 7. 5 W Impedance Black: Com White: 330 KΩ Green: 670Ω SPL(1 W/1 M) 103 d. B ± 3 d. B Max. SPL (Rated W/1 M) 118 d. B Frequency Response (-10 d. B) 300 -13 KHz Finish Baffle: ABS, White IP Rate IP × 6 Dimensions 282× 210× 290 mm Weight 2. 1 Kg Mounting With mounting bracket fixed by screw www. itc-pa. com. cn, info@itc-pa. com. cn

Pendant Speaker-T-200 B l l l l Built-in 100 v/70 v transformer Pendant type loudspeaker 6” full range speaker driver Power taps at 3. 75 w-7. 5 w-15 w @100 V Aluminum enclosure & metal grille of white color Power Taps @100 V 15 W, 7. 5 W, 3. 75 W Power Taps @70 V 7. 5 W, 3. 75 W, 1. 85 W Impedance Yellow: 1. 3 KΩ Red: 670 KΩ Green: 2. 6 KΩ SPL(1 W/1 M) 92 d. B Max. SPL (Rated W/1 M) 104 d. B Frequency Response (-10 d. B) 150— 14 KHz Finish Baffle: Aluminum, White Grille: Aluminum, White Speaker Driver 6" × 1 Dimensions 172× 250 mm Weight 2. 6 Kg Mounting With mounting bracket fixed by screw www. itc-pa. com. cn, info@itc-pa. com. cn
