Availability of Network Application Services Candidacy Exam Jong

Availability of Network Application Services Candidacy Exam Jong Yul Kim February 3, 2010

Motivation n Critical systems are being deployed on the internet, for example: q q q n Next Generation 9 -1 -1 Business transactions Smart grid How do we enhance the availability of these critical services?

Scope n What can application service providers do to enhance end-to-end service availability? X n X The problems are that: q The underlying internet is unreliable. q Servers fail.

Scope n Level of abstraction: system design q q n On top of networks as clouds (but we can probe it. ) Using servers as nodes The following are important for availability, but not in scope: q Techniques that ISPs use. q Techniques to enhance availability of individual components of the system. q Defense against security vulnerability attacks.

Contents ① ② ③

The underlying internet is unreliable. n Symptoms of unavailability in the application q q n Web : “Unable to connect to server. ” Vo. IP : call establishment failure, call drop[2] Symptoms of network during unavailability q q High percentage of packet loss Long bursts of packet loss[1, 2] n q 1 2 23% of lost packets belong to outages[2] Packet delay[2] Dahlin et al. End-to-End WAN Service Availability. IEEE/ACM TON 2003. Jiang and Schulzrinne. Assessment of Vo. IP Service Availability in the Current Internet. PAM 2003.

The underlying internet is unreliable. n Network availability figures q q 1 2 Paths to popular web servers: 99. 6%[1] Call success probability: 99. 53%[2] Gummadi et al. Improving the Reliability of Internet Paths with One-hop Source Routing. OSDI 2004. Jiang and Schulzrinne. Assessment of Vo. IP Service Availability in the Current Internet. PAM 2003.

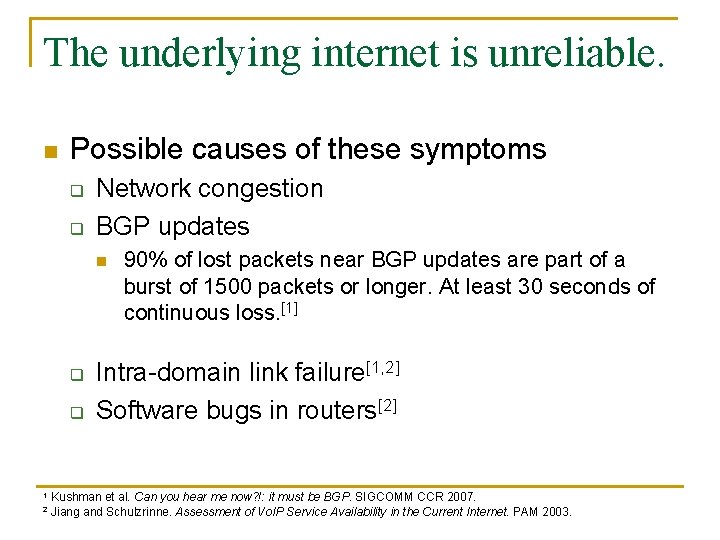

The underlying internet is unreliable. n Possible causes of these symptoms q q Network congestion BGP updates n q q 1 2 90% of lost packets near BGP updates are part of a burst of 1500 packets or longer. At least 30 seconds of continuous loss. [1] Intra-domain link failure[1, 2] Software bugs in routers[2] Kushman et al. Can you hear me now? !: it must be BGP. SIGCOMM CCR 2007. Jiang and Schulzrinne. Assessment of Vo. IP Service Availability in the Current Internet. PAM 2003.

The underlying internet is unreliable. n Challenges q q Quick re-routing around network failures With limited control of the network

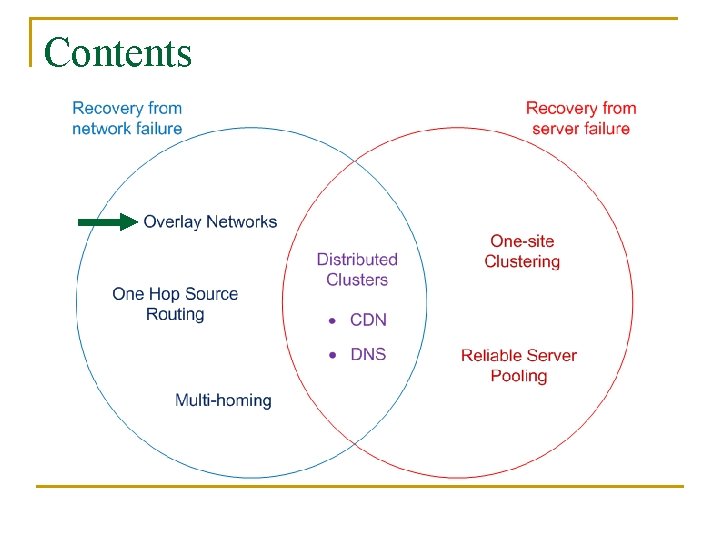

Contents

Resilient Overlay Network[1] n n An overlay of cooperative nodes inside the network Each node is like a router q q n They actively probe the path between themselves q q 1 It has its own forwarding table Link-state algorithm used to construct map of the RON network Fully meshed = Fast detection of path outages Andersen et al. Resilient Overlay Networks. SOSP 2001.

Resilient Overlay Network n n n Outage defined as outage(r, p) = 1 when Observed packet loss rate averaged over an interval r is larger than p on the path. “RON Win” defined as when average loss rate on the Internet ≥ p, RON loss rate < p Results on right r = 30 minutes 1 RON 1 12 nodes >64 hours Andersen et al. Resilient Overlay Networks. SOSP 2001. RON 2 16 nodes >85 hours

Resilient Overlay Network n Merits q q Re-routes quickly around network failures Good recovery from core network failures n Limitations q q Does not recover from edge failures or last-hop failures Active probing is expensive n q q Clients and servers cannot use RON directly. Need to have a strategy to deploy RON nodes. n 1 Andersen et al. Resilient Overlay Networks. SOSP 2001. Trades off scalability for reliability[1] May violate ISP contracts

Contents

One-Hop Source Routing Intermediaries X n Main idea is to try another path through an intermediary if mine does not work. q q 1 “Spray and pray” Issue a random packet to 4 others every 5 seconds and see if they succeed (called random-4) Gummadi et al. Improving the Reliability of Internet Paths with One-hop Source Routing. OSDI 2004.

One-Hop Source Routing n 1 . Results Gummadi et al. Improving the Reliability of Internet Paths with One-hop Source Routing. OSDI 2004.

One-Hop Source Routing n 1 . Results Gummadi et al. Improving the Reliability of Internet Paths with One-hop Source Routing. OSDI 2004.

One-Hop Source Routing n Merits q q q n Limitations Simple, stateless q Good for applications where users are tolerant of faults q Good for rerouting around core network failures q Not always guaranteed to find alternate path Cannot reroute around edge network failures Intermediaries n n n 1 . How does the client find them? Where to place them? Will they cooperate? Gummadi et al. Improving the Reliability of Internet Paths with One-hop Source Routing. OSDI 2004.

Contents

Multi-homing n Use multiple ISPs to allow network path redundancy at the edge network. Figure: Availability gains by adding best 2 and 3 ISPs based on RTT performance. (Overlay routing achieved 100% availability during the 5 -day testing period. )[1] 1 Akella et al. A Comparison of Overlay Routing and Multihoming Route Control. SIGCOMM 2004.

Multi-homing n Availability depends on choosing: [1] q q n 1 2 Good upstream ISPs that do not have path overlaps upstream Hints at the need for path diversity Some claim that gains are comparable to overlay routing. [2] Akella et al. A Measurement-Based Analysis of Multihoming. SIGCOMM 2003. Akella et al. A Comparison of Overlay Routing and Multihoming Route Control. SIGCOMM 2004.

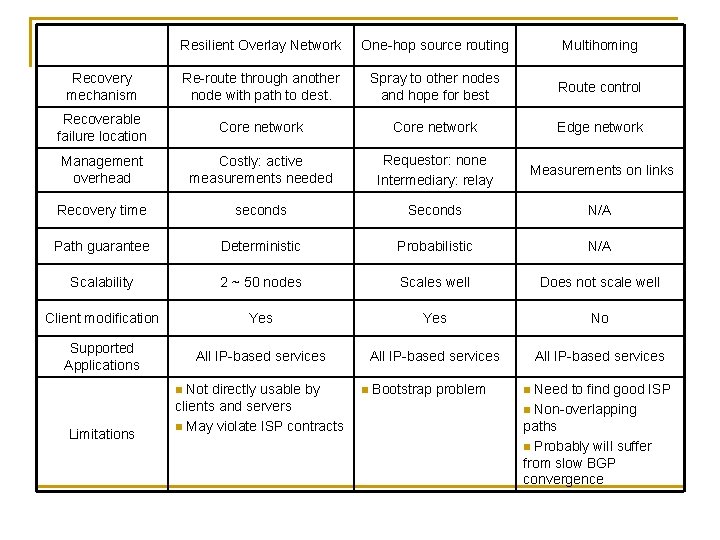

Resilient Overlay Network One-hop source routing Multihoming Recovery mechanism Re-route through another node with path to dest. Spray to other nodes and hope for best Route control Recoverable failure location Core network Edge network Management overhead Costly: active measurements needed Requestor: none Intermediary: relay Measurements on links Recovery time seconds Seconds N/A Path guarantee Deterministic Probabilistic N/A Scalability 2 ~ 50 nodes Scales well Does not scale well Client modification Yes No Supported Applications All IP-based services Not directly usable by clients and servers n May violate ISP contracts n Limitations n Bootstrap problem Need to find good ISP n Non-overlapping paths n Probably will suffer from slow BGP convergence n

Contents ②

Server failures. n Hardware failures q n More use of commodity hardware and components “Well designed and manufactured HW: >1% fail/year. ”[1] Software failures q Concurrent programs are prevalent and so are bugs. n n Environmental failures q q Electricity outage Operator error 1 Patterson. 2 Cases of introducing another bug while trying to fix one. [1] Recovery oriented computing: A new research agenda for a new century. Keynote address, HPCA 2002. Lu et al. Learning from Mistakes – A comprehensive study on real world concurrency bug characteristics. ASPLOS 2008.

Contents

One-site Clustering n Three models in organizing servers in a cluster[1] q q q 1 Cluster-based Web system one Virtual IP address exposed to client one Virtual IP address shared by all servers Virtual Web cluster Distributed Web system IP addresses of servers exposed to client Cardellini et al. The State of the Art in Locally Distributed Web-Server Systems. ACM Computing Survey 2002.

Cluster-based Web System n One IP address exposed to client n Request routing q n Server selection q q q 1 By the web switch Content-aware Client-aware Server-aware Cardellini et al. The State of the Art in Locally Distributed Web-Server Systems. ACM Computing Survey 2002.

Virtual Web System n All servers share same IP address n Request routing q q n Server selection q 1 All servers have same MAC address Or layer 2 multicast By hash function Cardellini et al. The State of the Art in Locally Distributed Web-Server Systems. ACM Computing Survey 2002.

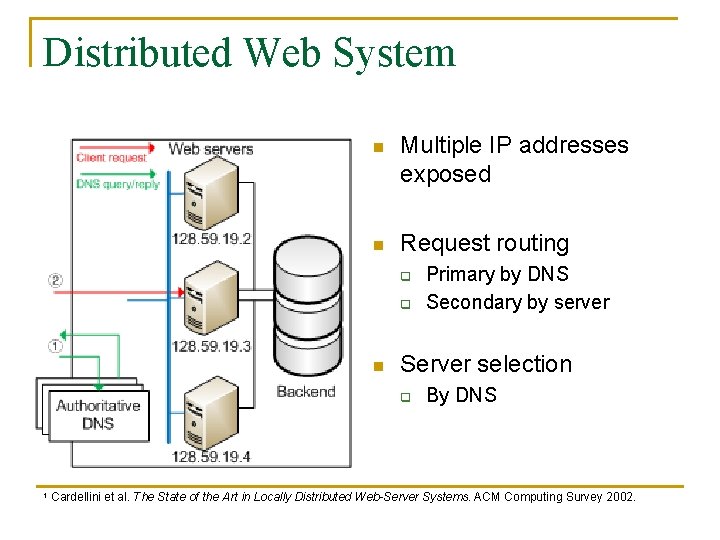

Distributed Web System n Multiple IP addresses exposed n Request routing q q n Server selection q 1 Primary by DNS Secondary by server By DNS Cardellini et al. The State of the Art in Locally Distributed Web-Server Systems. ACM Computing Survey 2002.

Effects of design on service availability Cluster-based Virtual Web Distributed Web Server selection Web switch Hash function Authoritative DNS, Servers Request routing IP or MAC addr MAC uni-/multi-cast IP address Load Balancing Web switch None Using DNS Group membership Not necessary Not possible (Need another network) Possible Single Point Of Failure Web switch None (can be redundant) (all servers) DNS server (can be redundant) Failover method Web switch decides N/A Takeover IP using ARP Fault detection Heart beat N/A Heart beat Other limitations None Hash function is static DNS records are cached by client

Improving Availability of PRESS[1] Distributed Web Model n PRESS Web Server q q q n Availability mechanism q q q 1 Cooperative nodes Serve from cache instead of disk All servers have a map of where cached files are Servers are organized in a ring structure. Each sends heartbeat to next one in the ring. Three heartbeats missing: predecessor has crashed. Node restarts – broadcasts its IP address to join cluster again. Nagaraja et al. Quantifying and Improving the Availability of High-Performance Cluster-Based Internet Services. SC 2003.

Improving Availability of PRESS[1] Cluster-based Web Model! To enhance availability n 1. Add front-end node to mask failures n 2. 3. 4. Robust group membership Application-level heart beats Fault Model Enforcement n If there’s fault, crash whole node and restart. 99. 5% 99. 99% n Cluster-based model! Nagaraja et al. Quantifying and Improving the Availability of High-Performance Cluster-Based Internet Services. SC 2003. n 1 Layer 4 switch (LVS) with IP tunneling

Effects of design on service availability Best choice! Cluster-based Virtual Web Distributed Web Server selection Web switch Hash function Authoritative DNS, Servers Request routing IP or MAC addr MAC uni-/multi-cast IP address Load Balancing Web switch None Using DNS Group membership Not necessary Not possible (Need another network) Possible Single Point Of Failure Web switch None (can be redundant) (all servers) DNS server (can be redundant) Failover method Web switch decides N/A Takeover IP using ARP Fault detection Heart beat N/A Heart beat Other limitations None Hash function is static DNS records are cached by client

Contents

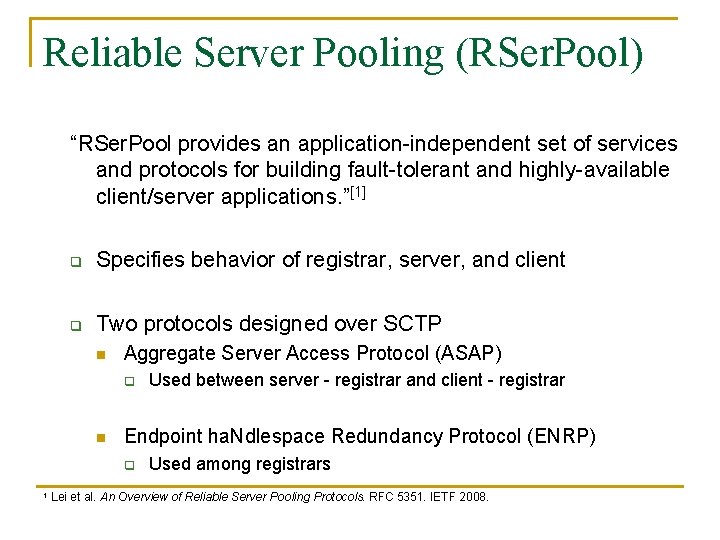

Reliable Server Pooling (RSer. Pool) “RSer. Pool provides an application-independent set of services and protocols for building fault-tolerant and highly-available client/server applications. ”[1] q Specifies behavior of registrar, server, and client q Two protocols designed over SCTP n Aggregate Server Access Protocol (ASAP) q n Endpoint ha. Ndlespace Redundancy Protocol (ENRP) q 1 Used between server - registrar and client - registrar Used among registrars Lei et al. An Overview of Reliable Server Pooling Protocols. RFC 5351. IETF 2008.

Reliable Server Pooling (RSer. Pool) Each registrar is home registrar to a set of servers. Each maintains a complete view of pools by synchronizing with each other. • Servers can add itself by registering to a registrar. That registrar becomes the home registrar. • Home registrar probes server status. • Clients cache list of servers from registrar. • Clients also report failures to registrar. Servers provide service through normal application protocol such as HTTP.

Registrars n Announce themselves to servers, clients, and other registrars using IP multicast or by static configuration. n Share all knowledge about pool with other registrars q q q n All server updates (registration, re-registration, deregistration) are announced by home registrar. Maintain connections to peer registrars using SCTP Checksum mechanism used to audit consistency of handlespace. Keeps the number of unreachability reports for each server in its pool and if some threshold is reached, the server is removed from the pool.

Fault detection mechanisms[1] Failed Component Detection by Detection Mechanism Client Server Application-specific Client Registrar Broken connection Server Client Application-specific Server Registrar ASAP Keep-Alive Timeout Server Registrar ASAP Endpoint Unreachable Registrar Client ASAP Request Timeout Registrar Server ASAP Request Timeout Registrar ENRP Presence Timeout Registrar ENRP Request Timeout 1 Dreibholz. Reliable Server Pooling – Evaluation, Optimization, and Extension of a Novel IETF Architecture. Ph. D. Thesis 2007.

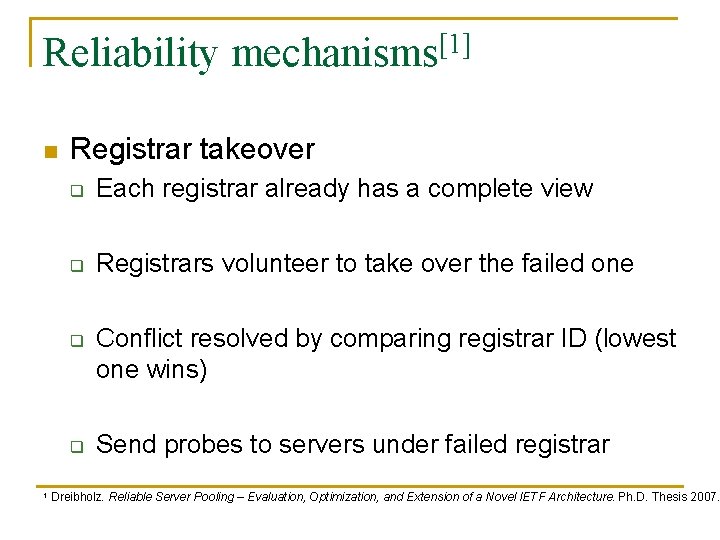

Reliability mechanisms[1] n Registrar takeover q Each registrar already has a complete view q Registrars volunteer to take over the failed one q q 1 Conflict resolved by comparing registrar ID (lowest one wins) Send probes to servers under failed registrar Dreibholz. Reliable Server Pooling – Evaluation, Optimization, and Extension of a Novel IETF Architecture. Ph. D. Thesis 2007.

Reliability mechanisms[1] n Server failover q 1 Uses client-side state-keeping mechanism n A state cookie is sent to the client via control channel. The cookie serves as a checkpoint. n When server fails, client connects to a new server and sends the state cookie. The new server picks up from that state. n Uses ASAP session layer between client and server. n Data and control channel are multiplexed in over a single connection to enforce correct order of transaction and cookie. Dreibholz. Reliable Server Pooling – Evaluation, Optimization, and Extension of a Novel IETF Architecture. Ph. D. Thesis 2007.

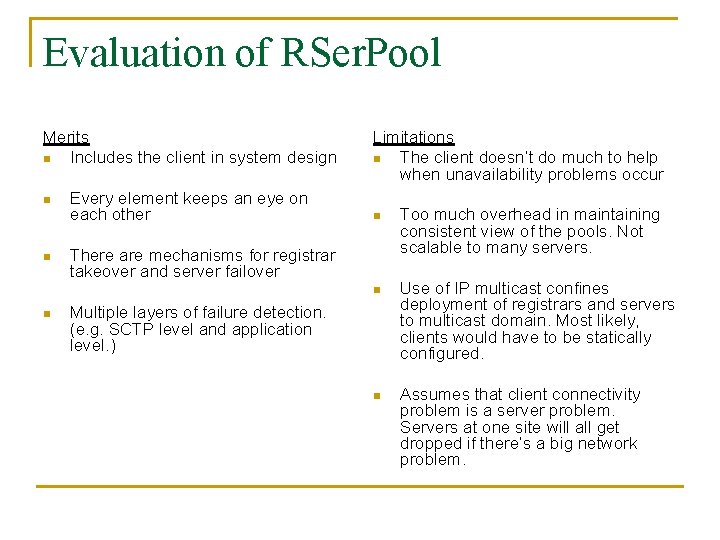

Evaluation of RSer. Pool Merits n Includes the client in system design n Every element keeps an eye on each other Limitations n The client doesn’t do much to help when unavailability problems occur n Too much overhead in maintaining consistent view of the pools. Not scalable to many servers. n Use of IP multicast confines deployment of registrars and servers to multicast domain. Most likely, clients would have to be statically configured. n Assumes that client connectivity problem is a server problem. Servers at one site will all get dropped if there’s a big network problem. There are mechanisms for registrar takeover and server failover Multiple layers of failure detection. (e. g. SCTP level and application level. )

Contents ③

Distributed Clusters n Distributed clusters q q n Intrinsically has both network path and server redundancy How can we utilize these redundancies? Study of availability techniques of q q Content Distribution Networks Domain Name System

Contents

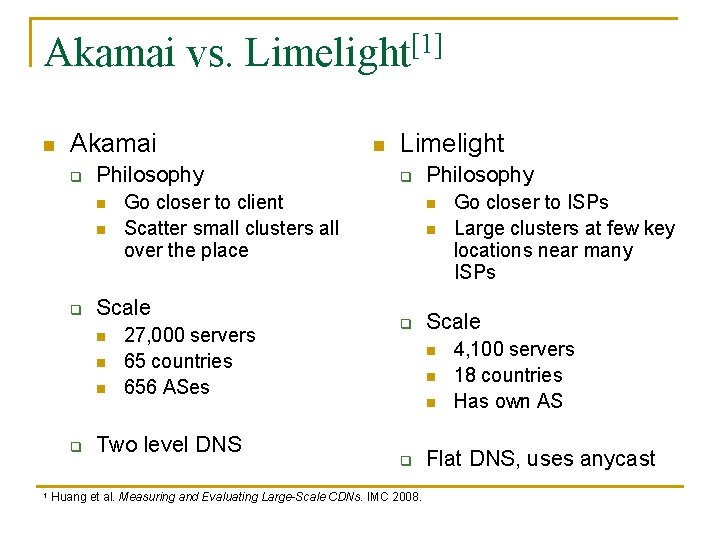

Akamai vs. Limelight[1] n Akamai q Philosophy n n q 1 Limelight q Go closer to client Scatter small clusters all over the place Scale n n 27, 000 servers 65 countries 656 ASes Two level DNS Philosophy n n q Scale n n n q Huang et al. Measuring and Evaluating Large-Scale CDNs. IMC 2008. Go closer to ISPs Large clusters at few key locations near many ISPs 4, 100 servers 18 countries Has own AS Flat DNS, uses anycast

Akamai vs. Limelight n Methodology q q n Results q n 1 Connect to port 80 once every hours. Failure = two consecutive connection error. Server and cluster availability is higher for Limelight. But service availability may be different! Huang et al. Measuring and Evaluating Large-Scale CDNs. IMC 2008.

Akamai Failure Model n Failure model “We assume that a significant and constantly changing number of components or other failures occur at all times in the network. ”[1] q q 1 Components: link, machine, rack, data center, multi-network… This leads having small clusters scattered in diverse ISPs and geographic locations. Afergan et al. Experience with some Principles for Building an Internet-Scale Reliable System. USENIX WORLDS 2005.

Akamai: scalability and availability n Use two-level DNS to direct clients to server q q n Top level returns low-level name servers in multiple regions Low level returns short DNS TTL (20 seconds) Servers use ARP to takeover a failed server Use internet for inter-cluster communication 1 Top level directs clients to a region e. g. g. akamai. net Region resolves lower level queries. Uses multi-path routing that’s directed by SW logic = overlay network? Afergan et al. Experience with some Principles for Building an Internet-Scale Reliable System. USENIX WORLDS 2005.

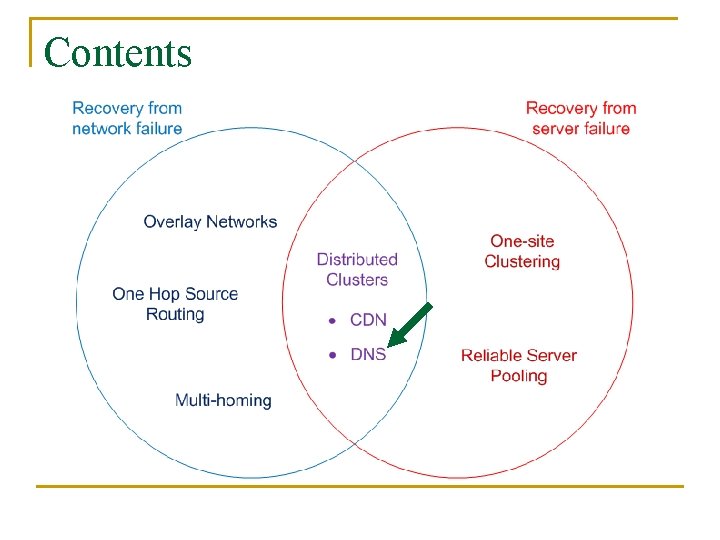

Contents

DNS Root Servers[1, 2] n Redundancy q Redundant hardware that takes over failed one with or without human intervention n q q n At least 3 recommended, with one in a remote site[3] Backups of the zone file stored at off-site locations Connectivity to the internet Diversity q Geographically located in 130 places in 53 countries n q q q Topological diversity matters more Hardware, software, operating system of servers Diverse organizations, personnel, operational processes Distribution of zone files within root server operator Bush et al. Root Name Server Operational Requirements. RFC 2870. IETF 2000. http: //www. icann. org/en/committees/security/dns-security-update-1. htm 3 Elz et al. Selection and Operation of Secondary DNS Servers. RFC 2182. IETF 1997. 1 2

The use of anycast for availability[1] n Basic anycast q q n Hierarchical anycast q q q 1 Abley, Announce identical IP address Routing system takes client request to closest node Global vs. local nodes If any node fails, stop announcement Global node takes over automatically Hierarchical Anycast for Global Service Distribution. ISC Technical Note 2003 -1. 2003.

Is anycast good for everyone? [1] n Not really… n Packets for long sessions may go to another node if the routing dynamics change q n Service time and stability of routing A lot of routing considerations q q q 1 Abley Aggregated prefixes Multiple services from a prefix Consideration of route propagation radius and Lindqvist, Operation of Anycast Services. RFC 4786. IETF 2006.

Contents

Conclusion n Techniques presented here attempt to recover from either network failure or server failure through redundancy q q n There is redundancy in network path Server redundancy can be handled An application service provider may have to use a combination of these techniques.

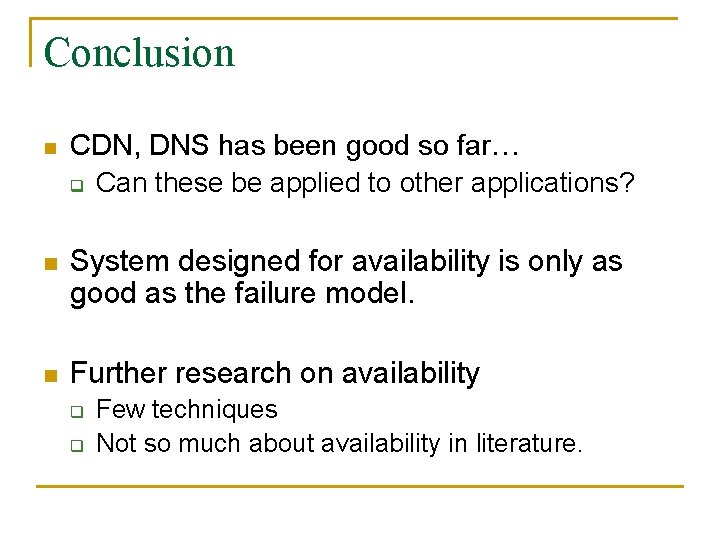

Conclusion n CDN, DNS has been good so far… q Can these be applied to other applications? n System designed for availability is only as good as the failure model. n Further research on availability q q Few techniques Not so much about availability in literature.
