VINI Virtual Network Infrastructure Jennifer Rexford Princeton University
- Slides: 40
VINI: Virtual Network Infrastructure Jennifer Rexford Princeton University http: //www. cs. princeton. edu/~jrex 1
The Internet: A Remarkable Story • Tremendous success – From research experiment to global communications infrastructure • The brilliance of under-specifying – Best-effort packet delivery service – Key functionality at programmable end hosts • Enabled massive growth and innovation – Ease of adding hosts and link technologies – Ease of adding services (Web, P 2 P, Vo. IP, …) • But, change is easy only at the edge… 2
Rethinking the Network Architecture • But, the Internet is showing signs of age – Security, mobility, availability, manageability, … • Challenges rooted in early design decisions – Weak notion of identity, tying address & location – Not just a matter of redesigning a single protocol • Revisit definition and placement of function – What are the types of nodes in the system? – What are their powers and limitations? – What information do they exchange? 3
Hurdle #1: Deployment Dilemma • An unfortunate catch-22 – Must deploy an idea to demonstrate feasibility – Can’t get an undemonstrated idea deployed • A corollary: the testbed dilemma – Production network: real users, but can’t change – Research testbed: easy changes, but no users • Bad for the research community – Good ideas sit on the shelf – Promising ideas do not grow up into good ones 4
Hurdle #2: Too Many Design Goals • Many different system-engineering goals – Scalability, reliability, security, privacy, robustness, performance guarantees, … – Perhaps we cannot satisfy all of them at once • Applications have different priorities – Online banking: security – Web surfing: privacy, high throughput – Voice and gaming: low delay and loss • Compromise solution isn’t good for anyone 5
Hurdle #3: Coordination Constraint • Difficult to deploy end-to-end services –Benefits only when most networks deploy –No single network wants to deploy first • Many deployment failures –Qo. S, IP multicast, secure routing, IPv 6, … –Despite solving real, pressing problems • Increasing commoditization of ISPs 1 sender 2 3 receiver 6
Virtualization to the Rescue • Multiple customized architectures in parallel – Multiple logical routers on a single platform – Isolation of resources, like CPU and bandwidth – Programmability for customizing each “slice” 7

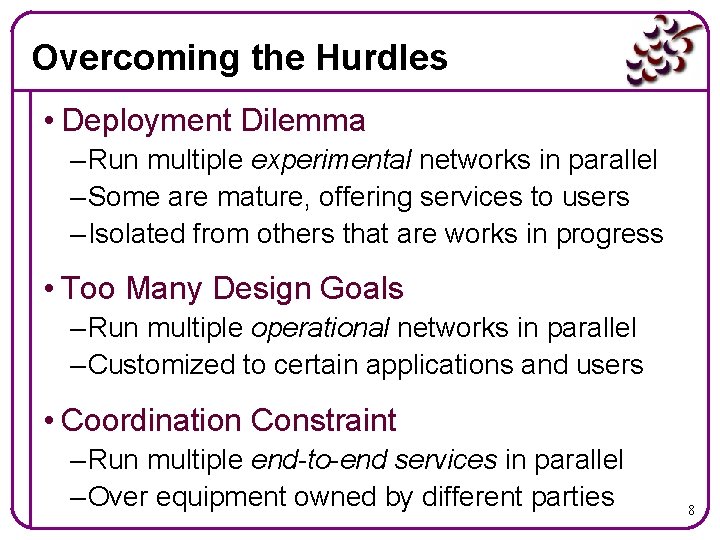

Overcoming the Hurdles • Deployment Dilemma – Run multiple experimental networks in parallel – Some are mature, offering services to users – Isolated from others that are works in progress • Too Many Design Goals – Run multiple operational networks in parallel – Customized to certain applications and users • Coordination Constraint – Run multiple end-to-end services in parallel – Over equipment owned by different parties 8
Three Projects: GENI, VINI, CABO • Global Environment for Network Innovations – Large initiative for a shared experimental facility – Jointly between NSF CISE division & community – Distributed systems, wireless, optics, backbone • VIrtual Network Infrastructure – Baby step toward the design of GENI – Systems research on network virtualization • Concurrent Architectures Better than One – Clean-slate architecture based on virtualization – Economic refactoring for end-to-end services See http: //www. geni. net and http: //www. vini-veritas. net 9
VINI: VIrtual Network Infrastructure 10
VINI Offers “Controlled Realism” Arbitrary, emulated Actual network Topology Synthetic or traces Real clients, servers Traffic Inject faults, anomalies Observed in operational network Network Events • Start with a controlled experiment • Relax constraints, study effects • Result: an operational virtual network that’s – Feasible – Valuable – Robust – Scalable, etc. 11
Fixed Infrastructure Deployed VINI nodes in National Lambda Rail and Abilene, and Po. Ps in Seattle and Virginia 12
Shared Infrastructure Experiments given illusion of dedicated hardware 13

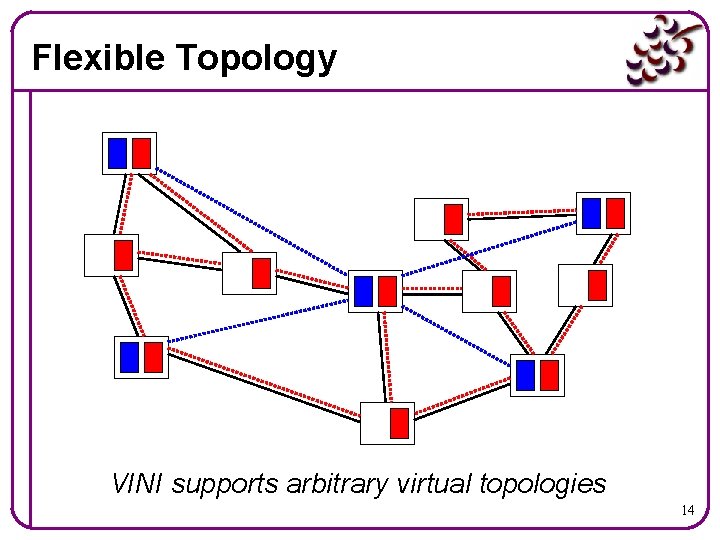

Flexible Topology VINI supports arbitrary virtual topologies 14
Network Events VINI exposes, can inject network failures 15
External Connectivity c s Experiments can carry traffic for real end-users 16
External Routing Adjacencies BGP c BGP s BGP Experiments can participate in Internet routing 17

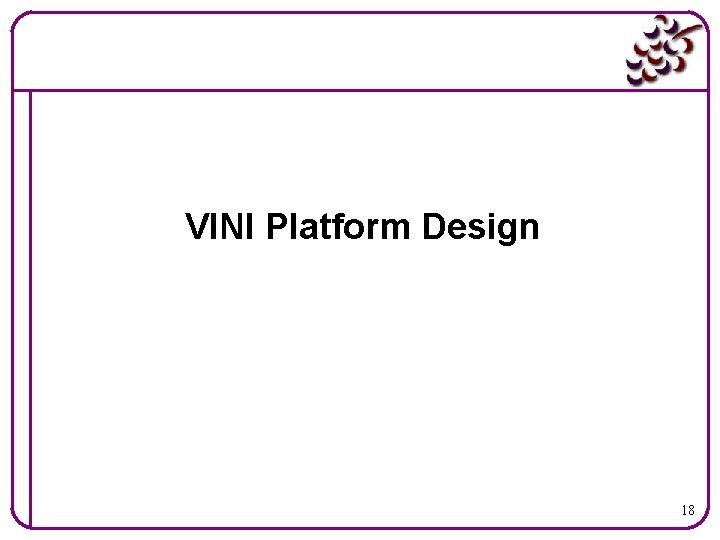

VINI Platform Design 18
Virtualizingthe Computer • Starting with the Planet. Lab software – Each experiment has its own virtual machine – Each has “root” in its own VM, can customize – Reserve processing resources per VM Node Mgr Local Admin VM 1 VM 2 … VM n Virtual Machine Monitor (VMM) (Linux++) Planet. Lab node 19
Creating the Virtual Topology XORP (routing protocols) • Goal: real routing protocols on virtual network topologies • Various routing protocols (BGP, OSPF, RIP, IP multicast) • Run unmodified routing software in a virtual machine VM 20

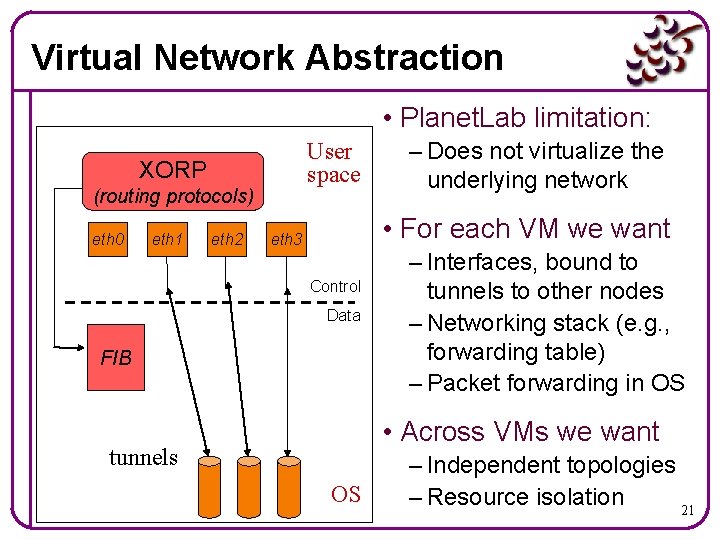

Virtual Network Abstraction • Planet. Lab limitation: User space XORP (routing protocols) eth 0 eth 1 eth 2 – Does not virtualize the underlying network • For each VM we want eth 3 Control Data FIB – Interfaces, bound to tunnels to other nodes – Networking stack (e. g. , forwarding table) – Packet forwarding in OS • Across VMs we want tunnels OS – Independent topologies – Resource isolation 21
Network Name Spaces (Net. NS) • Net. NS extension to Linux – Virtualizes the network stack – Each network stack bound to user process(es) • Provides us with – Separate forwarding table (FIB) – Separate interfaces • But, a few challenges remain – Connecting interfaces to tunnels – Supporting non-IP protocols – Providing isolation between virtual nodes 22
Connecting Interfaces to Tunnels User space XORP (routing protocols) eth 0 eth 1 eth 2 eth 3 • Ethernet switch – Linux bridge module – Connects all interfaces – And all tunnels • Short bridge FIB etun 1 etun 2 – No MAC learning – No forwarding look-up – No frame header copying etun 3 Short Bridge • EGRE tunnels OS – Carry Ethernet frames – Support non-IP protocols 23
Isolation Between Virtual Networks XORP (routing protocols) eth 0 eth 1 eth 2 eth 3 User • Virtual host (user space) space – Experimenter’s software – Protocols, applications • Virtual host (OS) FIB etun 1 etun 2 etun 3 OS – Forwarding tables – Virtual Ethernet interfaces • Shared substrate (OS) Short Bridge – Tunnels between nodes – Enforcing rate limits OS 24
Ongoing Work on Packet Forwarding • Tension between three goals – High-speed packet forwarding – Customization of the data plane – Sharing of the data plane • Step #1: Greater flexibility – Customized data planes in the kernel – Virtualizing Click to support different virtual hosts • Step #2: Greater speed – Customized data planes in an FPGA – Virtualizing the Net. FPGA board from Stanford 25
Example Experiment on VINI 26
Intra-domain Route Changes s 856 2095 700 260 1295 c 639 366 548 902 1893 233 587 846 1176 Watch OSPF route convergence on Abilene 27
Ping During Link Failure Link down Link up Routes converging Abilene RTT: 73 ms 28
TCP Throughput Link down Link up Zoom in 29
Arriving TCP Packets VINI enables Slow start a virtual network to behave like a real network Retransmit lost packet 30
Other Example VINI Experiments • Scaling Ethernet to a large enterprise • Routing-protocol support for mobile hosts • Network-layer support for overlay services • Piggybacking diagnostic data on packets • <Insert your prototype system here> • Multiple solutions to multiple problems… 31
Where does all this experimentation lead us? 32
The Case for Pluralism • Suppose we can break down the barriers… – Enable realistic evaluation of new ideas – Overcome the coordination constraint • Maybe there isn’t just one right answer – Maybe the problem is over-constrained – Too many goals, some of them conflicting • Maybe the goals change over time – And we’ll always be reinventing ourselves – The only constant is change • So, perhaps we should design for change 33
Different Services, Different Goals • Performance – Low delay/jitter: Vo. IP and online gaming – High throughput: bulk file transfer • Security/privacy – High security: online banking and e-commerce – High privacy: Web surfing • Scalability – Very scalable: global Internet reachability – Not so scalable: communication in small groups 34
Applications Within an Single ISP • Customized virtual networks – Security for online banking – Fast-convergence for Vo. IP and gaming – Specialized handling of suspicious traffic • Testing and deploying new protocols – Evaluate on a separate virtual network – Rather than in a dedicated test lab – Large scale and early-adopter traffic • Leasing virtual components to others – ISPs have unused node and link capacity – Can allow others to construct services on top 35
Economic Refactoring in CABO Infrastructure Providers Service Providers • Infrastructure providers: Maintain routers, links, data centers, and other physical infrastructure • Service providers: Offer end-to-end services (e. g. , layer 3 VPNs, SLAs, etc. ) to users Today: ISPs try to play both roles, and cannot offer end-to-end services 36

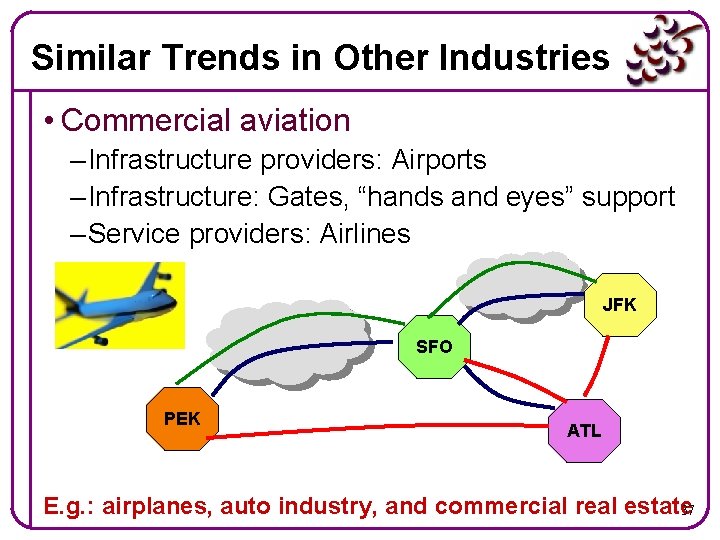

Similar Trends in Other Industries • Commercial aviation – Infrastructure providers: Airports – Infrastructure: Gates, “hands and eyes” support – Service providers: Airlines JFK SFO PEK ATL E. g. : airplanes, auto industry, and commercial real estate 37
Communications Networks, Too! • Two commercial examples in IP networks – Packet Fabric: share routers at exchange points – FON: resells users’ wireless Internet connectivity Broker • FON economic refactoring – Infrastructure providers : Buy upstream connectivity – Service provider: FON as the broker (www. fon. com) 38
Enabling End-to-End Services • Secure routing protocols • Multi-provider Virtual Private Networks • Paths with end-to-end performance guarantees Today Competing ISPs with different goals must coordinate Cabo Single service provider controls end-to-end path 39
Conclusion • The Internet needs to change – Security, mobility, availability, management, … • We can overcome barriers to change – Enable realistic experimentation with new ideas – Enable multiple designs with different trade-offs – Enable end-to-end deployment of new services • Network virtualization is the key – Run many research experiments in parallel – Offer customized end-to-end services in parallel • VINI as an enabling experimental platform 40
