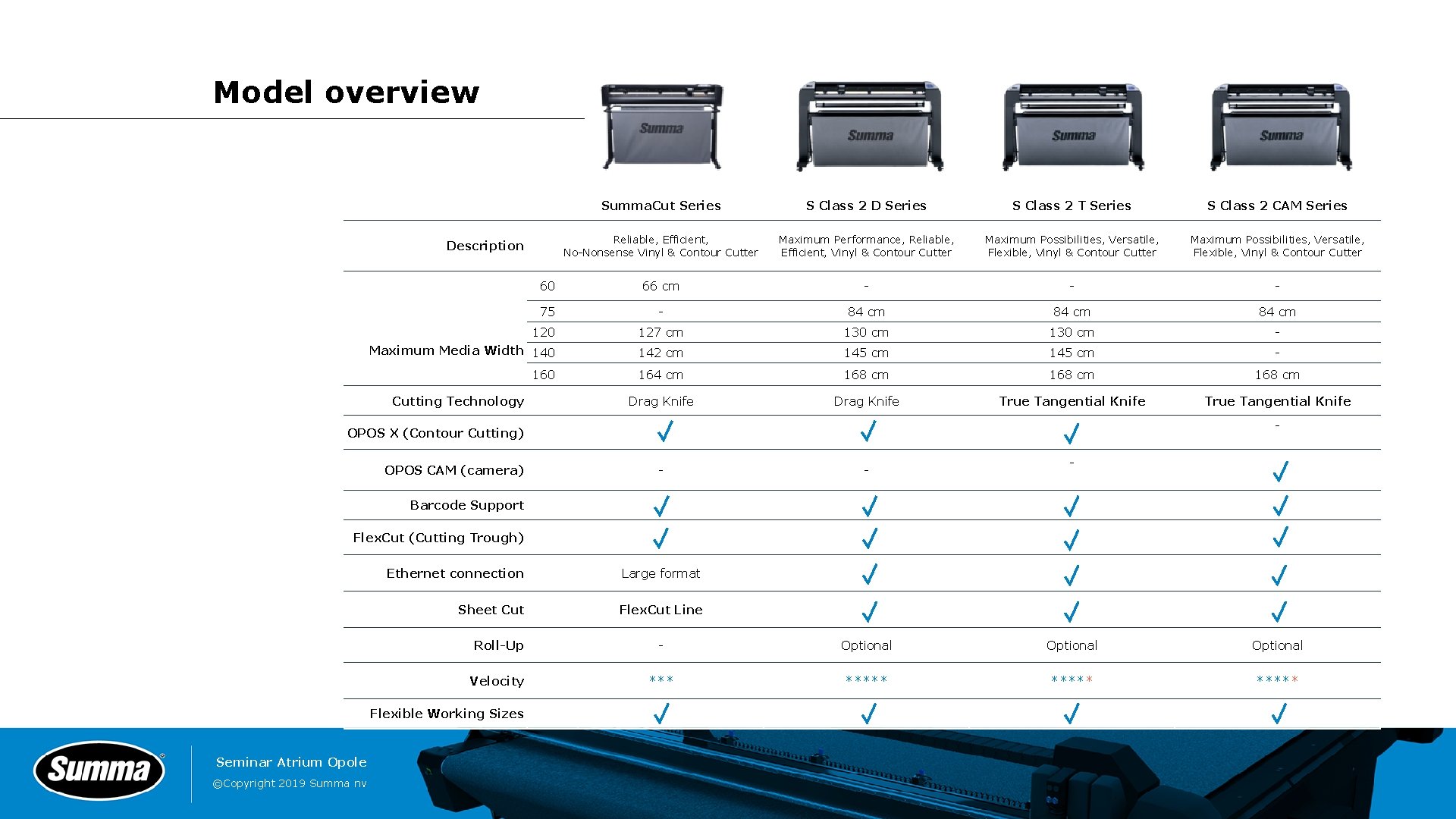

Model overview Summa. Cut Series S Class 2 D Series S Class 2 T Series S Class 2 CAM Series Reliable, Efficient, No-Nonsense Vinyl & Contour Cutter Maximum Performance, Reliable, Efficient, Vinyl & Contour Cutter Maximum Possibilities, Versatile, Flexible, Vinyl & Contour Cutter 60 66 cm - - - 75 - 84 cm 120 127 cm 130 cm - Maximum Media Width 140 142 cm 145 cm - 160 164 cm 168 cm Drag Knife True Tangential Knife Description Cutting Technology - OPOS X (Contour Cutting) OPOS CAM (camera) - - - Barcode Support Flex. Cut (Cutting Trough) Ethernet connection Large format Sheet Cut Flex. Cut Line Roll-Up - Optional Velocity ***** Flexible Working Sizes Seminar Atrium Opole ©Copyright 2019 Summa nv

Cutting technology Seminar Atrium Opole ©Copyright 2019 Summa nv • The S Class 2 is available in drag-knife (D Series) and tangential (T Series) configuration. • The knife pressure is up to 400 grams of cutting force for the drag-knife and up to 600 grams for the tangential version. • The Flex. Cut™ feature enables precision die-cutting of labels and decals.

Difference between Drag and Tangential Technology Drag movement Tangential movement Seminar Atrium Opole ©Copyright 2019 Summa nv Drag knife technology relies on a free -swivelling blade and friction to reposition the angle of the knife. A tangential knife electronically repositions the angle of its knife

Tangential Cutting Technology True Tangential Technology Thick Materials Though Materials Thin Materials Tiny Details Through Cut Seminar Atrium Opole ©Copyright 2019 Summa nv • The head-lift in every corner, performed by the tangential cutting technology, will avoid this. • The thicker the material, the more obvious the advantage will be. • Also tougher floor laminates are handled more easily. • T Series will do a much better job in case more detailed jobs are requested.

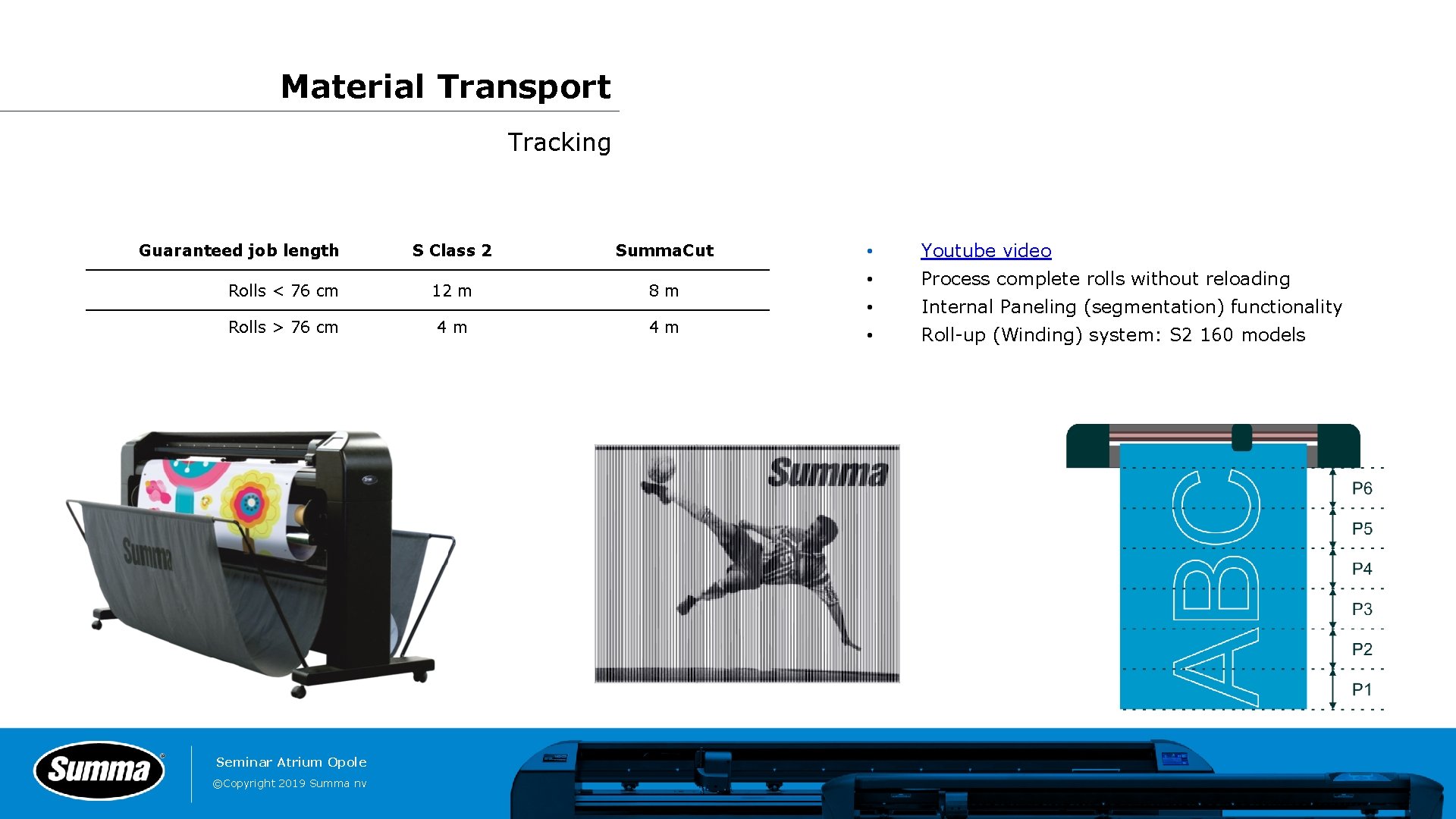

Material Transport Tracking Guaranteed job length S Class 2 Summa. Cut Rolls < 76 cm 12 m 8 m Rolls > 76 cm 4 m 4 m Seminar Atrium Opole ©Copyright 2019 Summa nv • Youtube video • Process complete rolls without reloading • Internal Paneling (segmentation) functionality • Roll-up (Winding) system: S 2 160 models

Precise Tracking S Class 2 & Summa. Cut Series Summa guarantees the best tracking system available in the market Seminar Atrium Opole ©Copyright 2019 Summa nv

Print AND Cut OPOS X Seminar Atrium Opole ©Copyright 2019 Summa nv • One of the major advantages of the OPOS system is that it is based on a multi point system, allowing the user to add 128 reference marks to a print. • The multiple marks can optionally be used to segment the job and minimize the risk of media crashes. • By using OPOS XY, the head will scan the Y-line in front of the image to compensate bowing over the width of the print. • New: OPOS XYY

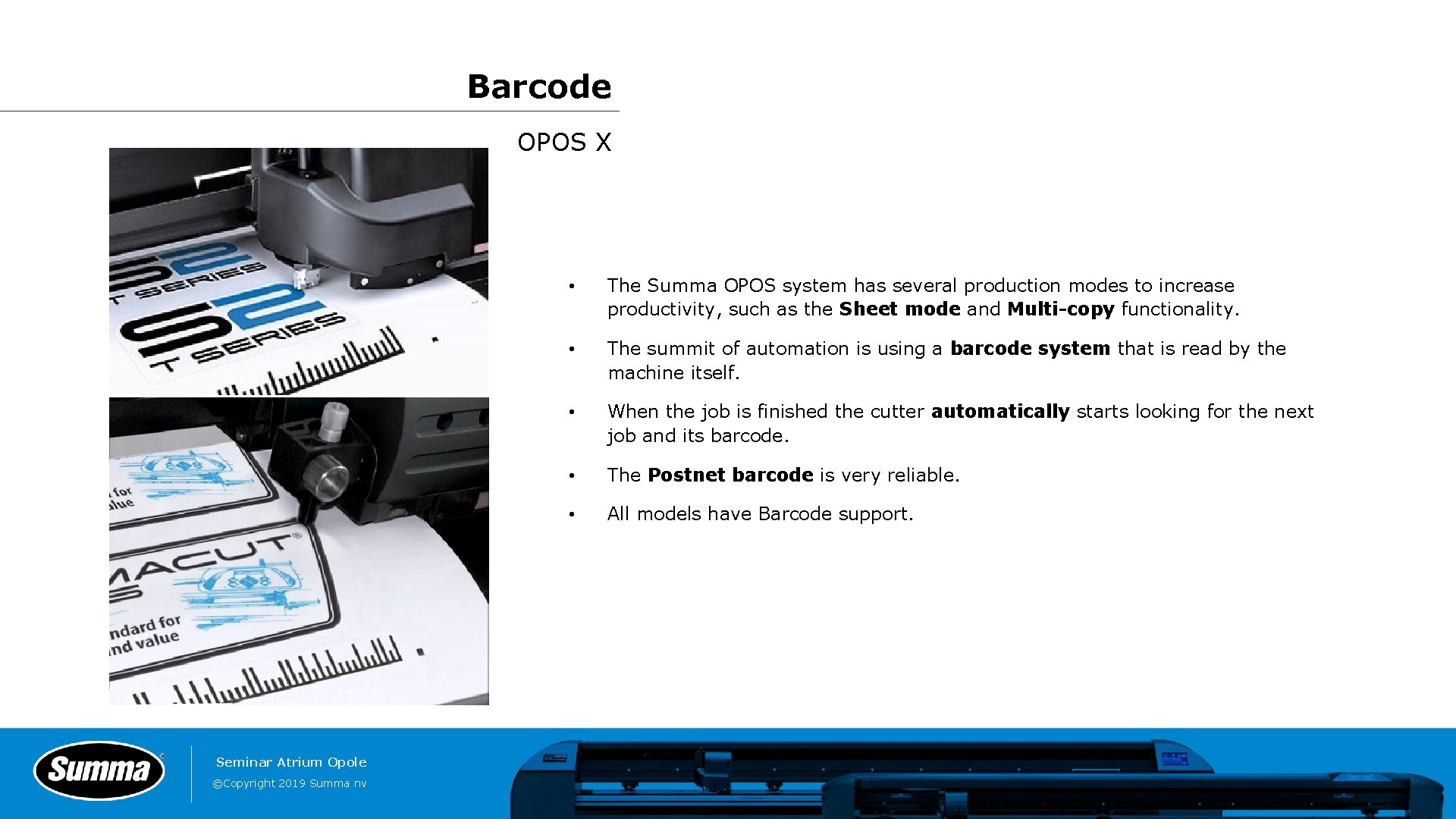

Barcode OPOS X Seminar Atrium Opole ©Copyright 2019 Summa nv • The Summa OPOS system has several production modes to increase productivity, such as the Sheet mode and Multi-copy functionality. • The summit of automation is using a barcode system that is read by the machine itself. • When the job is finished the cutter automatically starts looking for the next job and its barcode. • The Postnet barcode is very reliable. • All models have Barcode support.

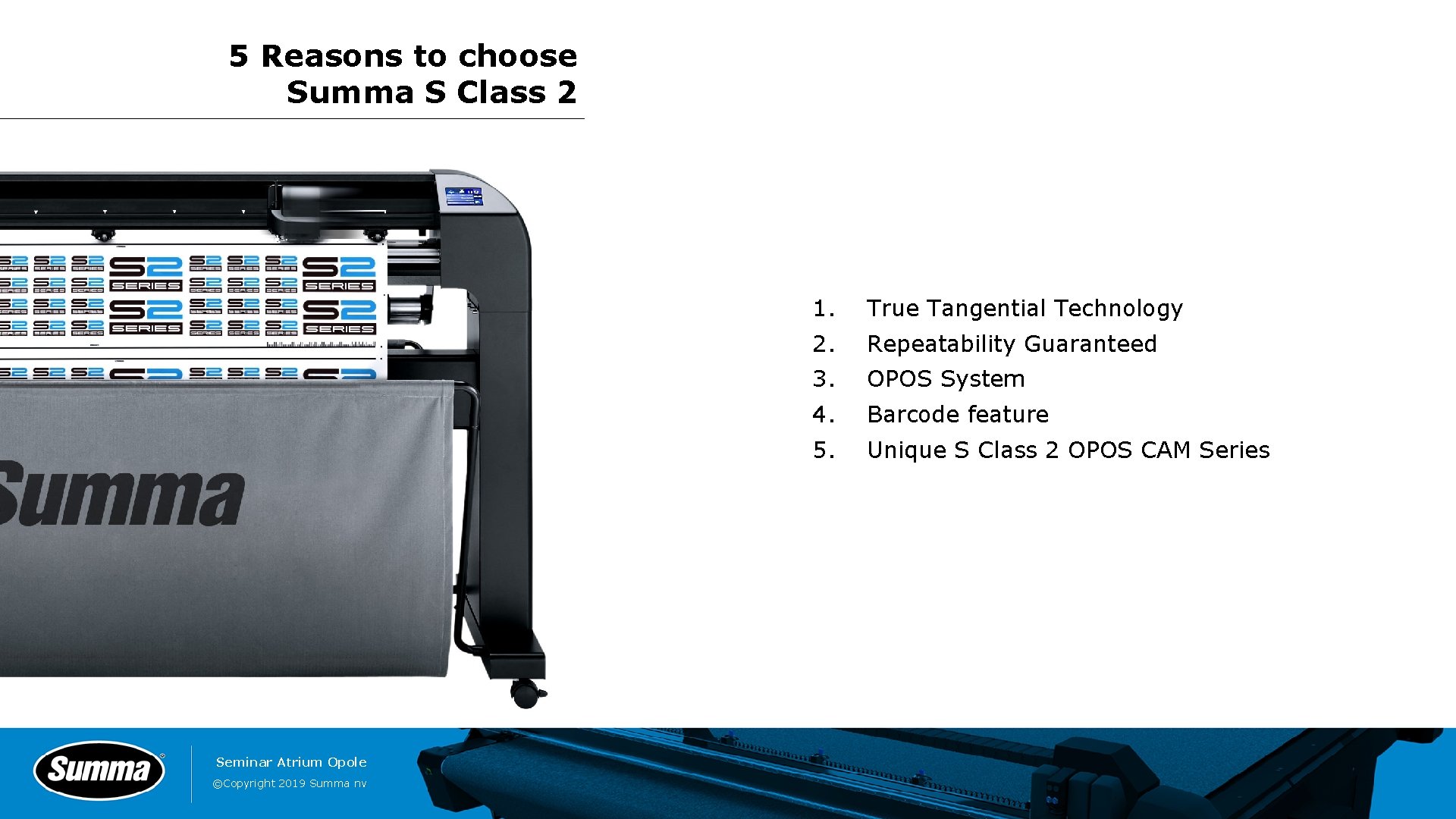

5 Reasons to choose Summa S Class 2 Seminar Atrium Opole ©Copyright 2019 Summa nv 1. True Tangential Technology 2. Repeatability Guaranteed 3. OPOS System 4. Barcode feature 5. Unique S Class 2 OPOS CAM Series

F TM Series Newest features F 3220 / F 3232 Seminar Atrium Opole © Copyright 2019 Summa nv © Copyright 2016 Summa bvba ©Copyright 2019 Summa nv Technical Specifications

Comparison F Series F 1330 F 1612 Up to 165 cm F 1330 Up to 134 cm F 1612 160 x 120 cm 63 x 47 inch Seminar Atrium Opole ©Copyright 2019 Summa nv 129 x 305 cm F 1832 50 x 120 inch Up to 190 cm F 1832 184 x 320 cm F 2630 Up to 270 cm 72 x 126 inch F 2630 F 3220 Up to 332 cm 265 x 305 cm 104 x 120 inch F 3232 Up to 332 cm

F 3232 & F 3220 • Focus on textile + board (Tandem Mode) market • Working width: • 327 cm • Working length • F 3220 : 210 cm • F 3232 : 320 cm Seminar Atrium Opole ©Copyright 2019 Summa nv

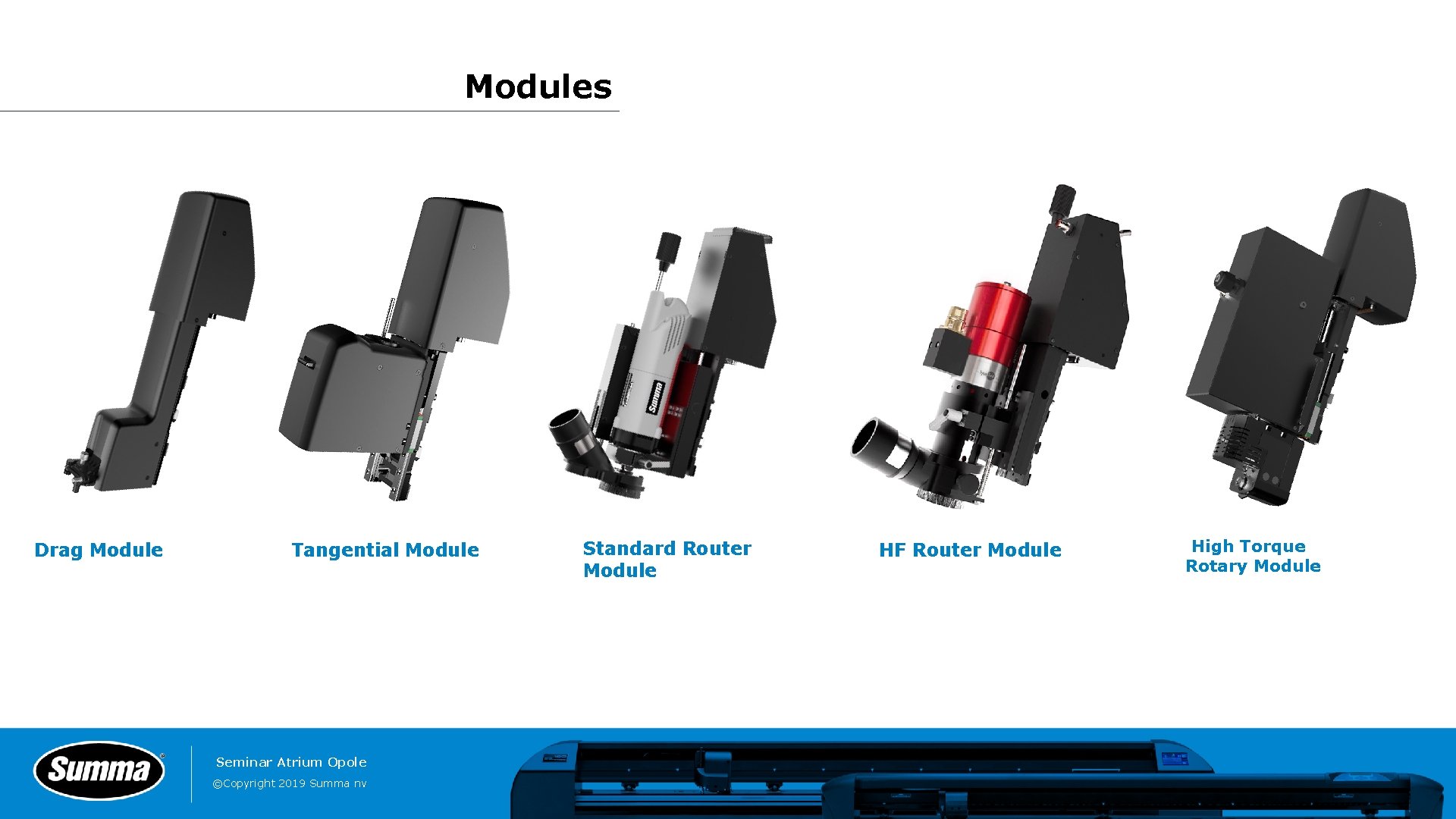

Modules Drag Module Tangential Module Seminar Atrium Opole ©Copyright 2019 Summa nv Standard Router Module HF Router Module High Torque Rotary Module

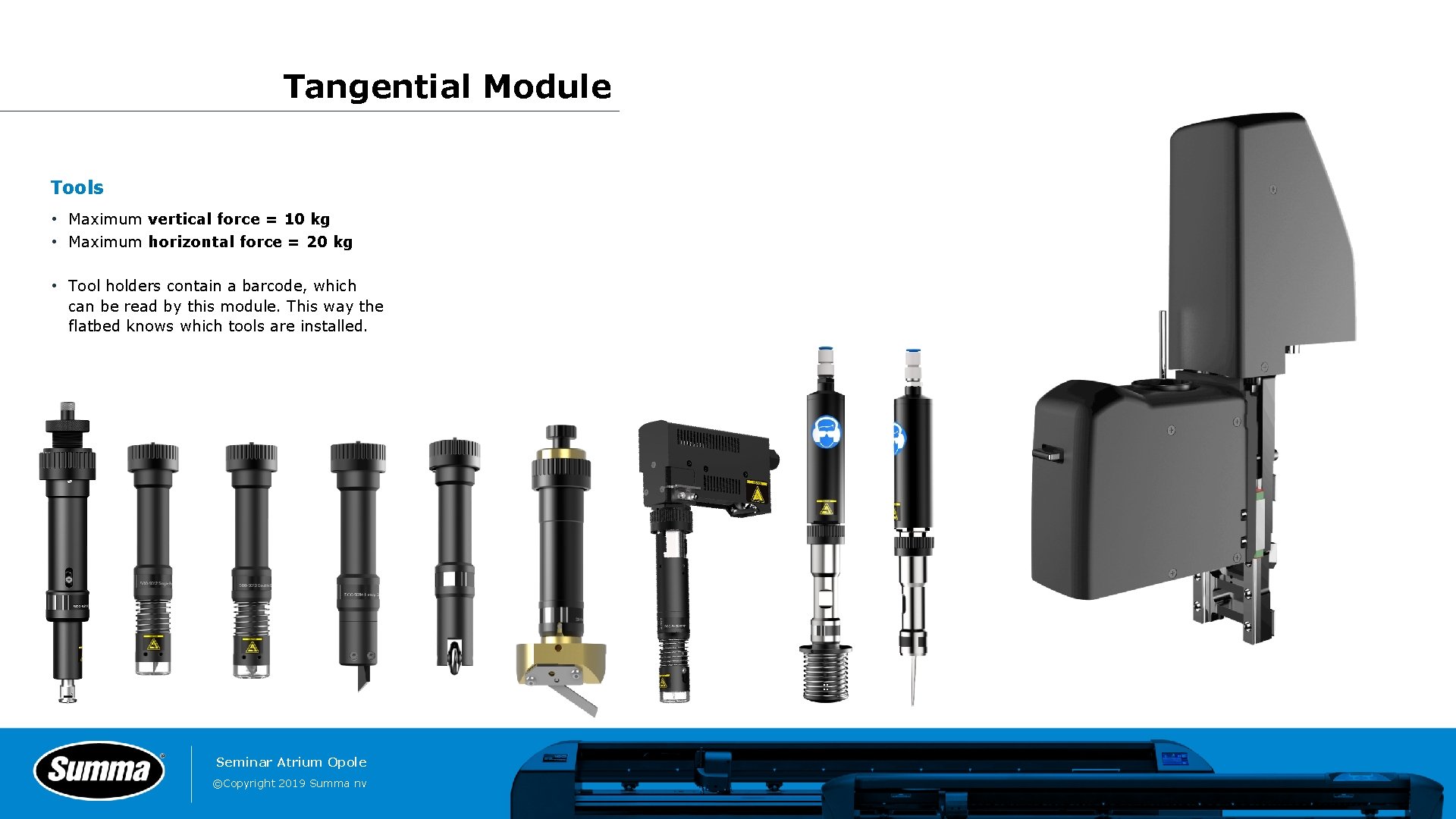

Tangential Module Tools • Maximum vertical force = 10 kg • Maximum horizontal force = 20 kg • Tool holders contain a barcode, which can be read by this module. This way the flatbed knows which tools are installed. Seminar Atrium Opole ©Copyright 2019 Summa nv

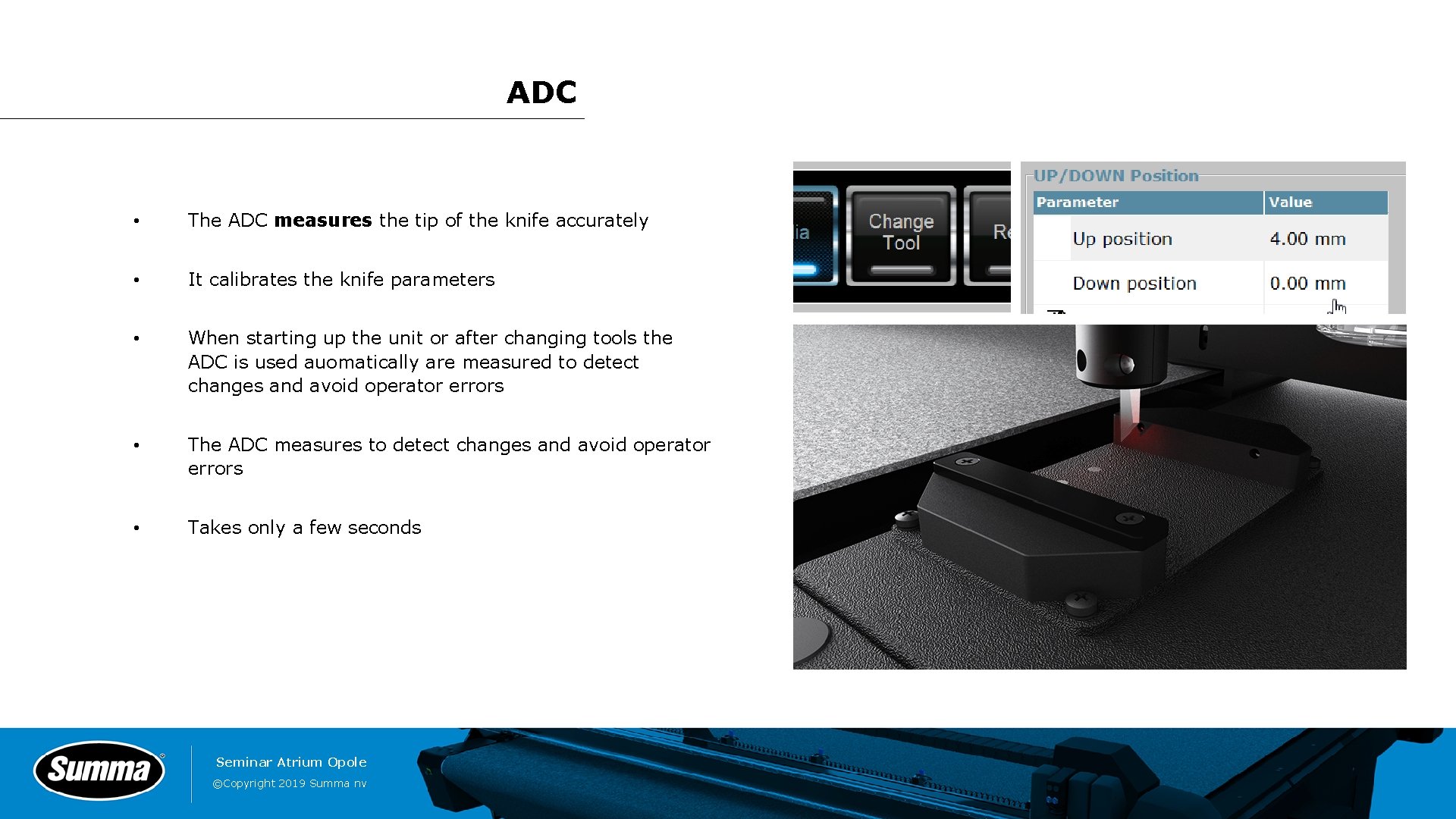

ADC • The ADC measures the tip of the knife accurately • It calibrates the knife parameters • When starting up the unit or after changing tools the ADC is used auomatically are measured to detect changes and avoid operator errors • The ADC measures to detect changes and avoid operator errors • Takes only a few seconds Seminar Atrium Opole ©Copyright 2019 Summa nv

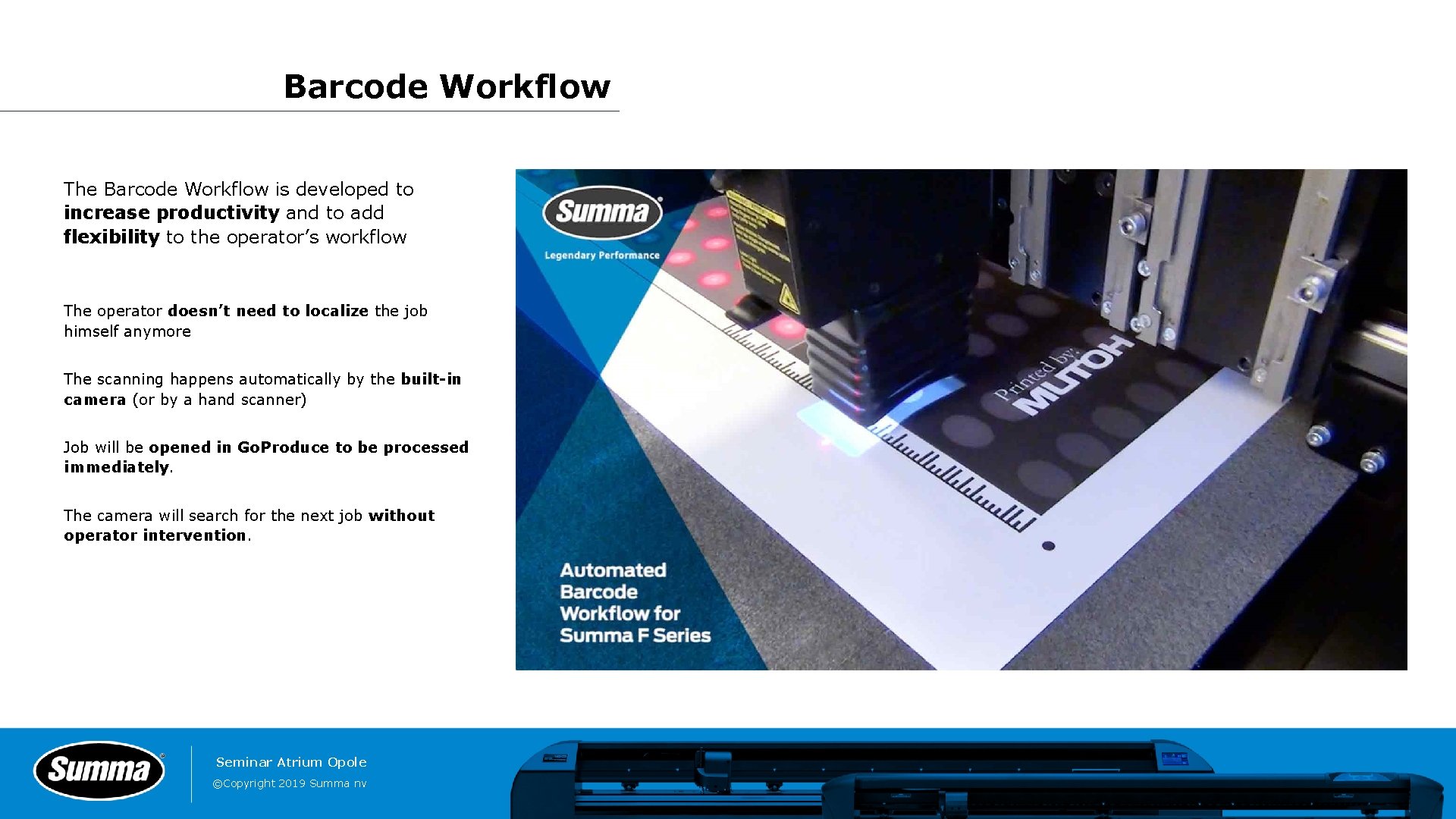

Barcode Workflow The Barcode Workflow is developed to increase productivity and to add flexibility to the operator’s workflow The operator doesn’t need to localize the job himself anymore The scanning happens automatically by the built-in camera (or by a hand scanner) Job will be opened in Go. Produce to be processed immediately. The camera will search for the next job without operator intervention. Seminar Atrium Opole ©Copyright 2019 Summa nv

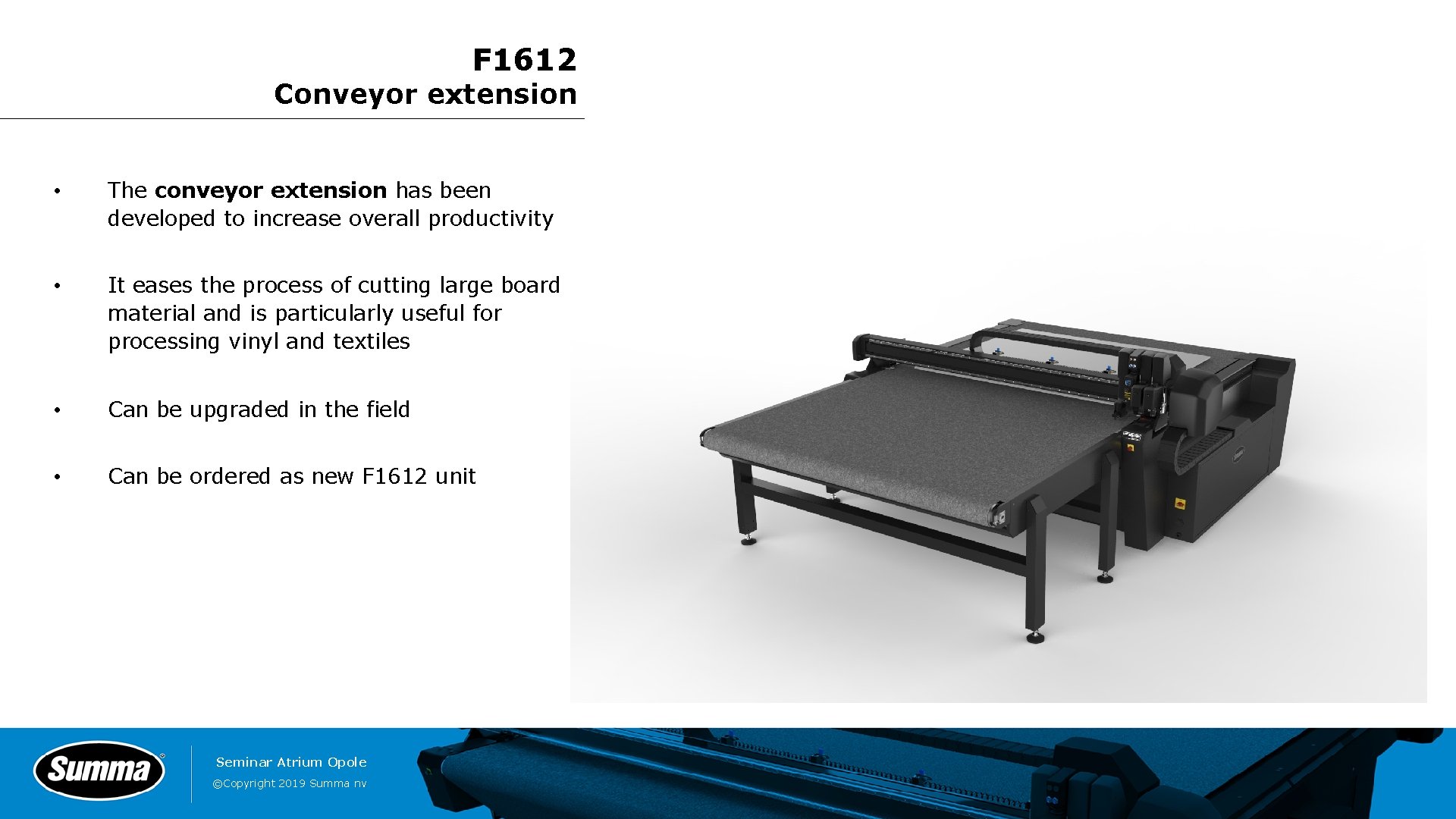

F 1612 Conveyor extension • The conveyor extension has been developed to increase overall productivity • It eases the process of cutting large board material and is particularly useful for processing vinyl and textiles • Can be upgraded in the field • Can be ordered as new F 1612 unit Seminar Atrium Opole ©Copyright 2019 Summa nv

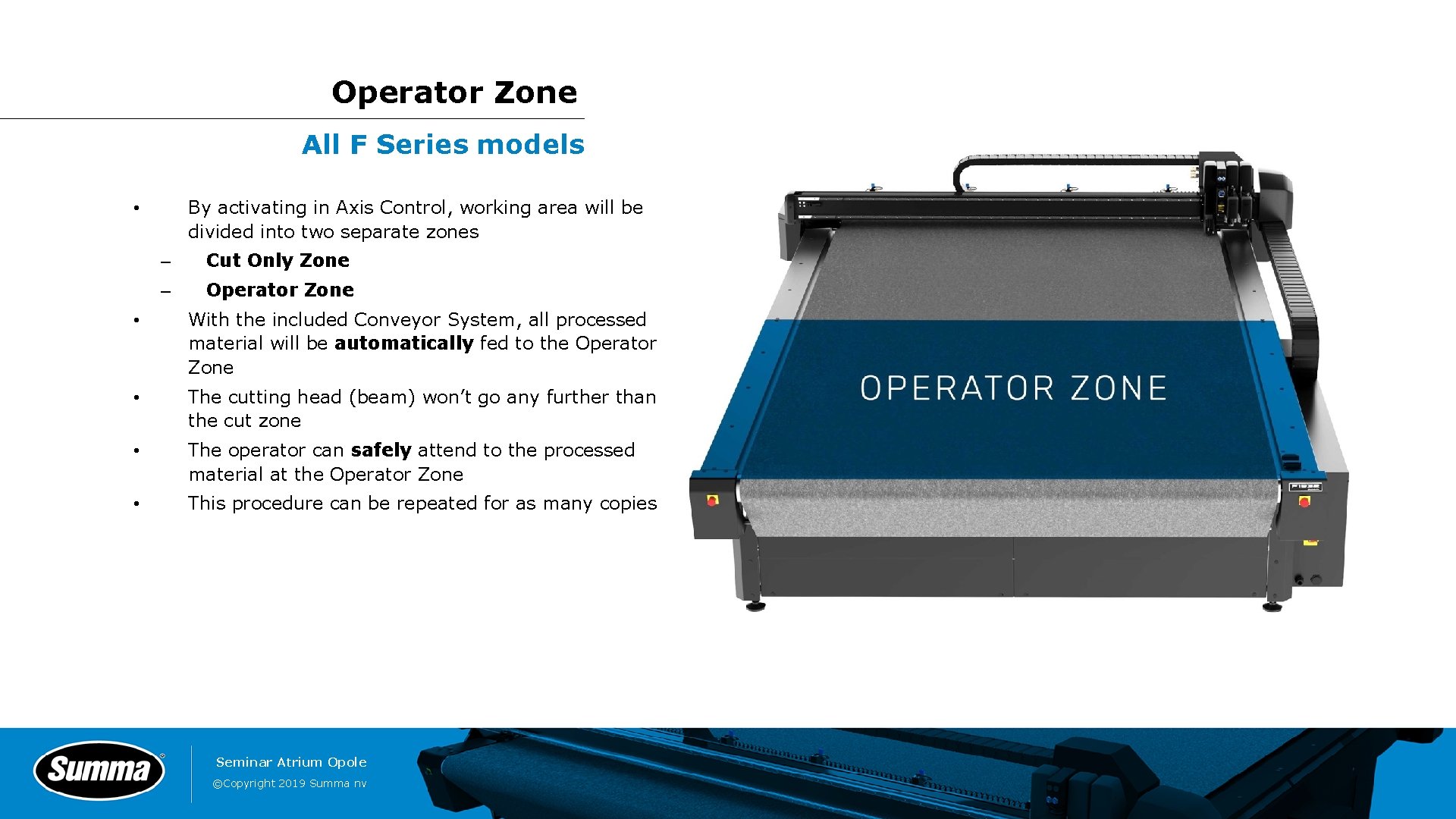

Operator Zone All F Series models By activating in Axis Control, working area will be divided into two separate zones • – Cut Only Zone – Operator Zone • With the included Conveyor System, all processed material will be automatically fed to the Operator Zone • The cutting head (beam) won’t go any further than the cut zone • The operator can safely attend to the processed material at the Operator Zone • This procedure can be repeated for as many copies Seminar Atrium Opole ©Copyright 2019 Summa nv

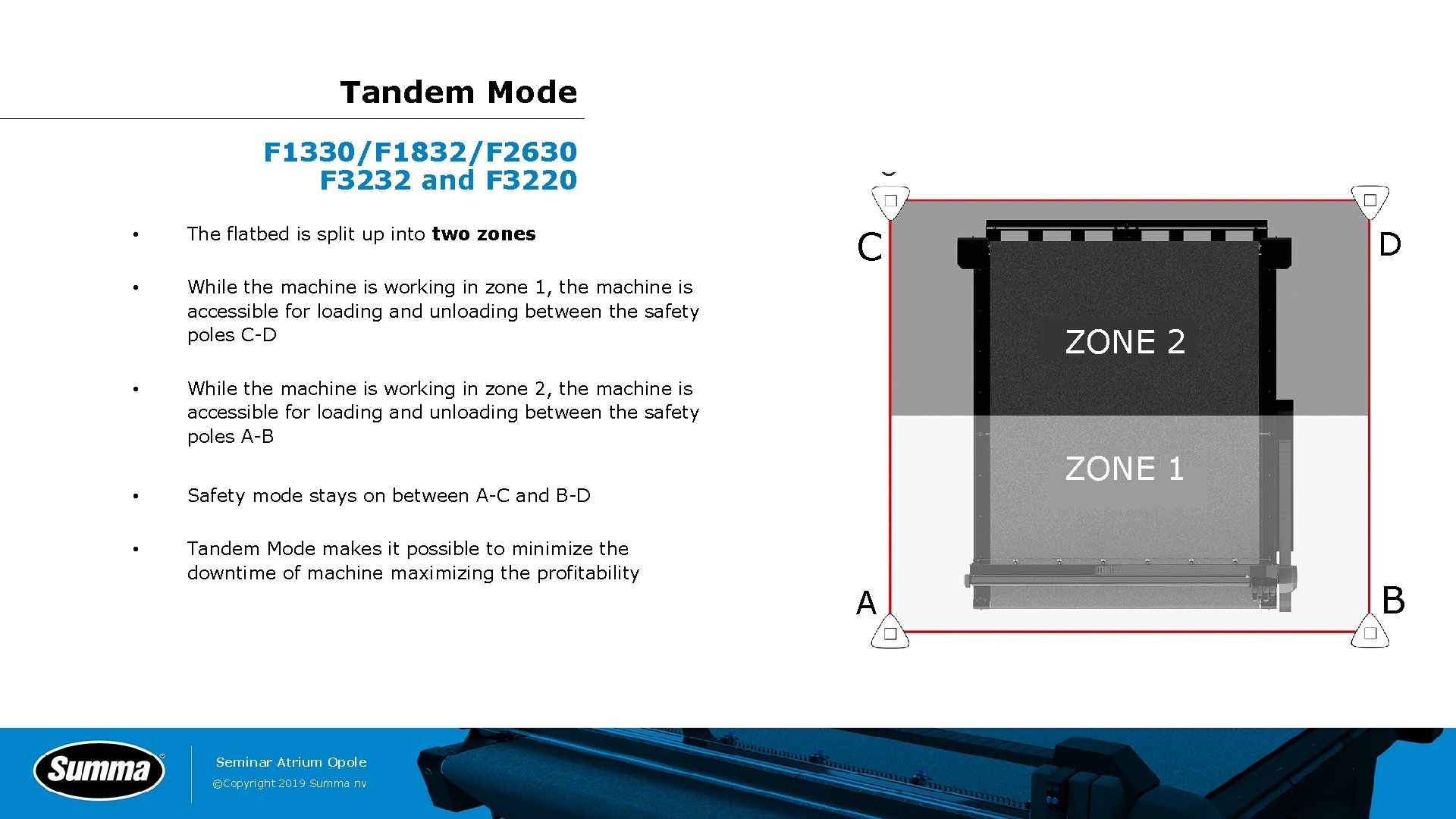

Tandem Mode F 1330/F 1832/F 2630 F 3232 and F 3220 • The flatbed is split up into two zones • While the machine is working in zone 1, the machine is accessible for loading and unloading between the safety poles C-D • C D ZONE 2 While the machine is working in zone 2, the machine is accessible for loading and unloading between the safety poles A-B • Safety mode stays on between A-C and B-D • Tandem Mode makes it possible to minimize the downtime of machine maximizing the profitability ZONE 1 B A A Seminar Atrium Opole ©Copyright 2019 Summa nv B

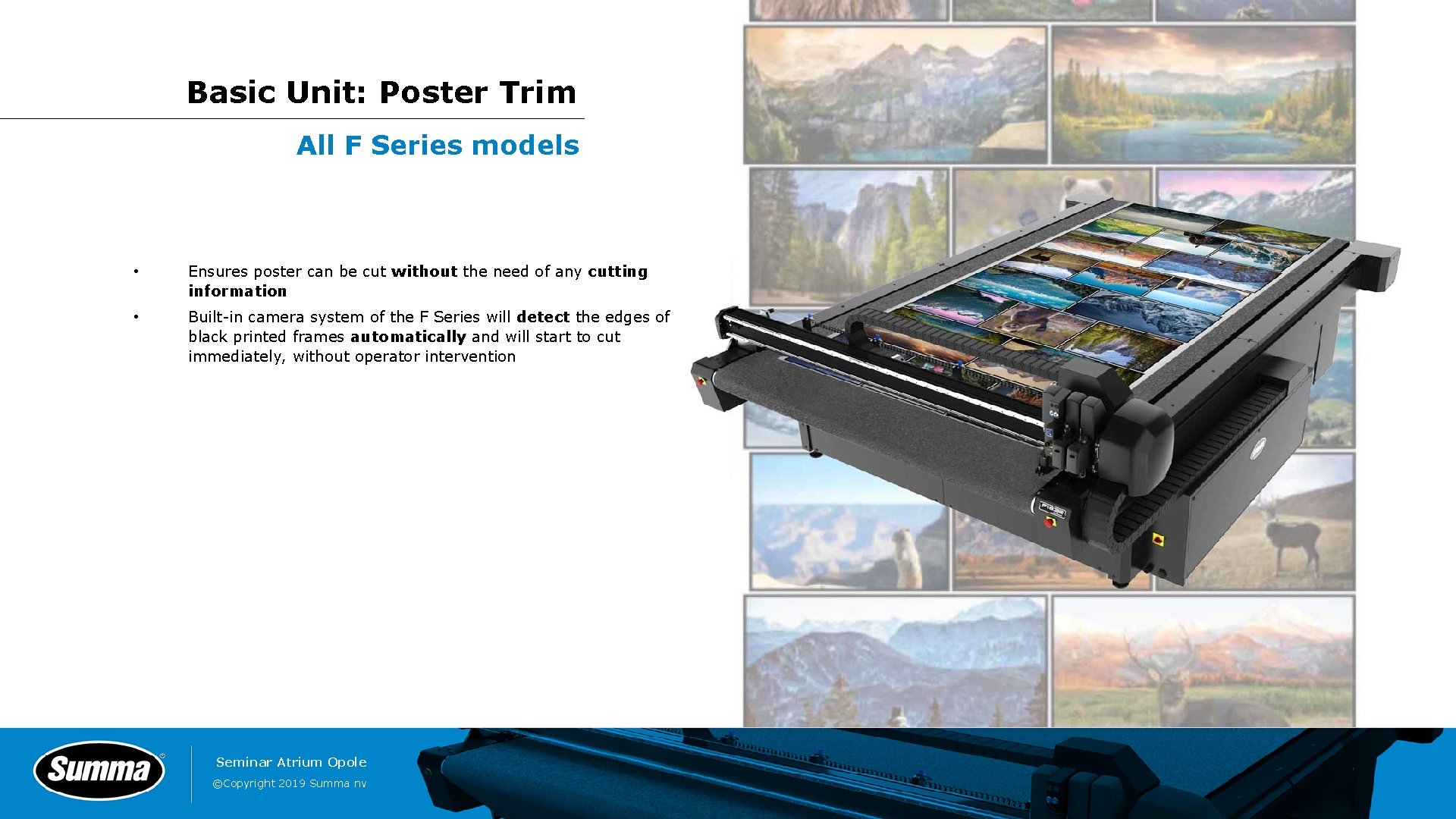

Basic Unit: Poster Trim All F Series models • Ensures poster can be cut without the need of any cutting information • Built-in camera system of the F Series will detect the edges of black printed frames automatically and will start to cut immediately, without operator intervention Seminar Atrium Opole ©Copyright 2019 Summa nv

Go. Suite Summa’s first in-house developed software platform © Copyright 2019 Summa nv

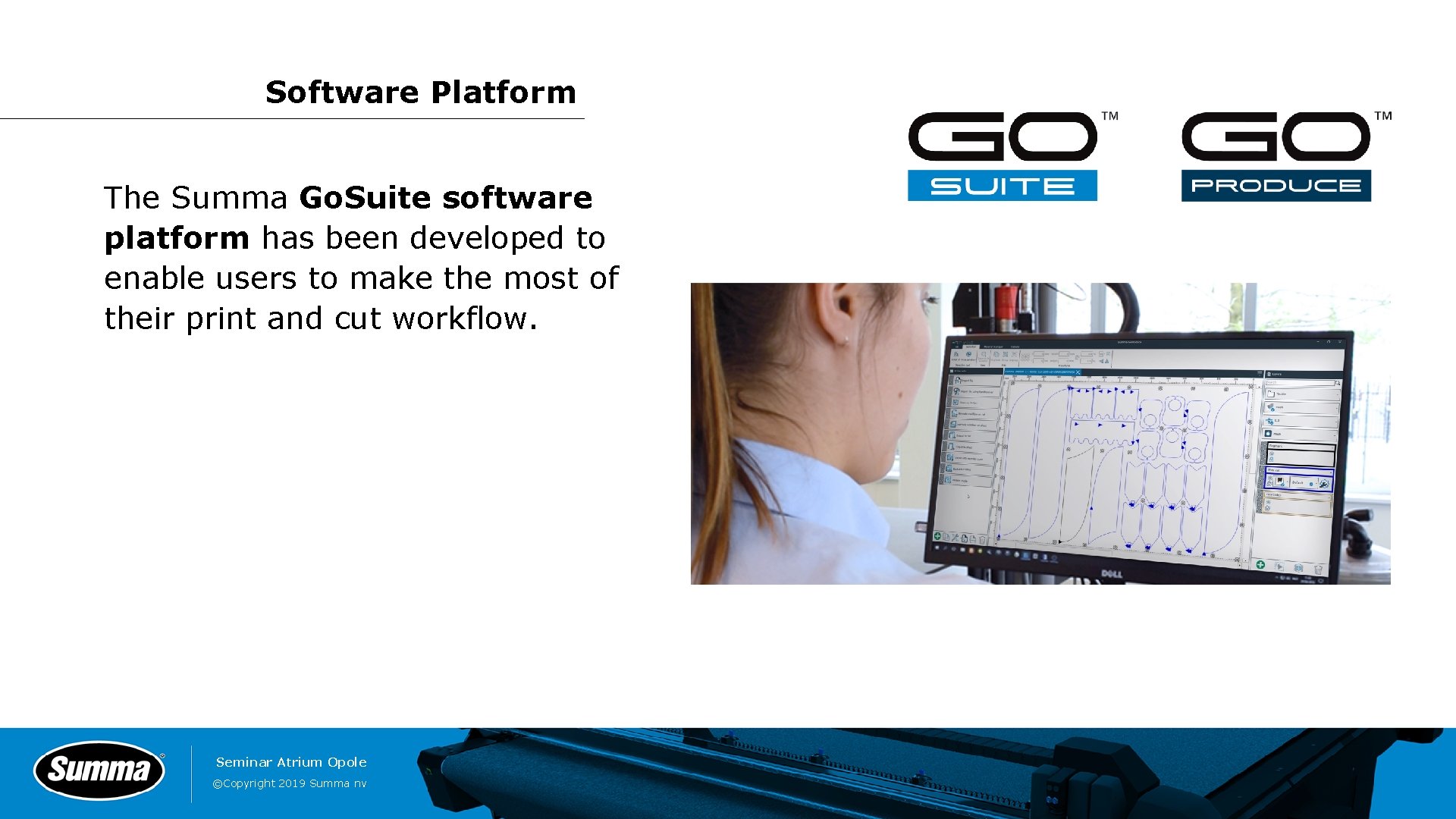

Software Platform The Summa Go. Suite software platform has been developed to enable users to make the most of their print and cut workflow. Seminar Atrium Opole ©Copyright 2019 Summa nv

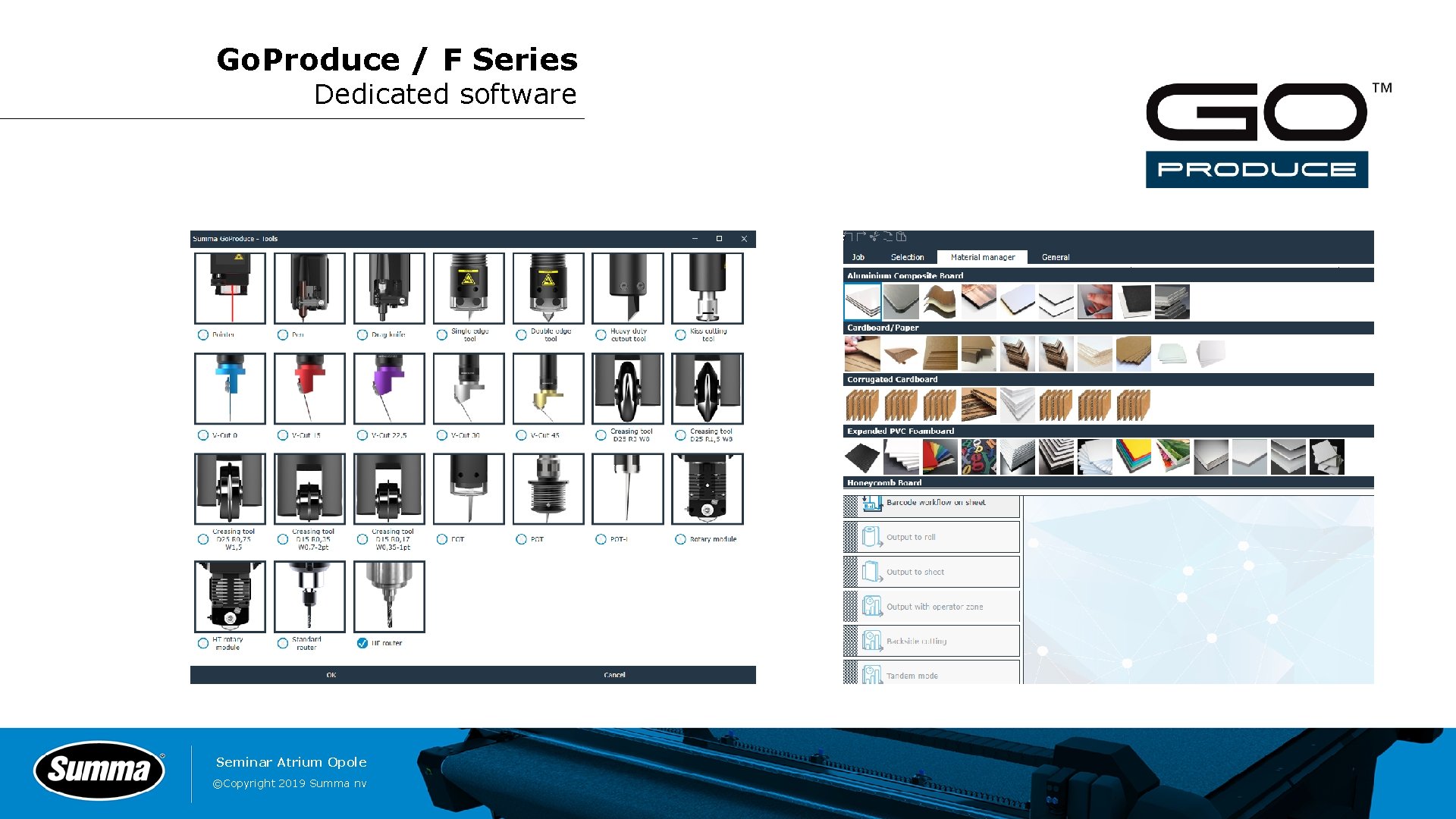

Go. Produce / F Series Dedicated software Seminar Atrium Opole ©Copyright 2019 Summa nv

Why choose Summa? Benefits to your business 1. Reduce costs through Productivity: • Higher Working Speeds • Automation Workflow options • Ease of use 2. Deliver the best Quality to your customer 3. Faster delivery times through Flexibility 4. Be Futureproof with Summa Seminar Atrium Opole ©Copyright 2019 Summa nv
