FLOORFLEX VINYL TILES Floorflex Vinyl Tiles Floorflex is

FLOORFLEX® VINYL TILES_

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade § INTRODUCTION_ § BENEFITS_ § SUGGESTED SPECIFICATION_ § INSTALLATION INSTRUCTIONS_ § MAINTENANCE PROCEDURES_ § TECHNICAL PROPERTIES_

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade INTRODUCTION_ § Homogeneous vinyl flooring has a uniform structure and composition from the top to the bottom as there is no separate backing layer § The manufacturing process results in a compact single layer product available in semi-flexible and fully-flexible composition structures § Floorwor. X offers a wide range of locally produced and imported homogeneous flooring options, which includes Floorflex: a semi-flexible, locally manufactured vinyl tile range § Floorflex is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade § Floorflex complements any interior design scheme with its tremendous longlasting characteristics and aesthetics

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade. BENEFITS_ § Durable § SANS 581 mark bearing § 100% recyclable § 70% natural § Low carbon footprint § Locally manufactured at our factory in East London

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade SUGGESTED SPECIFICATION_ Supply and fix 1. 6 mm/2. 0 mm/2. 5 mm thick x 300 mm Floorflex® semi-flexible vinyl tiles manufactured in accordance with SANS 581 and laid in Floorwor. X No. 62 acrylic adhesive which has been spread using a trowel fitted with an A 2 notched blade at a rate of between 5. 5 m 2 and 6. 5 m 2 per litre on a previously prepared Class 1 subfloor in accordance with SANS 10070, using Floorwor. X Self Leveller when required, including all cutting and waste The flooring must be rolled in both directions with an articulated 68 kg three-sectional roller immediately after it has been laid into the adhesive The newly laid floor must, after 72 hours, be stripped using Floorwor. X Stripper, scrubbed using a diluted solution of Floorwor. X Rinse and then sealed with 3 coats of Floorwor. X Silk Matt or Gloss Sealer WARRANTY_ Floorwor. X offers a 5 year limited warranty, subject to our terms and conditions, against defective material provided that it is installed and maintained in accordance with our recommendations Please Note: This product is for indoor use ONLY.

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade INSTALLATION INSTRUCTIONS_ § Floorflex® should be installed in accordance with manufacturer’s recommendations § Training Centre is available for installation training to installers SUB-FLOOR_ § Sub-floors must be smooth, hard, clean, and dry before laying commences § The final appearance and durability of any resilient flooring installation depends largely on the condition of the surface upon which it is laid § A good sub-floor is vital in achieving a satisfactory adhesive bond and long-term durability § Uneven, solid or suspended timber floors may need preparation to meet the required standard

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade SUB-FLOOR_ § All sub-floors must be tested for moisture content prior to installation § To prevent problems associated with rising damp - it is essential that a dampproof membrane be incorporated beneath the sub-floor § The South African Standard Building Regulations require that all sub-floors in contact with the ground are so constructed as to be damp-proof § Water is an integral part of the construction of a sub-floor - the amount of water used depends on the type of sub-floor, the required structural strength and the extent of curing § It is impossible to state a time period after which a sub-floor may be considered dry enough upon which to lay flooring - factors such as ambient temperature, relative humidity, thickness of the slab, type of finish required and methods used to cure the concrete, will affect this period § There are various methods of testing the moisture content within the sub-floor, which includes the use of a Hygrometer – the most practical and accurate instrument

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade CLIMATIZATION_ Floorflex® tiles must be allowed to relax for 24 hours in a uniform room temperature between 18°C and 27°C prior to installation ADHESIVE_ § The recommended adhesive for Floorflex® tiles is Floorwor. X No. 62 acrylic adhesive § Adhesive to be spread using a trowel fitted with an A 2 notched blade at a rate of between 5. 5 m 2 and 6. 5 m 2 per litre POST INSTALLATION_ § It is essential that during the course of installation the material be rolled in both directions with an articulated 68 kg three section metal floor roller

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade MAINTENANCE_PREVENTIVE CARE § Approximately 80% of the dirt and soiling that has to be cleaned off a floor has been trafficked in from outside the building. More than 90% of that soiling can be avoided by the use of an effective entrance matting system § When less dirt is trafficked through the entrance there will be a reduction in maintenance requirements. § Regular cleaning is more cost-effective and hygienic than occasional heavy duty cleaning § Wipe up any grease and oil spills immediately and treat stains as soon as they are observed § Black rubber wheels and rubber furniture feet can discolour the floorcovering hard plastic is preferred § Always follow the manufacturer’s dosage instructions regarding the use of cleaning chemicals

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade MAINTENANCE_POST INSTALLATION SITE CLEAN § Floor maintenance begins immediately after the completion of installation § The initial step is to remove any loose dirt or debris using a dry mop, broom or vacuum § Sand, construction debris and sharp-edged objects may result in irreparable damage being inflicted to the new floor. § Remove any visible adhesive residue using a damp cloth, once the adhesive has cured it will be difficult to remove § If other trades are working in the building after the installation of the flooring, the floor must be protected from subsequent damage by the use of thick paper, cardboard or hard board. § No wet maintenance must take place until 72 hours (3 days) have elapsed from the time of installation - this is to ensure that the adhesive has sufficient time to cure properly and develop full bond strength

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade MAINTENANCE_INITIAL STRIP AND SEAL § Dust mop or vacuum the floor to remove loose soil and dust § Dilute Floorwor. X Stripper 1: 5 with clean water in a suitable container § Apply the diluted Floorwor. X Stripper solution to the floor using a flat mop and leave for a few minutes before scrubbing with an automatic scrubbing machine or a rotary machine fitted with a black pad § Do not flood the floor and do not allow the stripper residue to dry on the floor § Remove the residue immediately after scrubbing using a wet/dry vacuum § Rinse the floor using a solution of Floorwor. X Rinse diluted 1: 10 with clean water by means of a flat mop to neutralise the Floorwor. X Stripper and remove any residue using a wet/dry vacuum § Rinse the floor again using clean water and a flat mop and, after removing any visible moisture using a wet/dry vacuum, allow sufficient time for the floor to dry thoroughly.

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade MAINTENANCE_INITIAL STRIP AND SEAL § Using a lambswool applicator, apply a thin, even coating of Floorwor. X Silk Matt or Gloss Sealer at a rate of 20 m 2 per litre § Allow sufficient time for the coating to dry thoroughly § Apply the 2 nd coat of Floorwor. X Silk Matt or Gloss Sealer at right angles to the initial coat and allow sufficient time to dry thoroughly § Ensure that the floor is not trafficked between coats § Apply the 3 rd and final coat of Floorwor. X Silk Matt or Gloss Sealer at right angles to the previous coat and allow sufficient time to dry thoroughly § Once the initial strip and seal process is complete, ensure that the mops, pads and lambswool applicators are rinsed thoroughly in warm water and allowed to dry for re-use

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade MAINTENANCE_REGULAR CLEANING § Dust mop with flat mop or vacuum on a daily basis to remove dust and loose dirt § Damp mop the floor weekly with flat mop using a solution of Floorwor. X Maintain diluted 1: 100 with clean water, ensuring that the mop is not too wet as it will leave smear traces § Scrub as required, using a solution of Floorwor. X Maintain diluted 1: 10 with clean water, with a rotary machine fitted with a blue pad § Rinse with clean water using a flat mop § Apply Floorwor. X Spray Buff in a fine stream or mist onto the floor in front of a rotary machine fitted with a red pad and work in until dry § The Floorwor. X Spray Buff assists in maintaining a smooth surface and constant level of gloss while extending the time between stripping and re-sealing operations.

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade MAINTENANCE_PERIODIC CLEANING § When the coating of sealer has become worn to the extent that regular maintenance cannot improve its appearance, the floor must be stripped and resealed § The frequency of this requirement depends on a number of factors, including the effectiveness of the entrance matting, the amount of traffic and the quality of the regular maintenance procedures § Dilute Floorwor. X Stripper 1: 5 with clean water in a suitable container § Apply the diluted Floorwor. X Stripper solution to an area of approximately 10 m 2 of the floor using a flat mop and leave for a few minutes to soften the coating before scrubbing with an automatic scrubbing machine or a rotary machine fitted with a black pad § Do not flood the area and do not allow the stripping solution to dry on the floor § Remove the residue immediately after scrubbing using a wet/dry vacuum

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade MAINTENANCE_PERIODIC CLEANING § Rinse the 10 m 2 area of floor using a solution of Floorwor. X Rinse diluted 1: 10 with clean water by means of a flat mop to neutralise the Floorwor. X Stripper and remove any residue using a wet/dry vacuum § Once the initial 10 m 2 area has been stripped and rinsed, proceed to the next 10 m 2 area and repeat the process until the entire floor has been stripped and rinsed § Rinse the entire floor again using clean water and a flat mop and, after removing any visible moisture using a wet/dry vacuum, allow sufficient time for the floor to dry thoroughly § Using a lambswool applicator, apply a thin, even coating of Floorwor. X Silk Matt or Gloss Sealer at a rate of 20 m 2 per litre § Allow sufficient time for the coating to dry thoroughly

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade MAINTENANCE_PERIODIC CLEANING § Apply the 2 nd coat of Floorwor. X Silk Matt or Gloss Sealer at right angles to the initial coat and allow sufficient time to dry thoroughly § Ensure that the floor is not trafficked between coats § Apply the 3 rd and final coat of Floorwor. X Silk Matt or Gloss Sealer at right angles to the previous coat and allow sufficient time to dry thoroughly § Once the initial strip and seal process is complete, ensure that the mops, pads and lambswool applicators are rinsed thoroughly in warm water and allowed to dry for re-use

Floorflex® Vinyl Tiles Floorflex® is a range of semi-flexible vinyl floor tiles available in 3 gauges and a range of 18 standard colours to meet the most demanding requirements in terms of tone and shade TECHNICAL PROPERTIES_

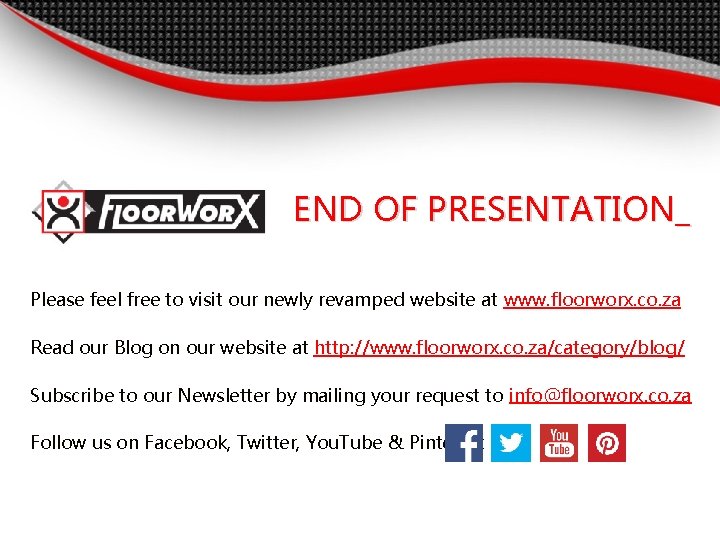

END OF PRESENTATION_ Please feel free to visit our newly revamped website at www. floorworx. co. za Read our Blog on our website at http: //www. floorworx. co. za/category/blog/ Subscribe to our Newsletter by mailing your request to info@floorworx. co. za Follow us on Facebook, Twitter, You. Tube & Pinterest
