Service Oriented Architecture: UW’s Migration Strategy a. k. a. What is it and how do we get one? Jim Phelps Sr. I. T. Architect, Do. IT, UW-Madison phelps@doit. wisc. edu http: //arch. doit. wisc. edu/jim 1
What I’ll Cover • • Data vs. Service Three Tiers (slides included FREE!) Migration Strategy Sticky Bits Roadmap Next Steps (2 years) Summary 2
Integration is. . • Complex: • Brittle: When systems change, interfaces need to be rebuilt When interfaces fail, people are unhappy (and often blame the wrong people) • Expensive: Garther - “up to 50% of large enterprise’s IT budget is spent on interfaces and integration”(1) 3
A Simple Use Case e. Reserves: • • Library has books on reserve for a course. The Library checks those books out only to students in the course. 4
Data vs. Service Data SIS Course Roster Library Course Roster 5
Data vs. Service Data SIS Library Cours e Roster Service SIS Is. Enrolle d Service Library Student. ID, Course. ID Yes/ No 6
Reusability Service SIS Is. Enrolle d Service Student. ID, Course. ID Yes/ No Libra ry 7
Reusability Service SIS Is. Enrolle d Service Student. ID, Course. ID Yes/ No Libra. Point of Sales ry. System 8
Reusability Service SIS Is. Enrolle d Service Student. ID, Student. ID Course. ID Yes/ No Course. ID Libra. Point of Sales Portal ry. System 9
Data Service Replication of all data Pull as needed Opaque Transparent Disconnected Connected Point-to-Point One-to-Many Reusable Robust Brittle Composite Apps 10
Data vs. Service • Fundamental shift away from shipping data to providing services 11
Data vs. Service • Move to SOA to: – Reduce cost – Increase security – Reduce data duplication – Gain transparency – Reusability 12
Migration Strategy - SOA Process - business process analysis Information - data definitions and standard schemas Infrastructure - architecture and technical gaps Vendors - helping hands Organization - Change Management 21
Migration Strategy - SOA • Process - Business Process Analysis – Prioritization - Most Pain, Most Gain – Define/Document Business Process – Look for optimization opportunities – Use disruption to your advantage – Data needs (timeliness, availability, etc) 22
Migration Strategy - SOA • Information - Enterprise Data Definitions – Let the Business Process Analysis drive the data definition process – Don’t build a complete dictionary – Start with the most needed definitions – Build on existing standards 23
Migration Strategy - SOA • Infrastructure - Architecture and Technology – Gap analysis - what pieces are missing – Do we have the right architecture in place? – Business Process Analysis and Data needs drive the effort. 24
Migration Strategy - SOA • Vendor - Evaluation to fill the gaps – Business Process Analysis – Enterprise Data Identification – Data Definitions / Standards Development – Service Design – Technology Gaps 25
Migration Strategy - SOA • Organization - Change Management – Culture shift from data to services – Staff training and support – New Expertise • Service Interface Designer (2) • Service Library Manager (2) – Integration Competency Centers(3) 26
People of the ICC • • • Project Manager Services Architect Interface Designers Registry / Library manager Schema experts 27
Migration Strategy - SOA 28
Building the ICC • Critical Success Factor • Centrally funded not a charge-back center • Unifying practices • Easier to enact and deploy standards • Manage the interface library (WS Registry a. k. a. UDDI Registry) 29
Organizational Change • New Skills and the ICC • Forces for Change • Misalignments – Funding models – Employee Evaluation 30
Who is the force for change? Service SIS ? Is. Enrolled Service Student. ID, Co Student. ID urse. ID Course. ID 1 Yes/No … ? Library Point of Sales System ? Portal ? 31

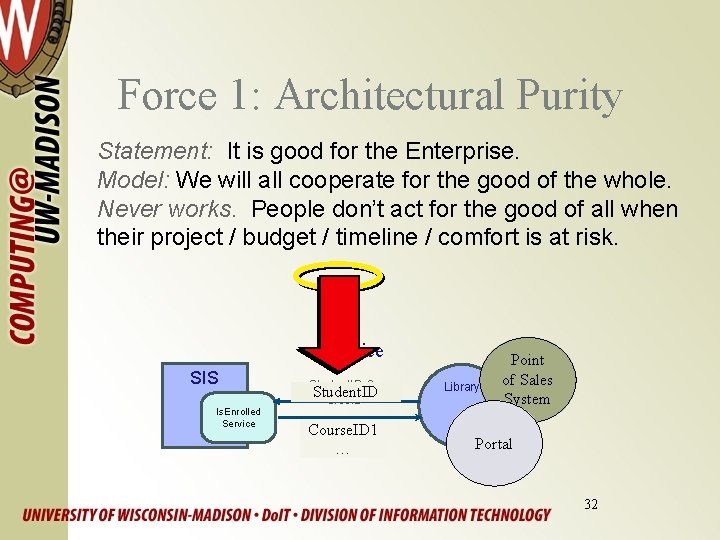

Force 1: Architectural Purity Statement: It is good for the Enterprise. Model: We will all cooperate for the good of the whole. Never works. People don’t act for the good of all when their project / budget / timeline / comfort is at risk. Service SIS Is. Enrolled Service Student. ID, Co Student. ID urse. ID Yes/No Course. ID 1 … Library Point of Sales System Portal 32
Force 2: Consumer Statement: We want a Web service for …. . Model: The first Consumer will drive the change. Rarely works. Need an alignment of good will between the Consumer(s) and Service Provider. Service SIS Is. Enrolled Service Student. ID, Co Student. ID urse. ID Yes/No Course. ID 1 … Library Point of Sales System Portal 33
Force 3: Service Provider Statement: It is the new “supported” way Model: The Service Provider will set the standard Should work. Especially if the Service Provider can eliminate other feeds and if they impose costs on new feeds. Service SIS Is. Enrolled Service Student. ID, Co Student. ID urse. ID Yes/No Course. ID 1 … Library Point of Sales System Portal 34
How would this work Service Provider eliminates multiple flat-file feeds - replaces with single Web Service. 35
How would this work Service Provider eliminates multiple flat-file feeds - replaces with single Web Service. Consumer can: • Use Web Service – Agree to SLA – ICC establish Security and Policy – Register use in the WS Registry 36
How would this work Service Provider eliminates multiple flat-file feeds - replaces with single Web Service. Consumer can: • Use Web Service – Agree to SLA – ICC would establish Security and Policy – Register use in the WS Registry • Request a Flat File – Go through review – Pay to build & maintain feed forever – Pay for whole cost of feed – Agree to policy re: use, security, privacy etc. 37
Force 3: Service Provider Agree Or Pay Service SIS Is. Enrolled Service Student. ID, Co Student. ID urse. ID Course. ID 1 Yes/No … $$$ Library Point of Sales System Portal 38
Organizational Change • New Skills and the ICC • Forces for Change • Misalignments – Funding models – Employee Evaluation 39
Misalignment • How we fund projects • How do we measure our employees 40
Misalignment • How we fund projects – DATA - “please build an app for me” – SERVICE - “we need these reusable services” – Looks a lot like “Overhead” 41
Misalignment • How we fund projects – DATA - “please build an app for me” – SERVICE - “we need these reusable services” – Looks a lot like “Overhead” • How do we measure our employees – DATA - “I built these apps for these customers” – SERVICE - “I made these reusable services” – Hard to measure “value” 42
Organizational Change • New Skills and the ICC • Forces for Change • Misalignments – Funding models – Employee Evaluation 43
Other Sticky Bits • Standards • Policy & Security • Governance 44
Security/Policy Enforcement • Two models – Embedded (written into the interfaces) – In-line (proxy) Service SIS Student. ID, Course. ID Is. Enrolled Service Embedded In Line Library Yes/No 45
Phylogeny and Standards 46
Phylogeny and Standards WS-Security WS-Policy WSDL SOAP XML http: //genetics. nbii. gov/systematics. html 47
Security/Policy Enforcement • Two models – Embedded (written into the interfaces) – In-line (proxy) Service SIS Student. ID, Course. ID Is. Enrolled Service Embedded In Line Library Yes/No 48
Governance - Complex and Difficult Mix When you hear the words: Funding, Policy, Security and Architecture in the same talk, you know that Governance can’t be far behind. 49
Governance - Complex and Difficult Mix 50
Identity Management framework Identity Management Leadership Group Authentication Authorization Coordinating Team Access To Data Registrar & H. R. co-chair Members include: Business Leaders Technical Leaders ID Card Evaluation Technical Assessment and Policy Recommendations 51
SOA Management framework SOA Leadership Group T F A R D Integration Competency Center 52
Roadmap to SOA UW System Highway Business Application Highway Campus Highway 53
Roadmap to SOA - 1000’ view UW System Highway • Integration Competency Center (ICC) • Registry • Establish Governance • Development Standards • Common Tools 54
Roadmap to SOA - 1000’ view Business Application Highway • Analysis of Interfaces • Analysis of the Business Processes • Reduce the number of Interfaces • Apply standard data definitions (schemas) • Migration to Services 55
Roadmap to SOA - 1000’ view Campus Highway • ICC or ICC Partners • Establishment of Governance • Analysis of Business Processes • Reduction of Interfaces • Migration to Services 56
Next 2 Years • Analysis of Interfaces – Document the interface and business process – Starting with “Course Roster” • Look to refactor interfaces • Reduce the number of interfaces • Use standards for data representation (IMS) • Request Official University Transcripts Electronically (ROUTE) – Expose two interfaces as Web Services (Student Bio-Demo and Holds/Fines) 57
Next 2 Years - D 2 L Interfaces • Refactoring the Grading Interfaces – Opportunity to make changes – Use disruption - Look for opportunities • Refactor the Course Roster interface – Already using standards for data representation (IMS) 58
Building the ICC • Critical Success Factor • Looking at building an ICC • Report to a Deputy CIO • Service Team model (includes members from groups working on Web Services) – Middleware – Applications Development – Others 59
Conclusion • Why SOA/Web Services? – Reduce the cost of maintaining interfaces. – Buffer systems from changes. – Protect data. Provide Security. – Transparency. – Enforcement of business rules (FERPA). • This means Security, Governance and Policy 60
Conclusion • ICC is critical. – Must be seen and helpful not an extra cost and burden to projects. • Governance, Policy and Security are sticky issues • We have opportunities in front of us right now (D 2 L, PS 8. 9, etc) • The door has opened for SOA. 61
References 1. Enterprise Application Integration, Revere Group Presentation - June 26, 2003 2. Service-Oriented Architecture, A Field Guide to Integrating XML and Web Services, Thomas Erl - Prentice Hall 3. Introduction to Integration Compentency Centers, Darwinmag. com http: //www. darwinmag. com/read/070104/integration. html 4. Enterprise Service Bus, David A. Chappell - O’Reilly 5. Vantage. Point 2005 -2006 SOA Reality Check, Anne Thomas Manes, Burton Group 62
Thank you. Questions? SOA - UW’s Migration Strategy a. k. a. What is it and how do we get one? Jim Phelps, Sr. I. T. Architect, Do. IT, UW-Madison EDUCAUSE MWRC 06, March 2006 phelps@doit. wisc. edu http: //arch. doit. wisc. edu/jim Copyright Jim Phelps, 2006. This work is the intellectual property of the author. Permission is granted for this material to be shared for non-commercial, educational purposes, provided that this copyright statement appears on the reproduced materials and notice is given that the copying is by permission of the author. To disseminate otherwise or to republish requires written permission from the author. 63
