Model Oriented Information Productivity Object Oriented Data Oriented
方法論の変遷 Model Oriented Information Productivity Object Oriented Data Oriented BPR Office Automation Process Oriented Business Collaboration SIS Core Businesses Computerization Calculation Problem Solving 1960 1970 Internet + Web Tech. System Reconstruction With DBMS 1980 1990 2000 5
今日のソフトウェア開発スタイル ERP Vender ASP Venders System Integrator DBMS Venders Chinese Venders User company Software House Software Developer Web Service Venders Forced to cope with Different Ways !! 9

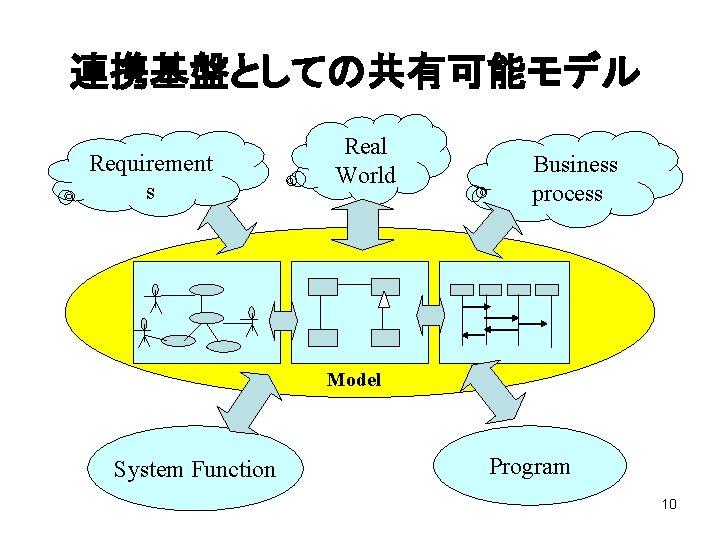

連携基盤としての共有可能モデル Requirement s Real World Business process Model System Function Program 10
連携の基盤としてのモデル Management System Integrator ERP Vender Planer Requiremen t Real World Business process ASP Venders Programmer Model System Function Project Management Program DBMS Venders Web Service Venders 11
SCMにおけるモデル共有 Supply Chain Model (Best Practice) Retailer Wholesaler Distributors Registry Manufacturer 12

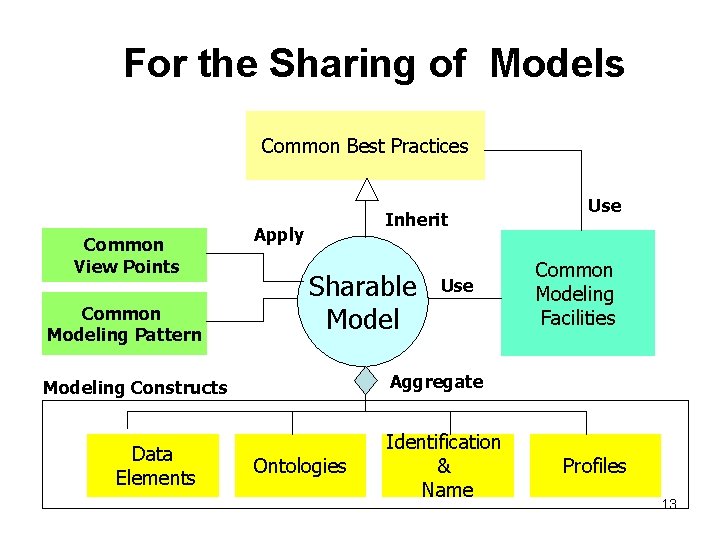

For the Sharing of Models Common Best Practices Common View Points Common Modeling Pattern Inherit Apply Sharable Model Common Modeling Facilities Aggregate Modeling Constructs Data Elements Use Ontologies Identification & Name Profiles 13

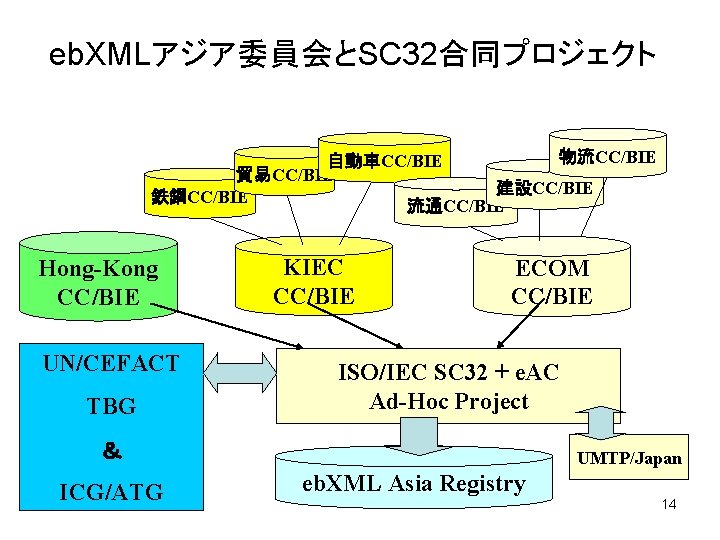

eb. XMLアジア委員会とSC 32合同プロジェクト 物流CC/BIE 自動車CC/BIE 貿易CC/BIE 建設CC/BIE 鉄鋼CC/BIE 流通CC/BIE Hong-Kong CC/BIE UN/CEFACT TBG KIEC CC/BIE ECOM CC/BIE ISO/IEC SC 32 + e. AC Ad-Hoc Project & ICG/ATG UMTP/Japan eb. XML Asia Registry 14
Long term standardization trends on the Interoperability Semantics & Ontology Metamodel 2000~ Domain Models Modeling Facility 1990~ 1980~ Metadata Communication Protocol 1970~ Program Interface 1960~ Hardware Interface 15
Standardization Efforts in OMG on the Metamodels – CWM( Common Warehouse Metamodel) – ODM (Ontology Descriptive Metamodel) – SPEM (Software Process Engineering Metamodel) – BPDM (Business process Definition Metamodel) – Organization Structure Metamodel – Business Motivation Metamodel – Metamodel Integration on UML 2. 0 & MOF 2. 0 16
Type of standard on Metadata and Metamodel Metadata Std • eb. XML RIM • Value of Metadata • eb. XML Core Component, • Dublin Core, • HL 7 • Instance of metadata Repository Std • Attributes of Metadata • Service Interface • ISO/IEC 10728(IRDS)、 • ISO/IEC 11179(MDR)、 • eb. XML Repository Service Metadata Facility Std Descriptive Scheme Registration of metamodel • MOF、 • RDF、 • OWL、 • CL 17
ISOにおけるオントロジー関係標準化活動 • ECCMA(TC 184) • TC 64(Banking) ドメイン固有 のオントロジーモデル、 分類体系、又は、語 彙の標準化 • ISO/IEC 15944 -4 (Open-edi, JTC 1 /SC 32 WG 1) • ISO 15000 (eb. XML-CC, ISO/TC 154) • TC 215(Health Care) • TC 127 (Earth Moving Machine) 登録 ドメイン独立の語彙、 • JTC 1 SC 36 または語彙階層 (Learning Metadata) の標準化 • TC 37 (Terminology) • TC 46 ( Dublin Core) オントロジー関係 記述方法の標準化 • ISO/IEC 20744 ( Common Logic, JTC 1/SC 32 WG 1 ) JTC 1/SC 34, Topic Map • ISO/IEC 19763 (MMF : JTC 1 SC 32 WG 2) • ISO/IEC 15944 ( Open-edi, JTC 1 SC 32 WG 1) 18
Open-edi Ontology (SC 32 WG 1) ISO/IEC FCD 15944:Information Technology - Business Agreement Semantic Descriptive Techniques • • • FDIS 15944 -2 - Part 1:Operational aspects of Open-edi for implementation FCD 15944 -2 - Part 2: Registration of Scenarios and their Components as Business Objects CD 15944 -3 - Part 3: Formal Description Technique, CD 15944 -4 - Part 4: Open-edi Ontology CD 15944 -5 - Part 5: Identification and Mapping of Categories of Jurisdictional Domains as Sources of External Constraints: 19
Webサービスにおけるモデルの意義 Air line Hotel Web Service • Unified View to Business • Semantic Sharing • Ontology Sharing URI Business System Model sharing Choreography, Orchestration BPEL 4 WS AP User 22
UMTP International Korean SMTF/KCSC Venders Japanese Venders System Integrator Hardware Vender Users UMTP/Japan Component Vender Hardware Vender 検定・登録 Model & Engineer Registry Component Vender Common Certification Common Modeling Practices Common Best Practices Modeling Common Technical Infrastructure Users (Asian Best Practice) System Integrator Hardware Vender Chinese Venders China UMT Component Vender ECC +ASTI 30
Global Alliance on the Modeling Certification UMTP International Design & Development SMTF Korea Survey & Marketing Planning & Coordination UMT ECC, SKLSE, Wuhan Univ. of China Modeling Technology Marketing Promotion of China UMTP Japan Peason. VUE Distribution Shanghai Beijing 杭州 Wuhan Training & Certification Service 31
