Products Systems that are leading the way Earth

Products & Systems that are leading the way

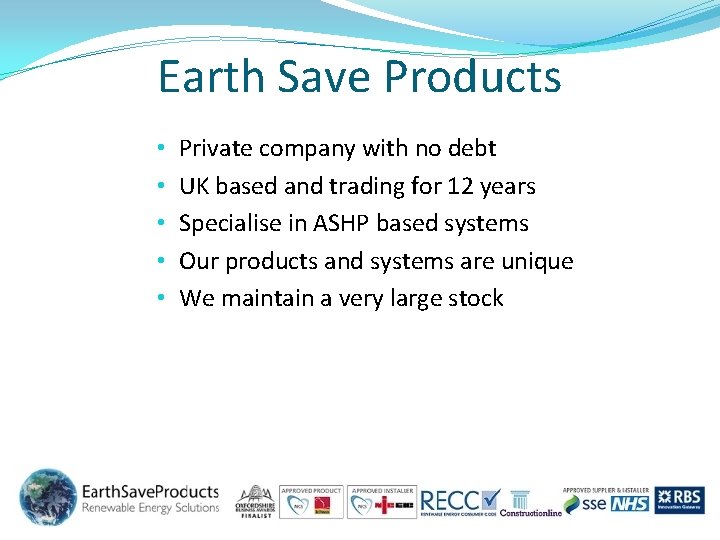

Earth Save Products • • • Private company with no debt UK based and trading for 12 years Specialise in ASHP based systems Our products and systems are unique We maintain a very large stock

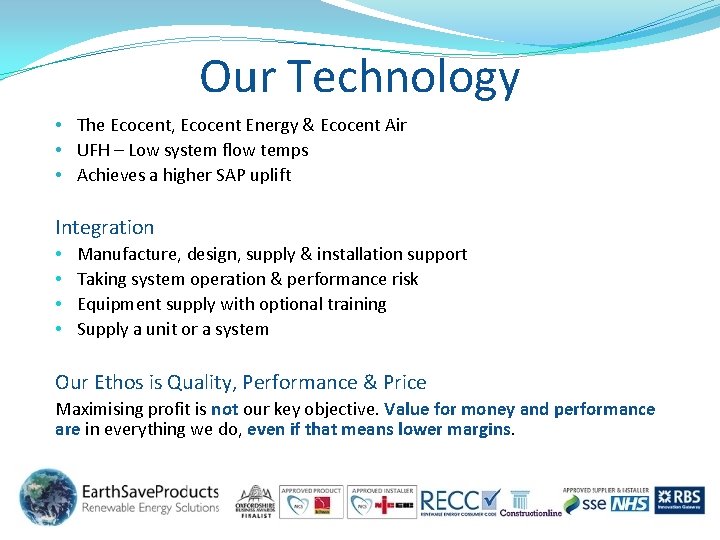

Our Technology • The Ecocent, Ecocent Energy & Ecocent Air • UFH – Low system flow temps • Achieves a higher SAP uplift Integration • • Manufacture, design, supply & installation support Taking system operation & performance risk Equipment supply with optional training Supply a unit or a system Our Ethos is Quality, Performance & Price Maximising profit is not our key objective. Value for money and performance are in everything we do, even if that means lower margins.

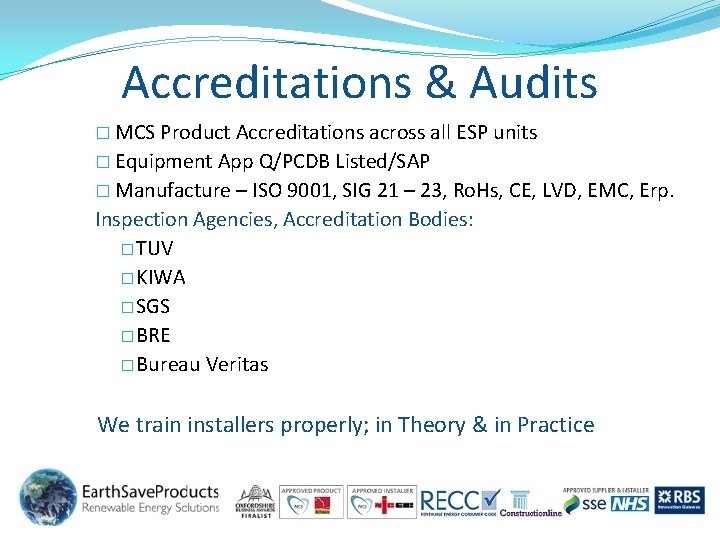

Accreditations & Audits � MCS Product Accreditations across all ESP units � Equipment App Q/PCDB Listed/SAP � Manufacture – ISO 9001, SIG 21 – 23, Ro. Hs, CE, LVD, EMC, Erp. Inspection Agencies, Accreditation Bodies: � TUV � KIWA � SGS � BRE � Bureau Veritas We train installers properly; in Theory & in Practice

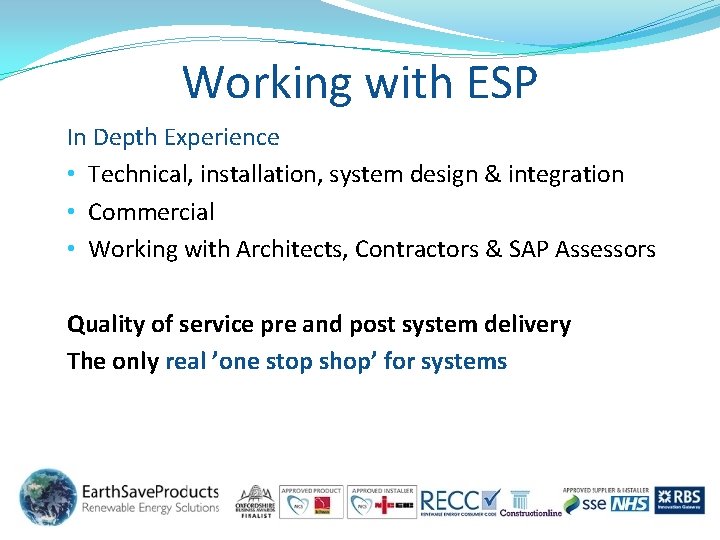

Working with ESP In Depth Experience • Technical, installation, system design & integration • Commercial • Working with Architects, Contractors & SAP Assessors Quality of service pre and post system delivery The only real ’one stop shop’ for systems

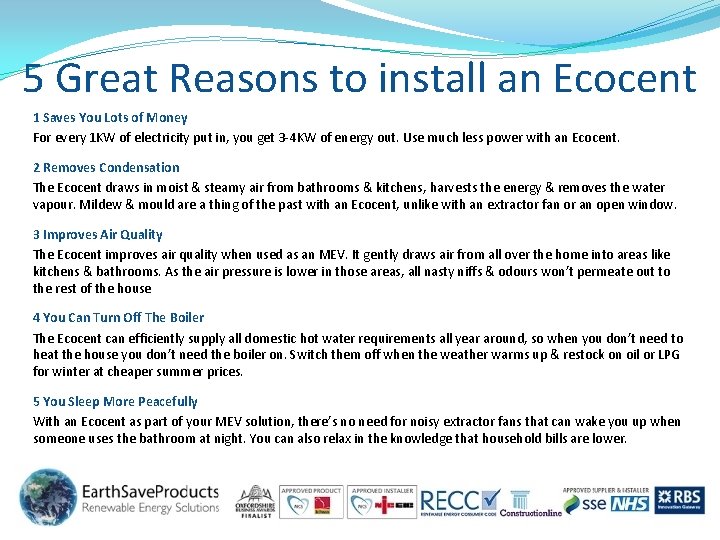

5 Great Reasons to install an Ecocent 1 Saves You Lots of Money For every 1 KW of electricity put in, you get 3 -4 KW of energy out. Use much less power with an Ecocent. 2 Removes Condensation The Ecocent draws in moist & steamy air from bathrooms & kitchens, harvests the energy & removes the water vapour. Mildew & mould are a thing of the past with an Ecocent, unlike with an extractor fan or an open window. 3 Improves Air Quality The Ecocent improves air quality when used as an MEV. It gently draws air from all over the home into areas like kitchens & bathrooms. As the air pressure is lower in those areas, all nasty niffs & odours won’t permeate out to the rest of the house 4 You Can Turn Off The Boiler The Ecocent can efficiently supply all domestic hot water requirements all year around, so when you don’t need to heat the house you don’t need the boiler on. Switch them off when the weather warms up & restock on oil or LPG for winter at cheaper summer prices. 5 You Sleep More Peacefully With an Ecocent as part of your MEV solution, there’s no need for noisy extractor fans that can wake you up when someone uses the bathroom at night. You can also relax in the knowledge that household bills are lower.

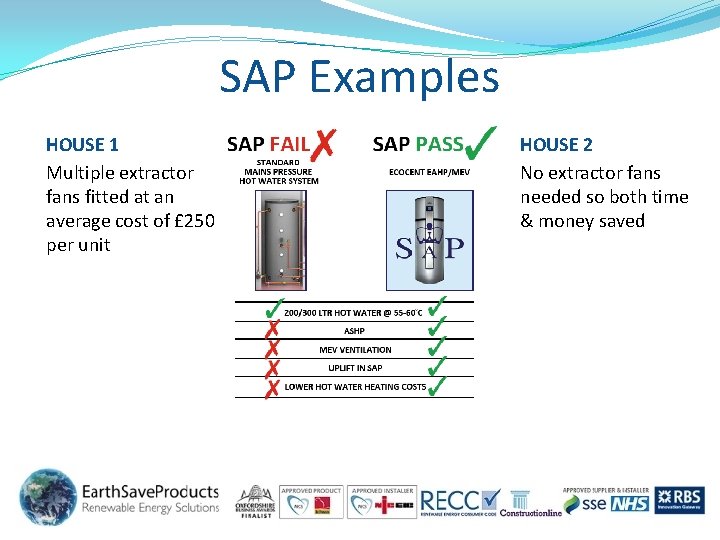

SAP Examples HOUSE 1 Multiple extractor fans fitted at an average cost of £ 250 per unit HOUSE 2 No extractor fans needed so both time & money saved

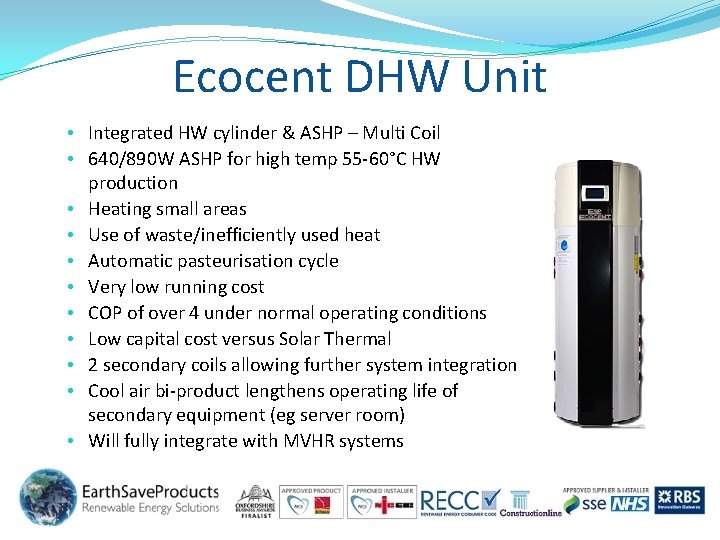

Ecocent DHW Unit • Integrated HW cylinder & ASHP – Multi Coil • 640/890 W ASHP for high temp 55 -60°C HW production • Heating small areas • Use of waste/inefficiently used heat • Automatic pasteurisation cycle • Very low running cost • COP of over 4 under normal operating conditions • Low capital cost versus Solar Thermal • 2 secondary coils allowing further system integration • Cool air bi-product lengthens operating life of secondary equipment (eg server room) • Will fully integrate with MVHR systems

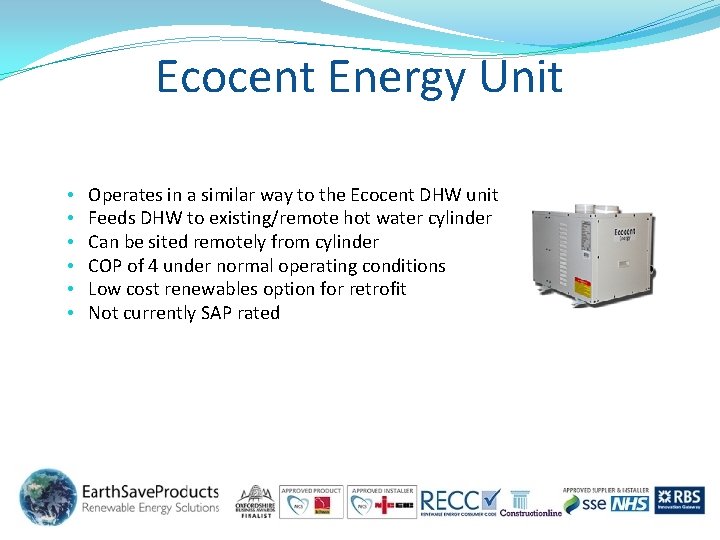

Ecocent Energy Unit • • • Operates in a similar way to the Ecocent DHW unit Feeds DHW to existing/remote hot water cylinder Can be sited remotely from cylinder COP of 4 under normal operating conditions Low cost renewables option for retrofit Not currently SAP rated

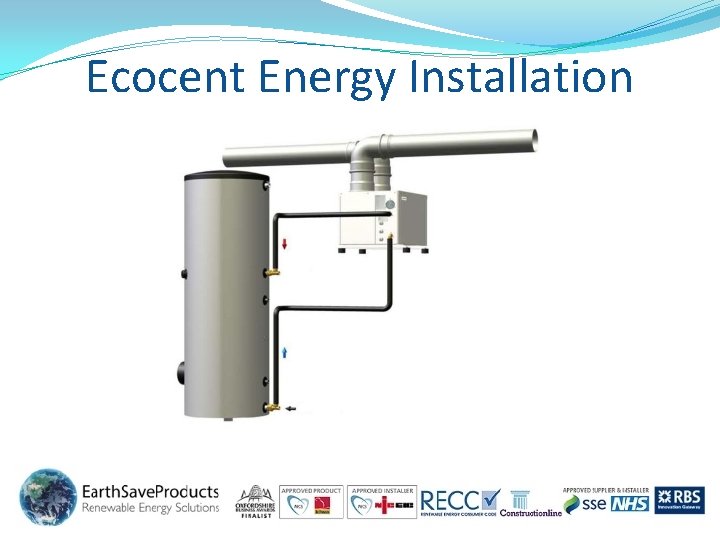

Ecocent Energy Installation

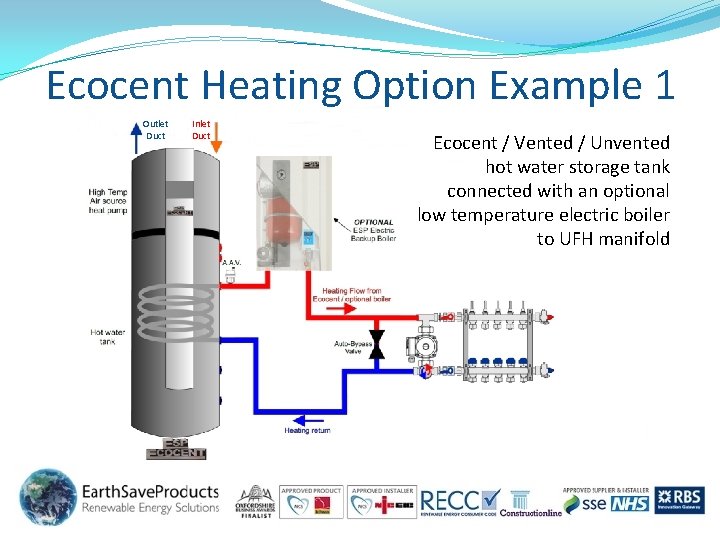

Ecocent Heating Option Example 1 Outlet Duct Inlet Duct Ecocent / Vented / Unvented hot water storage tank connected with an optional low temperature electric boiler to UFH manifold

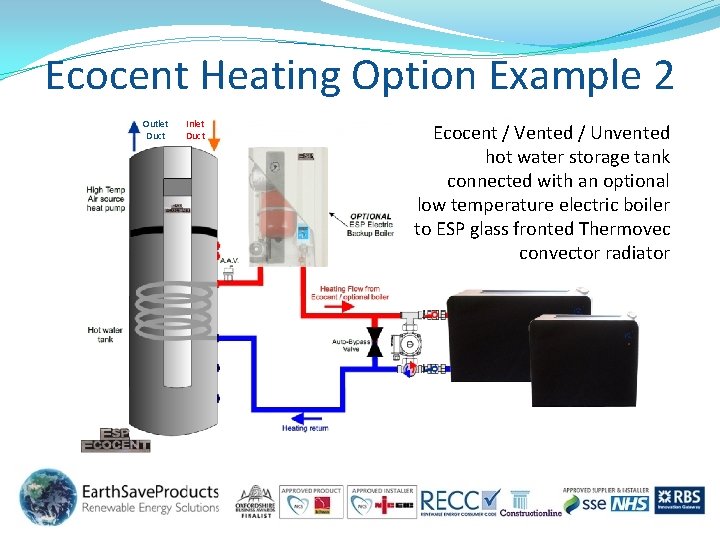

Ecocent Heating Option Example 2 Outlet Duct Inlet Duct Ecocent / Vented / Unvented hot water storage tank connected with an optional low temperature electric boiler to ESP glass fronted Thermovec convector radiator

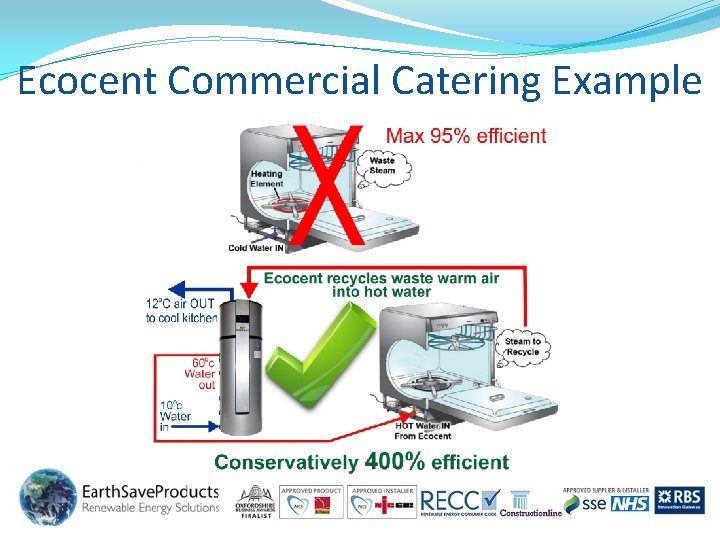

Ecocent Commercial Catering Example

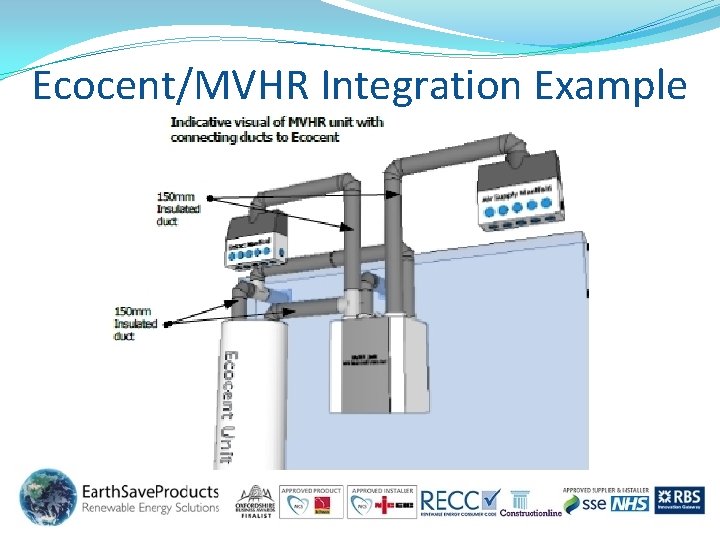

Ecocent/MVHR Integration Example

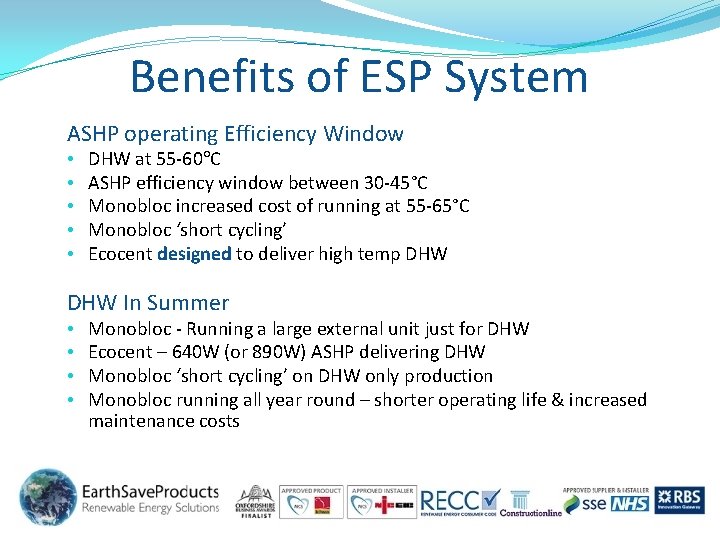

Benefits of ESP System ASHP operating Efficiency Window • • • DHW at 55 -60°C ASHP efficiency window between 30 -45°C Monobloc increased cost of running at 55 -65°C Monobloc ‘short cycling’ Ecocent designed to deliver high temp DHW In Summer • • Monobloc - Running a large external unit just for DHW Ecocent – 640 W (or 890 W) ASHP delivering DHW Monobloc ‘short cycling’ on DHW only production Monobloc running all year round – shorter operating life & increased maintenance costs

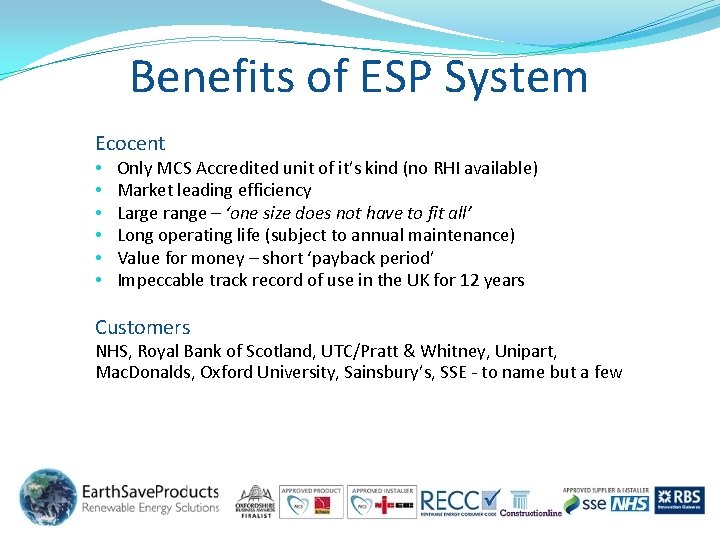

Benefits of ESP System Ecocent • • • Only MCS Accredited unit of it’s kind (no RHI available) Market leading efficiency Large range – ‘one size does not have to fit all’ Long operating life (subject to annual maintenance) Value for money – short ‘payback period’ Impeccable track record of use in the UK for 12 years Customers NHS, Royal Bank of Scotland, UTC/Pratt & Whitney, Unipart, Mac. Donalds, Oxford University, Sainsbury’s, SSE - to name but a few

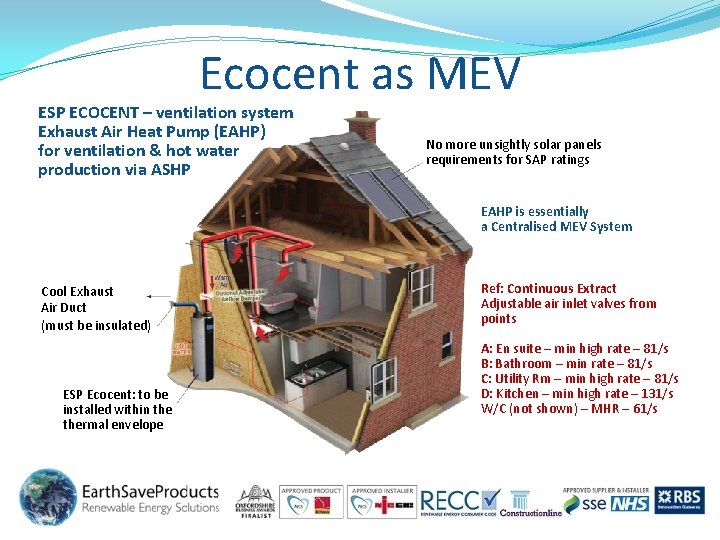

Ecocent as MEV ESP ECOCENT – ventilation system Exhaust Air Heat Pump (EAHP) for ventilation & hot water production via ASHP No more unsightly solar panels requirements for SAP ratings EAHP is essentially a Centralised MEV System Cool Exhaust Air Duct (must be insulated) ESP Ecocent: to be installed within thermal envelope Ref: Continuous Extract Adjustable air inlet valves from points A: En suite – min high rate – 81/s B: Bathroom – min rate – 81/s C: Utility Rm – min high rate – 81/s D: Kitchen – min high rate – 131/s W/C (not shown) – MHR – 61/s

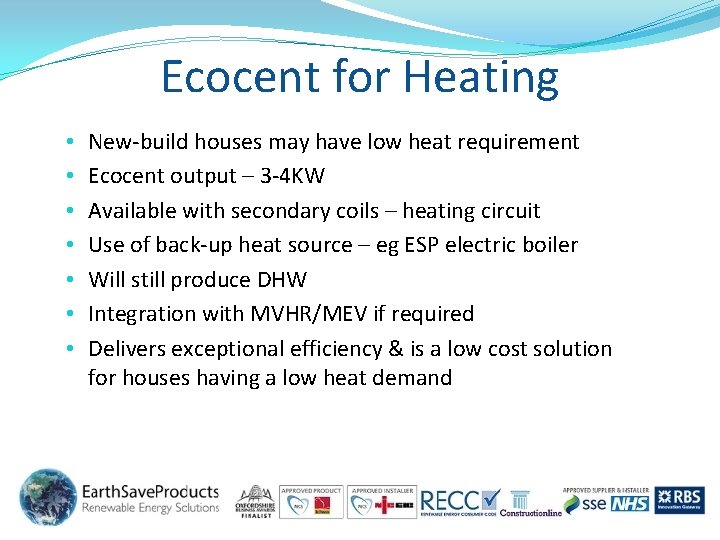

Ecocent for Heating • • New-build houses may have low heat requirement Ecocent output – 3 -4 KW Available with secondary coils – heating circuit Use of back-up heat source – eg ESP electric boiler Will still produce DHW Integration with MVHR/MEV if required Delivers exceptional efficiency & is a low cost solution for houses having a low heat demand

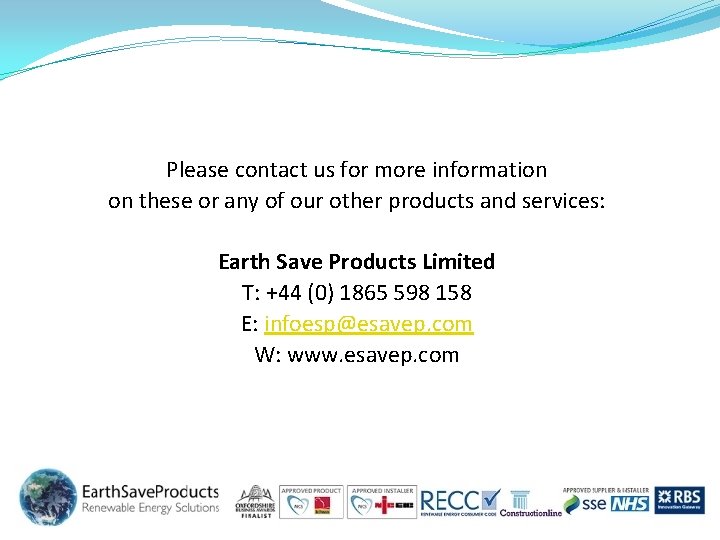

Please contact us for more information on these or any of our other products and services: Earth Save Products Limited T: +44 (0) 1865 598 158 E: infoesp@esavep. com W: www. esavep. com
