Operating Systems 132 Practical Session 5 Synchronization 1

Operating Systems, 132 Practical Session 5, Synchronization 1

Motivation • Multiprocessing needs some tools for managing shared resources – Printers – Files – Data Bases 2

Conditions for a good Solution 1. Mutual Exclusion – No two processes are in the critical section (CS) at the same time 2. Deadlock Freedom – If processes are trying to enter the CS one will eventually enter it 3. Starvation Freedom – When a process tries to enter its CS, it will eventually succeed 3

Solution Archetypes • Busy wait – Wastes CPU – Priority inversion with busy waiting (*): Task L (low priority) runs and gains exclusive use of resource R. H (high priority) task is introduced and attempts to acquire R and must therefore wait. Note that since H is busy waiting it may still be scheduled (its state remains runnable). Result: L can’t run and release R because H is of higher priority and is scheduled to run before it. H on the other hand can’t proceed past its busy wait loop. Deadlock! • Sleep & Wake up – Also prone to priority inversion but will not deadlock. Can you think of a scenario? 4

Peterson’s Solution N=2; interested[0]=interested[1]=FALSE; int turn; /* Should be named NOT_MY_TURN interested[N]; /* all initially 0 (FALSE) */ */ void enter_region(int process){ /* who is entering 0 or 1 ? */ int other = 1 - process; /* opposite of process */ interested[process] = TRUE; /* signal that you're interested */ turn = process; /* set flag – NOT my turn */ while (turn == process && interested[other] == TRUE); /* null statement */ } void leave_region(int process){ interested[process] = FALSE; } 5 /* who is leaving 0 or 1 ? */ /* departure from critical region */

Peterson’s Solution Process = 0 Process = 1 interested[0]=interested[1]=FALSE int turn; int interested[2]; void enter_region(…){ int other = 1; interested[0] = TRUE; turn = 0; while (turn == 0 && interested[1] == TRUE); } void enter_region(…){ int other = 0; interested[1] = TRUE; turn = 1; while (turn == 1 && interested[0] == TRUE); } void leave_region(…){ interested[0] = FALSE; } void leave_region(…){ interested[1] = FALSE; } 6

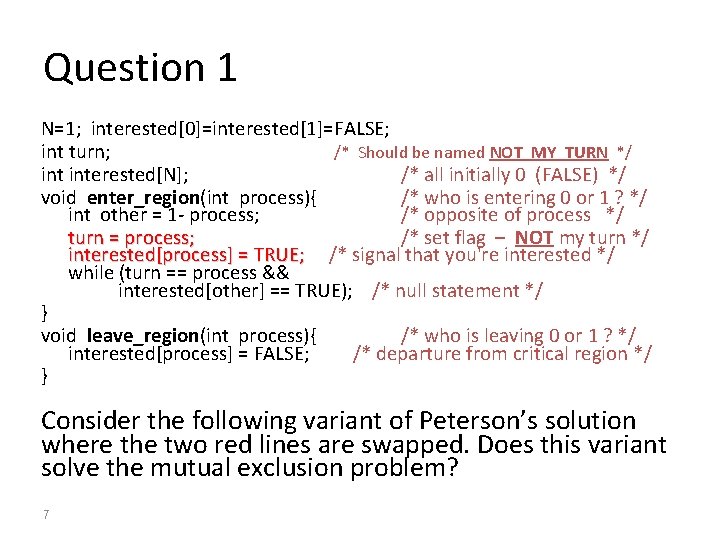

Question 1 N=1; interested[0]=interested[1]=FALSE; int turn; /* Should be named NOT_MY_TURN */ interested[N]; /* all initially 0 (FALSE) */ void enter_region(int process){ /* who is entering 0 or 1 ? */ int other = 1 - process; /* opposite of process */ turn = process; /* set flag – NOT my turn */ interested[process] = TRUE; /* signal that you're interested */ while (turn == process && interested[other] == TRUE); /* null statement */ } void leave_region(int process){ /* who is leaving 0 or 1 ? */ interested[process] = FALSE; /* departure from critical region */ } Consider the following variant of Peterson’s solution where the two red lines are swapped. Does this variant solve the mutual exclusion problem? 7

Peterson’s Solution Process = 0 Process = 1 interested[0]=interested[1]=FALSE int turn; interested[2]; void enter_region(…){ int other = 1; turn = 0; interested[0] = TRUE; while (turn == 0 && interested[1] == TRUE); } void enter_region(…){ int other = 0; turn = 1; interested[1] = TRUE; while (turn == 1 && interested[0] == TRUE); } void leave_region(…){ interested[0] = FALSE; } void leave_region(…){ interested[1] = FALSE; } 8

Answer We will get a mutual exclusion violation: P 1 does turn: =1; P 0 does turn: =0; P 0 does interested[0]: =true; P 0 does while(turn == 0 && interested [1]); // (#t and #f) #f P 0 enters the CS. P 1 does interested [1]: =true; P 1 does while(turn == 1 && interested [0]); // (#f and #t) #f P 1 enters the CS. now both processes are in the critical section. 9

Question 2 Assume the while statement in Peterson's solution is changed to: while (turn != process && interested[other] == TRUE) Describe a scheduling scenario in which we will receive a mutual exclusion violation and one in which we will NOT receive a Mutual Exclusion violation. 10

Question 2 N=2; interested[0]=interested[1]=FALSE; int turn; /* Should be named NOT_MY_TURN */ interested[N]; /* all initially 0 (FALSE) */ void enter_region(int process){ /* who is entering 0 or 1 ? */ int other = 1 - process; /* opposite of process */ interested[process] = TRUE; /* signal that you're interested */ turn = process; /* set flag – NOT my turn */ while (turn != process && interested[other] == TRUE) /* null statement */ } void leave_region(int process){ interested[process] = FALSE; } 11 /* who is leaving 0 or 1 ? */ /* departure from critical region */

Peterson’s Solution Process = 0 Process = 1 interested[0]=interested[1]=FALSE int turn; interested[2]; void enter_region(…){ int other = 1; interested[0] = TRUE; turn = 0; while (turn != 0 && interested[1] == TRUE); } void enter_region(…){ int other = 0; interested[1] = TRUE; turn = 1; while (turn != 1 && interested[0] == TRUE); } void leave_region(…){ interested[0] = FALSE; } void leave_region(…){ interested[1] = FALSE; } 12

Answer for Q. 2 No mutual exclusion violation: 1. One enters and exits and only afterwards the second receives a time quanta. 2. P 0 – interested[0]=true, P 0 – turn = 0, P 1 - interested[1]=true, P 1 – turn =1, P 1 passes while loop and enters CS, P 0 – stuck in while loop. 3. Many more…. 13

Answer for Q. 2 Mutual exclusion violation: Process A executes: `interested [process] = TRUE', TRUE `turn = process‘ process and falls through the while loop shown above. While in the critical section, the timer fires and process B executes: `interested [process] = TRUE', TRUE `turn = process' process and falls through the while loop shown above. Both processes are in the critical section. 14

Dekker’s algorithm 1. bool* flag = {false, false}; 2. int turn = 0 ; 3. void mutex() { 4. flag[process] = true; 5. while (flag[1 -process]) { 6. if (turn==(1 -process)) { 7. flag[process] = false; 8. while (turn == (1 -process)) { /*nothing*/ } 9. flag[process] = true; }} 10. /* critical section */ 11. turn = (1 -process); 12. flag[process] = false; 13. /* non-critical section */ } 15

Question 3 (from midterm of 2005) Prove Dekker’s algorithm for the Critical Section problem. That is, show that there are no mutual exclusion violations, no deadlocks and no starvation problem. 16

Question 3 (from midterm of 2005) Process = 0 Process = 1 1. bool* flag = {false, false}; 2. int turn = 0 ; 3. void mutex() { 4. flag[0] = true; 5. while (flag[1]) { 6. if (turn==1) { 7. flag[0] = false; 8. while (turn == 1) {} 9. flag[0] = true; }} 10. /* critical section */ 11. turn = 1; 12. flag[0] = false; 13. /* non-critical section */ } 3. void mutex() { 4. flag[1] = true; 5. while (flag[0]) { 6. if (turn==0) { 7. flag[1] = false; 8. while (turn == 0) {} 9. flag[1] = true; }} 10. /* critical section */ 11. turn = 0; 12. flag[1] = false; 13. /* non-critical section */ } 17

Answer Q. 3 No mutual exclusion violations – (no two processes will be in the CS at the same time) Falsely assume that both p 0 and p 1 are in the critical section. Further assume WLG that p 0 entered the CS first. The last change p 0 introduced on the algorithm’s variables, before existing the outer loop (line 5), was the assignment flag[0]=true Following our assumption, p 1 followed p 0 into the CS which means that it must have exited its outer loop. This, however, is only possible if flag[0]=false which is a contradiction to our initial assumption. 18

Answer Q. 3 No starvation – (any process attempting to enter the CS will eventually succeed) WLG assume p 0 is attempting to enter the CS and is somewhere in the while loop of line 5 (otherwise it will enter the CS). p 1 can be in several different states: 1. Not in the CS 2. In the CS 3. In its while loop with turn=0 4. In its while loop with turn=1 19

Answer Q. 3 Case 1 – a process not in the CS will not prevent other processes from entering it Any process which is not in the CS and does not want to enter it turns off its flag[i]=false (line 12 or init). This implies that any other process wishing to enter the CS will find the condition on the outer while loop (line 5, “while(flag[1])”) while(flag[1]) unsatisfied and will be able to enter the CS without having to examine the value of turn 20

Answer Q. 3 Case 2 – p 1 is in the CS After a finite amount of time p 1 will exit the CS and will set the value of turn to turn=0 If it stays out then we are back to case 1. Otherwise, if there is no preemption p 1 may try to enter the CS and we have to consider case 3 (p 1 is in its while loop with turn=0). turn=0 21

Answer Q. 3 Case 3 – p 1 is in its while loop with turn=0 Since the value of turn is 0, and no process can change it (p 0 is attempting to enter the CS and will only be able to change turn’s turn value after it leaves the CS), p 1 will eventually be held by the inner while loop (line 8) after setting flag[1]=false At some point, p 0 will receive CPU time. Since the value of turn is 0, it will proceed to its outer while loop (line 5). At this point the outer loop condition will not hold it, since flag[1]=false (by p 1), and p 0 will proceed to the CS. 22

Answer Q. 3 Case 4 – p 1 is in its while loop with turn=1 If the value of turn is 1, then p 1 will revolve in its outer while loop (line 5). It will continue going through it as long as flag[0]=true At some point, p 0 will receive CPU time. Since the value of turn is 1, it will proceed to its inner while loop (line 8) after setting flag[0]=false At this point the outer loop condition will not hold p 1, and we will be back to case 2 or 3 (for which we have shown that p 0 may eventually enter the CS). 23

Answer Q. 3 No Deadlock No need to prove! Follows from the fact that there’s no starvation. 24

Lamport’s Bakery Algorithm int value[N]={0, 0, …, 0}; int busy[N]={FALSE, …, FALSE}; /* processes get “waiting numbers” */ /* just a flag. . . */ void enter_region(int i ) /* process i entering. . */ { busy[i] = TRUE; /* guard the value selection */ value[i] = max(value[0], value[1], …, value[N-1]) + 1; /* LAST in line … */ busy[i] = FALSE; for(k=0; k < N; k ++){ while (busy[k] == TRUE) ; /* wait before checking */ while((value[k] != 0) && ((value[k], k) < (value[i], i))); /* wait */ } } void leave_region(int i ) { value[i ] = 0; } 25

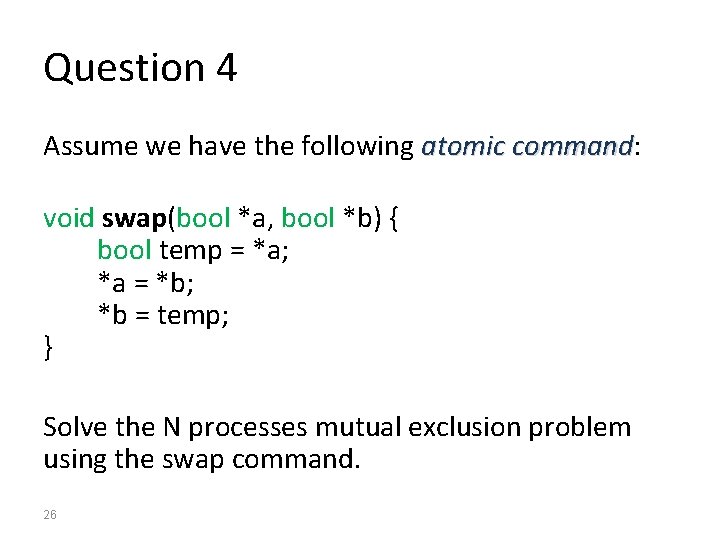

Question 4 Assume we have the following atomic command: command void swap(bool *a, bool *b) { bool temp = *a; *a = *b; *b = temp; } Solve the N processes mutual exclusion problem using the swap command. 26

Answer Q. 4 bool lock = FALSE; bool waiting[N] = {FALSE, …, FALSE}; void enter(int i) { waiting[i] The idea: = TRUE; Use akey local=variable bool TRUE; “key” which will be(TRUE) set to true. while { Let all processes swap it with current swap(&key, &lock); lock and compete over this line. ||grab !key) Only if the( !waiting[i] first process to it will have abreak; value of false to the }lock. This process will enter the CS. } 27 void swap(bool *a, bool *b) { bool temp = *a; *a = *b; *b = temp; } void leave(int i) { waiting[i]= FALSE ; The int idea: j = (i + 1) % N; Seekwhile the next ( (j(chronologically != i) && ordered) interested process. If) { waiting[j]==FALSE such a process j = (j +exist, 1) %grant N; it the ability } to enter the CS. Otherwise resetifthe locki) so (j == { that other processeslock will be able to enter the = FALSE; CS at} aelse later{ time. waiting[j] = FALSE; } }

Question 5 a – midterm 2010 Let A be an n processes (finite) mutual exclusion algorithm which is applied with the following guarantee: whenever A is used, any process will attempt to access the critical section only once. Prove or disprove the following claim: A is a starvation free algorithm if and only if it is a deadlock free algorithm. 28

Answer Q. 5 a The first part of the proof is trivial: starvation freedom also implies deadlock freedom. What about the second one? Assume that there are n processes and that A is free of deadlocks. Now, let us falsely assume that A is not a starvation free algorithm and contradict this assumption. If A is not a starvation free algorithm, then there must exist some process pi which goes through infinitely many steps but still can’t enter the CS. 29

Answer Q. 5 a, continued While pi goes through its steps other processes manage to enter the CS (we assumed deadlock freedom). As each process pj may only enter the CS once, at some point all n-1 processes will go through (in and out of) the CS and we will be left with pi. At this point, pi is the only process attempting to enter the CS. Following our initial assumption, there can be no deadlocks and pi will enter the CS. This contradicts our false assumption that A is not a starvation free algorithm. QED 30

Question Q. 5 b – midterm 2010 Consider the following simple algorithm similar to that shown in class: 1 int lock initially 0 2 boolean interested[n] initially {false, …, false} Code for procss i {0, …, n-1} 3 interested[i]: =true 4 await ((test-and-set(lock)=0) OR (interested[i] =false)) 5 Critical Section 6 j: =(i+1) modulo n 7 while (j ≠ i) AND (interested[j] = false) 8 j: =(j+1) modulo n 9 if (j=i) 10 lock: =0 11 else 12 interested[j]: =false 13 interested[i]=false Test-and-set(w) Test-and-set do atomically prev: =w w: =1 return prev Is this algorithm deadlock free? Prove or disprove by providing an accurate scenario which leads to a deadlock. 31

Answer Q. 5 b The following scenario results in a deadlock: deadlock 1. A process p 0 is executed and executes all lines up until the beginning of line 13. (Note that ‘lock’ lock is freed) 2. Another process p 1 is executed and allowed to run all the way through the CS. At this point p 1 iterates through the other processes and identifies that ‘interested[0]=true’. 3. As a result p 1 resets the value ‘interested[0]: =false’ (line 12) and does not free the lock. It then proceeds to line 13 and exits. 4. p 0 runs line 13. 5. At this point the system is in a state of deadlock. Any process attempting to enter the CS will be stopped by line 4. 32
