Mobile Billing System Mobile billing Solution Copyright 2001
신 개념 Mobile Billing System 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 1

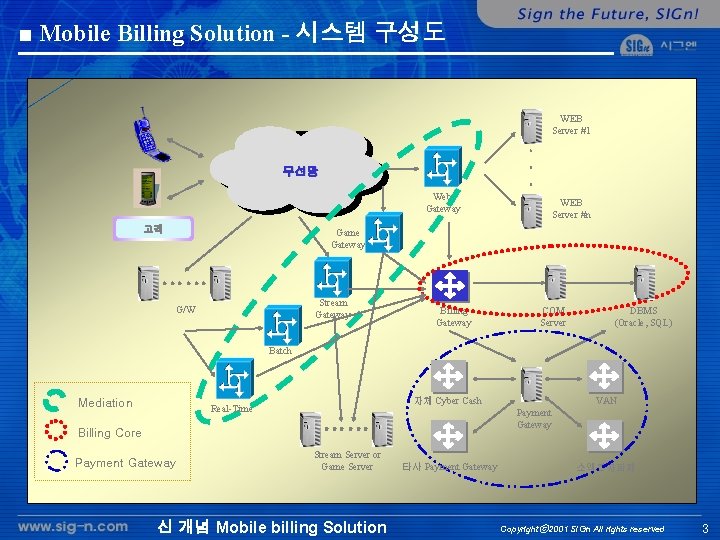

■ Mobile Billing Solution - 시스템 구성도 WEB Server #1 . . . 무선망 Web Gateway 고객 WEB Server #n Game Gateway …… Stream Gateway G/W Billing Gateway COM Server DBMS (Oracle, SQL) Batch Mediation 자체 Cyber Cash Real-Time …… Billing Core Payment Gateway Stream Server or Game Server 신 개념 Mobile billing Solution VAN Payment Gateway 타사 Payment Gateway 소액전자화폐 Copyrightⓒ 2001 SIGn All rights reserved 3

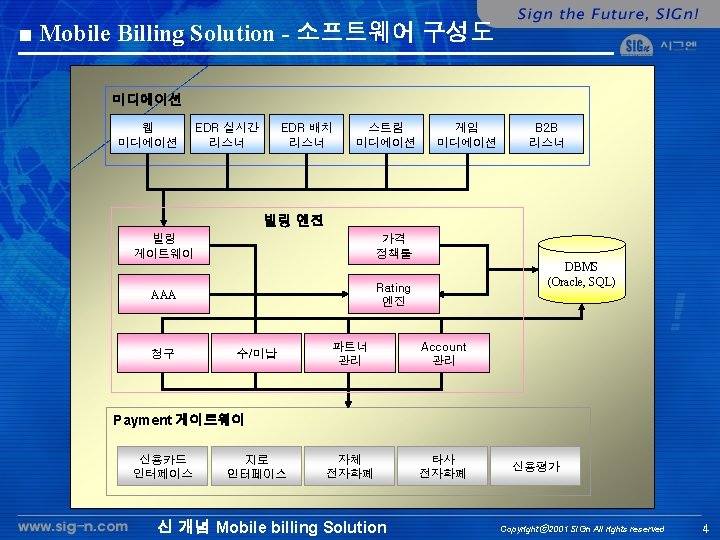

■ Mobile Billing Solution - 응용프로그램 구성도 ● Component 기반 (MS COM+) : 재 사용이 편리하고 모듈화된 구조 ● 4 -Tier Structure COM+ 기반의 Multi-Tier 구조 Application COM ▶ 응용 프로그램과의 인터페이스 ▶ 각종 프로그램의 독립 라이브러리 Business Logic COM ▶ 빌링 시스템의 핵심 내부 업무 로직 구현 Data Module COM ▶ RDBMS와 관련된 데이터 처리 기능 ▶ ADO, ODBC 등의 DB 연결 기능 제공 신 개념 Mobile billing Solution RDBMS ▶ Oracle RDBMS ▶ MS SQL RDBMS Copyrightⓒ 2001 SIGn All rights reserved 5
Mobile Billing Solution - Mediation - 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 6

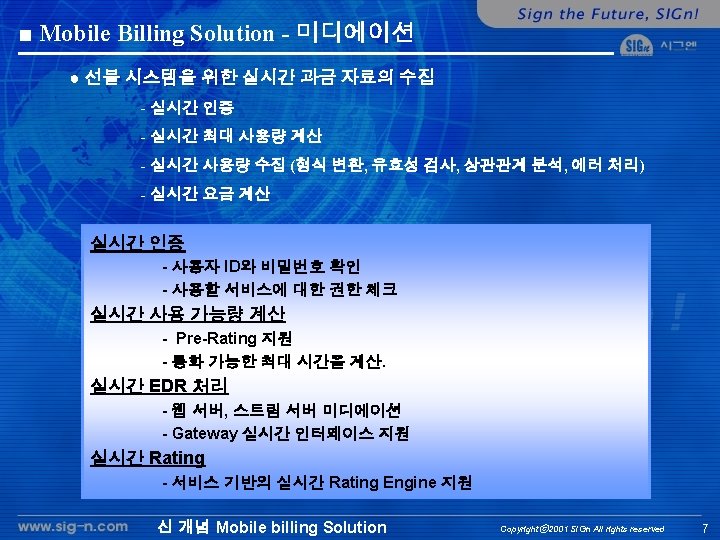

■ Mobile Billing Solution - 미디에이션 (계속) ● 후불 시스템을 위한 과금자료의 일괄 수집 - Event Batch Loader (DEBL) 지원 - 파일 기반의 EDR 처리 도구 - EDR Design Tool 지원 - Use Rate Proxy COM - Classify Drop, Error EDR File during Processing 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 8
■ Mobile Billing Solution - 미디에이션 (계속) ● 웹 미디에이션 - HTTP Packet Filtering Support - Probe - 실시간 Billing Gateway와 인터페이스 - Customized Web Log Generate Browser HTTP Packet Web Mediation HTTP Packet Web Server Billing EDR Billing Server Billing Event Billing Gateway 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 10
■ Mobile Billing Solution - 미디에이션 (계속) ● 스트림 미디에이션 - Stream Gateway Support - 실시간 Billing Gateway와 인터페이스 - Co-Work with Web Mediation - Aggregate and Correlate Web Log and Stream Log HTTP Packet Browser Web Mediation HTTP Packet Web Server Billing EDR Billing Server Stream Packet Stream Server Billing Event Billing Gateway Billing Event Stream Client Stream Packet Stream Gateway 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 11
■ Mobile Billing Solution - 미디에이션 (계속) ● 게임 미디에이션 - Winsock Provider 사용 - IP Address Redirect - 실시간 Billing Gateway와 인터페이스 Game Client Game Packet Winsock Provider Packet Redirect Game Server Game Gateway Billing Event Billing Gateway 신 개념 Mobile billing Solution Billing EDR Billing Server Copyrightⓒ 2001 SIGn All rights reserved 12
Mobile Billing Solution - Billing Engine - 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 13
■ Mobile Billing Solution Engine 고객정보 Web Server 고객 고객 및 상품정보 Database 관리자 XML EDR Billing Gateway 신 개념 Mobile billing Solution Rating Engine Copyrightⓒ 2001 SIGn All rights reserved 14
■ Mobile Billing Solution– Account 관리 ● Account 종류 - 개인 고객 - 법인 - 내부 사용자 ( eg: Call Center 직원 ) - 관리자 ( eg: 빌링 시스템 매니저 ) - 파트너 ( eg: CP, SO, NO ) 개인 고객 법인 내부 사용자 신 개념 Mobile billing Solution 관리자 파트너 Copyrightⓒ 2001 SIGn All rights reserved 15

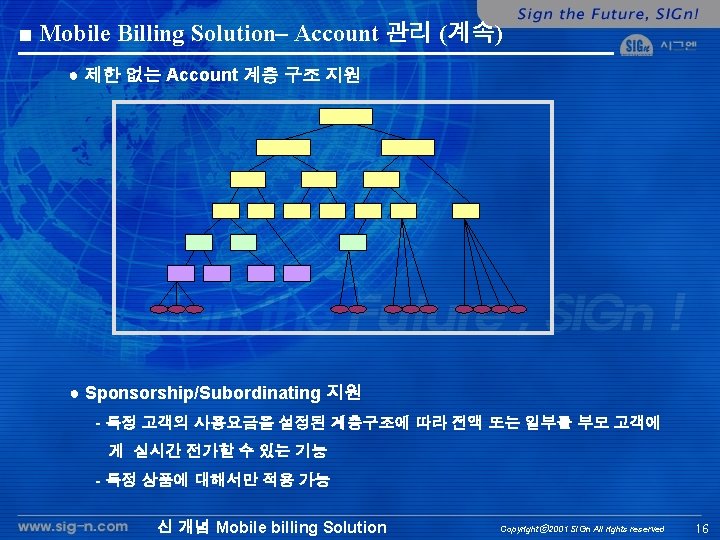

■ Mobile Billing Solution– Account 관리 < 고객 계층 관리 화면 > 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 17
■ Mobile Billing Solution – 가격 정책 Tool (계속) Rate : 사용 시간대별 요율 정의 - Peak Time , Non-Peak Time , Holiday, etc Rate Tier : 계층적 과금 요율 정의 - Linear (flat rate) : 고정 요율 적용 방식 - Stepped (stepped rate) : 단계별 요율 적용 방식 - Tiered (rate by total usage) : 사용량에 따른 요율 적용 방식 Rate Resource : 리소스 변동 요율 정의 - Multi-Resource 지원 (원화, 마일리지, 포인트, 무료분수) - eg, 10 $ / 10 min, 1 mileage / download 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 22
■ Mobile Billing Solution – 가격 정책 Tool (계속) ● 가격 정책 툴 - 윈도우 기반의 GUI Tool - 서비스와 상품을 등록 및 관리 - Register Zone Map, Country Code (for Vo. IP Service), URL MAP (for Web Service) 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 23
■ Mobile Billing Solution – 가격 정책 Tool (계속) ● Key features of DANU Product Structure - 다중 리소스 지원 - 과금 이벤트의 동적 지정 - 선/후불 동시 지원 - Liner, Step, Tier Rate Support by EDR Quantity - Liner, Step, Tier Rate Support by Account Resource Balance 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 24
■ Mobile Billing Solution – 빌링 게이트웨이 ● 빌링 게이트웨이의 역할 - 각종 미디에이션으로부터 전달된 EDR을 Rating Engine에게 전달 ● 빌링 게이트웨이의 기능 - 다양한 과금 자료의 형식 변환 XML Event - Mediation 서버에 대한 Load Balancing - Rating Engine의 호출 Billing Gateway Event Parser Rating COM Load Balancing Pre-Rating Call DCOM Rating Engine COM+ Service 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 25
■ Mobile Billing Solution – 요금계산 엔진 ● Rating Engine 기능 - 고객의 인증(Authentication) - 해당서비스의 접근 여부판단 (Authorization) - Guiding – 고객의 상품정보 추출 - 해당 과금 Event에 대한 요금계산 - 요금계산 결과의 이벤트 저장 COM+ Rating Service Engine Price Plan Loader Authentication Database Account Guide Account Rater Event Writer Hierarchy Rater XML Partner Rater Event Queuing 신 개념 Mobile billing Solution XML MSMQ Copyrightⓒ 2001 SIGn All rights reserved 26
■ Mobile Billing Solution – 요금계산 엔진 (계속) ● Price Plan Loader - 관련된 상품정보를 데이터베이스로부터 Rating Engine의 Local Memory로 Load - Enhance Rating Performance - Synchronize Price Plan Information Memory RDBMS Price Plan Information Rating Engine ● Authentication & Authorization - Determine the Account ID - Check Service Login ID and Password ( If it need ) - Validate Service Availability 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 27

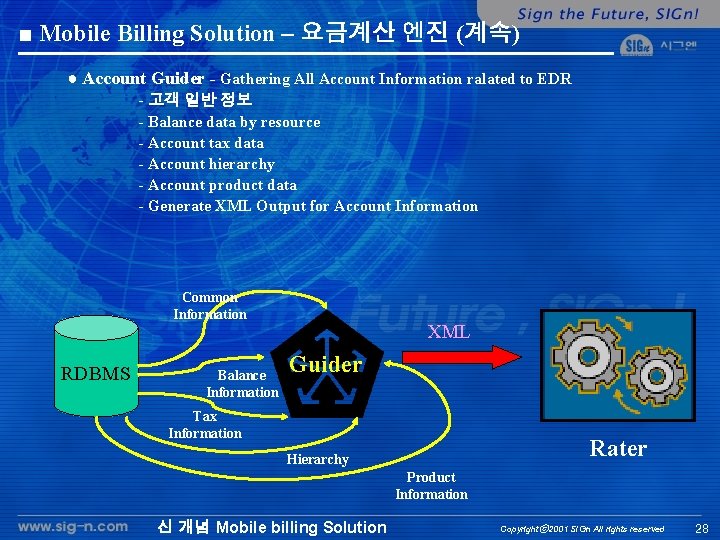

■ Mobile Billing Solution – 요금계산 엔진 (계속) ● Account Guider - Gathering All Account Information ralated to EDR - 고객 일반 정보 - Balance data by resource - Account tax data - Account hierarchy - Account product data - Generate XML Output for Account Information Common Information RDBMS Balance Information XML Guider Tax Information Rater Hierarchy Product Information 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 28

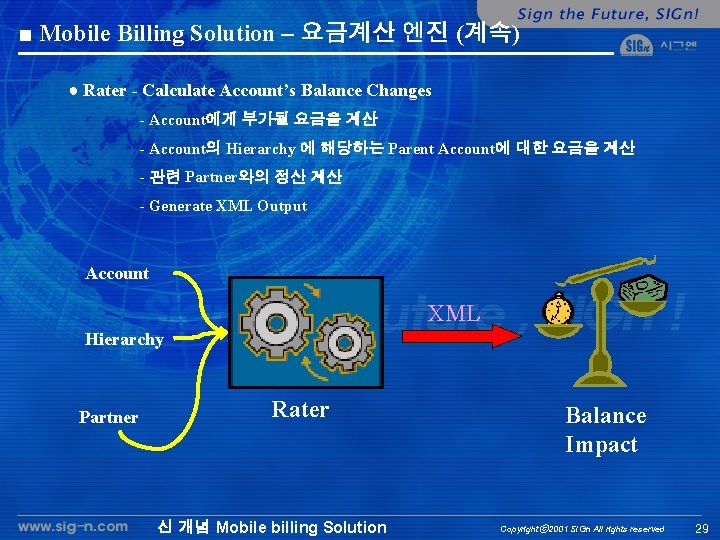

■ Mobile Billing Solution – 요금계산 엔진 (계속) ● Rater - Calculate Account’s Balance Changes - Account에게 부가될 요금을 계산 - Account의 Hierarchy 에 해당하는 Parent Account에 대한 요금을 계산 - 관련 Partner와의 정산 계산 - Generate XML Output Account XML Hierarchy Partner Rater 신 개념 Mobile billing Solution Balance Impact Copyrightⓒ 2001 SIGn All rights reserved 29

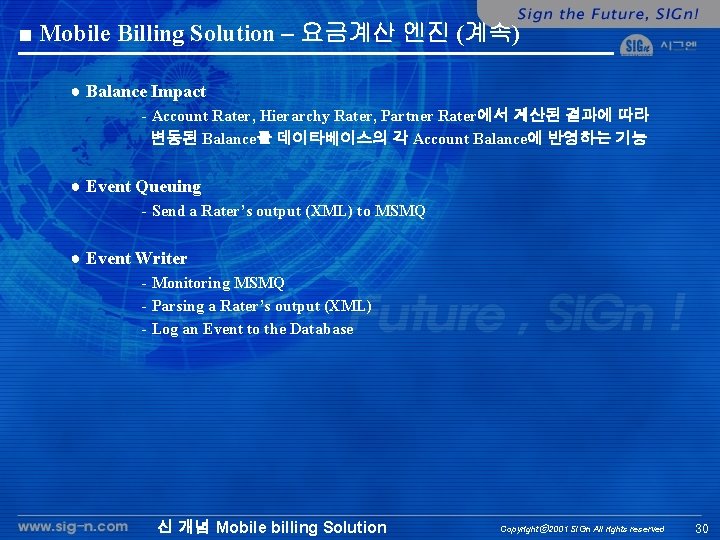

■ Mobile Billing Solution – 요금계산 엔진 (계속) ● Balance Impact - Account Rater, Hierarchy Rater, Partner Rater에서 계산된 결과에 따라 변동된 Balance를 데이타베이스의 각 Account Balance에 반영하는 기능 ● Event Queuing - Send a Rater’s output (XML) to MSMQ ● Event Writer - Monitoring MSMQ - Parsing a Rater’s output (XML) - Log an Event to the Database 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 30
■ Mobile Billing Solution – 청구 관리 ● 기능 - Define Invoicing Item - Invoice Formatter - Generate Invoice ● 청구관리의 특장점 - 다양한 청구방법 지원 eg. 지로, 자동이체, 신용카드, e-Mail, etc. - Cycle Billing 지원 - Multi Cycle (999 cycles available) - 다양한 통화 지원 (Multi Currency) - Cycle Forward (billing at the beginning of a cycle) - Cycle Arrear (billing at the end of a Cycle) - Support Sponsored billing Giro, Credit Card Billing Engine Calculate E-mail Customer 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 31
■ Mobile Billing Solution – 청구 관리 < 청구관리(Cycle 관리) 화면 > 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 32
■ Mobile Billing Solution – 수/미납 관리 ● 수/미납 관리 - Payment Gateway와 연동하여서 작동하는 일련의 COM API로만 제공됨 ( Payment, Adjustment, Refund, Collection ) - Close Invoiced Item when paid - Interface with Payment Gateway COM+ API Payment COM API Adjustment COM API Refund COM API Collection Library DCOM Payment Gateway TCP/IP External Financial System 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 33
■ Mobile Billing Solution – 수/미납 관리 < 수납관리 화면 > 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 34
Mobile Billing solution - Payment Gateway - 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 35

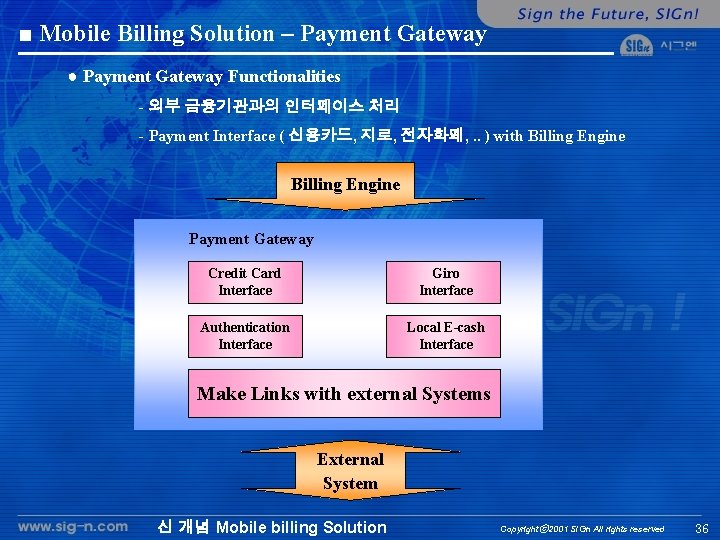

■ Mobile Billing Solution – Payment Gateway ● Payment Gateway Functionalities - 외부 금융기관과의 인터페이스 처리 - Payment Interface ( 신용카드, 지로, 전자화폐, . . ) with Billing Engine Payment Gateway Credit Card Interface Giro Interface Authentication Interface Local E-cash Interface Make Links with external Systems External System 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 36
Thank You Next Generation e – Solution Provider 신 개념 Mobile billing Solution Copyrightⓒ 2001 SIGn All rights reserved 37
