Microsoft Office Solution Accelerator for Six Sigma – A Case Study in Project Server Customization Brian Smith Program Manager Information Worker New Markets Microsoft Corporation

What are we going to Learn Today What is Six Sigma How we can expose project data to the Project Guide How we can expose external data through Project Center How we can work with WSS templates Pulling it all together with Info. Path

What is Six Sigma? A rigorous approach to solving problems and improving processes by leveraging facts and data Can be viewed from multiple perspectives Philosophy Measure Methodology

Six Sigma Measure Sigma 6 sigma 5 sigma 4 sigma 3 sigma 2 sigma 1 sigma Defects per million 3. 4 230 6, 200 67, 000 310, 000 700, 000 Cost of Poor Quality <10% of sales 10 to 15% 15 to 20% 20 to 30% 30 to 40% World Class Industry average Noncompetitive

Six Sigma Measure

Six Sigma Methodology Standardized data driven approach to problem solving Process and input focus Variance reduction and process optimization Eliminating the opportunity for defects to occur

DMAIC Roadmap D M A I Problem “Y” Data Integrity Analyze Inputs Process Changes Lock down X’s Improved Sustain The Gain! Baseline LSL Problem Statement CTQ “Y” 0 U SL 4 8 12 16 B Inputs X X X X C X 1. . X 2 X X X X X 1. . X 2 Screen Inputs Process A C Statistical Toolset “Y” LSL U SL X X X 0 Y=X 1. . X 2 4 8 12 16

What is the Microsoft Office Solution Accelerator for Six Sigma? A solution built on top of Microsoft Office Project that aids the management, control and reporting of Six Sigma project programs A case study of how to extend Project to solve a specific business problem

Components of the Accelerator Dynamic Project Guide Financial tracking application Extension to Windows Share. Point Services integration Info. Path Project Selection form Microsoft Office Data Assistant for Power. Point

Dynamic Project Guide Project Data Service access to task content Navigation Document access Context sensitive help Uses. NET application rather than static XML file

Screen Shot of Project Guide

Project Guide

Financials Hosting Office Web Components in Project Professional and Project Web Accessing project related data through Project Center views

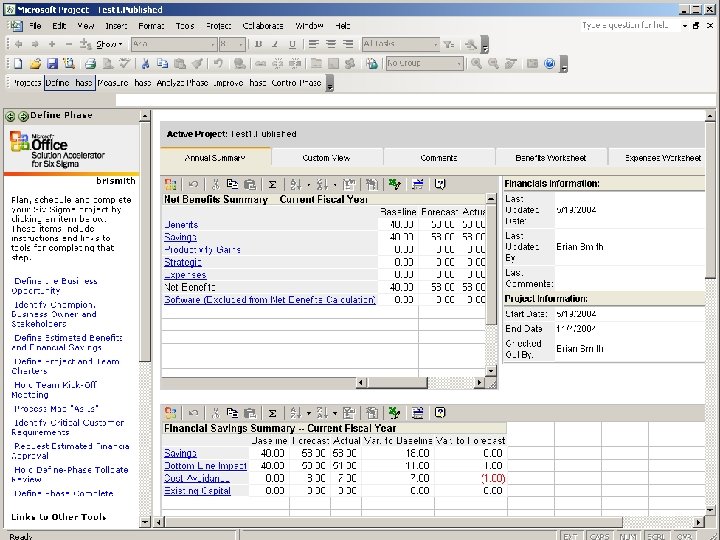

Financials

Project Center Accessing External Data

So how does Project Center see our data? Data table for Financials One or more views to filter the data Final view linked to Project Stored Procedure

Project Center Reporting & Selection How does the Project Center view get its data? Columns are specified in the MSP_WEB_VIEW_FIELDS These will then be available to be added to Project Center views The display text is specified in MSP_WEB_CONVERSIONS The data is found from the result of the stored procedure MSP_WEB_SP_SEC_Get. Portfolio. View. RSBased. On. Fiel d. List

MSP_WEB_VIEW_FIELDS table The table holds the references to all the fields available within Project Center views A full reference can be found in pjsvrdb. htm on the Project Server CD (in the docs directory) Key fields to note: WFIELD_NAME_OLEDB The name of the field used in the Microsoft Project OLE DB provider WFIELD_NAME_SQL The name of the field in the Microsoft Project Server database (in the stored procedure in a few slides time) WFIELD_NAME_CONV_VALUE Refers to the CONV_VALUE field in the MSP_WEB_CONVERSIONS table, which provides the localized description of the field Continued….

MSP_WEB_VIEW_FIELDS table WFIELD_TEXTCONV_TYPE The type of field 1 String 4 Date 5 Percent (for example, 5%) 9 Cost (for example, $5. 00)11 Cost rate (for example, $5/hr) 12 Units 15 Plain number Only numeric values will be “rolled-up” in the views!

MSP_WEB_CONVERSION table This table holds the localized string values referred to in the previous table STRING_TYPE_ID Refers to a valid STRING_TYPE_ID in the MSP_WEB_STRING_TYPES table CONV_VALUE The ID value of the string (link to previous table) LANG_ID The ID of the language in which the conversion text is displayed, for example: 1033 is the language ID for English, the default language for the database CONV_STRING The text value of the string

MSP_WEB_SP_SEC_ Get. Portfolio. View. RSBased. On. Field. List This stored procedure gets the data from the database for the Project Center views The procedure is listed in the notes field for reference, including in bold our addition to link to our view table

In summary… We add rows to the Project center tables We amend the stored procedure to also link to our summary data view We create the Financial view to have the per project data we want We use multiple views for ease of following the flow – it could be one

Project and Windows Share. Point Services Integration Project Specific WSS sites Create sites that match the project template – complete with content Front end or back end templates Object Link Provider Map content of site to tasks within project

STSADM Your friend on the command line How do I load templates? stsadm. exe -o addtemplates -f <sixsigma. stp> -title "Six Sigma template" -description “Description goes here" What templates do I have loaded? stsadm –o enumtemplates What is the “name” that the createsite method expects? _GLOBAL_#1 or something similar

Project and WSS

Info. Path – Pulling it all together. Collect project ideas Rank based on customizable criteria Create project and collaboration site based on templates

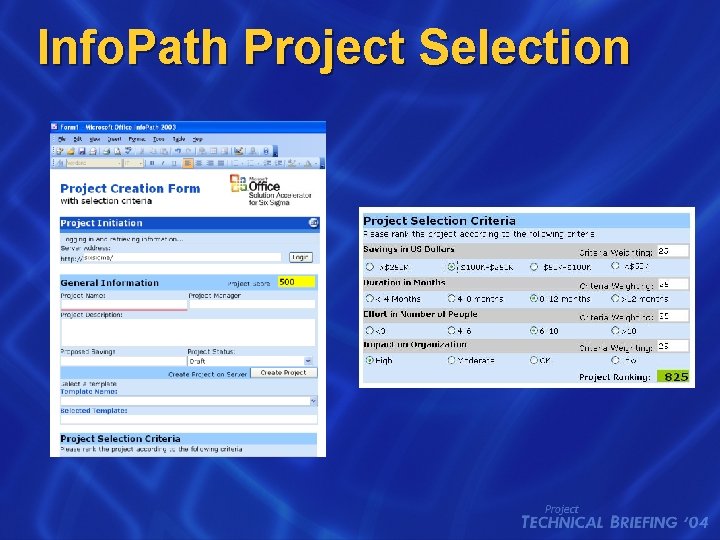

Info. Path Project Selection

Call to action! Take all or some of these scenarios to extend the use of Project and Windows Share. Point Services

Source Code The source code for the Microsoft Office Solution Accelerator for Six Sigma will be made available to partners on request Training session – date to be advised Limited support – 90 days post training
