Why Do Six Sigma Six Sigma Overview ASC

Why Do Six Sigma? Six Sigma Overview ASC Asia Six Sigma Consultants HAMID REZAIE

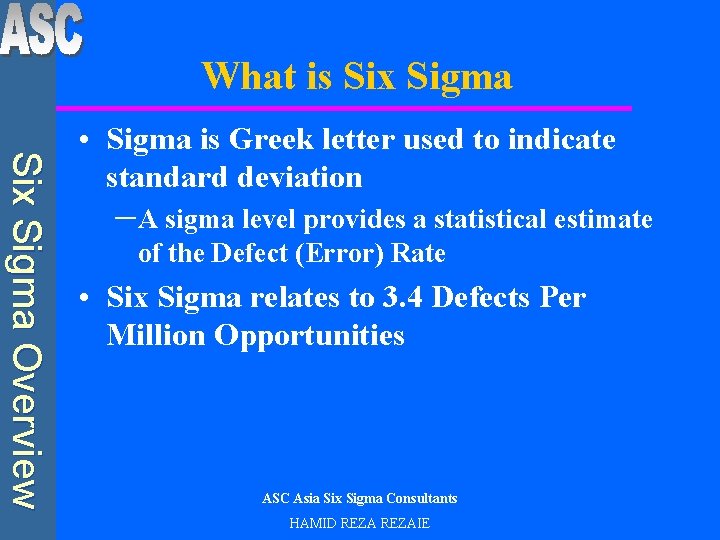

What is Six Sigma Overview • Sigma is Greek letter used to indicate standard deviation –A sigma level provides a statistical estimate of the Defect (Error) Rate • Six Sigma relates to 3. 4 Defects Per Million Opportunities ASC Asia Six Sigma Consultants HAMID REZAIE

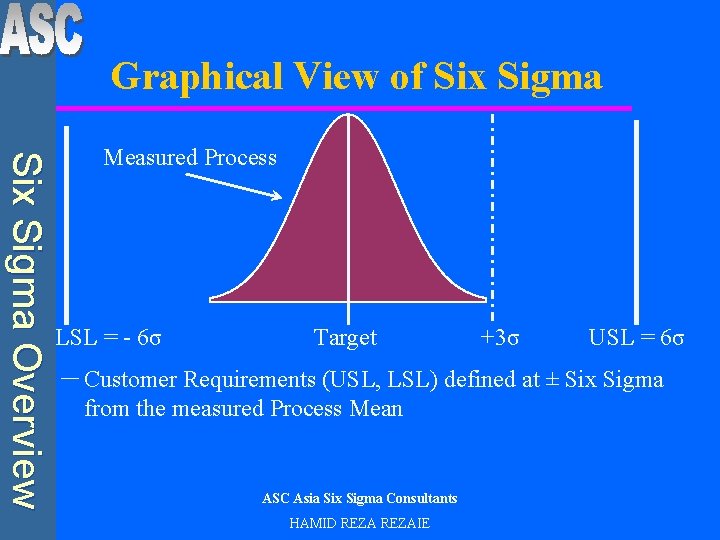

Graphical View of Six Sigma Overview Measured Process LSL = - 6σ Target +3σ USL = 6σ – Customer Requirements (USL, LSL) defined at ± Six Sigma from the measured Process Mean ASC Asia Six Sigma Consultants HAMID REZAIE

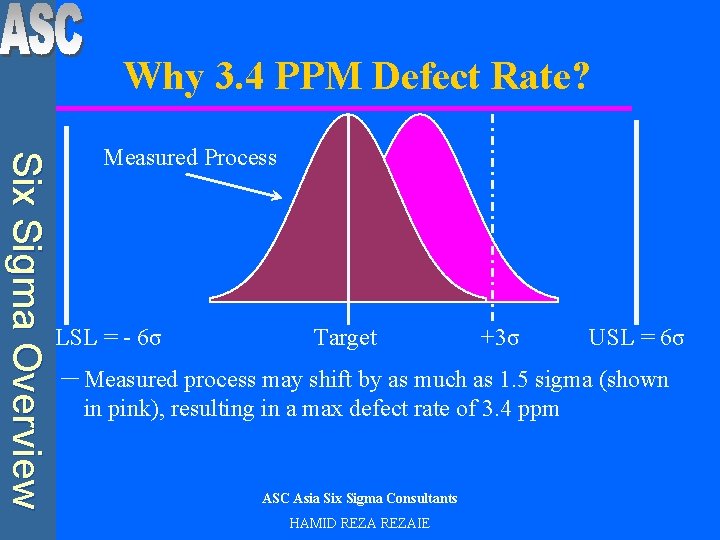

Why 3. 4 PPM Defect Rate? Six Sigma Overview Measured Process LSL = - 6σ Target +3σ USL = 6σ – Measured process may shift by as much as 1. 5 sigma (shown in pink), resulting in a max defect rate of 3. 4 ppm ASC Asia Six Sigma Consultants HAMID REZAIE

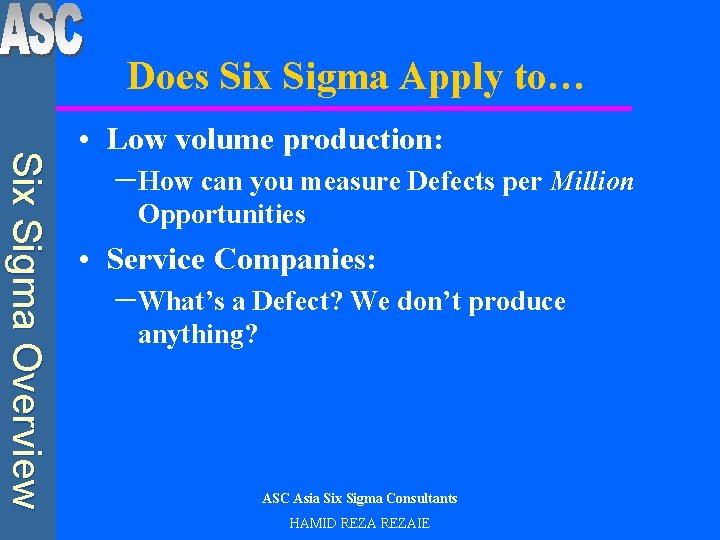

Does Six Sigma Apply to… Six Sigma Overview • Low volume production: –How can you measure Defects per Million Opportunities • Service Companies: –What’s a Defect? We don’t produce anything? ASC Asia Six Sigma Consultants HAMID REZAIE

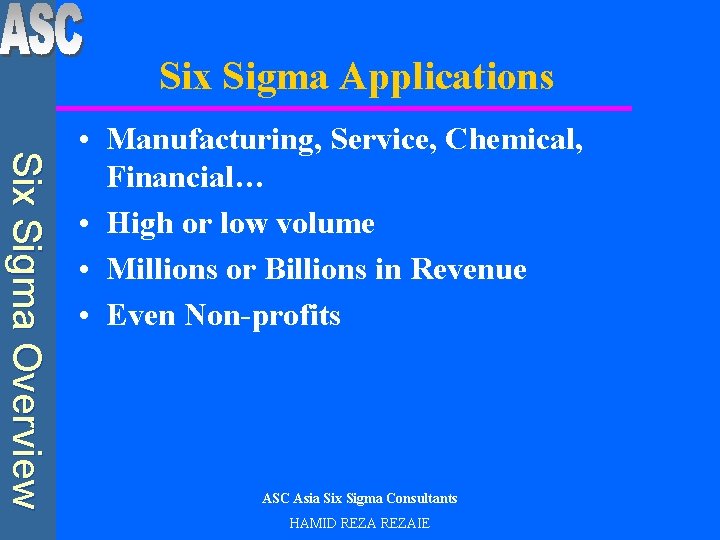

Six Sigma Applications Six Sigma Overview • Manufacturing, Service, Chemical, Financial… • High or low volume • Millions or Billions in Revenue • Even Non-profits ASC Asia Six Sigma Consultants HAMID REZAIE

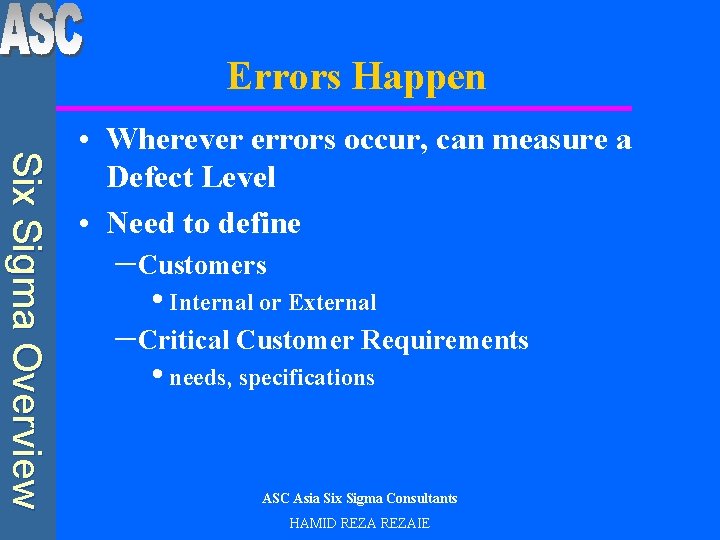

Errors Happen Six Sigma Overview • Wherever errors occur, can measure a Defect Level • Need to define –Customers • Internal or External –Critical Customer Requirements • needs, specifications ASC Asia Six Sigma Consultants HAMID REZAIE

How DPMO Relates to Sigma Level Six Sigma Overview ASC Asia Six Sigma Consultants HAMID REZAIE

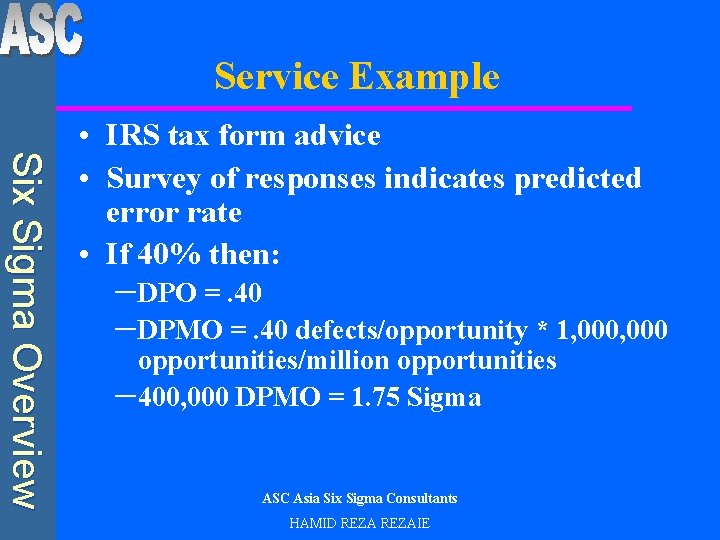

Service Example Six Sigma Overview • IRS tax form advice • Survey of responses indicates predicted error rate • If 40% then: –DPO =. 40 –DPMO =. 40 defects/opportunity * 1, 000 opportunities/million opportunities – 400, 000 DPMO = 1. 75 Sigma ASC Asia Six Sigma Consultants HAMID REZAIE

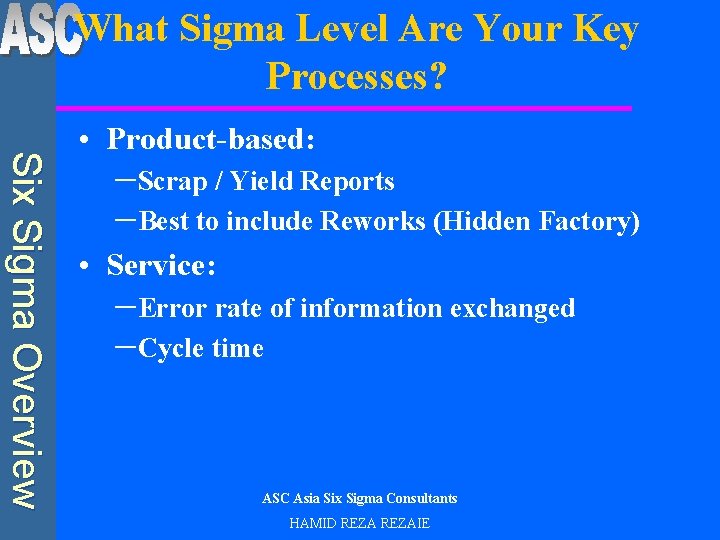

What Sigma Level Are Your Key Processes? Six Sigma Overview • Product-based: –Scrap / Yield Reports –Best to include Reworks (Hidden Factory) • Service: –Error rate of information exchanged –Cycle time ASC Asia Six Sigma Consultants HAMID REZAIE

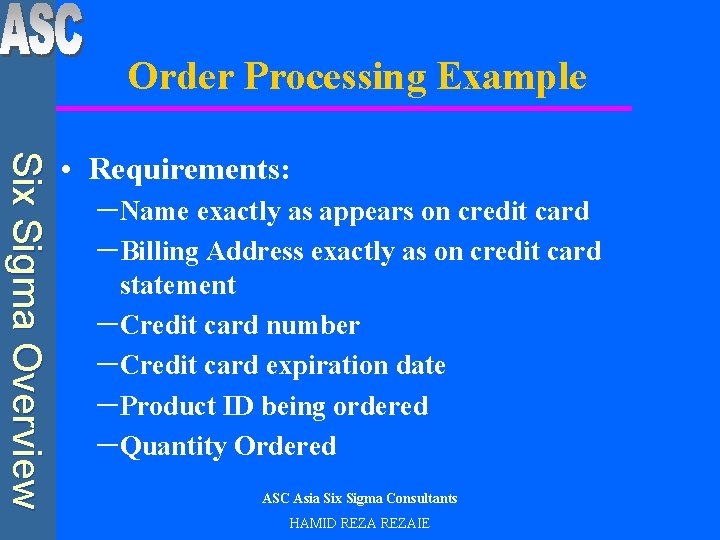

Order Processing Example Six Sigma Overview • Requirements: –Name exactly as appears on credit card –Billing Address exactly as on credit card statement –Credit card number –Credit card expiration date –Product ID being ordered –Quantity Ordered ASC Asia Six Sigma Consultants HAMID REZAIE

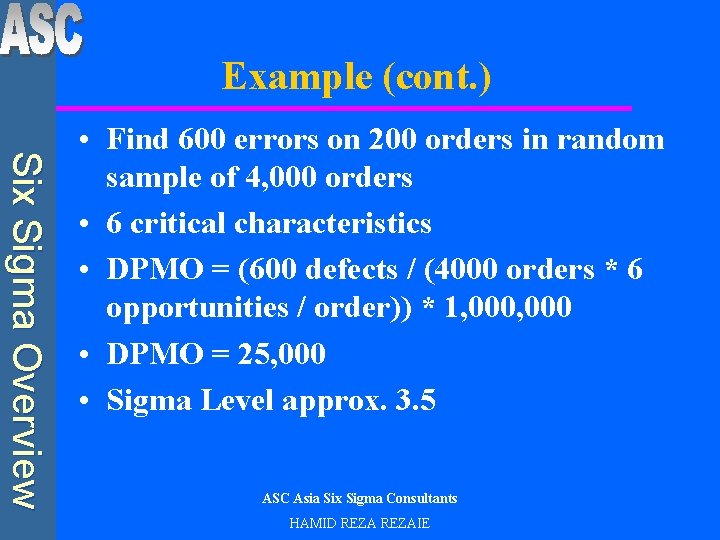

Example (cont. ) Six Sigma Overview • Find 600 errors on 200 orders in random sample of 4, 000 orders • 6 critical characteristics • DPMO = (600 defects / (4000 orders * 6 opportunities / order)) * 1, 000 • DPMO = 25, 000 • Sigma Level approx. 3. 5 ASC Asia Six Sigma Consultants HAMID REZAIE

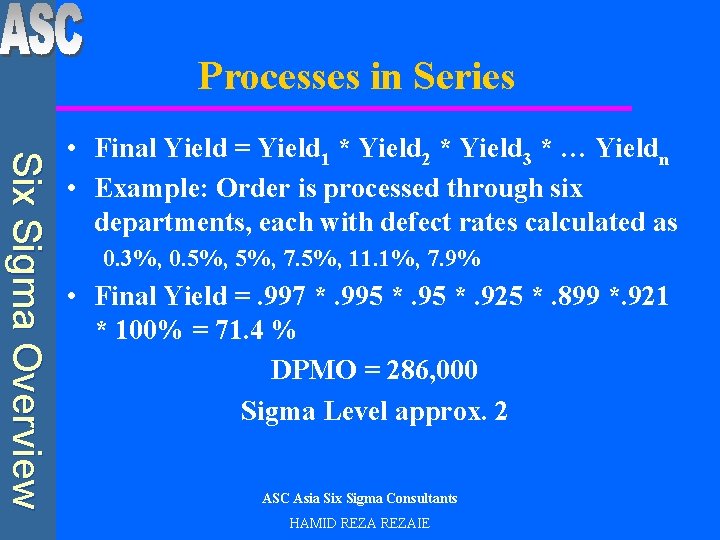

Processes in Series Six Sigma Overview • Final Yield = Yield 1 * Yield 2 * Yield 3 * … Yieldn • Example: Order is processed through six departments, each with defect rates calculated as 0. 3%, 0. 5%, 7. 5%, 11. 1%, 7. 9% • Final Yield =. 997 *. 995 *. 925 *. 899 *. 921 * 100% = 71. 4 % DPMO = 286, 000 Sigma Level approx. 2 ASC Asia Six Sigma Consultants HAMID REZAIE

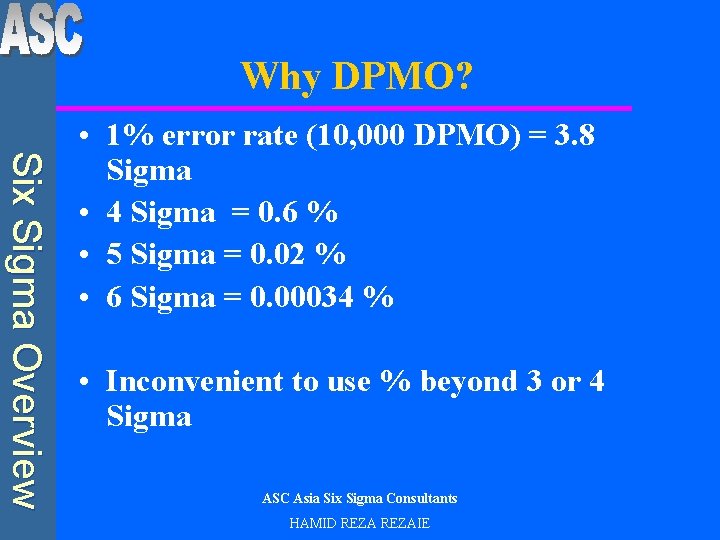

Why DPMO? Six Sigma Overview • 1% error rate (10, 000 DPMO) = 3. 8 Sigma • 4 Sigma = 0. 6 % • 5 Sigma = 0. 02 % • 6 Sigma = 0. 00034 % • Inconvenient to use % beyond 3 or 4 Sigma ASC Asia Six Sigma Consultants HAMID REZAIE

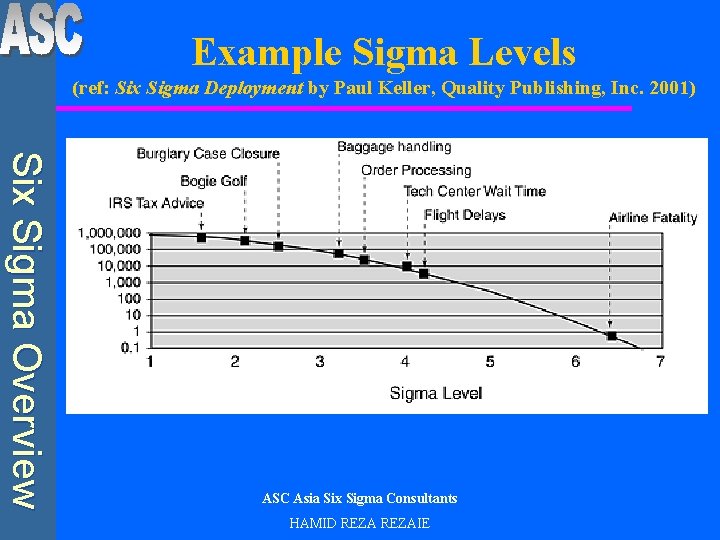

Example Sigma Levels (ref: Six Sigma Deployment by Paul Keller, Quality Publishing, Inc. 2001) Six Sigma Overview ASC Asia Six Sigma Consultants HAMID REZAIE

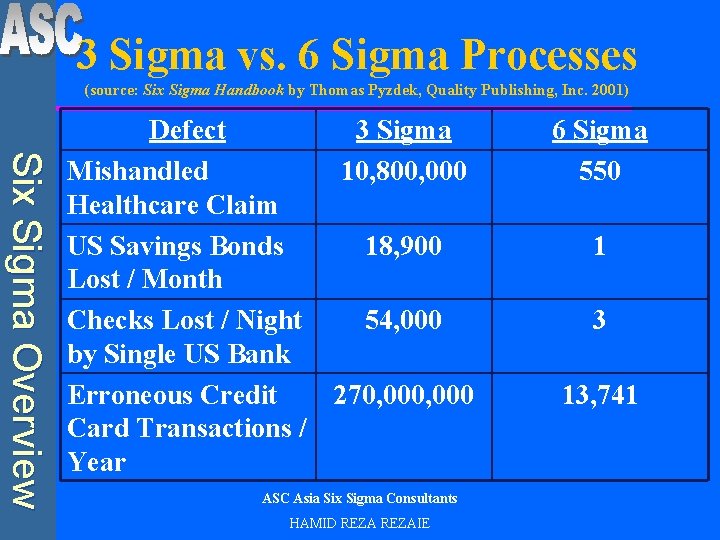

3 Sigma vs. 6 Sigma Processes (source: Six Sigma Handbook by Thomas Pyzdek, Quality Publishing, Inc. 2001) Six Sigma Overview Defect 3 Sigma Mishandled 10, 800, 000 Healthcare Claim US Savings Bonds 18, 900 Lost / Month Checks Lost / Night 54, 000 by Single US Bank Erroneous Credit 270, 000 Card Transactions / Year ASC Asia Six Sigma Consultants HAMID REZAIE 6 Sigma 550 1 3 13, 741

The DPMO Game Six Sigma Overview • How to classify an “Opportunity”? –Ex: Define opportunity for earlier IRS Tax advice example: • each customer contact, OR • each question from each customer contact –The latter choice provides more opportunities • More opportunities = less DPMO for same number of errors ASC Asia Six Sigma Consultants HAMID REZAIE

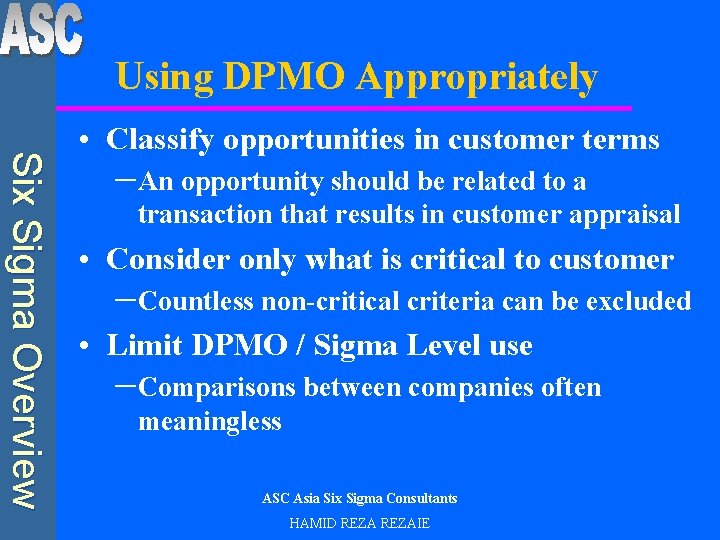

Using DPMO Appropriately Six Sigma Overview • Classify opportunities in customer terms –An opportunity should be related to a transaction that results in customer appraisal • Consider only what is critical to customer –Countless non-critical criteria can be excluded • Limit DPMO / Sigma Level use –Comparisons between companies often meaningless ASC Asia Six Sigma Consultants HAMID REZAIE

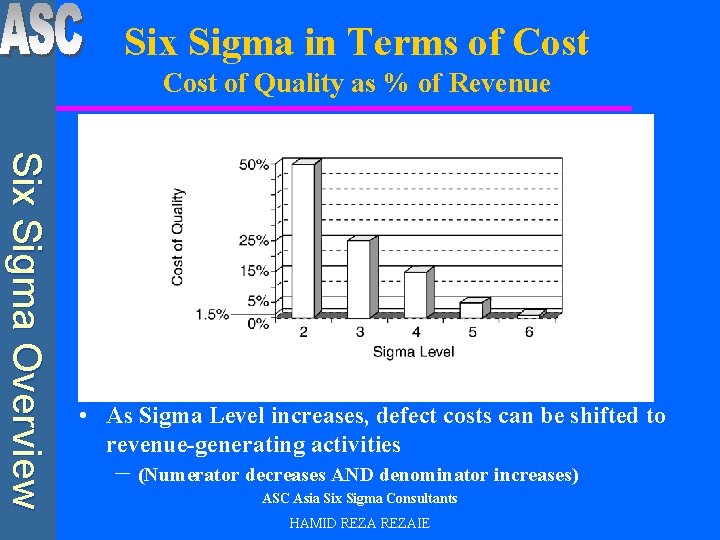

Six Sigma in Terms of Cost of Quality as % of Revenue Six Sigma Overview • As Sigma Level increases, defect costs can be shifted to revenue-generating activities – (Numerator decreases AND denominator increases) ASC Asia Six Sigma Consultants HAMID REZAIE

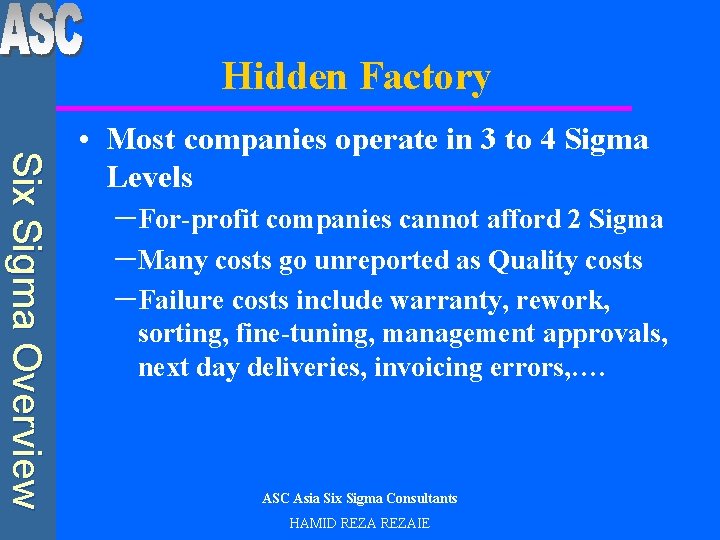

Hidden Factory Six Sigma Overview • Most companies operate in 3 to 4 Sigma Levels –For-profit companies cannot afford 2 Sigma –Many costs go unreported as Quality costs –Failure costs include warranty, rework, sorting, fine-tuning, management approvals, next day deliveries, invoicing errors, …. ASC Asia Six Sigma Consultants HAMID REZAIE

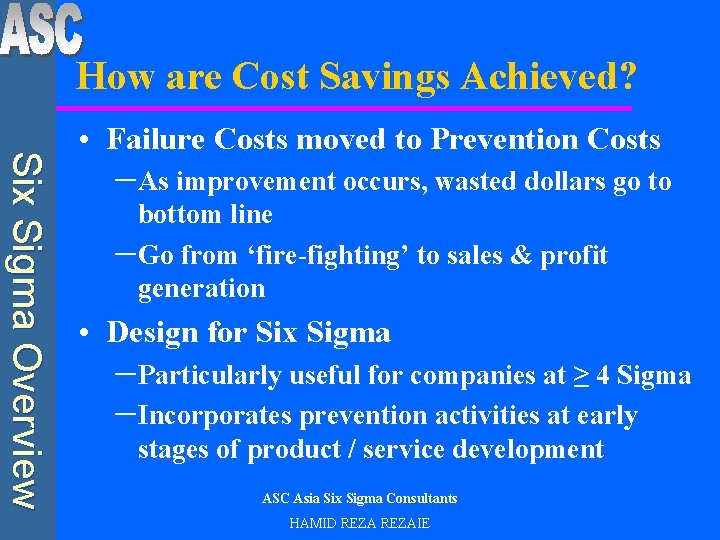

How are Cost Savings Achieved? Six Sigma Overview • Failure Costs moved to Prevention Costs –As improvement occurs, wasted dollars go to bottom line –Go from ‘fire-fighting’ to sales & profit generation • Design for Six Sigma –Particularly useful for companies at ≥ 4 Sigma –Incorporates prevention activities at early stages of product / service development ASC Asia Six Sigma Consultants HAMID REZAIE

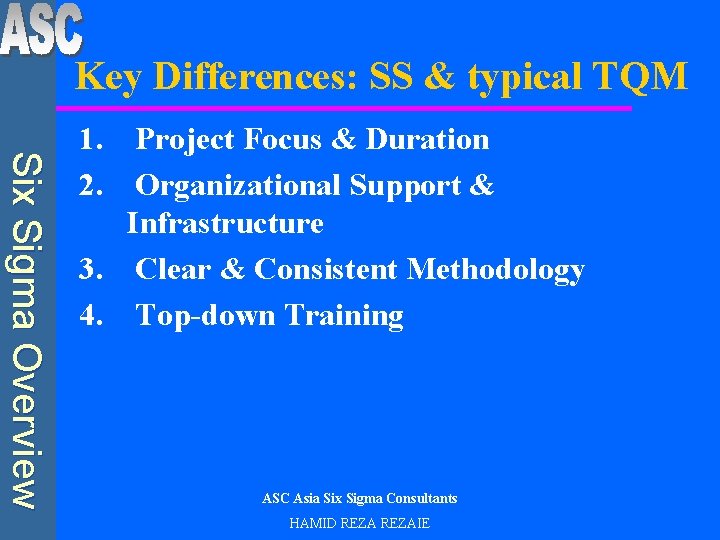

Key Differences: SS & typical TQM Six Sigma Overview 1. Project Focus & Duration 2. Organizational Support & Infrastructure 3. Clear & Consistent Methodology 4. Top-down Training ASC Asia Six Sigma Consultants HAMID REZAIE

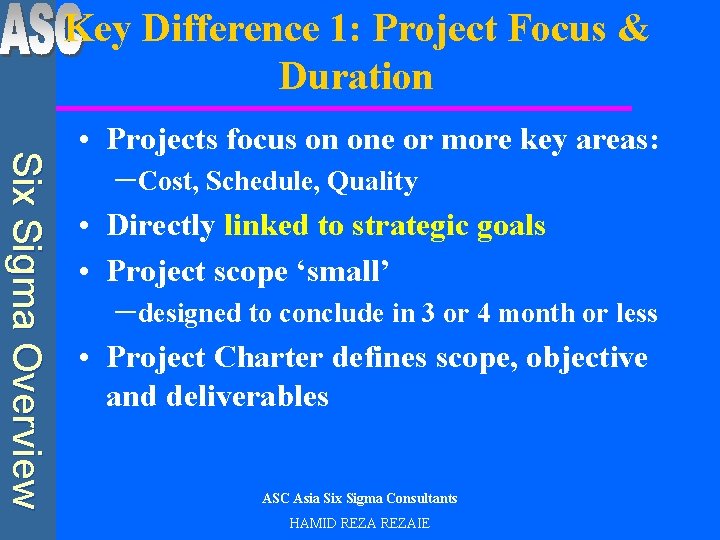

Key Difference 1: Project Focus & Duration Six Sigma Overview • Projects focus on one or more key areas: –Cost, Schedule, Quality • Directly linked to strategic goals • Project scope ‘small’ –designed to conclude in 3 or 4 month or less • Project Charter defines scope, objective and deliverables ASC Asia Six Sigma Consultants HAMID REZAIE

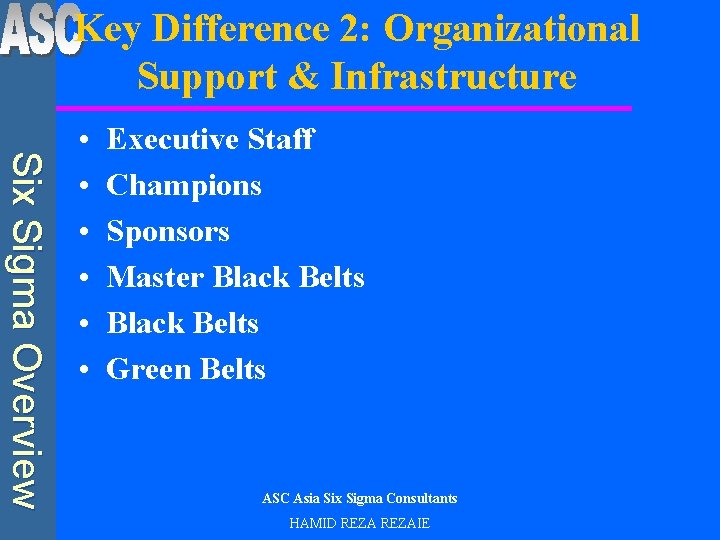

Key Difference 2: Organizational Support & Infrastructure Six Sigma Overview • • • Executive Staff Champions Sponsors Master Black Belts Green Belts ASC Asia Six Sigma Consultants HAMID REZAIE

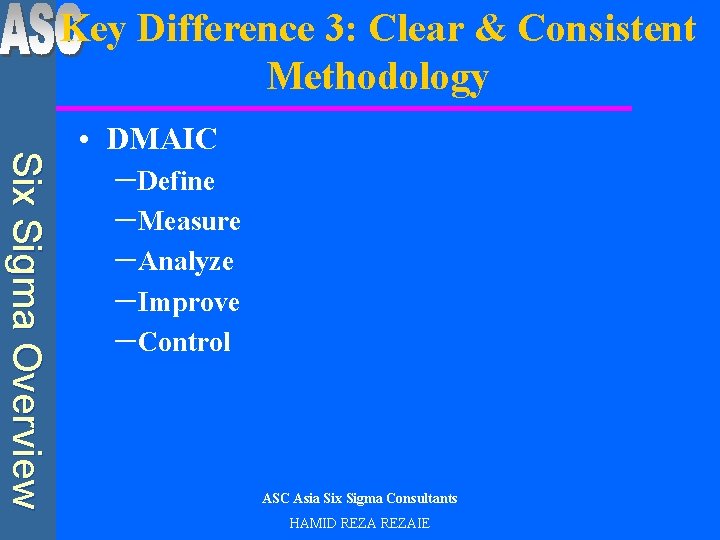

Key Difference 3: Clear & Consistent Methodology Six Sigma Overview • DMAIC –Define –Measure –Analyze –Improve –Control ASC Asia Six Sigma Consultants HAMID REZAIE

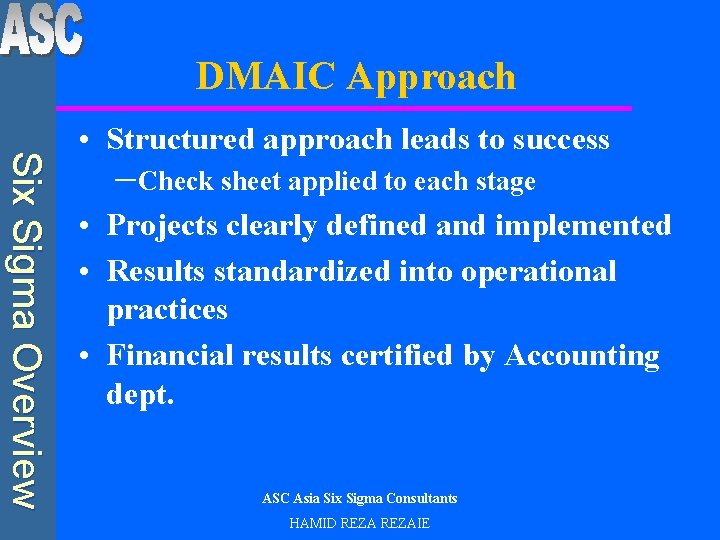

DMAIC Approach Six Sigma Overview • Structured approach leads to success –Check sheet applied to each stage • Projects clearly defined and implemented • Results standardized into operational practices • Financial results certified by Accounting dept. ASC Asia Six Sigma Consultants HAMID REZAIE

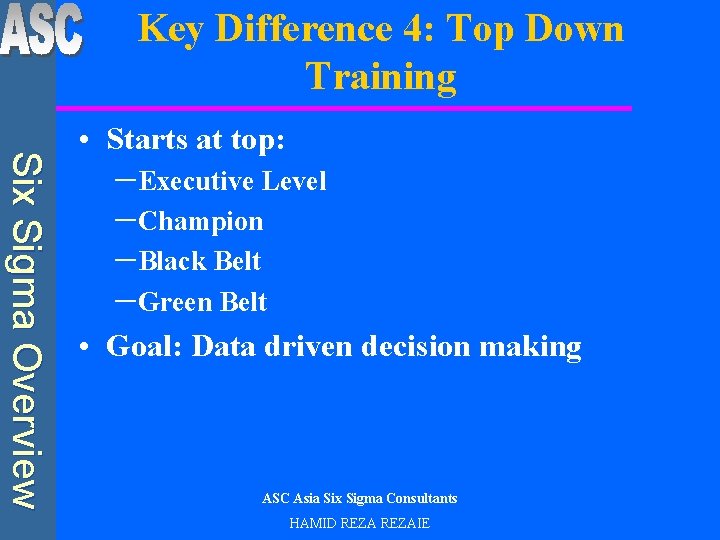

Key Difference 4: Top Down Training Six Sigma Overview • Starts at top: –Executive Level –Champion –Black Belt –Green Belt • Goal: Data driven decision making ASC Asia Six Sigma Consultants HAMID REZAIE

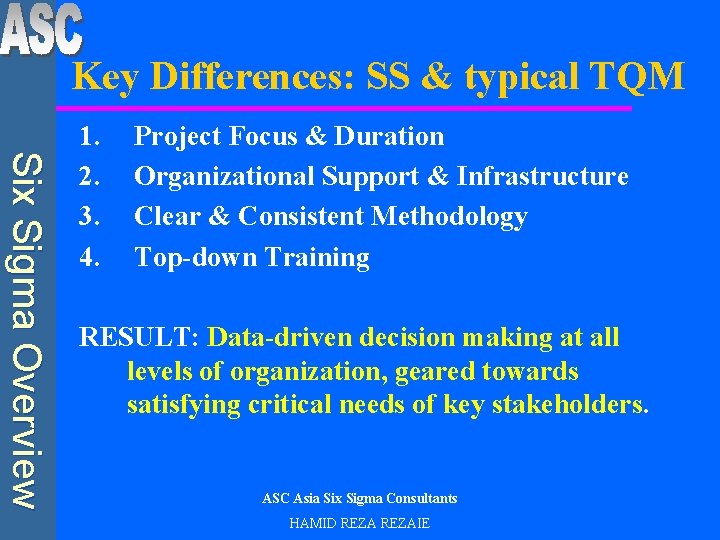

Key Differences: SS & typical TQM Six Sigma Overview 1. 2. 3. 4. Project Focus & Duration Organizational Support & Infrastructure Clear & Consistent Methodology Top-down Training RESULT: Data-driven decision making at all levels of organization, geared towards satisfying critical needs of key stakeholders. ASC Asia Six Sigma Consultants HAMID REZAIE

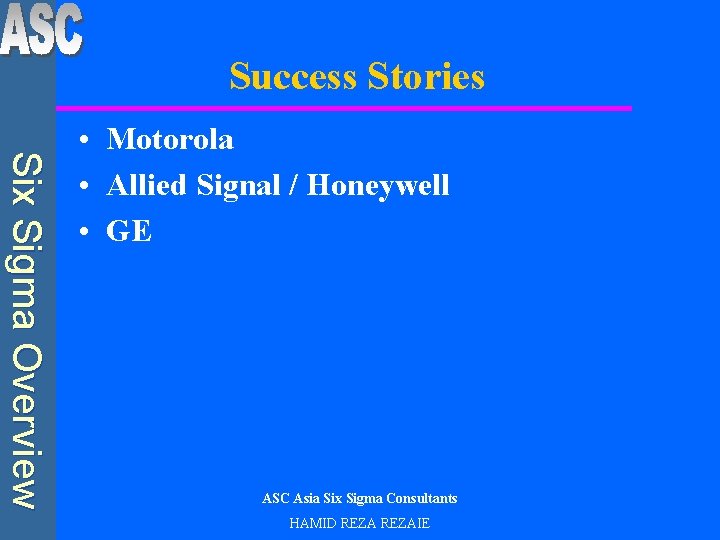

Success Stories Six Sigma Overview • Motorola • Allied Signal / Honeywell • GE ASC Asia Six Sigma Consultants HAMID REZAIE

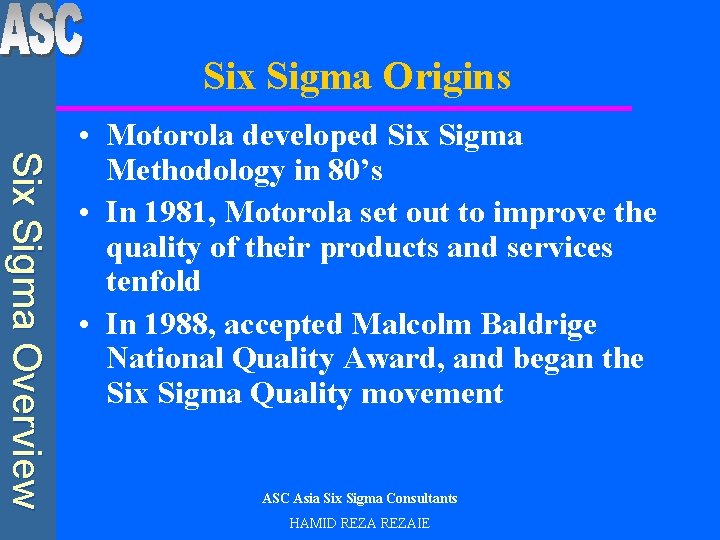

Six Sigma Origins Six Sigma Overview • Motorola developed Six Sigma Methodology in 80’s • In 1981, Motorola set out to improve the quality of their products and services tenfold • In 1988, accepted Malcolm Baldrige National Quality Award, and began the Six Sigma Quality movement ASC Asia Six Sigma Consultants HAMID REZAIE

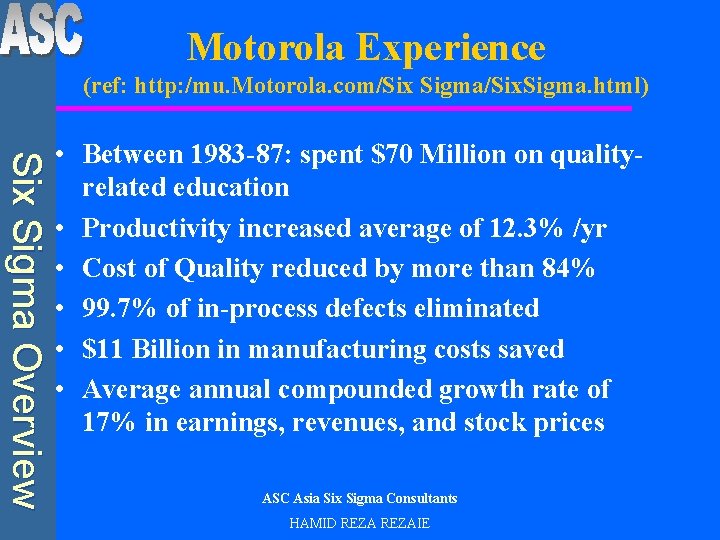

Motorola Experience (ref: http: /mu. Motorola. com/Six Sigma/Six. Sigma. html) Six Sigma Overview • Between 1983 -87: spent $70 Million on qualityrelated education • Productivity increased average of 12. 3% /yr • Cost of Quality reduced by more than 84% • 99. 7% of in-process defects eliminated • $11 Billion in manufacturing costs saved • Average annual compounded growth rate of 17% in earnings, revenues, and stock prices ASC Asia Six Sigma Consultants HAMID REZAIE

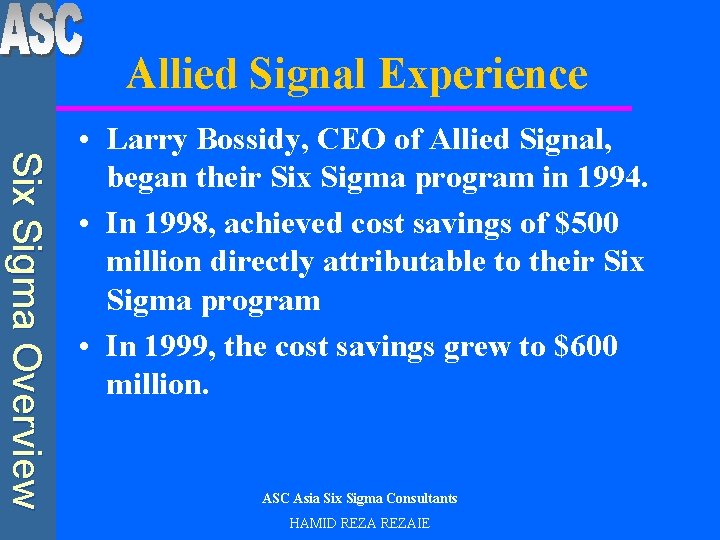

Allied Signal Experience Six Sigma Overview • Larry Bossidy, CEO of Allied Signal, began their Six Sigma program in 1994. • In 1998, achieved cost savings of $500 million directly attributable to their Six Sigma program • In 1999, the cost savings grew to $600 million. ASC Asia Six Sigma Consultants HAMID REZAIE

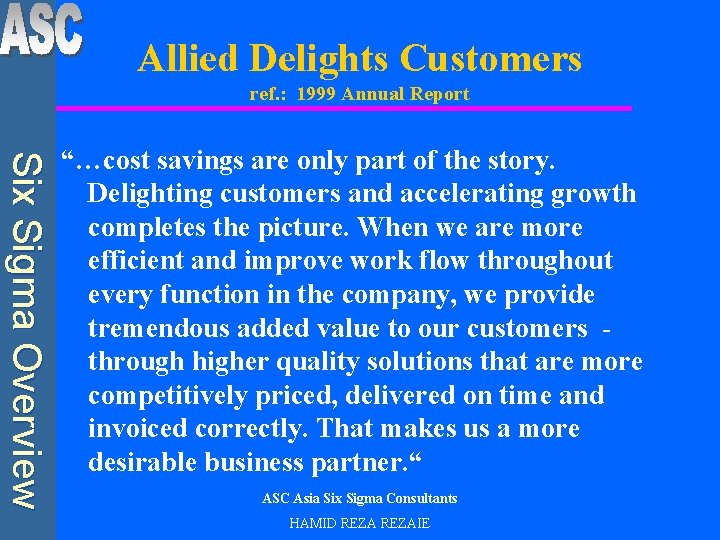

Allied Delights Customers ref. : 1999 Annual Report Six Sigma Overview “…cost savings are only part of the story. Delighting customers and accelerating growth completes the picture. When we are more efficient and improve work flow throughout every function in the company, we provide tremendous added value to our customers through higher quality solutions that are more competitively priced, delivered on time and invoiced correctly. That makes us a more desirable business partner. “ ASC Asia Six Sigma Consultants HAMID REZAIE

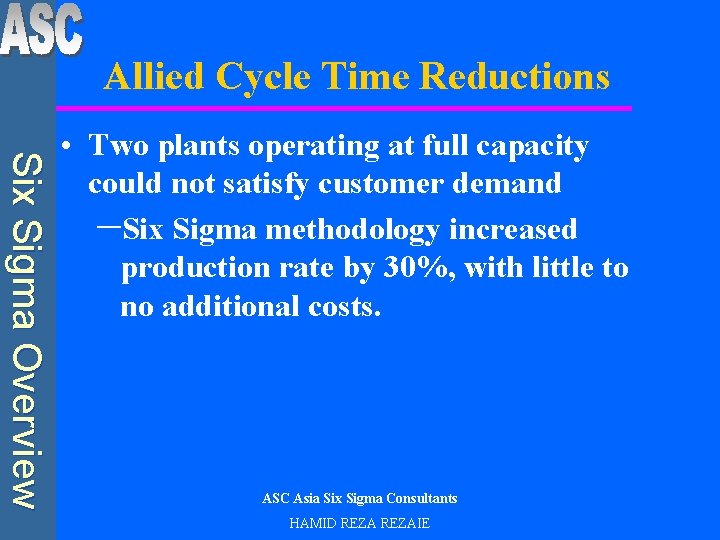

Allied Cycle Time Reductions Six Sigma Overview • Two plants operating at full capacity could not satisfy customer demand –Six Sigma methodology increased production rate by 30%, with little to no additional costs. ASC Asia Six Sigma Consultants HAMID REZAIE

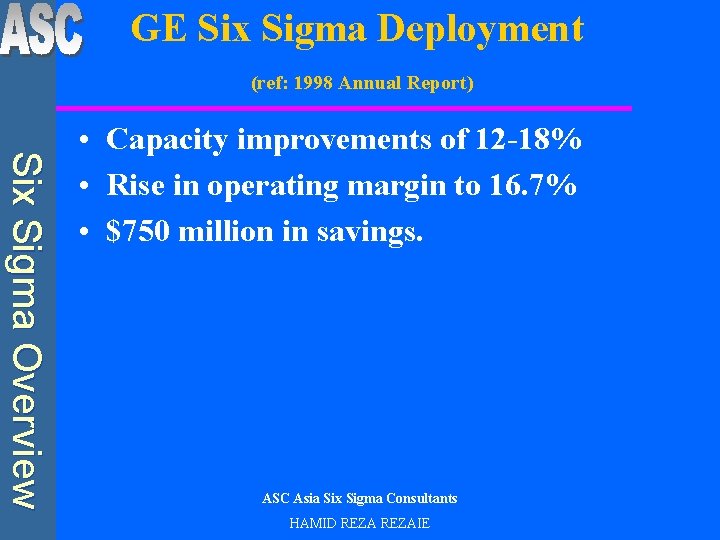

GE Six Sigma Deployment (ref: 1998 Annual Report) Six Sigma Overview • Capacity improvements of 12 -18% • Rise in operating margin to 16. 7% • $750 million in savings. ASC Asia Six Sigma Consultants HAMID REZAIE

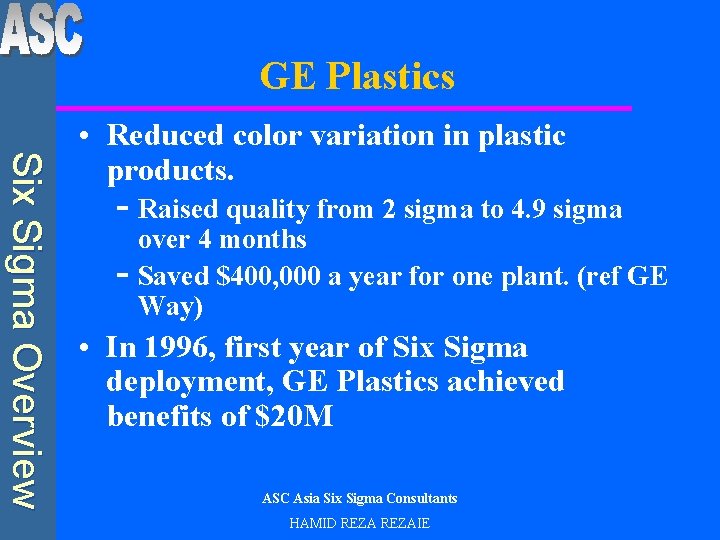

GE Plastics Six Sigma Overview • Reduced color variation in plastic products. - Raised quality from 2 sigma to 4. 9 sigma over 4 months - Saved $400, 000 a year for one plant. (ref GE Way) • In 1996, first year of Six Sigma deployment, GE Plastics achieved benefits of $20 M ASC Asia Six Sigma Consultants HAMID REZAIE

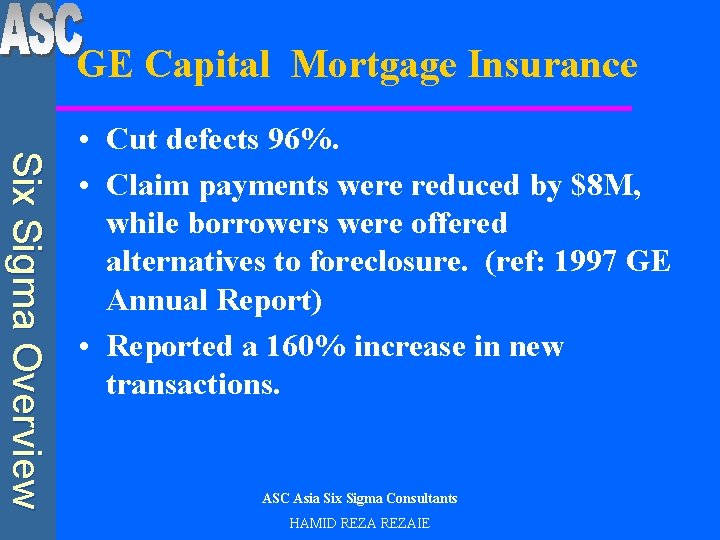

GE Capital Mortgage Insurance Six Sigma Overview • Cut defects 96%. • Claim payments were reduced by $8 M, while borrowers were offered alternatives to foreclosure. (ref: 1997 GE Annual Report) • Reported a 160% increase in new transactions. ASC Asia Six Sigma Consultants HAMID REZAIE

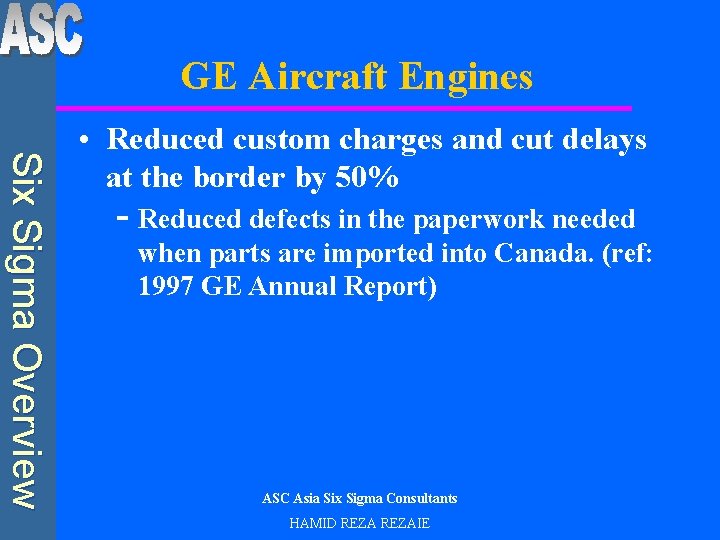

GE Aircraft Engines Six Sigma Overview • Reduced custom charges and cut delays at the border by 50% - Reduced defects in the paperwork needed when parts are imported into Canada. (ref: 1997 GE Annual Report) ASC Asia Six Sigma Consultants HAMID REZAIE

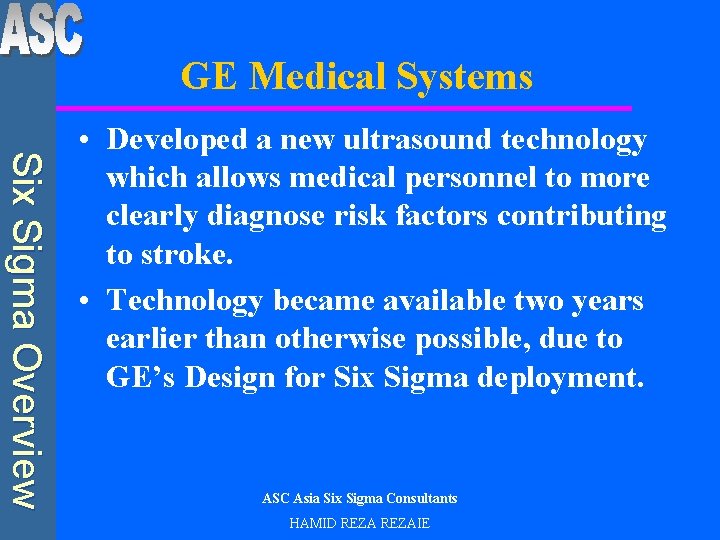

GE Medical Systems Six Sigma Overview • Developed a new ultrasound technology which allows medical personnel to more clearly diagnose risk factors contributing to stroke. • Technology became available two years earlier than otherwise possible, due to GE’s Design for Six Sigma deployment. ASC Asia Six Sigma Consultants HAMID REZAIE

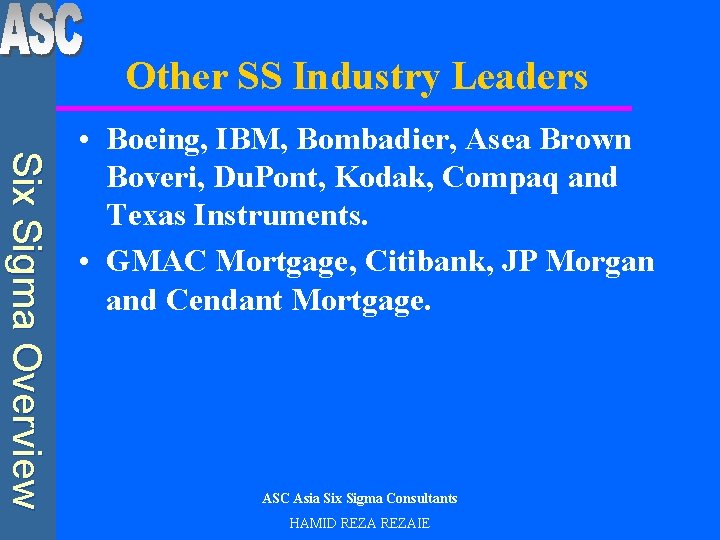

Other SS Industry Leaders Six Sigma Overview • Boeing, IBM, Bombadier, Asea Brown Boveri, Du. Pont, Kodak, Compaq and Texas Instruments. • GMAC Mortgage, Citibank, JP Morgan and Cendant Mortgage. ASC Asia Six Sigma Consultants HAMID REZAIE

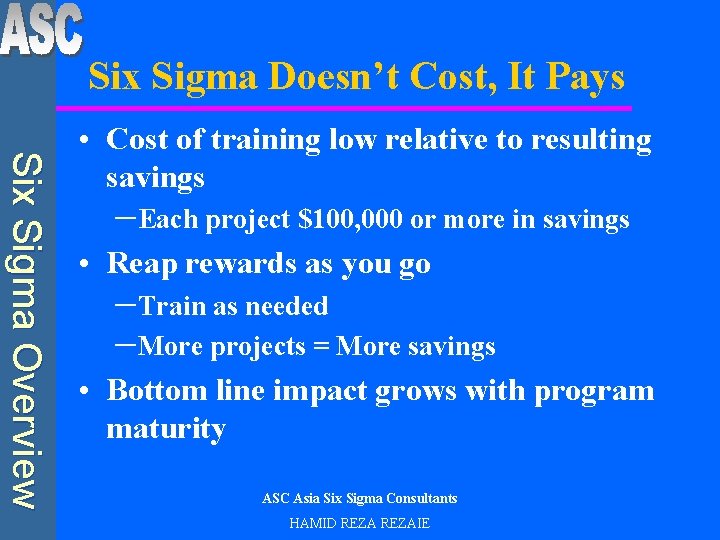

Six Sigma Doesn’t Cost, It Pays Six Sigma Overview • Cost of training low relative to resulting savings –Each project $100, 000 or more in savings • Reap rewards as you go –Train as needed –More projects = More savings • Bottom line impact grows with program maturity ASC Asia Six Sigma Consultants HAMID REZAIE

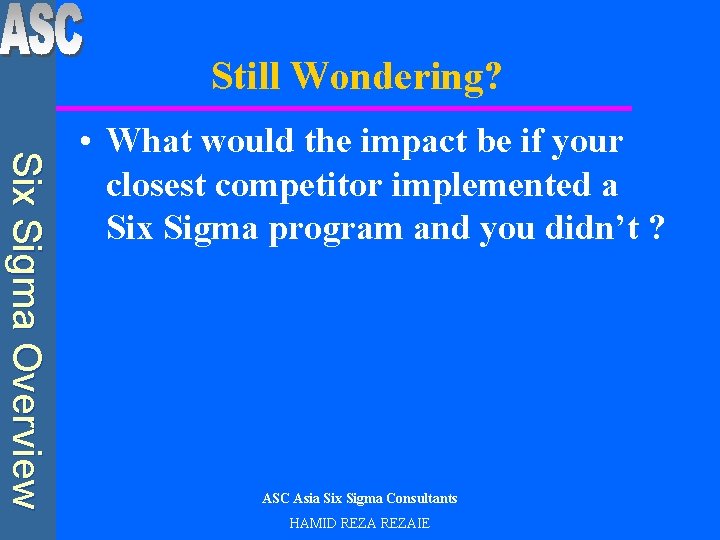

Still Wondering? Six Sigma Overview • What would the impact be if your closest competitor implemented a Six Sigma program and you didn’t ? ASC Asia Six Sigma Consultants HAMID REZAIE
