Introduction to MSA So far we have learned that the heart and soul of

Introduction to MSA So far we have learned that the heart and soul of Six Sigma is that it is a data-driven methodology. – How do you know that the data you have used is accurate and precise? – How do know if a measurement is a repeatable and reproducible? How good are these? Measurement System Analysis or MSA 3

Measurement System Analysis MSA is a mathematical procedure to quantify variation introduced to a

Measurement System Analysis MSA is a mathematical procedure to quantify variation introduced to a process or product by the act of measuring. Reference Item to be Measured Measurement Operator Measurement Process Equipment Procedure Environment The item to be measured can be a physical part, document or a scenario for customer service. Operator can refer to a person or can be different instruments measuring the same products. Reference is a standard that is used to calibrate the equipment. Procedure is the method used to perform the test. Equipment is the device used to measure the product. Environment is the surroundings where the measures are performed. 4

Measurement Purpose In order to be worth collecting, measurements must provide value that is,

Measurement Purpose In order to be worth collecting, measurements must provide value that is, they must provide us with information and ultimately, knowledge The question… What do I need to know? …must be answered before we begin to consider issues of measurements, metrics, statistics, or data collection systems Too often, organizations build complex data collection and information management systems without truly understanding how the data collected and metrics calculated actually benefit the organization. 5

Purpose The purpose of MSA is to assess the error due to measurement systems.

Purpose The purpose of MSA is to assess the error due to measurement systems. The error can be partitioned into specific sources: – Precision • Repeatability - within an operator or piece of equipment • Reproducibility - operator to operator or attribute gage to attribute gage – Accuracy • • Stability - accuracy over time Linearity- accuracy throughout the measurement range Resolution Bias – Off-set from true value – Constant Bias – Variable Bias – typically seen with electronic equipment, amount of Bias changes with setting levels 6

Accuracy and Precision Accurate but not precise - On average, the shots are in

Accuracy and Precision Accurate but not precise - On average, the shots are in the center of the target but there is a lot of variability Precise but not accurate - The average is not on the center, but the variability is small 7

MSA Uses MSA can be used to: Compare internal inspection standards with the standards

MSA Uses MSA can be used to: Compare internal inspection standards with the standards of your customer. Highlight areas where calibration training is required. Provide a method to evaluate inspector training effectiveness as well as serves as an excellent training tool. Provide a great way to: –Compare existing measurement equipment. –Qualify new inspection equipment. 8

Why MSA? Measurement System Analysis is important to: • Study the % of variation

Why MSA? Measurement System Analysis is important to: • Study the % of variation in our process that is caused by our measurement system. • Compare measurements between operators. • Compare measurements between two (or more) measurement devices. • Provide criteria to accept new measurement systems (consider new equipment). • Evaluate a suspect gage. • Evaluate a gage before and after repair. • Determine true process variation. • Evaluate effectiveness of training program. 9

Appropriate Measures are: • Sufficient – available to be measured regularly • Relevant –help

Appropriate Measures are: • Sufficient – available to be measured regularly • Relevant –help to understand/isolate the problems • Representative - of the process across shifts and people • Contextual – collected with other relevant information that might explain process variability. Wadda ya wanna measure!? ! 10

Poor Measures can result from: • Poor or non-existent operational definitions • Difficult measures

Poor Measures can result from: • Poor or non-existent operational definitions • Difficult measures • Poor sampling • Lack of understanding of the definitions • Inaccurate, insufficient or non-calibrated measurement devices Measurement Error compromises decisions that affect: • Customers • Producers • Suppliers 11

Examples of What to Measure Examples of what and when to measure: • Primary

Examples of What to Measure Examples of what and when to measure: • Primary and secondary metrics • Decision points in Process Maps • Any and all gauges, measurement devices, instruments, etc • “X’s” in the process • Prior to Hypothesis Testing • Prior to modeling • Prior to planning designed experiments • Before and after process changes • To qualify operators MSA is a Show Stopper!!! 12

Components of Variation Whenever you measure anything, the variation that you observe can be

Components of Variation Whenever you measure anything, the variation that you observe can be segmented into the following components… Observed Variation Measurement System Error Unit-to-unit (true) Variation Precision Repeatability Reproducibility Accuracy Stability Bias Linearity All measurement systems have error. If you don’t know how much of the variation you observe is contributed by your measurement system, you cannot make confident decisions. If you were one speeding ticket away from losing your license, how fast would you be willing to drive in a school zone? 13

Precision A precise metric is one that returns the same value of a given

Precision A precise metric is one that returns the same value of a given attribute every time an estimate is made. Precise data are independent of who estimates them or when the estimate is made. Precision can be partitioned into two components: – Repeatability – Reproducibility Repeatability and Reproducibility = Gage R+R 14

Repeatability is the variation in measurements obtained with one measurement instrument used several times

Repeatability is the variation in measurements obtained with one measurement instrument used several times by one appraiser while measuring the identical characteristic on the same part. Y Repeatability For example: – Manufacturing: One person measures the purity of multiple samples of the same vial and gets different purity measures. – Transactional: One person evaluates a contract multiple times (over a period of time) and makes different determinations of errors. 15

Reproducibility is the variation in the average of the measurements made by different appraisers

Reproducibility is the variation in the average of the measurements made by different appraisers using the same measuring instrument when measuring the identical characteristic on the same part. Reproducibility Y Operator A Operator B For example: – Manufacturing: Different people perform purity test on samples from the same vial and get different results. – Transactional: Different people evaluate the same contract and make different determinations. 16

Time Estimate Exercise objective: Demonstrate how well you can estimate a 10 second time

Time Estimate Exercise objective: Demonstrate how well you can estimate a 10 second time interval. 1. Pair up with an associate. 2. One person will say start and stop to indicate how long they think the 10 seconds last. Do this 6 times. 3. The other person will have a watch with a second hand to actually measure the duration of the estimate. Record the value where your partner can’t see it. 4. Switch tasks with partner and do it 6 times also. 5. Record all estimates, what do you notice? 17

Accuracy An accurate measurement is the difference between the observed average of the measurement

Accuracy An accurate measurement is the difference between the observed average of the measurement and a reference value. – When a metric or measurement system consistently over or under estimates the value of an attribute, it is said to be “inaccurate” Accuracy can be assessed in several ways: – Measurement of a known standard – Comparison with another known measurement method – Prediction of a theoretical value What happens if we don’t have standards, comparisons or theories? True Average Warning, do not assume your metrology reference is gospel. Accuracy Measurement 18

Accuracy Against a Known Standard In transactional processes, the measurement system can consist of

Accuracy Against a Known Standard In transactional processes, the measurement system can consist of a database query. – For example, you may be interested in measuring product returns where you will want to analyze the details of the returns over some time period. – The query will provide you all the transaction details. However, before you invest a lot of time analyzing the data, you must ensure the data has integrity. – The analysis should include a comparison with known reference points. – For the example of product returns, the transaction details should add up to the same number that appears on financial reports, such as the income statement. 19

Accuracy vs. Precision ACCURATE BOTH PRECISE + = Accuracy relates to how close the

Accuracy vs. Precision ACCURATE BOTH PRECISE + = Accuracy relates to how close the average of the shots are to the Master or bull's-eye. NEITHER Precision relates to the spread of the shots or Variance. 20

Bias is defined as the deviation of the measured value from the actual value.

Bias is defined as the deviation of the measured value from the actual value. Calibration procedures can minimize and control bias within acceptable limits. Ideally, Bias can never be eliminated due to material wear and tear! Bias 21

Stability of a gauge is defined as error (measured in terms of Standard Deviation)

Stability of a gauge is defined as error (measured in terms of Standard Deviation) as a function of time. Environmental conditions such as cleanliness, noise, vibration, lighting, chemical, wear and tear or other factors usually influence gauge instability. Ideally, gauges can be maintained to give a high degree of Stability but can never be eliminated unlike Reproducibility. Gage Stability studies would be the first exercise past calibration procedures. Control Charts are commonly used to track the Stability of a measurement system over time. Drift Stability is Bias characterized as a function of time! 22

Linearity is defined as the difference in Bias values throughout the measurement range in

Linearity is defined as the difference in Bias values throughout the measurement range in which the gauge is intended to be used. This tells you how accurate your measurements are through the expected range of the measurements. It answers the question, "Does my gage have the same accuracy for all sizes of objects being measured? " Linearity = |Slope| * Process Variation Low High +e B i a s (y) % Linearity = |Slope| * 100 Nominal -e 0. 00 * * * Reference Value (x) y = a + b. x y: Bias, x: Ref. Value a: Slope, b: Intercept 23

Types of MSA’s fall into two categories: Attribute Variable – – – – –

Types of MSA’s fall into two categories: Attribute Variable – – – – – Pass/Fail Go/No Go Document Preparation Surface imperfections Customer Service Response Continuous scale Discrete scale Critical dimensions Pull strength Warp Transactional projects typically have Attribute based measurement systems. Manufacturing projects generally use Variable studies more often, but do use Attribute studies to a lesser degree. 24

Variable MSA’s MINITAB™ calculates a column of variance components (Var. Comp) which are used

Variable MSA’s MINITAB™ calculates a column of variance components (Var. Comp) which are used to calculate % Gage R&R using the ANOVA Method. Measured Value True Value Estimates for a Gage R&R study are obtained by calculating the variance components for each term and for error. Repeatability, Operator and Operator*Part components are summed to obtain a total Variability due to the measuring system. We use variance components to assess the Variation contributed by each source of measurement error relative to the total Variation. 25

Session Window Cheat Sheet Contribution of Variation to the total Variation of the study.

Session Window Cheat Sheet Contribution of Variation to the total Variation of the study. % Contribution, based on variance components, is calculated by dividing each value in Var. Comp by the Total Variation then multiplying the result by 100. Use % Study Var when you are interested in comparing the measurement system Variation to the total Variation. % Study Var is calculated by dividing each value in Study Var by Total Variation and Multiplying by 100. Study Var is calculated as 5. 15 times the Standard Deviation for each source. (5. 15 is used because when data are normally distributed, 99% of the data fall within 5. 15 Standard Deviations. ) 26

Session Window Cheat Sheet Session Window explanations: When the process tolerance is entered in

Session Window Cheat Sheet Session Window explanations: When the process tolerance is entered in the system, MINITABTM calculates % Tolerance which compares measurements system Variation to customer specification. This allows us to determine the proportion of the process tolerance that is used by the Variation in the measurement system. Always round down to the nearest whole number. 27

Number of Distinct Categories The number of distinct categories tells you how many separate

Number of Distinct Categories The number of distinct categories tells you how many separate groups of parts the system is able to distinguish. 1 Data Category Unacceptable for estimating process parameters and indices Only indicates whether the process is producing conforming or nonconforming parts 2 - 4 Categories Generally unacceptable for estimating process parameters and indices Only provides coarse estimates Recommended 5 or more Categories 28

AIAG Standards for Gage Acceptance % Tolerance or % Study Variance % Contribution 10%

AIAG Standards for Gage Acceptance % Tolerance or % Study Variance % Contribution 10% or less 1% or less Ideal 10% - 20% 1% - 4% Acceptable 20% - 30% 5% - 9% Marginal 30% or greater 10% or greater Poor System is… 29

MINITABTM Graphic Output Cheat Sheet 30

MINITABTM Graphic Output Cheat Sheet 30

MINITABTM Graphic Output Cheat Sheet 31

MINITABTM Graphic Output Cheat Sheet 31

MINITABTM Graphic Output Cheat Sheet 32

MINITABTM Graphic Output Cheat Sheet 32

MINITABTM Graphic Output Cheat Sheet Pattern Means… Lines are virtually identical Operators are measuring

MINITABTM Graphic Output Cheat Sheet Pattern Means… Lines are virtually identical Operators are measuring the parts the same One line is consistently higher or lower than the others That operator is measuring parts consistently higher or lower than the others Lines are not parallel or they cross The operators ability to measure a part depends on which part is being measured (an interaction between operator and part) 33

MINITABTM Graphic Output Cheat Sheet If the red line is … Then… Parallel to

MINITABTM Graphic Output Cheat Sheet If the red line is … Then… Parallel to the x-axis The operators are measuring the parts similarly Not parallel to the x-axis The operators are measuring the parts differently 34

MINITABTM Graphic Output Cheat Sheet 35

MINITABTM Graphic Output Cheat Sheet 35

Practical Conclusions The Variation due to the measurement system, as a percent of study

Practical Conclusions The Variation due to the measurement system, as a percent of study Variation is causing 92. 21% of the Variation seen in the process. By AIAG Standards this gage should not be used. By all standards, the data being produced by this gage is not valid for analysis. % Tolerance or % Study Variance % Contribution 10% or less 1% or less Ideal 10% - 20% 1% - 4% Acceptable 20% - 30% 5% - 9% Marginal 30% or greater 10% or greater Poor System is… 36

Repeatability and Reproducibility Problems Repeatability Problems: • • Calibrate or replace gage. If only

Repeatability and Reproducibility Problems Repeatability Problems: • • Calibrate or replace gage. If only occurring with one operator, re-train. Reproducibility Problems: • • • Measurement machines – Similar machines • Ensure all have been calibrated and that the standard measurement method is being utilized. – Dissimilar machines • One machine is superior. Operators – Training and skill level of the operators must be assessed. – Operators should be observed to ensure that standard procedures are followed. Operator/machine by part interactions – Understand why the operator/machine had problems measuring some parts and not others. • Re-measure the problem parts • Problem could be a result of gage linearity • Problem could be fixture problem • Problem could be poor gage design 37

Design Types Crossed Design A Crossed Design is used only in non-destructive testing and

Design Types Crossed Design A Crossed Design is used only in non-destructive testing and assumes that all the parts can be measured multiple times by either operators or multiple machines. § Gives the ability to separate part-to-part Variation from measurement system Variation. § Assesses Repeatability and Reproducibility. § Assesses the interaction between the operator and the part. Nested Design A Nested Design is used for destructive testing (we will learn about this in MBB training) and also situations where it is not possible to have all operators or machines measure all the parts multiple times. § Destructive testing assumes that all the parts within a single batch are identical enough to claim they are the same. § Nested designs are used to test measurement systems where it is not possible (or desirable) to send operators with parts to different locations. § Do not include all possible combinations of factors. § Uses slightly different mathematical model than the Crossed Design. 38

Gage R & R Study Gage R&R Study – Is a set of trials

Gage R & R Study Gage R&R Study – Is a set of trials conducted to assess the Repeatability and Reproducibility of the measurement system. – Multiple people measure the same characteristic of the same set of multiple units multiple times (a crossed study) – Example: 10 units are measured by 3 people. These units are then randomized and a second measure on each unit is taken. A Blind Study is extremely desirable. – Best scenario: operator does not know the measurement is a part of a test – At minimum: operators should not know which of the test parts they are currently measuring. NO, not that kind of R&R! 39

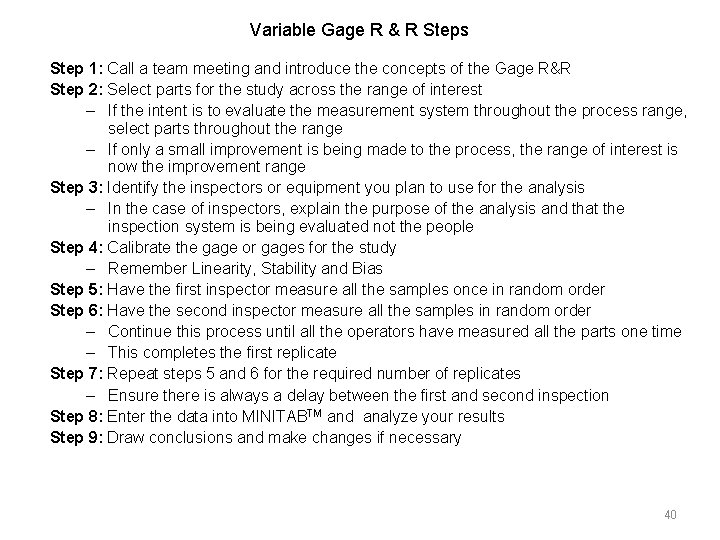

Variable Gage R & R Steps Step 1: Call a team meeting and introduce

Variable Gage R & R Steps Step 1: Call a team meeting and introduce the concepts of the Gage R&R Step 2: Select parts for the study across the range of interest – If the intent is to evaluate the measurement system throughout the process range, select parts throughout the range – If only a small improvement is being made to the process, the range of interest is now the improvement range Step 3: Identify the inspectors or equipment you plan to use for the analysis – In the case of inspectors, explain the purpose of the analysis and that the inspection system is being evaluated not the people Step 4: Calibrate the gage or gages for the study – Remember Linearity, Stability and Bias Step 5: Have the first inspector measure all the samples once in random order Step 6: Have the second inspector measure all the samples in random order – Continue this process until all the operators have measured all the parts one time – This completes the first replicate Step 7: Repeat steps 5 and 6 for the required number of replicates – Ensure there is always a delay between the first and second inspection Step 8: Enter the data into MINITABTM and analyze your results Step 9: Draw conclusions and make changes if necessary 40

Gage R & R Study Part Allocation From Any Population 10 x 3 x

Gage R & R Study Part Allocation From Any Population 10 x 3 x 2 Crossed Design is shown A minimum of two measurements/part/operator is required Three is better! Operator 1 P a r t s Trial 1 Trial 2 1 2 3 4 5 6 7 8 9 10 Operator 2 Trial 1 Trial 2 Operator 3 Trial 1 Trial 2 41

Data Collection Sheet Create a data collection sheet for: – 10 parts – 3

Data Collection Sheet Create a data collection sheet for: – 10 parts – 3 operators – 2 trials 42

The Data Collection Sheet 43

The Data Collection Sheet 43

Gage R & R Open the file “Gageaiag 2. MTW” to view the worksheet.

Gage R & R Open the file “Gageaiag 2. MTW” to view the worksheet. Variables: – Part – Operator – Response 44

Gage R & R Use 1. 0 for the tolerance. 45

Gage R & R Use 1. 0 for the tolerance. 45

Graphical Output Part to Part Variation needs to be larger than Gage Variation Operator

Graphical Output Part to Part Variation needs to be larger than Gage Variation Operator Error 46

Session Window Two-Way ANOVA Table With Interaction Source DF SS Part 9 1. 89586

Session Window Two-Way ANOVA Table With Interaction Source DF SS Part 9 1. 89586 Operator 2 0. 00706 Part * Operator 18 0. 01957 Repeatability 30 0. 02280 Total 59 1. 94529 Gage R&R MS F 0. 210651 193. 752 0. 003532 3. 248 0. 001087 1. 431 0. 000760 %Contribution Source Var. Comp Total Gage R&R 0. 0010458 Repeatability 0. 0007600 Reproducibility 0. 0002858 Operator 0. 0001222 Operator*Part 0. 0001636 Part-To-Part 0. 0349273 Total Variation 0. 0359731 (of Var. Comp) 2. 91 2. 11 0. 79 0. 34 0. 45 97. 09 100. 00 P 0. 000 0. 062 0. 188 Number of Distinct Categories = 8 I can see clearly now! 47

Session Window If the Variation due to Gage R & R is high, consider:

Session Window If the Variation due to Gage R & R is high, consider: • Procedures revision? • Gage update? • Operator issue? • Tolerance validation? • 20 % < % Tol GRR < 30% Gage Unacceptable • 10 % < % Tol GRR < 20 % Gage Acceptable • 1 % < % Tol GRR < 10 % Gage Preferable Source Std. Dev (SD) Total Gage R&R 0. 032339 Repeatability 0. 027568 Reproducibility 0. 016907 Operator 0. 011055 Operator*Part 0. 012791 Part-To-Part 0. 186889 Total Variation 0. 189666 Study Var %Study Var (6 * SD) (%SV) 0. 19404 17. 05 0. 16541 14. 54 0. 10144 8. 91 0. 06633 5. 83 0. 07675 6. 74 1. 12133 98. 54 1. 13800 100. 00 %Tolerance (SV/Toler) 19. 40 16. 54 10. 14 6. 63 7. 67 112. 13 113. 80 Number of Distinct Categories = 8 48

Signal Averaging can be used to reduce Repeatability error when a better gage is

Signal Averaging can be used to reduce Repeatability error when a better gage is not available. – Uses average of repeat measurements. – Uses Central Limit theorem to estimate how many repeat measures are necessary. Signal Averaging is a method to reduce Repeatability error in a poor gage when a better gage is not available or when a better gage is not possible. 49

Signal Averaging Example Suppose SV/Tolerance is 35%. SV/Tolerance must be 15% or less to

Signal Averaging Example Suppose SV/Tolerance is 35%. SV/Tolerance must be 15% or less to use gage. Suppose the Standard Deviation for one part measured by one person many times is 9. 5. Determine what the new reduced Standard Deviation should be. 50

Signal Averaging Example Determine sample size: Using the average of 6 repeated measures will

Signal Averaging Example Determine sample size: Using the average of 6 repeated measures will reduce the Repeatability component of measurement error to the desired 15% level. This method should be considered temporary! 51

Paper Cutting Exercise objective: Perform and Analyze a variable MSA Study. 1. Cut a

Paper Cutting Exercise objective: Perform and Analyze a variable MSA Study. 1. Cut a piece of paper into 12 different lengths that are all fairly close to one another but not too uniform. Label the back of the piece of paper to designate its “part number” 2. Perform a variable gage R&R study as outlined in this module. Use the following guidelines: – Number of parts: 12 – Number of inspectors: 3 – Number of trials: 5 3. Create a MINITABTM data sheet and enter the data into the sheet as each inspector performs a length measurement. If possible, assign one person to data collection. 4. Analyze the results and discuss with your mentor. 52

Attribute MSA A methodology used to assess Attribute Measurement Systems. Attribute Gage Error Repeatability

Attribute MSA A methodology used to assess Attribute Measurement Systems. Attribute Gage Error Repeatability Reproducibility Calibration – They are used in situations where a continuous measure cannot be obtained. – It requires a minimum of 5 x as many samples as a continuous study. – Disagreements should be used to clarify operational definitions for the categories. • Attribute data are usually the result of human judgment (which category does this item belong in). • When categorizing items (good/bad; type of call; reason for leaving) you need a high degree of agreement on which way an item should be categorized. 53

Attribute MSA Purpose The purpose of an Attribute MSA is: – – To determine

Attribute MSA Purpose The purpose of an Attribute MSA is: – – To determine if all inspectors use the same criteria to determine “pass” from “fail”. To assess your inspection standards against your customer’s requirements. To determine how well inspectors are conforming to themselves. To identify how inspectors are conforming to a “known master, ” which includes: • How often operators ship defective product. • How often operators dispose of acceptable product. – Discover areas where: • Training is required. • Procedures must be developed. • Standards are not available. An Attribute MSA is similar in many ways to the continuous MSA, including the purposes. Do you have any visual inspections in your processes? In your experience how effective have they been? 54

Visual Inspection Test Take 60 seconds to count the number of times “F” appears

Visual Inspection Test Take 60 seconds to count the number of times “F” appears in this paragraph? The Necessity of Training Farm Hands for First Class Farms in the Fatherly Handling of Farm Live Stock is Foremost in the Eyes of Farm Owners. Since the Forefathers of the Farm Owners Trained the Farm Hands for First Class Farms in the Fatherly Handling of Farm Live Stock, the Farm Owners Feel they should carry on with the Family Tradition of Training Farm Hands of First Class Farmers in the Fatherly Handling of Farm Live Stock Because they Believe it is the Basis of Good Fundamental Farm Management. 55

How can we Improve Visual Inspection? Visual Inspection can be improved by: • •

How can we Improve Visual Inspection? Visual Inspection can be improved by: • • • Operator Training & Certification Develop Visual Aids/Boundary Samples Establish Standards Establish Set-Up Procedures Establish Evaluation Procedures – Evaluation of the same location on each part. – Each evaluation performed under the same lighting. – Ensure all evaluations are made with the same standard. Look closely now! 56

Attribute Agreement Analysis Attribute Column: the responses by the operators in the study. Samples:

Attribute Agreement Analysis Attribute Column: the responses by the operators in the study. Samples: The I. D. for the individual pieces. Appraisers: the name or I. D. for each operator in the study. Stat > Quality Tools > Attribute Agreement Analysis… If there is a known true answer, the column containing that answer goes into the “Known Standard / Attribute” field. 57

Attribute Agreement Analysis 58

Attribute Agreement Analysis 58

Attribute Agreement Analysis for Rating Each Appraiser vs Standard Assessment Agreement Appraiser # Inspected

Attribute Agreement Analysis for Rating Each Appraiser vs Standard Assessment Agreement Appraiser # Inspected # Matched Percent 95 % CI Duncan 15 8 53. 33 (26. 59, 78. 73) Hayes 15 13 86. 67 (59. 54, 98. 34) Holmes 15 100. 00 (81. 90, 100. 00) Montgomery 15 100. 00 (81. 90, 100. 00) Simpson 15 14 93. 33 (68. 05, 99. 83) # Matched: Appraiser's assessment across trials agrees with the known standard. 59

Attribute Agreement Analysis Between Appraisers Assessment Agreement # Inspected # Matched Percent 95 %

Attribute Agreement Analysis Between Appraisers Assessment Agreement # Inspected # Matched Percent 95 % CI 15 6 40. 00 (16. 34, 67. 71) # Matched: All appraisers' assessments agree with each other. All Appraisers vs Standard Assessment Agreement # Inspected # Matched Percent 95 % CI 15 6 40. 00 (16. 34, 67. 71) # Matched: All appraisers' assessments agree with the known standard. 60

Kappa Statistics Fleiss' Kappa Statistics Appraiser Response Kappa SE Kappa Z P(vs > 0)

Kappa Statistics Fleiss' Kappa Statistics Appraiser Response Kappa SE Kappa Z P(vs > 0) Duncan -2 0. 58333 0. 258199 2. 25924 0. 0119 -1 0. 16667 0. 258199 0. 64550 0. 2593 0 0. 44099 0. 258199 1. 70796 0. 0438 1 0. 44099 0. 258199 1. 70796 0. 0438 2 0. 42308 0. 258199 1. 63857 0. 0507 Overall 0. 41176 0. 130924 3. 14508 0. 0008 Simpson -2 1. 00000 0. 258199 3. 87298 0. 0001 -1 1. 00000 0. 258199 3. 87298 0. 0001 0 0. 81366 0. 258199 3. 15131 0. 0008 1 0. 81366 0. 258199 3. 15131 0. 0008 2 1. 00000 0. 258199 3. 87298 0. 0001 Overall 0. 91597 0. 130924 6. 99619 0. 0000 61

M&M Exercise objective: Perform and Analyze an Attribute MSA Study. • • Number Part

M&M Exercise objective: Perform and Analyze an Attribute MSA Study. • • Number Part Attribute 1 M&M Pass 2 M&M Fail 3 M&M Pass You will need the following to complete the study: – A bag of M&Ms containing 50 or more “pieces” – The attribute value for each piece. – Three or more inspectors. Judge each M&M as pass or fail. – The customer has indicated that they want a bright and shiny M&M and that they like M’s. • Pick 50 M&Ms out of a package. • Enter results into either the Excel template or MINITABTM and draw conclusions. • The instructor will represent the customer for the Attribute score. 62

Summary At this point, you should be able to: • Understand Precision & Accuracy

Summary At this point, you should be able to: • Understand Precision & Accuracy • Understand Bias, Linearity and Stability • Understand Repeatability & Reproducibility • Understand the impact of poor gage capability on product quality • Identify the various components of Variation • Perform the step by step methodology in Variable and Attribute MSA’s 63
