Limits Permit Limits Status Permit Basic Permitted Tracking
Limits

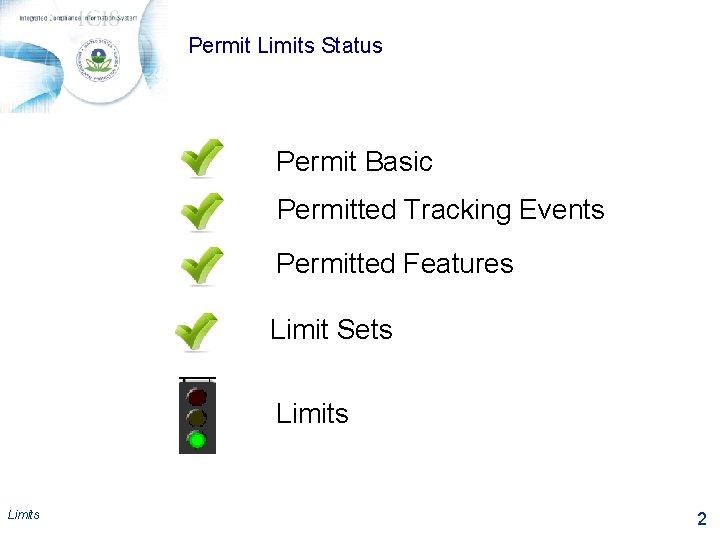

Permit Limits Status Permit Basic Permitted Tracking Events Permitted Features Limit Sets Limits 2
Permit Limits in ICIS • Limits How can I tell in ICIS if the Permitted Feature and Limit Sets have been entered? 3
Parameter Limit Defined • A Limit is a parameter (something to be measured) with associated numerical limits or monitoring requirements for a release to the environment from a permitted feature • A parameter may be one of the following – Chemical (e. g. , phosphorus) – Biological organism (e. g. , fecal coliform) – Physical condition (e. g. , temperature) – Characteristic (e. g. , p. H) Limits 4
Parameter Limits on DMR Form • Limit Values determine the data a Permittee has to report on DMRs for a parameter Limits 5
ICIS Columns Defined • ICIS refers to the value fields as Q 1, Q 2, C 1, C 2 and C 3. • The terms “Average”, “Maximum” and Minimums” have no meaning as the Statistical Base code defines the type measurement taken for each value field. Q 1 Q 2 C 1 C 2 C 3 • ICIS is more flexible than the DMR form, and will allow up to 5 minimums, 5 averages, or 5 maximum values for each parameter limit. Limits 6
Limit Segments • Limits are organized within a Limit Set by Parameter (e. g. , Ammonia Nitrogen) • A Parameter is defined as a collection of Limit Segments that have matching – NPDES ID – Permitted Feature Identifier – Limit Set Designator – Parameter Code – Monitoring Location Code – Season ID Limits 7
Limit Segments • Segments are the actual Limits or monitoring requirements for a Parameter • Usually Segments for a Parameter have different Limit Start and/or End Dates • There are three kinds of Limit Segments – Base Limits – Permit Modification Limits (PML) – Enforcement Action Limits (EA) Limits 8
Limit Segments • Base Limits are the Limits initially issued with the Permit • PMLs are Limits that result from a Permit Modification • EA Limits are the Limits applied by an Enforcement Action’s Final Order • Limits for Segments within a Parameter can overlap each other • When Limits overlap, there is a hierarchy that determines which segment applies for a given point in time – EA Limits supercede PMLs and Base Limits – PMLs supercede Base Limits 9
Limit Segments for Arsenic PARAMETER (VA 0000001, 001 -A, Arsenic, Effluent Gross, Season 1) Start Value = 4 Start Base Limit PML End Value = 2 Start Enforcement Action Limit End Value = 7 Limits 10
Limit Segments • ICIS Example of Limit Segments – Base Limit – Modification – Enforcement Action Limits 11
Test Your Knowledge • Which limit is in effect for the month? Base, Mod, or Enf Action – July 2011 – March 2012 – September 2010 – December 2010 – October 2015 Limits 12
Test Your Knowledge - Answer • Limits Which limit is in effect for the month? Base, Mod, or Enf Action – July 2011 Enf Action – March 2012 Mod – September 2010 Base – December 2010 Enf Action – October 2015 Mod 13
Expected DMRs • An Expected DMR Schedule is generated when Limits are added to a Limit Set • Parameters with a limit value or monitoring requirement will show on the expected DMRs Limits 14
Limit Segments • If DMR data have been received for a segment and a new segment is added, the data may be moved to the new segment • Updates to Limits such as changing dates and months will result in updates to the Expected DMR Schedule • Any changes to the Expected DMR Schedule may result in updates to Violations for the received DMR data • Any change that will result in orphaned received DMR data will be rejected Limits 15
Limit Segments • When the Permit’s Expiration Date is reached its Limits remain in effect – Base and PML segments with Limit End Date = Permit Expiration date are eligible for Administrative Continuance – If more than one Segment is eligible for Administrative Continuance for a Parameter, the one highest in the hierarchy will be continued Limits 16
Entering Parameter Base Limits 17
Entering Parameter Base Limits 18
Entering Parameter Base Limits 19

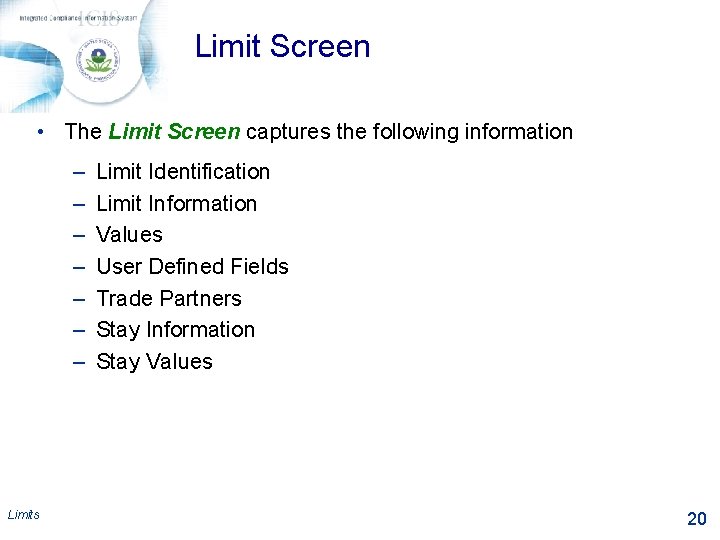

Limit Screen • The Limit Screen captures the following information – – – – Limits Limit Identification Limit Information Values User Defined Fields Trade Partners Stay Information Stay Values 20
Parameter Requirements Limits 21
Entering Parameter Base Limits 22
Data Entry Screen for Limits 23
Entering Parameter Base Limits • Key Data Fields – Parameter code – Monitoring Location – Season id – Dates Limits 24

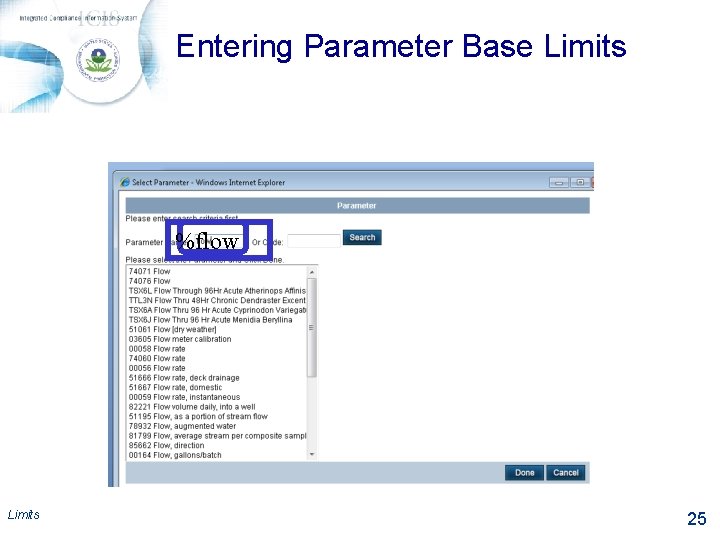

Entering Parameter Base Limits %flow Limits 25
Entering Parameter Base Limits 26
Entering Parameter Base Limits 27
Entering Parameter Base Limits • Season ID – Numeric, 0 thru 12 – Defaults to “ 0” Limits 28
Entering Parameter Base Limits • Limit Start Date defaults to Permit Effective Date • Limit End Date defaults to Permit Expiration Date Limits 29
Entering Parameter Base Limits • Change of Limit Status Indicator shows whether the Limit is a Base, PML, or EA Limit – Base: blank – PML: Modification – EA Limit: Enforcement Action • If the Limit is a PML, Modification Effective Date and Modification Type are displayed and required Base Limits PML 30
Limit Information Limits 31
Limit Months • ALL Months are “ON” as a default when adding a limit • The Limit Months dictate which months the Limit applies – For example, if a Limit does not apply in September 2013, it will not appear on a DMR for 09/30/2013 • The system will warn users if they create seasonal Limits for a parameter with overlapping Months Limits 32
Limit Information • Limit Type indicates how the Limit should be evaluated for Effluent Violations – Enforceable Limits are eligible to receive Effluent Violations Ø Limit Type default – Alert Limits are not eligible to receive Effluent Violations Limits 33
Limit Information • Sample Type and Frequency of Analysis are required data • If the sample type of frequency of analysis is different than the permit requirements, you can pull an ICIS report to see the discrepancies – Ex. Permit requirement – sample weekdays DMR form – sample once that week Limits 34
Limit Information – Effluent Trading Partner Program – http: //water. epa. gov/type/watersheds/trading. cfm Limits 35
Limit Values • Up to five Values may be entered for each Limit that will be reported on for its DMRs – Two Quantity (Q 1, Q 2) – Three Concentration (C 1, C 2, C 3) • The minimum data elements that need to be entered to create a Limit Value are – Unit – Statistical Base Code Limits 36
Limit Values • Different units are entered for Quantity and Concentration Values • Units must be valid for the Limit’s Parameter Code (e. g. , cannot enter mg/l for p. H) • The Statistical Base code indicates – Value is a Minimum, Maximum, Average, or Total – Impacts violation calculations, RNC/SNC determinations Limits 37
Limit Values • There are three types of Limit Values that may be created – Limited: Limit Value is entered – Required Monitoring: Limit Value is blank and Optional Monitoring = No – Optional Monitoring: Limit Value is blank and Optional Monitoring = Yes Limited Limits Optional Monitoring Required Monitoring 38
Limit Value Qualifier • There are four ways a limited Value qualifier – Less Than (<) – Less Than or Equal To (<=) – Greater Than (>) – Greater Than or Equal To (>=) • For example if a Limit is < 0. 5, entering a DMR Value of 0. 5 exceeds that Limit. If a Limit is <= 0. 5, entering a DMR Value of 0. 5 will not exceed that Limits 39
Limit Information - User Defined Fields • Optional fields designed for the State or Regions use Limits 40
Effluent Trading Partners • Effluent Trade Partners are displayed on the Edit Limit screen Limits 41

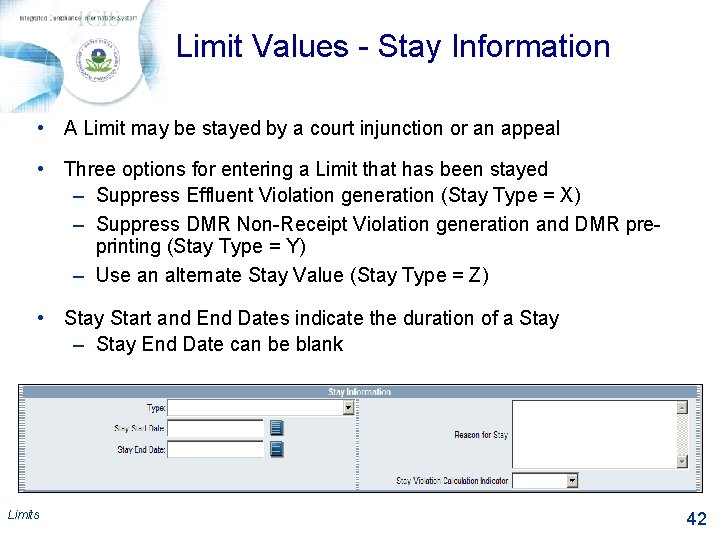

Limit Values - Stay Information • A Limit may be stayed by a court injunction or an appeal • Three options for entering a Limit that has been stayed – Suppress Effluent Violation generation (Stay Type = X) – Suppress DMR Non-Receipt Violation generation and DMR preprinting (Stay Type = Y) – Use an alternate Stay Value (Stay Type = Z) • Stay Start and End Dates indicate the duration of a Stay – Stay End Date can be blank Limits 42
Limit Values – Stay Information • Stay Values may be entered if the Stay Type of Z is used • These Alternate Values will be used instead of the Limit Values during the duration of the Stay Limits 43
Limit Values – Stay Information • After a Stay has ended – A Stay End Date is entered – The Stay Violation Calculation Indicator tells the system whether to reevaluate the DMR data for the duration of the Stay Limits 44
Screen Options • Do we have other parameters to add? Limits – Save & Exit Saves record and goes to “Add Limit” page – Save & Continue Saves record and remains on screen – Save & Add Another Saves record and enables you to enter next parameter – Save & Add Season Saves record and enables you to add season – Cancel Error made, start over 45
Save and Add Another Option • When the user clicks the Save & Add Another button, values copied to the new Add screen: – – – Season ID Start Date End Date Sample Type Frequency of Analysis • The Months and Statistical Base Codes will continue to reflect the defaults on the Limit Set Limits 46
Save and Add Season Option • When the user clicks the Save & Add Season button, values copied to the new Add screen: – – Start Date End Date Sample Type Frequency of Analysis • The Season ID will be blank • The Months and Statistical Base Codes will continue to reflect the defaults on the Limit Set Limits 47
Entering Permit Limits 48
Flow Base Limits 49

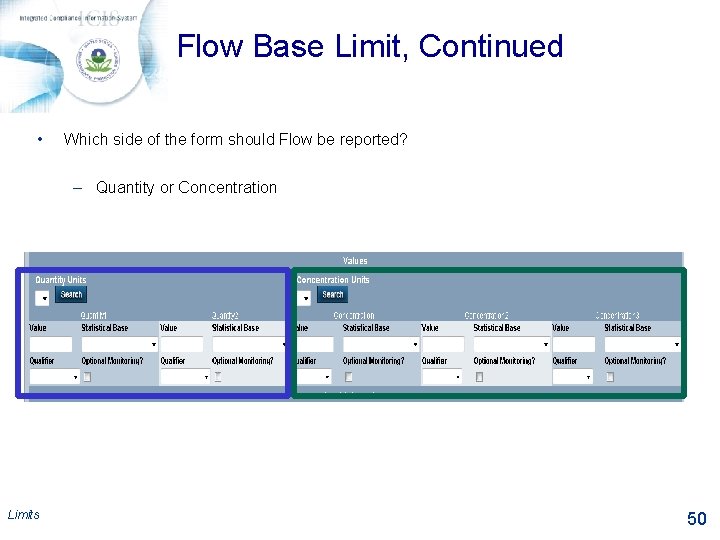

Flow Base Limit, Continued • Which side of the form should Flow be reported? – Quantity or Concentration Limits 50
Unit Codes Limits 51
Flow Base Limit, Continued Select – Quantity Unit Code Limits 52
Flow Base Limit, Continued Limits 53
Back to the Permit – Seasonal Limits 54
Adding Seasonal Limits • Save and Add Another – Fields copied over – Check closely, any changes for Ammonia Nitrogen Limits 55
Test Your Knowledge Limits 56
Adding Seasonal Limits 57
Adding Seasonal Units Limits 58
Adding Seasonal Units Limits 59
Unit Code Search Limits 60
Adding Seasonal Units 13 Limits MO AVG 7. 7 MO AVG 10. 5 WKLY AVG 61
Adding Seasonal Units Limits 62
Adding Seasonal Units Limits 63
Adding Seasonal Units Limits 64
Adding Seasonal Units Limits 65
Adding Seasonal Units Limits 66
Adding Seasonal Units Limits 67
Adding Additional Parameters Limits 68

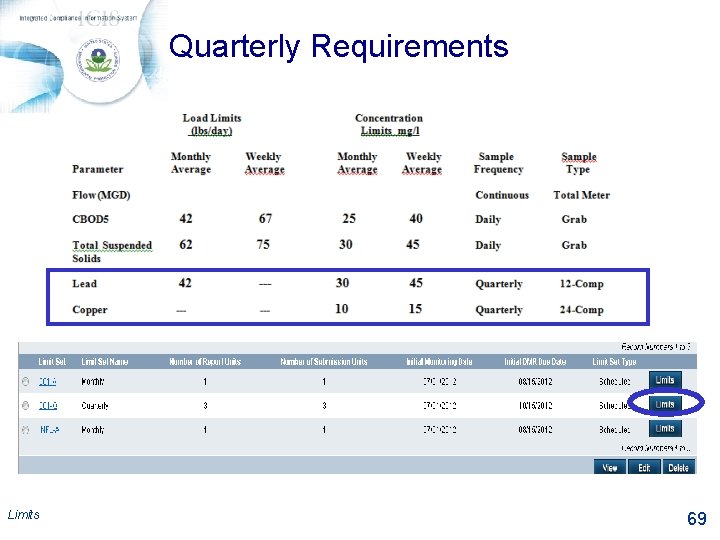

Quarterly Requirements Limits 69
General Foods Permit – Finish all other parameters for 001 A Ø Ø Ø CBOD TSS Dissolved Oxygen p. H Total Residual Chlorine 80082 00530 00300 (minimum) See Footnotes See Special Conditions – Add base limits to 001 Q Ø Lead Ø Copper 01051 01042 – Add base limits to INFL A (monitoring location changes to influent structure) Ø Flow Ø BOD Ø TSS Limits 50050 00310 00530 monitoring location = G 70
Other Important Tips for Limits 71
Editing Key Elements • Mistakes in entering the Limit Start and End Dates may be fixed using the Edit Key Elements function Need to change start of mod limit to 01/01/2011 instead of 2012 Limits 72
Editing Key Elements • This screen allows the user to edit multiple segments in one transaction – This prevents the creation of gaps or overlaps between segments Change the “Target” date to 01/01/2011 and save Limits 73
Editing Key Elements • DMR data impacted by the date changes will be reevaluated for violation detection Limits 74
Deleting a Limit Segment • Deleting a Limit segment may cause received DMR data to move to another Limit segment and to be reevaluated for Violations • Deleting a segment is prevented if – Received DMR data will be orphaned – If it is the last Base Limit or PML – If there are EA Limits for the parameter – Gaps would be created between the Limit Start and End Dates of a group of Limits 75
Deleting a Parameter • Deleting an entire Parameter deletes all its segments and any received DMR data • Deleting a Parameter is prevented if – The Limit Parameter contains any EA Limits 76
ICIS Customer Support If further assistance is required please contact Your Assigned System Administrator or ICIS Customer Support at (202) 564 -7756 or icis@epa. gov THANK YOU! Limits
General Foods Limits 78
General Foods Limits 79
General Foods Limits 80
General Foods Limits 81
