Permit to Fly Privileges for approved organisations (DOA or POA) Roger Simon Design Organisations Manager

European Aviation Safety Agency Approval of Flight Conditions 25 May 2007 Privileges Permit to Fly 2

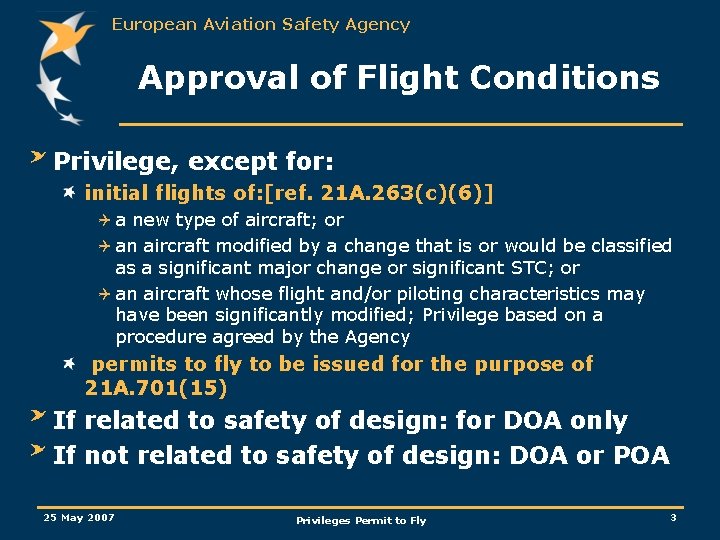

European Aviation Safety Agency Approval of Flight Conditions Privilege, except for: initial flights of: [ref. 21 A. 263(c)(6)] a new type of aircraft; or Q an aircraft modified by a change that is or would be classified as a significant major change or significant STC; or Q an aircraft whose flight and/or piloting characteristics may have been significantly modified; Privilege based on a procedure agreed by the Agency Q permits to fly to be issued for the purpose of 21 A. 701(15) If related to safety of design: for DOA only If not related to safety of design: DOA or POA 25 May 2007 Privileges Permit to Fly 3

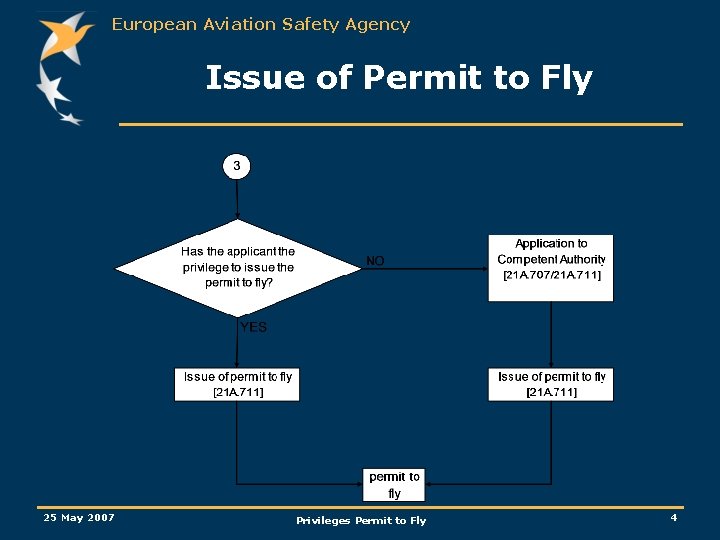

European Aviation Safety Agency Issue of Permit to Fly 25 May 2007 Privileges Permit to Fly 4

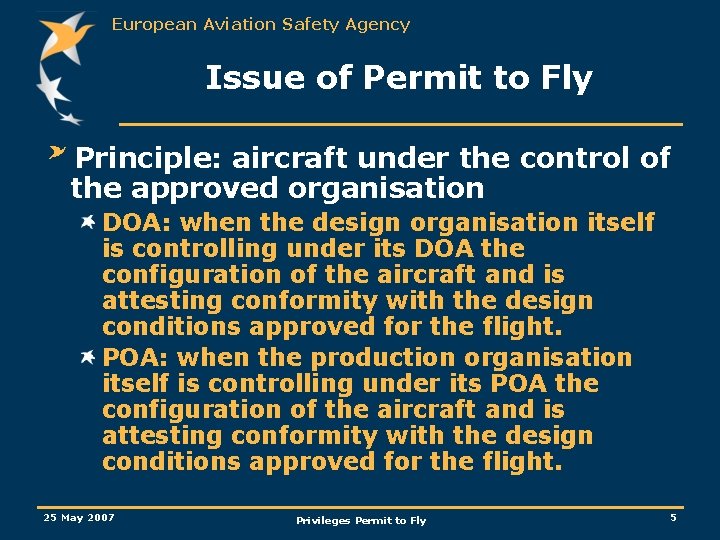

European Aviation Safety Agency Issue of Permit to Fly Principle: aircraft under the control of the approved organisation DOA: when the design organisation itself is controlling under its DOA the configuration of the aircraft and is attesting conformity with the design conditions approved for the flight. POA: when the production organisation itself is controlling under its POA the configuration of the aircraft and is attesting conformity with the design conditions approved for the flight. 25 May 2007 Privileges Permit to Fly 5

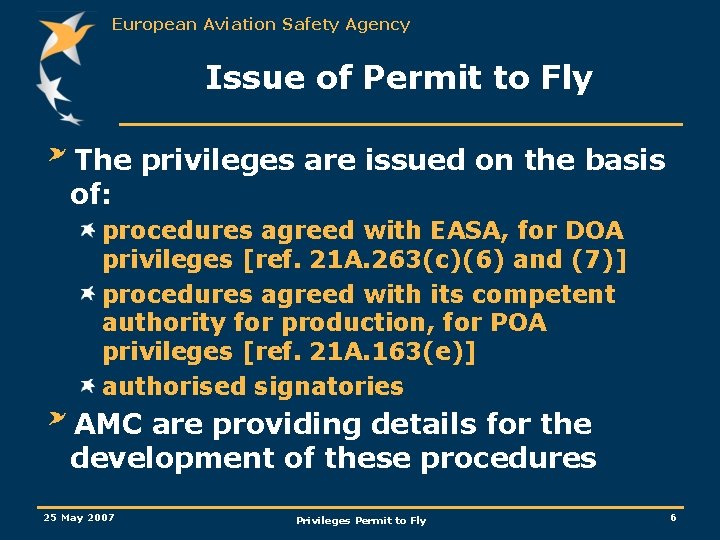

European Aviation Safety Agency Issue of Permit to Fly The privileges are issued on the basis of: procedures agreed with EASA, for DOA privileges [ref. 21 A. 263(c)(6) and (7)] procedures agreed with its competent authority for production, for POA privileges [ref. 21 A. 163(e)] authorised signatories AMC are providing details for the development of these procedures 25 May 2007 Privileges Permit to Fly 6

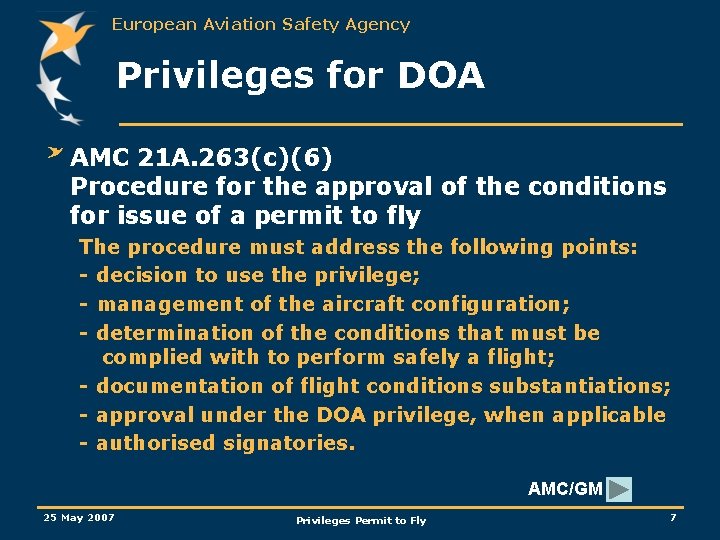

European Aviation Safety Agency Privileges for DOA AMC 21 A. 263(c)(6) Procedure for the approval of the conditions for issue of a permit to fly The procedure must address the following points: - decision to use the privilege; - management of the aircraft configuration; - determination of the conditions that must be complied with to perform safely a flight; - documentation of flight conditions substantiations; - approval under the DOA privilege, when applicable - authorised signatories. AMC/GM 25 May 2007 Privileges Permit to Fly 7

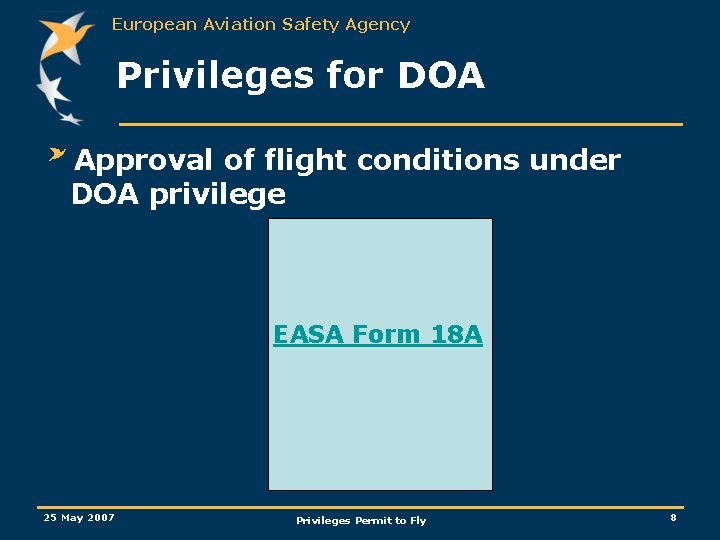

European Aviation Safety Agency Privileges for DOA Approval of flight conditions under DOA privilege EASA Form 18 A 25 May 2007 Privileges Permit to Fly 8

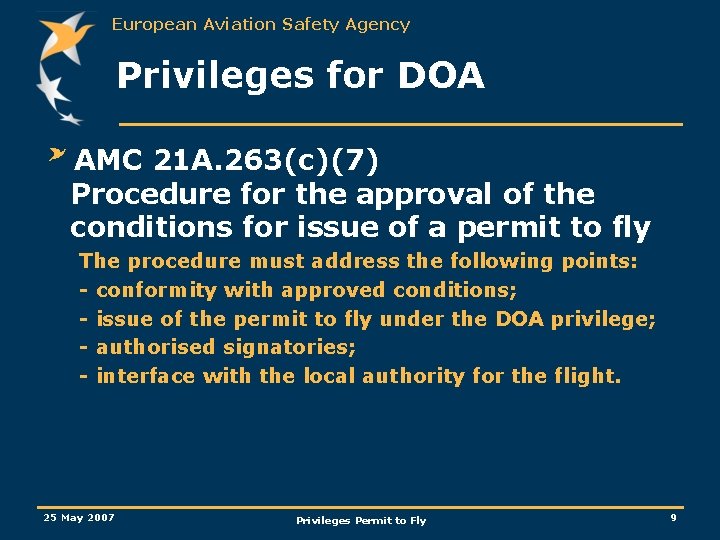

European Aviation Safety Agency Privileges for DOA AMC 21 A. 263(c)(7) Procedure for the approval of the conditions for issue of a permit to fly The procedure must address the following points: - conformity with approved conditions; - issue of the permit to fly under the DOA privilege; - authorised signatories; - interface with the local authority for the flight. 25 May 2007 Privileges Permit to Fly 9

European Aviation Safety Agency Privileges for DOA Issue of permit under DOA privilege EASA Form 20 b 25 May 2007 Privileges Permit to Fly 10

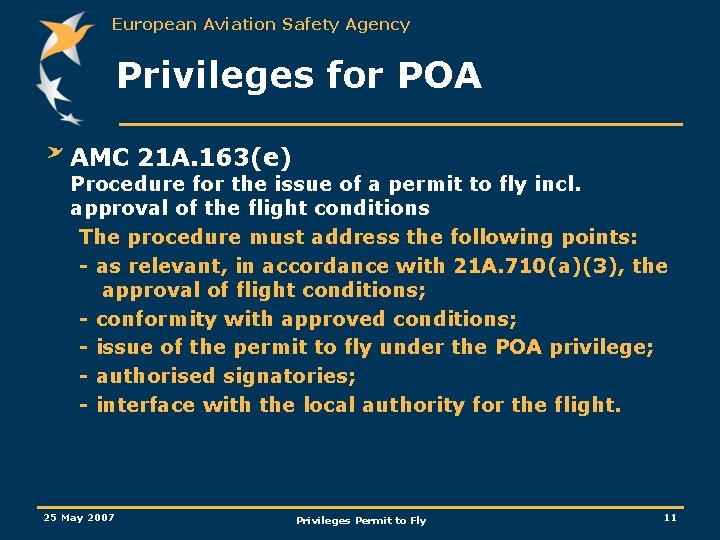

European Aviation Safety Agency Privileges for POA AMC 21 A. 163(e) Procedure for the issue of a permit to fly incl. approval of the flight conditions The procedure must address the following points: - as relevant, in accordance with 21 A. 710(a)(3), the approval of flight conditions; - conformity with approved conditions; - issue of the permit to fly under the POA privilege; - authorised signatories; - interface with the local authority for the flight. 25 May 2007 Privileges Permit to Fly 11

European Aviation Safety Agency Privileges for POA Approval of flight conditions under POA privilege EASA Form 18 B 25 May 2007 Privileges Permit to Fly 12

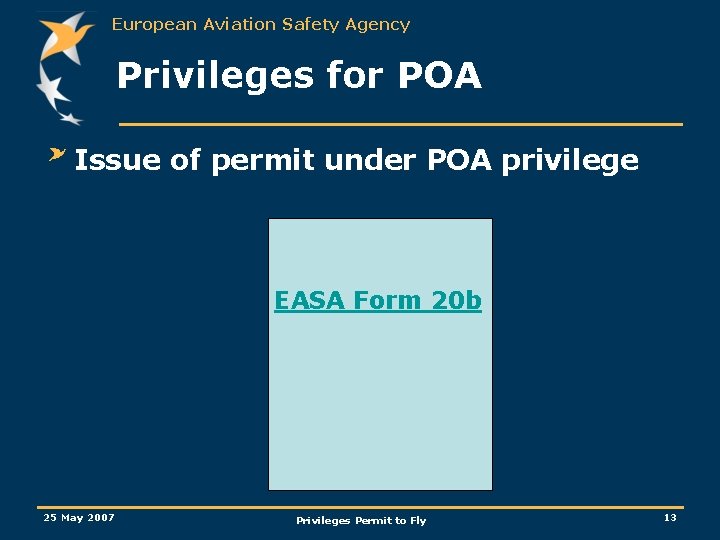

European Aviation Safety Agency Privileges for POA Issue of permit under POA privilege EASA Form 20 b 25 May 2007 Privileges Permit to Fly 13

European Aviation Safety Agency Questions ? 25 May 2007 Privileges Permit to Fly 14

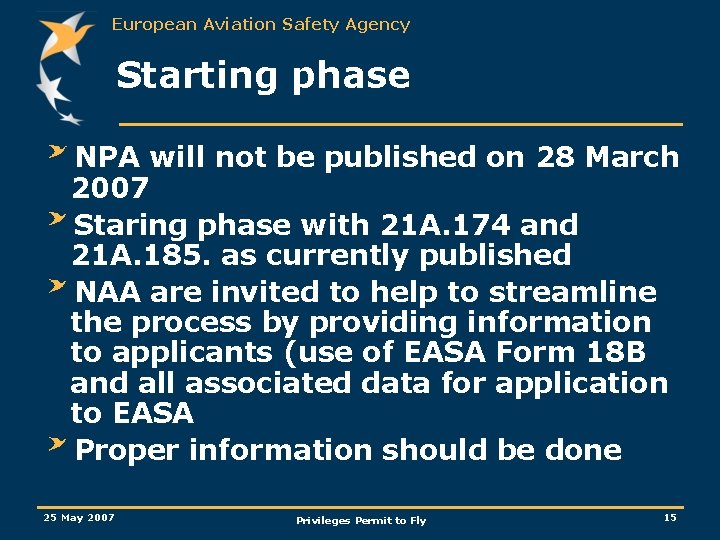

European Aviation Safety Agency Starting phase NPA will not be published on 28 March 2007 Staring phase with 21 A. 174 and 21 A. 185. as currently published NAA are invited to help to streamline the process by providing information to applicants (use of EASA Form 18 B and all associated data for application to EASA Proper information should be done 25 May 2007 Privileges Permit to Fly 15
