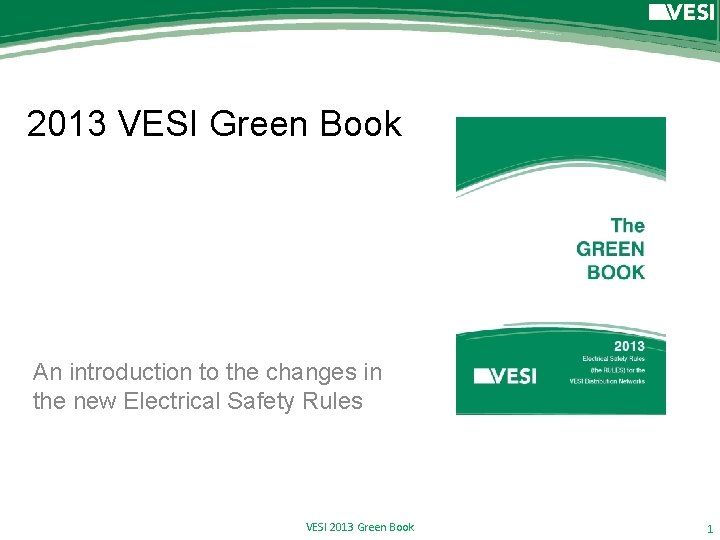

2013 VESI Green Book An introduction to the changes in the new Electrical Safety Rules VESI 2013 Green Book 1

Purpose, Duration and Pre-requisites • PURPOSE • This course is designed to provide you with an understanding of the changes that have been made in creating the 2013 Green Book • DURATION • 2 hours • 10 minute break after 1 hour • PRE-REQUISITES • Familiarity with the 2006 Green Book VESI 2013 Green Book 2

Content • • Background Reasons for change Format changes Principles and Definitions Structure and layout changes Major content changes Questions VESI 2013 Green Book 3

Reasons for Change • In December 2012, the Electrical Safety Committee (ESC) published an updated Blue Book • The Blue Book applies to all persons working on, near or in the vicinity of HV apparatus that is capable of being energised • This includes Transmission and HV Customers • The Distribution businesses have different requirements to those companies and that is the primary purpose of the GB VESI 2013 Green Book 4

Background of GB • The 2013 version of the GB represents the 3 rd major review • The GB is the cornerstone document of VESI safe systems of work • The GB provides the means by which the DB’s comply with the Blue Book VESI 2013 Green Book 5

Name Change • Despite being called a Code of Practice for some years, the GB is by definition no longer a Code • Therefore the name has changed to the: “Electrical Safety Rules for the Victorian Distribution Networks (2013)” VESI 2013 Green Book 6

Format Changes • • • Size change from A 6 to A 5 Use of colour Use of photographs Divided into 5 parts with coloured edging Updated tables and images New numbering system Index removed Italics eliminated Use of capitals reduced VESI 2013 Green Book 7

Principles • The Principles from the 2006 GB are unchanged other than at the beginning of Part 1 (page 1) which now reads: • Persons shall be assessed as competent and where required, authorised for the role they are undertaking • All Principles throughout the GB have been moved to the beginning of each Part. VESI 2013 Green Book 8

Definitions – Deleted • Authorised Live HV Worker: Created confusion as written Authorities are not issued for live HV • Barriers: Was not a definition, was a reference • Signs: Was not a definition, was a reference VESI 2013 Green Book 9

Definitions – New • Beyond Reach: Means the distance beyond the reach of any part of the person’s body or any conducting or unapproved object touching any part of the person’s body • Enclosure Means a secured area containing exposed electrical apparatus • ESI Means the Electricity Supply Industry • Exclusion Zone Means an area around the Electrical Apparatus into which no part of the person, mobile plant or object (other than approved insulated objects) may encroach. VESI 2013 Green Book 10

Definitions – New • Job Safety Analysis or JSA Means a site specific assessment by the work party of hazards associated with performing a job which includes documenting the controls for the identified hazards. • LVIBS or LV Isolating and Bonding Statement Means a form of authorisation which allows access to, and work upon, Low Voltage Electrical Apparatus • Metal Clad Switchgear Means an integrated switching assembly where all Live parts are enclosed within an Earthed metal compartment VESI 2013 Green Book 11

Definitions – New • Risk Assessment Means a documented formal analysis of hazards associated with work on, Near or in the vicinity of Electrical Apparatus are identified, assessed and controlled. • Rules Means the Electrical Safety Rules also known as the Green Book VESI 2013 Green Book 12

Abbreviations • On page xx there are now definitions of commonly used abbreviations: CES Certificate of Electrical Safety PPE Personal Protective Equipment EAP Electrical Access Permit SAD Safe Approach Distance EWP Elevated Work Platform SCAP Statement of Condition of Apparatus HV High Voltage SFT Sanction for Testing JSA Job Safety Analysis SILV Statement of Isolation LV LVIBS Low Voltage Isolation and Bonding Statement; SWER Single Wire Earth Return LV Low Voltage VSCAP Verbal Statement of Condition of Apparatus NHMRC National Health and Medical Research Council VESI Victorian Electricity Supply Industry VESI 2013 Green Book 13

Figures and Tables Index – New • On page xxi there is now a new index for Figures and Tables VESI 2013 Green Book 14

Structure and Layout Changes • One of the primary goals of the GB Changes project was to improve readability • This was mainly achieved by: – The use of colour – Improved tables – Deleting subjects that are better addressed in other VESI Standards, e. g. Energy Metering and Public Lighting – A major restructure to align common subjects into ‘Parts’ – Re-arranging content to a natural order; e. g. in Section 3. 3 Access Procedures for HV Electrical Apparatus: • Planning, Preparing, Issue, Receipt, Duration and Cancellation of Electrical Access Permits – Use of common terminology e. g. JSA – Re-writing many clauses in plainer language VESI 2013 Green Book 15

Structure and Layout Changes (cont. ) 2006 Green Book 2013 Green Book • • • • • • • Issue Sheet Note to Users Disclaimer Copyright Membership Preface Table of Contents Definitions Section 1 Purpose Section 2 Scope Hierarchy Issue Sheet Note to Users Disclaimer Copyright Membership Brief Contents Membership Preface Purpose Scope Hierarchy Definitions Abbreviations VESI 2013 Green Book 16

Structure and Layout Changes (cont. ) 2006 Green Book 2013 Green Book S. 3 General Safety Requirements PART 1 – Safety, Training and Authorisations S. 4 Training and Authorisation S. 6 Approach to Electrical Apparatus PART 2 – Work in the Vicinity of Electrical Apparatus and Safe Approach Distances S. 7 Operation of HV Apparatus PART 3 – Access for Work on or Near HV Electrical Apparatus S. 8 Earthing of HV Apparatus S. 9 Access for Work on or near HV S. 10 Placing HV Apparatus in Service S. 11 LV Network Assets Part 4 – LV Electrical Apparatus S. 12 Work by Persons not under Control of Asset Owner Part 5 – Work by Persons not under the Control of the Asset Owner VESI 2013 Green Book 17

Structure and Layout Changes (cont. ) 2006 Green Book 2013 Green Book S. 13 Public Lighting Deleted S. 14 Energy Metering Deleted Appendix A – Information to be Contained in Forms Deleted Appendix B – Relevant Australian Standards Deleted Appendix C – Green Book Training Standards Learning Outcomes Deleted VESI 2013 Green Book 18

Structure and Layout Changes (cont. ) • As shown on page iii, the structure of the GB has been changed to reflect a more natural order PART 1 – Safety, Training and Authorisations Requirements that must be established before working on or near electrical apparatus PART 2 – Work in the Vicinity of Electrical Apparatus and Safe Approach Distances Describes the requirements for working near HV electrical apparatus (inc. Safe Approach Distances) PART 3 – Access for Work on or Near HV Electrical Apparatus Describes the access requirements for working on HV electrical apparatus (inc. planning, operating & earthing) PART 4 – Low Voltage Electrical Apparatus Describes the requirements for working on or near LV electrical apparatus PART 5 – Work by Persons not under the Control of the Asset Owner Describes the requirements for work by non-VESI persons on or near electrical apparatus VESI 2013 Green Book 19

How to read these slides 2006 Green Book 2013 Green Book 3. 1 Hazard Identification, Risk Assessment and Control 1. 1 Organisational Risk Assessment 2006 GB Clause № and Name 2013 GB Clause № and Name • This font is explanatory or describes a reason for change – This font represents a heading from the 2013 GB – This font represents text from the 2013 GB Page № in 2013 GB 2 VESI 2013 Green Book 20

Content Changes – Part 2 Requirements that must be established before working on or near electrical apparatus VESI 2013 Green Book 21

Content Changes – Part 1 2006 Green Book 2013 Green Book 3. 1 Hazard Identification, Risk Assessment and Control 1. 1 Organisational Risk Assessment; 1. 1. 1. 2 Field Based Risk Assessment • This Section separated into two new clauses Reason • To differentiate between a formal risk assessment and a site specific risk assessment; and • To introduce the generic Job Safety Analysis (JSA) process to the Green Book 2 VESI 2013 Green Book 22

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 3. 3 Victim Rescue 1. 1. 3 Victim Rescue • should changed to shall • Frequency changed from – “at intervals not exceeding 12 months…” to – “…intervals not exceeding a nominal twelve months aligned with ESI National Competency Standard Units”. • References to national and VESI standards included 2 VESI 2013 Green Book 23

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 3. 7 Insulating Sticks 1. 1. 7 Insulating Sticks • Control measures (e. g. water deflectors, drying or beading agent etc. ) deleted Reason • Will be more suitably addressed in the VESI Fieldworker Handbook (FWHB) update with images and instruction 3 VESI 2013 Green Book 24

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 3. 10 Personal Protective Equipment PPE 1. 1. 10 Personal Protective Equipment PPE • Re-written to more clearly separate persons “working” from persons “visiting” • Inclusion of the term “arc flash protection” 1. 1. 10 Personal Protective Equipment (PPE) 1. 1. 10. 1 General • All persons performing work who may be exposed to possible electric shock, arc flash or other injury from Electrical Apparatus shall use approved PPE. • All protective equipment and apparel shall comply with relevant Australian Standards and guidelines. • Additional personal protective equipment shall be used in accordance with the type of work and the risks involved, e. g. ‘fall arrest, noise protection • For Operator protection, refer to Table 6 on page 35 4 VESI 2013 Green Book 25

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 3. 10 Personal Protective Equipment PPE (cont. ) 1. 1. 10 Personal Protective Equipment PPE 1. 1. 10. 1 Persons performing work on or Near Electrical Apparatus • Persons performing work on, near or in the vicinity of Electrical Apparatus shall utilise the following approved PPE – Safety headwear – Safety footwear – Ankle to wrist natural fibre or arc flash protective clothing – Insulated gloves for live work – Face/eye protection for live work 1. 1. 10. 2 Persons visiting work sites • Persons visiting work sites that have no direct involvement in any work at that site and where required their movements are confined to normal access ways, e. g. roads, paths, and stairs shall utilise the following approved PPE – Safety headwear – Fully enclosed footwear – Ankle to wrist cover 4 VESI 2013 Green Book 26

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 3. 11 Tapes and Other Measuring Devices 1. 1. 11 Tapes and Other Measuring Devices • Changed “should” to “shall” 4 VESI 2013 Green Book 27

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 3. 12 Safety Observers 1. 1. 12 Use of Safety Observers • Included reference to clause 4. 2. 1 Persons Working Alone • Deleted existing paragraph 4 as it is specifically addressed in the dot points • Combined paragraphs 5 & 6 to produce a single dot point list of minimum and reasonable requirements for a Safety Observer 5 VESI 2013 Green Book 28

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 3. 13 Fit State for Work 1. 1. 13 Fit State for Work • Re-written for clarity and to commence with the statement: – 5 “Personnel shall be in a fit and safe condition to commence work” VESI 2013 Green Book 29

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 3. 14 Work within Electric and Magnetic Fields 1. 2 Work within Electric and Magnetic Fields • In existing Clause 3. 14. 2 the words: – For work situations of greater than 30 k. V/m where the limit to duration of exposure would prevent effective progress of work, appropriate measures shall be taken to increase the allowable exposure time replaced with: – For work situations of greater than 30 k. V/m appropriate measures shall be taken. • Reference to the Australian Radiation Protection and Nuclear Safety Agency (ARPANSA) website inserted • Cautions highlighted in a red field and updated to reflect more current reference materials 6 7 VESI 2013 Green Book 30

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 1 Training General 1. 3. 1 Training General • Paragraph 2 of the 2006 GB deleted: – “All authorisations shall be reviewed annually by the Organisation to ensure the relevance of the authority to the holder’s duties” Reason • Align with Blue Book and an administrative burden that offered no advantages • New paragraph 2 – 8 “A Person’s competency and/or Authorisation shall be current for the task being performed”. VESI 2013 Green Book 31

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 1 Training General (cont. ) 1. 3. 1 Training General (cont. ) • Paragraphs 4 – 8 moved to here from 4. 2. 1 in 2006 GB: – Training will consist of identified learning outcomes which will be knowledge, skill (task), and attitude based and where appropriate, reflect National Competency Standards. – There shall be assessment criteria established and documented for each learning outcome. – Details of assessment methods shall be documented. – There shall be a documented process for recognition of prior learning. – Persons undergoing training must be assessed for competency against all learning outcomes, relevant to the course, and such assessment • This improves readability by combining what was an Introduction with General 8 VESI 2013 Green Book 32

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 2. 2 Learning Outcomes 1. 3. 2 Learning Outcomes • The prescriptive text in the 2006 GB replaced with the following text: – Learning outcomes shall meet those described in VESI, State and National Training Standards. Refer to training standards published at www. vesi. com. au. – Where learning outcomes are established at the VESI level, the course descriptors shall include learning outcomes and assessment criteria. Reason • To ensure reference to VESI and national training standards which are published elsewhere and to allow for changes to be made without creating errors in a published GB 8 VESI 2013 Green Book 33

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 2. 3 Approved Training Courses 1. 3. 3 Approved Training Providers • Re-written to capture Training Providers and the requirement to document assessment and RPL methods 1. 3. 3 Approved Training Providers Organisations shall approve training providers as meeting the requirements published in the VESI Skills and Training Guideline at www. vesi. com. au. Training providers shall document: – Assessment methods. – Process for recognition of prior learning. 8 VESI 2013 Green Book 34

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 4 Authorities 1. 4. 1 Network Authority Types • VESI Authorities reduced to 5 distinct types: – – – Receive EAPs. HV Switching Enter Enclosures. Make Application For Receive SFT • Authorities to Operate Distribution and Operate Subtransmission consolidated into a single Authority to Operate HV • References to Appendix C deleted as training standards are set by the VESI STRC and published at vesi. com 9 VESI 2013 Green Book 35

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 4 Authorities (cont. ) 1. 4. 1 Network Authority Types • The following Authorities deleted: – – – Authority to Operate LV Authority to Wash HV Insulators Authority to Test HV Insulators Authority or Approval to Work on Live LV Authority or Approval to Work on Live High Voltage Overhead Lines Reason • Typically not issued in written form, these activities have and will continue to be managed using organisational procedures 9 VESI 2013 Green Book 36

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 5 Withdrawal or Suspension of an 1. 4. 2 Withdrawal or Suspension of a Network Authority Authorisation • Deleted the words “has been or” from dot point 4 as the relevant matter is whether the person is currently unable to perform activities • Added “is subject to investigation” as last dot point • Re-written as follows – An authority may be withdrawn, suspended, altered or reviewed when it is apparent the person concerned: • Has an expired authority. • Requires additional training or are assessed as not competent • Is unable to perform activities within the scope of the authority due to any circumstance. • Is subject to investigation 9 VESI 2013 Green Book 37

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 4. 1 Authority to Work on Live High Voltage Overhead Lines 1. 4. 3 Work on Live High Voltage Overhead Lines • Re-written to include reference to National Standards – Work on Live HV overhead lines shall be performed only by lineworkers who have been assessed as competent to the National Competency Standards. 9 VESI 2013 Green Book 38

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 4. 2 Authority or Approval to Work on Live Low Voltage Electrical Apparatus 1. 4. 4 Work on Live Low Voltage Electrical Apparatus • Consolidated with existing Clause 4. 4. 3, separated into two new clauses and re-written as: 1. 4. 4 Work on Live Low Voltage Electrical Apparatus – Work on Live LV shall be performed only by workers who have been assessed as competent to the National Competency Standard or an electrical apprentice/trainee working under a training program and suitably supervised. – A trained person may be approved to undertake a restricted electrical measurement, test and adjustment activity. – Electrically trained persons who, having previously been Authorised to work on Live LV Electrical Apparatus, have been away from Live LV work for one year or more shall be assessed in accordance with VESI training standards. (cont. next slide) 9 VESI 2013 Green Book 39

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 4. 2 Authority or Approval to Work on Live Low Voltage Electrical Apparatus 1. 4. 5 Work on Customer’s Installations – Work on customer’s electrical installations shall be performed only by persons licensed by Energy Safe Victoria unless an Order in Council is given by Energy Safe Victoria to allow the activity. 10 VESI 2013 Green Book 40

Content Changes – Part 1 (cont. ) 2006 Green Book 2013 Green Book 4. 4. 3 Review of Live LV Authorisation NA • This clause has been consolidated with 1. 4. 4 NA VESI 2013 Green Book 41
