Chapter 8 Potential Energy and Conservation of Energy

Units of Chapter 8 • Conservative and Nonconservative Forces • Potential Energy and the Work Done by Conservative Forces • Conservation of Mechanical Energy • Work Done by Nonconservative Forces • Potential Energy Curves and Equipotentials

8 -1 Conservative and Nonconservative Forces Conservative force: the work it does is stored in the form of energy that can be released at a later time Example of a conservative force: gravity Example of a nonconservative force: friction Also: the work done by a conservative force moving an object around a closed path is zero; this is not true for a nonconservative force

Figure 8 -1 Work against gravity

Figure 8 -2 Work against friction (hastigheten är konstant)

8 -1 Conservative and Nonconservative Forces Work done by gravity on a closed path is zero: (Systemet sett från sidan)

8 -1 Conservative and Nonconservative Forces Work done by friction on a closed path is not zero: (Systemet sett uppifrån = fågelperspektiv)

Figure 8 -5 Gravity is a conservative force

8 -1 Conservative and Nonconservative Forces The work done by a conservative force is zero on any closed path:

Table 8 -1 Conservative and Nonconservative Forces

Example 8 -1 a (p. 208) Different Paths, Different Forces (m= 4, 57 kg) W 1 = -mg • 1, 0 + 0 = -mg • 1, 0 ; W 2 = 0 – mg • 2, 0 + mg • 1, 0 = -mg • 1, 0 W 1 = W 2 (oberoende av vägen) (mg • 1, 0 meter = 45 J)

Example 8 -1 b (p. 208) Different Paths, Different Forces (m = 4, 57 kg, μ = 0, 63) W 1= - mg • 0, 63 • 4, 0= -110 J ; W 2 = - mg • 0, 63 • 12, 0 = - 330 J, dvs W 1 ≠ W 2 (beror av vägen)

8 -2 The Work Done by Conservative Forces If we pick up a ball and put it on the shelf, we have done work on the ball. We can get that energy back if the ball falls back off the shelf; in the meantime, we say the energy is stored as potential energy. (8 -1)

8 -2 The Work Done by Conservative Forces Gravitational potential energy:

Exercise 8 -1 Vad är potentiella energin för ett system som består av en person (m=65 kg) på en 3, 0 meters svikt? Sätt U = 0 vid vattenytan. U = mgh = 65 kg • 9, 81 m/s 2 • 3, 0 m = 1, 9 k. J

Example 8 -2 (p. 211) Pikes Peak or Bust (m=82, 0 kg)

Exercise 8 -2 Pikes Peak or Bust Vad är ändringen i den potentiella energin för systemet som består av en person (m=82, 0 kg) när han klättrat de sista 100, 0 meterna? a) Sätt U = 0 vid havsytan (yf = 4301 m, yi = 4201 m) ΔU = Uf – Ui = mgyf - mgyi = 82 kg • 9, 81 m/s 2 • (4301 m - 4201 m) = 80, 4 k. J b) Sätt U = 0 på bergstoppen ΔU = Uf – Ui = mgyf - mgyi = 0 – (82 kg • 9, 81 m/s 2 • (-100, 0 m)) = 80, 4 k. J

Example 8 -3 Converting Food Energy to Mechanical Energy

Exemple 8 -3 Converting Food Energy to Mechanical Energy Vad skulle kunna vara ändringen i den potentiella energin för systemet som består av en person (m=81, 0 kg) om han kunde omsätta hela sitt kaloriintag (212 Cal = 212 kcal) i en direkt “höjdvinst”? 212 kcal = 212 kcal • 4, 186 J/cal = 887 k. J ΔU = Uf – Ui = mgyf - mgyi = 81, 0 kg • 9, 81 m/s 2 • Δy = 887 k. J Δy = 1120 m

8 -2 The Work Done by Conservative Forces Springs: (8 -4)

Exemple 8 -4 Compressing Energy (and the Jump of a Flea) När kraften 120, 0 N drar i en fjäder orsakar den en förlängning på 2, 25 cm. Vad blir den (lagrade) potentiella energin om fjädern trycks ihop 3, 50 cm? k = F/x = 120, 0 N/(0, 0225 m) = 5330 N/m U = kx 2/2 = 5330 N/m • ( - 0, 035 m)2 /2 = 3, 26 J

Example 8 -4 b Compressed Energy and the Jump of a Flea

8 -3 Conservation of Mechanical Energy Definition of mechanical energy: (8 -6) Using this definition and considering only conservative forces, we find: Or equivalently:

Photo 8 -4 Mormon Flat Dam

8 -3 Conservation of Mechanical Energy conservation can make kinematics problems much easier to solve:

8 -3 Conservation of Mechanical Energy Eftersom vi är i ett konservativt kraftfält så gäller att energin är bevarad, det vill säga Ei = Ef vilket är detsamma som Ui + K i = U f + K f som skrivs (i ett ”standard y/x-system”) mgyi + mvi 2/2 = mgyf + mvf 2/2 som lätt kan omformas till vf 2 = vi 2 + 2 g(yi –yf)

Example 8 -5 (p. 216) Graduation Fling (m = 0, 120 kg, vy 0 = 7, 85 m/s) a) Använd rörelseekvationerna för att bestämma vy då y = 1, 18 m b) Visa att E(y=0) = E(y=1, 18) Friktionskrafter försummas.

8 -5 Graduative fling a) vy 2 = vi 2 + 2 ayΔy dvs vy 2 = (7, 85)2 + 2 • (-9, 81) • (1, 18) = (6, 20)2 b) Ui + Ki = 0 + 0, 120 • (7, 85)2/2 = 3, 70 (J) Uy + Ky = 0, 120 • 9, 81 • 1, 18 + 0, 120 • (6, 20)2/2 = = 1, 39 + 2, 31 = 3, 70 (J)

Figure 8 -9 Speed is independent of path (Inga friktionskrafter)

Example 8 -6 a (p. 218) Catching a Home Run (m=0, 15 kg, v 0 = 36 m/s, h = 7, 2 m inga friktionskrafter) Beräkna Kf och vf

Example 8 -6 Catching a Home Run a) Ui + Ki = 0 + 0, 15 • (36)2/2 = 97 (J) Uf + Kf = 0, 15 • 9, 81 • 7, 2 + Kf Kf = 97 – 11 = 86 (J) b) mvf 2/2 = 86 (J) vf = 34 (m/s)

Example 8 -6 b Catching a Home Run

Conceptual Checkpoint 8– 1 Compare the Final Speeds (Först ned? )

Example 8 -7 a Skateboard Exit Ramp (m = 55 kg, vi = 6, 5 m/s, vf = 4, 1 m/s, h = ? , no energy losses due to friction)

Example 8 -7 Skateboard Exit Ramp Ei = E f Ui + Ki = 0 + 55 • (6, 5)2/2 ≈ 1160 J Uf + Kf = 55 • 9, 81 • h + 55 • (4, 1)2/2 (J) Uf = 1160 – 460 ≈ 700 (J) h = 700/(55 • 9, 81) = 1, 3 (m) {Practical problem p. 220 Maximal höjd? Då Uf = 1200 J → h = 2, 2 m}

Example 8 -7 b Skateboard Exit Ramp

Conceptual Checkpoint 8– 2 What is the Final Speed? (Ingen friktion) a) 1 m/s b) 2 m/s c) 3 m/s

Example 8 -8 (p. 221) Spring Time (m=1, 70 kg, k = 955 N/m, d = 4, 60 cm Om friktionen kan försummas, vad hade blocket för begynnelsehastighet?

Example 8 -8 Spring Time mvf 2/2 = kx 2/2 = 955 • (0, 046)2/2 = 1, 01 (J) vf = 2 • 1, 01/1, 70 = 1, 09 (m/s)

Active Example 8 -1 Find the Speed of the Block when x= x 0

Aktive Example 8 -1 Find the speed of the block Energin lagrad i fjädern ger både kinetisk och potentiell energi. Då x = x 0 gäller att mvf 2/2 + mgd = kd 2/2 = 955 • (0, 046)2/2 mvf 2/2 = 1, 01 – 1, 7 • 9, 81 • 0, 046 = 0, 24 (J) vf = [2 • 0, 24/1, 70]1/2 = 0, 535 (m/s)

8 -4 Work Done by Nonconservative Forces In the presence of nonconservative forces, the total mechanical energy is not conserved: Solving, (8 -9)

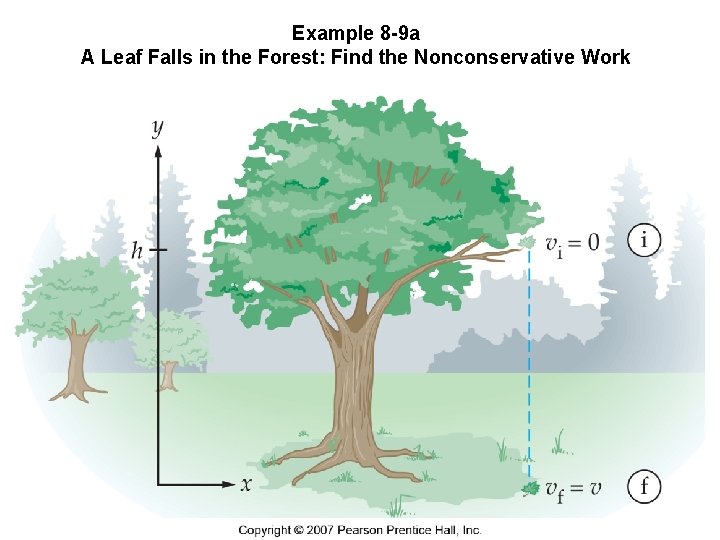

Example 8 -9 a A Leaf Falls in the Forest: Find the Nonconservative Work

Example 8 -9 A leaf Falls in the Forest Find the Nonconservative Work Energi finns lagrad som potentiell energi (h = 5, 30 m, m = 17, 0 • 10 -3 kg) där Ui = mgh = 17, 0 • 10 -3 • 9, 81 • 5, 30 = 0, 884 J Ki =0 Uf = 0 Kf = mvf 2/2 = 17, 0 10 -3 • (1, 3)2/2 = 0, 0143 J Wnc = ΔE = Ef - Ei = - 0, 870 J

Example 8 -9 b A Leaf Falls in the Forest: Find the Nonconservative Work

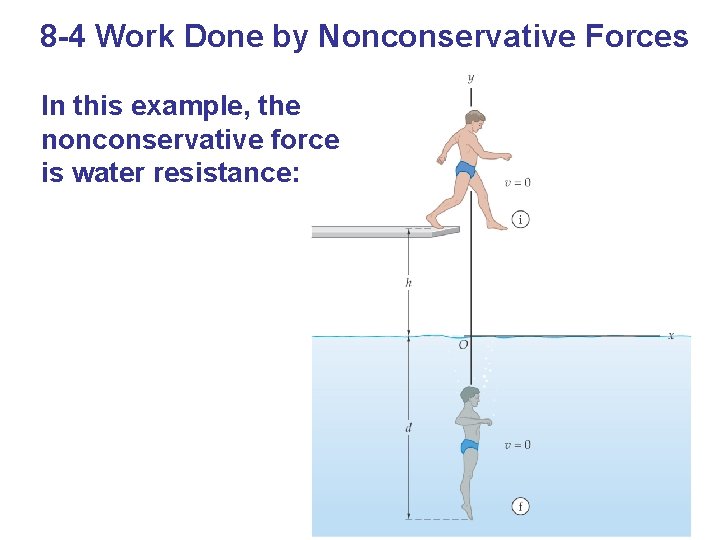

8 -4 Work Done by Nonconservative Forces In this example, the nonconservative force is water resistance:

8 -4 Work Done by Nonconservative Forces Eftersom hastigheten är noll i de två tillstånden gäller att Ei = mgh Ef = mg(-d) Wnc = ΔE = Ef – Ei = -mg(h+d) = -5120 (J) som då h = 3, 00 m ger d = 5120/mg – h = 5, 49 – 3, 00 = 2, 49 (m)

Conceptual Checkpoint 8– 3 Judging a Putt Initial speed a) 2 v 0 b) 3 v 0 c) 4 v 0? Friktionskraften antas konstant.

Conceptual Checkpoint 8 -3 Judging a Putt Energi finns lagrad som kinetisk energi som går åt till arbetet som friktionskraften F utför på sträckan d. Wnc = - F • d ΔE = Ef - Ei = 0 - mv 02/2 Wnc = ΔE ger v 0 ~ d så att om d = 4 d måste v = 2 v 0, rätt svar a)

Example 8 -10 Landing with a Thud (m 1 = 2, 40 kg, m 2 = 1, 80 kg, d= 0, 500 m, μk = 0, 450) Vad är hastigheten när blocket slår i golvet?

Example 8 -10 Landing with a Thud Energi finns lagrad som potentiell energi som går åt till arbetet som friktionskraften F utför på sträckan d. Wnc = - F • d F = μ k. N = μ km 1 g Ei = m 1 gh + m 2 gd Ef = m 1 gh + (m 1+ m 2)vf 2/2 ΔE = Ef - Ei = (m 1+m 2)vf 2/2 – m 2 gd = Wnc = -F • d vf = [2 gd(m 2 – μkm 1)/(m 1+m 2)]1/2 = 1, 30 m/s

Active Example 8 -3 Marathon Man: Find the Height of the Hill

Active Example 8 -3 Marathon Man Joggaren (m= 80, 0 kg) har utfört ett ickekonservativt (positivt) (muskel)arbete Wnc 1 = 18, 0 k. J Luftmotståndet har utfört ett ickekonservativt (neg. ) Wnc 2 = - 4, 42 k. J Joggarens fart på backens krön är = 3, 50 m/s Bestäm backens höjd h Ei = 0 Ef = mgh + mvf 2/2 = mgh + 490 J ΔE = Ef - Ei = Wnc = (18, 0 – 4, 42) k. J h = [(18, 0 – 4, 42 – 0, 49)k. J/(80, 0 kg • 9, 81 m/s 2)= 16, 7 m

8 -5 Potential Energy Curves and Equipotentials The curve of a hill or a roller coaster is itself essentially a plot of the gravitational potential energy:

8 -5 Potential Energy Curves and Equipotentials The potential energy curve for a spring:

Example 8 -11 A Potential Problem Partikeln rör sig i ett konservativt kraftfält längs banan enligt figur. Om hastigheten är 2, 30 m/s för x = 0, vad är hastigheten i punkten x = 2, 00 m?

Example 8 -11 A potential problem Ei = Ki + Ui = 1, 60 • (2, 30)2/2 + 9, 35 J = 13, 58 J Ef = Kf + Uf = 1, 60 • vf 2/2 + 4, 15 J vf = [2(13, 58 – 4, 15)/(1, 6)]1/2 = 3, 43 m/s

8 -5 Potential Energy Curves and Equipotentials Contour maps are also a form of potential energy curve:

Summary of Chapter 8 • Conservative forces conserve mechanical energy • Nonconservative forces convert mechanical energy into other forms • Conservative force does zero work on any closed path • Work done by a conservative force is independent of path • Conservative forces: gravity, spring

Summary of Chapter 8 • Work done by nonconservative force on closed path is not zero, and depends on the path • Nonconservative forces: friction, air resistance, tension • Energy in the form of potential energy can be converted to kinetic or other forms • Work done by a conservative force is the negative of the change in the potential energy • Gravity: U = mgy • Spring: U = ½ kx 2

Summary of Chapter 8 • Mechanical energy is the sum of the kinetic and potential energies; it is conserved only in systems with purely conservative forces • Nonconservative forces change a system’s mechanical energy • Work done by nonconservative forces equals change in a system’s mechanical energy • Potential energy curve: U vs. position
