Internet Routing (COS 598 A) Today: Intradomain Topology Jennifer Rexford http: //www. cs. princeton. edu/~jrex/teaching/spring 2005 Tuesdays/Thursdays 11: 00 am-12: 20 pm
Outline • Router architecture – Line cards – Switching fabric – Router processor • Network topology – From hub-and-spoke to backbones – Customer connecting to providers • Measuring the topology – Traceroute probes from many vantage points – Associating an IP address with an AS • Discussion of the papers
What is a Router? • A computer with… – Multiple interfaces – Implementing routing protocols – Packet forwarding • Wide range of variations of routers – Small Link. Sys device in a home network – Linux-based PC running router software – Million-dollar high-end routers with large chassis • … and links – Serial line – Ethernet – Packet-over-SONET
Network Components Links Interfaces Fibers Ethernet card Switches/routers Large router Wireless card Coaxial Cable Telephone switch

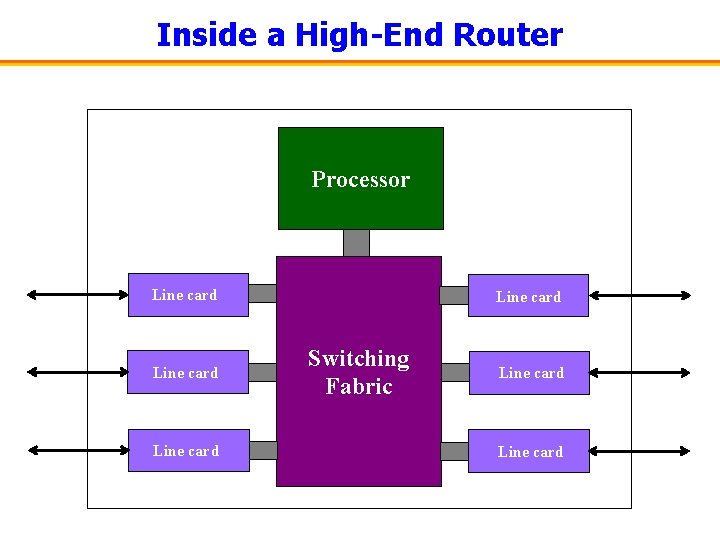

Inside a High-End Router Processor Line card Switching Fabric Line card
Router Components: Line Cards • Interfacing – Physical link – Switching fabric to/from link Receive – Buffer management – Link scheduling – Packet filtering (ACLs) – Packet forwarding (FIB) – Rate-limiting – Packet marking – Measurement FIB to/from switch Transmit • Packet handling

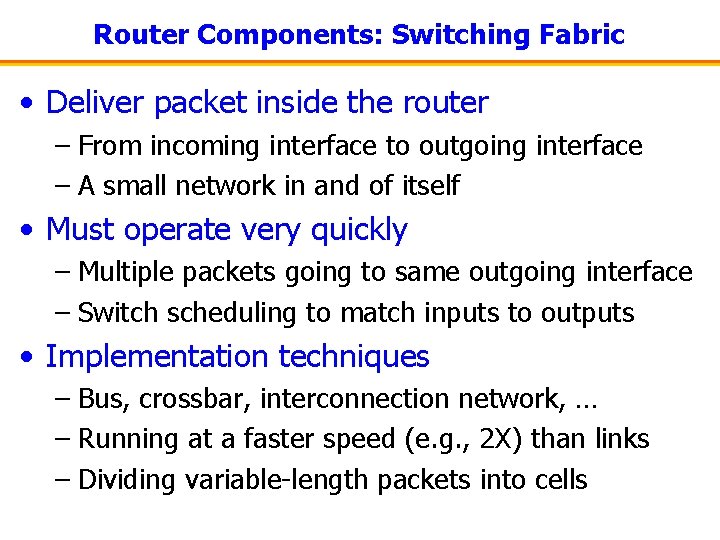

Router Components: Switching Fabric • Deliver packet inside the router – From incoming interface to outgoing interface – A small network in and of itself • Must operate very quickly – Multiple packets going to same outgoing interface – Switch scheduling to match inputs to outputs • Implementation techniques – Bus, crossbar, interconnection network, … – Running at a faster speed (e. g. , 2 X) than links – Dividing variable-length packets into cells

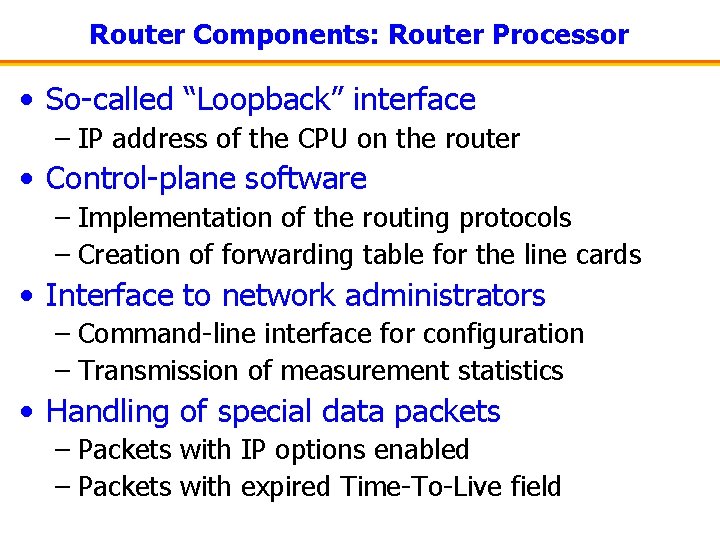

Router Components: Router Processor • So-called “Loopback” interface – IP address of the CPU on the router • Control-plane software – Implementation of the routing protocols – Creation of forwarding table for the line cards • Interface to network administrators – Command-line interface for configuration – Transmission of measurement statistics • Handling of special data packets – Packets with IP options enabled – Packets with expired Time-To-Live field
Network Topology
Hub-and-Spoke Topology • Single hub node – Common in enterprise networks – Main location and satellite sites – Simple design and trivial routing • Problems – Single point of failure – Bandwidth limitations – High delay between sites – Costs to backhaul to hub

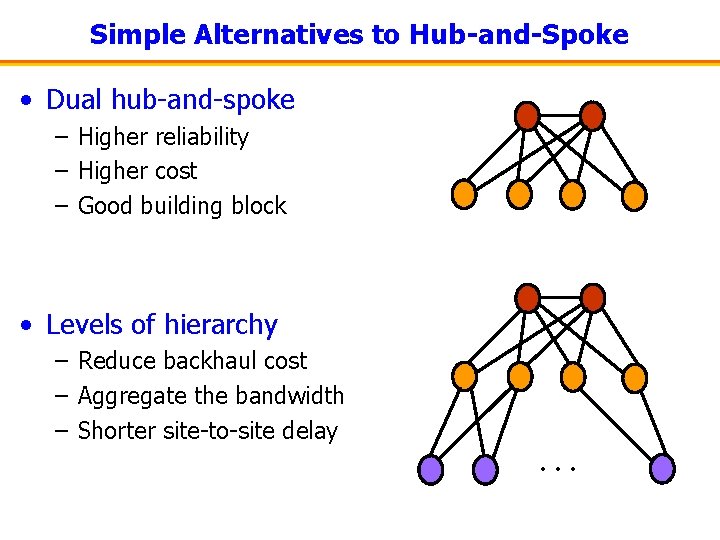

Simple Alternatives to Hub-and-Spoke • Dual hub-and-spoke – Higher reliability – Higher cost – Good building block • Levels of hierarchy – Reduce backhaul cost – Aggregate the bandwidth – Shorter site-to-site delay …

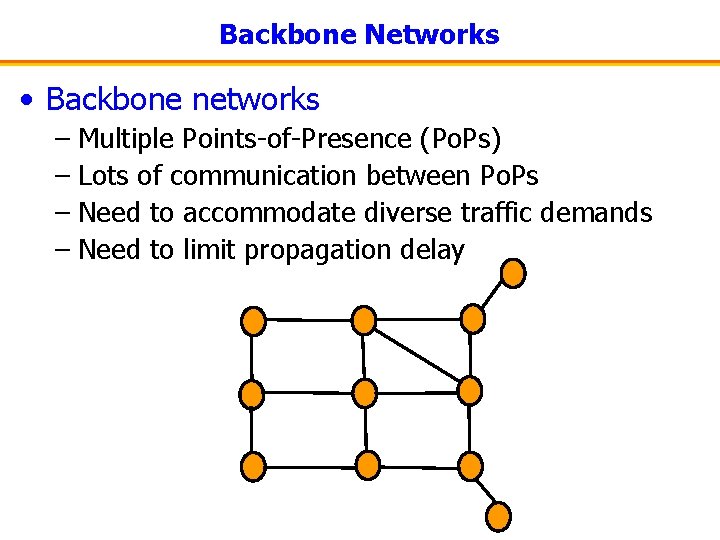

Backbone Networks • Backbone networks – Multiple Points-of-Presence (Po. Ps) – Lots of communication between Po. Ps – Need to accommodate diverse traffic demands – Need to limit propagation delay

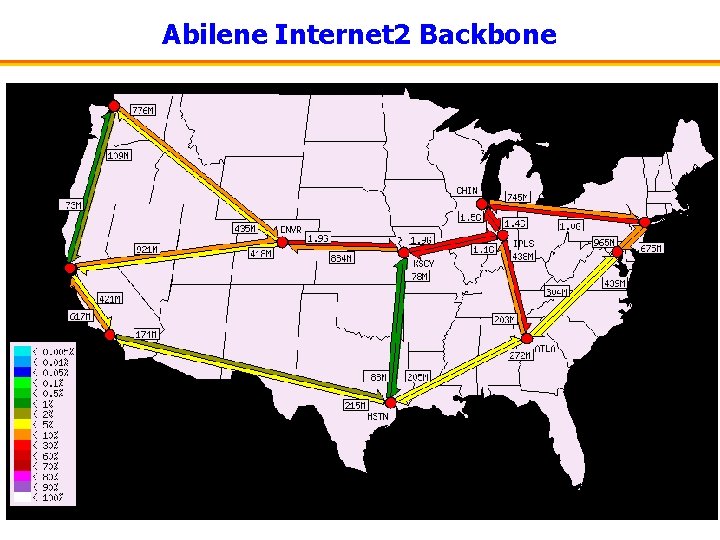

Abilene Internet 2 Backbone
Points-of-Presence (Po. Ps) • Inter-Po. P links – Long distances – High bandwidth Inter-Po. P Intra-Po. P • Intra-Po. P links – Short cables between racks or floors – Aggregated bandwidth • Links to other networks – Wide range of media and bandwidth Other networks
Deciding Where to Locate Nodes and Links • Placing Points-of-Presence (Po. Ps) – Large population of potential customers – Other providers or exchange points – Cost and availability of real-estate – Mostly in major metropolitan areas • Placing links between Po. Ps – Already fiber in the ground – Needed to limit propagation delay – Needed to handle the traffic load
Customer Connecting to a Provider 1 access link Provider 2 access routers Provider 2 access links Provider 2 access Po. Ps
Multi-Homing: Two or More Providers • Motivations for multi-homing – – Extra reliability, survive single ISP failure Financial leverage through competition Better performance by selecting better path Gaming the 95 th-percentile billing model Provider 1 Provider 2
Measuring the Topology
Motivation for Measuring the Topology • Business analysis – Comparisons with competitors – Selecting a provider or peer • Scientific curiosity – Treating data networks like an organism – Understand structure and evolution of Internet • Input to research studies – Network design, routing protocols, … • Interesting research problem in its own right – How to measure/infer the topology
Basic Idea: Measure from Many Angles Source 2 Source 1
Where to Get Sources and Destinations? • Source machines – Get accounts in many places • Good to have a lot of friends – Use an infrastructure like Planet. Lab • Good to have friends who have lots of friends – Use public traceroute servers (nicely) • http: //www. traceroute. org • Destination addresses – Walk through the IP address space • One (or a few) IP addresses per prefix – Learn destination prefixes from public BGP tables • http: //www. route-views. org

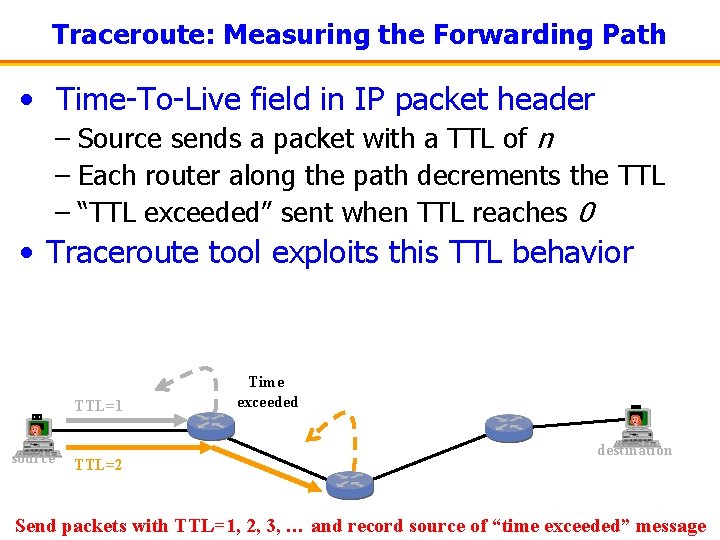

Traceroute: Measuring the Forwarding Path • Time-To-Live field in IP packet header – Source sends a packet with a TTL of n – Each router along the path decrements the TTL – “TTL exceeded” sent when TTL reaches 0 • Traceroute tool exploits this TTL behavior TTL=1 source TTL=2 Time exceeded destination Send packets with TTL=1, 2, 3, … and record source of “time exceeded” message
Example Traceroute Output (Berkeley to CNN) Hop number, IP address, DNS name No response from router 1 169. 229. 62. 1 inr-daedalus-0. CS. Berkeley. EDU 2 169. 229. 59. 225 soda-cr-1 -1 -soda-br-6 -2 3 128. 32. 255. 169 vlan 242. inr-202 -doecev. Berkeley. EDU 4 128. 32. 0. 249 gig. E 6 -0 -0. inr-666 -doecev. Berkeley. EDU 5 128. 32. 0. 66 qsv-juniper--ucb-gw. calren 2. net 6 209. 247. 159. 109 POS 1 -0. hsipaccess 1. San. Jose 1. Level 3. net 7 * ? 8 64. 159. 1. 46 ? 9 209. 247. 9. 170 pos 8 -0. hsa 2. Atlanta 2. Level 3. net 10 66. 185. 138. 33 pop 2 -atm-P 0 -2. atdn. net 11 * ? 12 66. 185. 136. 17 pop 1 -atl-P 4 -0. atdn. net 13 64. 236. 16. 52 www 4. cnn. com No name resolution
Problems with Traceroute • Missing responses – Routers might not send “Time-Exceeded” – Firewalls may drop the probe packets – “Time-Exceeded” reply may be dropped • Misleading responses – Probes taken while the path is changing – Name not in DNS, or DNS entry misconfigured • Mapping IP addresses – Mapping interfaces to a common router – Mapping interface/router to Autonomous System • Angry operators who think this is an attack
Map Traceroute Hops to ASes Traceroute output: (hop number, IP) 1 169. 229. 62. 1 AS 25 2 169. 229. 59. 225 AS 25 Berkeley 3 128. 32. 255. 169 AS 25 4 128. 32. 0. 249 AS 25 5 128. 32. 0. 66 AS 11423 Calren 6 209. 247. 159. 109 AS 3356 7 * AS 3356 8 64. 159. 1. 46 AS 3356 9 209. 247. 9. 170 AS 3356 10 66. 185. 138. 33 AS 1668 11 * AS 1668 12 66. 185. 136. 17 AS 1668 13 64. 236. 16. 52 AS 5662 CNN Level 3 AOL Need accurate IP-to-AS mappings (for network equipment).
Candidate Ways to Get IP-to-AS Mapping • Routing address registry – Voluntary public registry such as whois. radb. net – Used by prtraceroute and “NANOG traceroute” – Incomplete and quite out-of-date • Mergers, acquisitions, delegation to customers • Origin AS in BGP paths – Public BGP routing tables such as Route. Views – Used to translate traceroute data to an AS graph – Incomplete and inaccurate… but usually right • Multiple Origin ASes (MOAS), no mapping, wrong mapping
Example: BGP Table Network * 3. 0. 0. 0/8 * * *> * * 9. 184. 112. 0/20 * *> * * * (“show ip bgp” at Route. Views) Next Hop Metric Loc. Prf Weight Path 205. 215. 45. 50 0 4006 701 80 i 167. 142. 3. 6 0 5056 701 80 i 157. 22. 9. 7 0 715 1 701 80 i 195. 219. 96. 239 0 8297 6453 701 80 i 195. 211. 29. 254 0 5409 6667 6427 3356 701 80 i 12. 127. 0. 249 0 7018 701 80 i 213. 200. 87. 254 929 0 3257 701 80 i 205. 215. 45. 50 0 4006 6461 3786 i 195. 66. 225. 254 0 5459 6461 3786 i 203. 62. 248. 4 0 1221 3786 i 167. 142. 3. 6 0 5056 6461 3786 i 195. 219. 96. 239 0 8297 6461 3786 i 195. 211. 29. 254 0 5409 6461 3786 i AS 80 is General Electric, AS 701 is UUNET, AS 7018 is AT&T AS 3786 is DACOM (Korea), AS 1221 is Telstra
Refining Initial IP-to-AS Mapping • Start with initial IP-to-AS mapping – Mapping from BGP tables is usually correct – Good starting point for computing the mapping • Collect many BGP and traceroute paths – Signaling and forwarding AS path usually match – Good way to identify mistakes in IP-to-AS map • Successively refine the IP-to-AS mapping – Find add/change/delete that makes big difference – Base these “edits” on operational realities http: //www. cs. princeton. edu/~jrex/papers/sigcomm 03. pdf http: //www. cs. princeton. edu/~jrex/papers/infocom 04. pdf
Extra AS due to Internet e. Xchange Points • IXP: shared place where providers meet – E. g. , Mae-East, Mae-West, PAIX – Large number of fan-in and fan-out ASes A B C D E A E F B F G C G Traceroute AS path BGP AS path Ignore extra traceroute AS hop with high fan-in and fan-out
Extra AS due to Sibling ASes • Sibling: organizations with multiple ASes: – E. g. , Sprint AS 1239 and AS 1791 – AS numbers equipment with addresses of another A B C H D E A F B G C Traceroute AS path E D F G BGP AS path Merge sibling ASes “belong together” as if they were one AS.
Unannounced Infrastructure Addresses 12. 0. 0. 0/8 A B C does not announce part of its address space in BGP (e. g. , 12. 1. 2. 0/24) ACAC C AC BC Fix the IP-to-AS map to associate 12. 1. 2. 0/24 with C
Improving the IP-to-AS Mapping • Algorithm for modifying the IP-to-AS map – Small number of rules for modifying the map – Making small changes that make a big difference • Results of the algorithm – Changes about 2. 9% of mappings – Much better agreement (95%) with BGP AS paths • Validation – AT&T router configuration data – Whois queries to verify sibling ASes – List of known Internet e. Xchange Points
Exploring the Remaining Mismatches • Route aggregation B C D D C E BGP path: B C Traceroute path: B C D E – Traceroute AS path longer in 20% of mismatches – Different paths for destinations in same prefix • Interface numbering at AS boundaries B B C D D BGP path: B C D Traceroute path: B D – Boundary links numbered from one AS – Verified cases where AT&T (AS 7018) is involved
Discussion of the Two Papers • Measuring ISP topologies with Rocket. Fuel – Measure judiciously – First view of ISP topologies – Po. P structure, inter-Po. P graphs, peering, … – Good? Bad? What areas for future work? • First-principles of router-level topology – Explain the high variability in router degree – Technological limits on switching capacity – Many low-speed links at edge, few large in core – High variability at edge due to economics – Good? Bad? What areas for future work?

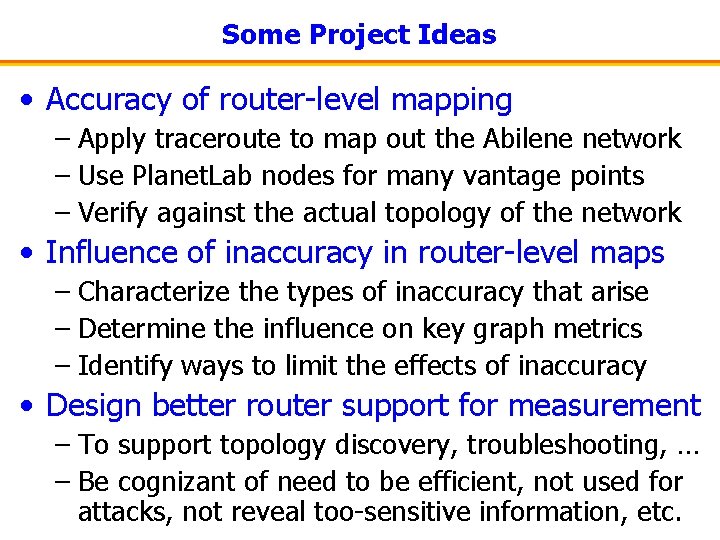

Some Project Ideas • Accuracy of router-level mapping – Apply traceroute to map out the Abilene network – Use Planet. Lab nodes for many vantage points – Verify against the actual topology of the network • Influence of inaccuracy in router-level maps – Characterize the types of inaccuracy that arise – Determine the influence on key graph metrics – Identify ways to limit the effects of inaccuracy • Design better router support for measurement – To support topology discovery, troubleshooting, … – Be cognizant of need to be efficient, not used for attacks, not reveal too-sensitive information, etc.
Reading for Thursday: AS-Level Topology • Two papers, and one video – “Toward capturing representative AS-level Internet topologies” – “Interconnection, peering, and settlements” – NANOG video on evolution of Internet peering • One-page review of first paper (hard-copy) – Brief summary of the paper – Reasons to accept the paper – Reasons to reject the paper – Three suggestions for future research directions • Optional reading – Should computer scientists experiment more?
