Expressions of ENSO and the SAM in Modeled Antarctic Surface Temperatures David B. Reusch EMS Earth and Environmental Systems Institute and Department of Geosciences The Pennsylvania State University Funded by the Office of Polar Programs, National Science Foundation Special thanks to David Bromwich and Andy Monaghan for sharing their data The Transantarctic Mountains, A. Huerta, 2003

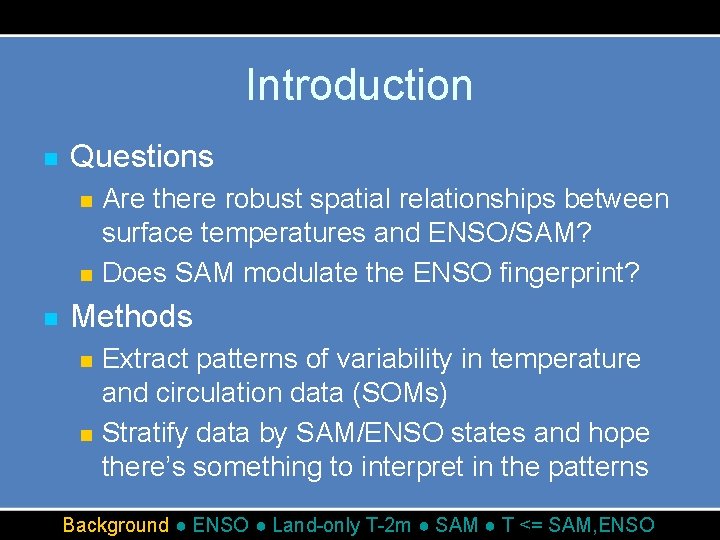

Introduction n Questions n n n Are there robust spatial relationships between surface temperatures and ENSO/SAM? Does SAM modulate the ENSO fingerprint? Methods n n Extract patterns of variability in temperature and circulation data (SOMs) Stratify data by SAM/ENSO states and hope there’s something to interpret in the patterns Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

The Model Dataset n n n Polar MM 5 initialized by ERA-40 Jan 1979 - Aug 2002 60 km grid, 6 -hourly n Daily averages, DJF (Jul) T-2 m (Z 850, Z 700, Z 500) n See Monaghan et al, 2006 n Grid Domain Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Self-organizing Maps (SOMs) 1) Generalized pattern extractor Concise summary of data variability expressed as a user-defined number of generalized patterns Patterns arranged in a grid by their relative similarity Each input record matches one pattern most closely Holocene ice core chemistry Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Self-organizing Maps (SOMs) 2) Data classifier by pattern matching Group input records that match the same pattern; use pattern instead Basis for frequency, transition and trajectory maps Subset input by time period, external index, etc. Sample Frequency Map Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

125 m 200 m Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Seasonal Land-Only Temperatures n n Broadening study period Switch to land-only n n n Focus on ice sheet Ocean temperatures of less interest Still daily resolution Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Land-only Surface Temperature Climatology Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

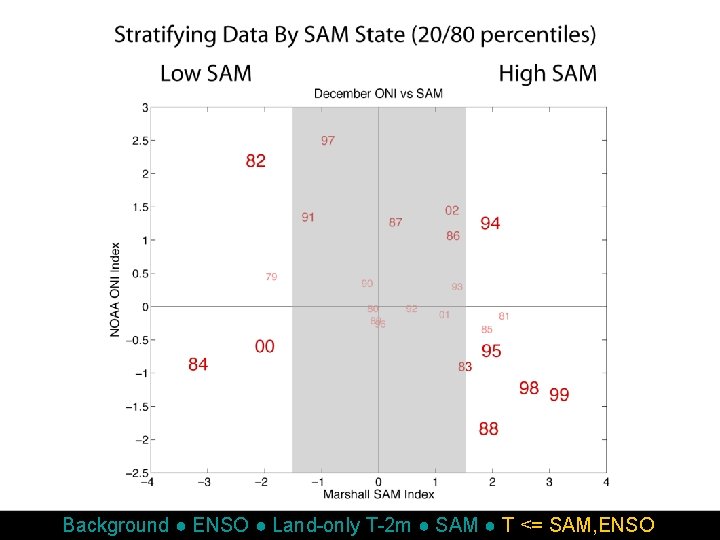

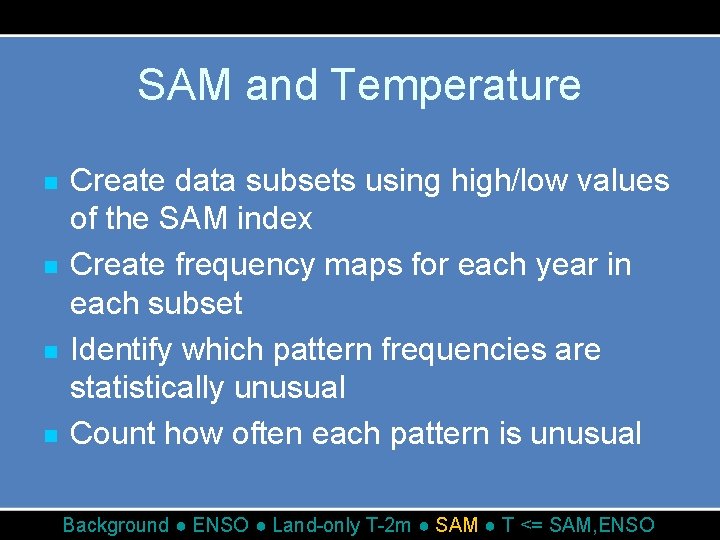

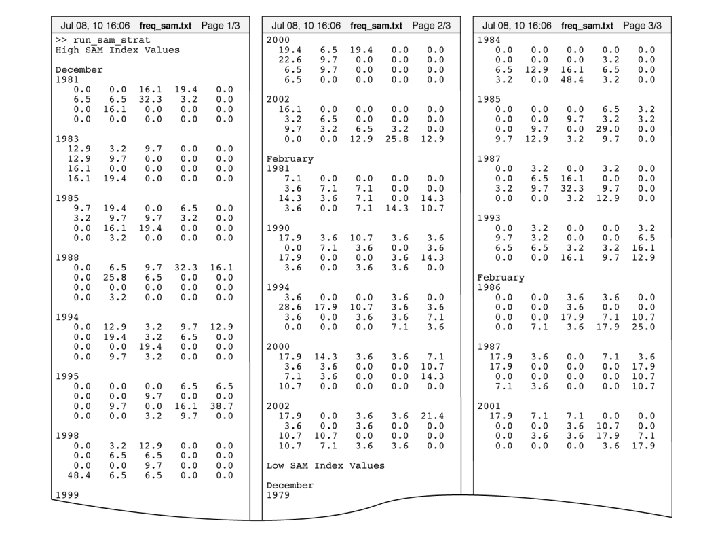

SAM and Temperature n n Create data subsets using high/low values of the SAM index Create frequency maps for each year in each subset Identify which pattern frequencies are statistically unusual Count how often each pattern is unusual Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Marshall SAM Index, J. Climate 2003 http: //www. antarctica. ac. uk/met/gjma/sam. html 40 °S 65 °S Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

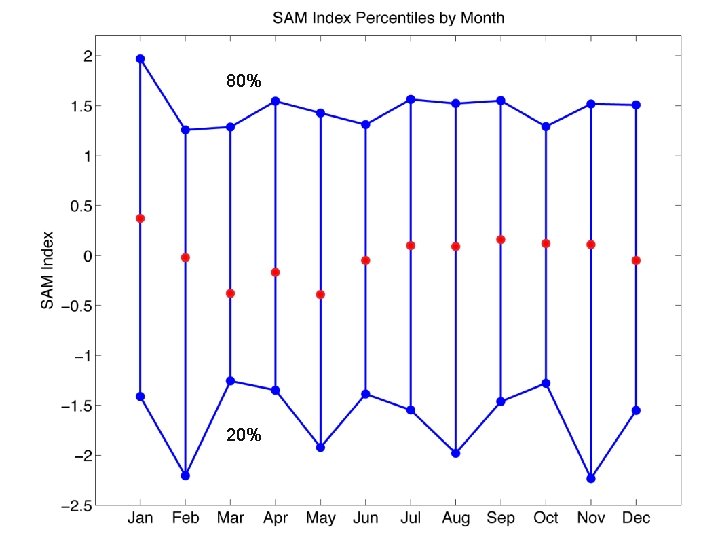

80% 20%

Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

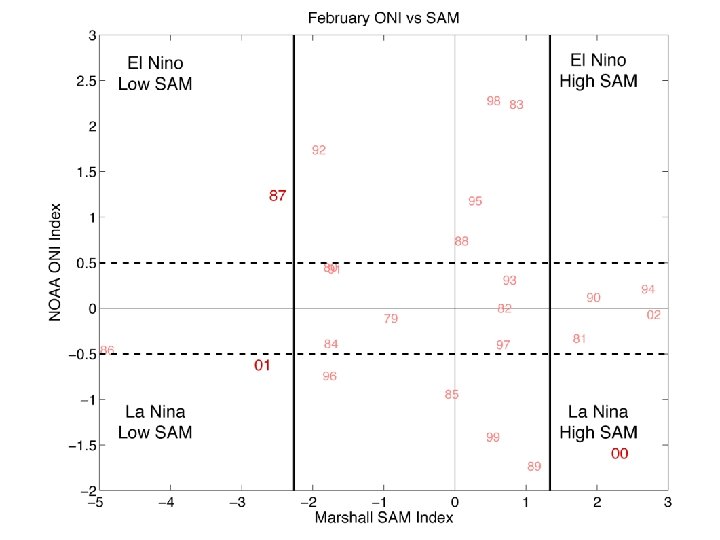

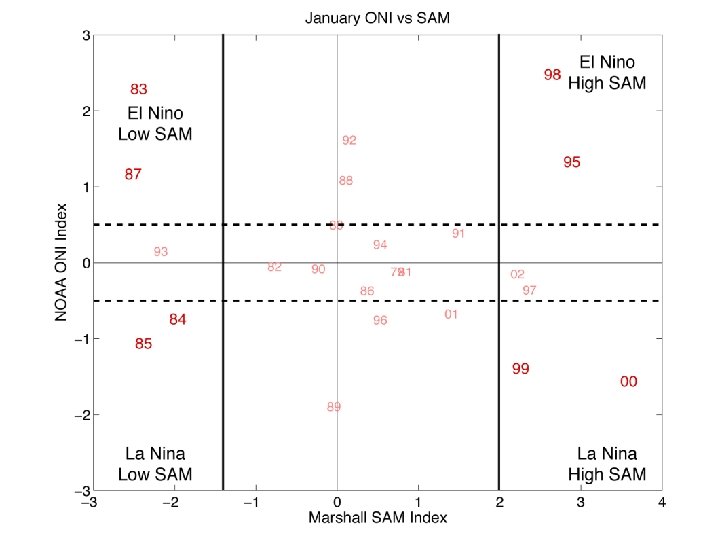

T = f(ENSO) o g(SAM)? r 2 ~ 0 Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

Background ● ENSO ● Land-only T-2 m ● SAM ● T <= SAM, ENSO

December 1982 Low SAM/El Niño

December 1994 High SAM/El Niño

Potential Next Steps n Work with READER data n n n Not high spatial density like a model grid… But the records are longer Then again, it’s monthly not daily… Other fields that express the SAM Compare notes with those using other methodologies!

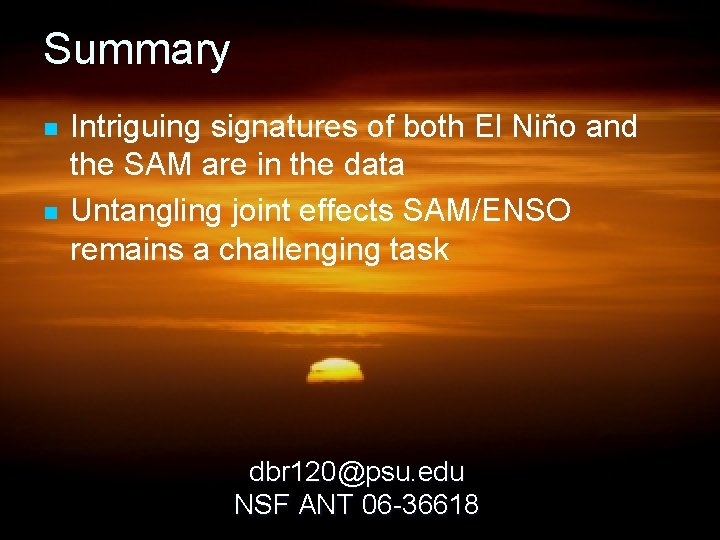

Summary n n Intriguing signatures of both El Niño and the SAM are in the data Untangling joint effects SAM/ENSO remains a challenging task dbr 120@psu. edu NSF ANT 06 -36618
