Emax 2 Allinone innovation Ekip Power Controller Agenda

— Emax 2 All-in-one innovation Ekip Power Controller

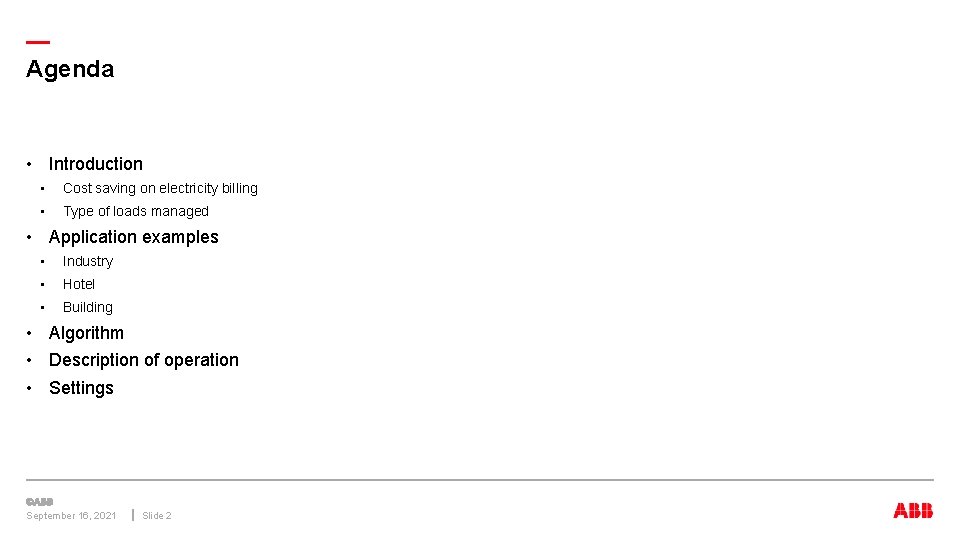

— Agenda • Introduction • Cost saving on electricity billing • Type of loads managed • Application examples • Industry • Hotel • Building • Algorithm • Description of operation • Settings September 16, 2021 Slide 2

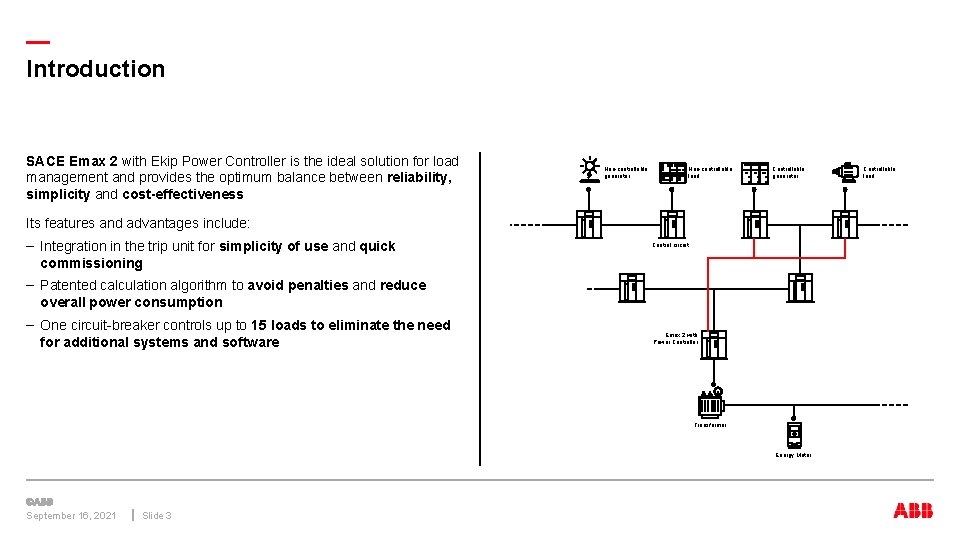

— Introduction SACE Emax 2 with Ekip Power Controller is the ideal solution for load management and provides the optimum balance between reliability, simplicity and cost-effectiveness Non-controllable generator Non-controllable load Controllable generator Its features and advantages include: – Integration in the trip unit for simplicity of use and quick commissioning Control circuit – Patented calculation algorithm to avoid penalties and reduce overall power consumption – One circuit-breaker controls up to 15 loads to eliminate the need for additional systems and software Emax 2 with Power Controller Transformer Energy Meter September 16, 2021 Slide 3 Controllable load

— Introduction Cost saving on electricity billing The tariff structure generally includes Maximum Demand Charges – Charges related to the maximum power demand registered during a billing period and its corresponding rate of utility – This is NOT instantaneous based, but based on averages and will typically be set at the highest demand value recorded over the month Energy Charges – Charges related to the energy consumed during the billing period and their corresponding rates Ekip Power Controller allows savings on Maximum Demand Charges September 16, 2021 Slide 4 Ekip Power Controller is a powerful means of efficiency improvement for both Users and Utilities

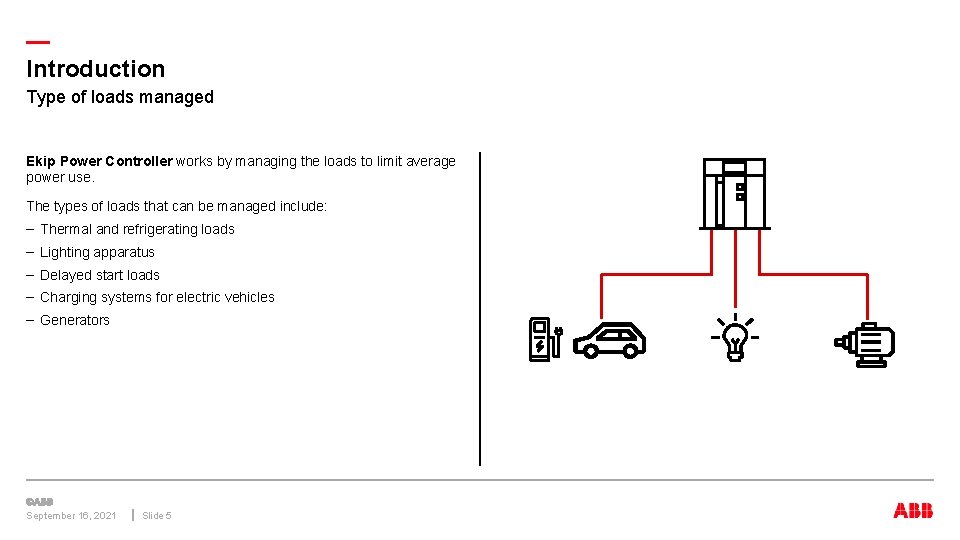

— Introduction Type of loads managed Ekip Power Controller works by managing the loads to limit average power use. The types of loads that can be managed include: – Thermal and refrigerating loads – Lighting apparatus – Delayed start loads – Charging systems for electric vehicles – Generators September 16, 2021 Slide 5

— Application examples Industry September 16, 2021 Hotel Slide 6 Building

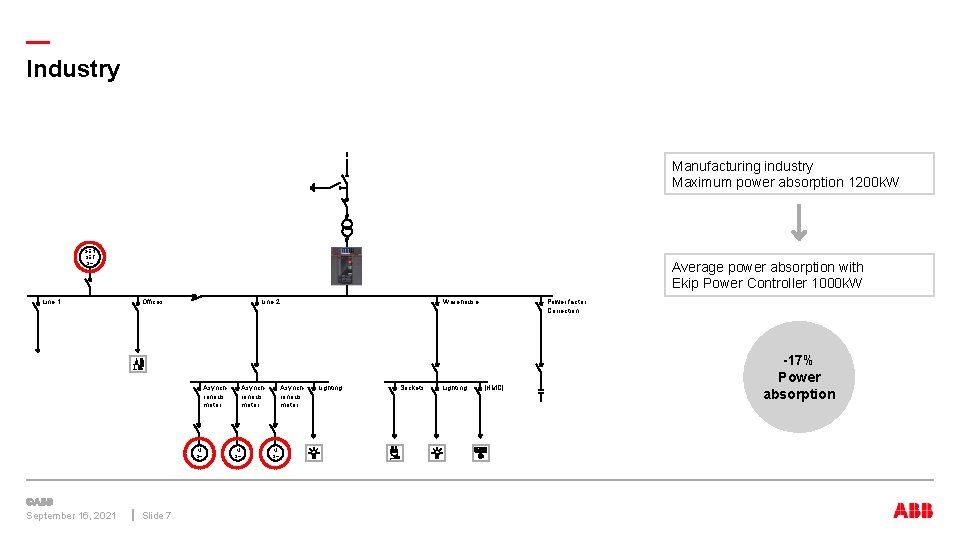

— Industry Manufacturing industry Maximum power absorption 1200 k. W GEN SET 3~ Line 1 Average power absorption with Ekip Power Controller 1000 k. W Offices Line 2 Asynchronous motor M 3~ September 16, 2021 Slide 7 Asynchronous motor M 3~ Warehouse Asynchronous motor M 3~ Lighting Sockets Lighting Power factor Correction [HMC] -17% Power absorption

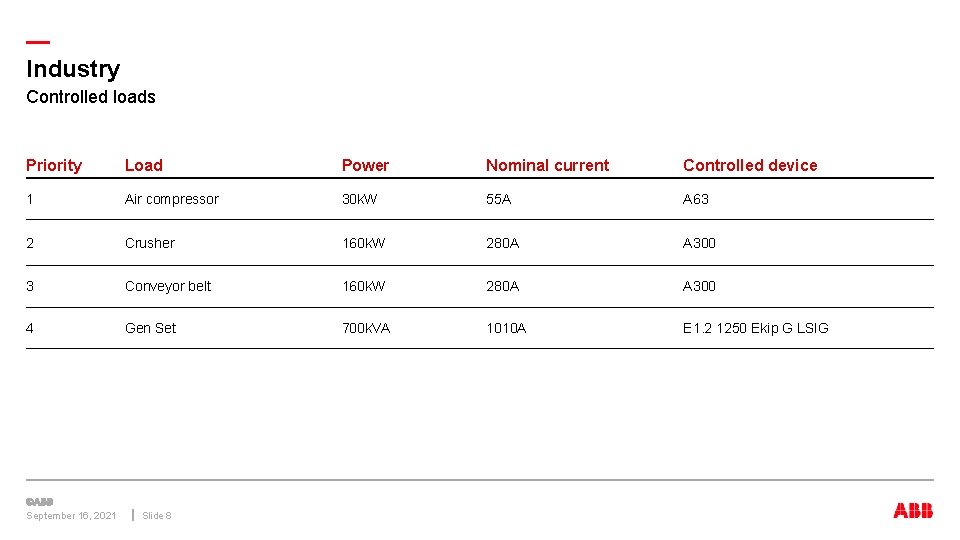

— Industry Controlled loads Priority Load Power Nominal current Controlled device 1 Air compressor 30 k. W 55 A A 63 2 Crusher 160 k. W 280 A A 300 3 Conveyor belt 160 k. W 280 A A 300 4 Gen Set 700 k. VA 1010 A E 1. 2 1250 Ekip G LSIG September 16, 2021 Slide 8

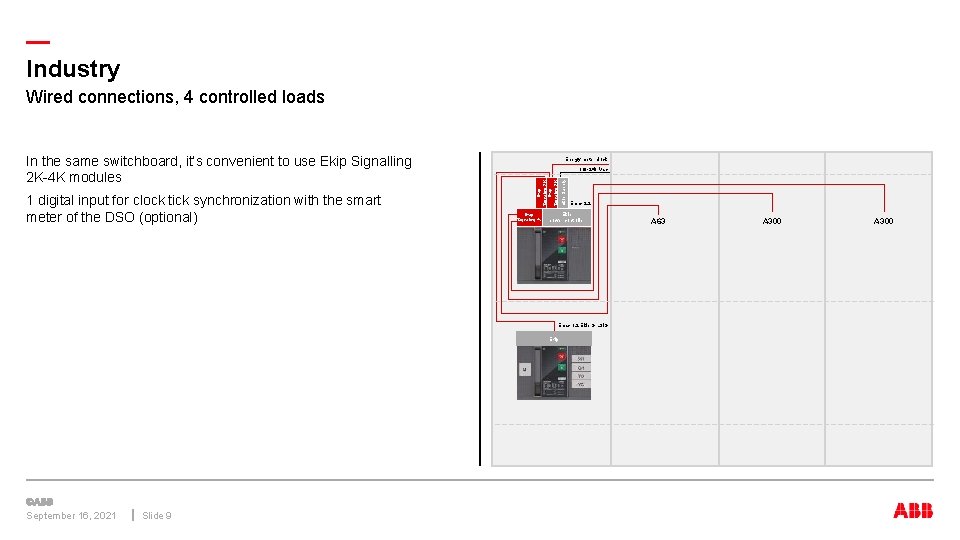

— Industry Wired connections, 4 controlled loads 110 -240 Vac Ekip Supply 1 digital input for clock tick synchronization with the smart meter of the DSO (optional) Energy meter clock Ekip Signaling 2 K In the same switchboard, it’s convenient to use Ekip Signalling 2 K-4 K modules Ekip Signaling 4 k Emax 2. 2 Ekip power controller Emax 1. 2 Ekip G LSIG Ekip September 16, 2021 Slide 9 A 63 A 300

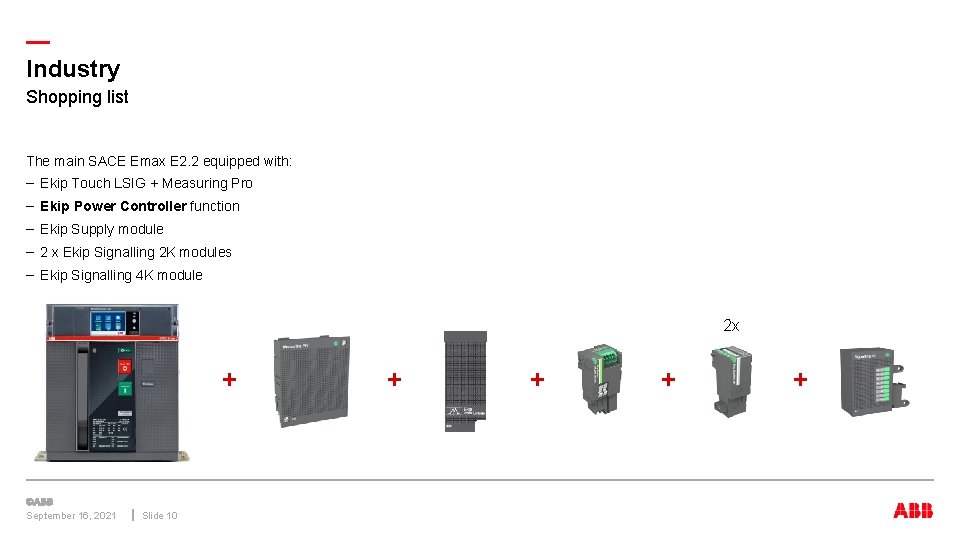

— Industry Shopping list The main SACE Emax E 2. 2 equipped with: – Ekip Touch LSIG + Measuring Pro – Ekip Power Controller function – Ekip Supply module – 2 x Ekip Signalling 2 K modules – Ekip Signalling 4 K module 2 x + September 16, 2021 Slide 10 + +

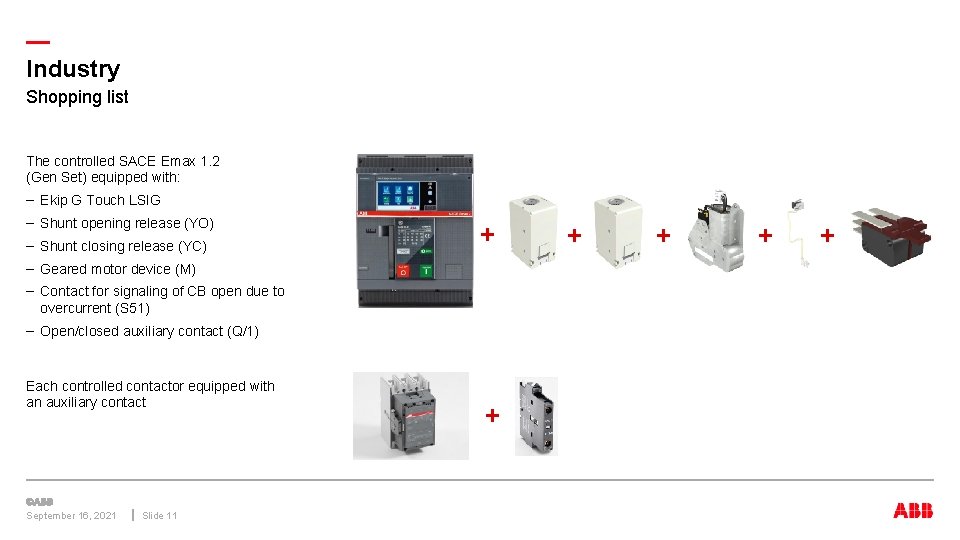

— Industry Shopping list The controlled SACE Emax 1. 2 (Gen Set) equipped with: – Ekip G Touch LSIG – Shunt opening release (YO) – Shunt closing release (YC) + – Geared motor device (M) – Contact for signaling of CB open due to overcurrent (S 51) – Open/closed auxiliary contact (Q/1) Each controlled contactor equipped with an auxiliary contact September 16, 2021 Slide 11 + + +

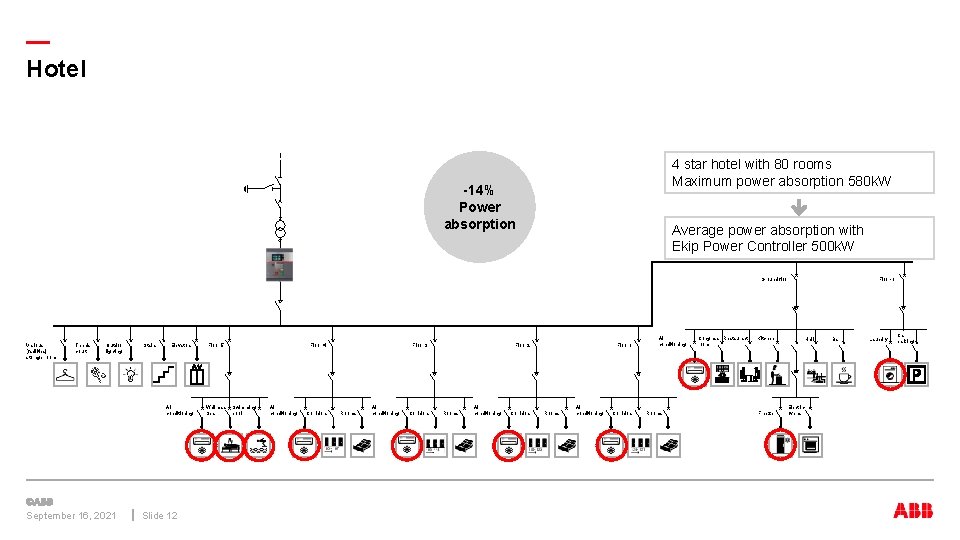

— Hotel 4 star hotel with 80 rooms Maximum power absorption 580 k. W -14% Power absorption Average power absorption with Ekip Power Controller 500 k. W Ground floor Various [facilities] storage room Tennis court Outdoor lighting Stairs Elevators Air conditioning September 16, 2021 Slide 12 Floor 5 Wellness Spa Floor 4 Swimming pool Air conditioning Corridors Floor 3 Rooms Air conditioning Corridors Floor 2 Rooms Air conditioning Corridors Floor 1 Rooms Air conditioning Corridors Air conditioning Rooms Congress Restaurant room Kitchen Freezer Floor-1 Hall Electric ovens Bar Laundry Car parking

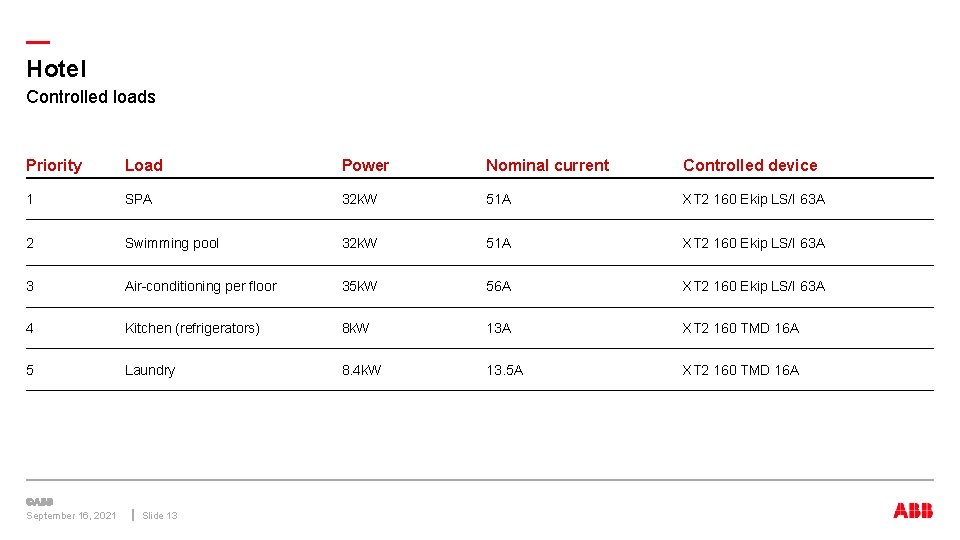

— Hotel Controlled loads Priority Load Power Nominal current Controlled device 1 SPA 32 k. W 51 A XT 2 160 Ekip LS/I 63 A 2 Swimming pool 32 k. W 51 A XT 2 160 Ekip LS/I 63 A 3 Air-conditioning per floor 35 k. W 56 A XT 2 160 Ekip LS/I 63 A 4 Kitchen (refrigerators) 8 k. W 13 A XT 2 160 TMD 16 A 5 Laundry 8. 4 k. W 13. 5 A XT 2 160 TMD 16 A September 16, 2021 Slide 13

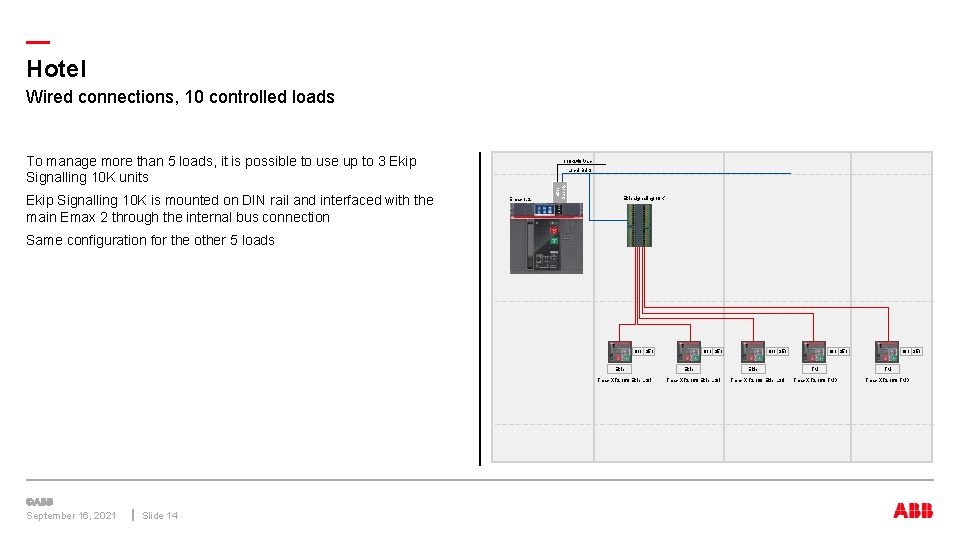

— Hotel Wired connections, 10 controlled loads To manage more than 5 loads, it is possible to use up to 3 Ekip Signalling 10 K units Local BUS Emax 1. 2 Ekip Supply Ekip Signalling 10 K is mounted on DIN rail and interfaced with the main Emax 2 through the internal bus connection 110 -240 Vac Ekip signaling 10 K Same configuration for the other 5 loads O/1 S 51 Ekip Tmax XT 2 160 Ekip LS/I September 16, 2021 Slide 14 O/1 S 51 Ekip Tmax XT 2 160 Ekip LS/I O/1 S 51 TM TM Tmax XT 2 160 TMD

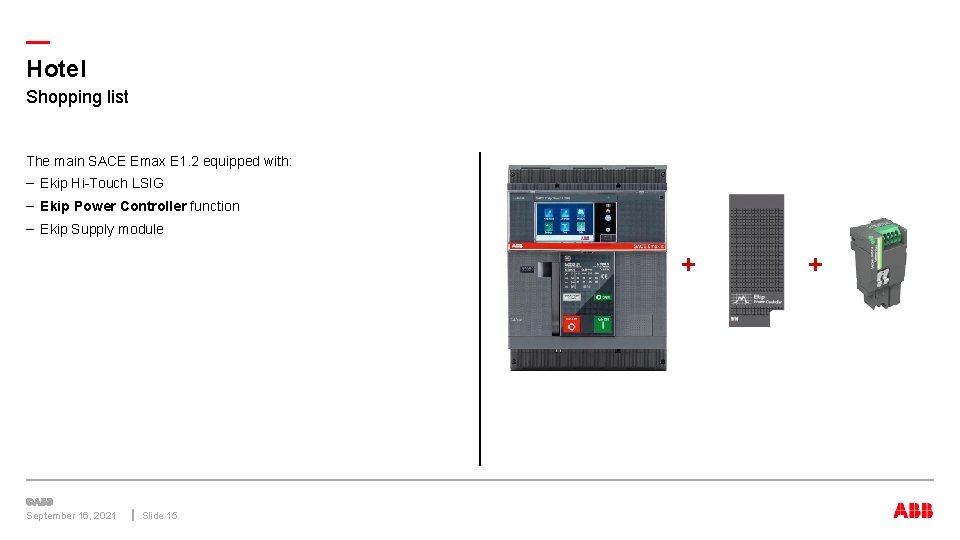

— Hotel Shopping list The main SACE Emax E 1. 2 equipped with: – Ekip Hi-Touch LSIG – Ekip Power Controller function – Ekip Supply module + September 16, 2021 Slide 15 +

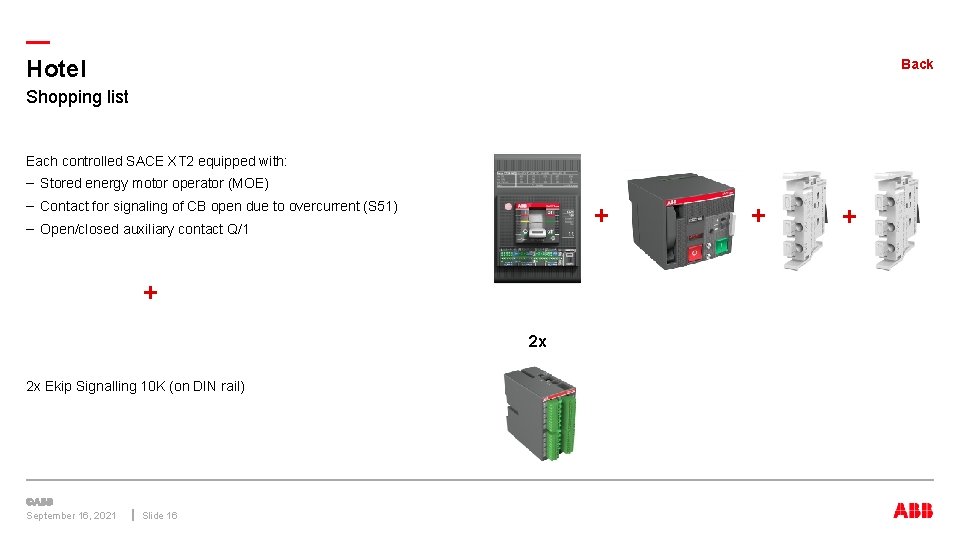

— Hotel Back Shopping list Each controlled SACE XT 2 equipped with: – Stored energy motor operator (MOE) – Contact for signaling of CB open due to overcurrent (S 51) + – Open/closed auxiliary contact Q/1 + 2 x 2 x Ekip Signalling 10 K (on DIN rail) September 16, 2021 Slide 16 + +

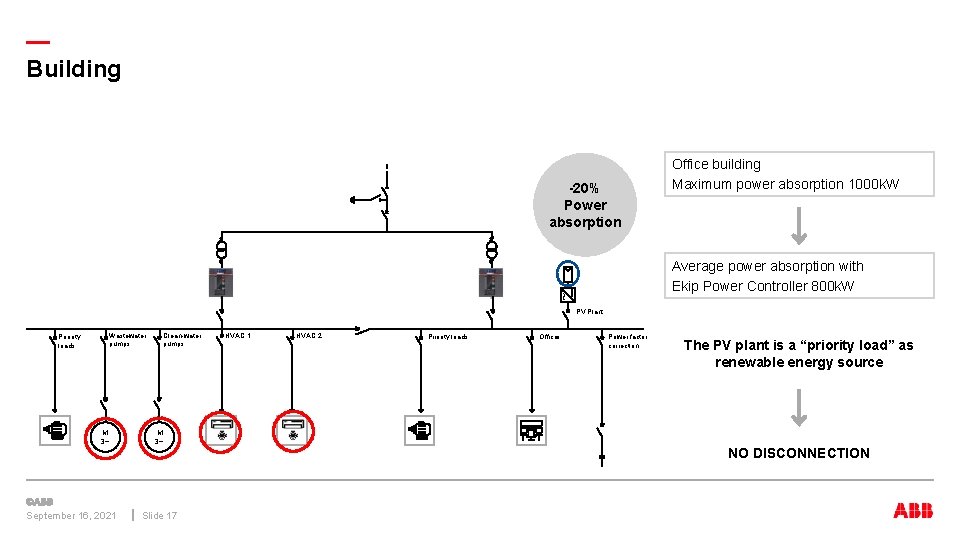

— Building -20% Power absorption Office building Maximum power absorption 1000 k. W ~ Average power absorption with Ekip Power Controller 800 k. W PV Plant Priority loads Wastewater pumps M 3~ Clean-water pumps HVAC 1 HVAC 2 Priority loads Offices Power factor correction The PV plant is a “priority load” as renewable energy source M 3~ NO DISCONNECTION September 16, 2021 Slide 17

— Building Controlled loads Priority Load Power Nominal current Controlled device 1 Clean-water pumps 37 k. W 66 A A 75 2 Wastewater pumps 37 k. W 66 A A 75 3 HVAC 1 360 k. W 578 A T 5 630 PR 222 DS-LSI 630 A 4 HVAC 2 360 k. W 578 A T 5 630 PR 222 DS-LSI 630 A September 16, 2021 Slide 18

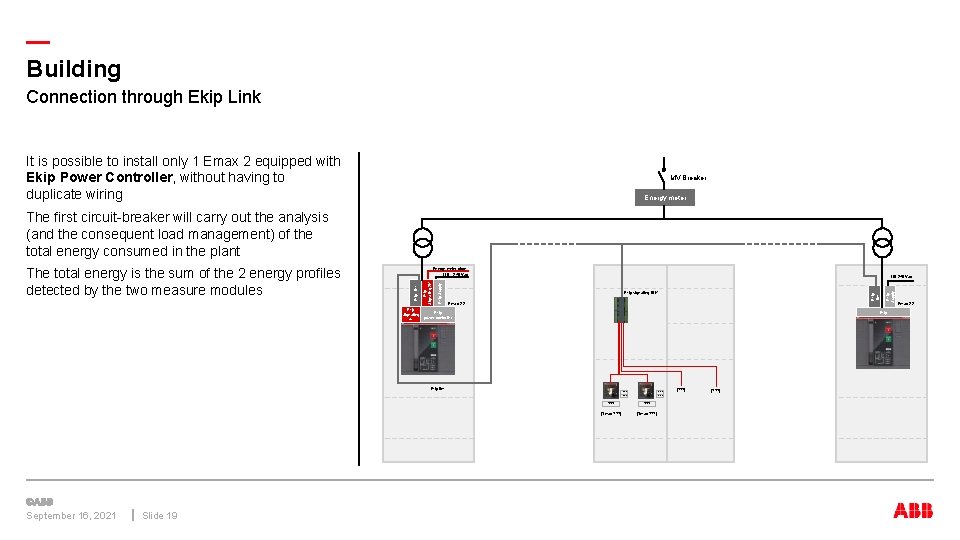

— Building Connection through Ekip Link It is possible to install only 1 Emax 2 equipped with Ekip Power Controller, without having to duplicate wiring MV Breaker Energy meter The first circuit-breaker will carry out the analysis (and the consequent load management) of the total energy consumed in the plant Energy meter clock Ekip Signaling 4 k Ekip signaling 10 K Emax 2. 2 Ekip power controller Ekip link ? ? ? September 16, 2021 Slide 19 Ekip Supply 110 -240 Vac Ekip link Ekip Supply Ekip link 110 – 240 Vac Ekip Signaling 2 K The total energy is the sum of the 2 energy profiles detected by the two measure modules ? ? ? [Tmax ? ? ? ] [? ? ? ] Emax 2. 2

— Building Shopping list 1 of the 2 main SACE Emax 2. 2 equipped with: – Ekip Touch LSIG + Ekip Measuring – Ekip Power Controller function – Ekip Supply module – Ekip Link module + + + The other main SACE Emax 2. 2 equipped with: – Ekip Touch LSIG + Ekip Measuring – Ekip Supply module – Ekip Link module September 16, 2021 Slide 20 +

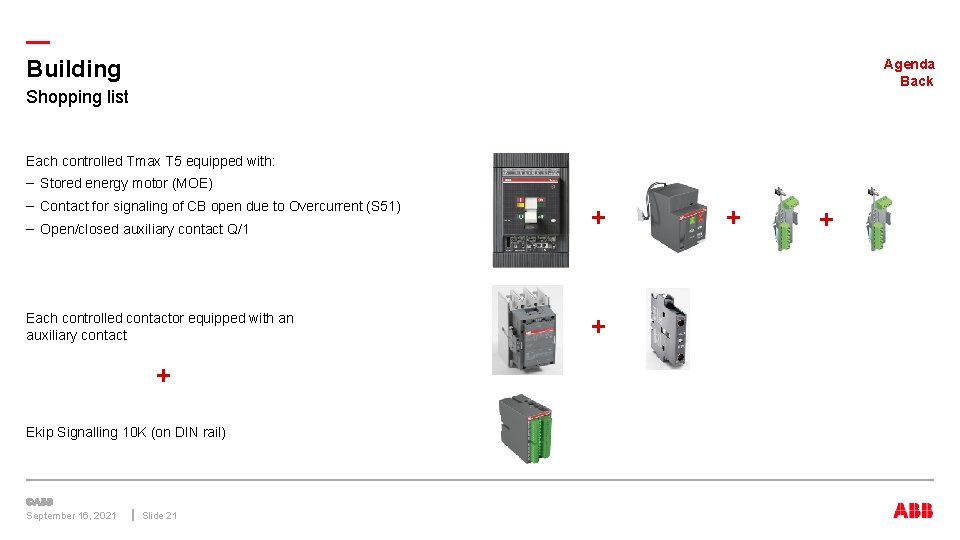

— Building Agenda Back Shopping list Each controlled Tmax T 5 equipped with: – Stored energy motor (MOE) – Contact for signaling of CB open due to Overcurrent (S 51) – Open/closed auxiliary contact Q/1 + Each controlled contactor equipped with an auxiliary contact + + Ekip Signalling 10 K (on DIN rail) September 16, 2021 Slide 21 + +

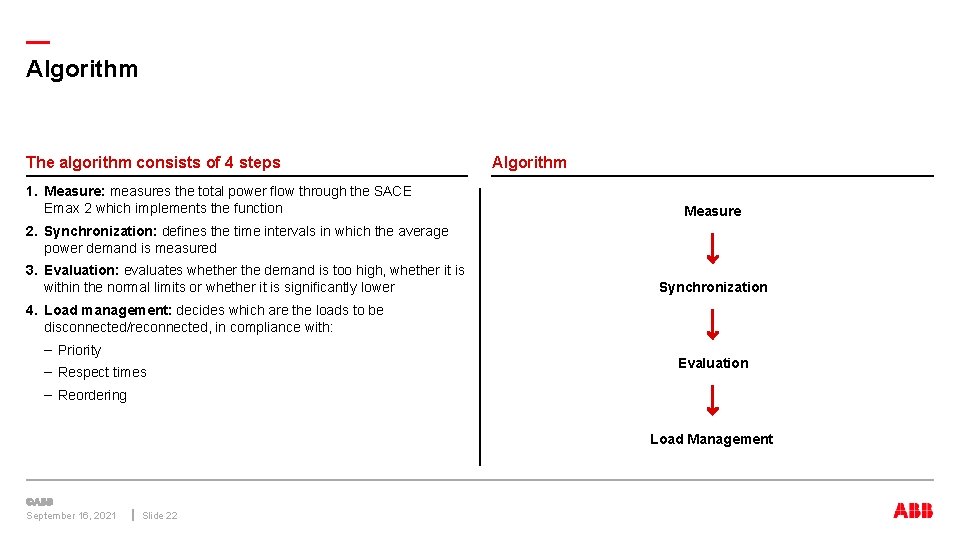

— Algorithm The algorithm consists of 4 steps 1. Measure: measures the total power flow through the SACE Emax 2 which implements the function Algorithm Measure 2. Synchronization: defines the time intervals in which the average power demand is measured 3. Evaluation: evaluates whether the demand is too high, whether it is within the normal limits or whether it is significantly lower Synchronization 4. Load management: decides which are the loads to be disconnected/reconnected, in compliance with: – Priority – Respect times Evaluation – Reordering Load Management September 16, 2021 Slide 22

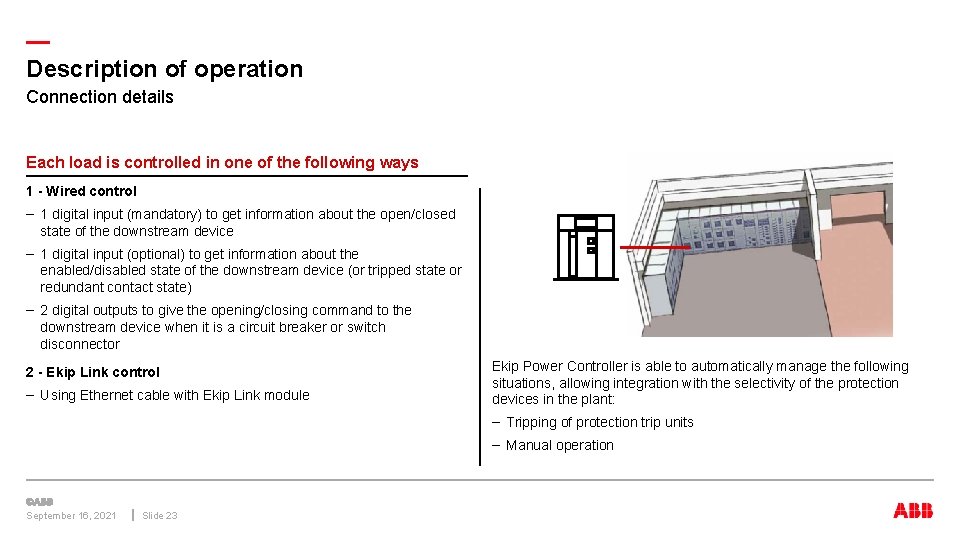

— Description of operation Connection details Each load is controlled in one of the following ways 1 - Wired control – 1 digital input (mandatory) to get information about the open/closed state of the downstream device – 1 digital input (optional) to get information about the enabled/disabled state of the downstream device (or tripped state or redundant contact state) – 2 digital outputs to give the opening/closing command to the downstream device when it is a circuit breaker or switch disconnector 2 - Ekip Link control – Using Ethernet cable with Ekip Link module Ekip Power Controller is able to automatically manage the following situations, allowing integration with the selectivity of the protection devices in the plant: – Tripping of protection trip units – Manual operation September 16, 2021 Slide 23

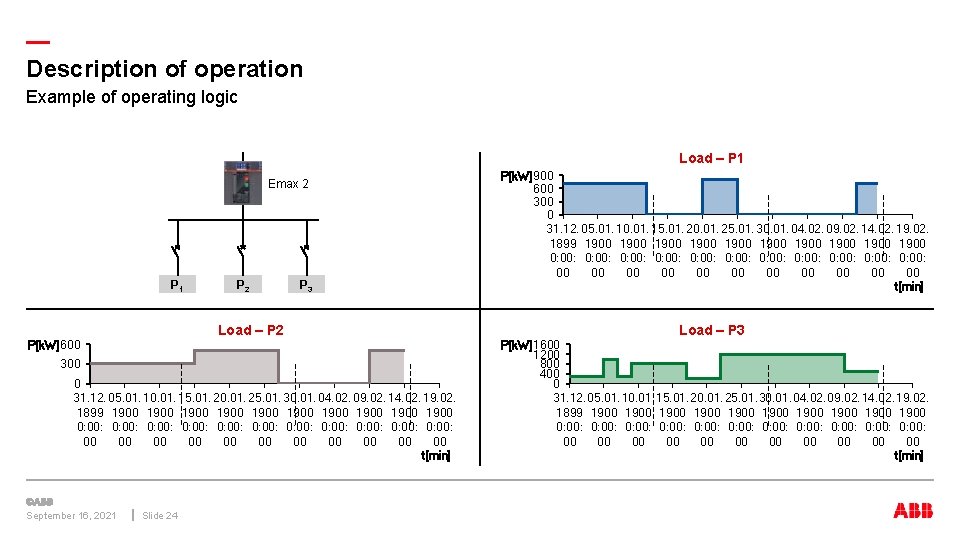

— Description of operation Example of operating logic Load – P 1 Emax 2 P 1 P 2 P 3 Load – P 2 P[k. W] 600 300 0 31. 12. 05. 01. 10. 01. 15. 01. 20. 01. 25. 01. 30. 01. 04. 02. 09. 02. 14. 02. 19. 02. 1899 1900 1900 1900 0: 00: 0: 00: 0: 00: 0: 00 00 00 t[min] September 16, 2021 Slide 24 P[k. W] 900 600 300 0 31. 12. 05. 01. 10. 01. 15. 01. 20. 01. 25. 01. 30. 01. 04. 02. 09. 02. 14. 02. 19. 02. 1899 1900 1900 1900 0: 00: 0: 00: 0: 00: 0: 00 00 00 t[min] Load – P 3 P[k. W] 1600 1200 800 400 0 31. 12. 05. 01. 10. 01. 15. 01. 20. 01. 25. 01. 30. 01. 04. 02. 09. 02. 14. 02. 19. 02. 1899 1900 1900 1900 0: 00: 0: 00: 0: 00: 0: 00 00 00 t[min]

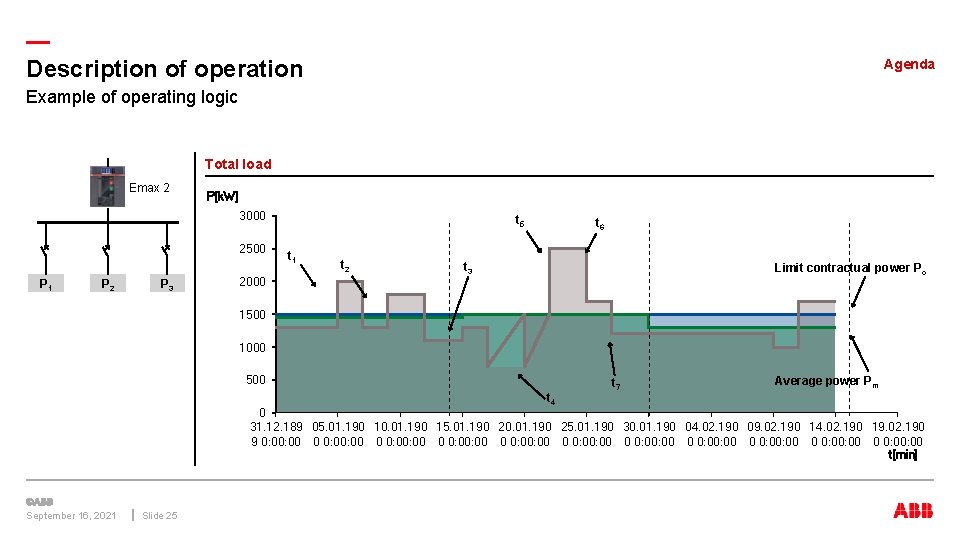

— Description of operation Agenda Example of operating logic Total load Emax 2 P[k. W] 3000 2500 P 1 P 2 P 3 2000 t 5 t 1 t 2 t 6 t 3 Limit contractual power Pc 1500 1000 500 t 4 t 7 Average power Pm 0 31. 12. 189 05. 01. 190 10. 01. 190 15. 01. 190 20. 01. 190 25. 01. 190 30. 01. 190 04. 02. 190 09. 02. 190 14. 02. 190 19. 02. 190 9 0: 00: 00 0 0: 00: 00 0 0: 00: 00 0 0: 00 t[min] September 16, 2021 Slide 25

— Settings Ekip connect 2 - Power Controller Wizard To initiate the Power Controller, the user may set a list of parameters: – Enable/ disable – Power limits – Week scheduling – Saturday scheduling – Sunday scheduling – Synch configuration – Start-up behavior September 16, 2021 Slide 26

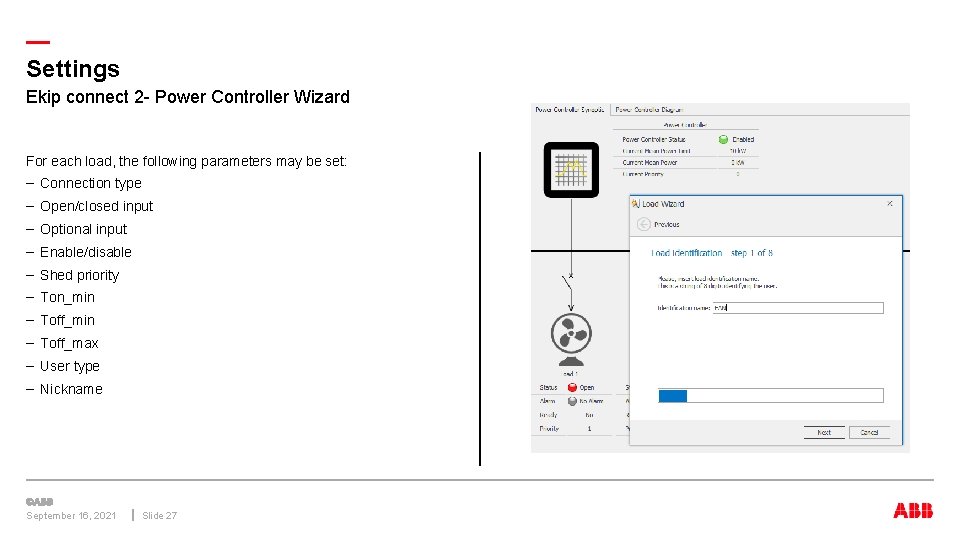

— Settings Ekip connect 2 - Power Controller Wizard For each load, the following parameters may be set: – Connection type – Open/closed input – Optional input – Enable/disable – Shed priority – Ton_min – Toff_max – User type – Nickname September 16, 2021 Slide 27
