DT 2494 Information Systems Engineering Systems Modelling 1
- Slides: 122
DT 249/4 Information Systems Engineering Systems Modelling 1
Diagrams • • • Context Diagram Data Flow Diagram Activity Diagram Use Case Diagram Class Diagram 2
Context Diagram 3
Context Diagram • One of the first things you need to do when specifying a system is to decide on the system boundaries. • This means deciding what functionality should be included in the system and what is provided by the system’s environment. 4
Context Diagram • You should look at possible overlaps in functionality with existing systems and decide where new functionality should be implemented. • These decisions should be made early in the process to limit the system costs and the time. 5
Context Diagram Other System 1 Other System 5 Other System 3 The System we are developing Other System 6 Other System 4 Other System 2 6
Context Diagram ATM Machine 7
Data Flow Diagram 8
Data Flow Diagram • Used to show end-to-end processing in a system • DFDs show the entire sequence of actions that take place from an input being processed to the corresponding output that is the system’s response. 9
Data Flow Diagram Sink External Entities Source 10
Data Flow Diagram Sink External Entities An outside system that sends or receives data, communicating with the system being diagrammed. Source 11
Data Flow Diagram Data Flow 12
Data Flow Diagram Data Flow The route that data takes between the external entities, processes and data stores. 13
Data Flow Diagram Process 14
Data Flow Diagram Process A process is anything that changes the data, to produce an output. 15
Data Flow Diagram Data Store 16
Data Flow Diagram Data Store Files or repositories that hold information for later use, such as a database table or a membership form. 17
Data Flow Diagram Source Sink Process Data Store Data Flow
Data Flow Diagram Data Flow Source Process Sink Data Store
Data Flow Diagram
Data Flow Diagram A CUSTOMER orders food, and that process returns a bill to the customer. The order goes to the KITCHEN. The process of ordering the food, also sends inventory details to the INVENTORY database and the order to the ORDER database. The INVENTORY database sends inventory details onto a Generate Reports process, which also receives the order from the ORDER database. The Generate Reports process sends a Report to the MANAGER who sends the inventory order to the Order Inventory process, and that process sends the inventory details back to the INVENTORY database, and sends the inventory order to the SUPPLIER. 21
Data Flow Diagram A CUSTOMER(EXTERNAL ENTITY) will ORDER FOOD(PROCESS); The ORDER FOOD process will send an ORDER to the KITCHEN(EXTERNAL ENTITY); The ORDER FOOD process will send an ORDER to the ORDER(DATA STORE); The ORDER FOOD process will send an INVENTORY DETAILS to the INVENTORY(DATA STORE); The INVENTORY data store sends the INVENTORY DETAILS to the GENERATE REPORTS(PROCESS); The ORDER data store sends the ORDER to the GENERATE REPORTS(PROCESS); The GENERATE REPORTS process sends REPORTS to the MANAGER(EXTERNAL ENTITY); The MANAGER external entity sends the INVENTORY ORDER to the ORDER INVENTORY(PROCESS); The ORDER INVENTORY process send INVENTORY DETAIL back to the INVENTORY(DATA STORE); The ORDER INVENTORY process send INVENTORY ORDER to the SUPPLIER(EXTERNAL ENTITY); 22
Data Flow Diagram
Data Flow Diagram
Data Flow Diagram When renting a video, a CUSTOMER requests a video from the Rent Video process, which sends a bill back to the CUSTOMER. The Rent Video process send rental information to the RENTAL database which sends the rental information onto the Generate Rental Report process, which passes a Rental report onto the MANAGER. When returning a video, a CUSTOMER sends the Video and Rental Information onto the Return Video process, which sends a Return Receipt back to the CUSTOMER. The Return Video process sends Video Information onto the VIDEO LIBRARY database, which sends Video Information back to the Rent Video Process (mentioned previously). The Return Video process also sends Rental information onto the RENTAL database (mentioned previously). 25
Data Flow Diagram A CUSTOMER(EXTERNAL ENTITY) send a VIDEO REQUEST to RENT VIDEO(PROCESS); The RENT VIDEO process will send a BILL to the CUSTOMER(EXTERNAL ENTITY); The RENT VIDEO process will send RENTAL INFO to the RENTAL(DATA STORE); A CUSTOMER(EXTERNAL ENTITY) send VIDEO RENTAL INFO to RETURN VIDEO(PROCESS); The RETURN VIDEO process send a RETURN RECEIPT to the CUSTOMER(EXTERNAL ENTITY); The RETURN VIDEO process send VIDEO INFO to the VIDEO LIBRARY(DATA STORE); The RETURN VIDEO process send RENTAL INFO to the RENTAL(DATA STORE); The VIDEO LIBRARY data store send VIDEO INFO to RENT VIDEO(PROCESS); The RENTAL data store send RENTAL INFO to GENERATE RENTAL REPORT(PROCESS); The GENERATE RENTAL REPORT process sends a RENTAL REPORT to the MANAGER(EXTERNAL ENTITY) ; 26
Data Flow Diagram
Data Flow Diagram
Activity Diagram 29
Activity Diagram • Process models show the overall process and the processes that are supported by the system. 30
Activity Diagram • We’ll use UML Activity Diagrams to represent process flows. 31
Activity Diagram Start Stop 32
Activity Diagram Start The Start Node is also called the Initial Note. Stop The Stop Node is also called the Final Note. 33
Activity Diagram Condition 34
Activity Diagram Condition The condition defines a guard which must evaluate to true in order to traverse the node. 35
Activity Diagram Action 36
Activity Diagram Action An action may be physical, such as Inspect Forms, or electronic, such as Display Student Screen. 37
Activity Diagram Decision 38
Activity Diagram Decision The flows leaving a decision will normally include conditions 39
Activity Diagram Fork Join 40
Activity Diagram Fork This denotes the beginning of parallel activity. Join All flows going into the join must reach it before processing can continue. 41
Activity Diagram Join Start Action Fork Stop Decision Condition
Activity Diagram 43
Activity Diagram 44
Activity Diagram To enrol in college: "Fill out enrolment forms", if they are filled out incorrectly, then if there is help available, "Obtain Help", but if there is no help available, retry to "Fill out enrolment forms". If it's a trivial problem or the form are filled out correctly, proceed to "Enrol in University. Once you've enrolled, two things can happen in parallel; (1) you can "Attend University Overview Presentation", and (2) you can "Enrol in Seminar(s), an "Make initial Tuition Payments". 45
Activity Diagram Fill Out Enrollment Forms IF the forms are filled out incorrectly THEN IF it’s a big problem THEN IF there is help available THEN “Obtain Help” ELSE Return to “Fill Out Enrollment Forms” ELSE it’s a trivial problem so “Enrol in University” ELSE “Enrol in University” Happening in Parallel (Concurrently): Attend university Enrol in Seminar(s) Make Initial Tuition Payment 46
Activity Diagram 47
Activity Diagram 48
Activity Diagram To buy a ticket: "Show Your Ticket at the Check-In Counter" then "Verify that Ticket". If the Ticket has a problem, "Refer the Passenger to the Customer Services" and exit. Otherwise “Check-in the Luggage”. When "Accepting the Luggage", check if it is “Subject to a Fee”, if it is “Pay Fees”, otherwise don't. In either case “Issue a Boarding Pass” and exit. 49
Activity Diagram Show Your Ticket at the Check-In Counter; Verify the Ticket; IF the Ticket is NOT OK THEN Refer to CUSTOMER SERVICES; EXIT; END IF; Check in Luggage; Accept Luggage; IF Luggage is Subject to Fee THEN Pay Fee; END IF; Issue Boarding Pass; 50
Activity Diagram 51
Activity Diagram 52
Use Case Diagram 53
Use Case Diagram Actor
Use Case Diagram Actor Can represent: • Human • Peripheral device (hardware) • External system or subsystem • Time or time-based event
Use Case Diagram Use Cases 56
Use Case Diagram Use Cases A sequence of actions that provide something of measurable value to an actor. 57
Use Case Diagram Associations 58
Use Case Diagram Associations An association exists whenever an actor is involved with an interaction described by a use case. 59
Use Case Diagram System Boundary 60
Use Case Diagram System Boundary O pt ional Indicates the scope of the system, anything within the box represents functionality that is in scope and anything outside the box is not. 61
Use Case Diagram Packages 62

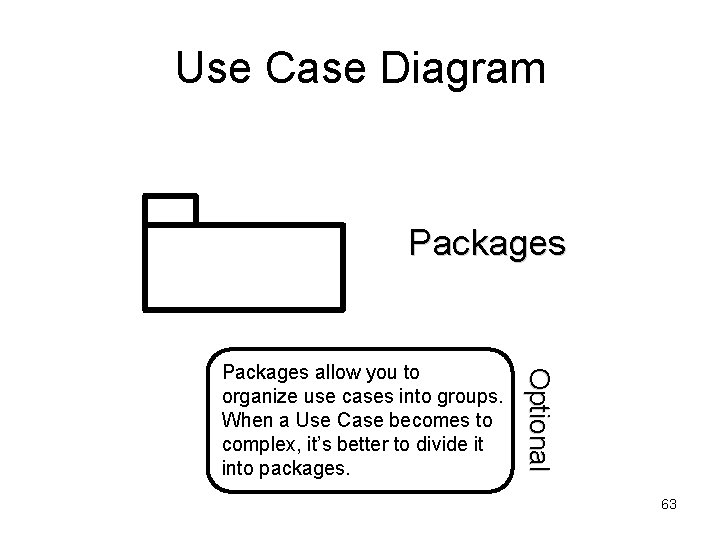

Use Case Diagram Packages O pt ional Packages allow you to organize use cases into groups. When a Use Case becomes to complex, it’s better to divide it into packages. 63
Use Case Diagram Actor Use Cases Associations System Boundary Packages
Use Case Diagram Actor Use Case Association System Boundary Package 65
Use Case Diagram 66
Use Case Diagram You see a "Man with Chainsaw“ walking down the road. You think “I wonder is that a Halloween costume (if so, it’s SCARY). Maybe there a defending against Zombies (if so, it’s SCARY and VIOLENT), or maybe they are a Psycho Killer (if so, it’s SCARY and VIOLENT again)” Then you think “Wait, maybe it’s their OCCUPATION, maybe they’re a Lumberjack or a Juggler”. 67
Use Case Diagram A "Man with Chainsaw" is either: - Wearing a SCARY Halloween costume - a VIOLENT and SCARY Zombie Defender - a VIOLENT and SCARY Psycho Killer - has an OCCUPATION of Lumberjack - has an OCCUPATION of Juggler 68
Use Case Diagram 69
Use Case Diagram 70
Use Case Diagram The Airport "Passenger Service" system presents the PASSENGER with the following menu options: (1) Check-In (2) Automated Check-In (3) Express Check-In (4) Boarding If they select (1) they get the help of a CHECK-IN REPRESENTATIVE. Both the CUSTOMS OF THE DESTINATION AIRPORT and the BAGGAGE TRANSPORTATION will be "Requesting a Passenger List". 71
Use Case Diagram The PASSENGER actor can use the "Passenger Service“ system to choose between: (1) Check-In (with the help of a CHECK-IN REPRESENTATIVE actor) (2) Automated Check-In (3) Express Check-In (4) Boarding Both the CUSTOMS OF THE DESTINATION AIRPORT actor and the BAGGAGE TRANSPORTATION actor will be "Requesting a Passenger List“ from the "Passenger Service“ system. 72
Use Case Diagram 73
Use Case Diagram 74
Use Case Diagram (advanced features) 75
Use Case Diagram Generalization A parent use case (or actor) may be specialized into one or more child use cases (or actors) that represent more specific forms of the parent. 76
Use Case Diagram Generalization 77
Use Case Diagram Generalization 78
Use Case Diagram <<include>> The inclusion of the functionality of one use case within another. For example, if I am taking a car journey, then the Use Case “Drive Car” is definitely required. <<extend>> The extension of the use case to include optional functionality. For example, if I am taking a car journey, then the Use Case “Fill Petrol Tank” may be required. 79
Use Case Diagram Actor Use Cases Association Generalization System Boundary Packages <<include>> <<extend>>
Use Case Diagram include Actor <<include>> Use Case extend <<extend>> Association Package Generalization System Boundary 81
Use Case Diagram 82
Use Case Diagram 83
Use Case Diagram When using the ONLINE SHOPPING system, a WEB CUSTOMER can either be an already REGISTERED CUSTOMER or a NEW CUSTOMER. A REGISTERED CUSTOMER can "View Items" and "Make a Purchase". A NEW CUSTOMER can also "View Items", but they cannot yet "Make a Purchase" as they have to add their name to the "Client Register". "Make a Purchase" is made up of several processes, two of which must be: "View Items" and "Checkout". "View Items" requires two external processes, both an "Authentication" process and an "Identity Provider“ process. "Checkout" requires three external processes, an "Authentication" process, an "Identity Provider“ process, and a "Paypal" process. "Client Register" requires the "Authentication" process. 84
Use Case Diagram There is a general WEB CUSTOMER actor, and two instances of it, the REGISTERED CUSTOMER actor and the NEW CUSTOMER actor. When using the ONLINE SHOPPING system, a REGISTERED CUSTOMER can "View Items" and "Make a Purchase". When using the ONLINE SHOPPING system, a NEW CUSTOMER can also "View Items", but they cannot yet "Make a Purchase" as they have to add their name to the "Client Register". "Make a Purchase" is a Use Case that has to include two other use cases: "View Items" and "Checkout". "View Items" requires two external actors, both an "Authentication" actor and an "Identity Provider“ actor. "Checkout" requires three external actors, an "Authentication" actor, an "Identity Provider“ actor, and a "Paypal" actor. "Client Register" requires the "Authentication" actor. 85
Use Case Diagram 86
Use Case Diagram 87
Use Case Diagram When using the BANK SYSTEM, the first thing a CUSTOMER has to do is "Open an Account" with the help of a BANK EMPLOYEE. Once their account is open, they can either "Deposit Funds" or "Withdraw Funds", both of which will "Update the Balance". If the Amount in the Account exceeds £ 10, 000 because of a "Deposit Funds" action, a bonus is added to the balance. Also if the Account is over 55 years, the Balance gets a bonus added. As well as a CUSTOMER actor, there is a FOREIGN EXCHANGE CUSTOMER actor, who can do everything a CUSTOMER actor can do, as well as bring able to "Convert Currency". 88
Use Case Diagram In the BANK SYSTEM, there is a CUSTOMER actor who can do the following: (1) "Open an Account" (with the help of a BANK EMPLOYEE actor) (2) "Deposit Funds“, which will include "Update the Balance“. (3) "Withdraw Funds", which will “include Update the Balance". The "Deposit Funds“ will check if the balance exceeds £ 10, 000, and based on that CONDITION, a “Calculate Bonus” will occur. Also if the Account is over 55 years , a “Calculate Bonus” will occur. As well as a regular CUSTOMER, there is a FOREIGN EXCHANGE CUSTOMER, who can do everything a CUSTOMER can do, as well as bring able to "Convert Currency". 89
Use Case Diagram 90
Use Case Diagram BANK SYSTEM 91
Class Diagram 92
Class Diagram Name Attributes Methods Class
Class Diagram Name Attributes Methods Class The class includes a name, and a collection of attributes and methods. The classes will be added to and altered as the design becomes more and more refined.
Class Diagram Association 95
Class Diagram Association An association exists whenever a class is involved with an interaction with another class. 96
Class Diagram Generalization 97
Class Diagram Generalization A parent class may be specialized into one or more child classes that represent more specific forms of the parent. In design this is called Generalization, in development it’s Inheritance. 98
Class Diagram Name Attributes Methods Generalization Association Class
Class Diagram Name Attributes Methods Association Class Generalization Name Attributes Methods
Class Diagram 101
Class Diagram • In general a CUSTOMER can place more than one ORDER. The CUSTOMER has a credit rating. The ORDER can dispatch and close orders. • There are two specific types of CUSTOMER, a CORPRATE CUSTOMER and a PERSONAL CUSTOMER. The difference being that a CORPRATE CUSTOMER will be given a reminder to pay their invoices, and they can request a total bill for the month. 102
Class Diagram • CUSTOMER(a: name, address, m: credit. Rating()) • ORDER(a: date received, is. Prepaid, number, price, m: dispatch(), close()) • CORPORATE CUSTOMER(a: contact. Name, credit. Rating, credit. Limit, m: remind(), bill. For. Month()) • PERSONAL CUSTOMER(a: credit. Card#, m: ) • CUSTOMER (1 –– n) ORDER • CUSTOMER CORPORATE CUSTOMER • CUSTOMER PERSONAL CUSTOMER 103
Class Diagram ORDER CUSTOMER CORPRATE CUSTOMER PERSONAL CUSTOMER 104
Class Diagram 105
Class Diagram • A STUDENT takes a specific ENROLLMENT of a given SEMINAR. Once they are enrolled the STUDENT name is added to the SEMINAR list. The STUDENT has to be eligible to enroll, and must record the number of seminars taken. The SEMINAR can add and drop students. The ENROLLMENT can get the average mark to date and get the final mark. • A PROFESSOR will give the SEMINAR, and one PROFESSOR can give zero or more seminars. 106
Class Diagram • STUDENT(a: Name, Address, Phone, Email, Student#, Average. Mark, m: is. Eligible. To. Enroll(), get. Seminars. Taken()) • SEMINAR(a: Name, Seminar#, Fees, m: add. Student(), drop. Student()) • ENROLLMENT(a: Marks. Recieved m: get. Average. To. Date(), get. Final. Mark()) • PROFESSOR(a: Name, Address, Phone#, Email, Salary m: ) • • STUDENT (1 –– n) ENROLLMENT SEMINAR (1 –– n) ENROLLMENT STUDENT (n –– n) SEMINAR PROFESSOR (1 –– n) SEMINAR 107

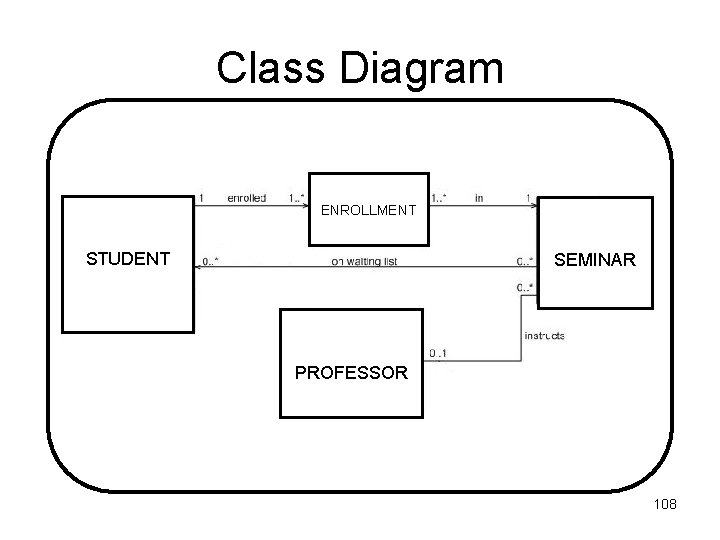

Class Diagram ENROLLMENT STUDENT SEMINAR PROFESSOR 108
Class Diagram 109
Class Diagram (advanced features) 110
Class Diagram Aggregation A relationship where the child can exist independently of the parent, e. g. Class (parent) and Student (child). Delete the Class and the Students still exist. Composition A relationship where the child cannot exist independent of the parent, e. g. House (parent) and Room (child). Delete the House and the Rooms cease to exist. 111
Class Diagram Association Name Generalization Attributes Methods Aggregation Class Composition
Class Diagram Name Attributes Methods Generalization Association Methods Class Aggregation Name Attributes Methods Composition
Class Diagram
Class Diagram • A CUSTOMER can own several TICKETs. • Each TICKET can be associated with from 1 to 4 COUPONs. 115
Class Diagram • CUSTOMER(a: date. Of. Birth, name m: ) • TICKET(a: ticket. Code, number m: ) • COUPON(a: date. Of. Redemption, Class, stand. By, meal. Code m: ) • CUSTOMER (1 ------ n) TICKET • COUPON (1, 4 -----<> 1) TICKET 116
Class Diagram CUSTOMER TICKET COUPON
Class Diagram
Class Diagram • An ADDRESSBOOK is composed of several CONTACTs, each contact has an ADDRESS and a PHONE number. • The ADDRESS can be either a main postal address or the alternative postal address. • The PHONE number can be either a main phone number or an alternative phone number. 119
Class Diagram • • ADDRESSBOOK(a: Introduction m: ) CONTACT(a: name, email m: ) ADDRESS (a: name, postal. Code, city, country m: ) PHONE(a: international. Area. Code, prefix, number m: ) • • • CONTACT (1 -----<*> n) ADDRESSBOOK CONTACT (1 –--main–-- 1) ADDRESS CONTACT (1 –alternative– 1) ADDRESS CONTACT (1 –--main–-- 1) PHONE CONTACT (1 –alternative– 1) PHONE 120
Class Diagram Address. Book Contact Address Phone
Class Diagram
