Software Engineering Object Oriented Analysis Objectives l To

Software Engineering Object Oriented Analysis

Objectives l To explain Class-Responsibility-Collaborator Modelling. l To provide an example of CRC modelling in action

Analysis = Process + Models Process Model Output 1. Elicit customer Use-Case Diagrams requirements and identify use-cases 2. Extract candidate classes, Class Responsibility Identify attributes and Collaborator (CRC) Cards methods, Define a class hierarchy 3. Build an object-relationship Class Diagram model 4. Build an object-behaviour model Interaction Diagram

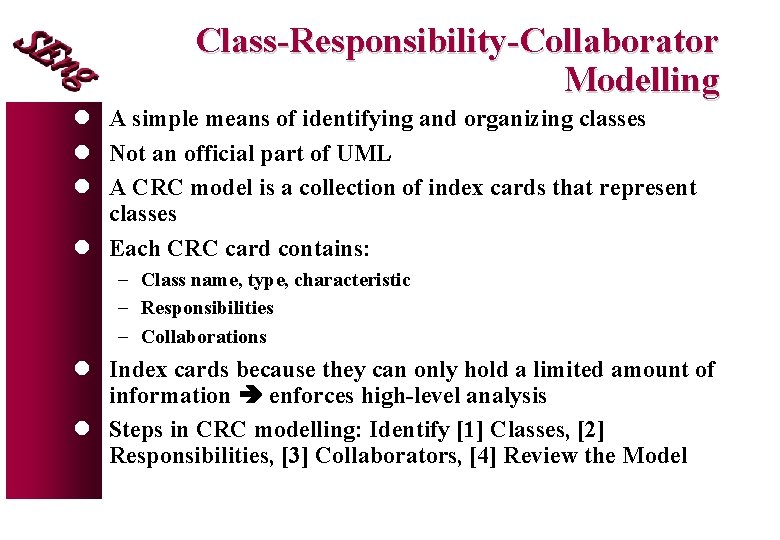

Class-Responsibility-Collaborator Modelling l A simple means of identifying and organizing classes l Not an official part of UML l A CRC model is a collection of index cards that represent classes l Each CRC card contains: - Class name, type, characteristic - Responsibilities - Collaborations l Index cards because they can only hold a limited amount of information enforces high-level analysis l Steps in CRC modelling: Identify [1] Classes, [2] Responsibilities, [3] Collaborators, [4] Review the Model

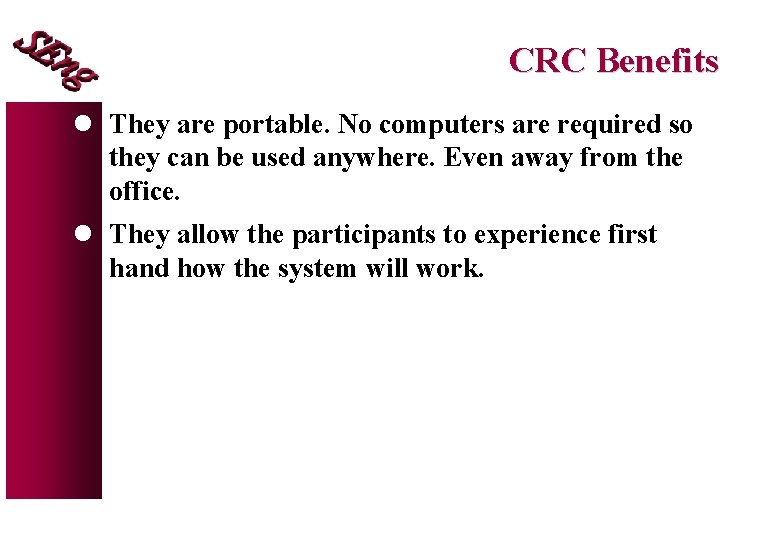

CRC Benefits l They are portable. No computers are required so they can be used anywhere. Even away from the office. l They allow the participants to experience first hand how the system will work.

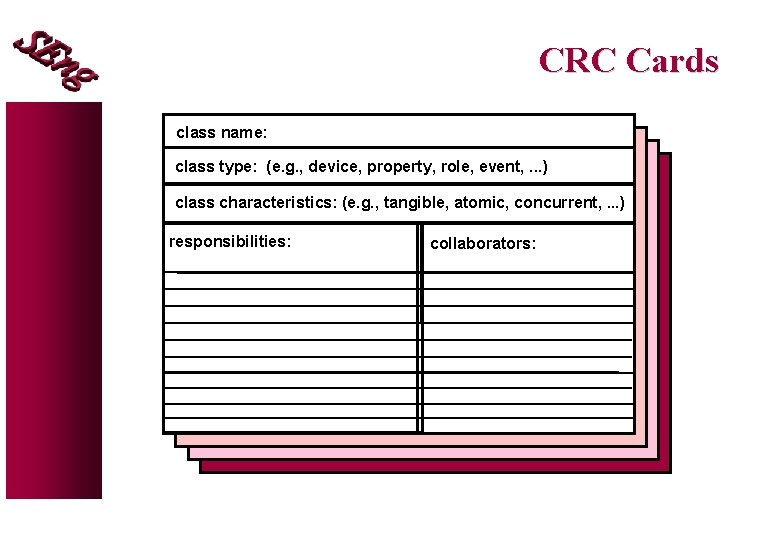

CRC Cards class name: class type: (e. g. , device, property, role, event, . . . ) class characteristics: (e. g. , tangible, atomic, concurrent, . . . ) responsibilities: collaborators:

[1] Identifying Classes l Classes and Objects are extracted from the Use-Cases by doing a grammatical parse l Grammatical Parse: - Underline nouns or noun clauses (these describe candidate objects) - Enter the candidate objects (and their associated classes) into a table - Remove synonyms - Solution Space: objects required to implement the solution - Problem Space: objects required to describe the problem l “The really hard problem [in OO] is discovering what are the ‘right’ objects in the first place”

Accepting Classes l Objects are accepted if they satisfy all (or almost all) of the following requirements: l Retained Information: the system needs to remember data about the object l Needed Services: the object must have an identifiable set of operations l Multiple Attributes: during analysis we focus on major information only. Objects should have many attributes l Common Attributes: A set of attributes apply to all occurrences of the object l Common Operations: A set of operations apply to all occurrences of the object l Essential Requirements: external entities that produce or consume essential information

Class Types l 1. 2. 3. 4. 5. 6. 7. 8. 9. Accepted classes are assigned a type: External entities - other systems, devices, people Things - reports, displays, signals Occurrences or events - property transfer, completion of a series of robot movements Roles - manager, engineer, sales person Organizational Units - division, group, team Places - manufacturing floor, loading dock Devices - four-wheeled vehicles, computers Property - of the problem, e. g. credit rating Interaction - model interaction that occur among other objects, e. g. a purchase or a license

Class Characteristics l Accepted classes are assigned a set of characteristics: 1. Tangibility: does the class represent a tangible (physical) or abstract (information) entity? 2. Inclusiveness: is the class atomic (includes no other classes) or aggregate (has at least one nested object)? 3. Sequentiality: is the class concurrent (has its own thread of control) or sequential (scheduled by outside resources)? 4. Persistence: is the class transient (created and removed during program operation), temporary (created during program operation and removed at termination) or permanent (stored in a database)? 5. Integrity: is the class corruptible (does not protect its resources from outside influence) or guarded (the class enforces access control)?

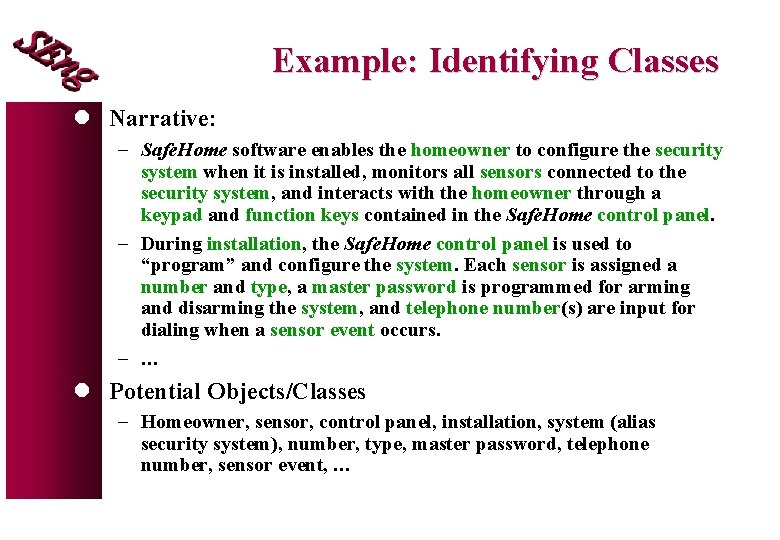

Example: Identifying Classes l Narrative: - Safe. Home software enables the homeowner to configure the security system when it is installed, monitors all sensors connected to the security system, and interacts with the homeowner through a keypad and function keys contained in the Safe. Home control panel. - During installation, the Safe. Home control panel is used to “program” and configure the system. Each sensor is assigned a number and type, a master password is programmed for arming and disarming the system, and telephone number(s) are input for dialing when a sensor event occurs. - … l Potential Objects/Classes - Homeowner, sensor, control panel, installation, system (alias security system), number, type, master password, telephone number, sensor event, …

Example: Accepting Classes Potential Object/Class requirements Homeowner Rejected: 1, 2 (retained information, needed service) fail Sensor Accepted: all apply Control Panel Accepted: all apply Installation rejected System Accepted: all apply Number and Type Rejected: 3 (multiple attributes) fails, attribute of sensor Master Password Rejected: 3 fails Telephone Number Rejected: 3 fails Sensor Event Accepted: all apply

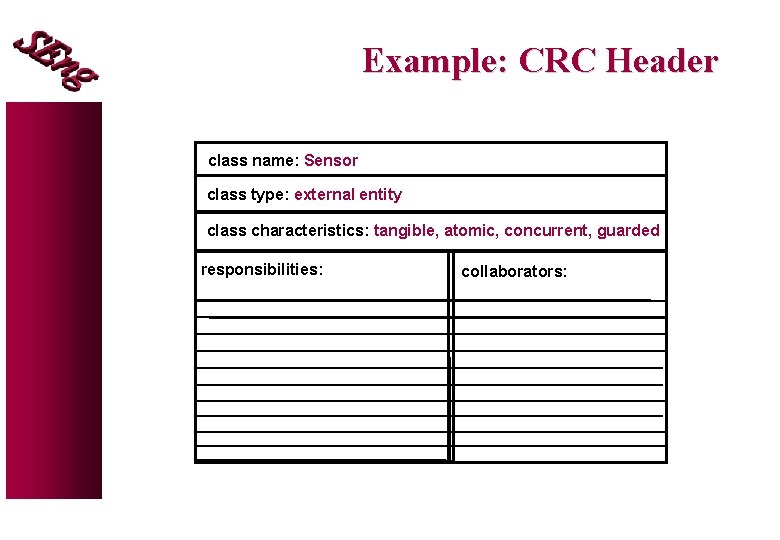

Example: CRC Header class name: Sensor class type: external entity class characteristics: tangible, atomic, concurrent, guarded responsibilities: collaborators:

[2] Identifying Responsibilities l Responsibilities (attributes and methods) are extracted from the Use-Cases descriptions l Attributes: - Describe the object - Select those things that reasonably belong to an object - Question: What data items fully define this object in the context of the particular use-case? l Methods (Operations): - Define the behaviour of the object and alter the object’s attributes - Types of operations – data manipulation, computation, event monitoring - Do a grammatical parse of the Use-Case description and isolate verbs

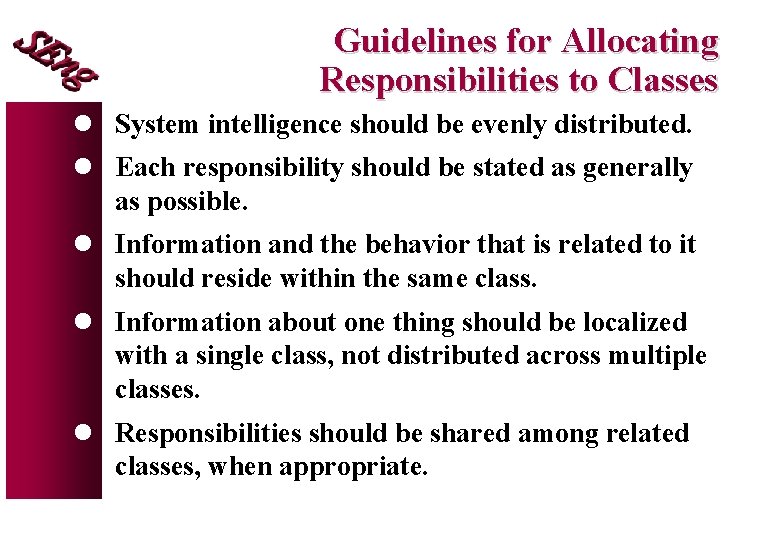

Guidelines for Allocating Responsibilities to Classes l System intelligence should be evenly distributed. l Each responsibility should be stated as generally as possible. l Information and the behavior that is related to it should reside within the same class. l Information about one thing should be localized with a single class, not distributed across multiple classes. l Responsibilities should be shared among related classes, when appropriate.

Example: Identifying Responsibilities l Narrative: - Safe. Home software enables the homeowner to configure the security system when it is installed, monitors all sensors connected to the security system, and interacts with the homeowner through a keypad and function keys contained in the Safe. Home control panel. - During installation, the Safe. Home control panel is used to “program” and configure the system. Each sensor is assigned a number and type, a master password is programmed for arming and disarming the system, and telephone number(s) are input for dialing when a sensor event occurs. l Example Operations: - Assign (belongs to Sensor) - Program (belongs to System) - Arm/Disarm (belong to System)

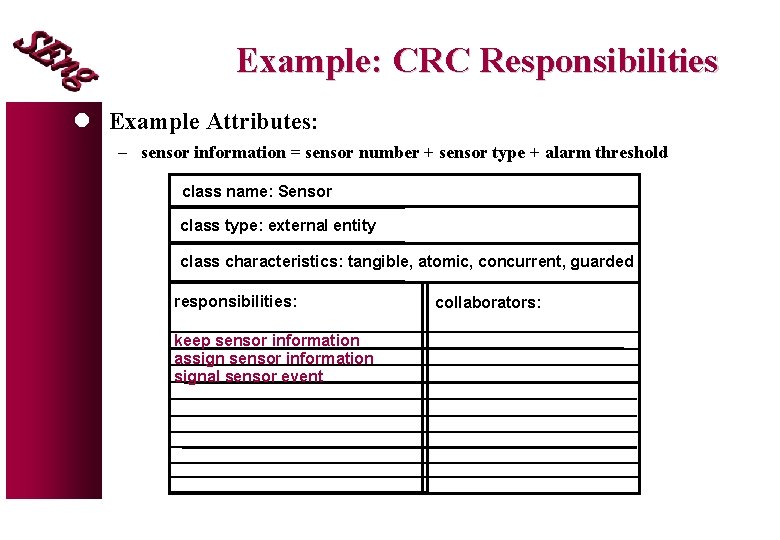

Example: CRC Responsibilities l Example Attributes: - sensor information = sensor number + sensor type + alarm threshold class name: Sensor class type: external entity class characteristics: tangible, atomic, concurrent, guarded responsibilities: keep sensor information assign sensor information signal sensor event collaborators:

[3] Identifying Collaborators l Collaborations represent requests from a client to a server in fulfillment of a client responsibility l One object collaborates with another if it needs to send a message l Relationships: - is-part-of (classes that are contained within an aggregate class as attributes) - has-knowledge-of (one class must acquire information from another) - depends-upon (dependency not covered by part-of or knowledge-of)

[4] Reviewing the CRC Model 1. All participants in the review (of the CRC model) are given a subset of the CRC model index cards. 2. All use-case scenarios (and corresponding use-case diagrams) should be organized into categories. 3. The review leader reads the use-case deliberately. As the review leader comes to a named object, she passes the token to the person holding the corresponding class index card. 4. When the token is passed, the holder of the class card is asked to describe the responsibilities noted on the card. The group determines whether one (or more) of the responsibilities satisfies the use-case requirement. 5. If the responsibilities and collaborations noted on the index cards cannot accommodate the use-case, modifications are made to the cards.

Example: CRC Review l Use-Case Narrative: - The homeowner observes the control panel to determine if the system is ready for input. If the system is not ready, the homeowner must physically close window/doors so that the ready indicator is present [a not ready indicator implies that a sensor is open]. l When review leader comes to “control panel” token is passed to the person holding the control panel CRC card. l Phrase “implies that a sensor is open” means a responsibility must validate this. l The control panel CRC card has sensor as a collaborator l The token is next passed to the sensor CRC card.

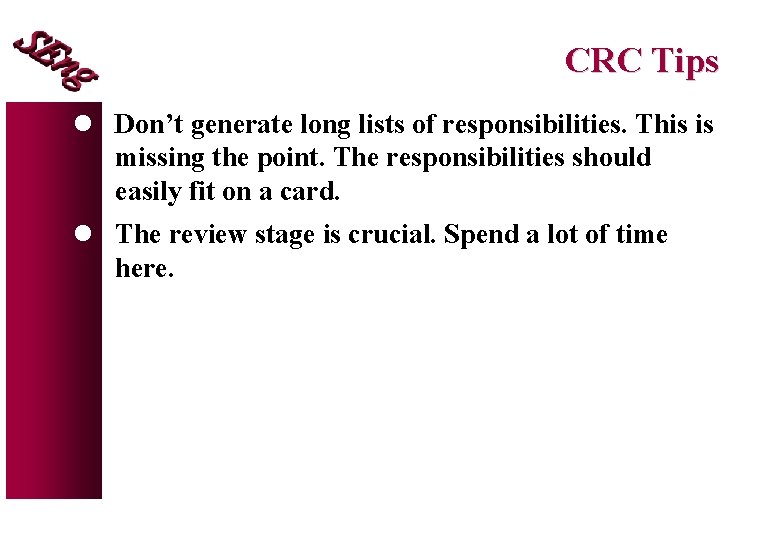

CRC Tips l Don’t generate long lists of responsibilities. This is missing the point. The responsibilities should easily fit on a card. l The review stage is crucial. Spend a lot of time here.
