Cloud Integration Patterns Connect your apps, devices & networks @Sam Vanhoutte
About Business Integration, using Microsoft technology 58 BE-FR-PT CTO & Product Manager Windows Azure Insider Microsoft Biz. Talk VTS-P @Sam. Vanhoutte #cloudburst 2013 - stockholm - cloud integration patterns

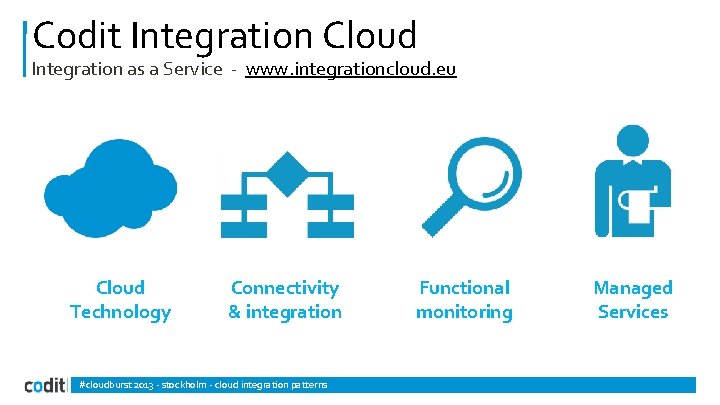

Codit Integration Cloud Integration as a Service - www. integrationcloud. eu Cloud Technology Connectivity & integration #cloudburst 2013 - stockholm - cloud integration patterns Functional monitoring Managed Services

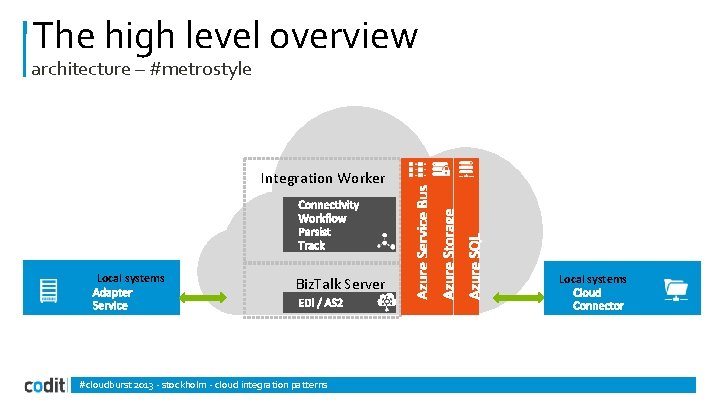

The high level overview architecture – #metrostyle Integration Worker Local systems Biz. Talk Server #cloudburst 2013 - stockholm - cloud integration patterns Local systems
New challenges cloud integration #cloudburst 2013 - stockholm - cloud integration patterns
Windows Azure Partners Integration
Same problems different solutions new challenges Identity Management Mobile Access Interop Management Connectivity REST-first Different SLAs not Servers Data Security Changing. Services schemas Monitoring Network latency
Windows Azure Hybrid technologies overview | Application Integration | | | Data Integration | | SQL Azure Data Sync Identity Integration | | Service Bus Biz. Talk Services Active Directory Network Integration | Azure Virtual Networking
Application connectivity the dev way #cloudburst 2013 - stockholm - cloud integration patterns

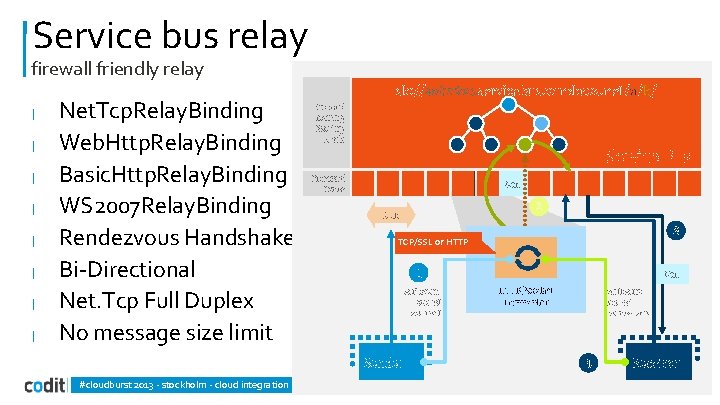

Service bus relay firewall friendly relay | | | | Net. Tcp. Relay. Binding Web. Http. Relay. Binding Basic. Http. Relay. Binding WS 2007 Relay. Binding Rendezvous Handshake Bi-Directional Net. Tcp Full Duplex No message size limit sb: //solution. servicebus. windows. net/a/b/ Backend Naming Routing Fabric Service Bus Frontend Nodes Ctrl 2 NLB 3 TCP/SSL or HTTP 1 outbound socket connect Ctrl HTTP/Socket Forwarder outbound socket rendezvous 4 #cloudburst 2013 - stockholm - cloud integration patterns
#demo – cloud connector manage messages #cloudburst 2013 - stockholm - cloud integration patterns
Service Bus Relay #notes Load Balancer Out of the box scalability Disaster recovery options WCF Routing Service One public endpoint, hiding internal ones Cheaper (only 1 relay hour) Security Shared. Secret, SWT, SAML Service. Bus. AZ tool Blocking outbound IP addresses No, please – IP range changes constantly http: //bit. ly/15 l. XMB 0 #cloudburst 2013 - stockholm - cloud integration patterns

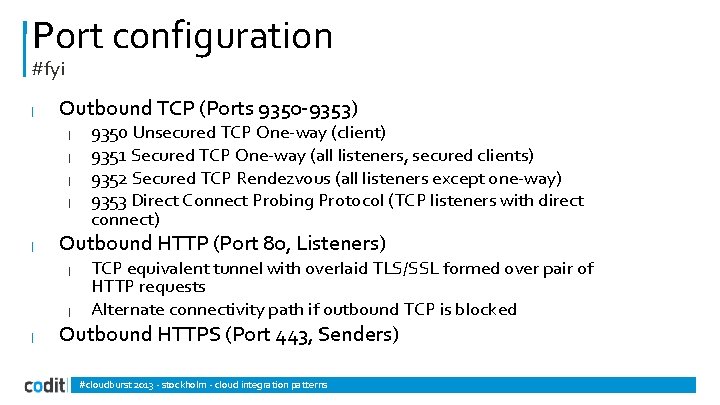

Port configuration #fyi | Outbound TCP (Ports 9350 -9353) | | | Outbound HTTP (Port 80, Listeners) | | | 9350 Unsecured TCP One-way (client) 9351 Secured TCP One-way (all listeners, secured clients) 9352 Secured TCP Rendezvous (all listeners except one-way) 9353 Direct Connect Probing Protocol (TCP listeners with direct connect) TCP equivalent tunnel with overlaid TLS/SSL formed over pair of HTTP requests Alternate connectivity path if outbound TCP is blocked Outbound HTTPS (Port 443, Senders) #cloudburst 2013 - stockholm - cloud integration patterns

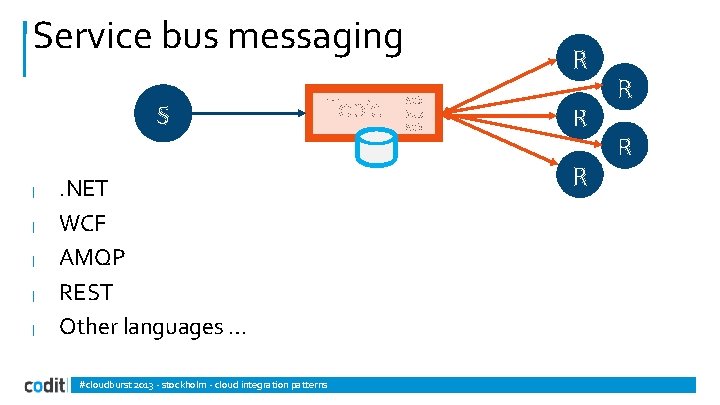

Service bus messaging Topic | | | . NET WCF AMQP REST Other languages … #cloudburst 2013 - stockholm - cloud integration patterns Sub Sub

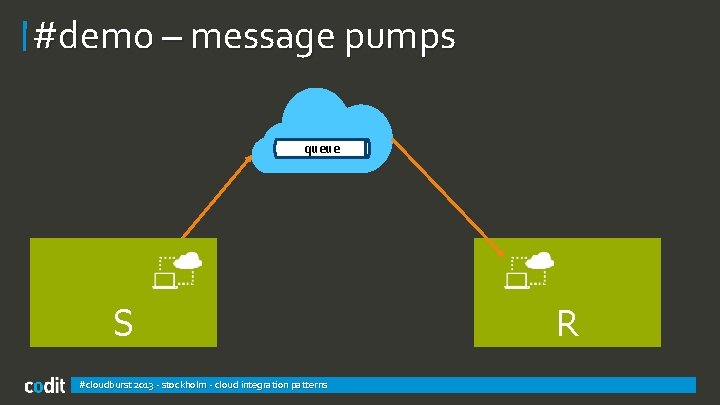

#demo – message pumps queue S #cloudburst 2013 - stockholm - cloud integration patterns R
Service Bus Messaging #notes Transient faults Queue. Client. Retry. Policy: Exponential / No. Retry Receive. Mode: Peek. Lock / Receive. And. Delete Performance optimization Queue. Client. Prefetch. Count, Enable. Batched. Operations Multiple clients / Concurrent Calls on pump Empty messages Message without a body, only properties Name/value pairs, no serialization needed Large messages Store on blob, send reference in body Use sessions to fragment #cloudburst 2013 - stockholm - cloud integration patterns

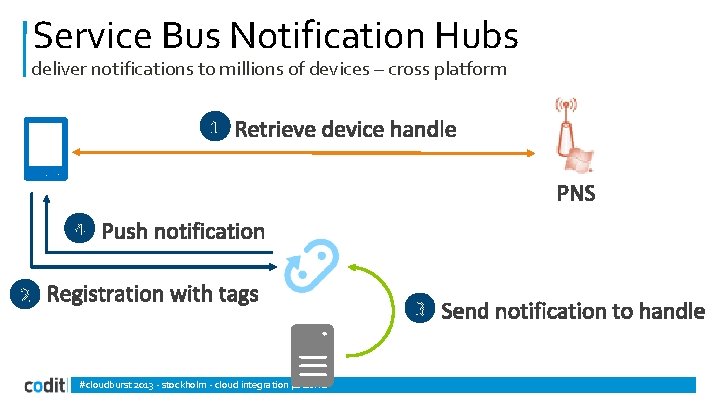

Service Bus Notification Hubs deliver notifications to millions of devices – cross platform #cloudburst 2013 - stockholm - cloud integration patterns

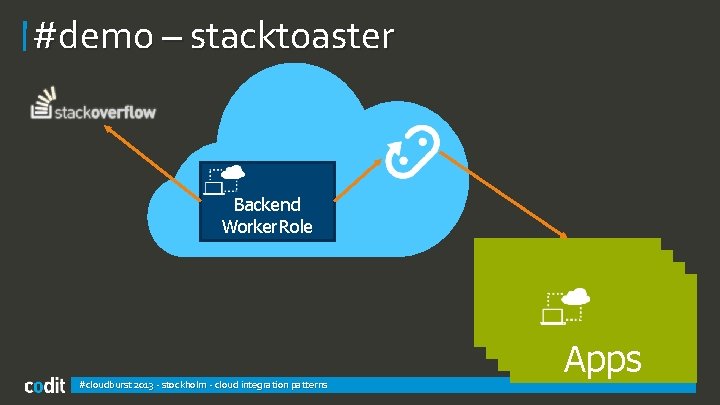

#demo – stacktoaster Backend Worker. Role #cloudburst 2013 - stockholm - cloud integration patterns RR R Apps

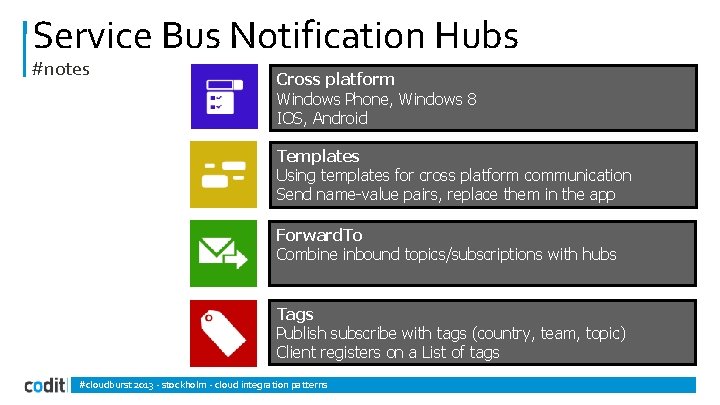

Service Bus Notification Hubs #notes Cross platform Windows Phone, Windows 8 IOS, Android Templates Using templates for cross platform communication Send name-value pairs, replace them in the app Forward. To Combine inbound topics/subscriptions with hubs Tags Publish subscribe with tags (country, team, topic) Client registers on a List of tags #cloudburst 2013 - stockholm - cloud integration patterns
Windows Azure Biz. Talk Services Bridge Sources SFTP HTTP Pipeline FTP/S HTTP Destinations V E T E Web Service FTP/S Messages Blob Service Bus Server Explorer (Visual Studio) Lob Relay (Service Host) Management Service Biz. Talk Adapter Service #cloudburst 2013 - stockholm - cloud integration patterns REST API Power. Shell Cmd. Lets

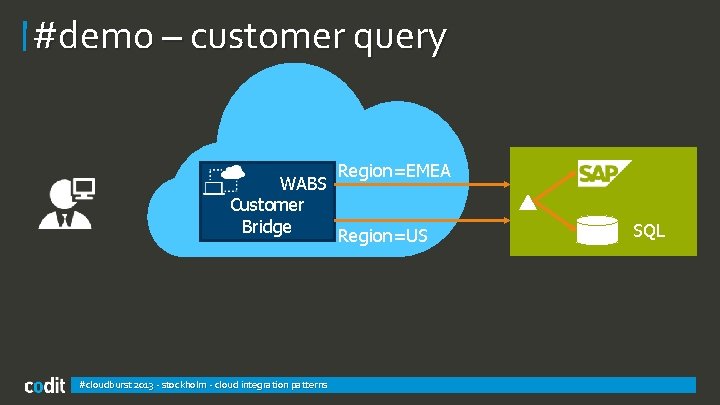

#demo – customer query Region=EMEA WABS Customer Bridge Region=US #cloudburst 2013 - stockholm - cloud integration patterns SQL
Windows Azure Biz. Talk Services #notes EDI/X 12 B 2 B Integration Trading partner management Hybrid connectivity FTP, HTTP, Adapter service, AS/2 Routing Scenarios B 2 B (e-Invoicing) Expose on-prem services Combine with Biz. Talk Server Better together #cloudburst 2013 - stockholm - cloud integration patterns
Data integration SQL Azure Data Sync #cloudburst 2013 - stockholm - cloud integration patterns
SQL Azure Data Sync #notes Lock resolution Hub wins vs Client wins Impact on database schemas 11 stored procs per sync table, 1 new table per sync table 3 triggers on sync table, 1 new UDT per sync table Row filtering Not configurable in the new portal Preview mode for a long time #cloudburst 2013 - stockholm - cloud integration patterns
Identity integration Active Directory #cloudburst 2013 - stockholm - cloud integration patterns

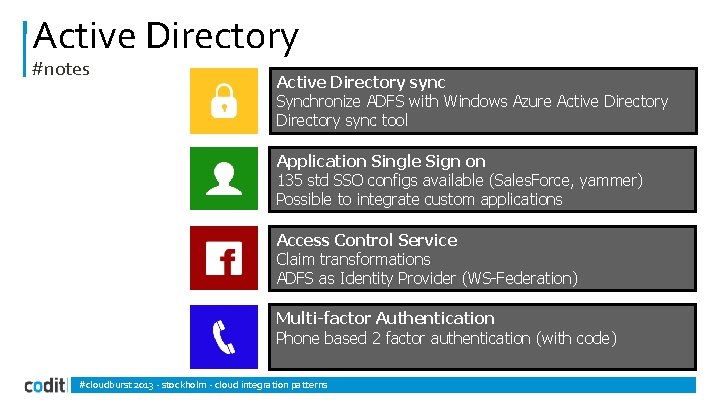

Active Directory #notes Active Directory sync Synchronize ADFS with Windows Azure Active Directory sync tool Application Single Sign on 135 std SSO configs available (Sales. Force, yammer) Possible to integrate custom applications Access Control Service Claim transformations ADFS as Identity Provider (WS-Federation) Multi-factor Authentication Phone based 2 factor authentication (with code) #cloudburst 2013 - stockholm - cloud integration patterns
Network integration going ITpro #cloudburst 2013 - stockholm - cloud integration patterns

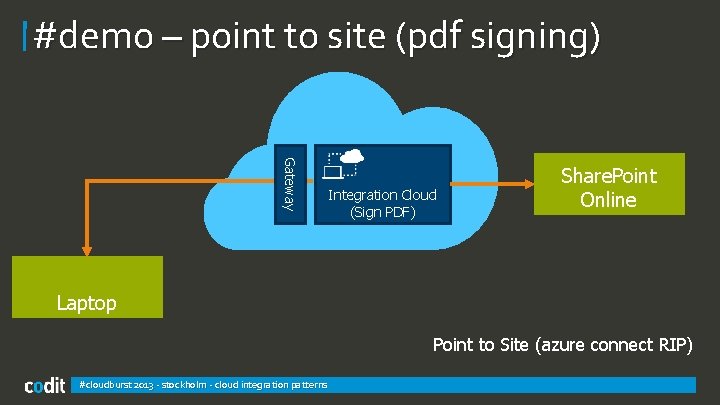

#demo – point to site (pdf signing) Gateway Integration Cloud (Sign PDF) Share. Point Online Laptop Point to Site (azure connect RIP) #cloudburst 2013 - stockholm - cloud integration patterns

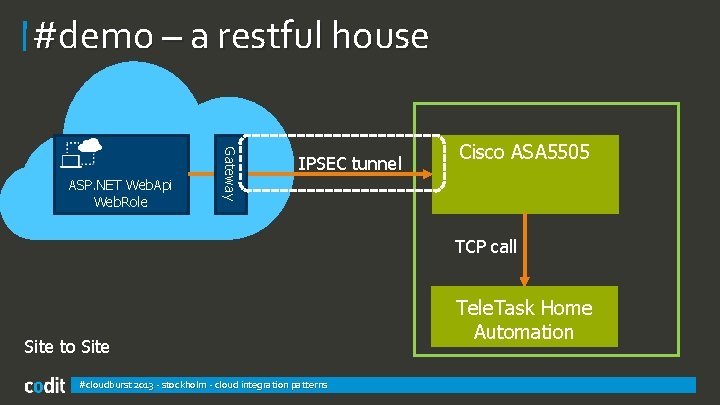

#demo – a restful house Gateway ASP. NET Web. Api Web. Role IPSEC tunnel Cisco ASA 5505 TCP call Site to Site #cloudburst 2013 - stockholm - cloud integration patterns Tele. Task Home Automation
Virtual Networking #notes Secure network tunnel Open internally – not suitable for mobile devices (IOT) Configuration scripts Juniper / Cisco scripts Windows Server script for RRAS Gateway configuration Pay while existing (also when not connected) Use Power. Shell to make changes Static & dynamic routing Dynamic: preview #cloudburst 2013 - stockholm - cloud integration patterns
#cloudburst 2013 - stockholm - cloud integration patterns
Thank you #cloudburst 2013 - stockholm - cloud integration patterns
