Fuel Gas Treatment
Applications From Well to End User

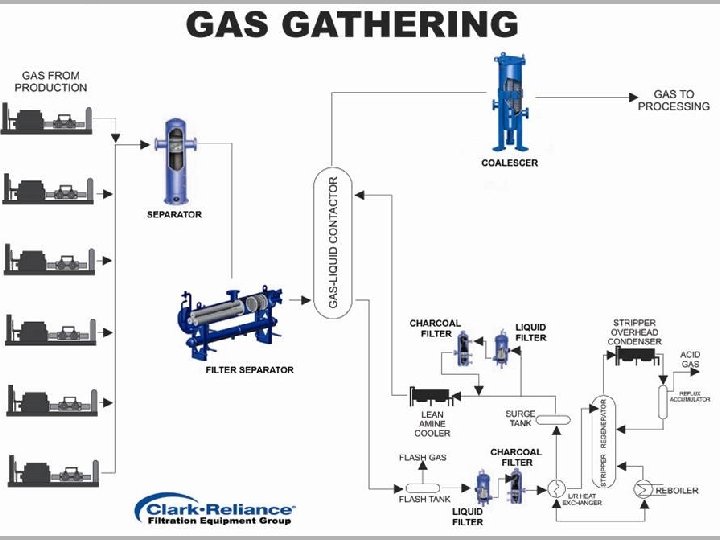

Gas Gathering • Multiple Wells to Production • Remove Solid and Liquid Contaminates • Robust Mechanical Separation • Minimal Maintenance • H 2 S and CO 2 is removed as well.

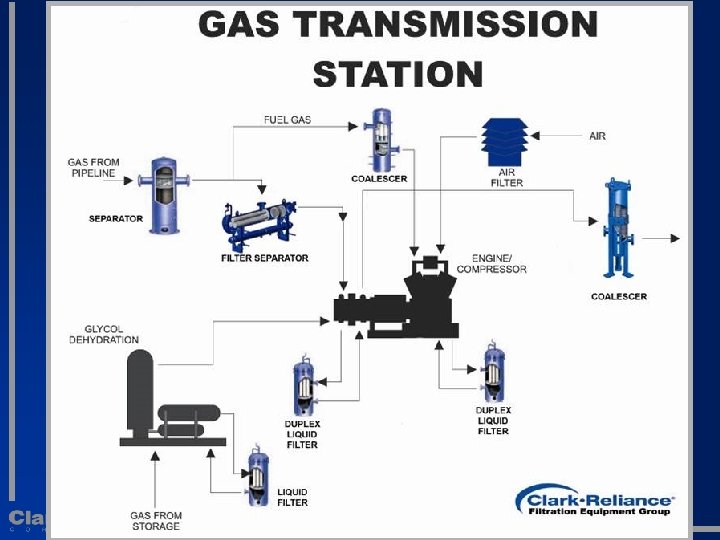

Gas Transmission • Gas Transmission Stations • 50 to 100 Miles along the Pipeline • Compressors Increase Pressure for Further Distribution • Inlet - Separators, Filter Separators • Outlet – Coalescing Filter

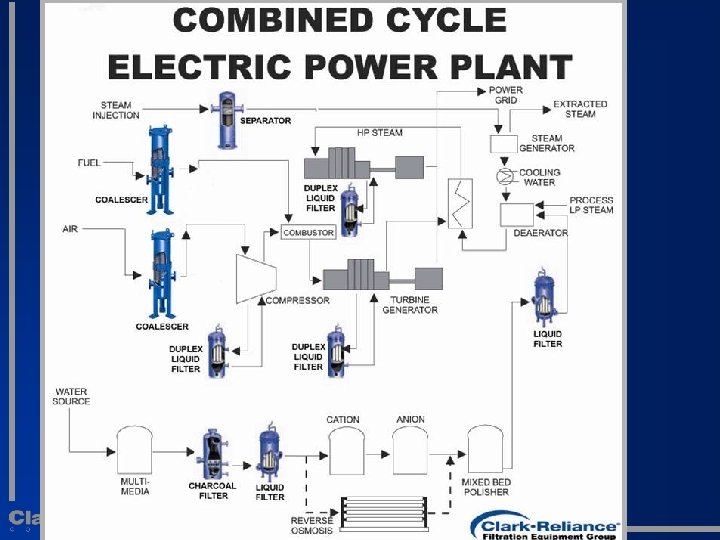

Combined Cycle Electrical Generation Process Overview • • • Generate Electricity for Power Grid Peak Power Generation Base Load Produce Steam Drive Steam Turbine for Additional Power Generation
Elements of Fuel Gas Treatment • Pressure Control • Temperature Control • Flow Measurement • Removal of Impurities – Knockout – Fine Filtration – Last Chance Filter
Pressure Reduction • Sliding Stem Valves with Positioners • Reduces the pressure of the gas from 7001000 psi to 400 -450 psi • Protects Turbine • Improves Turbine Efficiency
Performance Heater • Shell and Tube Heat Exchanger – 100% of Gas Flow – Heats Gas to ~350 ° • Boiler Feed Water • Controlled by Throttling Water Discharge
Start-Up Heater • Electric Heater • 50 F Above Dew Point – ~25% of Gas Flow • SCR or Step Control – 50 F Temperature Rise
Water Bath Heater • Gas Fired Heater – 100% of Gas Flow – Heats Gas to ~180 ° • U-Bend • Controlled by Throttling Gas Flow/Bypass
Flow Measurement • Individual Turbine Flow Measurement – Orifice Meter • Custody Transfer – Not Clark-Reliance
Removal of Impurities Mechanical Separation Filtration
Gravity Separation • Vane Separators • KO Drums • 100% Removal of >8µ Liquids
Gravity Separation • Offset inlet with baffle • Handles slugs of liquids • Efficiency to 100% down to 5 micron liquid particles
Centrifugal Separation • Gas-Liquid Separation • HI-EF Element • 99 -100% Removal of Liquids to 8µ Solids to 5µ
Centrifugal Separation • Multi-Cyclone • Scrubber • 99 -100% Removal of Liquids to 8µ Solids to 5µ • Limited Turndown in Gas Flow
Filter Separator • Multi-Stage • Liquid and Solid Filtration • 99% Removal of Solids to 0. 5µ • 100% Liquid and Solid Removal to 3µ
Filter Separator
Coalescing Filter • Optimum Protection • 99. 98% Solid and Liquid Removal to 0. 3µ • Aerosol Removal • Multi-Stage Design • Inside-Out Filtration
Filter Arrangement • • Horizontal or Vertical? Filter or Coalescer? Footprint Access to Filter Elements
Combination Separators • Filter Elements First or Last? • Filter or Coalescer? • Purpose for Mechanical Stage? – Coalescer - Reduce Load on Filter – Filter Sep – Remove Accumulated Liquids and Solids
Filter Elements • Pleated Filter Elements • Melt Blown Filter Elements • Resin Bonded Filter Elements • Coreless Filter Elements • Fiberglass Filter Elements • Membrane Filter Elements
Filter Separator Coalescing Filter • Over 4 times the filtration area • Longer element life • Fewer element changes • More rapid liquid drainage • Lower saturated pressure drop
Filter Access Options • Blind Flange and Davit • Simple • Cheap • Slower Access • Good for Smaller Vessels
Filter Access Options • Sentry • High Pressure • Modco • Screw Type • Low-Medium Pressure
Liquid Filtration Equipment
Filtration Capabilities ASME Code Simplex & Duplex ÊASME Code Series Hi. Flow Design ÊUtilizes “V” Series microglass elements ÊFlows to 3000 GPM ÊCarbon and Stainless Steel ÊStandard and Engineered Designs Available “V” Series Elements ÊAbsolute Rated Microglass ÊRated per ISO 16889 ÊHeavy Duty Construction Ê150 PSI Collapse Rating ÊCoreless Elements Available
Transfer Valves Patented shoe seal provides “zero leak” performance Valve sizes from 1 ½” to 10” Positive mechanical lockdown Exceptionally low pressure drops Zero frictional drag on change-over Fabricated steel construction - Carbon & Stainless Steel
Steam Separator • Removes Mists and Liquids from Steam • Low Pressure Drop • High Efficiency • Wide Range of Flow
Skid Mounted Systems
Modular Systems
Pressure Reduction Skid
Startup Heater
Performance Heaters
KO and Fine Filtration
Assembly – Piping and Wiring • Piping – ASTM B 31. 3 – ASTM B 31. 1 • Wiring – NEC – ATEX – CSA
Instruments and Controls • Level Control – Automatic Drain Valve • Temperature • Pressure • Differential Pressure • Flow Measurement
Drying Systems • Dryer Packages • Molecular Sieve – Natural gas dryers – Liquid dryers – Propane, butane, etc – CO 2 Removal
? Typical System? • Doesn’t Exist • Varies by Application • Most Common – Pressure Reduction – Filtration – Heating – Flow Measurement
