Chapter 5 The Sedimentary Archives What Sedimentary Rocks

Chapter 5 The Sedimentary Archives “What Sedimentary Rocks Tell Us About The Past”

Chapter 4 Content • Clues that Sedimentary Rocks provide about Earth’s History. • Factors that affect the formation of Sedimentary Rocks. • Where Sedimentary Rocks form. • Small Scale evidence of Earth’s History. • Large Scale evidence of Earth’s History. • Interpreting Earth’s History

Clues That Sedimentary Rocks Provide About Earth’s History

Clues that Sedimentary Rocks Provide about Earth’s History • How the rock was formed. • Composition – Minerals Present and Absent – Combinations of Minerals • • • Grain Size Grain Shape Grain Sorting Crystal Growth Color

Factors That Affect the Formation of Sedimentary Rocks

Factors That Affect the Formation of Sedimentary Rocks • Tectonic setting. • Physical, chemical, and biological processes in the depositional environment. • Method of sediment transport. • Source Rock of the Sedimentary Rock. • Climate (and its effect on weathering). • How the rock was lithified or turned into a rock (cementation, compaction). • Time.

Tectonic Setting

Tectonic Setting • Tectonics: The forces controlling deformation or structural behavior of a large area of the Earth's crust over a long period of time. • An area may be: – Tectonically stable - like the midwestern US. – Subsiding (sinking) - like New Orleans or Mexico City. – Rising gently - like New England parts of Canada after glacier retreat. – Rising actively to produce mountains and plateaus - like parts of Oregon in the Cascade Mountains.

Tectonic Setting • Tectonics influences the grain size and thickness of sedimentary deposits. • Recent uplift of the source area leads to rapid erosion of coarse-grained sediment. • Subsidence in the depositional basin leads to the accumulation of great thicknesses of sediment.

Principle Tectonic Elements of a Continent • Craton - Stable interior of a continent, undisturbed by mountain-building events since the Precambrian. • Shields - Large areas of exposed crystalline rocks. ch 5 class 3 - GY 112 LECTURE SPRING 2 • Platforms 2015 - Ancient crystalline rocks are covered by flat-lying or gently warped sedimentary rocks. • Orogenic belts - Elongated regions bordering the craton which have been deformed by compression since the Precambrian Mountain belts.

f 05_01_pg 79

Environments Where Deposition Occurs

Environments Where Deposition Occurs • Environment of Deposition = All of the physical, chemical, biological, and geographic conditions under which sediments are deposited. • Sedimentary rocks may be: • Extrabasinal in origin - Sediments formed from the weathering of pre-existing rocks outside the basin, and transported to the environment of deposition. • Intrabasinal in origin - Sediments form inside the basin; includes chemical precipitates, most carbonate rocks, and coal. • By comparing modern sedimentary deposits with ancient sedimentary rocks, the depositional conditions can be interpreted.

Environments Where Deposition Occurs • There are three broad categories of depositional environments: 1. Marine environments (ocean). 2. Transitional environments (along contact between ocean and land). 3. Continental environments (on land).

Environments Where Deposition Occurs

Marine Depositional Environments • • Continental shelf - The flooded edge of the continent. – Exposed to waves, tides, and currents. – Covered by sand, silt, and clay. – Larger sedimentary grains are deposited closer to shore. – Coral reefs and carbonate sediments in tropical areas. Continental slope - The steeper slope at edge of the continent. – Deeper water. – Rapid sediment transport, muddy turbidity currents. Continental rise - At the base of the continental slope. – Water depths of 1400 to 3200 m. – Submarine fans form at mouth of submarine canyons. – Turbidity currents deposit thick accumulations of sediment Abyssal plain - Deep ocean floor. – Water depths of 3 to 5 km (2 - 3 miles), or more. – Covered by very fine-grained sediment and shells of microscopic organisms.

Marine Depositional Environments

Transitional Depositional Environments • Transitional environments are those environments at or near the transition between the land the sea. • Deltas – Fan-shaped accumulations of sediment – Formed where a river flows into a standing body of water, such as a lake or the sea – Coarser sediment (sand) tends to be deposited near the mouth of the river; finer sediment is carried seaward and deposited in deeper water. – The delta builds seaward (or progrades) as sediment is deposited at the river mouth.

Transitional Depositional Environments • Beaches and Barrier Islands – – – Shoreline deposits Exposed to wave energy Dominated by sand Marine fauna A few km or less in width but may be more than 100 km long – Separated from the mainland by a lagoon (or salt marsh) – Commonly associated with tidal flat deposits

Transitional Depositional Environments • Lagoons – Bodies of water on the landward side of barrier islands – Protected from the pounding of the ocean waves by barrier islands – Contain finer sediment than the beaches (usually silt and clay) – Lagoons are also present behind reefs, or in the center of atolls.

Transitional Depositional Environments • Tidal flats – Nearly flat, low relief areas that border lagoons, shorelines, and estuaries – Periodically flooded and exposed by tides (usually twice each day) – May be cut by meandering tidal channels – May be marshy, muddy, sandy or mixed sediment types (either terrigenous or carbonate) – Laminations and ripples are common – Sediments are intensely burrowed

Transitional Depositional Environments • Estuaries – – Mouth of a river drowned by the sea Brackish water (mixture of fresh and salt water) May trap large volumes of sediment Sand, silt, and clay may be deposited depending on energy level – Many estuaries formed due to sea level rise as glaciers melted at end of last Ice Age – Some formed due to tectonic subsidence, allowing sea water to migrate upstream

f 05_09_pg 85

Continental Environments Continental environments are those environments which are present on the continents. – Rivers or fluvial environments – Alluvial fans – Lakes (or lacustrine environments) – Glacial environments – Eolian environments

Continental Environments • Rivers or fluvial environments – Include river and stream systems – Channel deposits consist of coarse, rounded gravel, and sand. – Bars are made of sand or gravel. – Levees are made of fine sand or silt. – Floodplains are covered by silt and clay.

Continental Environments • Alluvial fans – Fan-shaped deposits formed at the base of mountains. – Most common in arid and semi-arid regions where rainfall is infrequent but torrential, and erosion is rapid. – Sediment is typically coarse, poorly- sorted gravel and sand.

Continental Environments • Lakes (or lacustrine environments) – May be large or small. – May be shallow or deep. – May be filled with terrigenous (eroded particles), carbonate, or evaporitic sediments. – Sediments are typically fine grained but may be coarse near the edges.

Continental Environments • Glacial environments – Sediment is eroded, transported, and deposited by ice (glaciers). – Glacial deposits called till contain large volumes of unsorted mixtures of boulders, gravel, sand, and clay.

f 05_07 a_pg 84

Continental Environments • Eolian environments – Wind is the agent of sediment transport and deposition. – Dominated by sand silt. – Common in many desert regions.

f 05_08_pg 84

Small Scale Evidence of Earth’s History

Small Scale Evidence of Earth’s History • Color • Texture – Grain Size – Grain Shape – Grain Sorting – Grain Arrangement

Rock Color

Color of Sedimentary Rocks • Color of sedimentary rocks provides useful clues to the depositional environment. – Black – Red – Green and Gray

Color of Sedimentary Rocks • Black and dark gray – Indicates the presence of organic carbon and/or iron. – Organic carbon in sedimentary requires anoxic environmental conditions (lacking free oxygen): quiet water marine, deep lakes, and estuaries. – In these environments, iron combines with sulfur to form the mineral pyrite (Fe. S 2), which can also contribute to the black color. – Black, organic-rich sediments may also form in environments where the accumulation of organic matter exceeds the capacity of the environment to oxidize it.

Color of Sedimentary Rocks • Red, Brown, Purple, or Orange – indicates the presence of iron oxides. – In well-oxygenated continental sedimentary environments, the iron in the sediments is oxidized to form hematite or ferric iron oxide (Fe 2 O 3), which colors the sediment red, brown, or purple. – Typically deposited in continental (or transitional) sedimentary environments such as flood plains, alluvial fans, and deltas. – Also formed in marine environments (due to oxidation of the iron in the sediment after deposition), or to erosion of red sediment from the land.

Color of Sedimentary Rocks • Green and gray – also indicates the presence of iron, but in a reduced (rather than an oxidized) state. – Ferrous iron (Fe+2) generally occurs in oxygen-deficient environments.

Rock Texture

Rock Texture • Texture refers to the size, shape, sorting, and arrangement of grains in a sedimentary rock. • There are three "textural components" to most clastic sedimentary rocks: – Clasts - the larger grains in the rock (gravel, sand, silt). – Matrix - the fine-grained material surrounding clasts (often clay). – Cement - the "glue" that holds the rocks together. • Silica, Calcite, Iron oxide, & Other Minerals

Rock Texture • The texture of a sedimentary rock can provide clues to the depositional environment. – Fine-grained textures typically indicate deposition in quiet water. – In general, it takes higher energy (higher water velocity) to transport larger grains.

Grain Size • Sedimentary grains are categorized according to size using the Wentworth Scale. – Gravel > 2 mm – Sand 1/16 - 2 mm – Silt 1/256 - 1/16 mm – Clay <1/256 mm • The grain sizes in a sediment or sedimentary rock can provide clues to help interpret the depositional environment. • Stronger currents are required to move larger particles than to move smaller particles.

Sorting refers to the distribution of grain sizes in a rock. – If all of the grains are the same size, the rock is "well sorted. " If there is a mixture of grain sizes, the rock is "poorly sorted. " – The range of grain sizes in a sediment or sedimentary rock can provide clues to help interpret the depositional environment. – Windblown sediments are better sorted than wavewashed sediments. – Well-sorted sands have higher porosity and permeability than poorly-sorted sands (if they are not tightly cemented). – Poor sorting is the result of rapid deposition of sediment without sorting by currents.

Grain Shape • Grain shape is described in terms of rounding of grain edges and sphericity (equal dimensions, or how close it is to a sphere). • Rounding results from abrasion against other particles and grain impact during transport. – Very well-rounded sand grains suggest that a sand may have been recycled from older sandstones. • Shape of clasts is important in naming the coarser-grained sedimentary rocks (those with gravel-sized clasts).

f 05_14_pg 90

f 05_15_pg 90

Orientation of Grains • A study of grain orientation or arrangement may indicate whether the grains are clustered into zones or mixed up. – This relates to the method of transport and deposition of the grains. • Grain orientation may also be used to interpret ancient current or wind directions. – The long axis of the grain becomes oriented parallel to the flow direction.

f 05_16_pg 91

Large Scale Evidence of Earth’s History

Sedimentary Structures • Sedimentary structures are larger features which form during (or shortly after) deposition of the sediment, but before lithification. • Some sedimentary structures are created by the water or wind which moves the sediment. Other sedimentary structures form after deposition — such as footprints, worm trails, or mudcracks. • Sedimentary structures can provide information about the environmental conditions under which the sediment was deposited; some structures form in quiet water under low energy conditions, whereas others form in moving water or high energy conditions.

Sedimentary Structures • Types of Sedimentary Structures: – Stratification – Graded bedding – Cross-bedding or cross-stratification – Ripple marks – Mud cracks – Scour marks

Sedimentary Structures • Stratification (= layering or bedding) is the most obvious feature of sedimentary rocks. – The layers (or beds or strata) are visible because of differences in the color or texture of adjacent beds. – Strata thicker than 1 cm are commonly referred to as beds. – Thinner layers are called laminations or laminae. – The upper and lower surfaces of these layers are called bedding planes.

Sedimentary Structures • Graded bedding results when a sediment -laden current (such as a turbidity current) begins to slow down. – The grain size within a graded bed ranges from coarser at the bottom to finer at the top. Hence, graded beds may be used as "up indicators. "

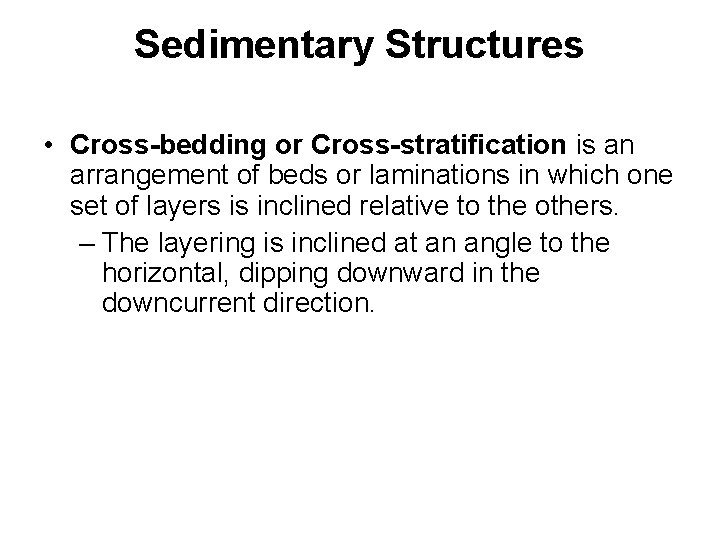

Sedimentary Structures • Cross-bedding or Cross-stratification is an arrangement of beds or laminations in which one set of layers is inclined relative to the others. – The layering is inclined at an angle to the horizontal, dipping downward in the downcurrent direction.

f 05_18 a_pg 92

f 05_18 b_pg 92

Sedimentary Structures • Ripple marks are undulations of the sediment surface produced as wind or water moves across sand. – Symmetric ripple marks are produced by waves or oscillating water. – Asymmetric ripples form in unidirectional currents (such as in streams or rivers). • Asymmetric ripples have a steep slope on the downstream side, and a gentle slope on the upstream side. • Because of this unique geometry, asymmetrical ripples in the rock record may be used to determine ancient current directions or paleocurrent directions.

f 05_21 a_pg 93

f 05_21 b_pg 93

f 05_22_pg 94

Sedimentary Structures • Mud cracks are a polygonal pattern of cracks produced on the surface of mud as it dries. – The mud polygons between the cracks may be broken up later by water movement, and redeposited as intraclasts (particularly in lime muds).

f 05_17 a_pg 91

Sedimentary Structures • Scour marks are depressions or erosional features formed as a current flows across a bed of sand. – Sediment may be deposited over the scoured layer, filling the depressions. – When the overlying sediment becomes consolidated, you can see positive-relief casts on the base of the overlying bed. • These casts are termed "sole marks, " because they appear on the bottom (or sole) of a bed of sediment.

Sedimentary Structures • Determining "up direction" – Sedimentary structures can be used to determine "up direction. " – Sedimentary structures such as graded beds, cross beds, mudcracks, flute marks, symmetrical (but not asymmetrical) ripples, burrows, and tracks can be used to establish the original orientation of the beds. – Features which can be used to determine "up direction" are called geopetal structures. – Fossils can also be used to establish up direction, if they are present in the rock in life position.

Compositional Evidence Provided by Sedimentary Rocks

Sands and Sandstones • Sandstones are classified on the basis of the composition of their grains. • Three components are generally considered: – Quartz grains. – Feldspar grains. – Rock fragment grains. • The particular minerals present provide information on the amount of weathering and transport experienced by the sand grains. • Intense weathering and long transport tend to destroy the feldspars and ferromagnesian minerals because they are less stable, and produce a sandstone dominated by quartz. Such sandstones are referred to as compositionally mature. • Sandstones with abundant feldspars, and ferromagnesian minerals, on the other hand, indicate relatively little weathering and transport. These sandstones are compositionally immature.

Sands and Sandstones • Major types of sandstone described by Levin: – Quartz sandstone (also called quartz arenite) dominated by quartz grains. – Arkose - contain 25% or more feldspar, with quartz. – Graywacke - contains about 30% dark fine-grained matrix (clay, silt, chlorite, micas) along with quartz, feldspar, and rock fragments. – Lithic sandstone (or subgraywacke) - dominated by quartz, muscovite, chert, and rock fragments with matrix less than 15%. Feldspars scarce.

Sandstone Environmental Interpretation • Each type of sandstone implies something about depositional history and environment: • Quartz sandstone implies a long time of formation. Deposition typically in shallow-water environments. – Common sedimentary structures are ripple marks and cross-bedding. • Arkose implies a short time of formation(because feldspar typically weathers quickly to clay). Also implies rapid erosion, arid climate, tectonic activity, steep slopes. – Commonly deposited in fault troughs or low areas along granitic mountains. Often has a pinkish color due to oxidized iron, suggesting continental deposition. • Graywacke implies a tectonically active source area and rapid erosion. Graded bedding is common. – Associated with volcanic rocks, shales, and cherts of deep water origin. • Lithic sandstone found in deltaic coastal plains, and may be deposited in nearshore marine environments, swamps, or marshes. – Associated with coal and micaceous shales.

f 05_24_pg 95

Carbonate Rocks and Sediments • Carbonate rocks consist of limestone and dolostone. Limestones are the most abundant carbonate rocks. • Carbonate rocks are chemical or biochemical in origin. • The minerals present in carbonate rocks are: • Limestone – Calcite – Aragonite • Dolostone – Dolomite

Carbonate Rocks and Sediments Depositional Conditions • Shallow marine environment, lakes, caves and hot springs. • Direct or indirect result of biologic activity. • May contain shells or the remains of other marine organisms • May precipitate from seawater as a result of biologic activity • Characteristics of most marine carbonate environments: – Warm water – Shallow water (less than 200 m deep) – Tropical climate (30 ° N - 30 ° S of equator) – Clear water (low to no terrigenous input) – Sunlight required for photosynthesis by algae

f 05_28_pg 98

Carbonate Rocks and Sediments • Origin of carbonate sediments – Much lime mud forms from the disintegration of calcareous algae. • When the calcareous algae die, their skeletons break down and disintegrate producing aragonite needle muds. • These lime muds lithify to form fine-grained limestone. – Blue-green algae are involved in the formation of oolites (or ooids). • Oolites form in warm shallow seas with constant wave agitation. – Precipitation of calcium carbonate from seawater as a result of biologic activity – Abrasion of shells • Coquina, • Fossiliferous Limestone, – Accumulation of fecal pellets produced by burrowing organisms.

f 05_29_pg 98

f 05_30 a_pg 99

Carbonate Rocks and Sediments • Dolomite – Dolomite is a calcium-magnesium carbonate mineral (Ca. Mg(CO 3)2) that comprises the sedimentary rock dolostone. (Sometimes the rock is also called dolomite. ) – Dolomite is interpreted to form when magnesium that has been concentrated in sea water replaces calcium in calcium carbonate in a previously deposited limestone.

Clays and Shales • The word “Clay" has two definitions. – It is both a grain size term, and – a term referring to a layered silicate mineral which behaves plastically when wet and hardens upon drying or firing. • Shale is a very fine-grained rock composed of clay, mud, and silt. – Shale is fissile; this means that it splits readily into thin, flat layers. – There are quartz shales, feldspathic shales, chloritic shales, and micaceous shales, based on the composition of the silt-sized grains. – The environmental interpretations of these shales are similar to those of the various types of sandstones.

Clays and Shales • Claystone is a very fine-grained rock composed of tiny (less than 1/256 mm) clay minerals, mica, and quartz grains. – The individual grains are too small to see with the naked eye or a hand lens, and the rock feels smooth to the touch (not gritty). – Claystone is not fissile, and breaks irregularly. • Mud is defined as a mixture of silt and clay. – Rocks with both silt and clay are referred to as mudstones or mudshales, depending on whether or not they are fissile.

Clays and Shales • Deposition of clays – Because of its fine grain size, clay tends to remain suspended in the water column. It will settle out of still, quiet water, given enough time. – Clays and shales typically indicate low energy environments, sheltered from waves and currents. They are commonly found in lacustrine, lagoon, and deeper water marine deposits.

Classifying Rock Layers

Rock Facies

Rock Facies • Rock Facies: a distinctive rock unit that forms under certain conditions of sedimentation • It is used to define a particular process or environment. • Examples: – Sand Silt facies of a beach environment, – Shale facies in deeper, quieter water, – Carbonate facies, far from shore in warm shallow seas. – Coal facies found in a swamp area on a delta, • When a depositional environment grades laterally into other environments it is referred to as a facies change. • The different fossil assemblages in a uniform rock unit may be referred to as biofacies.

Facies Changes Indicate Changes in Sea Level Transgression. • A sea level rise is called a transgression. • A sea level rise will produce a vertical sequence of facies representing progressively deeper water environments. As a result, a transgressive sequence will have finer-grained facies overlying coarser-grained facies. This is sometimes referred to as an onlap sequence. Regression. • A sea level drop is called a regression. • A regression will produce a sequence of facies representing progressively shallower water environments (shallowing-upward sequence). As a result, a regressive sequence will have coarsergrained facies overlying finer-grained facies (coarsening-upward). This is sometimes called an offlap sequence.

f 05_32_pg 100

f 05_33_pg 101

Walther's Law (or Principle) • Sedimentary environments that started out side-by-side will end up overlapping one another over time due to sea level change (transgressions and regressions). • The result is a vertical sequence of beds. The vertical sequence of facies mirrors the original lateral distribution of sedimentary environments.

Facies Changes Indicate Changes in Sea Level • Fluctuations in sea level are caused by: – Plate Tectonic Changes – Glaciation

Correlating Rock Units

f 05_38_pg 105

Correlation • The branch of geology that deals with the correlation of rock units from one area to another is known as stratigraphy. • Three main types of correlation: – Lithostratigraphic correlation - Matching up rock units on the basis of their lithology (composition, texture, color, etc. ) and stratigraphic position. – Biostratigraphic correlation - Matching up rock units on the basis of the fossils they contain. – Chronostratigraphic correlation - Matching up rock units on the basis of age equivalence, as determined by radioactive dating methods or fossils. – Geologists can trace beds from one exposure to another. This is called lithostratigraphic correlation.

Unconformities

Unconformities • Indicates that something has changed • Three types: 1. Disconformity 2. Nonconformity 3. Angular Unconformity

f 05_40_pg 106

Unconformities • Types of unconformities: – Angular unconformities - An erosional surface which truncates folded or dipping (tilted) strata. – Nonconformities - An erosional surface which truncates igneous or metamorphic rocks. – Disconformities - An irregular erosional surface which truncates flat-lying sedimentary rocks. • A fourth type of unconformity is the paraconformity, separating two parallel units of sedimentary rock. – There is no obvious evidence of erosion. – A paraconformity is virtually indistinguishable from a sharp conformable contact. The fossils show that there is a considerable time gap represented by a paraconformity.

Depicting the Past

Depicting the Past • Methods: – Geologic Columns Columnar sections show the vertical succession of rock units at a given location. • They are used in correlation and construction of cross-sections. – Stratigraphic cross-sections tie together several geologic columns from different locations. • The purpose is to show rock units change in thickness, lithology, and fossil content across a given area. – Structural cross-sections show the timing of tilting, folding, and faulting of rock units. – Geologic Maps show the distribution of various layers and types of rocks in an area. – Paleogeographic Maps are interpretive maps which depict the geography of an area at some time in the past. – Isopach Maps show the thickness of formations or other units in an area. – Lithofacies Maps show the distribution of lithofacies that existed at a given time over an area, or show the percentage of some lithologic component (such as clay), or show the ratio of one rock type to another within the unit.
