Sedimentary Rocks What is a sedimentary rock Sedimentary
- Slides: 91
Sedimentary Rocks
What is a sedimentary rock? Sedimentary rocks are products of mechanical and chemical weathering They account for about 5 percent (by volume) of Earth’s outer 10 kilometers Contain evidence of past environments • Provide information about sediment transport • Often contain fossils
What is a sedimentary rock? Sedimentary rocks are important for economic considerations because they may contain • Coal • Petroleum and natural gas • Sources of iron, aluminum, and manganese
Gravel Beach
Talus Cones
delta
Owens River
Meandering River
Alluvial fans
Sand Dunes
Death Valley salt pan
Playas
Deep Springs Lake
fringing reef
Sandy Beach
Spits
Swamps
Successive stages in coal formation
coal
Sedimentary Rocks
Fossil Fish - 50 Million Year Old Lakes in southern Wyoming These fish tell us the Wyoming climate 50 million years ago.
Sedimentary Rocks Sedimentary – form in water • Generally formed by the deposition, burial, compaction, and cementation of sediments (pieces of other rocks) 3 Types 1. Clastic 2. Chemical (crystalline) 3. Organic (Bioclastic)
3 Types of Sedimentary Rocks: Clastic (also called Detrial)—made of broken pieces of other rocks
3 Types of Sedimentary Rocks: Organic—remains of plants and animals are deposited in thick layers Examples Fossil rich limestone is made from the shells of ocean animals; used to make chalk
3 Types of Sedimentary Rocks: Chemical—minerals dissolved in lakes, seas, or underground water Mineral crystals are made as the shallow water that has flooded the bottom of Death Valley evaporates. Click on image for full size (66 K JPG) Courtesy of Martin Miller, University of Oregon
Detrital sedimentary rocks The chief constituents of detrital rocks include • Clay minerals • Quartz • Feldspars • Micas Particle size is used to distinguish among the various types of detrital rocks
Classification of sedimentary rocks Two major textures are used in the classification of sedimentary rocks • Clastic – Discrete fragments and particles – All detrital rocks have a clastic texture • Nonclastic – Pattern of interlocking crystals – May resemble an igneous rock
Detrital sedimentary rocks
Detrital sedimentary rocks Common detrital sedimentary rocks (in order of increasing particle size) Shale • Mud-sized particles in thin layers that are commonly referred to as laminea • Most common sedimentary rock
Lake Bed Deposits
Shale containing plant remains
Detrital sedimentary rocks Sandstone Composed of sand-sized particles Forms in a variety of environments Sorting, shape, and composition of the grains can be used to interpret the rock’s history Quartz is the predominant mineral
B. Descriptions of individual clastic rocks Arkose Graywacke Quartz Sandstone
World’s Biggest Rock The Ayers Rock is made up of arkose, a coursegrained sandstone rich in feldspar at least 2. 5 km thick. Uplifting and folding between 400300 mya turned the sedimentary layers nearly 90 degrees to their present position. The surface has then been eroded.
Graywacke
Detrital sedimentary rocks Alternating sequences of shale and sandstone exposed in the Grand Canyon. Shale cannot support steep cliffs or form erosion
Detrital sedimentary rocks • Conglomerate and breccia – Both are composed of particles greater than 2 mm in diameter – Conglomerate consists largely of rounded gravels – Breccia is composed mainly of large angular particles
B. Descriptions of individual clastic rocks Breccia Conglomerate

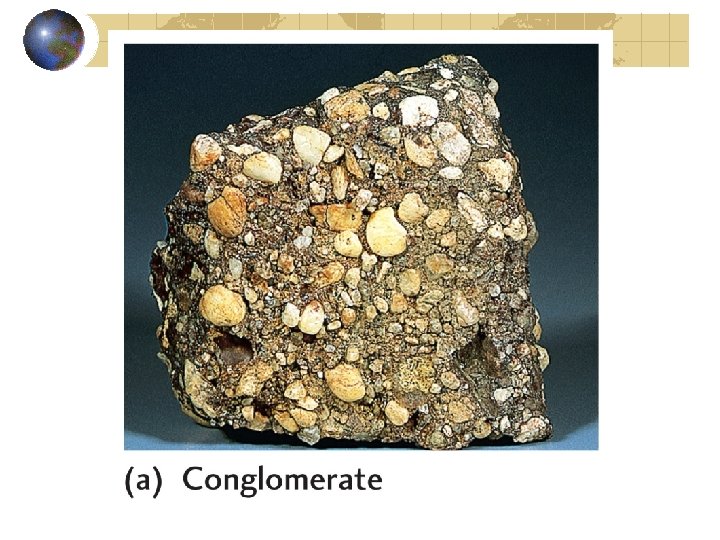

Conglomerate
Conglomerate
Breccia
breccia 1
Characteristics of sedimentary rocks Sorting – the distribution of grain sizes in a rock Sorting depends on properties of the depositing agent
Graded Beds
Sorting Glacier deposit – poorly sorted Sand dune – well sorted
3 Types of Sedimentary Rock 1. Clastic Examples Formed from the deposition, burial, compaction, and cementation of sediments (fragments of other rock) G in ra e Siz Co mp osi t ion
3 Types of Sedimentary Rock 2. Chemical (crystalline) Precipitates – minerals fall out of solution when the water chemistry changes Evaporates – minerals left behind when water evaporates
Chemical sedimentary rocks Consist of precipitated material that was once in solution Precipitation of material occurs in two ways • Inorganic processes • Organic processes (biochemical origin)
Chemical sedimentary rocks Common chemical sedimentary rocks • Limestone (calcareous deposits) – Most abundant chemical rock – Composed chiefly of the mineral calcite – Marine biochemical limestones form as coquina (broken shells), and chalk
Coquina
Fossiliferous limestone
Chemical sedimentary rocks Common chemical sedimentary rocks • Dolostone (siliceous deposits) – Typically formed secondarily from limestone • Chert (siliceous deposits) – Made of microcrystalline quartz – Varieties include flint and jasper (banded form is called agate)
Sedimentary Rocks A. Quartz (Si. O 2) “flint”, “chert”
Chert nodules
Chemical sedimentary rocks Common chemical sedimentary rocks • Evaporites (saline deposits) – Evaporation triggers deposition of chemical precipitates – Examples include rock salt and rock gypsum
C. Chemical and Biochemical Rocks Evaporites (Halite and Gypsum)
salt flats in western Utah
Dessication Cracks
C. Chemical and Biochemical Rocks Limestones Micrite Calcarenite
Limestones Chalk Coquina Fossiliferous
Limestones Oolitic
Oolites
C. Chemical and Biochemical Rocks Limestones Dolomites
Sinkhole: a circular depression in a karst area, commonly funnelshaped.

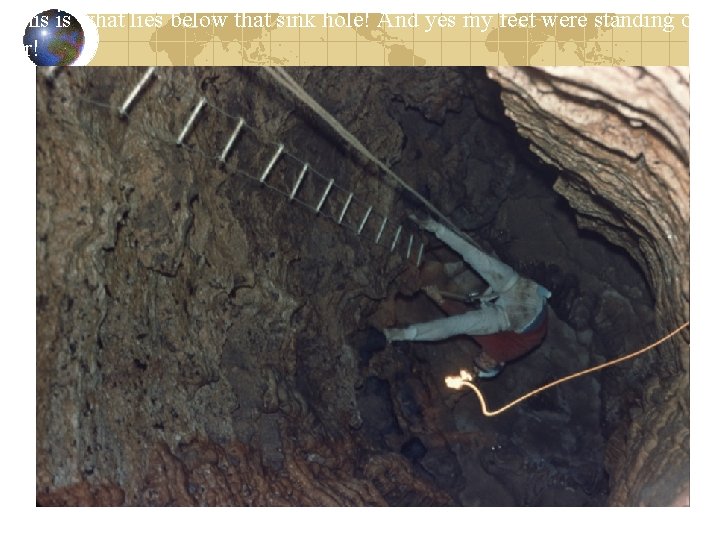

This is what lies below that sink hole! And yes my feet were standing on air!
Examples of Sedimentary Features and Landforms Narracoorte Caves, southeastern SA Stalactites (of mineral calcite). Biochemical and inorganic sedimentary limestone rocks. The Queen’s Throne- Utah http: //www. uh. edu/~jbutler/physical/chapter 7. html
Stalactites hanging (tight) to the ceiling of a cave.
This is what a cave typically looks like.
A speleothem made of the mineral gypsum, common in dry caves.
Chemical sedimentary rocks Common chemical sedimentary rocks • Coal (Carbonaceous deposits) – Different from other rocks because it is composed of organic material – Stages in coal formation (in order) – 1. Plant material – 2. Peat – 3. Lignite – 4. Bituminous
coal
Sedimentary environments A geographic setting where sediment is accumulating Determines the nature of the sediments that accumulate (grain size, grain shape, etc. )
Sedimentary environments Types of sedimentary environments • Continental – Dominated by erosion and deposition associated with streams – Glacial – Wind (eolian) • Marine – Shallow (to about 200 meters) – Deep (seaward of continental shelves)
Sedimentary environments Types of sedimentary environments • Transitional (shoreline) – Tidal flats – Lagoons – Deltas
Continental (left) and marine (right) depositional environments
Sedimentary environments Sedimentary facies • Different sediments often accumulate adjacent to one another at the same time • Each unit (called a facies) possesses a distinctive set of characteristics reflecting the conditions in a particular environment • The merging of adjacent facies tends to be a gradual transition
Sedimentary facies
Characteristics of Sedimentary Rocks · May stratified because the sediments are laid down in horizontal layers called strata. ( one layer is called stratum) · May also contain fossil i. e: remains, prints or other indications of plants & animals found buried in rocks Dipping sedimentary layers of rock, Rocky Mountains, Canada. http: //www. geog. ouc. bc. ca/physgeog/contents/10 f. html
Sedimentary structures Provide information useful in the interpretation of Earth history Types of sedimentary structures • Strata, or beds (most characteristic of sedimentary rocks) • Bedding planes that separate strata
Fossils: Evidence of past life By definition, fossils are the traces or remains of prehistoric life now preserved in rock Fossils are generally found in sediment or sedimentary rock (rarely in metamorphic and never in igneous rock)
Fossils: Evidence of past life Geologically fossils are important for several reasons • Aid in interpretation of the geologic past • Serve as important time indicators • Allow for correlation of rocks from different places
Features of Sedimentary Rocks Stratification (bedding) is when layers of sedimentary rocks form stacked on top of each other
Features of Sedimentary Rocks Ripple Marks are sand patterns formed by the action of winds, streams, waves, or currents
Features of Sedimentary Rocks Mud Cracks develop in clay when it dries out and hardens into rock.
