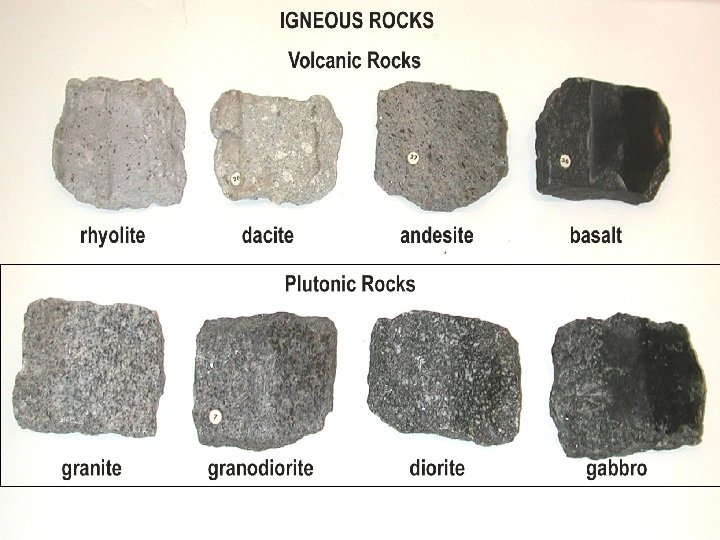

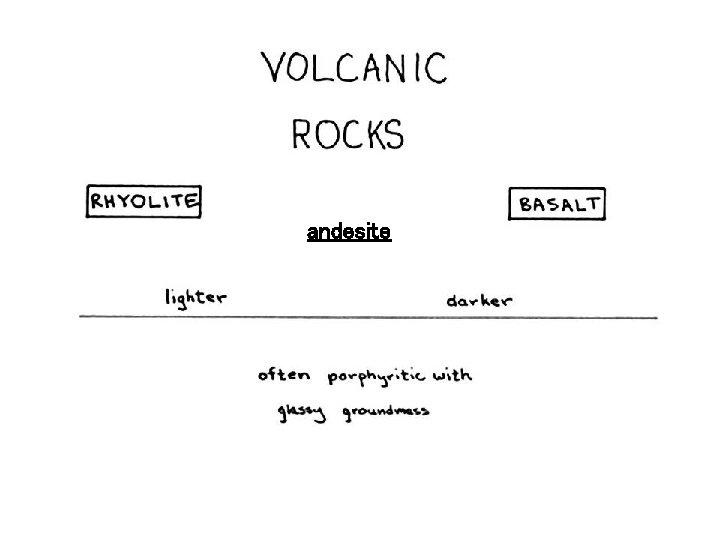

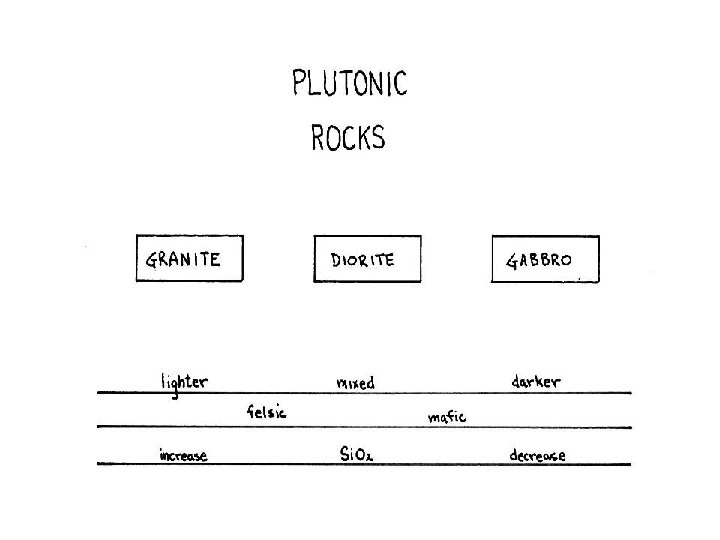

Volcanic rhyolite andesite basalt Plutonic granite diorite gabbro

Volcanic rhyolite andesite basalt Plutonic granite diorite gabbro gneiss schist slate marble sandstone limestone

andesite

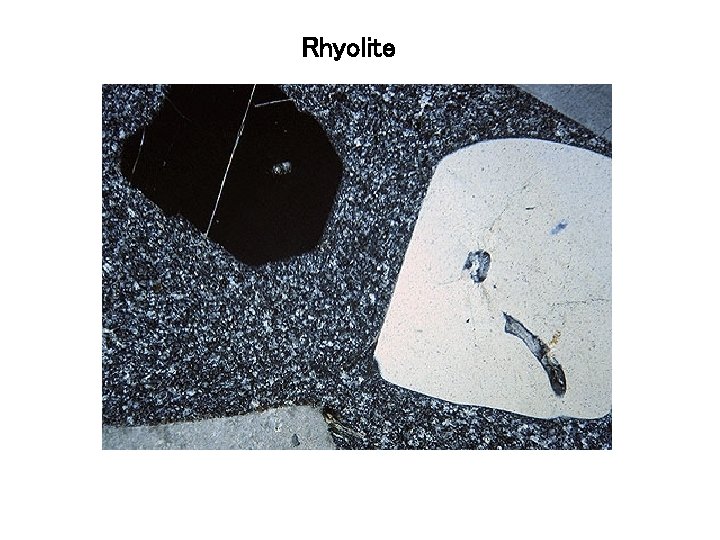

Rhyolite

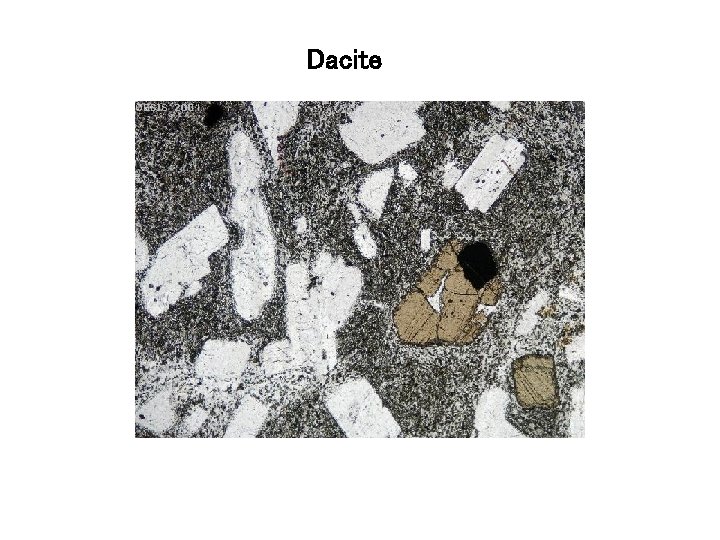

Dacite

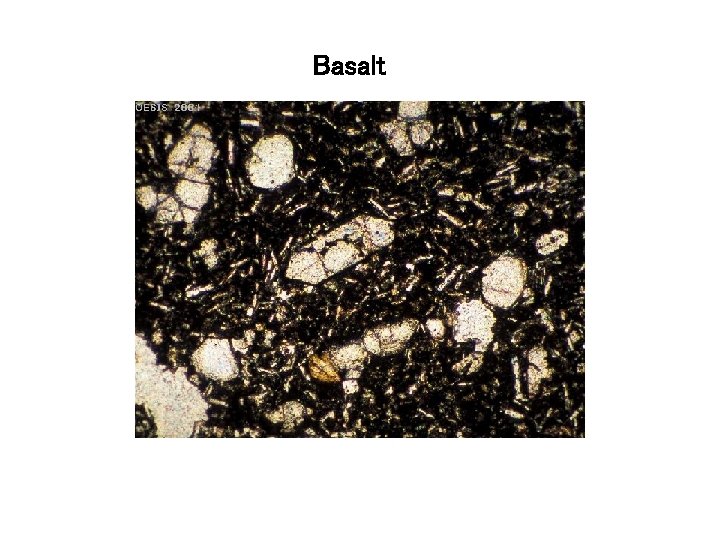

Basalt

Granite

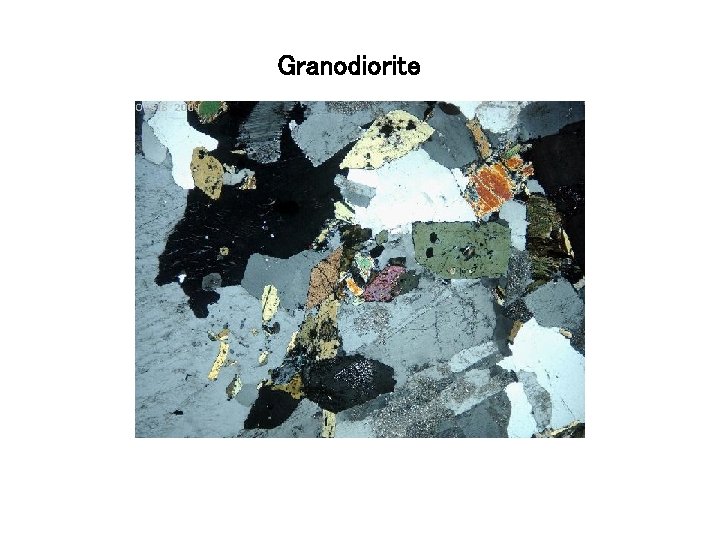

Granodiorite

Gabbro

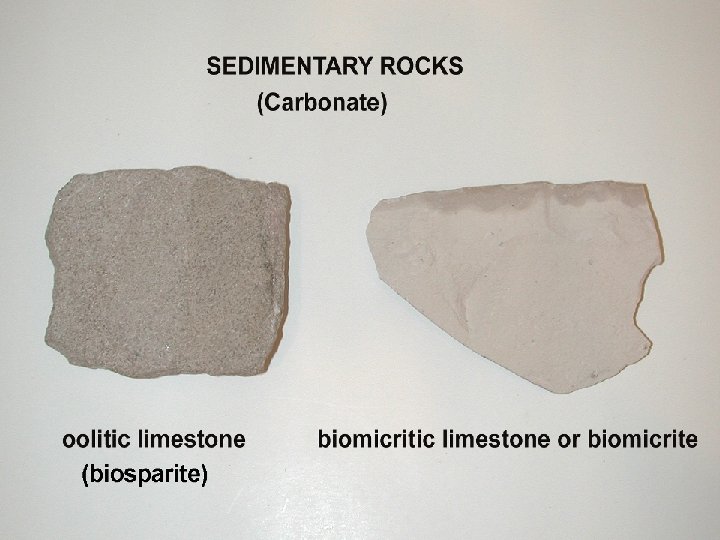

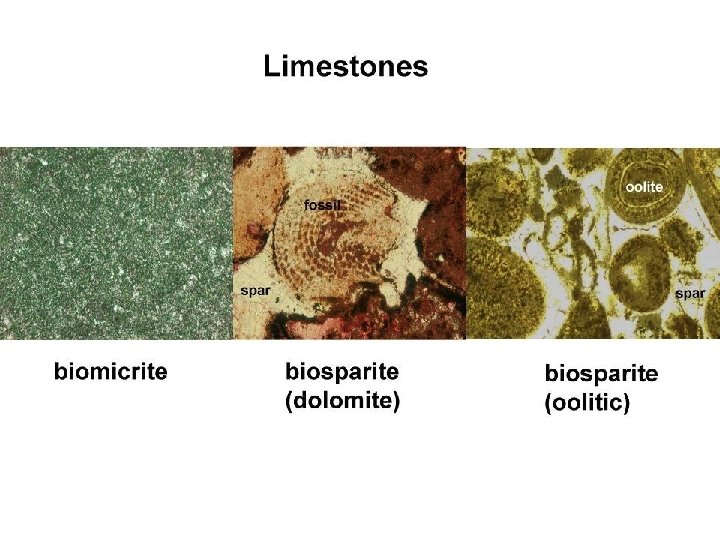

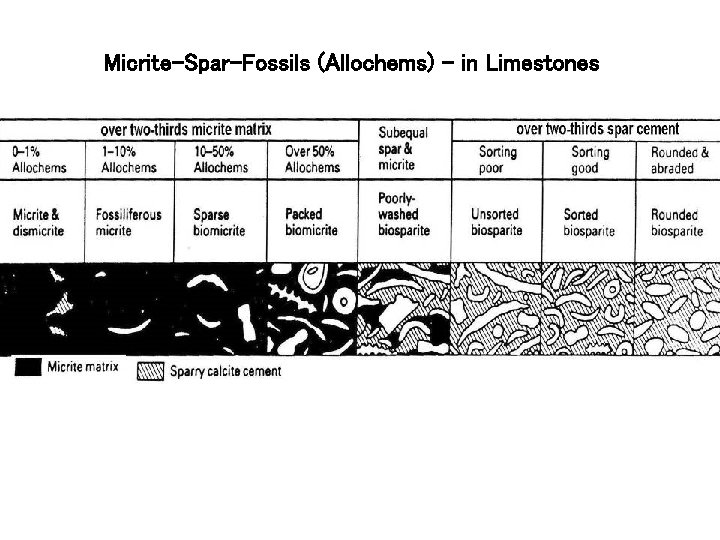

Micrite-Spar-Fossils (Allochems) - in Limestones

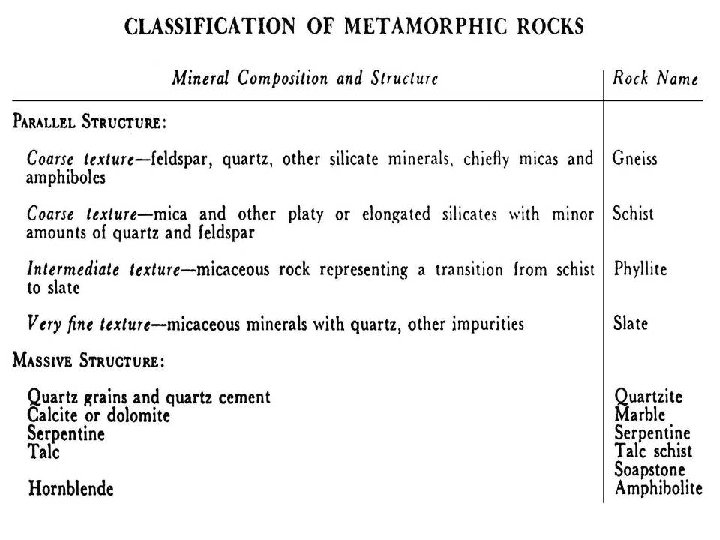

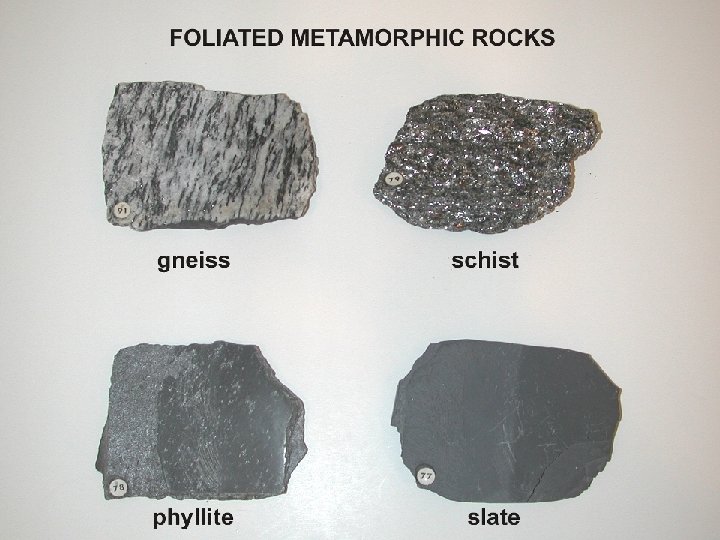

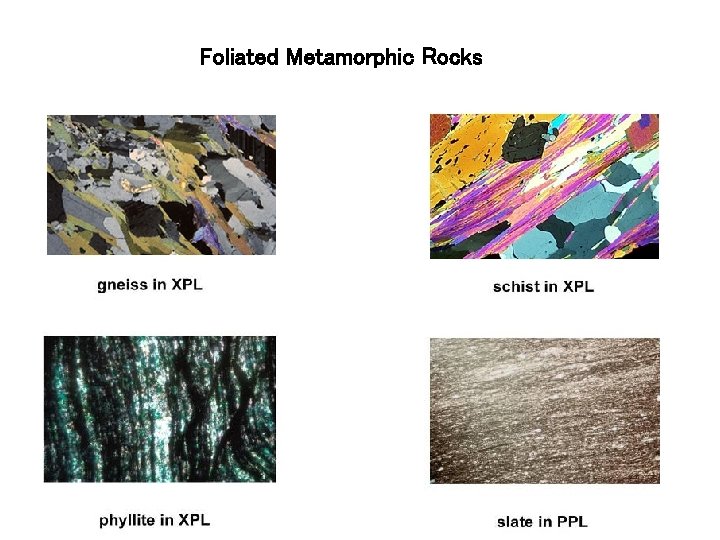

Foliated Metamorphic Rocks

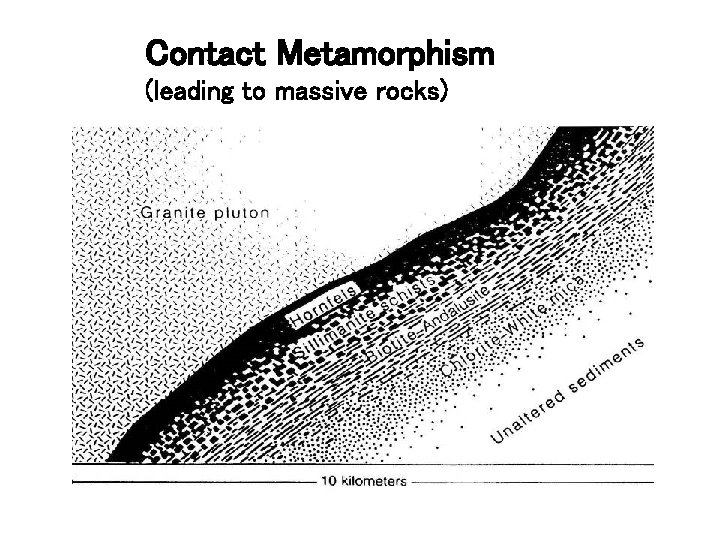

Contact Metamorphism (leading to massive rocks)

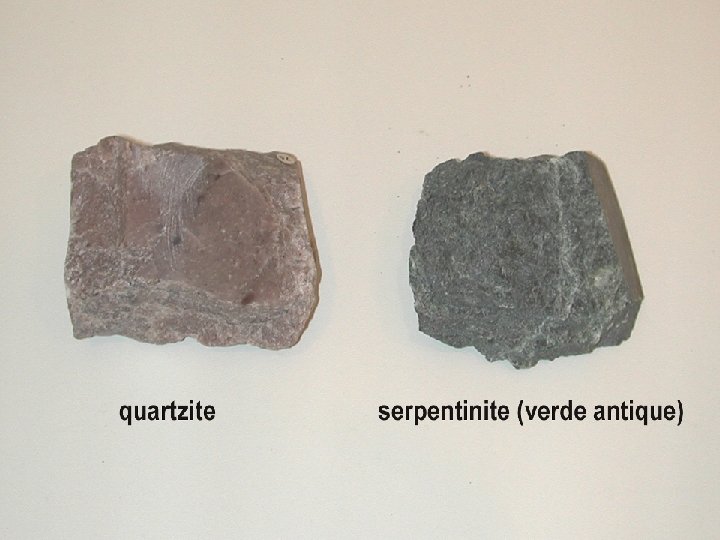

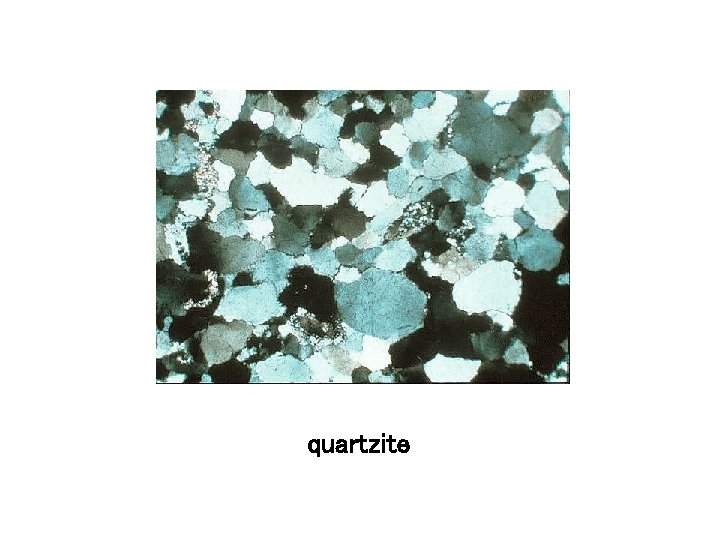

quartzite

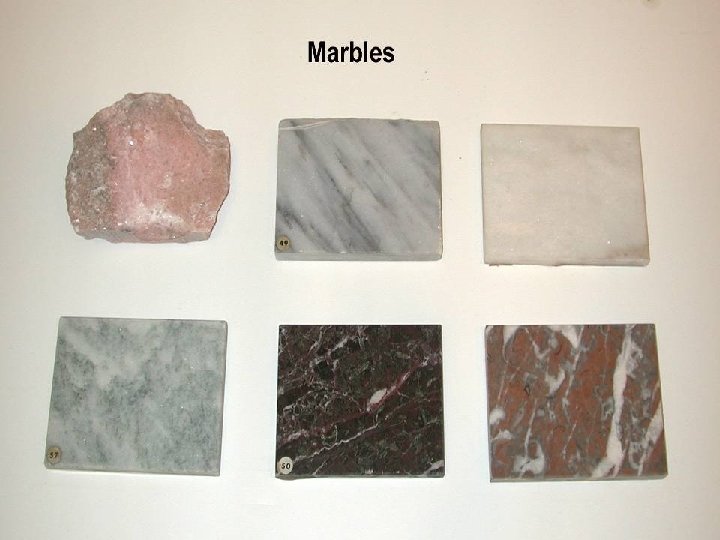

Tuckahoe marble

Carrara marble

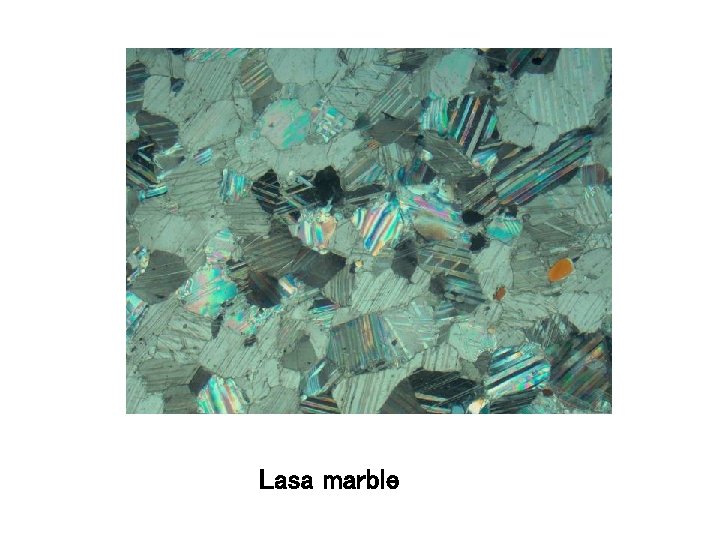

Lasa marble

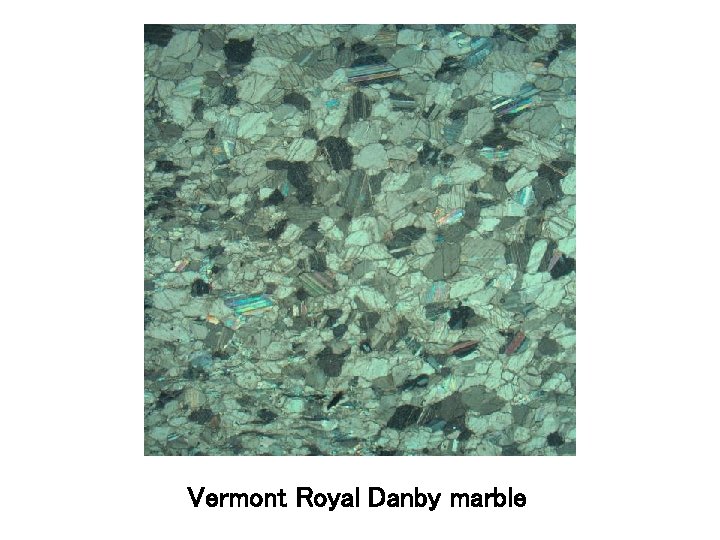

Vermont Royal Danby marble

Mechanical and Physical Properties of Materials: STONE

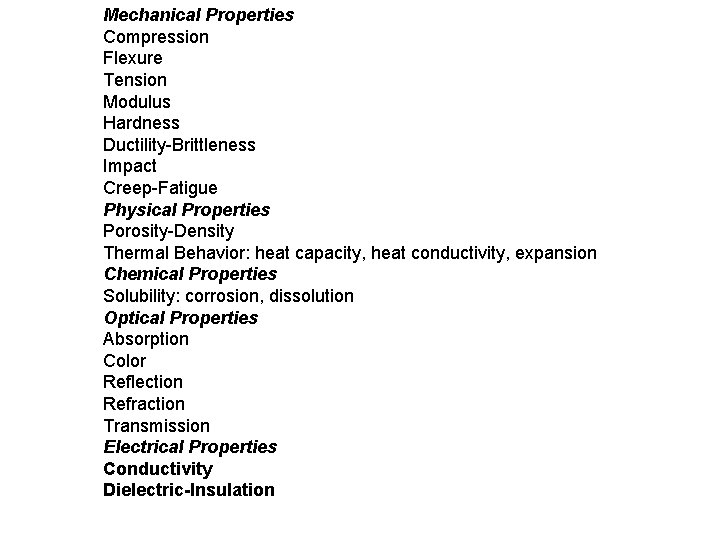

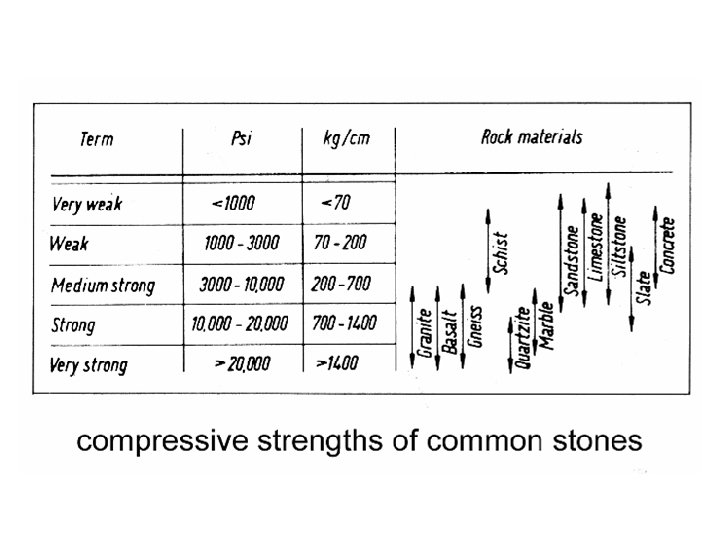

Mechanical Properties Compression Flexure Tension Modulus Hardness Ductility-Brittleness Impact Creep-Fatigue Physical Properties Porosity-Density Thermal Behavior: heat capacity, heat conductivity, expansion Chemical Properties Solubility: corrosion, dissolution Optical Properties Absorption Color Reflection Refraction Transmission Electrical Properties Conductivity Dielectric-Insulation

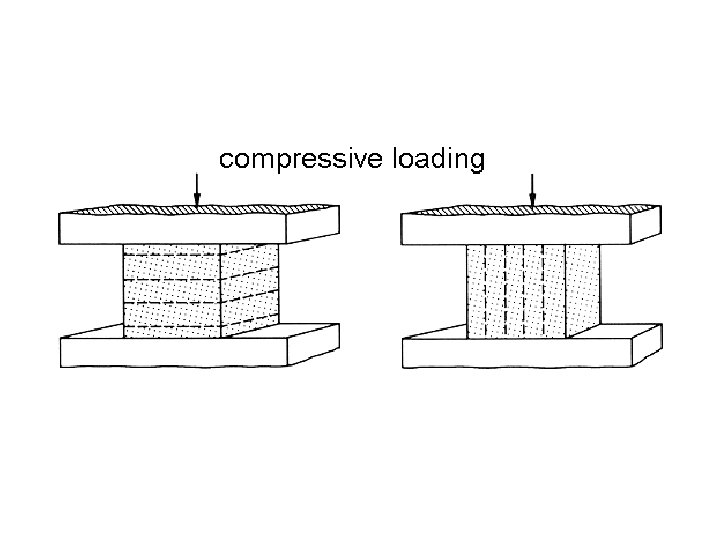

How stone is stressed or loaded:

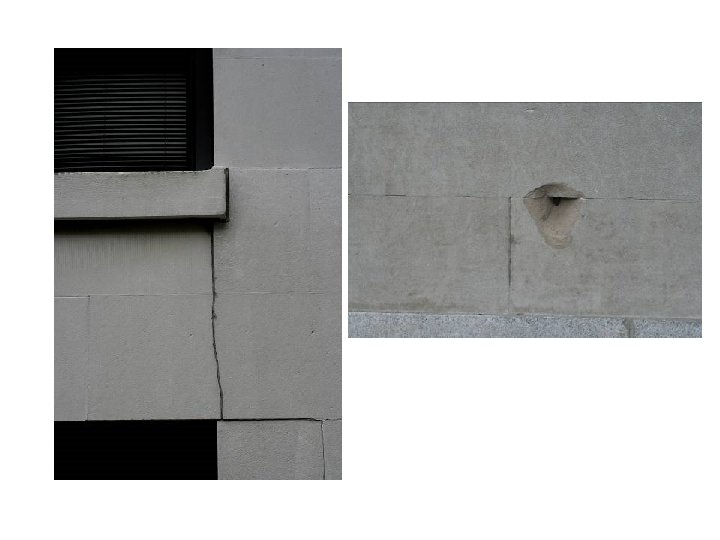

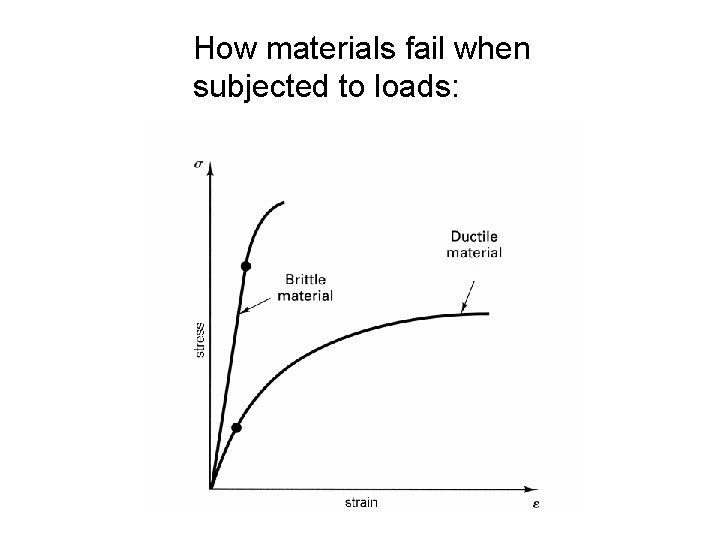

How materials fail when subjected to loads:

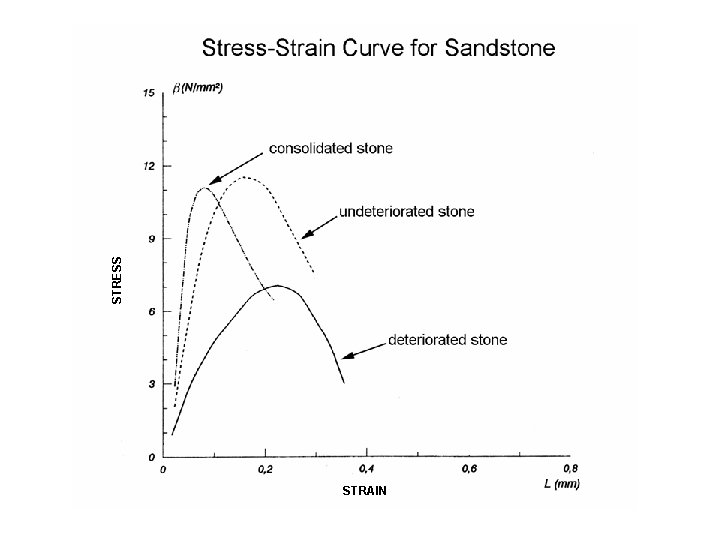

STRESS STRAIN

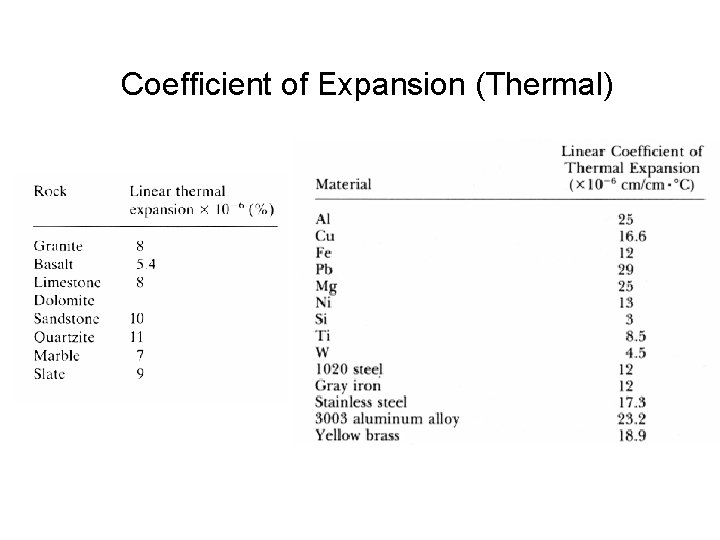

Coefficient of Expansion (Thermal)

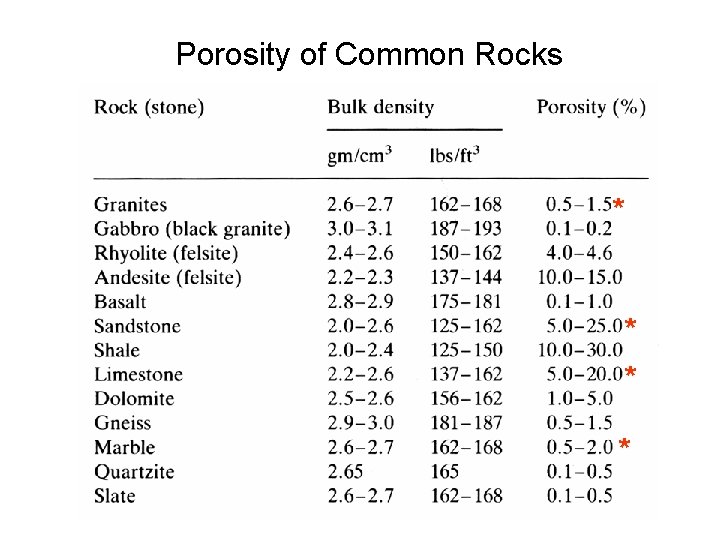

Porosity of Common Rocks * *

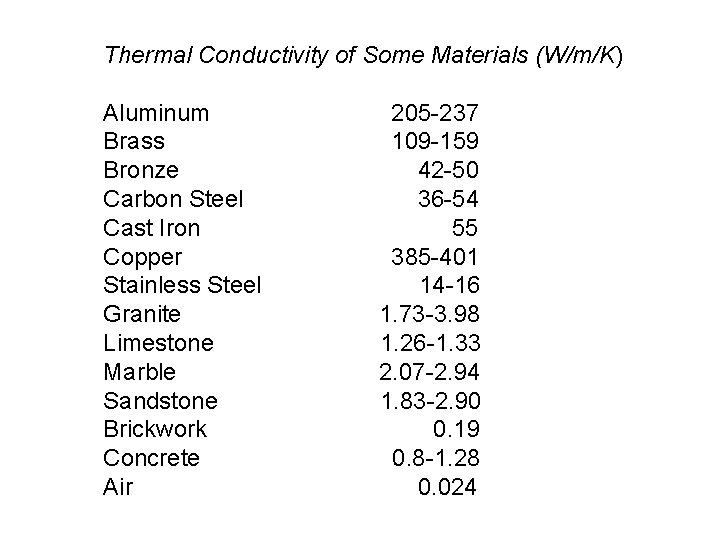

Thermal Conductivity of Some Materials (W/m/K) Aluminum Brass Bronze Carbon Steel Cast Iron Copper Stainless Steel Granite Limestone Marble Sandstone Brickwork Concrete Air 205 -237 109 -159 42 -50 36 -54 55 385 -401 14 -16 1. 73 -3. 98 1. 26 -1. 33 2. 07 -2. 94 1. 83 -2. 90 0. 19 0. 8 -1. 28 0. 024
