Analysing the PLM reference model V 0. 3 Gray Bachelor OSLC PLM Workgroup 1

What’s in this document ? • This is the working material used to identify key areas in the PLM Reference Model – Pose questions – Show examples • Utilising the Draft OSLC PLM Reference Model based upon the OMG Hybrid SUV model with extensions • Helps identify example of the Sys. ML and STEP elements and constructs of relevance to the analysis OSLC PLM Workgroup 2

Invitation • Readers are invited to comment and contribute through the OSLC PLM Workgroup or directly to the author – Do additional examples exist ? – Any feedback on comments ? – Any answers to the open questions ? OSLC PLM Workgroup 3

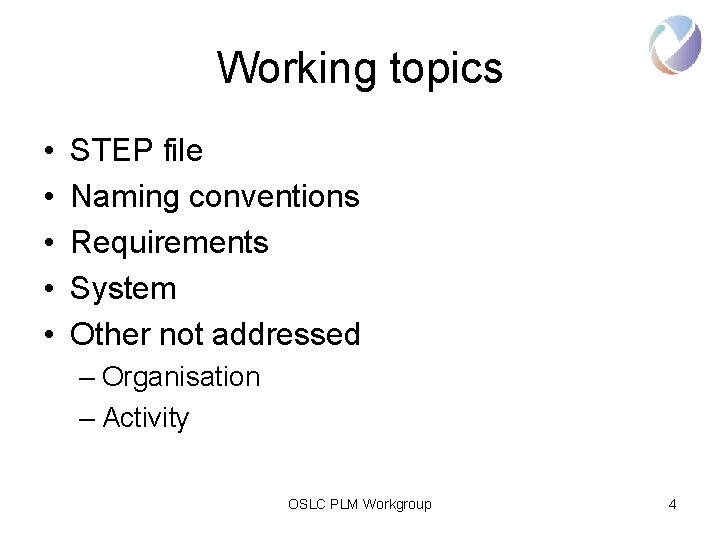

Working topics • • • STEP file Naming conventions Requirements System Other not addressed – Organisation – Activity OSLC PLM Workgroup 4

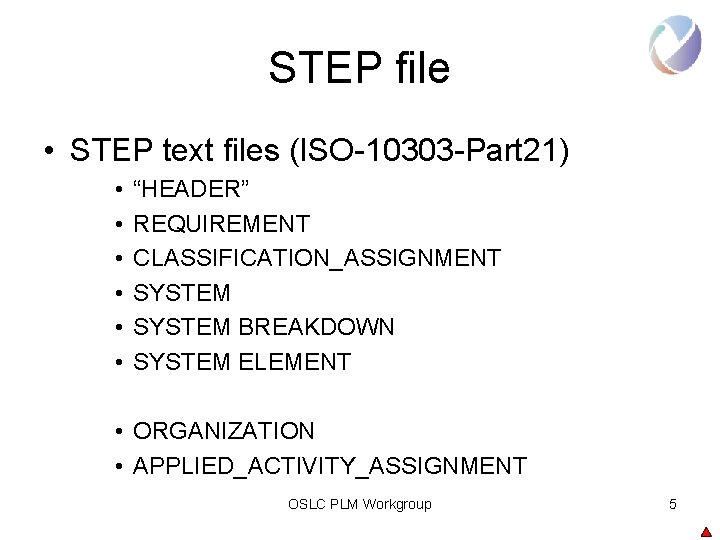

STEP file • STEP text files (ISO-10303 -Part 21) • • • “HEADER” REQUIREMENT CLASSIFICATION_ASSIGNMENT SYSTEM BREAKDOWN SYSTEM ELEMENT • ORGANIZATION • APPLIED_ACTIVITY_ASSIGNMENT OSLC PLM Workgroup 5

What is the context of the naming conventions ? • The container – Filename, description • • Rules about its content FILE_SCHEMA (('AP 233_SYSTEMS_ENGINEERING_ARM_LF')); • • Description of the overall “view” #1=VIEW_DEFINITION_CONTEXT('Requirements_Analysis_Process', 'Concept_stage', ''); • • The owning org #12=ORGANIZATION('GM', 'GM'); • • How the data was produced #20=ACTIVITY_METHOD('XSLT_Extract', 'XSLT Extract of STEP Part 21 Data File from Topcased Sys. ML XMI', 'For initial creation of dataset'); • • When the file was produced Date, time • Specific terms adopted from a consumable (include-able source) • #34=EXTERNAL_CLASS_LIBRARY('http: //www. ap 233. org/ap 233 -public-information/ap 233 -referencedata/ap 233_basic_library', 'Library of basic concept values from AP 233'); #36=EXTERNAL_CLASS('http: //www. omg. org/spec/Sys. ML/Current/Sys. ML-profile#Derive. Reqt', 'The "derive requirement" relationship relates a derived requirement to its source requirement. ', #34); #38=EXTERNAL_CLASS('http: //www. omg. org/spec/Sys. ML/Current/Sys. ML-profile#Refine', 'The refine requirement relationship can be used to describe how a model element or set of elements can be used to further refine a requirement. ', #34); #40=EXTERNAL_CLASS('http: //www. omg. org/spec/Sys. ML/Current/Sys. ML-profile#Satisfy', 'The satisfy relationship describes how a design or implementation model satisfies one or more requirements. ', #34); #42=EXTERNAL_CLASS('http: //www. omg. org/spec/Sys. ML/Current/Sys. ML-profile#Verify', 'The verify relationship defines how a test case or other model element verifies a requirement. ', #34); • • OSLC PLM Workgroup 6

PLM Reference Model: Additional relationships enabling classification #34=EXTERNAL_CLASS_LIBRARY('http: //www. ap 233. org/ap 233 -publicinformation/ap 233 -reference-data/ap 233_basic_library', 'Library of basic concept values from AP 233'); #36=EXTERNAL_CLASS('http: //www. omg. org/spec/Sys. ML/Current/Sys. MLprofile#Derive. Reqt', 'The "derive requirement" relationship relates a derived requirement to its source requirement. ', #34); #38=EXTERNAL_CLASS('http: //www. omg. org/spec/Sys. ML/Current/Sys. MLprofile#Refine', 'The refine requirement relationship can be used to describe how a model element or set of elements can be used to further refine a requirement. ', #34); #40=EXTERNAL_CLASS('http: //www. omg. org/spec/Sys. ML/Current/Sys. MLprofile#Satisfy', 'The satisfy relationship describes how a design or implementation model satisfies one or more requirements. ', #34); #42=EXTERNAL_CLASS('http: //www. omg. org/spec/Sys. ML/Current/Sys. MLprofile#Verify', 'The verify relationship defines how a test case or other model element verifies a requirement. ', #34); OSLC PLM Workgroup 7

Requirements OSLC PLM Workgroup 8

Types of Requirement in the PLM Reference Model • Main • Derived • Refinement for HSUV Acceleration OSLC PLM Workgroup 9

PLM Reference Model Sys. ML Requirements Diagram OSLC PLM Workgroup 10

• In Sys. ML 1. 1 the version is a property – In topcased this property is not visible “on the diagram” OSLC PLM Workgroup 11

One requirement Assume this is the id What is the origin of this ? #800=REQUIREMENT('R 1. 0', 'HSUV Specification Requirement') #810=REQUIREMENT_VERSION('1', '', #800); #820=REQUIREMENT_VIEW_DEFINITION('1', 'HSUV Specification Requirement View Definition', '', #1, (), #810); Is this #1 in the OSLC PLM Workgroup stp file or what ? What does the “ 1” signify ? 12

A related requirement #4500=REQUIREMENT('R 1. 1', 'Performan ce', 'Performance Requirement'); #4510=REQUIREMENT_VERSION('1', 'Th e Hybrid SUV shall have the braking, acceleration, and offroad capability of a typical SUV, but have dramatically better fuel economy. ', #4500); #4520=REQUIREMENT_VIEW_DEFINITI ON('1', 'Performance Requirement View Definition', '', #1, (), #4510); OSLC PLM Workgroup 13

Requirement relationship is. Composed. Of #4530=REQUIREMENT_COLLECTION_R ELATIONSHIP('', 'is. Composed. Of', '', #82 0, #4520); Just a string ? Does Sys. ML prescribe ? No text – any significance ? OSLC PLM Workgroup Why Collection instead of REQUIREMENT_VIEW_ DEFINITION_RELATIO 14 NSHIP

Another related requirement #1300=REQUIREMENT('R 1. 2', 'Eco. Friendliness', 'Eco-Friendliness Requirement'); #1310=REQUIREMENT_VERSION('1', ' ', #1300); #1320=REQUIREMENT_VIEW_DEFIN ITION('1', 'Eco-Friendliness Requirement View Definition', '', #1, (), #1310) #1330=REQUIREMENT_COLLECTIO N_RELATIONSHIP('', 'is. Composed Of', '', #820, #1320); OSLC PLM Workgroup 15

#1800=REQUIREMENT('R 1. 2. 1', 'Emissions Requirement'); New construct to add a sequence of versions #1810=REQUIREMENT_VERSION('1', 'The vehicle shall meet Ultra-Low Emissions Vehicle standards. ', #1800) #1820=REQUIREMENT_VIEW_DEFINITION('1', 'Emissions Requirement View Definition', '', #1, (), #1810); #1830=REQUIREMENT_COLLECTION_RELATIONSHIP('', 'is. Composed. Of', '', #1320, #1820); #2700=REQUIREMENT('R 1. 2. 1', 'Emissions Requirement'); #2710=REQUIREMENT_VERSION('2', 'The vehicle shall meet Revised 2016 Ultra-Low Emissions Vehicle standards. ', #2700); #2712=PRODUCT_VERSION_RELATIONSHIP('sequence', 'Version Sequence', #1810, #2710); #2720=REQUIREMENT_VIEW_DEFINITION('2', 'Emissions Requirement View Definition', '', #1, (), #2710); #2730=REQUIREMENT_COLLECTION_RELATIONSHIP('', 'is. Composed. Of', '', #1320, #2720); #3600=REQUIREMENT('R 1. 2. 1', 'Emissions Requirement'); #3610=REQUIREMENT_VERSION('2', 'The vehicle shall meet Revised 2016 Ultra-Low Emissions Vehicle standards. ', #3600); Why is derivation used here ? All 3 versions relate to #1320 #3612=PRODUCT_VERSION_RELATIONSHIP('sequence', 'Version Sequence', #1810, #3610); #3614=PRODUCT_VERSION_RELATIONSHIP('derivation', 'Version Derivation', #2710, #3610); #3620=REQUIREMENT_VIEW_DEFINITION('2', 'Emissions Requirement View Definition', '', #1, (), #3610); #3630=REQUIREMENT_COLLECTION_RELATIONSHIP('', 'is. Composed. Of', '', #1320, #3620); OSLC PLM Workgroup 16

Alt layout to clarify sequence derivation sequence OSLC PLM Workgroup 17

PLM Reference Model: STEP content examples Gathered examples Requirements OSLC PLM Workgroup 18

PLM Reference Model: Requirement and it’s relationships #1200=REQUIREMENT('R 1. 2', 'Eco-Friendliness Requirement'); #1210=REQUIREMENT_VERSION('1', '', #1200); #1220=REQUIREMENT_VIEW_DEFINITION('1', 'Eco-Friendliness Requirement View Definition', '', #1, (), #1210); #1230=REQUIREMENT_COLLECTION_RELATIONSHIP('', 'is. Compos ed. Of', '', #720, #1220); #10700=REQUIREMENT_VIEW_DEFINITION_RELATION SHIP('10700', 'Derive. Reqt 1', #3220, #8720); OSLC PLM Workgroup 19

PLM Reference Model: Requirements • • #1700=REQUIREMENT('R 1. 2. 1', 'Emissions Requirement'); #1710=REQUIREMENT_VERSION('1', 'The vehicle shall meet Ultra-Low Emissions Vehicle standards. ', #1700); #1720=REQUIREMENT_VIEW_DEFINITION('1', 'Emissions Requirement View Definition', '', #1, (), #1710); #1730=REQUIREMENT_COLLECTION_RELATIONSHIP('', 'is. Compo sed. Of', '', #1220, #1720); #2210=REQUIREMENT_VERSION('2', 'The vehicle shall meet Revised 2016 Ultra-Low Emissions Vehicle standards. ', #1700); #2220=REQUIREMENT_VIEW_DEFINITION('2', 'Emissions Requirement View Definition', '', #1, (), #2210); #2230=REQUIREMENT_COLLECTION_RELATIONSHIP('', 'is. Compo sed. Of', '', #1220, #2220); OSLC PLM Workgroup 20

PLM Reference Model: Requirements #2700=REQUIREMENT('R 1. 2. 1', 'Emissions Requirement'); #2710=REQUIREMENT_VERSION('2', 'The vehicle shall meet Revised 2016 Ultra-Low Emissions Vehicle standards. ', #2700); #2712=PRODUCT_VERSION_RELATIONSHIP('sequence', 'Version Sequence', #1810, #2710); #2720=REQUIREMENT_VIEW_DEFINITION('2', 'Emissions Requirement View Definition', '', #1, (), #2710); #2730=REQUIREMENT_COLLECTION_RELATIONSHIP('', 'is. Compo sed. Of', '', #1320, #2720); #3600=REQUIREMENT('R 1. 2. 1', 'Emissions Requirement'); #3610=REQUIREMENT_VERSION('2', 'The vehicle shall meet Revised 2016 Ultra-Low Emissions Vehicle standards. ', #3600); OSLC PLM Workgroup 21

PLM Reference Model: Requirement Assignment • #114700=REQUIREMENT_ASSIGNMENT('114 700', 'Satisfy 3', #1820, #30120); • #114800=REQUIREMENT_ASSIGNMENT(' 114800', 'Satisfy 4', #2720, #69420); • #115100=REQUIREMENT_ASSIGNMENT(' 115100', 'Satisfy 1', #11520, #30120); • #115200=REQUIREMENT_ASSIGNMENT(' 115200', 'Satisfy 2', #3620, #84420); OSLC PLM Workgroup 22

PLM Reference Model: Classification Assignment • #50=CLASSIFICATION_ASSIGNMENT(# 36, (#10700, #10800, #10900, #11000, #1110 0, #11200, #11300, #11400, #11500), 'Derive Reqt'); • Certain requirements are classified as type “Derive. Reqt” (#36 above OSLC PLM Workgroup 23

System OSLC PLM Workgroup 24

• Overall • Power Control Unit system structure (architecture OSLC PLM Workgroup 25

OSLC PLM Workgroup 26

No. occurring in the assembly #23600=SYSTEM('23600', 'Hybrid. SU V', 'Hybrid. SUV System'); #23610=SYSTEM_VERSION('1', 'Hy brid. SUV System Element Version', #23600); #23620=SYSTEM_VIEW_DEFINITI ON('1', 'Hybrid. SUV System View Definition', '', #1, (), #23610); #23640=VALUE_WITH_UNIT(#2, 1); No. occurring in the assembly OSLC PLM Workgroup What is the origin ? There is no #2 in the file 27

A related System element #30100=SYSTEM('30100', 'Power. Subsyste m', 'Power. Subsystem System'); #30110=SYSTEM_VERSION('1', 'Power. Su bsystem System Element Version', #30100); #30120=SYSTEM_VIEW_DEFINITION('1', ' Power. Subsystem System View Definition', '', #1, (), #30110); #30130=NEXT_ASSEMBLY_USAGE(#236 20, #30120, '', #30140); #30140=VALUE_WITH_UNIT(#2, 1); Origin ? Why NEXT ? OSLC PLM Workgroup 28

OSLC PLM Workgroup 29

OSLC PLM Workgroup 30

1: 1 Arbitrary ? Or is it based on the External Class ? #114700=REQUIREMENT_ASSIGNMENT('114700', 'Satisfy 3', #1820, #30120); #114800=REQUIREMENT_ASSIGNMENT('114800', 'Satisfy 4', #2720, #69420); #115100=REQUIREMENT_ASSIGNMENT('115100', 'Satisfy 1', #11520, #30120); #115200=REQUIREMENT_ASSIGNMENT('115200', 'Satisfy 2', #3620, #84420); OSLC PLM Workgroup How are other interdepencies represented in Sys. ML 3 of 4 here 31

PLM Reference Model: STEP content examples Gathered examples System OSLC PLM Workgroup 32

PLM Reference Model: SYSTEM #21780=SYSTEM('21800', 'Hybrid. SUV System'); #21782=SYSTEM_VERSION('1', 'Hybrid. SUV System Element Version', #21800); #21784=SYSTEM_VIEW_DEFINITION('1', 'Hybrid. SUV System View Definition', '', #1, (), #21782); #21786=SYSTEM_BREAKDOWN('21800', 'Hybrid. SUV System Breakdown'); #21788=SYSTEM_BREAKDOWN_VERSION('1', 'Hybrid. SUV System Breakdown Version', #21786); #21790=BREAKDOWN_OF('1', 'Hybrid. SUV Breakdown', #21788, #21784); #21792=SYSTEM_BREAKDOWN_CONTEXT('1', 'Hybrid. SUV Breakdown Context', #21788, #21820); #21810=SYSTEM_ELEMENT_VERSION('1', 'Hybrid. SUV System Element Version', #21800); #21820=SYSTEM_ELEMENT_DEFINITION('1', 'Hybrid. SUV System Element Definition', '', #1, (), #21810); OSLC PLM Workgroup 33

PLM Reference Model: System element and its relationships #26900=SYSTEM_ELEMENT('26900', 'Fuel System Element'); #26910=SYSTEM_ELEMENT_VERSION('1', 'Fuel System Element Version', #26900); #26920=SYSTEM_ELEMENT_DEFINITION('1', 'Fu el System Element Definition', '', #1, (), #26910); #26930=SYSTEM_ELEMENT_USAGE('1', 'Fuel System Element Usage', #21820, #26920, 'Fuel'); OSLC PLM Workgroup 34

PLM Reference Model: Additional relationships REQUIREMENT_VIEW_DEFINITION to SYSTEM_ELEMENT_DEFINITION #94700=REQUIREMENT_ASSIGNMENT('9 4700', 'Satisfy 3', #1720, #27820); #94800=REQUIREMENT_ASSIGNMENT('9 4800', 'Satisfy 4', #2220, #67120); #95100=REQUIREMENT_ASSIGNMENT('9 5100', 'Satisfy 1', #9720, #27820); OSLC PLM Workgroup 35

Other OSLC PLM Workgroup 36

PLM Reference Model: ACTIVITY performed • #90=APPLIED_ACTIVITY_ASSIGNMENT (#22, (#700, #710, #720, – XMI extract from TOPcased OSLC PLM Workgroup 37

PLM Reference Model: ORGANISATIONAL ownership • #80=ORGANIZATION_OR_PERSON_IN_ ORGANIZATION_ASSIGNMENT(#16, 'cre ator', (#700, #710, #720, OSLC PLM Workgroup 38

Changes • V 0. 1 Used during Gray/Ian working session • V 0. 2/0. 3 Consolidate to post OSLC PLM Workgroup 39
