Ventilator Modes & RN Role of Ventilator Patients in ICU Microteaching Project ICU Clinical Pre-Conference By Tiffany Potter, RN, BSN, CCRN

Objectives Ø Comprehend the purpose of different ventilator modes and settings and apply to patient case study. Ø Apply ABG interpretation knowledge to case study and adjust vent settings accordingly. Ø Identify important nursing implications when taking care of a patient on a ventilator. Ø Demonstrate understanding of ventilator settings, modes, and the nursing role during this ICU clinical experience.

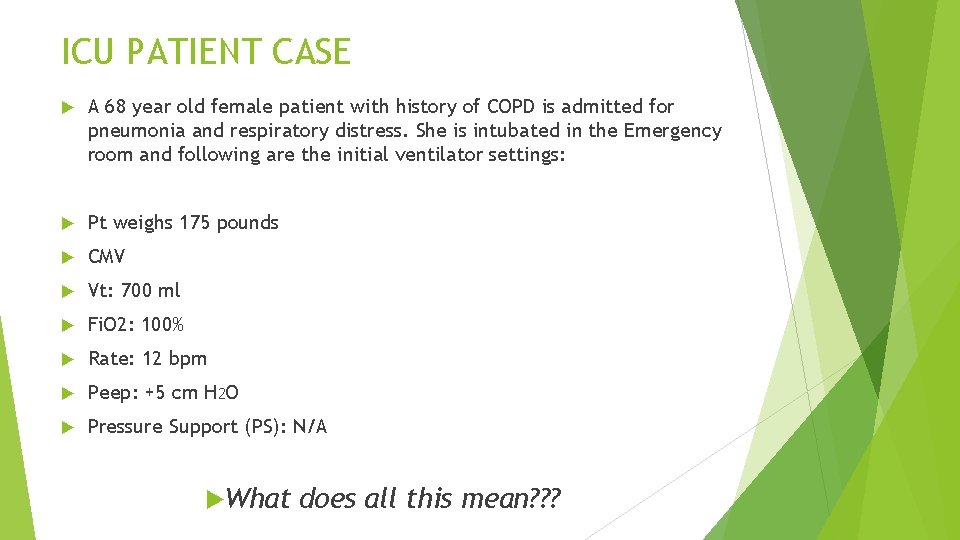

ICU PATIENT CASE A 68 year old female patient with history of COPD is admitted for pneumonia and respiratory distress. She is intubated in the Emergency room and following are the initial ventilator settings: Pt weighs 175 pounds CMV Vt: 700 ml Fi. O 2: 100% Rate: 12 bpm Peep: +5 cm H 2 O Pressure Support (PS): N/A What does all this mean? ? ?

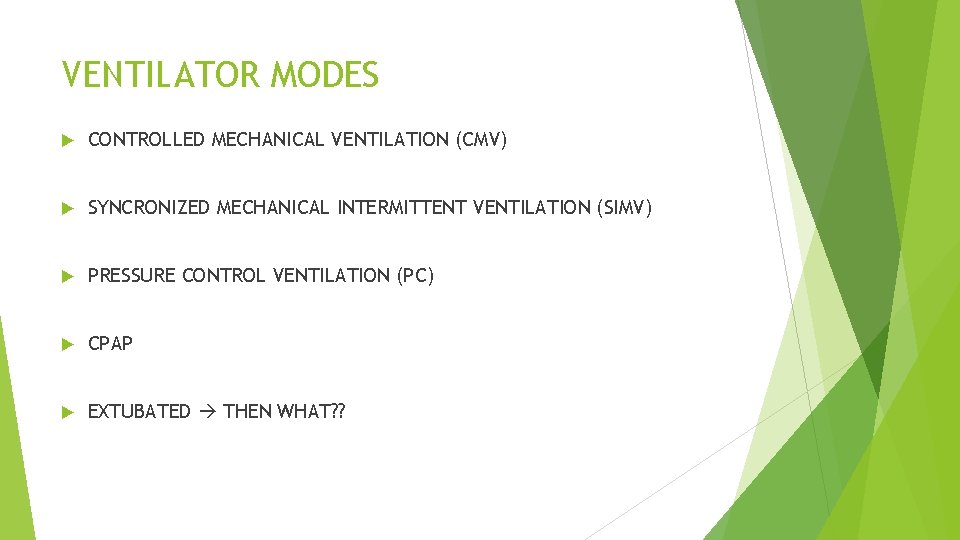

VENTILATOR MODES CONTROLLED MECHANICAL VENTILATION (CMV) SYNCRONIZED MECHANICAL INTERMITTENT VENTILATION (SIMV) PRESSURE CONTROL VENTILATION (PC) CPAP EXTUBATED THEN WHAT? ?

VENTILATOR SETTINGS MODE: a preprogramed settings that tells the ventilator how to oxygenate the patient Vt (Tidal Volume): How big a breath the lungs need to fully inflate. This is weight based and calculated, ~8 -10 ml/kg. In our example, pt weigh 80 kgs, so her needed Vt is ~650 -700 ml. Fi. O 2: Oxygen requirement in percentage (ex. 40%, 80%, 100%) Rate: how many breaths per minute the patient needs a breath PEEP: positive end expiratory pressure Pressure Support (PS): a small “boost” or “step stool” of breath to help the patient get to their full tidal volume for best alveoli inflation and gas exchange potential.

CONTROLLED MECHANICAL VENTILATION (CMV) It gives the patient a set tidal volume at a set time with almost no variation. The vent is “essentially blind” to the what the patient is doing. The patient’s with this type of ventilation are fully sedated, sometime paralyzed for medical is a good se therapy, and not taking any breaths on their own. It is a setting to allow the patient’s lungs to “rest”. Vent Orders: Pt weighs 175 pounds CMV Vt: 700 ml Our patient example: Fi. O 2: 100% Rate: 14 bpm Peep: +5 cm H 2 O Pressure Support (PS): N/A

About 30 minutes after Initially intubation…. Blood gases are collected analyzed…. Here are her initial blood gases: p. H: 7. 25 Pa. CO 2: 82 HCO 3: 24 PO 2: 180 Base Excess: -1. 8 Critical Thinking Discussion: What’s your interpretation of her blood gases? What needs changing? What else do you want to know?

SYNCHRONIZED INTERMITTENT MECHANICAL VENTILATION (SIMV) Three days later, our female patient is improving and is beginning to start the weaning process. The physician changes the ventilator orders to this: SIMV Vt: 700 ml Fi. O 2 40% Rate: 10 PEEP: +5 mm. Hg PS: 10

SYNCHRONIZED INTERMITTENT MECHINICAL VENTILATION (SIMV) This mode coordinates with the patient, so the patient is beginning to do more of the work of breathing. The patient will still have the same set tidal volume (how big a breath the machine gives them), but the machine will also recognize when the patient is taking a breath. The patient will likely be a slightly lower amount of sedation. Breathing waveform…. PATIENT BREATH!

What’s PS? ? SIMV Vt: 700 ml Fi. O 2 40% Rate: 10 PEEP: +5 mm. Hg PS: 10 Pressure Support (PS): a small “boost” or “step stool” of breath to help the patient get to their full tidal volume for best alveoli inflation and gas exchange potential. Critical Thinking Discussion HOW DOES PS BENEFIT THE PATIENT? WHAT WOULD HAPPEN IF THERE WASNO PRESSURE SUPPORT?

AGAIN ABOUT 30 -45 MINUTES AFTER ANY CHANGES, NEW BLOOD GASES ARE (USUALLY) COLLECTED…. . New Blood Gas Results: p. H: 7. 34 Pa. Co 2: HCO 3: O 2: 98 55 24 Critical Thinking Discussion: What’s your interpretation of her blood gases? What needs changing? What else do you want to know?

Continued Weaning…. Pt is doing well on last change. RR 12 -20 depending on rest. Two days later, the patient is cooperative, tolerating the vent, and CXR is improved after the last 5 days of antibiotics. Now what? ? Physician rounds and makes more vent changes. New Orders: CPAP Fi. O 2 40% PEEP: +5 cm H 2 O

Continuous Positive Airway Pressure (CPAP) Critical Thinking : How else do you know CPAP? OSA: CPAP at home is External and bleeds in room air or in some cases oxygen if the patient needs it. CPAP mode: Similar except it is Invasive via the OETT. This is essentially like a “test” mode to see if the patient is ready for extubation. Intubation is very traumatic to larynx, vocal cords, and trachea.

Ready for Extubation? ? Our female patient is responsive, follows commands, is calm with minimal sedation. She is breathing 12 -18 bpm on the vent, and maintain a Sa. O 2 of 9597%. Her lung sounds are clear. Let’s extubate…. . to what? Which of the following modalities would be best? Why? ? A. 100% Non-rebreather B. 80% Partial rebreather C. 50% Venti Mask D. 6 L Nasal Cannula E. 4 L Nasal Cannula F. 2 L Nasal Cannual G. Room Air

Pressure Control Ventilation Let’s change our patient’s lung condition from COPD to pulmonary fibrosis or Adult Respiratory Distress Syndrome (ARDS). This conditions make the lung very FRIABLE, FRAGILE, STIFF, AND DIFFCULT TO VENTILATE. Control mode ventilation we have discussed will likely not benefit this situation. Pressure Control Ventilation sets the Inspiratory Pressure and Expiratory Pressure. It does not use Tidal Volume. PC Inspiratory Pressure (I: 15) PC Expiratory Pressure (E: 5), just like PEEP as you already know. Fi. O 2: 60%, or whatever is necessary to keep Sa. O 2 > 92%. Rate: 14 -18. No Tidal Volume, No Pressure Support! Simila r to Invasi ve Bi. PAP

Nursing Role: Patients on Ventilators Stay in collaboration with your Respiratory Therapist…. Learn to read CXR. Monitor Sa. O 2, Respiratory Rate q 1 h. Observe how patient is breathing. Follow vent changes. Respiratory Therapist will round on these patient q 2 hours and give treatments q 4 h and PRN. Learn how to read where an OETT is taped, and how to listen for an “air leak”. Get to know breathing medications and their side effects even if you aren’t administering them. Some can cause tachycardia & tremors! Listen to BS at least q 2 h.

Nursing Role: Patient on Ventilators Mouth Care q 2 -4 hours. Learn how to suction and perform q 2 h and PRN. Do not irrigate OETT with saline prior to suctioning. Assess secretions (Color, Consistency, Amount) and document. Monitor and document for changes in these secretions. Turn patient q 2 h and learn if the patient’s bed has kinetic therapy. Educate family on coughing. . …It’s going to happen!

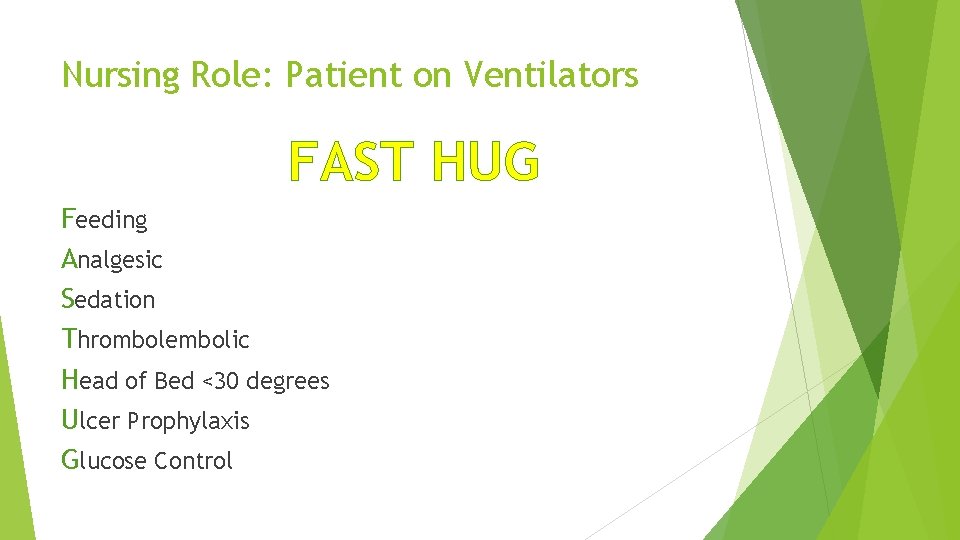

Nursing Role: Patient on Ventilators FAST HUG Feeding Analgesic Sedation Thrombolembolic Head of Bed <30 degrees Ulcer Prophylaxis Glucose Control
