Unit 9 Lesson 2 Find Arc Measures And

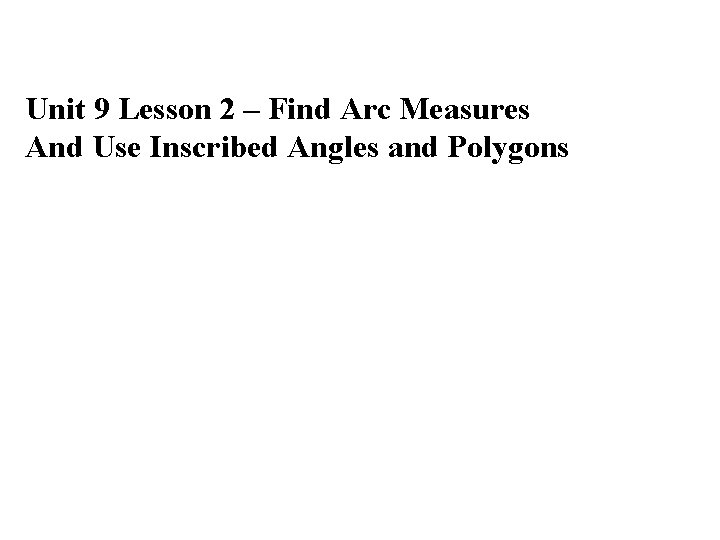

Unit 9 Lesson 2 – Find Arc Measures And Use Inscribed Angles and Polygons

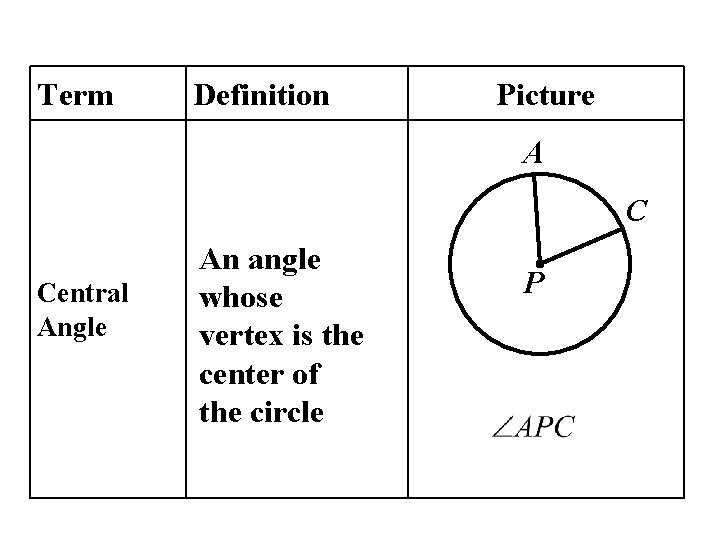

Term Definition Picture A C Central Angle An angle whose vertex is the center of the circle P

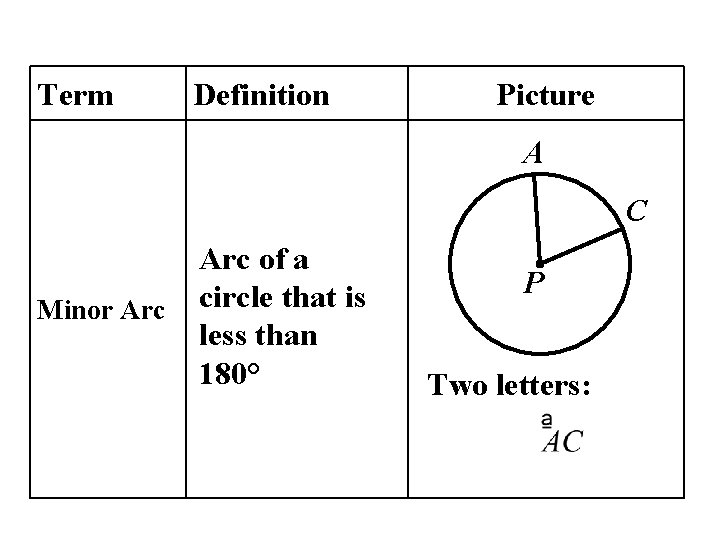

Term Definition Picture A C Minor Arc of a circle that is less than 180° P Two letters:

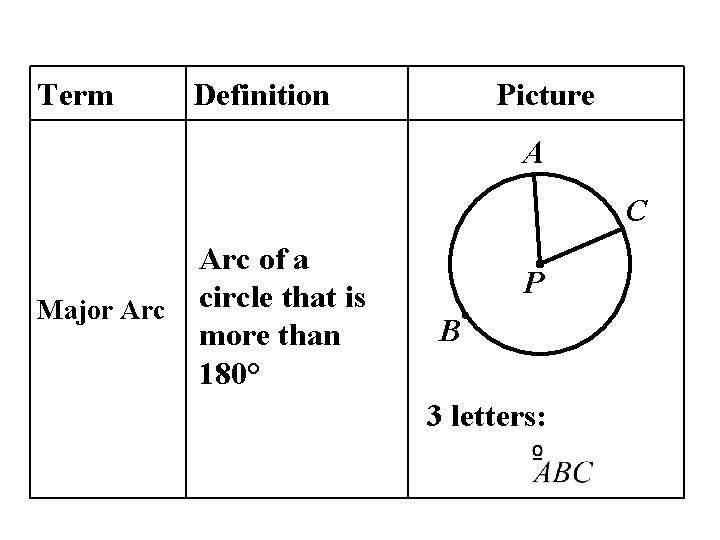

Term Definition Picture A C Major Arc of a circle that is more than 180° P B 3 letters:

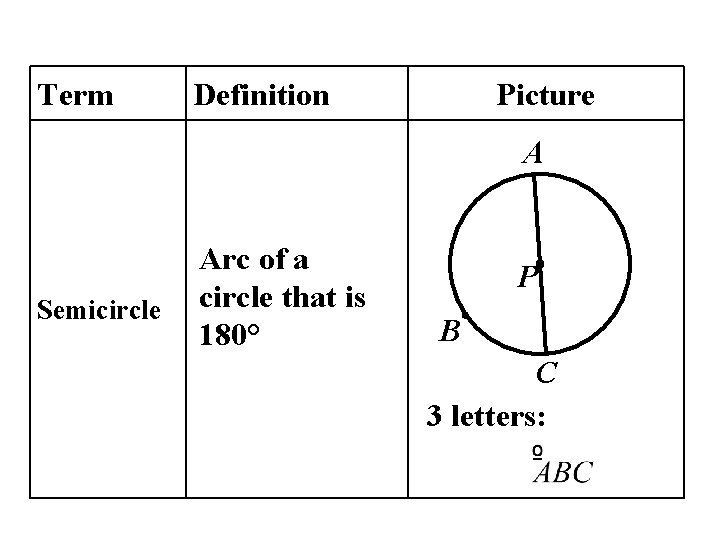

Term Definition Picture A Semicircle Arc of a circle that is 180° P B C 3 letters:

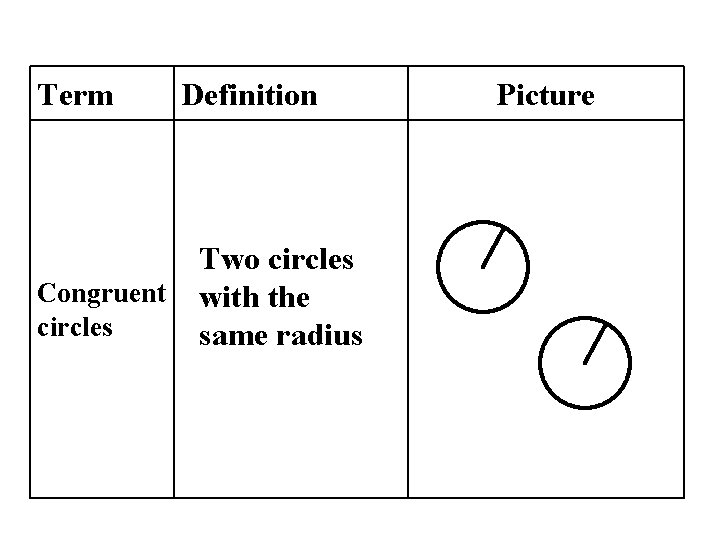

Term Congruent circles Definition Two circles with the same radius Picture

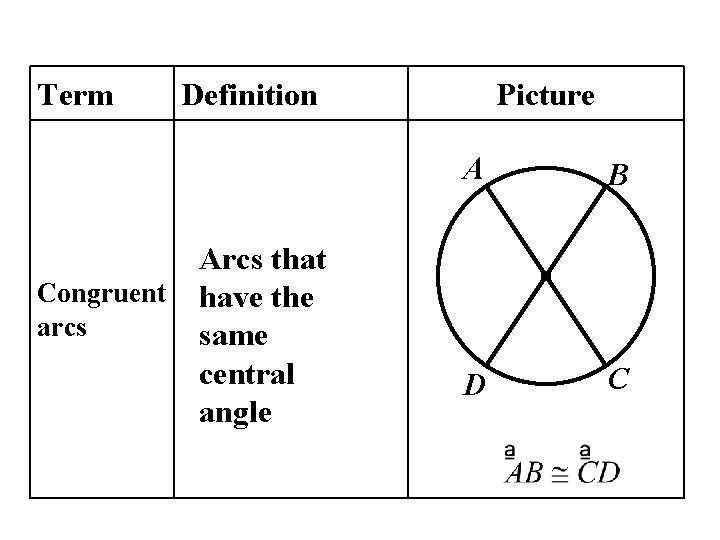

Term Congruent arcs Definition Arcs that have the same central angle Picture A B D C

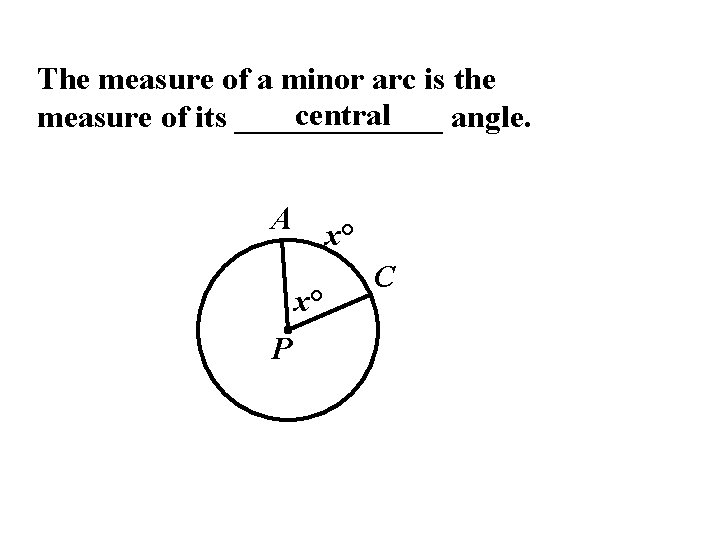

The measure of a minor arc is the central measure of its _______ angle. A x° x° P C

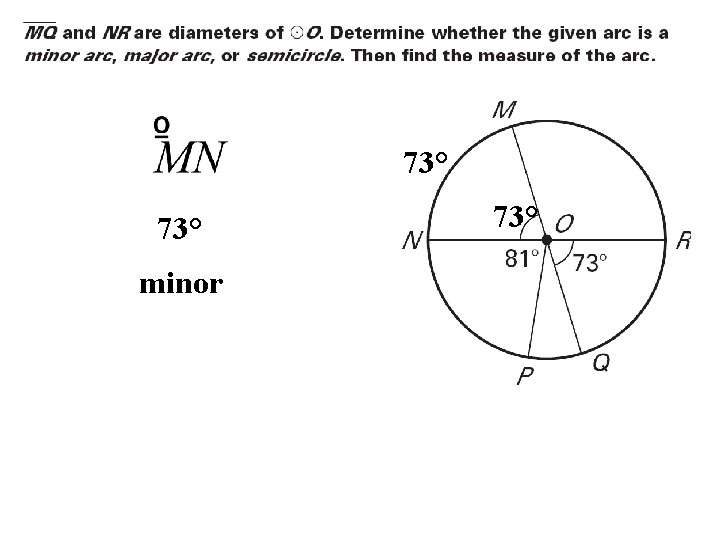

73° minor 73°

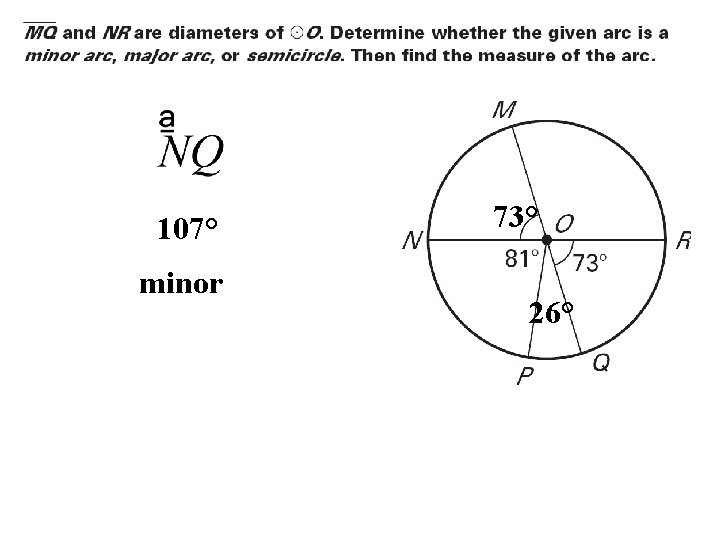

107° minor 73° 26°

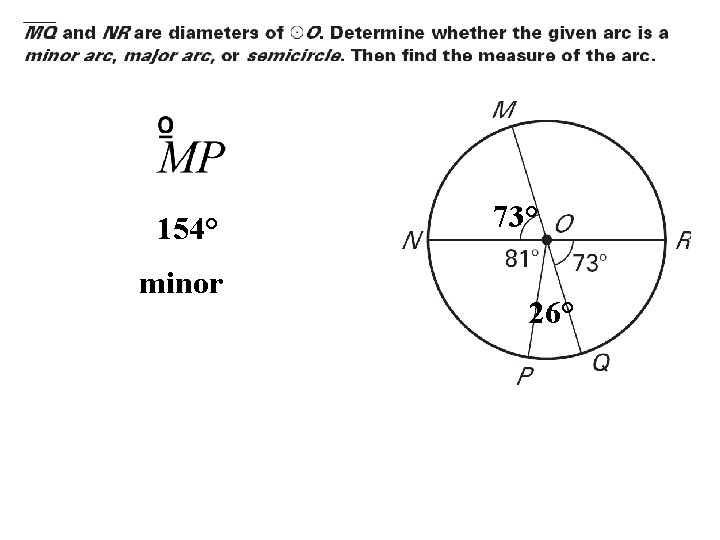

154° minor 73° 26°

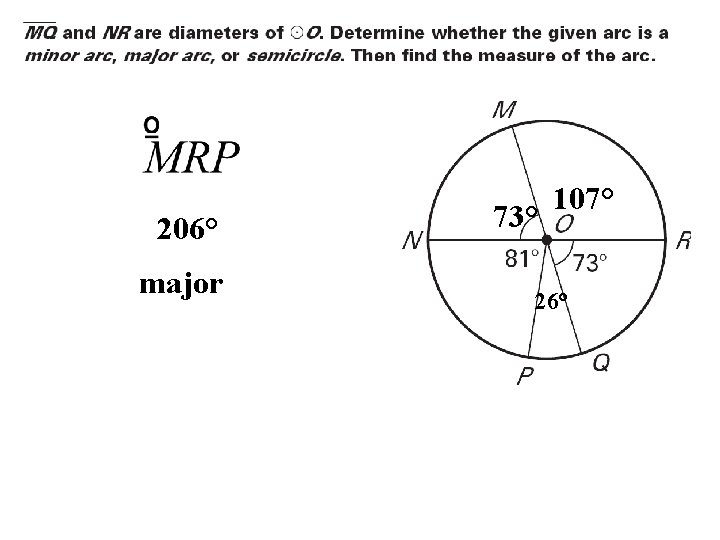

206° major 73° 107° 26°

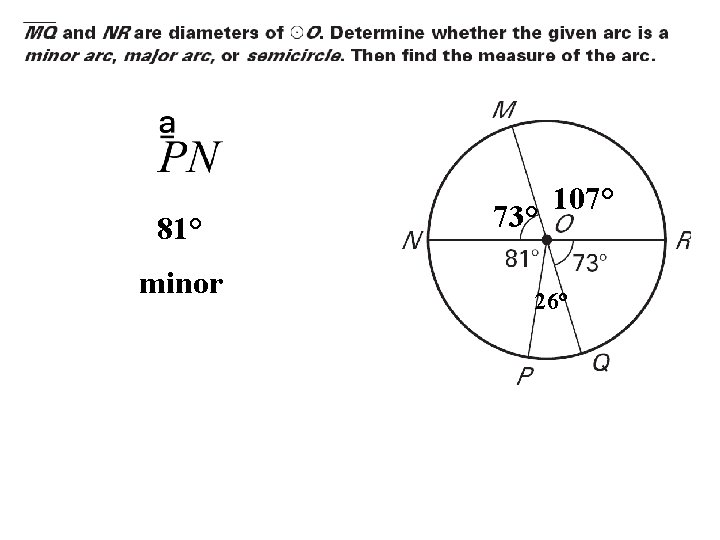

81° minor 73° 107° 26°

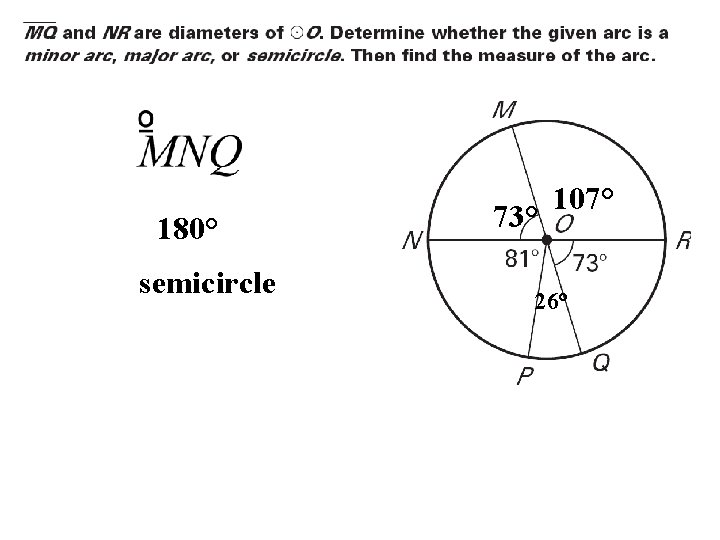

180° semicircle 73° 107° 26°

180° Semicircle 73° 107° 26°

287° major 73° 107° 26°

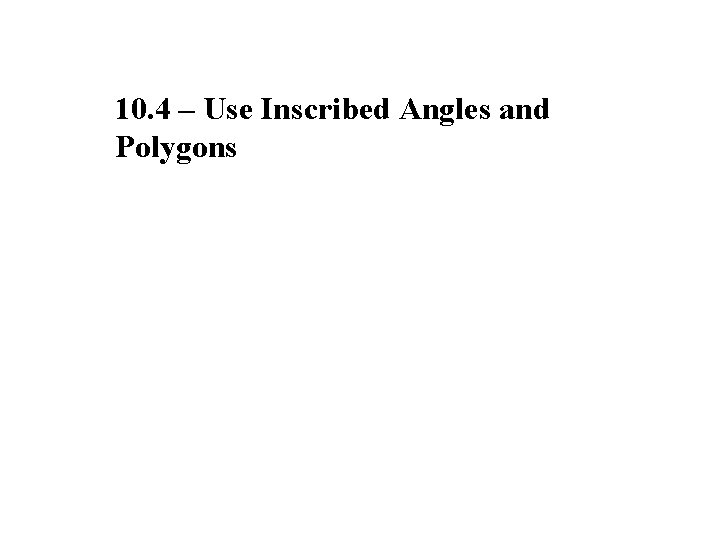

10. 4 – Use Inscribed Angles and Polygons

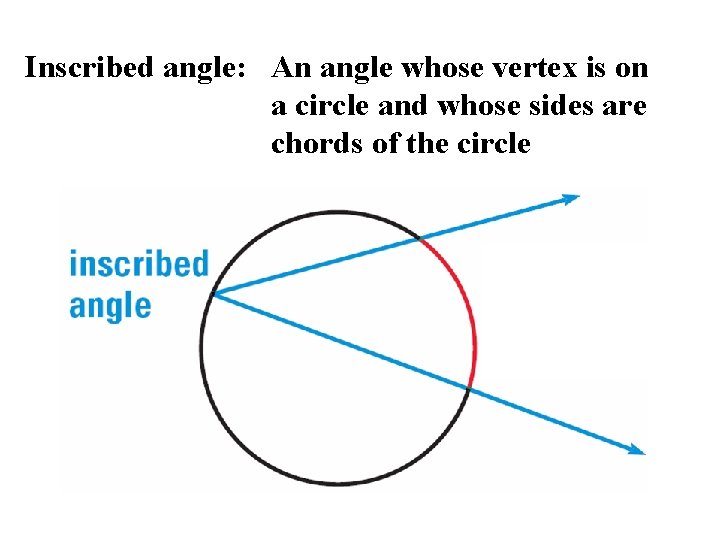

Inscribed angle: An angle whose vertex is on a circle and whose sides are chords of the circle

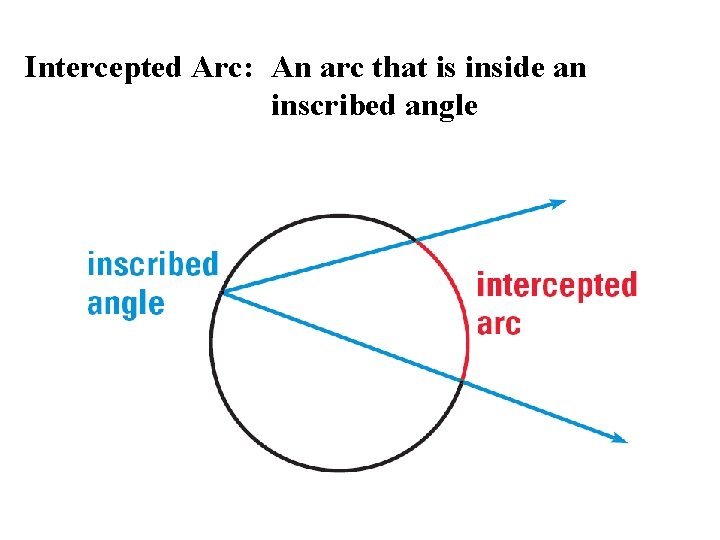

Intercepted Arc: An arc that is inside an inscribed angle

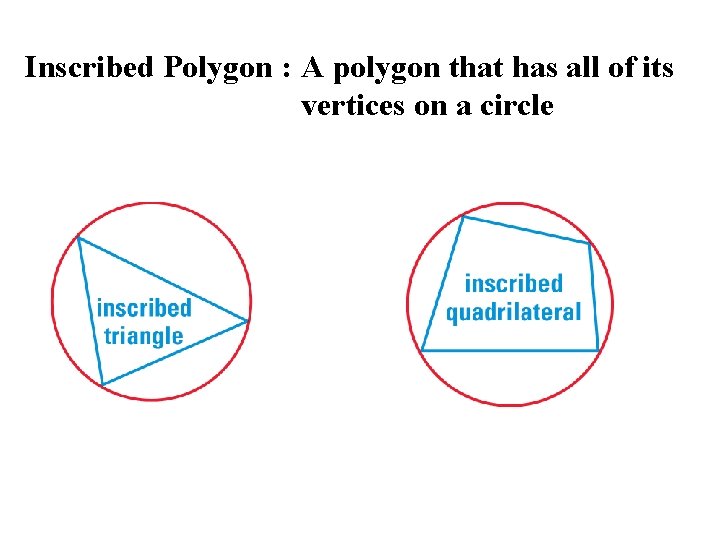

Inscribed Polygon : A polygon that has all of its vertices on a circle

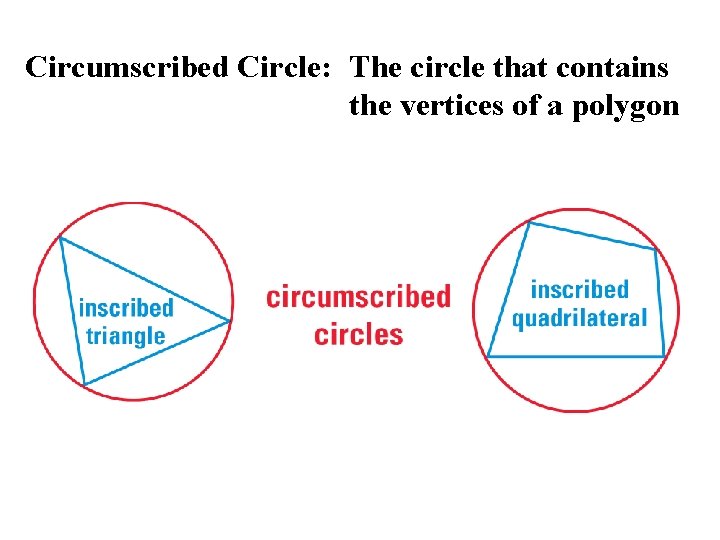

Circumscribed Circle: The circle that contains the vertices of a polygon

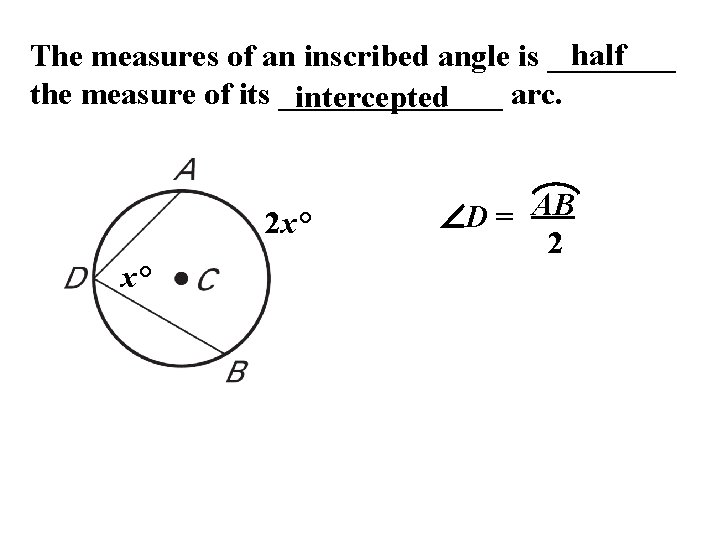

half The measures of an inscribed angle is ____ the measure of its _______ arc. intercepted 2 x° x° D = AB 2

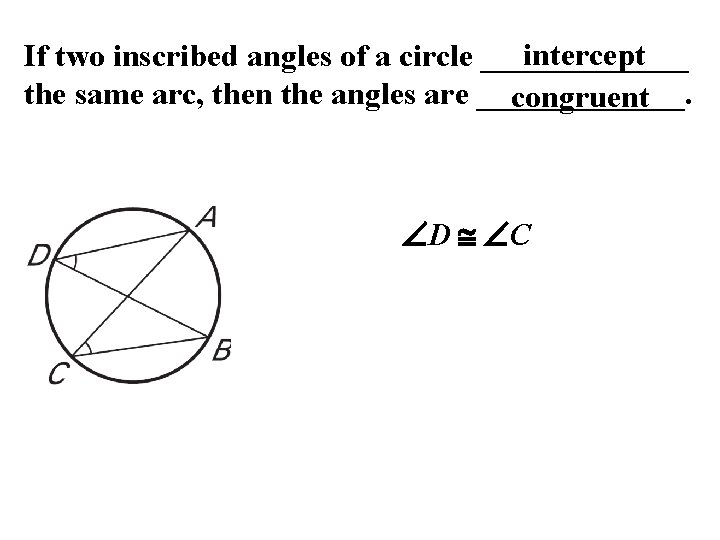

intercept If two inscribed angles of a circle _______ the same arc, then the angles are _______. congruent D C

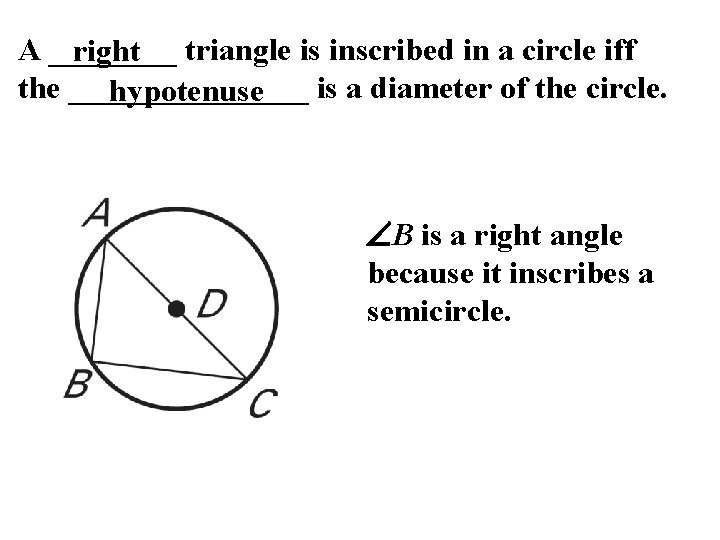

A ____ right triangle is inscribed in a circle iff the ________ is a diameter of the circle. hypotenuse B is a right angle because it inscribes a semicircle.

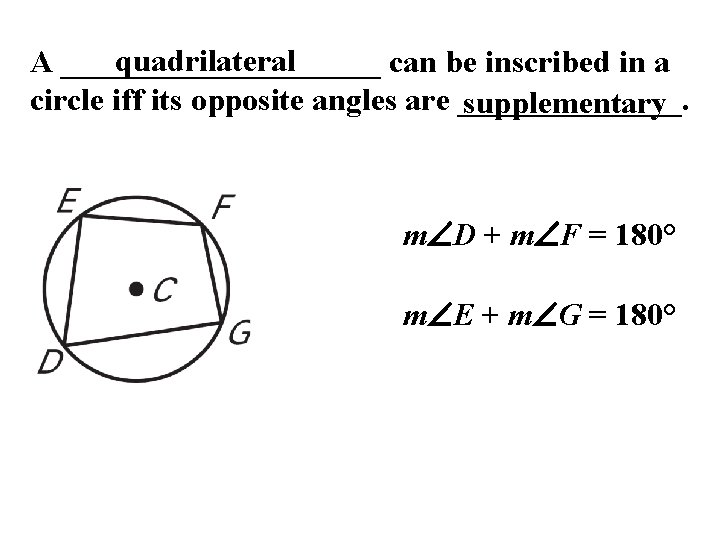

quadrilateral A __________ can be inscribed in a circle iff its opposite angles are _______. supplementary m D + m F = 180° m E + m G = 180°

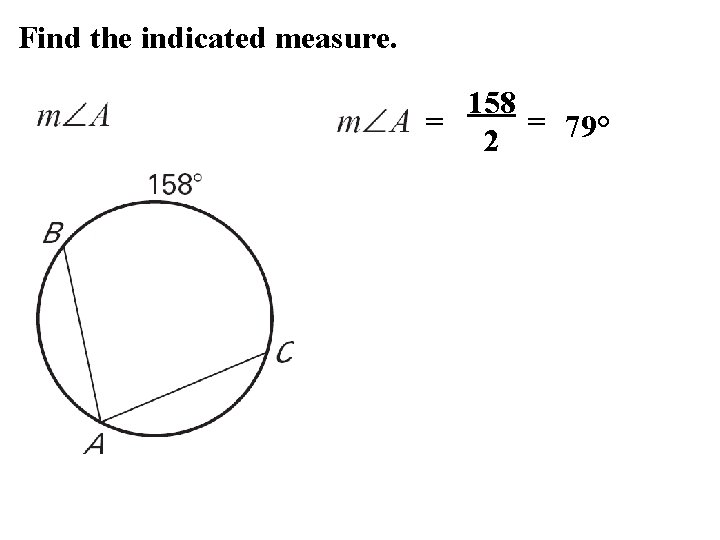

Find the indicated measure. 158 = = 79° 2

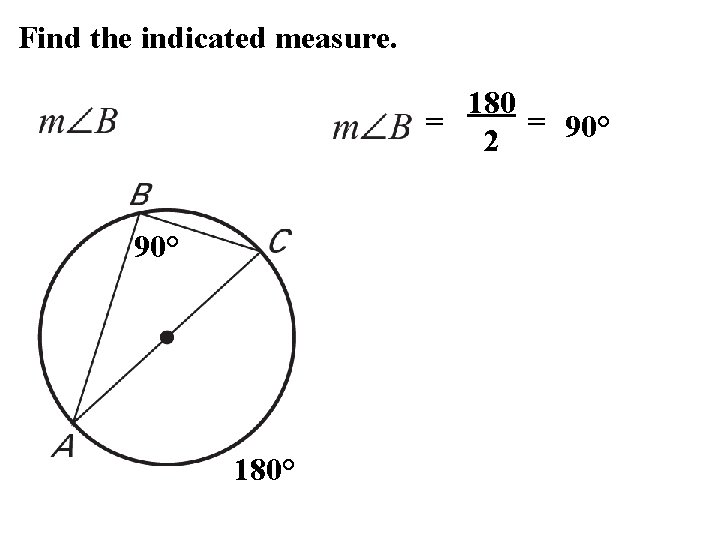

Find the indicated measure. 180 = = 90° 2 90° 180°

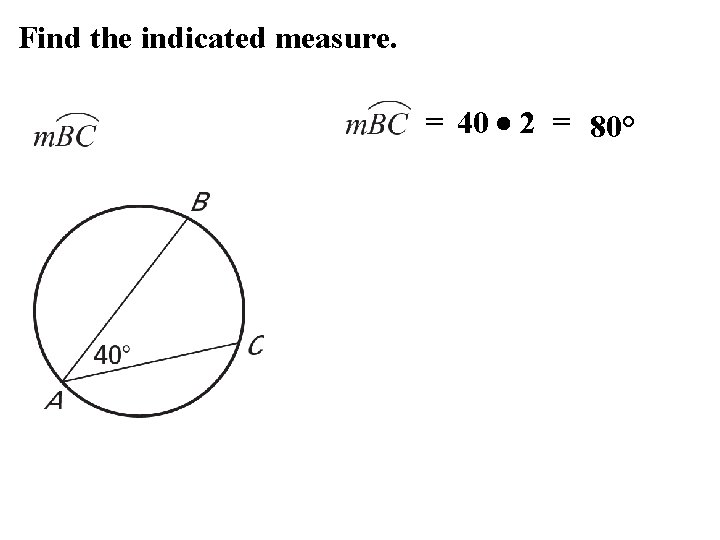

Find the indicated measure. = 40 2 = 80°

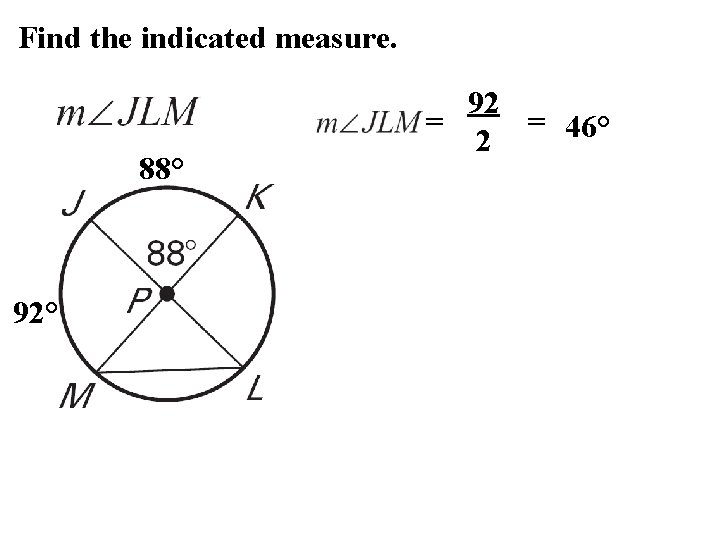

Find the indicated measure. 88° 92 = = 46° 2

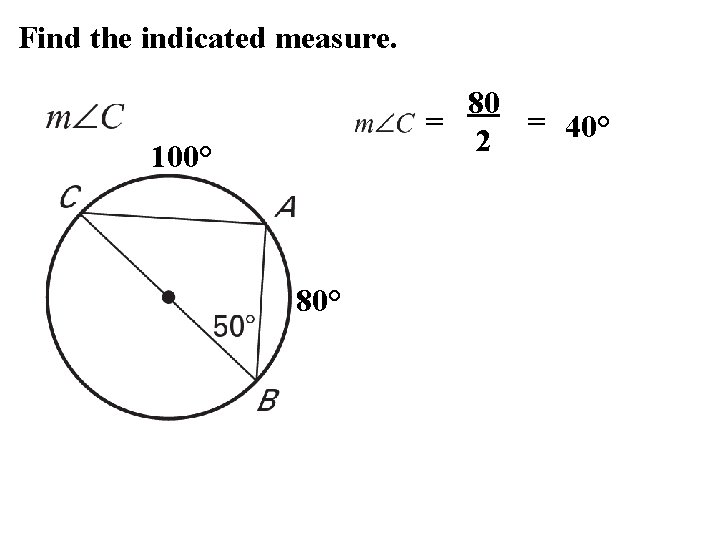

Find the indicated measure. 80 = = 40° 2 100° 80°

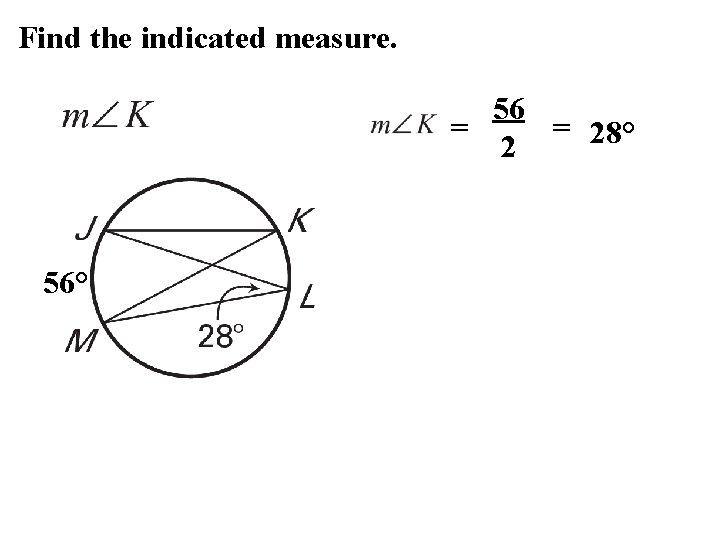

Find the indicated measure. 56 = = 28° 2 56°

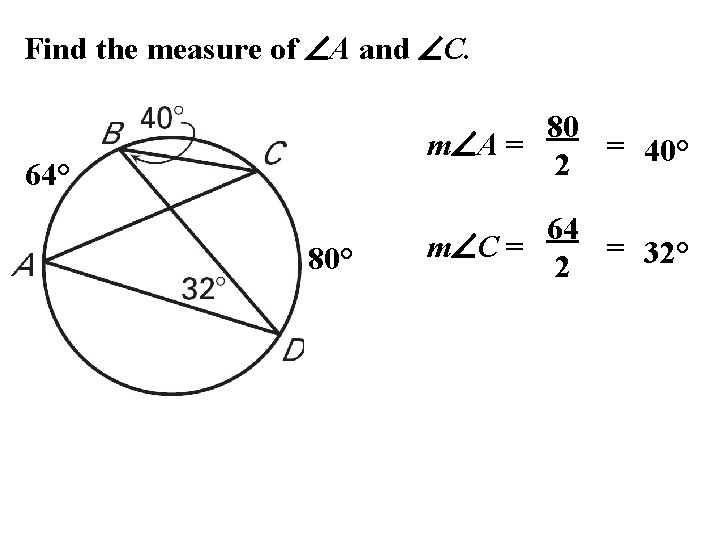

Find the measure of A and C. 80 m A = = 40° 2 64° 80° 64 m C = = 32° 2

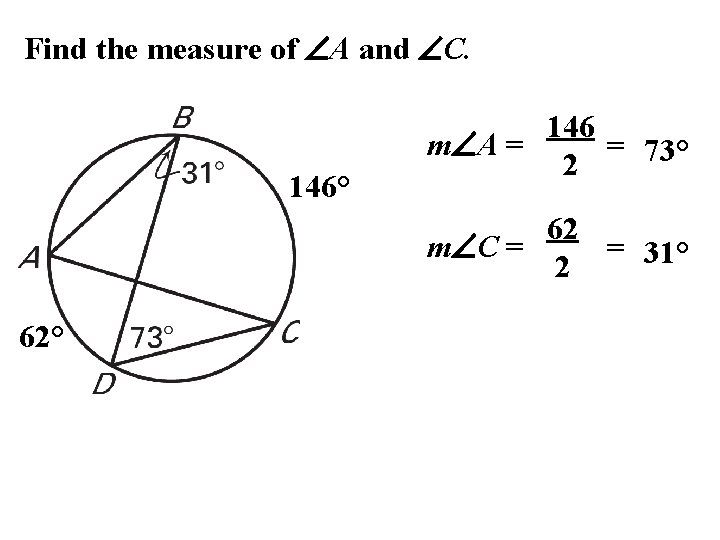

Find the measure of A and C. 146° 146 m A = = 73° 2 62 m C = = 31° 2 62°

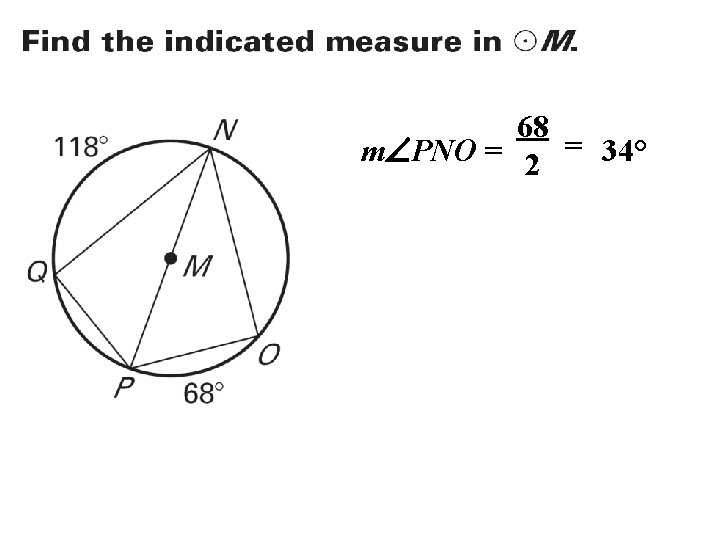

68 m PNO = 2 = 34°

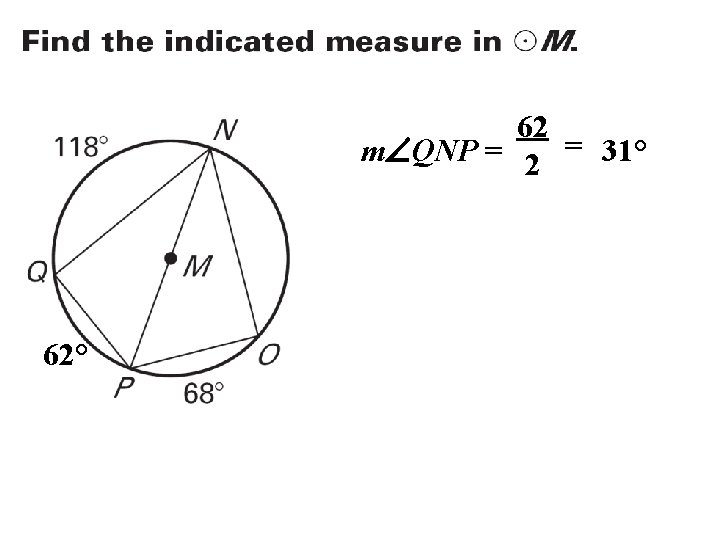

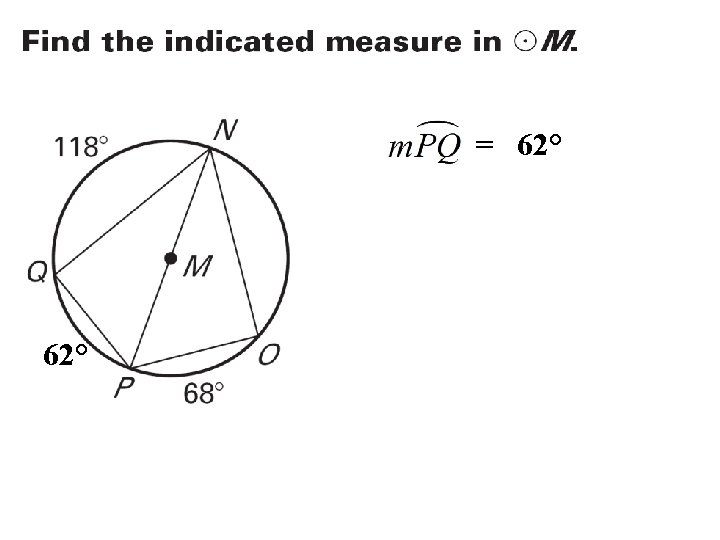

62 m QNP = 2 = 31° 62°

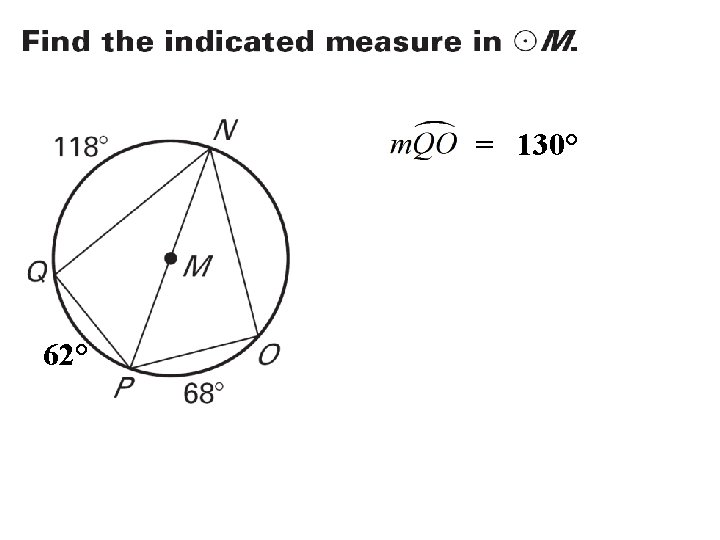

= 130° 62°

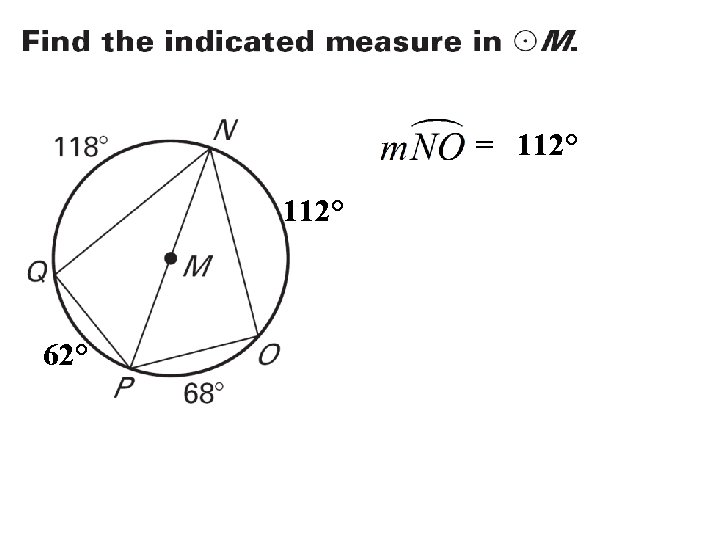

= 112° 62°

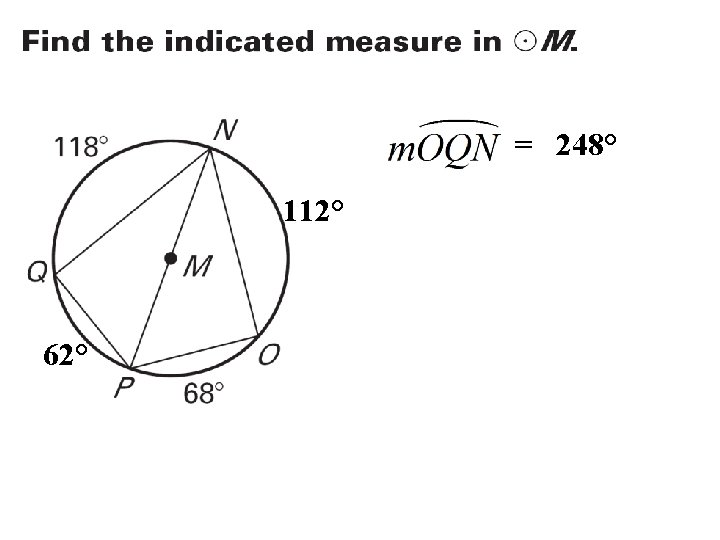

= 248° 112° 62°

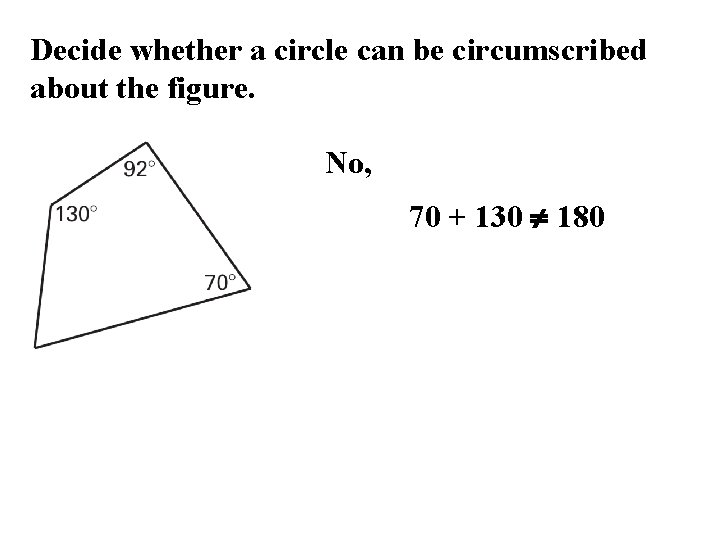

Decide whether a circle can be circumscribed about the figure. No, 70 + 130 180

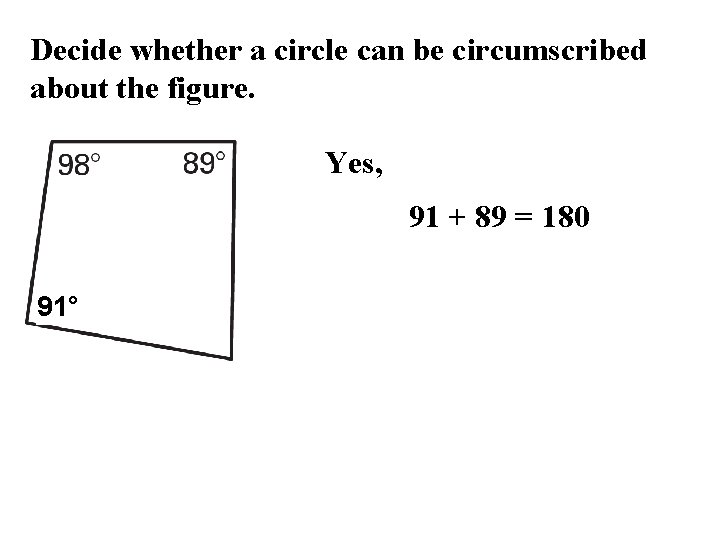

Decide whether a circle can be circumscribed about the figure. Yes, 91 + 89 = 180 91°

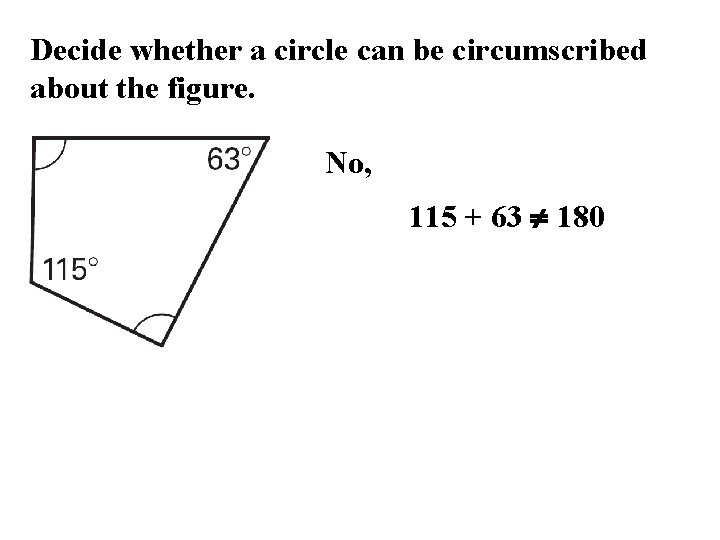

Decide whether a circle can be circumscribed about the figure. No, 115 + 63 180

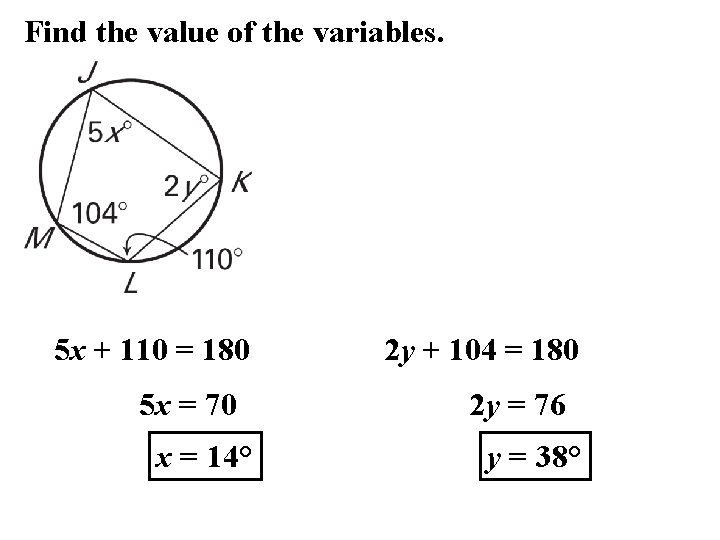

Find the value of the variables. 5 x + 110 = 180 5 x = 70 x = 14° 2 y + 104 = 180 2 y = 76 y = 38°

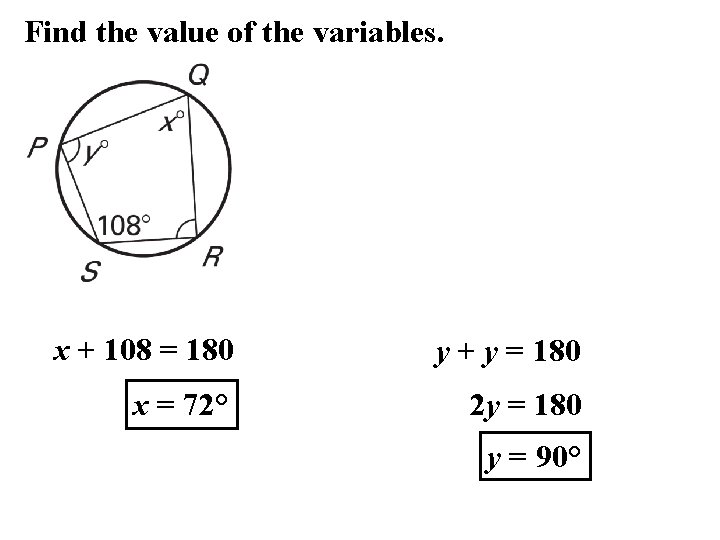

Find the value of the variables. x + 108 = 180 y + y = 180 x = 72° 2 y = 180 y = 90°

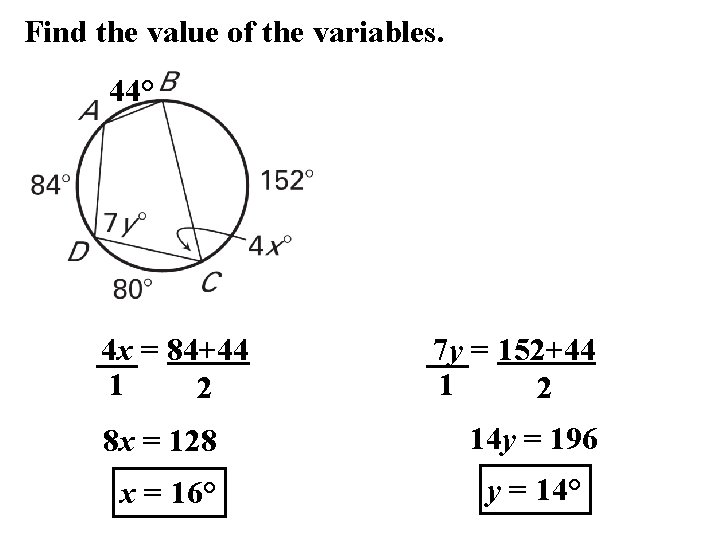

Find the value of the variables. 44° 4 x = 84+44 1 2 7 y = 152+44 1 2 8 x = 128 14 y = 196 x = 16° y = 14°

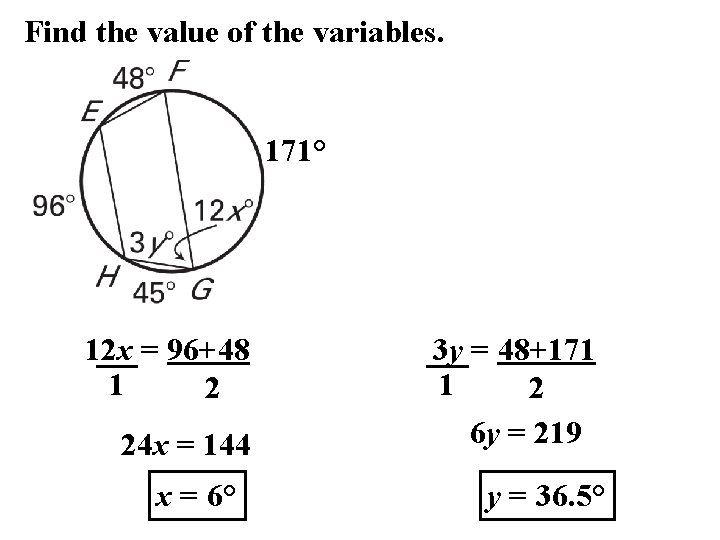

Find the value of the variables. 171° 12 x = 96+48 1 2 24 x = 144 x = 6° 3 y = 48+171 1 2 6 y = 219 y = 36. 5°

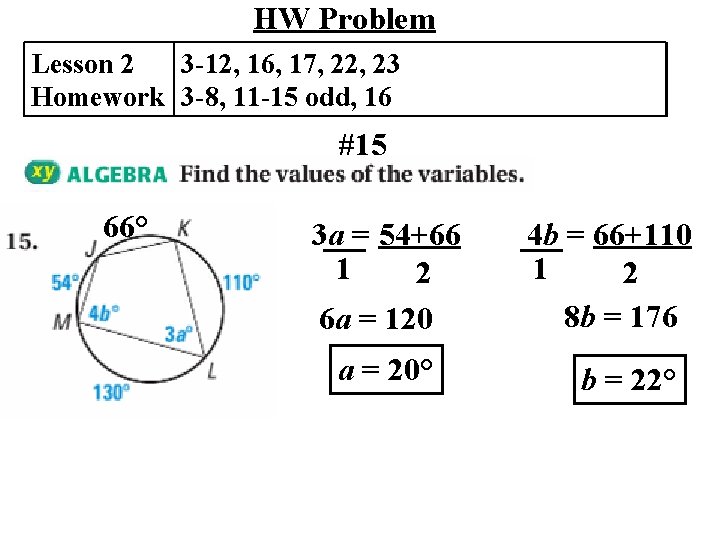

HW Problem Lesson 2 3 -12, 16, 17, 22, 23 Homework 3 -8, 11 -15 odd, 16 #15 66° 3 a = 54+66 1 2 6 a = 120 a = 20° 4 b = 66+110 1 2 8 b = 176 b = 22°
