Angle Relationships & Parallel Lines Pre-Algebra

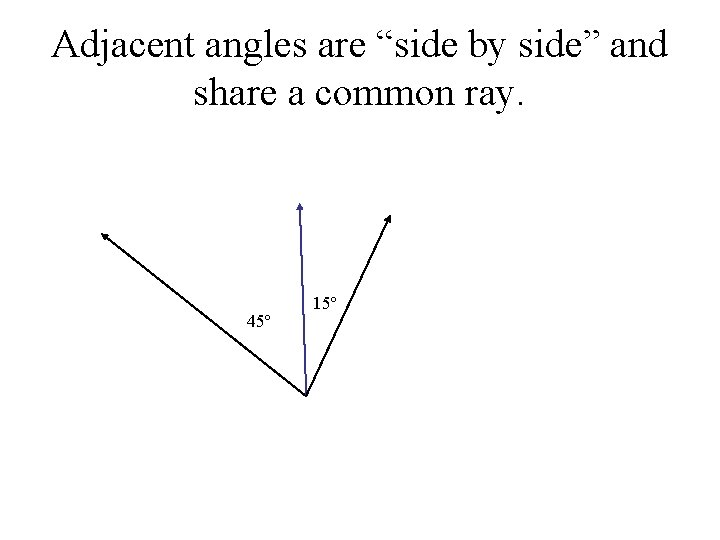

Adjacent angles are “side by side” and share a common ray. 45º 15º

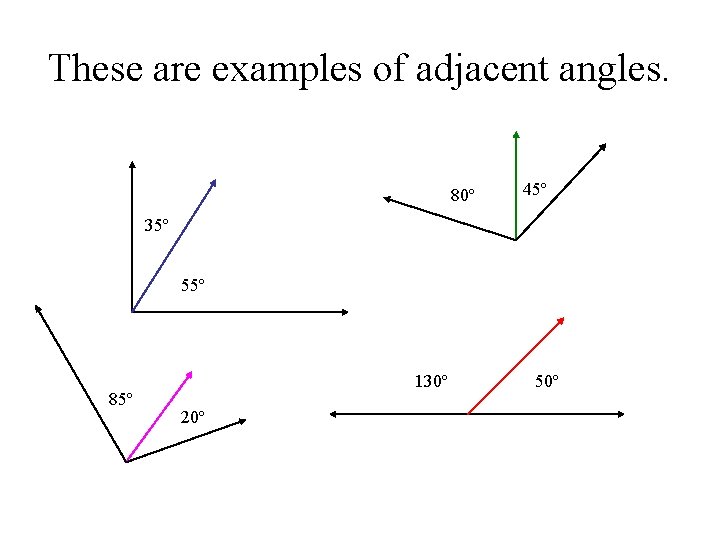

These are examples of adjacent angles. 80º 45º 35º 55º 85º 130º 20º 50º

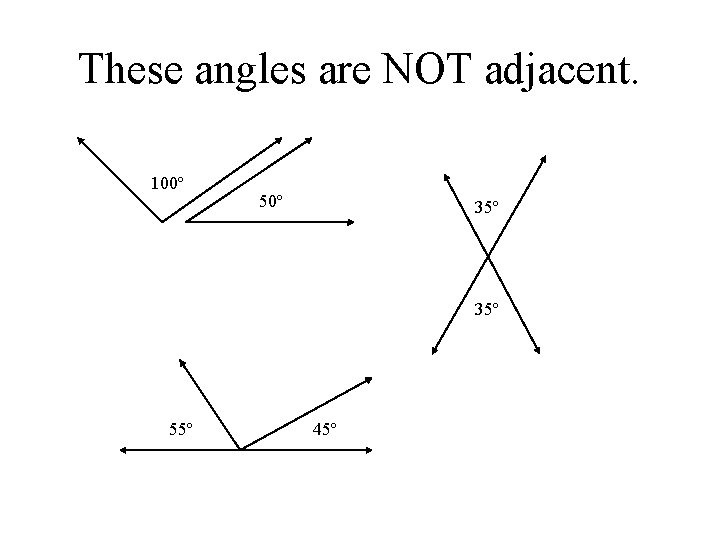

These angles are NOT adjacent. 100º 50º 35º 55º 45º

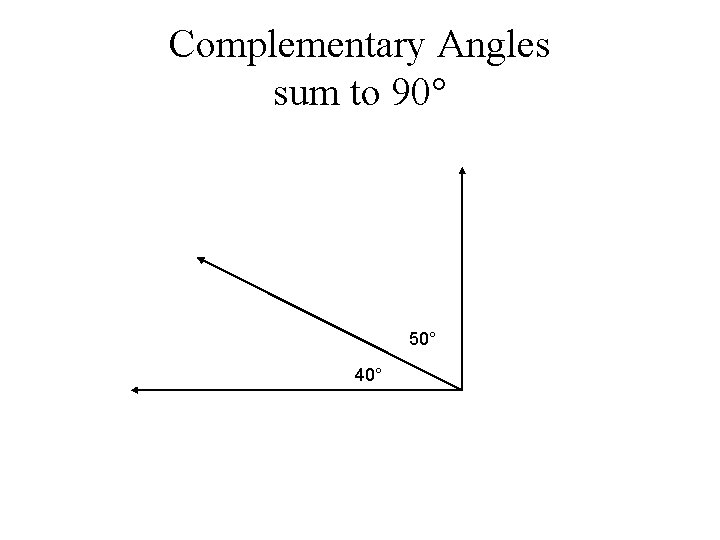

Complementary Angles sum to 90° 50° 40°

Complementary angles add up to 90º. 30º 40º 60º Adjacent and Complementary Angles 50º Complementary Angles but not Adjacent

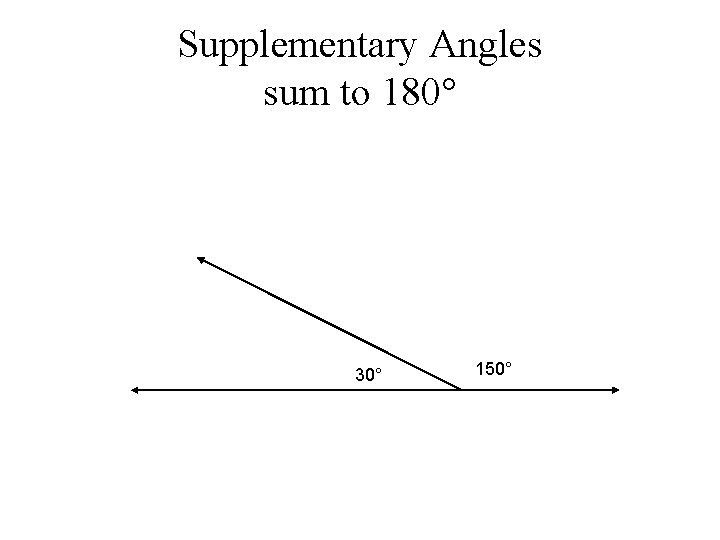

Supplementary Angles sum to 180° 30° 150°

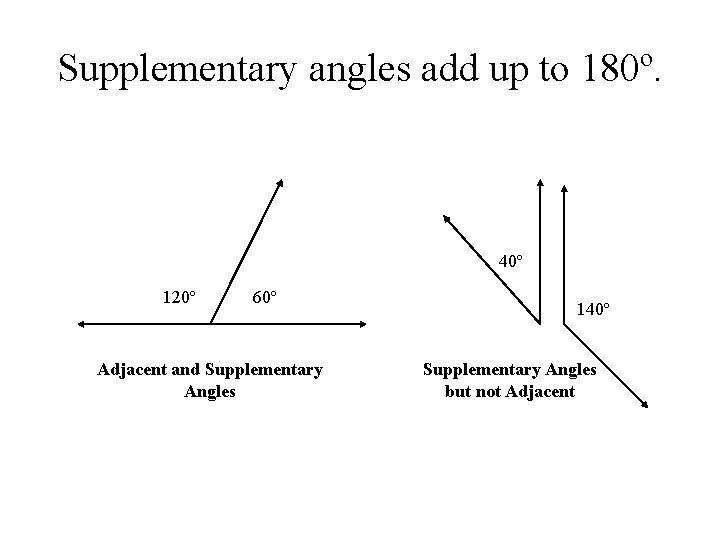

Supplementary angles add up to 180º. 40º 120º 60º Adjacent and Supplementary Angles 140º Supplementary Angles but not Adjacent

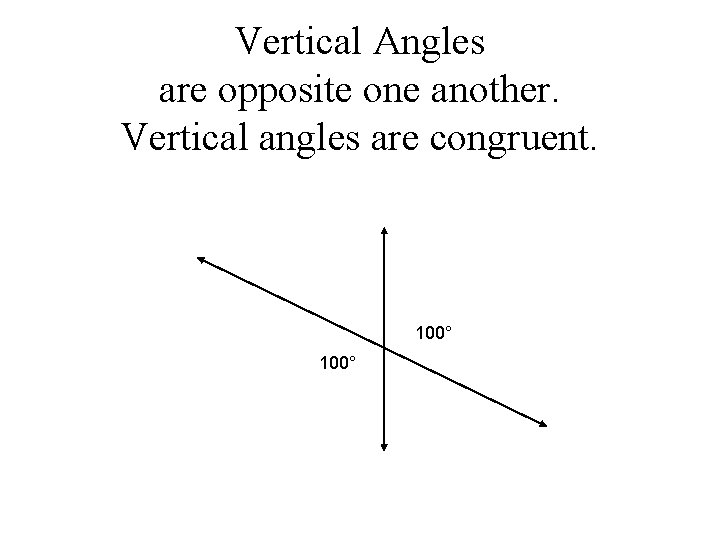

Vertical Angles are opposite one another. Vertical angles are congruent. 100°

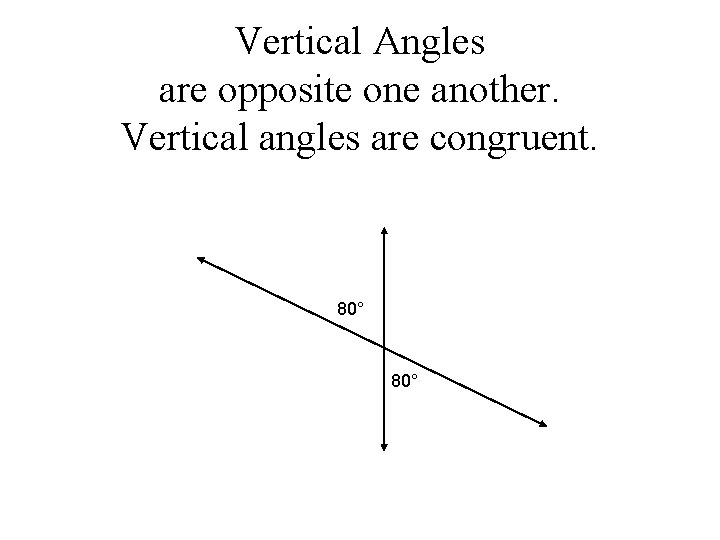

Vertical Angles are opposite one another. Vertical angles are congruent. 80°

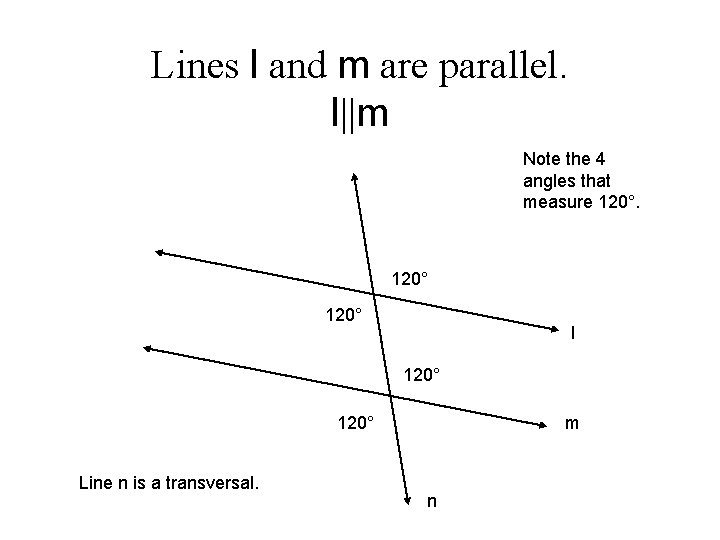

Lines l and m are parallel. l||m Note the 4 angles that measure 120° l 120° Line n is a transversal. m n

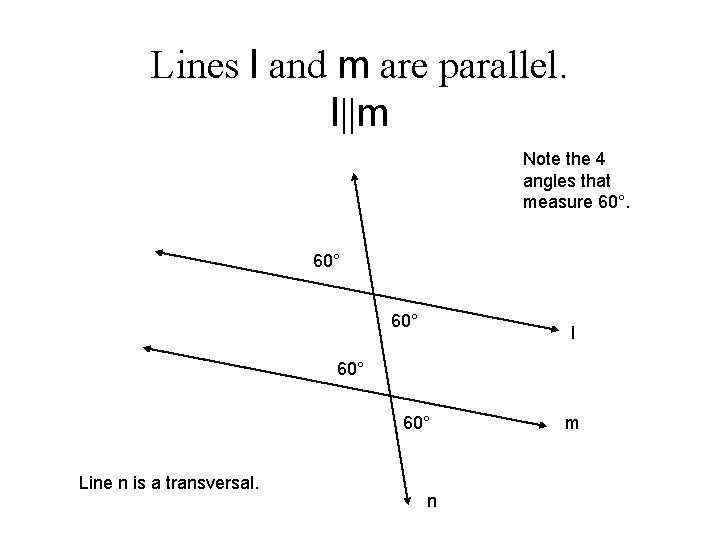

Lines l and m are parallel. l||m Note the 4 angles that measure 60° l 60° Line n is a transversal. n m

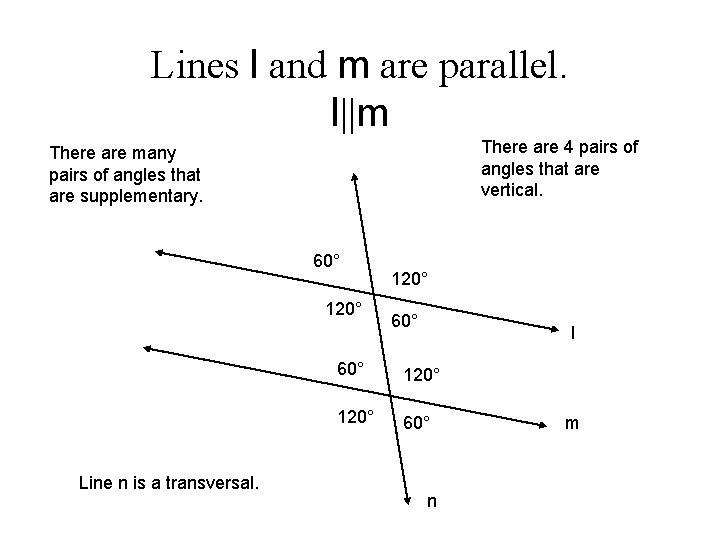

Lines l and m are parallel. l||m There are 4 pairs of angles that are vertical. There are many pairs of angles that are supplementary. 60° 120° Line n is a transversal. 120° 60° l 60° 120° 60° n m

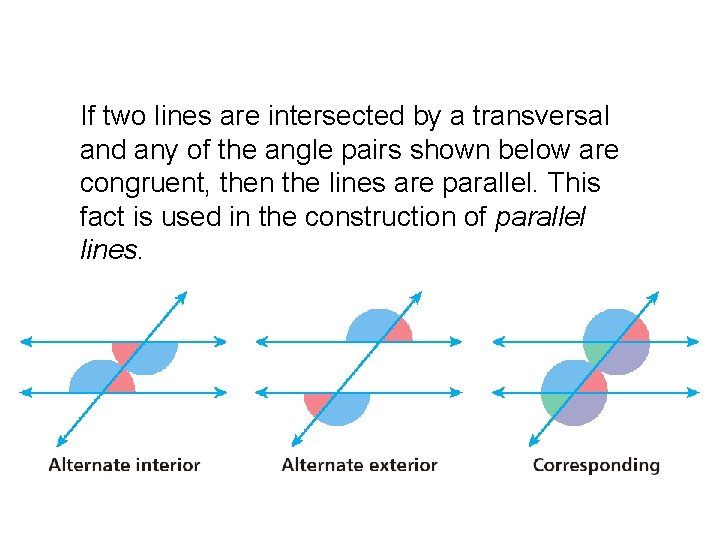

If two lines are intersected by a transversal and any of the angle pairs shown below are congruent, then the lines are parallel. This fact is used in the construction of parallel lines.

Practice Time!

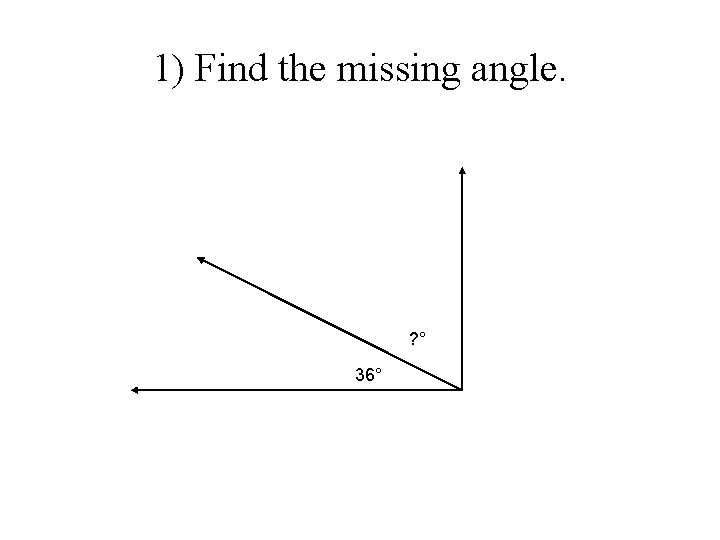

1) Find the missing angle. ? ° 36°

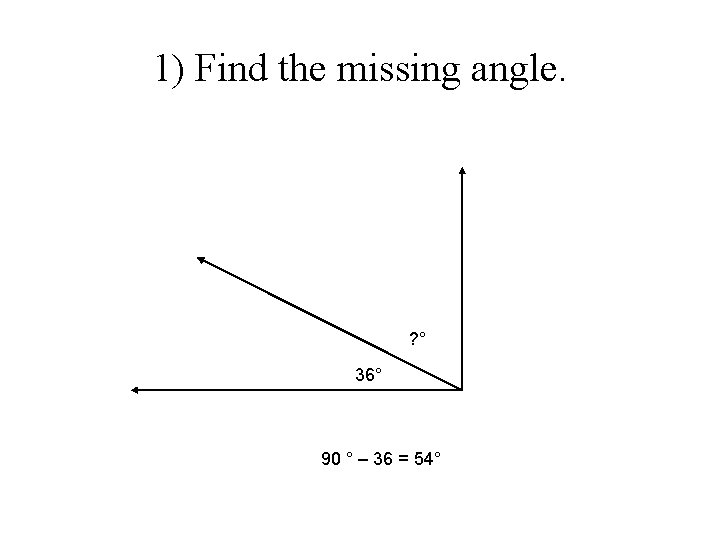

1) Find the missing angle. ? ° 36° 90 ° – 36 = 54°

2) Find the missing angle. ? ° 64°

2) Find the missing angle. ? ° 64° 90 ° – 64° = 26°

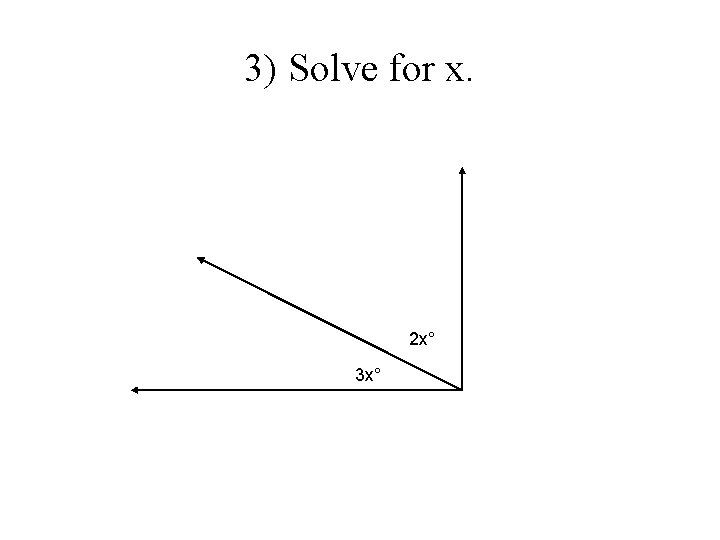

3) Solve for x. 2 x° 3 x°

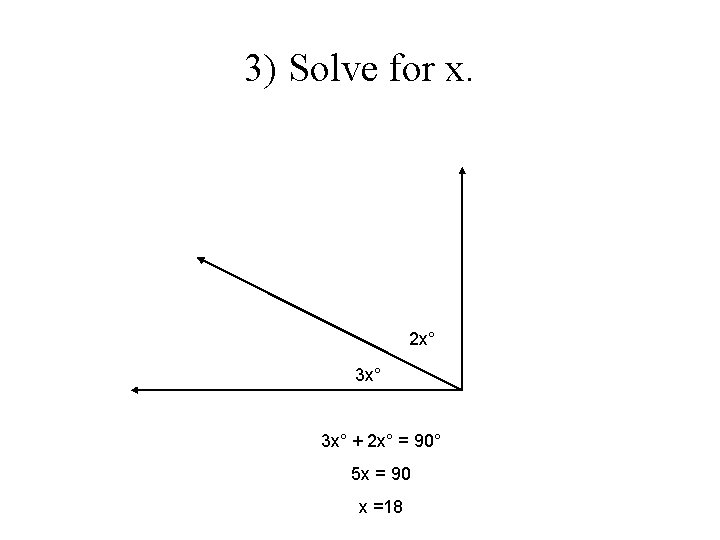

3) Solve for x. 2 x° 3 x° + 2 x° = 90° 5 x = 90 x =18

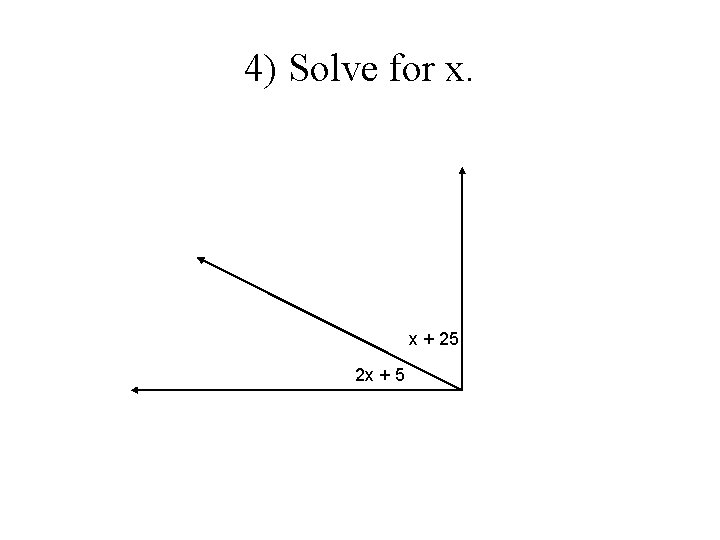

4) Solve for x. x + 25 2 x + 5

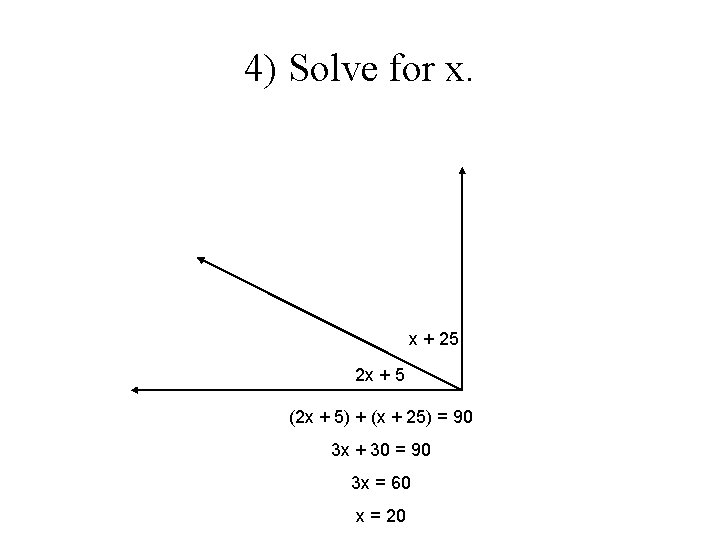

4) Solve for x. x + 25 2 x + 5 (2 x + 5) + (x + 25) = 90 3 x + 30 = 90 3 x = 60 x = 20

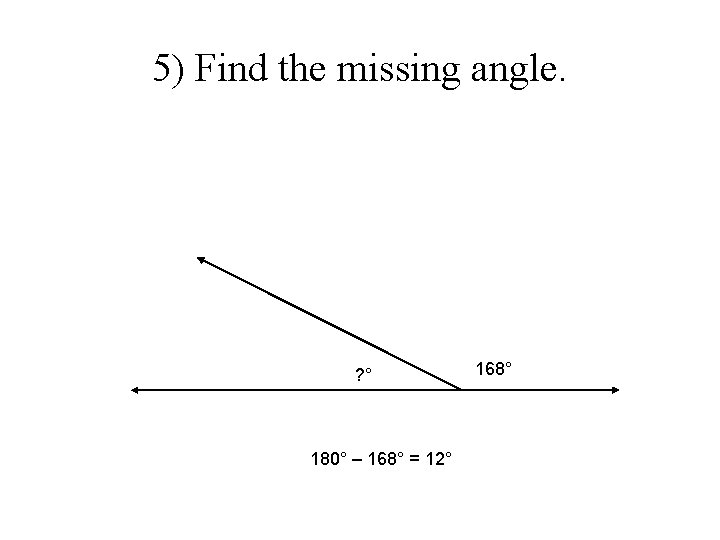

5) Find the missing angle. ? ° 168°

5) Find the missing angle. ? ° 180° – 168° = 12° 168°

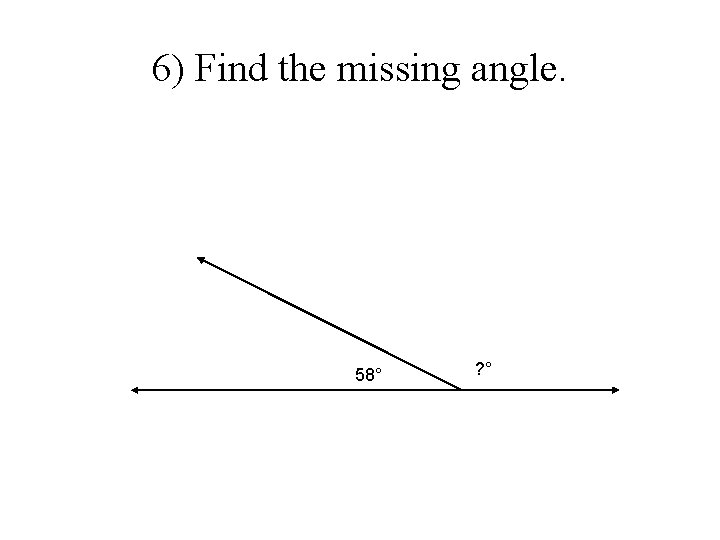

6) Find the missing angle. 58° ? °

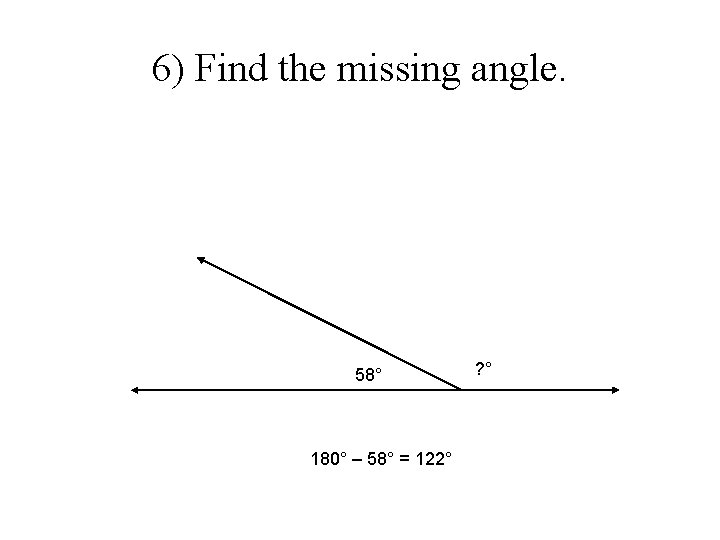

6) Find the missing angle. 58° 180° – 58° = 122° ? °

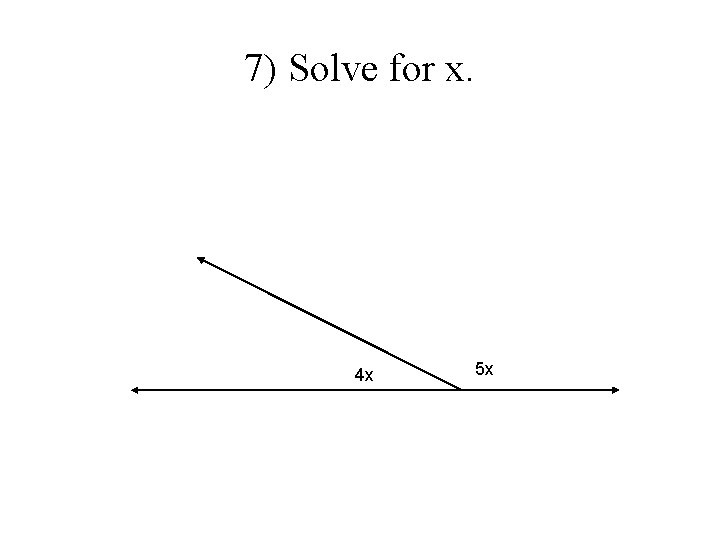

7) Solve for x. 4 x 5 x

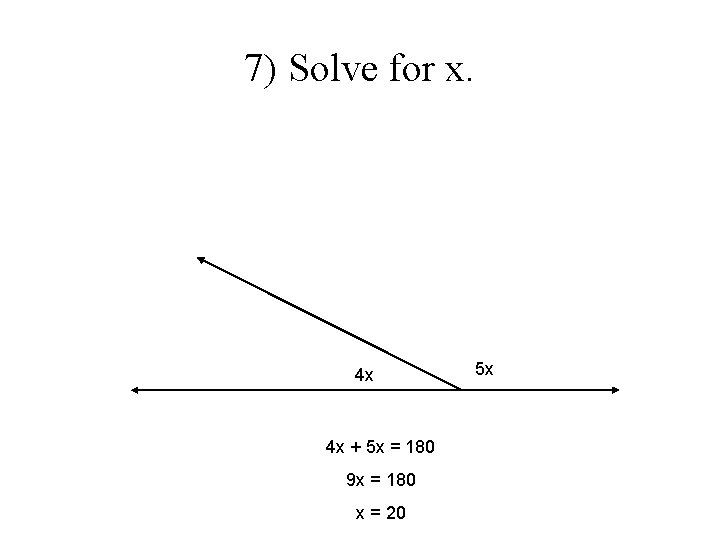

7) Solve for x. 4 x 4 x + 5 x = 180 9 x = 180 x = 20 5 x

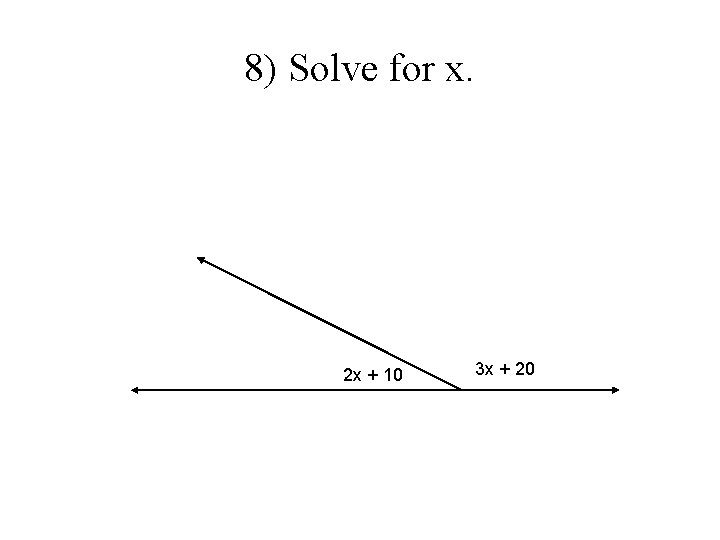

8) Solve for x. 2 x + 10 3 x + 20

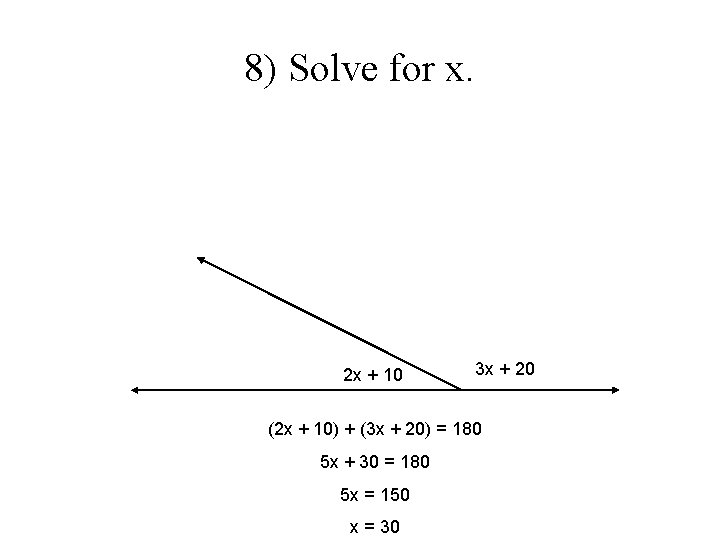

8) Solve for x. 2 x + 10 3 x + 20 (2 x + 10) + (3 x + 20) = 180 5 x + 30 = 180 5 x = 150 x = 30

9) Lines l and m are parallel. l||m Find the missing angles. 42° c° a° b° d° e° g° f° l m

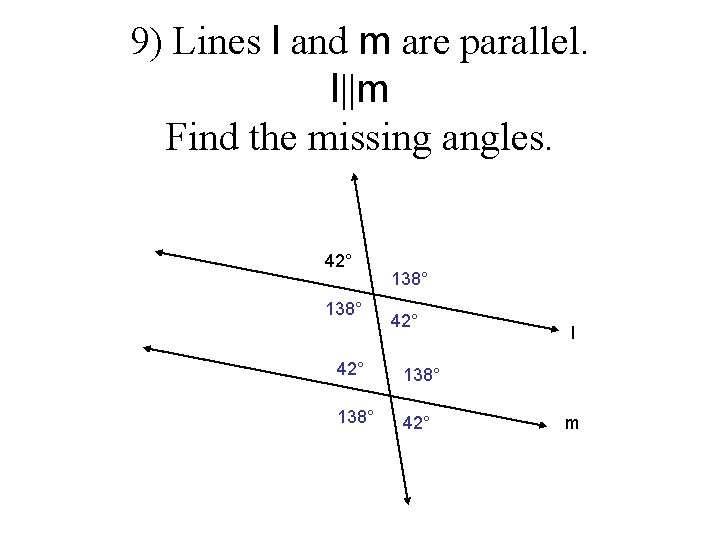

9) Lines l and m are parallel. l||m Find the missing angles. 42° 138° 42° l m

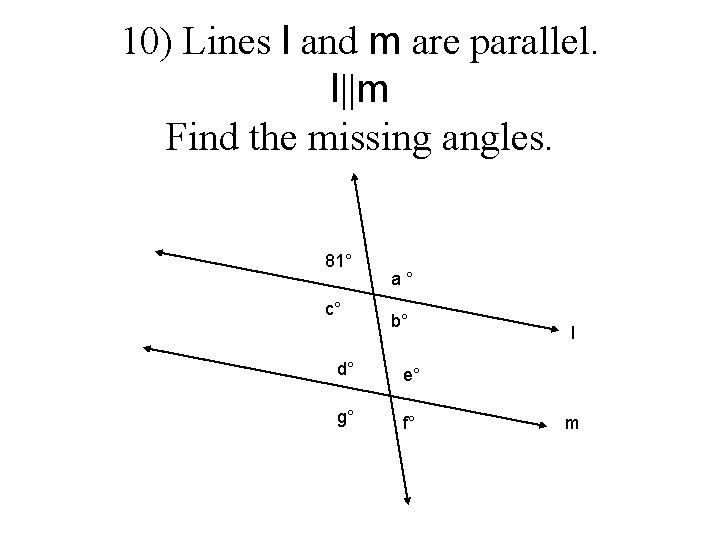

10) Lines l and m are parallel. l||m Find the missing angles. 81° c° a° b° d° e° g° f° l m

10) Lines l and m are parallel. l||m Find the missing angles. 81° 99° 99° 81° l m

11) Find the missing angles. 70 ° b° Hint: The 3 angles in a triangle sum to 180°. d° 65 °

11) Find the missing angles. 70 ° 40° Hint: The 3 angles in a triangle sum to 180°. 75 ° 65 °

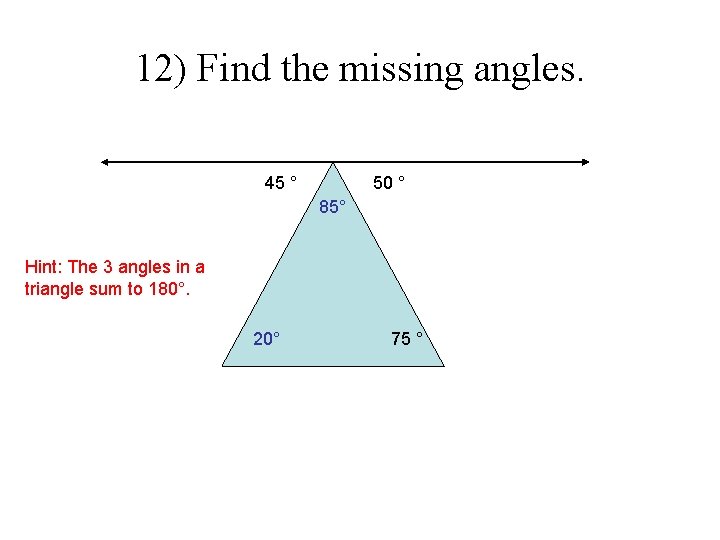

12) Find the missing angles. 45 ° 50 ° b° Hint: The 3 angles in a triangle sum to 180°. d° 75 °

12) Find the missing angles. 45 ° 50 ° 85° Hint: The 3 angles in a triangle sum to 180°. 20° 75 °

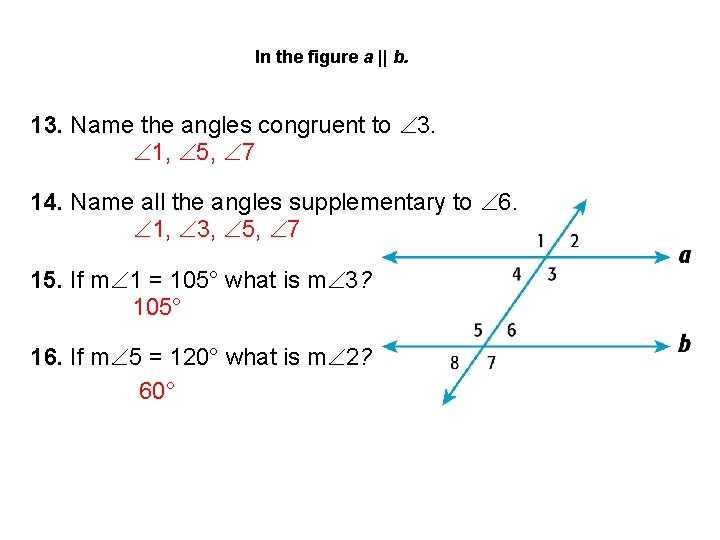

In the figure a || b. 13. Name the angles congruent to 3. 1, 5, 7 14. Name all the angles supplementary to 6. 1, 3, 5, 7 15. If m 1 = 105° what is m 3? 105° 16. If m 5 = 120° what is m 2? 60°
