Threads SMP and Microkernels Chapter 4 1 2

Threads, SMP, and Microkernels Chapter 4 1

2

Multithreading • Operating system supports multiple threads of execution within a single process • MS-DOS supports a single thread • UNIX supports multiple user processes but only supports one thread per process • Windows, Solaris, Linux, Mach, and OS/2 support multiple threads 3

4

Process • Resource ownership - process includes a virtual address space to hold the process image and access to I/O • Scheduling/execution- follows an execution path that may be interleaved with other processes • These two characteristics are treated independently by the operating system 5

Process • Dispatching is referred to as a thread or lightweight process • Resource of ownership is referred to as a process or task 6

Thread • • An execution state (running, ready, etc. ) Saved thread context when not running Has an execution stack Some per-thread static storage for local variables • Access to the memory and resources of its process – all threads of a process share this 7

User-Level Threads 8

User-Level Threads • All thread management is done by the application • The kernel is not aware of the existence of threads • I/O requests causes the whole process to be blocked. 9

Kernel-Level Threads 10

Kernel-Level Threads • Windows is an example of this approach • Kernel maintains context information for the process and the threads • Scheduling is done on a thread basis • I/O requests only cause the affect thread to be blocked. 11

VAX Running UNIX-Like Operating System 12

Combined Approaches 13

Combined Approaches • Example is Solaris • Thread creation done in the user space and kernel space • Bulk of scheduling and synchronization of threads within application in both kernel and user space • Communication between threads can be done in kernel or user space. 14

Benefits of Threads • Takes less time to create a new thread than a process • Less time to terminate a thread than a process • Less time to switch between two threads within the same process • Since threads within the same process share memory and files, they can communicate with each other without invoking the kernel 15

Uses of Threads in a Single. User Multiprocessing System • Foreground to background work – Managing different processes with different levels of priority. • Asynchronous processing – Threads that can execute without care of what the other threads are doing. • Speed of execution – Faster to swap out threads than processes. 16

Threads - Review • Suspending a process involves suspending all threads of the process since all threads share the same address space • Termination of a process, terminates all threads within the process 17

Thread States • States associated with a change in thread state – Spawn • Spawn another thread – Block/Unblock – Ready/Running – Finish • Deallocate register context and stacks 18

19

Processor Architectures 20

Categories of Computer Systems • Single Instruction Single Data (SISD) stream – Single processor executes a single instruction stream to operate on data stored in a single memory • Single Instruction Multiple Data (SIMD) stream – Each instruction is executed on a different set of data by the different processors 21

Categories of Computer Systems • Multiple Instruction Single Data (MISD) stream – A sequence of data is transmitted to a set of processors, each of which executes a different instruction sequence. Never implemented • Multiple Instruction Multiple Data (MIMD) – A set of processors simultaneously execute different instruction sequences on different data sets 22

23

Symmetric Multiprocessing (MIMD) • Kernel can execute on any processor • Typically each processor does selfscheduling form the pool of available process or threads 24

25

Symmetric Multiprocessing (MIMD) • What new issues might we have to deal with? – Having to worry about proper sharing of Memory – Two processes executing the same code either on purpose or by accident – The Kernel can be running on multiple processors at the same time. 26

Multiprocessor Operating System Design Considerations • Simultaneous concurrent processes or threads • Scheduling • Synchronization • Memory management • Reliability and fault tolerance 27

Microkernels 28

Microkernels • Small operating system core • Contains only essential core operating systems functions • Many services traditionally included in the operating system are now external subsystems – – – Device drivers File systems Virtual memory manager Windowing system Security services 29

30

Benefits of a Microkernel Organization • Uniform interface on request made by a process – Don’t distinguish between kernel-level and userlevel services (Where all the services? ) – All services are provided by means of message passing • Extensibility – Allows the addition of new services • Flexibility – New features added – Existing features can be subtracted 31

Benefits of a Microkernel Organization • Portability – Changes needed to port the system to a new processor is changed in the microkernel not in the other services • Reliability – Modular design – Small microkernel can be rigorously tested 32

Benefits of Microkernel Organization • Distributed system support – Message are sent without knowing what the target machine is • Object-oriented operating system – Components are objects with clearly defined interfaces that can be interconnected to form software 33

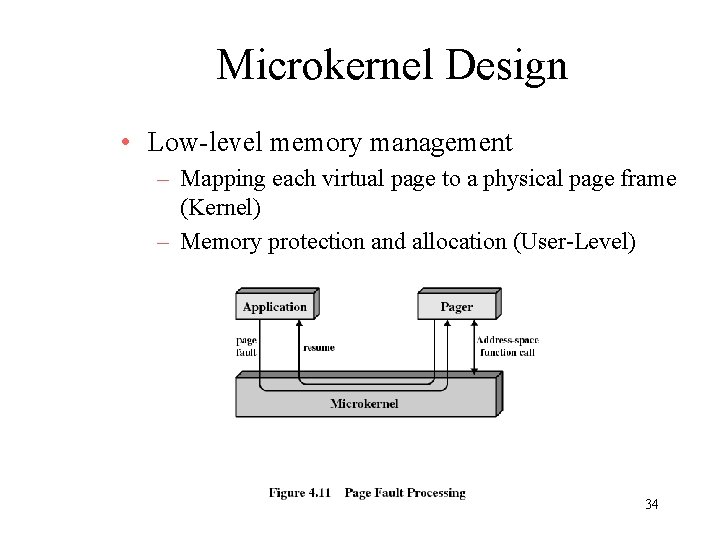

Microkernel Design • Low-level memory management – Mapping each virtual page to a physical page frame (Kernel) – Memory protection and allocation (User-Level) 34

Microkernel • Supporting External Paging and Virtual Memory Management: – Grant : A User-Level process can grant/assign memory to another process. – Map : Placing one or more pages of memory in overlapping space. – Flush : The granter process can reclaim any memory. 35

Microkernel Design • Interprocess communication – Uses messages that contains a header and a body. • I/O and interrupt management – Interrupts recognized by the kernel, but handed off to a user-level process. 36

Closer Look at Windows and Solaris 37

Windows Processes • Implemented as objects • An executable process may contain one or more threads • Both processes and thread objects have built-in synchronization capabilities • Threads and Processes run in kernel mode 38

39

Solaris • User-level and Kernel-level Threads • Process includes the user’s address space, stack, and process control block – Accessible by the Kernel Threads • Lightweight processes (LWP) – Shadow of the Process that allows the User. Level threads to function without making direct calls to the Kernel threads. 40

41

Windows 2000 Thread States 42

43

End 44

Remote Procedure Call Using Single Thread 45

Remote Procedure Call Using Threads 46

Multithreading 47

Adobe Page. Maker 48

49

50

51

Closer Look at Solaris 52

Solaris Lightweight Data Structure • • Identifier Priority Signal mask Saved values of user-level registers Kernel stack Resource usage and profiling data Pointer to the corresponding kernel thread Pointer to the process structure 53

54

Linux Task Data Structure • • • State Scheduling information Identifiers Interprocess communication Links Times and timers File system Address space Processor-specific context 55

56

Linux States of a Process • • • Running Interruptable Uninterruptable Stopped Zombie 57
