THE NIST SANS USER RESEARCH
SANS RESEARCH TOPICS Boualem Hammouda National Institute of Standards and Technology Center for Neutron Research 1. SANS from Pluronics 2. Polymer Blend Thermodynamics 3. Helix-to-Coil Transition in DNA
1. SANS FROM PLURONICS Pluronics are triblock copolymers: PEO-PPO-PEO PEO: -CH 2 O- is hydrophillic PPO: -CH 2(CH 3)O- is hydrophobic
P 85 Pluronic forms micelles at high temperatures
GUINIER PLOT I(Q) = I(0) exp(-Q 2 Rg 2/3) Guinier region
SANS from Pluronics Micelles PPO PEO low temperature Polymer high temperature Sphere and polymer
SINGLE PARTICLE AND INTER-PARTICLE STRUCTURE FACTORS I(Q) = (NA/V)VA 2 (b. A/v. A-b. B/v. B)2 P(Q) S(Q) NA: number of particles, VA: particle volume, V: sample volume (b. A/v. A-b. B/v. B)2 = contrast factor P(Q): single-particle structure factor S(Q): inter-particle structure factor P(Q) = [F(QR)]2 = 3[sin(QR)/(QR)3 -cos(QR)/(QR)2]2 for sphere of radius R. P(Q) = 2[exp(-Q 2 Rg 2)-1+Q 2 Rg 2]/(Q 2 Rg 2)2 for polymer of radius of gyration Rg. S(Q) given by Percus Yevick model for solution of hard spheres. S(Q) given by the Random Phase Approximation model for polymer mixtures.
Solution of Spheres Percus Yevick Model Single sphere Solution of spheres
Solution of Spheres with Polymers PEO PPO PEO PEO PPO PEO
Fit SANS Data to a Model of Concentrated Core-Shell Particles 10% P 85 Pluronic/D 2 O, 40 o. C solvent region C shell region B In the core: 2, 795 PPO monomers 690 PEO monomers 490 D 2 O molecules core region A In the shell: 2, 943 PEO monomers 34, 167 D 2 O molecules (b/v)C = 6. 4*10 -6 Å-2 (b/v)B = 5. 9*10 -6 Å-2 (b/v)A = 1*10 -6 Å-2 RA=42. 6 Å RB=71. 4 Å
2. POLYMER BLENDS THERMODYNAMICS SANS Intensity: I(Q) = d. S(Q)/d. W = (b 1/v 1 -b 2/v 2)2 ST(Q) Thermodynamics: ST-1(Q=0) = (1/k. BT)(d 2 G/df 12); G: Gibbs Free Energy. The Random Phase Approximation: ST-1(Q) = 1/(n 1 f 1 v 1 P(QRg 1) + 1/(n 2 f 2 v 2 P(QRg 2) -2 c 12(T)/v 0 Mixed polymer blend 1 nm Phase separated blend 0. 1 mm

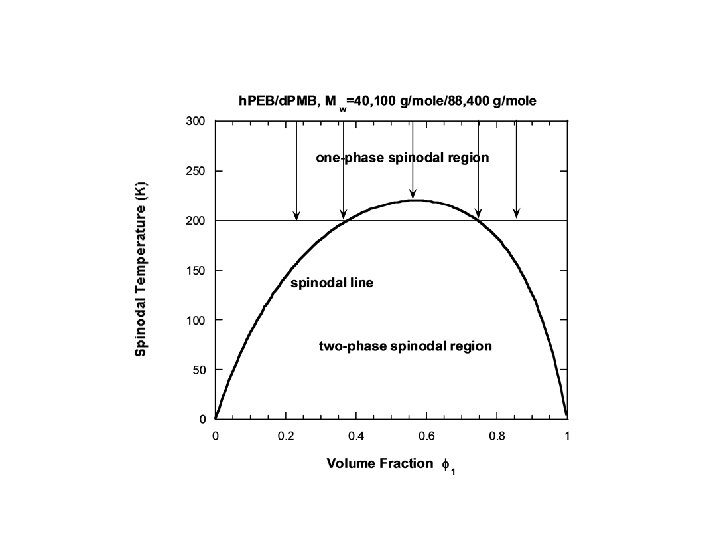

Gibbs Free Energy

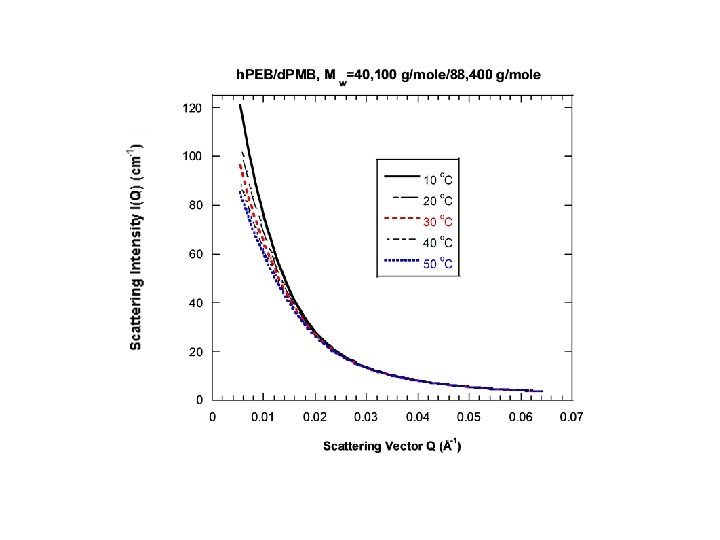

SANS FROM POLYMER BLEND MIXTURES Polymers: Polyethylbutylene / Polymethylbutylene h. PEB -(C 6 H 12)- / d. PMB -(C 5 H 5 D 5)- Molecular Weights: Mw=44, 100 g/mole Mw=88, 400 g/mole Volume Fractions: fh. PEB=0. 57 fd. PMB=0. 43

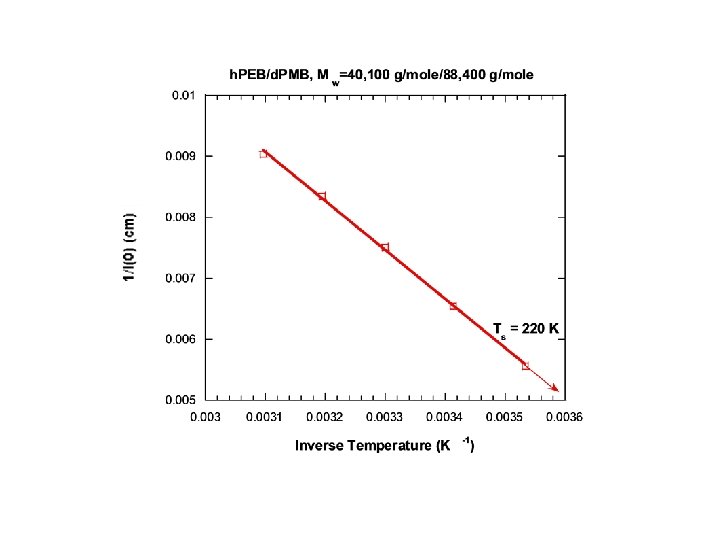

ZIMM PLOT
1 nm 0. 1 mm
3. HELIX-TO-COIL TRANSITION IN DNA is the basic building block for life. It encodes for the synthesis of proteins. THE DNA MOLECULE Phosphate group Amine bases Sugar Purines H N H O O P O O H HO H N N H H Adenine (A) H D-desoxyribose N N H H Nucleotide H Phosphate group O P O O N H N Base N C H O Sugar H H H C C H HO H CH 2 C N O H Cytosine (C) Guanine (G) H H N H H O N N N O H Thymine (T) H N O H H N H H OH O H 3 C N N HOCH 2 O Pyrimidines O
THE DNA HELIX T A G Major groove A T T A A Pitch 30 -40 Å T G C A Minor groove C A G A C Repeat distance per base pair=3. 4 Å
HELIX-TO-COIL TRANSITION IN DNA UV
SANS
POROD PLOT I(Q) ~ C/Qm
NONLINEAR LEAST-SQUARES FIT Functional form: I(Q) = C/[1+(QL)m] + Background C: solvation intensity L: correlation length m: Porod exponent
Solvation Intensity
Correlation Length 12. 3 Å 8. 5 Å
Porod Exponent Reference: B. Hammouda and D. Worcester, “The DNA Denaturation Transition of DNA in Mixed Solvents”, Biophysical Journal (accepted 2006).
POROD EXPONENTS Porod region 1 D object 1/Q 1. 67 2 D object 1/Q 2 MASS FRACTALS 1/Q 3 3 D object 1/Q 4 1/Q 3 1/Q 4 SURFACE FRACTALS
CONCLUSIONS -- The SANS technique is a valuable characterization method. -- SANS has been effective in complex fluids, polymers, biology, etc. -- SANS can determine structures, phase transitions, and morphology. -- The NG 3 SANS instrument at NIST gets over 150 users per year, resulting in over 40 publications per year. ACKNOWLEDGMENTS NSF-DMR, Steve Kline, Nitash Balsara, David Worcester. CHECK IT OUT: http: //www. ncnr. nist. gov/programs/sans/ http: //www. ncnr. nist. gov/staff/hammouda/ hammouda@nist. gov
