Spyder® Introduction
Agenda • Introductions • Review Spyder Hardware, Software & Accessories • Live Product Demonstration • Spyder Tool - Physical Point Programming - Network Point Programming - Logic Programming - Simulation - Commissioning / Downloading / Alarms & Diagnostics • Spyder Application Library - Library Migration • Spyder Venom Tool 2
Best Practices ZIO review Multi-controller & Plant Applications VAV Balancing 3
Guy Zebrick • Environmental Combustion and Controls division • Sales Representative / Contractor Support Specialist • 20+ Years Honeywell • Branch Commercial Construction Technician • Branch Project Manager • Branch Application / Lead Application engineer • Branch system sales • Contractor Support / Product specialist 4
Spyder Controller Features Integrated Honeywell Actuator Reduce installation costs. AC synchronous actuator increases life of the controller and reduces life cycle costs DC Power Supply Power external field devices without having to additional power sources. Saves money and time. Integrated On-board Precision Pressure Sensor Floating Actuator Housing Actuator can float inside housing to increase life due to damper shaft run-out Programmable Whatever you need Spyder can be programmed to solve the problem. Actuator De-Clutch Removable Terminal Blocks Hard to reach places are easy to deal with. Sylk Bus A two wire, polarity insensitive bus that provides both 18 Vdc power and communications between a Sylk-enabled sensor and a Sylk-enabled controller. 5 Network Jack and Service Pin Easy access network Jack and service pin for quick installation and easy service. Color Coded Inputs and Outputs Reduce wiring errors and speeds up troubleshooting.
Fast Digital Pulse Meter • One Universal Input (UI-1*) is user selectable as a fast digital Pulse Meter • Pulse meter/Counter Input specification - Pulse input specifications: - Max. frequency: 15 Hz (54, 000 pulses per hour) - Min. pulse width: 20 ms (debounced) - Max. chatter: 5 ms 6
Spyder VAV Controller with Actuator Controller Model Programmable Type Protocol UI DI AO PVB 6436 AS VAV BACnet MS/TP 6 4 3 6 YES PVL 0000 AS VAV Lon. Works 0 0 YES PVL 4022 AS VAV Lon. Works 4 a 0 2 2 YES PVL 6436 AS VAV Lon. Works 6 4 3 6 YES • 2 Digital Outputs reserved for Integrated Actuator • Integrated Pressure Sensor 7 Velocity Pressure Series 60 Sensor Floating DO (Microbridge) Actuator
Spyder VAV Controller w/o Actuator Programmable Type Protocol UI DI AO DO Velocity Pressure Sensor (Microbridge) PVB 6438 NS VAV BACnet MS/TP 6 4 3 8 YES NO PVL 4024 NS VAV Lon. Works 4 a 0 2 4 YES NO PVL 6438 NS VAV Lon. Works 4 3 8 YES NO Controller Model 6 • Integrated Pressure Sensor 8 Series 60 Floating Actuator
Spyder Unitary Controller Model Series 60 Floating Actuator Programmable Type Protocol PUB 6438 S Unitary BACnet MS/TP 6 4 3 8 NO NO PUL 1012 S Unitary Lon. Works 1 a 0 1 2 NO NO PUL 4024 S Unitary Lon. Works 4 a 0 2 4 NO NO PUL 6438 S Unitary Lon. Works 6 4 3 8 NO NO UI DI AO DO • Extended Temperature Rating 9 Velocity Pressure Sensor (Microbridge)
BACnet MS/TP LON Programmable Unitary Controllers Programmable Unitary Controller • Extended Temperature Rated -40° F (-40° C) to 150° F (65. 5° C) Programmable VAV Controllers with Actuator Programmable Variable Air Volume Controller • Integrated actuator • Integrated on-board pressure sensor Programmable VAV Controllers w/o Actuator Programmable Variable Air Volume Controller • Integrated on-board pressure sensor PUL 1012 S – Lon. Works Inputs • 1 universal input • 0 digital inputs Outputs • 1 analog output • 2 digital outputs PVL 0000 AS – Lon. Works Inputs • 0 universal inputs • 0 digital inputs Outputs • 0 analog outputs • 0 digital outputs PVL 4024 NS – Lon. Works Inputs • 4 universal inputs • 0 digital inputs Outputs • 2 analog outputs • 4 digital outputs PUL 4024 S – Lon. Works Inputs • 4 universal inputs • 0 digital inputs Outputs • 2 analog outputs • 4 digital outputs PVL 4022 AS – Lon. Works Inputs • 4 universal inputs • 0 digital inputs Outputs • 2 analog outputs • 2 digital outputs PVL 6438 NS – Lon. Works Inputs • 6 universal inputs • 4 digital inputs Outputs • 3 analog outputs • 8 digital outputs PUL 6438 S – Lon. Works Inputs • 6 universal inputs • 4 digital inputs Outputs • 3 analog outputs • 8 digital outputs PVL 6436 AS – Lon. Works Inputs • 6 universal inputs • 4 digital inputs Outputs • 3 analog outputs • 6 digital outputs PVB 6438 NS – BACnet Inputs • 6 universal inputs • 4 digital inputs Outputs • 3 analog outputs • 8 digital outputs PUB 6438 S – BACnet Inputs • 6 universal inputs • 4 digital inputs Outputs • 3 analog outputs • 8 digital outputs PVB 6436 AS – BACnet Inputs • 6 universal inputs • 4 digital inputs Outputs • 3 analog outputs • 6 digital outputs
New Licensing Scheme • The Spyder Tool checks the license for features - As of Spyder Tool 4. X and later • There are two Spyder features - Spyder. Programmable for the Lon Spyders - Spyder. BACnet. Programmable for the BACnet Spyders • Spyder features are only available on WEBS branded JACE’s and Supervisor Engineering Demo’s - W-ENG-AX-DEMO 11
Spyder-ILC • The Spyder-ILC is an individually licensed controller - Spyder-ILC controllers will accept a download from the Spyder Tool regardless of the brand of workstation/JACE - In other words, features within the license are ignored • The Spyder-ILC’s have the same OS number with an “-ILC” suffix - Example: PUL 6438 S-ILC, PVB 6436 AS-ILC, PVL 4022 AS-ILC • 20% adder per Spyder-ILC for licensing fee - No one else in the industry offers a programmable controller that can be programmed on ANY AX front end! • Like all Spyders, the ILC can only be sold to Honeywell ACS or ACI contractors 12
Scenario – WEBS Brand JACE 13 WEBS Brand Workbench WEBS Brand JACE Spyder Feature Honeywell Spyder 3 rd Party Brand Workbench WEBS Brand JACE Spyder Feature Honeywell Spyder
Scenario – WEBS OPEN Brand JACE ANY Brand Workbench WEBS “OPEN” Brand JACE Spyder Feature Honeywell Spyder Not Typical ANY Brand Workbench 14 WEBS “OPEN” Brand JACE Spyder Feature Honeywell Spyder-ILC
Scenario – 3 rd Party JACE ANY Brand Workbench 15 3 rd Party Brand JACE Honeywell Spyder-ILC
Scenario – No JACE WEBS Brand Engineering Demo Supervisor Honeywell Spyder 3 rd Party Brand Workbench Honeywell Spyder ANY Brand Workbench 16 Honeywell Spyder-ILC
Scenario – Existing Support • Existing WEBS job needs to be expanded - 1. Keep existing workbench and tool; add Spyders as needed w License change doesn’t affect a job already installed - 2. Get new license with correct Spyder Features w If using 403 or 545, the appropriate feature is needed • Existing job with 3 rd party JACE and Spyders, needs to be expanded - 1. Keep existing workbench and tool; add Spyders as needed w License change doesn’t affect a job already installed - 2. Upgrade to latest Spyder Tool and use ILC to expand w Previous Spyders must be brought in as 3 rd party devices and you won’t be able to download to them 17
Freely Programmable • Just determine your requirements, then program Spyder to control it all 18
Spyder Palette 19
Application Library 21
Program Simulator and Debug Mode 23
Macros 25

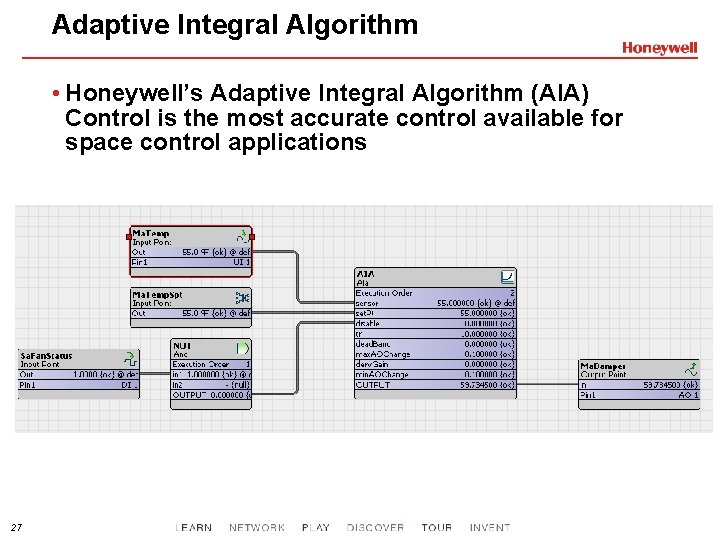

Adaptive Integral Algorithm • Honeywell’s Adaptive Integral Algorithm (AIA) Control is the most accurate control available for space control applications 27
Model Numbers P VL 6436 AS S – Sylk Bus P – Programmable A – With Actuator N – Without Actuator U – Unitary V – VAV Number of available Digital Outputs L – LON B – BACnet Number of Universal Inputs Number of Analog Outputs Number of Digital Inputs 28
Spyder Lon Specific Details • Free Topology Transceiver (FTT) - High-speed 78 kilobit communications network • Function Blocks - 200 Function Blocks max per controller • Lon Network Variables - 240 total NV’s per controller w 20 Mandatory NVs w 7 Fixed NVs w 213 User Defined NVs • Support for up to 120 controllers per Lon. Works channel 29
Spyder BACnet Specific Details • BACnet MS/TP LAN communication network - Capable of baud rates between 9. 6 and 115. 2 kilobits • BTL B-ASC - BACnet Testing Laboratories B-ASC (BACnet Application Specific Controller) - Certification Testing in process • BACnet PICS (Protocol Implementation Conformance Statement) - Refer to the PICS for information on: w BIBBs – BACnet Interoperability Building Blocks w BACnet Device Objects • Support for up to 30 controllers per BACnet MS/TP LAN Segment 30
Spyder FAQ’s • Should I use a Spyder if the current XL 10 meets the sequence or requirements? Depends on application • Do you want to order the Spyder with Actuator when you need to separate the actuator and controller? NO - What Actuators are recommended for use with the Spyder VAV controllers without Actuators? ML 6161, ML 6174, MN 6105 31
Architecture Internet WEB Station WEB Browser HTTP, XML, BACnet, SNMP, o. BIX WEB-600 Spyder Lon 34 pt I/O Video Monitoring and Control Spyder BACnet SEC-H-600 RS-485 Spyder Lon Spyder BACnet Spyder Lon Intrusion Keypad/Display T 7350 CVAHU UV Spyder BACnet Lighting Control 32 Security Elevator Control Access Control Time and Attendance
Sylk™ Bus • Sylk is a two wire, polarity insensitive bus that provides both 18 Vdc power and communications between a Sylk -enabled sensor and a Sylk-enabled controller • Devices - Zio LCD Wall Module w TR 70 -H • Future - TR 20 Series - Sylk IO w Addressing the combined needs of the Building Automation and Field Device team 34
TR 20 Series Wireless Overview • Point to Point - Direct replacement for a wired sensor - Can be used with Spyder, XL 10, T 7350 thermostats, Suite. PRO - Not compatible with Commercial Vision. PRO & Commercial. PRO thermostats Receiver • Two Sensor options - With temperature only w TR 21 -WK kit or TR 21 -WS sensor only - With temperature, setpoint knob, and override button w TR 23 -WK kit or TR 23 -WS sensor only • On board signal strength indicator - No need for diagnostic tool • Beta in progress – Thank You! Wireless sensor Replace a wired sensor, without the wires! 35
Noteworthy Installations • Prairie View School District, Saskatchewan 36
Noteworthy Installations • Target Field (Twins Stadium) - Minneapolis 37
Noteworthy Installations • ACS Headquarters – Golden Valley 38
Noteworthy Installations • Adelphia Labs, New Jersey 39
Noteworthy Installations • Vectura Pharmaceutical, United Kingdom 40
Noteworthy Installations • Claridges Hotel, Delhi 41
Spyder Tool Demonstration 42
