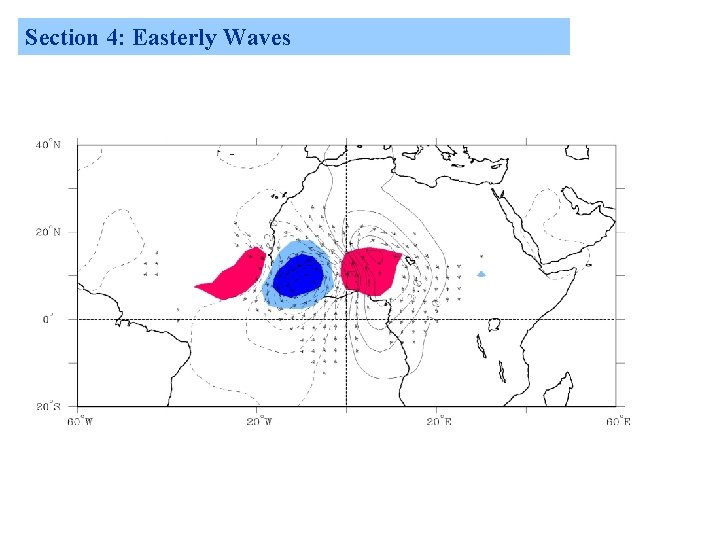

Section 4: Easterly Waves
Section 4: Easterly Waves 4. 1 Introduction 4. 2 The Mean State over West Africa 4. 3 Observations of African Easterly Waves 4. 4 Theory 4. 5 Modeling 4. 6 Hot Topics: 4. 6. 1 Genesis 4. 6. 2 Scale Interactions 4. 6. 3 Relationship to Tropical Cyclogenesis 4. 7 Easterly Waves in other Tropical Regions 4. 8 Final Comments
4. 1 Introduction • Westward moving synoptic waves characterize the whole tropics • They are tropospheric waves, that modulate the rainfall and move at about 8 m/s and have wavelengths of 2000 -4000 km.
4. 1 Introduction • The environments that they are embedded in varies around the tropics, and so details of the wave characteristics also vary.
4. 1 Introduction The emphasis here will be on African Easterly Waves (AEWs) Have a strong influence on daily rainfall patterns over Africa and tropical Atlantic Most Atlantic Tropical Cyclones are generated in association with AEWs SAL TC AEWs MCSs
4. 2 The Mean State over West Africa Burpee, R. W. 1972 The origin and structure of easterly waves in the lower troposphere of North Africa, J. Atmos. Sci. 29, 77 -90 Notable Features: 600 mb African Easterly Jet (AEJ) Upper-level Tropical Easterly Jet (TEJ) Low-level Monsoonal Westerlies Low-level Easterlies north of the AEJ Upper-level Westerly Jet to the North
4. 2 The Mean State over West Africa Reed, R. J. , Norquist, D. C. and Recker, E. E. , The structure and properties of African wave disturbances as observed during Phase III of GATE, Mon. Wea. Rev. 105, 317 -333 (1977).
PV View of the African Easterly Jet Discussion Consider the meridional contrasts in convection (next slide) and the diabatic source/sink term in the PV-equation.

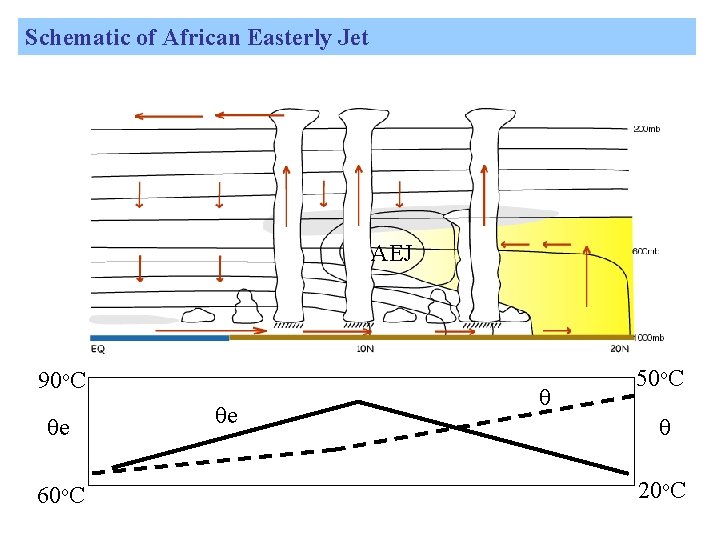

Schematic of African Easterly Jet AEJ 90 o. C θe 60 o. C θe θ 50 o. C θ 20 o. C
4. 2 The Mean State over West Africa Thorncroft and Blackburn 1999
Zonal Variations in the Mean State Mean 700 h. Pa U wind, 16 th July – 15 th August 2000 Berry and Thorncroft 2005
Zonal Variations in the Mean State 925 h. Pa q 315 K PV • Strong baroclinic zone 10 o-20 o. N • PV ‘strip’ present on the cyclonic shear side of AEJ. 925 h. Pa qe • High qe strip exists near 15 o. N
4. 3 Observations of African Easterly Waves Carlson, T. N. , 1969 a: Synoptic histories of three African disturbances that developed into Atlantic hurricanes. Mon. Wea. Rev. , 97, 256 -276. Carlson, T. N. , 1969 b: Some remarks on African disturbances and their progress over the tropical Atlantic. Mon. Wea. Rev. , 97, 716 -726. Burpee, R. W. , 1970: The origin and structure of easterly waves in the lower troposphere of North Africa, J. Atmos. Sci. 29, 77 -90. Reed, R. J. , Norquist, D. C. and Recker, E. E. , 1977: The structure and properties of African wave disturbances as observed during Phase III of GATE, Mon. Wea. Rev. 105, 317 -333 Thorncroft, C. D. and Hodges: 2001 K. I. , African easterly wave variability and its relationship to tropical cyclone activity, J. Clim. 14, 1166 -1179 (2001). Kiladis, G. , C. Thorncroft, and N. Hall, 2006: Three-Dimensional Structure and Dynamics of African easterly waves: part I: Observations, J. Atmos. Sci. , 63, 2212 -2230. Mekonnen, A. , C. Thorncroft, and A. Aiyyer, 2006: On the significance of African easterly waves on convection, J. Climate, 19, 5405 -5421. Berry, G. , Thorncroft, C. D. and Hewson, T. 2006 African easterly waves in 2004 – Analysis using objective techniques Mon. Wea. Rev. , 133, 752 -766
4. 3 Observations of African Easterly Waves Carlson 1969 ab Carried out case studies of several AEWs Peak amplitudes at 600 -700 mb and at surface Eastward tilt with height from the surface to the level of the AEJ Two cyclonic centers at low-levels Synoptic variations in cloud cover Peak of cloudiness close to AEW trough
4. 3 Observations of African Easterly Waves Burpee (1970) Eastward tilt beneath the AEJ – Westward tilt above the AEJ Northerlies dry and warm Southerlies wet and cold
4. 3 Observations of African Easterly Waves Reed et al, 1977 Composite AEW structures from phase III of GATE (after Reed et al, 1977). (a) and (b) are relative vorticity at the surface and 700 h. Pa respectively with a contour interval of 10 -5 s-1. (c) and (d) show percentage cover by convective cloud and average precipitation rate (mm day-1) respectively. Category 4 is location of 700 h. Pa trough and the “ 0” latitude is 11 o. N over land 12 o. N over ocean.
4. 3 Observations of African Easterly Waves Thorncroft and Hodges (2001)
Three Dimensional Structure of Easterly Wave Disturbances over Africa and the Tropical North Atlantic George N. Kiladis 1 Chris D. Thorncroft 2 Nick M. J. Hall 3 1 NOAA Aeronomy Laboratory, Boulder, CO 2 Dept. of Atmospheric Sciences, SUNY, Albany, NY 3 LTHE, Grenoble, France
Space-Time Spectrum of JJA Antisymmetric OLR, 15 S-15 N Wheeler and Kiladis, 1999
Regression Model Simple Linear Model: A separate linear relationship between a predictor at a grid point and a parameter at every other grid point is obtained: y = ax + b where: x= predictor (TD-filtered OLR at 10 N, 10 W) y= predictand (u or v wind at any grid point) Maps or cross sections at lag can then be constructed to show the evolution of the dynamical fields versus the predictor
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day 0 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day-4 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day-3 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day-2 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day-1 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day 0 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day+1 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day+2 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day+3 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day+4 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue

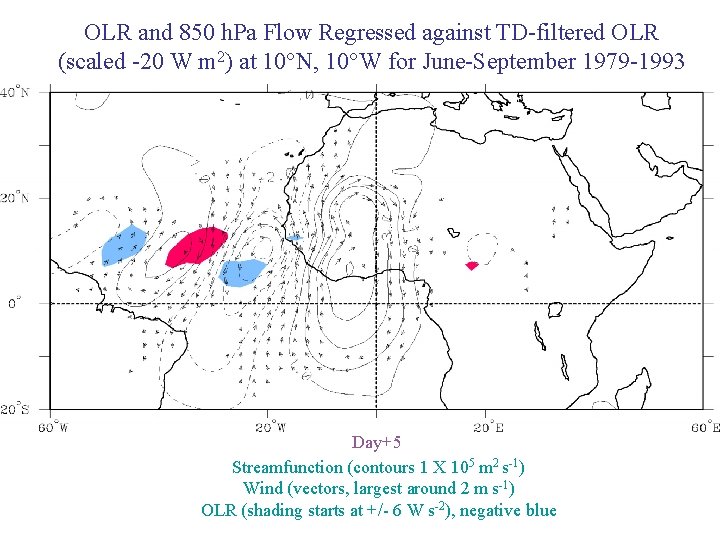

OLR and 850 h. Pa Flow Regressed against TD-filtered OLR (scaled -20 W m 2) at 10 N, 10 W for June-September 1979 -1993 Day+5 Streamfunction (contours 1 X 105 m 2 s-1) Wind (vectors, largest around 2 m s-1) OLR (shading starts at +/- 6 W s-2), negative blue
4. 3 Observations of African Easterly Waves All the previous slides refer to composite AEW structures They say little about the significance of AEWs on convection and They say little about how these structures might be manifested on a weather map or how they may vary in space and time. The next slides address the significance issue from Mekonnen et al (2006) This will be followed by some maps of individual AEWs (Berry et al 2007).

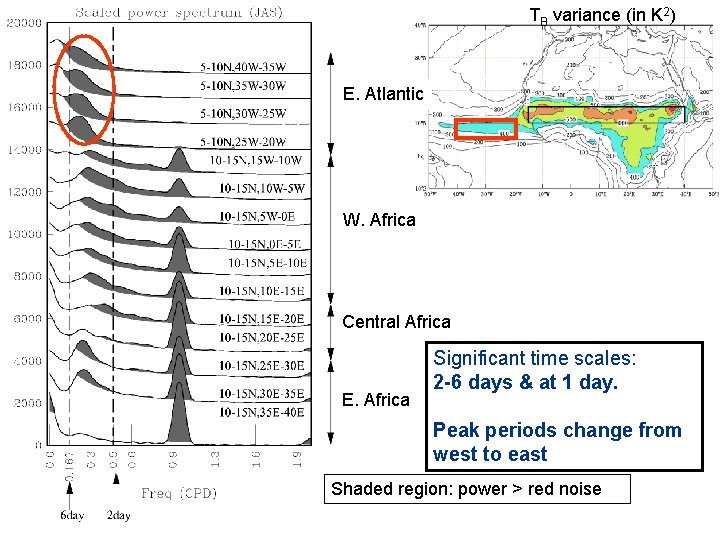

TB variance (in K 2) E. Atlantic (5 -10 N, 40 W-20 W) Land (10 -15 N, 15 W-40 E) W. Africa Central Africa E. Africa Significant time scales: 2 -6 days & at 1 day. Peak periods change from west to east Shaded region: power > red noise
TB variance (in K 2) E. Atlantic W. Africa Central Africa E. Africa Significant time scales: 2 -6 days & at 1 day. Peak periods change from west to east Shaded region: power > red noise
TB variance (in K 2) E. Atlantic W. Africa Central Africa E. Africa Significant time scales: 2 -6 days & at 1 day. Peak periods change from west to east Shaded region: power > red noise
TB variance (in K 2) E. Atlantic W. Africa Central Africa E. Africa Significant time scales: 2 -6 days & at 1 day. Peak periods change from west to east Shaded region: power > red noise
TB variance (in K 2) E. Atlantic W. Africa Central Africa E. Africa Significant time scales: 2 -6 days & at 1 day. Peak periods change from west to east Shaded region: power > red noise
2 -6 d TB variance (shaded >140 K 2) west-east variance is nearly the same Variance explained by 2 -6 d TB (shaded > 20%) 2 -6 d contribution: 25 -35% over land, 35 -40% over ocean

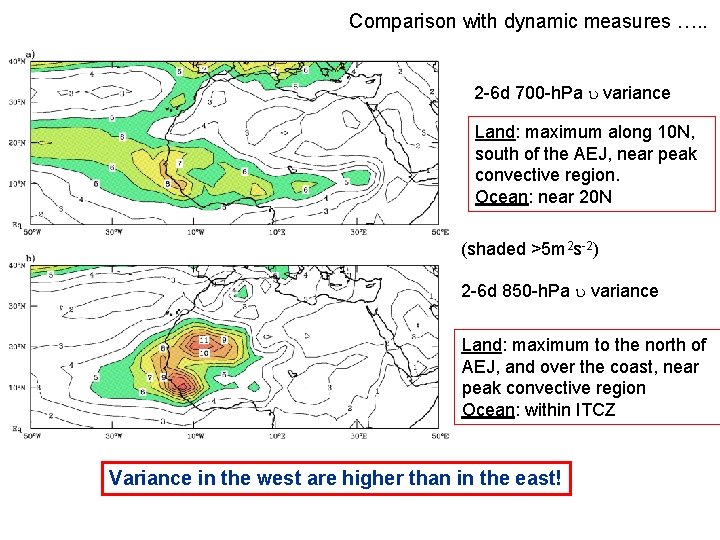

Comparison with dynamic measures …. . 2 -6 d 700 -h. Pa variance Land: maximum along 10 N, south of the AEJ, near peak convective region. Ocean: near 20 N (shaded >5 m 2 s-2) 2 -6 d 850 -h. Pa variance Land: maximum to the north of AEJ, and over the coast, near peak convective region Ocean: within ITCZ Variance in the west are higher than in the east!

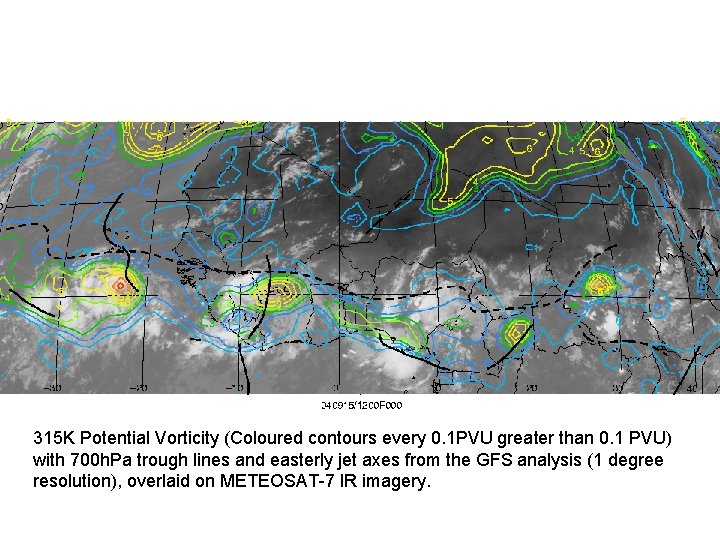

Diagnostics for highlighting multi-scale aspects of AEWs 315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery. Berry et al 2006
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
315 K Potential Vorticity (Coloured contours every 0. 1 PVU greater than 0. 1 PVU) with 700 h. Pa trough lines and easterly jet axes from the GFS analysis (1 degree resolution), overlaid on METEOSAT-7 IR imagery.
Summary of the observed AEJ and AEWs Summary AEJ: Consists of two prominent PV anomalies; a positive PV anomaly on the cyclonic side of the AEJ that is diabatically generated in the region of peak rainfall and a negative PV anomaly that is diabatically generated in the heat low region. AEWs: AEWs have significant circulation anomalies at the level of the AEJ and at the surface. They tend to tilt against the horizontal and vertical shear of the AEJ – this tells us something about the growth mechanisms to be discussed in the next section.
