Seismic Waves Mechanical waves that travel through the
![Seismic Waves Mechanical waves that travel through the Earth. Seismic Waves Mechanical waves that travel through the Earth.](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-1.jpg)
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-2.jpg)
![Cause • Any physical disturbance that causes the Earth to vibrate – Earthquakes (most Cause • Any physical disturbance that causes the Earth to vibrate – Earthquakes (most](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-3.jpg)
![Barringer Meteor Crater, Arizona Iron-nickel meteorite 49, 000 years old 50 m in diameter Barringer Meteor Crater, Arizona Iron-nickel meteorite 49, 000 years old 50 m in diameter](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-4.jpg)
![Earthquakes • Earthquakes occur when built-up stress is suddenly released. • Rupture or slippage Earthquakes • Earthquakes occur when built-up stress is suddenly released. • Rupture or slippage](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-5.jpg)
![Earthquakes 2 Deformation • Moving plates place stress on the earth (1) compressive stress Earthquakes 2 Deformation • Moving plates place stress on the earth (1) compressive stress](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-6.jpg)
![Earthquakes 2 Earthquake Waves • Earthquake waves travel out in all directions from a Earthquakes 2 Earthquake Waves • Earthquake waves travel out in all directions from a](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-7.jpg)
![Earthquakes 2 Energy Release • When stress leads to strain, energy is released suddenly, Earthquakes 2 Energy Release • When stress leads to strain, energy is released suddenly,](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-8.jpg)
![The Earth’s Surface is in constant motion! • Theory of Plate Tectonics explains that The Earth’s Surface is in constant motion! • Theory of Plate Tectonics explains that](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-9.jpg)
![Fig. 9 -5, p. 191 Fig. 9 -5, p. 191](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-10.jpg)
![Fig. 2 -14, p. 38 Fig. 2 -14, p. 38](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-11.jpg)
![Surface Waves Surface Waves](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-12.jpg)
![2 Body Waves— seismic waves that pass through the Earth Primary waves, also called 2 Body Waves— seismic waves that pass through the Earth Primary waves, also called](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-13.jpg)
![Body Fig. 9 -8, p. 194 Body Fig. 9 -8, p. 194](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-14.jpg)
![Longitudinal or compressional Or rarefactions transverse Longitudinal or compressional Or rarefactions transverse](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-15.jpg)
![Fig. 9 -9, p. 195 Fig. 9 -9, p. 195](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-16.jpg)
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-17.jpg)
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-18.jpg)
![Fig. 9 -10, p. 196 Fig. 9 -10, p. 196](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-19.jpg)
![Gases emitted from the interior during this process are likely the source for the Gases emitted from the interior during this process are likely the source for the](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-20.jpg)
![Internal Temperature of Earth Crust-mantle boundary 800 -1200 C Core-mantle boundary 3500 -5000 C Internal Temperature of Earth Crust-mantle boundary 800 -1200 C Core-mantle boundary 3500 -5000 C](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-21.jpg)
![Sources of Earth’s Internal Heat • Heat from Earth’s formation (gravitational contraction increases temperature Sources of Earth’s Internal Heat • Heat from Earth’s formation (gravitational contraction increases temperature](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-22.jpg)
![Fig. 1 -11, p. 15 Fig. 1 -11, p. 15](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-23.jpg)
![The Earth’s Layers • Earth layers result from density differences between the layers caused The Earth’s Layers • Earth layers result from density differences between the layers caused](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-24.jpg)
![Lithosphere and Asthenosphere • Lithosphere is the solid, brittle outer layer of the Earth Lithosphere and Asthenosphere • Lithosphere is the solid, brittle outer layer of the Earth](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-25.jpg)
![Plate Boundaries • Divergent Plate Boundary (oceanic ridges and undersea volcanoes—see the Atlantic Ocean) Plate Boundaries • Divergent Plate Boundary (oceanic ridges and undersea volcanoes—see the Atlantic Ocean)](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-26.jpg)
![Three types of plate boundaries 1. Divergent plate boundary 2. Convergent Plate Boundary 3. Three types of plate boundaries 1. Divergent plate boundary 2. Convergent Plate Boundary 3.](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-27.jpg)
![The Mechanism for Plate Motion is Convection in the Mantle Heat from the interior The Mechanism for Plate Motion is Convection in the Mantle Heat from the interior](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-28.jpg)
![What is the evidence that the Earth’s outer core is liquid? (See next slide) What is the evidence that the Earth’s outer core is liquid? (See next slide)](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-29.jpg)
![P-Waves P-waves and Swaves provide seismic evidence that the outer core is liquid and P-Waves P-waves and Swaves provide seismic evidence that the outer core is liquid and](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-30.jpg)
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-31.jpg)
![Earth’s Interior 3 Shadow Zones • P-waves and S-waves travel through Earth for 105 Earth’s Interior 3 Shadow Zones • P-waves and S-waves travel through Earth for 105](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-32.jpg)
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-33.jpg)
![Benioff Seismic Zone (associated with a subduction zone at a Convergent Plate Boundary) Pattern Benioff Seismic Zone (associated with a subduction zone at a Convergent Plate Boundary) Pattern](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-34.jpg)
![Fig. 2 -13, p. 37 Fig. 2 -13, p. 37](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-35.jpg)
![Fig. 2 -19, p. 43 Fig. 2 -19, p. 43](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-36.jpg)
![Fig. 2 -23, p. 46 Fig. 2 -23, p. 46](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-37.jpg)
![• http: //videos. howstuffworks. com/howstuffw orks/230 -how-tsunamis-work-video. htm • http: //videos. howstuffworks. com/howstuffw orks/230 -how-tsunamis-work-video. htm](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-38.jpg)
![http: //www. uwiseismic. com/General. aspx? i http: //www. geogateways. com/toolkit/ggima ges/tsunami 1. jpg d=23 http: //www. uwiseismic. com/General. aspx? i http: //www. geogateways. com/toolkit/ggima ges/tsunami 1. jpg d=23](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-39.jpg)
![Earth’s Interior 3 Solid Inner Core • The fact that P-waves pass through the Earth’s Interior 3 Solid Inner Core • The fact that P-waves pass through the](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-40.jpg)
![Earthquakes 2 Surface Waves • Surface waves move in a more complex manner. • Earthquakes 2 Surface Waves • Surface waves move in a more complex manner. •](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-41.jpg)
![Earthquakes 2 Surface Waves Earthquakes 2 Surface Waves](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-42.jpg)
![Earthquakes 2 Earthquake Measurement • The Modified Mercalli scale ranks earthquakes in a range Earthquakes 2 Earthquake Measurement • The Modified Mercalli scale ranks earthquakes in a range](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-43.jpg)
![Earthquakes 2 Earthquake Measurement • The Richter magnitude scale uses the amplitude of the Earthquakes 2 Earthquake Measurement • The Richter magnitude scale uses the amplitude of the](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-44.jpg)
![Earthquakes 2 Earthquake Measurement • The table shows the global frequency of different magnitude Earthquakes 2 Earthquake Measurement • The table shows the global frequency of different magnitude](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-45.jpg)
![Earthquakes 2 Levels of Destruction • Research has shown that poor building methods are Earthquakes 2 Levels of Destruction • Research has shown that poor building methods are](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-46.jpg)
![Earth’s Interior 3 Shadow Zones Earth’s Interior 3 Shadow Zones](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-47.jpg)
![The Nature of Waves 1 Seismic Waves • Seismic waves are a combination of The Nature of Waves 1 Seismic Waves • Seismic waves are a combination of](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-48.jpg)
![http: //www. youtube. com/watch? v=a 7 Qqr. Fki. E 7 g http: //www. youtube. http: //www. youtube. com/watch? v=a 7 Qqr. Fki. E 7 g http: //www. youtube.](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-49.jpg)
![Seismic Waves • Seismic waves are produced by earthquakes when stresses build up by Seismic Waves • Seismic waves are produced by earthquakes when stresses build up by](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-50.jpg)
![The Nature of Waves 1 Seismic Waves • Forces in Earth’s crust can cause The Nature of Waves 1 Seismic Waves • Forces in Earth’s crust can cause](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-51.jpg)
- Slides: 51
![Seismic Waves Mechanical waves that travel through the Earth Seismic Waves Mechanical waves that travel through the Earth.](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-1.jpg)
Seismic Waves Mechanical waves that travel through the Earth.
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-2.jpg)
![Cause Any physical disturbance that causes the Earth to vibrate Earthquakes most Cause • Any physical disturbance that causes the Earth to vibrate – Earthquakes (most](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-3.jpg)
Cause • Any physical disturbance that causes the Earth to vibrate – Earthquakes (most commonly) – Volcanoes – Landslides (terrestrial or undersea) – Extraterrestrial impacts (asteroids – and meteorites)
![Barringer Meteor Crater Arizona Ironnickel meteorite 49 000 years old 50 m in diameter Barringer Meteor Crater, Arizona Iron-nickel meteorite 49, 000 years old 50 m in diameter](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-4.jpg)
Barringer Meteor Crater, Arizona Iron-nickel meteorite 49, 000 years old 50 m in diameter Impact speed 12. 8 km/s 1. 186 kilometers (. 737 miles) in diameter 170 m in depth
![Earthquakes Earthquakes occur when builtup stress is suddenly released Rupture or slippage Earthquakes • Earthquakes occur when built-up stress is suddenly released. • Rupture or slippage](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-5.jpg)
Earthquakes • Earthquakes occur when built-up stress is suddenly released. • Rupture or slippage of rock within the Earth produce seismic waves http: //quake 06. stanford. edu/c entennial/tour/s top 11. html
![Earthquakes 2 Deformation Moving plates place stress on the earth 1 compressive stress Earthquakes 2 Deformation • Moving plates place stress on the earth (1) compressive stress](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-6.jpg)
Earthquakes 2 Deformation • Moving plates place stress on the earth (1) compressive stress (push together) (2) a tension stress (pull apart) (3) a shear stress (moving past) (4) torsion stress (twisting)
![Earthquakes 2 Earthquake Waves Earthquake waves travel out in all directions from a Earthquakes 2 Earthquake Waves • Earthquake waves travel out in all directions from a](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-7.jpg)
Earthquakes 2 Earthquake Waves • Earthquake waves travel out in all directions from a point where strain energy is released. This point is the focus. • The point on Earth’s surface directly above the focus is the epicenter.
![Earthquakes 2 Energy Release When stress leads to strain energy is released suddenly Earthquakes 2 Energy Release • When stress leads to strain, energy is released suddenly,](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-8.jpg)
Earthquakes 2 Energy Release • When stress leads to strain, energy is released suddenly, and it causes rock to lurch to a new position. • A fault is a crack along which movement has taken place. • The sudden energy release that goes with fault movement is called elastic rebound.
![The Earths Surface is in constant motion Theory of Plate Tectonics explains that The Earth’s Surface is in constant motion! • Theory of Plate Tectonics explains that](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-9.jpg)
The Earth’s Surface is in constant motion! • Theory of Plate Tectonics explains that the Earth’s surface is composed of several brittle lithospheric plates that move. • Most earthquakes are caused by the motion of the lithospheric plates.
![Fig 9 5 p 191 Fig. 9 -5, p. 191](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-10.jpg)
Fig. 9 -5, p. 191
![Fig 2 14 p 38 Fig. 2 -14, p. 38](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-11.jpg)
Fig. 2 -14, p. 38
![Surface Waves Surface Waves](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-12.jpg)
Surface Waves
![2 Body Waves seismic waves that pass through the Earth Primary waves also called 2 Body Waves— seismic waves that pass through the Earth Primary waves, also called](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-13.jpg)
2 Body Waves— seismic waves that pass through the Earth Primary waves, also called P-waves, are longitudinal waves (compressional). • P-waves pass through solids and liquids • P-waves are faster than s-waves. Secondary waves, also called S-waves are transverse waves. • S-waves can travel through solids but not liquids • S-waves are slower than p-waves
![Body Fig 9 8 p 194 Body Fig. 9 -8, p. 194](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-14.jpg)
Body Fig. 9 -8, p. 194
![Longitudinal or compressional Or rarefactions transverse Longitudinal or compressional Or rarefactions transverse](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-15.jpg)
Longitudinal or compressional Or rarefactions transverse
![Fig 9 9 p 195 Fig. 9 -9, p. 195](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-16.jpg)
Fig. 9 -9, p. 195
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-17.jpg)
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-18.jpg)
![Fig 9 10 p 196 Fig. 9 -10, p. 196](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-19.jpg)
Fig. 9 -10, p. 196
![Gases emitted from the interior during this process are likely the source for the Gases emitted from the interior during this process are likely the source for the](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-20.jpg)
Gases emitted from the interior during this process are likely the source for the formation of the atmosphere and oceans. Fig. 1 -10, p. 14
![Internal Temperature of Earth Crustmantle boundary 800 1200 C Coremantle boundary 3500 5000 C Internal Temperature of Earth Crust-mantle boundary 800 -1200 C Core-mantle boundary 3500 -5000 C](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-21.jpg)
Internal Temperature of Earth Crust-mantle boundary 800 -1200 C Core-mantle boundary 3500 -5000 C Temperature of the Earth increases with depth (25 degrees C per km, closer to the surface) Fig. 1 -10 c, p. 14
![Sources of Earths Internal Heat Heat from Earths formation gravitational contraction increases temperature Sources of Earth’s Internal Heat • Heat from Earth’s formation (gravitational contraction increases temperature](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-22.jpg)
Sources of Earth’s Internal Heat • Heat from Earth’s formation (gravitational contraction increases temperature of the interior) • Heat from extraterrestrial impacts (kinetic energy to thermal energy) • Heat from ongoing decay of radioactive nuclides (radioactive particles and energy increase temperature)
![Fig 1 11 p 15 Fig. 1 -11, p. 15](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-23.jpg)
Fig. 1 -11, p. 15
![The Earths Layers Earth layers result from density differences between the layers caused The Earth’s Layers • Earth layers result from density differences between the layers caused](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-24.jpg)
The Earth’s Layers • Earth layers result from density differences between the layers caused by variations in composition, temperature, and pressure. • Core: metal (Fe and small amount of Ni) [10 -13 g/cm 3] • Outer liquid core • Inner solid core • Mantle: iron-rich rock (Fe. Mg-Peridotite) [3. 3– 5. 7 g/cm 3] • Crust: aluminum and magnesium rich rock • Continental Crust: Si. Al (rock) less dense [2. 7 g/cm 3] • Oceanic Crust: Si. Ma (rock) darker, more dense [3. 0 g/cm 3]
![Lithosphere and Asthenosphere Lithosphere is the solid brittle outer layer of the Earth Lithosphere and Asthenosphere • Lithosphere is the solid, brittle outer layer of the Earth](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-25.jpg)
Lithosphere and Asthenosphere • Lithosphere is the solid, brittle outer layer of the Earth composed of: – Oceanic and continental crust – Top part of the mantle • Asthenosphere is the plastic layer of the mantle directly below the lithosphere over which the lithospheric plates move. • The lithosphere is broken into many pieces called plates.
![Plate Boundaries Divergent Plate Boundary oceanic ridges and undersea volcanoessee the Atlantic Ocean Plate Boundaries • Divergent Plate Boundary (oceanic ridges and undersea volcanoes—see the Atlantic Ocean)](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-26.jpg)
Plate Boundaries • Divergent Plate Boundary (oceanic ridges and undersea volcanoes—see the Atlantic Ocean) spread apart • Convergent Plate Boundary (trenches and volcanic mountain chains—see the Andes Mountains) come together • Transform plate boundary (side-by-side plate motion—see the San Andreas Fault)--move past
![Three types of plate boundaries 1 Divergent plate boundary 2 Convergent Plate Boundary 3 Three types of plate boundaries 1. Divergent plate boundary 2. Convergent Plate Boundary 3.](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-27.jpg)
Three types of plate boundaries 1. Divergent plate boundary 2. Convergent Plate Boundary 3. Transform Plate boundary Fig. 1 -14, p. 18
![The Mechanism for Plate Motion is Convection in the Mantle Heat from the interior The Mechanism for Plate Motion is Convection in the Mantle Heat from the interior](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-28.jpg)
The Mechanism for Plate Motion is Convection in the Mantle Heat from the interior flows outward toward the crust Fig. 1 -12, p. 15
![What is the evidence that the Earths outer core is liquid See next slide What is the evidence that the Earth’s outer core is liquid? (See next slide)](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-29.jpg)
What is the evidence that the Earth’s outer core is liquid? (See next slide)
![PWaves Pwaves and Swaves provide seismic evidence that the outer core is liquid and P-Waves P-waves and Swaves provide seismic evidence that the outer core is liquid and](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-30.jpg)
P-Waves P-waves and Swaves provide seismic evidence that the outer core is liquid and the inner core is solid Refraction: the bending of a wave as it passes from one medium to another S-Waves Caused by changes in wave speed Fig. 9 -21, p. 210
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-31.jpg)

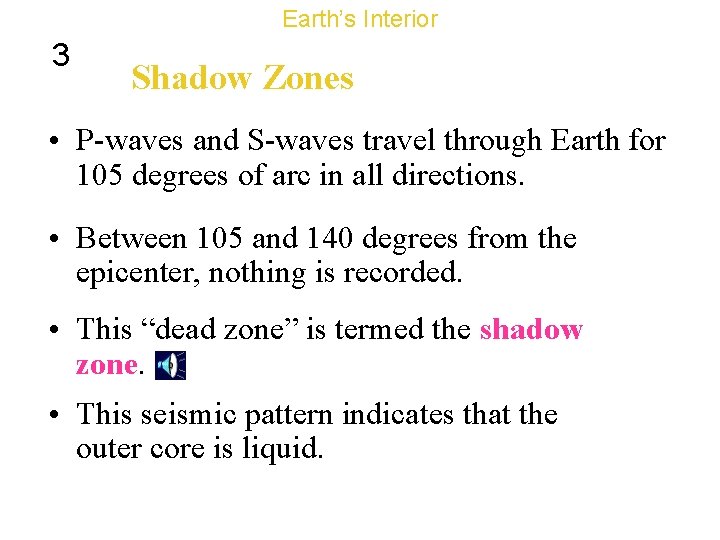

![Earths Interior 3 Shadow Zones Pwaves and Swaves travel through Earth for 105 Earth’s Interior 3 Shadow Zones • P-waves and S-waves travel through Earth for 105](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-32.jpg)
Earth’s Interior 3 Shadow Zones • P-waves and S-waves travel through Earth for 105 degrees of arc in all directions. • Between 105 and 140 degrees from the epicenter, nothing is recorded. • This “dead zone” is termed the shadow zone. • This seismic pattern indicates that the outer core is liquid.
![](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-33.jpg)
![Benioff Seismic Zone associated with a subduction zone at a Convergent Plate Boundary Pattern Benioff Seismic Zone (associated with a subduction zone at a Convergent Plate Boundary) Pattern](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-34.jpg)
Benioff Seismic Zone (associated with a subduction zone at a Convergent Plate Boundary) Pattern of earthquake occurrences indicates the location of the subducted limb of the lithospheric plate
![Fig 2 13 p 37 Fig. 2 -13, p. 37](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-35.jpg)
Fig. 2 -13, p. 37
![Fig 2 19 p 43 Fig. 2 -19, p. 43](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-36.jpg)
Fig. 2 -19, p. 43
![Fig 2 23 p 46 Fig. 2 -23, p. 46](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-37.jpg)
Fig. 2 -23, p. 46
![http videos howstuffworks comhowstuffw orks230 howtsunamisworkvideo htm • http: //videos. howstuffworks. com/howstuffw orks/230 -how-tsunamis-work-video. htm](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-38.jpg)
• http: //videos. howstuffworks. com/howstuffw orks/230 -how-tsunamis-work-video. htm
![http www uwiseismic comGeneral aspx i http www geogateways comtoolkitggima gestsunami 1 jpg d23 http: //www. uwiseismic. com/General. aspx? i http: //www. geogateways. com/toolkit/ggima ges/tsunami 1. jpg d=23](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-39.jpg)
http: //www. uwiseismic. com/General. aspx? i http: //www. geogateways. com/toolkit/ggima ges/tsunami 1. jpg d=23
![Earths Interior 3 Solid Inner Core The fact that Pwaves pass through the Earth’s Interior 3 Solid Inner Core • The fact that P-waves pass through the](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-40.jpg)
Earth’s Interior 3 Solid Inner Core • The fact that P-waves pass through the core, but are refracted along the way, indicates that the inner core is denser than the outer core and solid. • When pressure dominates, atoms are squeezed together tightly and exist in the solid state. • If temperatures are high enough, atoms move apart enough to exist in the liquid state, even at extreme pressures.
![Earthquakes 2 Surface Waves Surface waves move in a more complex manner Earthquakes 2 Surface Waves • Surface waves move in a more complex manner. •](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-41.jpg)
Earthquakes 2 Surface Waves • Surface waves move in a more complex manner. • They can exhibit an up and down rolling motion, and also a side-to-side motion that parallels Earth’s surface.
![Earthquakes 2 Surface Waves Earthquakes 2 Surface Waves](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-42.jpg)
Earthquakes 2 Surface Waves
![Earthquakes 2 Earthquake Measurement The Modified Mercalli scale ranks earthquakes in a range Earthquakes 2 Earthquake Measurement • The Modified Mercalli scale ranks earthquakes in a range](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-43.jpg)
Earthquakes 2 Earthquake Measurement • The Modified Mercalli scale ranks earthquakes in a range from I-XII, XII being the worst and uses eyewitness observation and postearthquake assessments to assign an intensity value.
![Earthquakes 2 Earthquake Measurement The Richter magnitude scale uses the amplitude of the Earthquakes 2 Earthquake Measurement • The Richter magnitude scale uses the amplitude of the](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-44.jpg)
Earthquakes 2 Earthquake Measurement • The Richter magnitude scale uses the amplitude of the largest earthquake wave. • Richter magnitude is intended to give a measure of the energy released during the earthquake.
![Earthquakes 2 Earthquake Measurement The table shows the global frequency of different magnitude Earthquakes 2 Earthquake Measurement • The table shows the global frequency of different magnitude](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-45.jpg)
Earthquakes 2 Earthquake Measurement • The table shows the global frequency of different magnitude earthquakes.
![Earthquakes 2 Levels of Destruction Research has shown that poor building methods are Earthquakes 2 Levels of Destruction • Research has shown that poor building methods are](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-46.jpg)
Earthquakes 2 Levels of Destruction • Research has shown that poor building methods are the largest contributors to earthquake damage and loss of life. Earthquake Proofing • Although no building can be made entirely earthquake proof, scientists and engineers are finding ways to reduce the damage to structures during mild or moderate earthquakes.
![Earths Interior 3 Shadow Zones Earth’s Interior 3 Shadow Zones](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-47.jpg)
Earth’s Interior 3 Shadow Zones
![The Nature of Waves 1 Seismic Waves Seismic waves are a combination of The Nature of Waves 1 Seismic Waves • Seismic waves are a combination of](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-48.jpg)
The Nature of Waves 1 Seismic Waves • Seismic waves are a combination of longitudinal (p-waves) and transverse waves (s-waves). They can travel through Earth and along Earth’s surface. • The more the crust moves during an earthquake, the more energy is released. Click image to view movie.
![http www youtube comwatch va 7 Qqr Fki E 7 g http www youtube http: //www. youtube. com/watch? v=a 7 Qqr. Fki. E 7 g http: //www. youtube.](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-49.jpg)
http: //www. youtube. com/watch? v=a 7 Qqr. Fki. E 7 g http: //www. youtube. com/watch? v=y. OGo. KCK 17 a 4&feature=related http: //www. forgefx. com/casestudies/prenticehall/ph/seismic-wavessimulator. htm http: //aspire. cosmic-ray. org/labs/seismic/index. htm Seismic Waves The sudden release of energy within the Earth produces waves. http: //www. youtube. com/watch? v=FW-Tkpv. KPl 0 http: //www. youtube. com/watch? v=0 l. AXSt. QCjr 8&feature=related
![Seismic Waves Seismic waves are produced by earthquakes when stresses build up by Seismic Waves • Seismic waves are produced by earthquakes when stresses build up by](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-50.jpg)
Seismic Waves • Seismic waves are produced by earthquakes when stresses build up by moving plates are suddenly released. • Body waves vs. surface waves • Interior waves produced by this disturbance include longitudinal waves or p-waves and transverse waves or s-waves. • P-waves are faster than s-waves, and can travel through solids or liquids. S-waves cannot travel through liquids. • The epicenter and focus of an earthquake can be calculated using seismic data from at least
![The Nature of Waves 1 Seismic Waves Forces in Earths crust can cause The Nature of Waves 1 Seismic Waves • Forces in Earth’s crust can cause](https://slidetodoc.com/presentation_image/10d516020205d32f53210bbc2b003448/image-51.jpg)
The Nature of Waves 1 Seismic Waves • Forces in Earth’s crust can cause regions of the crust to shift, bend, or even break. • The breaking crust vibrates, creating seismic (SIZE mihk) waves that carry energy outward.
