Runtime Safety Analysis of Multithreaded Programs Koushik Sen

Runtime Safety Analysis of Multithreaded Programs Koushik Sen University of Illinois at Urbana-Champaign, USA Co-authors Grigore Rosu and Gul Agha

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Talk Overview § Motivation § Multi. Path. Explorer § Motivating example § Instrumentation based on vector clocks § Predict specification violations at runtime § System architecture § Further Applications § Conclusion and Future Work 2 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Increasing Software Reliability § Current solutions § Human review of code and testing l l § (Advanced) Static analysis l l § Most used in practice Usually ad-hoc, intensive human support Often scales up False positives and negatives, annotations (Traditional) Formal methods l l Model checking and theorem proving General, good confidence, do not always scale up 3 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Runtime Verification § Merge testing and temporal logic specification § § Run Specify safety properties in proper temporal logic. Monitor safety properties against a run of the program. § Examples: JPa. X (NASA Ames), Upenn's Java Ma. C analyzes the observed run. § Disadvantage: Lack of coverage. Naïve Observer 4 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Our Approach: Smart Observer § Ideas § § Run A single execution trace contains more information than appears at first sight Extract other possible runs from a single execution Analyze all these runs intelligently. A technique between model checking and testing. Smart Observer 5 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Talk Overview § Motivation § Multi. Path. Explorer § Motivating example § Instrumentation based on vector clocks § Predict specification violations at runtime § System architecture § Further Applications § Conclusion and Future Work 6 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Multi. Path. Explorer – JMPa. X (Java) § Based on smart observers § Smartness obtained by proper instrumentation: vector clocks § Possible global states generated dynamically form a lattice § Analysis is performed on a level-by-level basis in the lattice of global states 7 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Motivating Example “Safe Landing” Safe Landing Land the air/space craft only after approval from ground and only if, since then, the radio signal has not been lost § Three variables: § Landing indicating air/space craft is landing § Approved indicating landing has been approved § Radio indicating radio signal is live Landing Approved, Radio 8 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Code of a Landing Controller n Two threaded program to control landing int landing = 0, approved = 0, radio = 1; void thread 1() { ask. Landing. Approval(); if (approved == 1) { print("Landing approved"); landing=1; print("Landing started") } else { print("Landing not approved") } } void ask. Landing. Approval() { if (radio == 1) { approved = 1 } else { approved = 0} } void thread 2() { while (true) { check. Radio(); } } 9 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Landing Safety Violation § Suppose the plane has received approval for landing and just before it started landing the radio signal went off § the plane must abort landing! § A simple observer will most likely approved = 1 landing = 1 not detect the bug. § JMPa. X can construct a possible run in which radio goes off between approval and landing 10 radio = 0 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Talk Overview § Motivation § Multi. Path. Explorer § Motivating example § Instrumentation based on vector clocks § Predict specification violations at runtime § System architecture § Further Applications § Conclusion and Future Work 11 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Events in Multithreaded Programs § Given n threads p 1, p 2, . . . , pn, § A multithreaded execution is a sequence of events e 1 e 2 … er of type: § internal or, § read of a shared variable or, § write of a shared variable. § eij represents the jth event generated by thread pi since the start of its execution. 12 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Causality in Multithreaded Programs § Define the partial order Á on the set of events as follows: § § § eik Á eil if k < l; e Á e' if there is some x 2 S such that e <x e' and at least one of e, e‘ is a write. e Á e'' if e Á e' and e' Á e''. 13 i e ik Á e il e’ i x j e 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Vector Clocks and Relevant Events § Consider a subset R of relevant events. (typically those writing specification’s variables) § R-relevant causality is a relation C µ Á § C is a projection of Á on R £ R. § We provide a technique based on vector clocks that correctly implements the relevant causality relation. 14 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Vector Clock Algorithm § Let Vi be an n-dimensional vector of natural numbers for each thread pi. § Let Vxa and Vxw be vectors for each shared variable x. 1. if eik is relevant, i. e. , if eik 2 R, then § Vi[i] à Vi[i] + 1 2. if eik is a read of a variable x then § Vi à max{Vi, Vxw} § Vxa à max{Vxa, Vi} 3. if eik is a write of a variable x then § Vxw à Vxa à Vi à max{Vxa, Vi} 4. if eik is relevant then § send message h eik, i, Vi i to observer. 15 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Correspondence with Standard Vector Clocks Read i x(a) Write x(w) i 16 x(a) x(w) 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Implementing Causality by Vector Clocks § Theorem: If he, i, Vi and he', j, V' i are messages sent by our algorithm, then e C e' iff V[i] · V'[i] If i and j are not given, then e C e' iff 17 V < V‘ 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Example with Two Threads thread T 1 { thread T 2 { x++; z = x + 1; . . . y = x + 1; x++; } } (initially x = -1) e 1: hx =0, T 1, (1, 0) i e 3: hy =1, T 1, (2, 0) i T 1 T 2 e 2: hz =1, T 2, (1, 1) i 18 e 4: hx =1, T 2, (1, 2) i 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Relevant Global State § The program state after the events ek 11, ek 22, . . . , eknn is called a relevant global multithreaded state or simply a state. § A state k 1 k 2 … kn is called consistent if and only if it can be seen in some possible run of the system. 19 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Multi. Threaded Run § e 1 e 2 … e|R| is a multithreaded run iff it generates a sequence of global states K 0 K 1 … K|R| such that § each Kr is consistent and § Kr after event er becomes Kr+1. (consecutive states) 20 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Computation Lattice À ' when there is some run in which and ' are consecutive states § We say § Consistent global states together with the transitive closure of À form a lattice § Multithreaded runs are paths in the lattice 21 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Example Revisited thread T 1 { thread T 2 { x++; z = x + 1; . . . y = x + 1; x++; } } 22 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Monitoring Safety Formula 0, 0 x = -1, y = 0, z = 0 e 1 : h x=0, T 1, (1, 0) i 1, 0 e 2 : h z=1, T 2, (1, 1) i x = 0, y = 0, z = 0 e 3 : h y=1, T 1, (2, 0) i 1, 1 2, 0 x = 0, y = 0, z = 1 x = 0, y = 1, z = 0 e 3 : h y=1, T 1, (2, 0) i e 4 : h x=1, T 2, (1, 2) i e 2 : h z=1, T 2, (1, 1) i 2, 1 1, 2 x = 0, y = 1, z = 1 x = 1, y = 0, z = 1 e 3 : h y=1, T 1, (2, 0) i 2, 2 e 4 : h x=1, T 2, (1, 2) i x = 1, y = 1, z = 1 (x > 0) ! [(y = 0), (y > z))s 23 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Safety Violation in a Possible Run 0, 0 x = -1, y = 0, z = 0 e 1 : h x=0, T 1, (1, 0) i 1, 0 e 2 : h z=1, T 2, (1, 1) i x = 0, y = 0, z = 0 e 3 : h y=1, T 1, (2, 0) i 1, 1 2, 0 x = 0, y = 0, z = 1 x = 0, y = 1, z = 0 e 3 : h y=1, T 1, (2, 0) i e 4 : h x=1, T 2, (1, 2) i e 2 : h z=1, T 2, (1, 1) i 2, 1 1, 2 x = 0, y = 1, z = 1 x = 1, y = 0, z = 1 e 3 : h y=1, T 1, (2, 0) i 2, 2 e 4 : h x=1, T 2, (1, 2) i x = 1, y = 1, z = 1 (x > 0) ! [(y = 0), (y > z))s 24 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Talk Overview § Motivation § Multi. Path. Explorer § Motivating example § Instrumentation based on vector clocks § Predict specification violations at runtime § System architecture § Further Applications § Conclusion and Future Work 25 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Safety Against All Runs § Number of possible runs can be exponential § Traverse the state lattice level by level § Avoids analyzing an exponential number of runs § Maintain a queue of events § Enqueue an event as soon as it arrives § Construct a new level from the set of states in the previous level and the events in the queue § Monitor safety formula against all states in a level using dynamic programming and intelligent merging. 26 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Algorithm Pseudocode for each (e 2 Q) { if exists s 2 Current. Level s. t. is. Next. State(s, e) then Next. Level à add. To. Set(Next. Level, create. State(s, e)); if is. Unnecessary(s) then remove(s, Current. Level); if is. Empty(Current. Level) then { monitor. All(Next. Level); Current. Level à Next. Level; Next. Level à {}; Q à remove. Unnecessary. Events(Current. Level, Q); } } 27 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Complexity § Time complexity is O(w. 2 m. n) § w – width of the lattice § m – size of the formula § n – length of the run § Memory used is O(w. 2 m’) § w – width of the lattice § m’ – number of temporal operators in the formula § Further optimizations § Consider bounded width w of queue Q 28 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Reason for Efficiency s 00 s 11 s 00 s 12 s 11 s 21 s 31 s 32 s 41 s 00 s 11 s 12 s 21 s 32 s 41 29 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ JMPa. X Architecture Specification Java multithreaded program Bytecode Translator Instrumented code JVM Specification. Impl Events 30 LTL monitor 12/16/2021

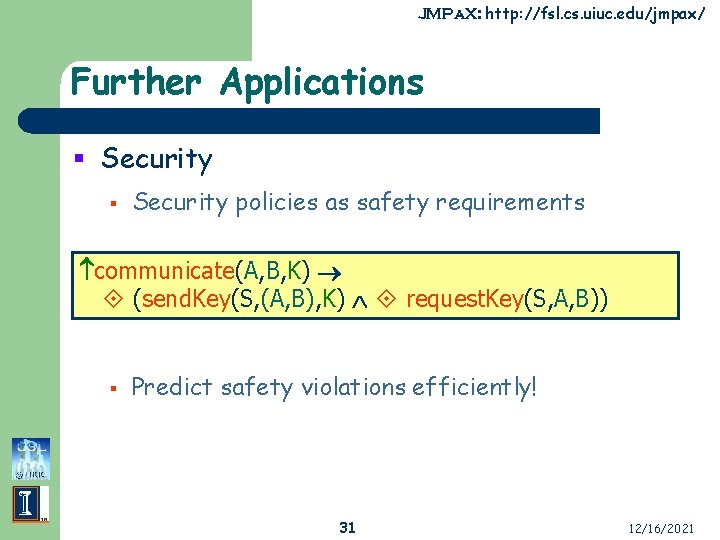

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Further Applications § Security policies as safety requirements communicate(A, B, K) (send. Key(S, (A, B), K) request. Key(S, A, B)) § Predict safety violations efficiently! 31 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Contributions § Introduce vector clock algorithm in multithreaded systems to capture relevant causality. § Efficiently Predict safety errors from successful runs. § A modular implementation of the above ideas in a analysis tool, JMPa. X. § http: //fsl. cs. uiuc. edu/jmpax/ for JMPa. X prototype. 32 12/16/2021

JMPa. X: http: //fsl. cs. uiuc. edu/jmpax/ Future Work § Evaluate JMPa. X on real, large applications § Develop predictive algorithms for other requirements specification logics § Consider a superset of partial order to gain efficiency § Find more scalable techniques that can fill the gap between model checking and testing § Integrate with NASA Ames’ Java Path. Explorer Tool (JPa. X). 33 12/16/2021
