User-Mode Driver Framework: Technical Synopsis Peter Wieland Development Lead Windows Device Experience Group Microsoft

User-Mode Driver Framework: Technical Synopsis Peter Wieland Development Lead Windows Device Experience Group Microsoft Corporation

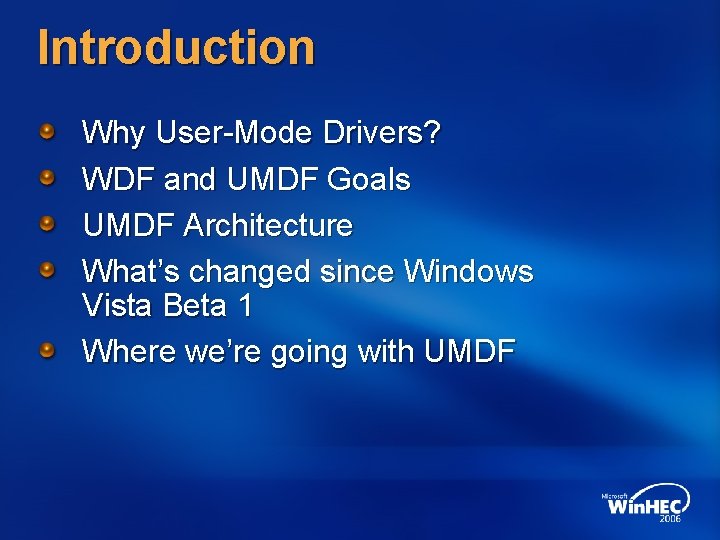

Introduction Why User-Mode Drivers? WDF and UMDF Goals UMDF Architecture What’s changed since Windows

Introduction Why User-Mode Drivers? WDF and UMDF Goals UMDF Architecture What’s changed since Windows Vista Beta 1 Where we’re going with UMDF

Reasons To Avoid Kernel Mode Drivers Kernel-Mode Drivers can corrupt the kernel Leads to

Reasons To Avoid Kernel Mode Drivers Kernel-Mode Drivers can corrupt the kernel Leads to data corruption and crashes Kernel-Mode Drivers can compromise the kernel Malicious driver can steal data, install hooks, open security holes, etc. Kernel-Mode Drivers are difficult to write Kernel-mode environment is very complex Even with KMDF

Why User-Mode Drivers? UM Drivers can’t corrupt or compromise kernel Can’t corrupt or steal

Why User-Mode Drivers? UM Drivers can’t corrupt or compromise kernel Can’t corrupt or steal data or crash the OS UM Drivers are limited in scope Run like Windows services Only act on data that passes through them UM Drivers run in an easier environment No IRQL, no DPCs, no non-paged pool Many user-mode tools and libraries available UM Drivers can still use WDF

Windows Driver Framework Goals Create a new model for driver development Provide object model

Windows Driver Framework Goals Create a new model for driver development Provide object model which Encapsulates objects found in WDM drivers Isolates driver from internal implementation details Provide behavioral model which Defines a uniform set of behaviors for all objects Provides correct default behaviors for device drivers Helps driver writer manage object lifetimes Scales easily from simple to complex driver implementations Provide runtime environment which Integrates the driver with the underlying I/O system Enables “side-by-side” operation of major versions of framework

KMDF And UMDF Two implementations of WDF Kernel-Mode Driver Framework (KMDF) for kernel-mode drivers

KMDF And UMDF Two implementations of WDF Kernel-Mode Driver Framework (KMDF) for kernel-mode drivers User-Mode Driver Framework (UMDF) for user-mode drivers Each implements the core objects and behaviors Each has extensions for its environment Interrupt Registry DPC Events and Timers Resource List PDO Collections KMDF I/O Objects PNP State Machine USB I/O Target I/O Pipeline UMDF Impersonation Device Property Store Win 32 I/O Target

Core WDF Objects Driver Device File Request Memory Object I/O Queue I/OQueue Request USB

Core WDF Objects Driver Device File Request Memory Object I/O Queue I/OQueue Request USB I/O Target System Owned Object Driver Owned Object Memory Driver Device I/O Target Global state for driver A single piece of hardware Request formatter for various busses & sends I/O requests to the lower device stack I/O Allows driver to control Queue request flow File Open connection to device (by client or driver) Request A single I/O operation Memory A buffer associated with for use in I/O operations Object Driver created object can be inserted into parent tree Parent / Child Relationship

User-Mode Driver Goals UM Drivers are insulated from the kernel So they cannot harm

User-Mode Driver Goals UM Drivers are insulated from the kernel So they cannot harm the system UM Drivers look like any other driver UM Drivers act like any other driver Same installation through INFs Same Plug and Play and Power Management Same I/O features: Async I/O, cancellation, etc. Familiar to user-mode developers Use “user-mode patterns” where appropriate UM Drivers use the Windows Driver Framework Don’t invent a new driver model

WDF In UMDF provides core WDF model Supports the core I/O objects Device, File,

WDF In UMDF provides core WDF model Supports the core I/O objects Device, File, Queue, Request, Memory Provides I/O pipeline and Pn. P state machine UMDF is not a user-mode version of KMDF Does not share the same DDI UMDF DDI builds around “COM Lite” and C++ Does not support kernel or hardware objects Interrupts, spinlocks, resource lists, etc. Has user-mode specific objects and behaviors Device registry access, impersonation, etc. Does not support bus drivers Does not support device wake

Kernel Driver Example Application Provided by: Microsoft Buffer ISV Handle IRP IHV OEM Filter

Kernel Driver Example Application Provided by: Microsoft Buffer ISV Handle IRP IHV OEM Filter Driver Function Driver USB Driver

UMDF Example Application UMDF Host UMIRP Fx Buffer Fx Handle Filter Driver Fx Request

UMDF Example Application UMDF Host UMIRP Fx Buffer Fx Handle Filter Driver Fx Request Function Driver Fx Request Handle IRP UMDF Reflector Side Object USB Driver

UMDF Components Driver Manager Windows Service Manages driver host processes for reflector Reflector Kernel-Mode

UMDF Components Driver Manager Windows Service Manages driver host processes for reflector Reflector Kernel-Mode Driver Ties together user and kernel device stacks Manages requests and kernel resources Validates driver behavior Enforces timeouts for critical requests

UMDF Components Host Process Runtime environment for drivers Manages per-device-stack resources Loads device drivers

UMDF Components Host Process Runtime environment for drivers Manages per-device-stack resources Loads device drivers and frameworks into stacks Manages I/O flow between drivers Framework Library Driver Framework objects Pn. P State Machine Manages I/O flow within a driver

Runtime Environment Host Process defines runtime environment One host process per device All drivers

Runtime Environment Host Process defines runtime environment One host process per device All drivers for a device stack load in the host Host runs as Local Service Reduces threat of a user-mode driver Can use impersonation when needed (but use caution) Driver can use Win 32 components Kernel 32, Advapi, Winsock, COM But remember that you are writing a secure, robust, reliable service for the device Know what you’re calling into and what security risks it entails No GUI code in Drivers

Changes In UMDF What has changed since Driver Dev. Con last year (2005)? Improved

Changes In UMDF What has changed since Driver Dev. Con last year (2005)? Improved Device Installation File Objects and Cleanup/Close callbacks Adaptive Timeouts New I/O Targets for USB through Win. USB Win 32 handles (to files or devices)

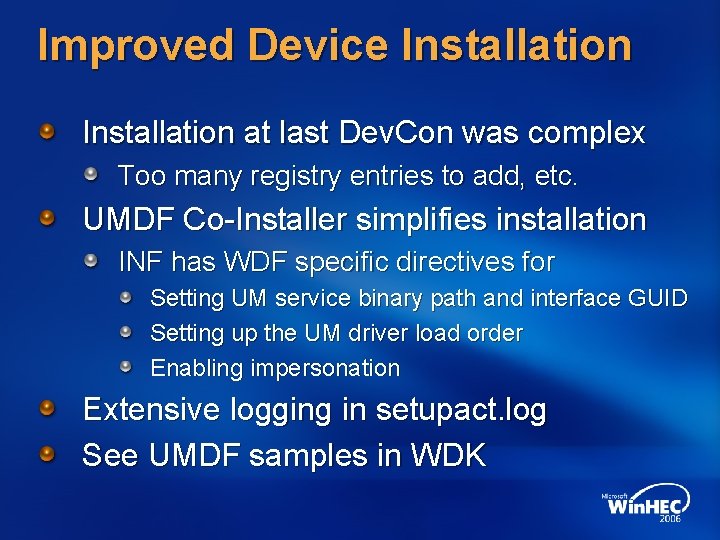

Improved Device Installation at last Dev. Con was complex Too many registry entries to

Improved Device Installation at last Dev. Con was complex Too many registry entries to add, etc. UMDF Co-Installer simplifies installation INF has WDF specific directives for Setting UM service binary path and interface GUID Setting up the UM driver load order Enabling impersonation Extensive logging in setupact. log See UMDF samples in WDK

Example INF Excerpt from old UMDF Skeleton Sample INF [Skeleton_Install. NT] Copy. Files =

Example INF Excerpt from old UMDF Skeleton Sample INF [Skeleton_Install. NT] Copy. Files = UMDriver. Copy Register. Dlls = UMDF. Register. Dlls Add. Reg = Driver. Service. Key_Add. Reg [Skeleton_Install. NT. hw] Add. Reg = Skeleton_Device_Add. Reg [Skeleton_Install. NT. Services] Add. Service = WUDFRd, 0 x 000001 fa, WUDFRD_Service. Install [Skeleton_Install. Co. Installers] Add. Reg = Co. Installers_Add. Reg [Driver. Service. Key_Add. Reg] HKLM, "%UMDF_SERVICES%UMDFSkeleton", "Com. CLSID", 0, "{…}“ HKLM, …, "Image. Path", 0, "%12%UMDFSkeleton. dll“ [Skeleton_Device_Add. Reg] HKR, "WUDF", "Driver. List", 0 x 00010000, "UMDFSkeleton“ [UMDF. Register. Dlls] 11, , UMDFSkeleton. dll, 1

Example INF Excerpt from new UMDF Skeleton Sample INF [Skeleton_Install. NT] Copy. Files =

Example INF Excerpt from new UMDF Skeleton Sample INF [Skeleton_Install. NT] Copy. Files = UMDriver. Copy [Skeleton_Install. NT. Services] Add. Service = WUDFRd, 0 x 000001 fa, WUDFRD_Service. Install [Skeleton_Install. Co. Installers] Add. Reg = Co. Installers_Add. Reg [Skeleton_Install. NT. Wdf] Umdf. Service = UMDFSkeleton, UMDFSkeleton_Install Umdf. Service. Order = UMDFSkeleton [UMDFSkeleton_Install] Umdf. Library. Version = 1. 0. 0 Service. Binary = %12%UMDFSkeleton. dll Driver. CLSID = {d 4112073 -d 09 b-458 f-a 5 aa-35 ef 21 eef 5 de}

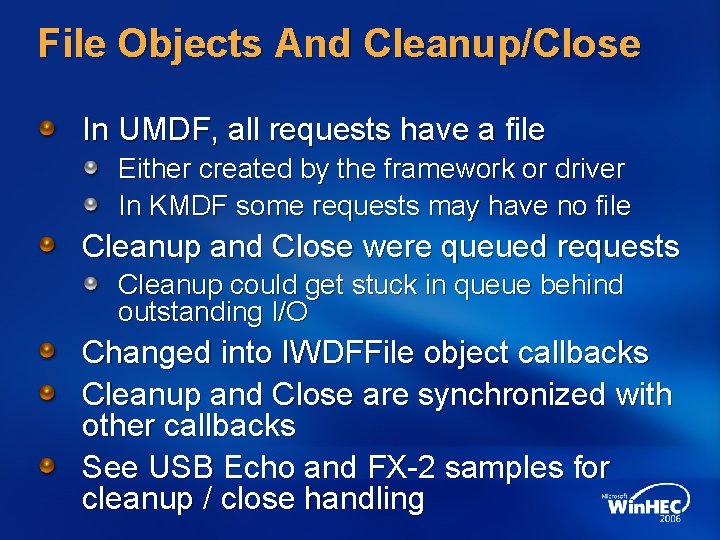

File Objects And Cleanup/Close In UMDF, all requests have a file Either created by

File Objects And Cleanup/Close In UMDF, all requests have a file Either created by the framework or driver In KMDF some requests may have no file Cleanup and Close were queued requests Cleanup could get stuck in queue behind outstanding I/O Changed into IWDFFile object callbacks Cleanup and Close are synchronized with other callbacks See USB Echo and FX-2 samples for cleanup / close handling

Adaptive Timeouts Some requests are “critical operations” Close, Cancellation, Device Removal, etc. These cannot

Adaptive Timeouts Some requests are “critical operations” Close, Cancellation, Device Removal, etc. These cannot fail, and hold up the system Hard timeouts are sensitive to synchronization and serialization Reflector watches for “forward progress” If driver is completing I/O, reflector is happy Assumes that if driver is completing I/O it will eventually complete the critical I/O as well

I/O Targets USB I/O Target Allows driver to work with USB Works through Win.

I/O Targets USB I/O Target Allows driver to work with USB Works through Win. USB Driver Follows WDF pattern Does not implement continuing reader See USB Echo sample driver for example Win 32 I/O Target Extends I/O Target DDI to driver opened file handle Can use to access a file or a device Acts as a local I/O target I/O flows through lower UM drivers and then to handle Allows coupling of UM driver stack to a non-PNP entity Network connected device, serial connected device, etc. Currently not used in samples Must specify which I/O target device uses Through Umdf. Dispatcher directive in INF See samples for example

UMDF Futures We’re building our post Windows Vista plans now Considering things like Common

UMDF Futures We’re building our post Windows Vista plans now Considering things like Common DDI with KMDF Managed driver support for UMDF I/O targets for more buses Device-Class specific extensions Visual Studio Integration We need customer feedback to validate our priorities – see Call to Action

Call To Action Install the Windows Driver Kit Try UMDF for your driver projects

Call To Action Install the Windows Driver Kit Try UMDF for your driver projects Send us feedback! We want to know how to make the framework better We want to know what features are still missing Respond to our survey UMDFFDBK @ microsoft. com

Resources Join the WDF Beta Program https: //connect. microsoft. com/availableprograms. aspx Participate in the

Resources Join the WDF Beta Program https: //connect. microsoft. com/availableprograms. aspx Participate in the UMDF newsgroup microsoft. beta. windows. driverfoundation. umdf at betanews. microsoft. com WHDC web site Dev. Con 2005 presentations http: //www. microsoft. com/whdc/driver/wdf/UMDF. mspx Join us for the lab and Q&A Wednesday Ask the Experts Tuesday evening
