Rayat Shikshan Sanstha’s S. M. Joshi College Hadapsar-028 Department of Electronics Science Operational amplifier Presented by. Dr. Kakade K. P

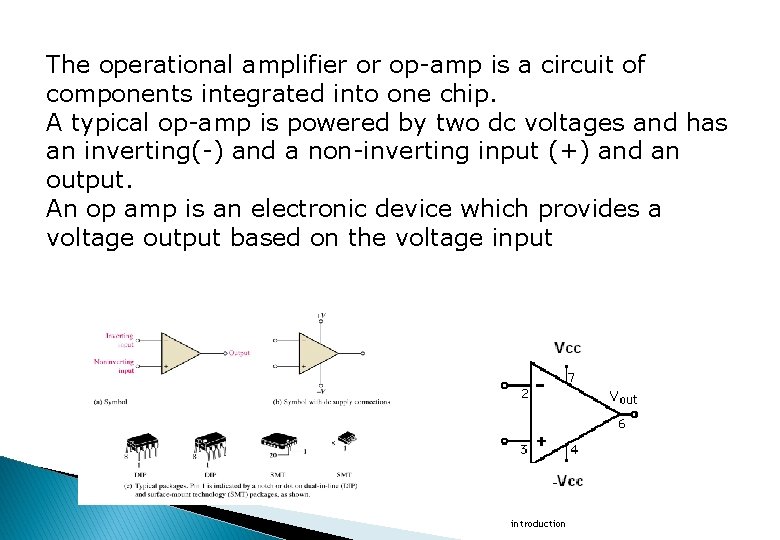

The operational amplifier or op-amp is a circuit of components integrated into one chip. A typical op-amp is powered by two dc voltages and has an inverting(-) and a non-inverting input (+) and an output. An op amp is an electronic device which provides a voltage output based on the voltage input introduction

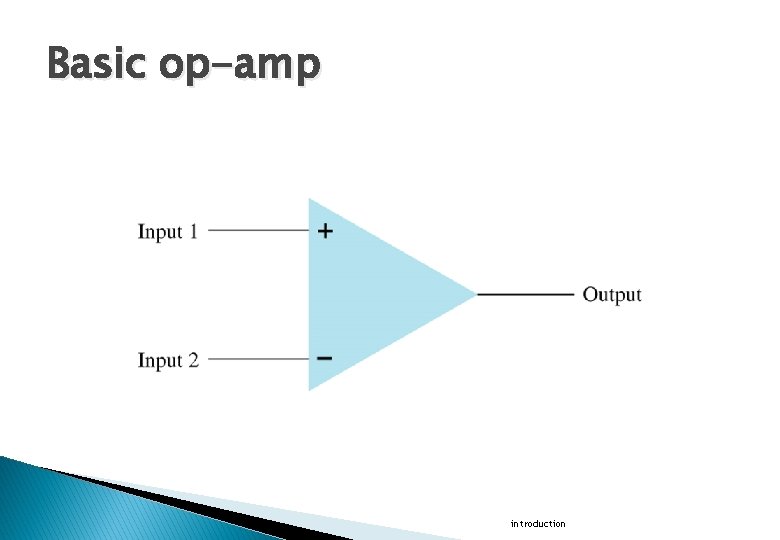

Basic op-amp introduction

Operational Amplifiers Five important pins ◦ ◦ ◦ 2 3 6 4 7 – – – The The The inverting input non-inverting input output negative power supply V- (-Vcc) positive power supply V+ (+Vcc) introduction

Operational Amplifiers � The output of the op amp is given by the following equation: Vd = E 1 – E 2 and Vo = AVOL(Vd) is called the open-loop voltage gain because it is the gain of the op amp without any external feedback from output to input � AVOL introduction

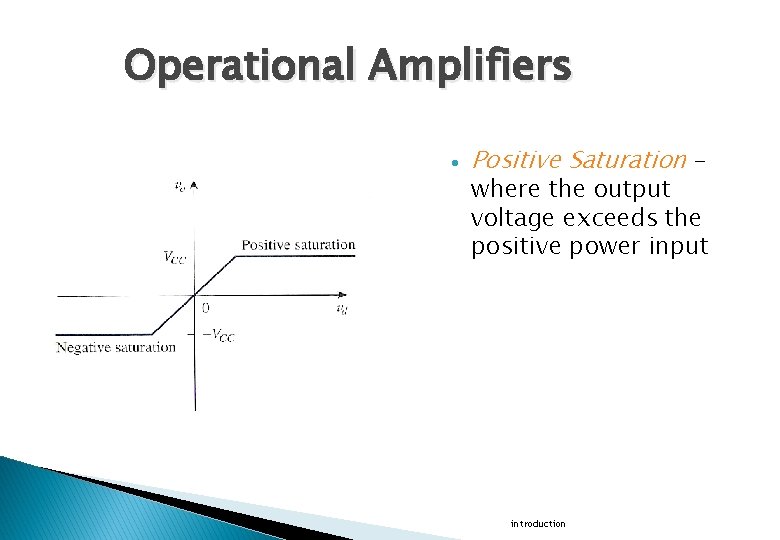

Operational Amplifiers Positive Saturation – where the output voltage exceeds the positive power input introduction

Operational Amplifiers Linear Region – where the output voltage is linear based on A (gain) introduction

Operational Amplifiers Negative Saturation – where the output voltage would be less than the negative power input introduction

Operational Amplifiers introduction

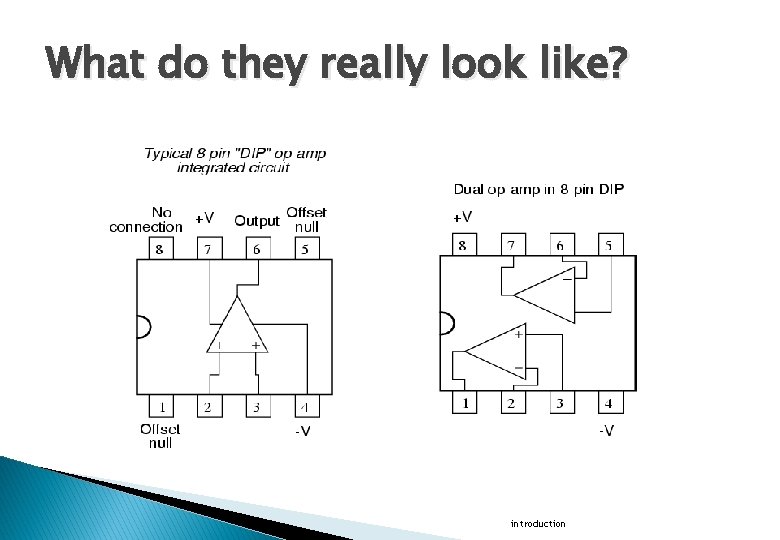

What do they really look like? introduction

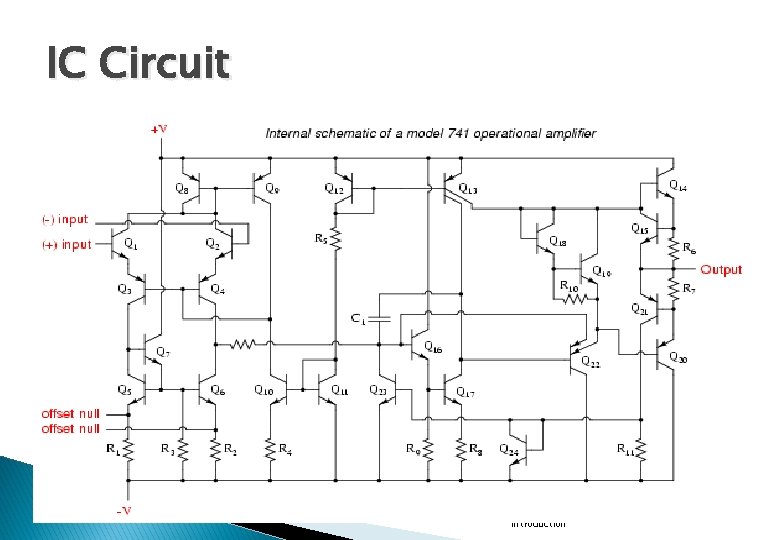

IC Circuit introduction

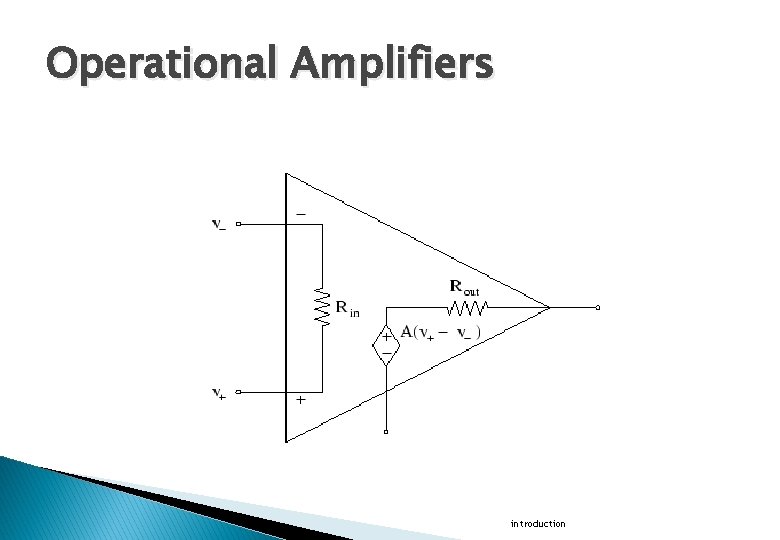

Operational Amplifiers introduction

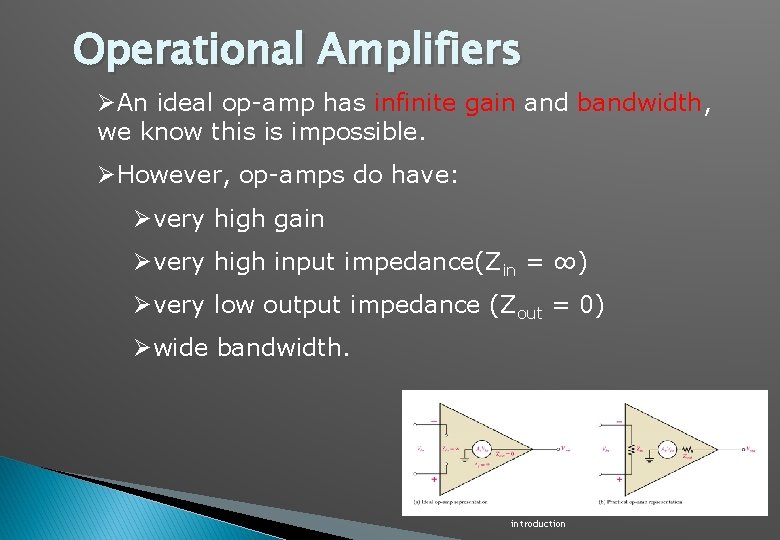

Operational Amplifiers ØAn ideal op-amp has infinite gain and bandwidth, we know this is impossible. ØHowever, op-amps do have: Øvery high gain Øvery high input impedance(Zin = ∞) Øvery low output impedance (Zout = 0) Øwide bandwidth. introduction

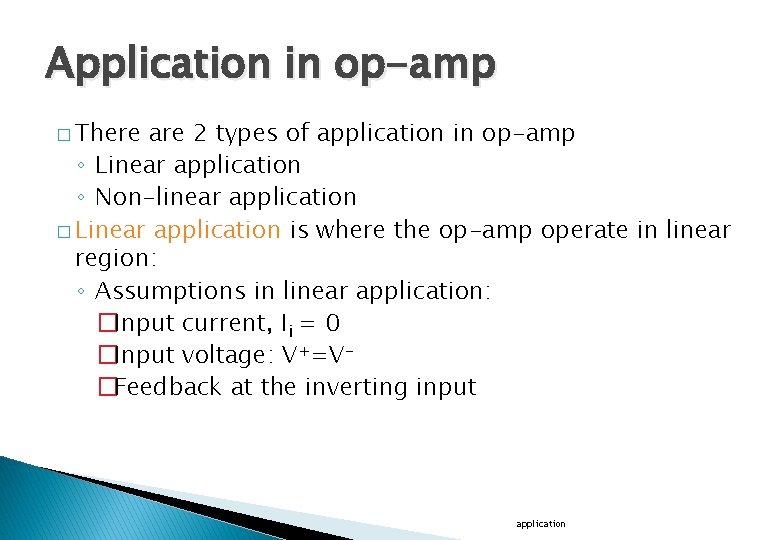

Application in op-amp � There are 2 types of application in op-amp ◦ Linear application ◦ Non-linear application � Linear application is where the op-amp operate in linear region: ◦ Assumptions in linear application: �Input current, Ii = 0 �Input voltage: V+=V�Feedback at the inverting input application

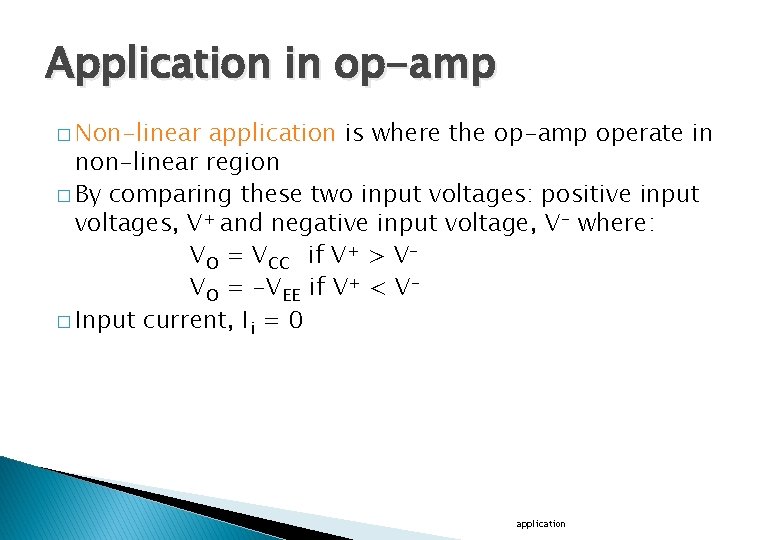

Application in op-amp � Non-linear application is where the op-amp operate in non-linear region � By comparing these two input voltages: positive input voltages, V+ and negative input voltage, V- where: VO = VCC if V+ > VVO = -VEE if V+ < V� Input current, Ii = 0 application

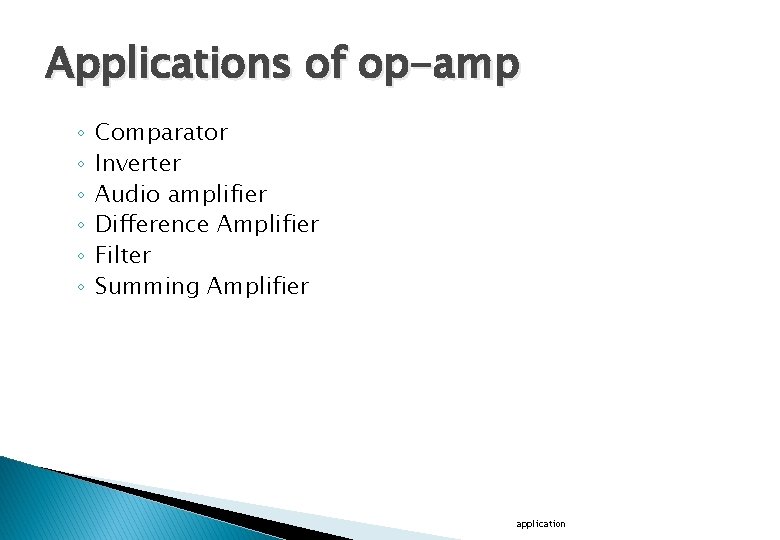

Applications of op-amp ◦ ◦ ◦ Comparator Inverter Audio amplifier Difference Amplifier Filter Summing Amplifier application

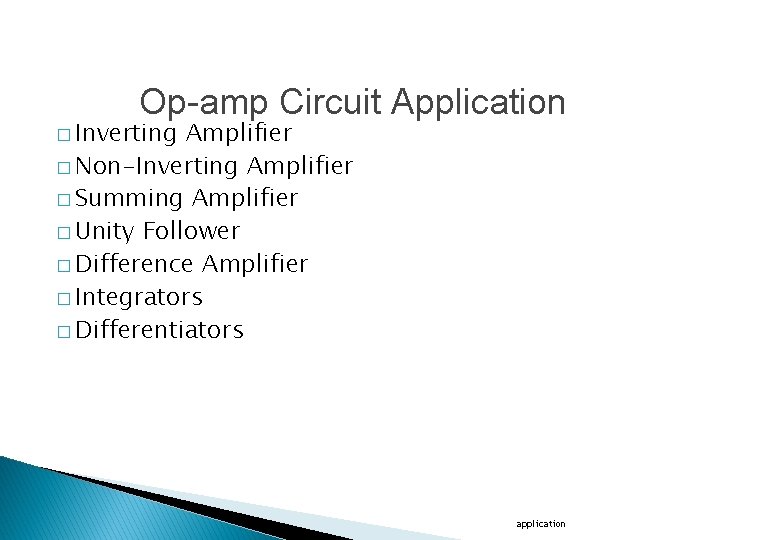

Op-amp Circuit Application � Inverting Amplifier � Non-Inverting Amplifier � Summing Amplifier � Unity Follower � Difference Amplifier � Integrators � Differentiators application

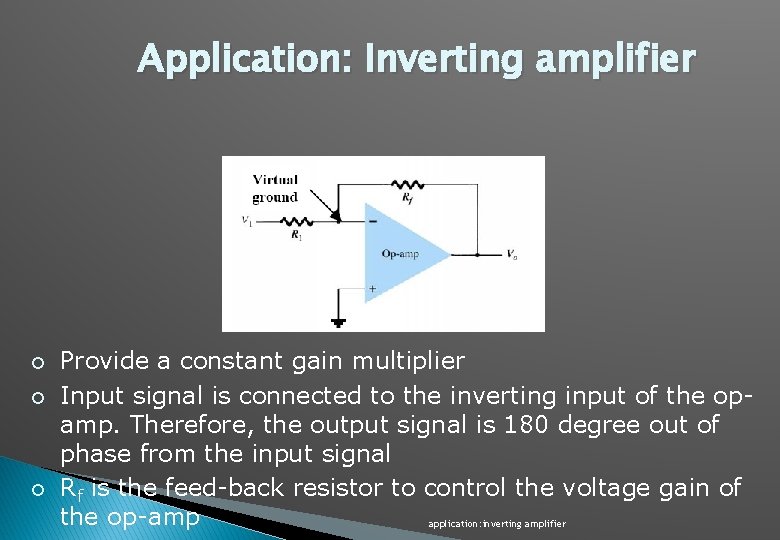

Application: Inverting amplifier ¡ ¡ ¡ Provide a constant gain multiplier Input signal is connected to the inverting input of the opamp. Therefore, the output signal is 180 degree out of phase from the input signal Rf is the feed-back resistor to control the voltage gain of the op-amp application: inverting amplifier

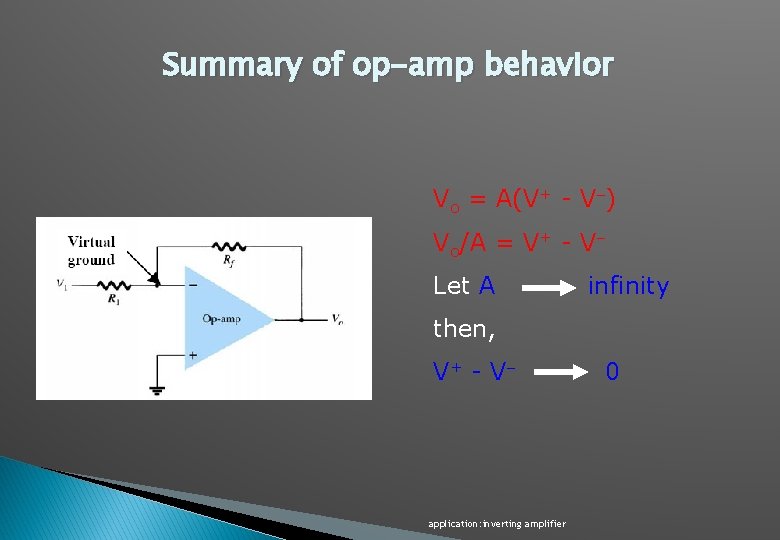

Summary of op-amp behavior Vo = A(V+ - V ) Vo/A = V+ - V Let A infinity then, V+ - V application: inverting amplifier 0

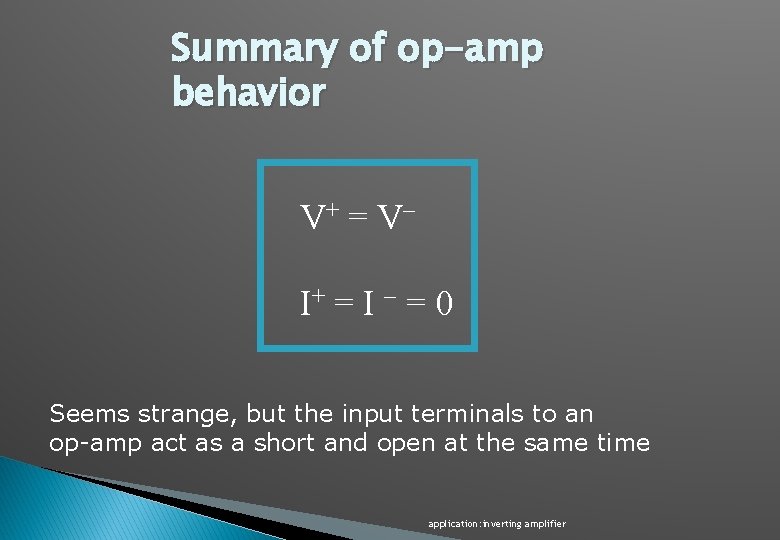

Summary of op-amp behavior V+ = V I+ = I = 0 Seems strange, but the input terminals to an op-amp act as a short and open at the same time application: inverting amplifier

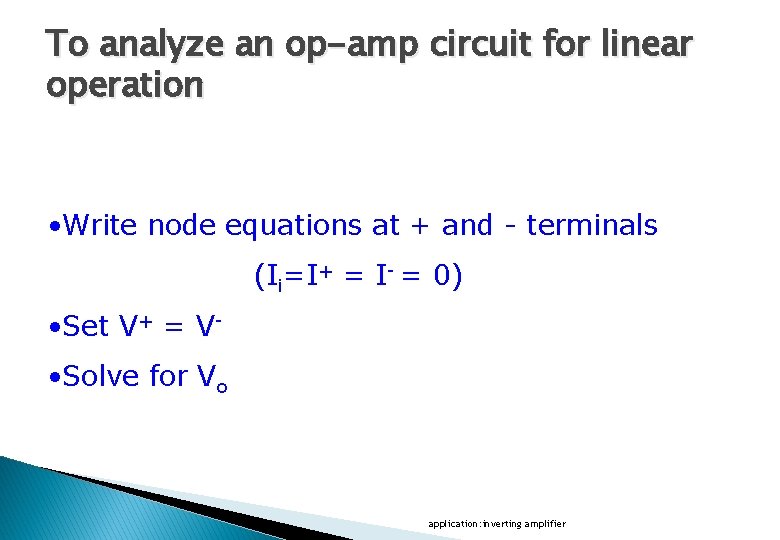

To analyze an op-amp circuit for linear operation • Write node equations at + and - terminals (Ii=I+ = I- = 0) • Set V+ = V • Solve for Vo application: inverting amplifier

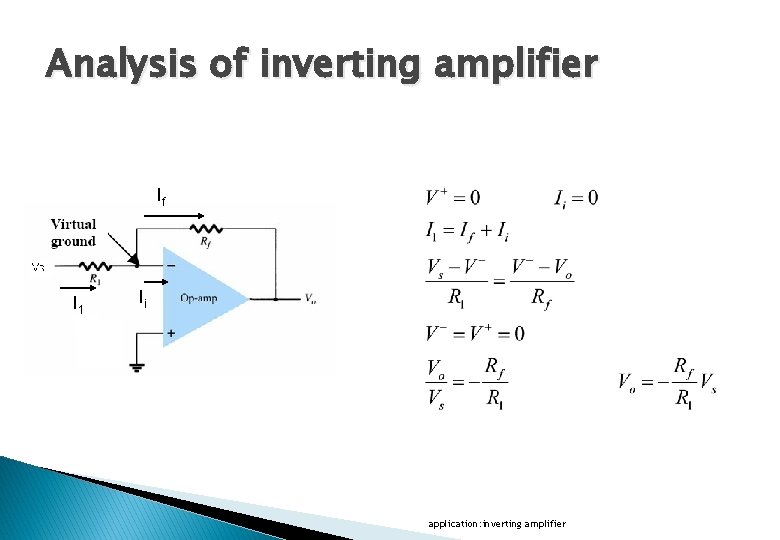

Analysis of inverting amplifier If I 1 Ii application: inverting amplifier

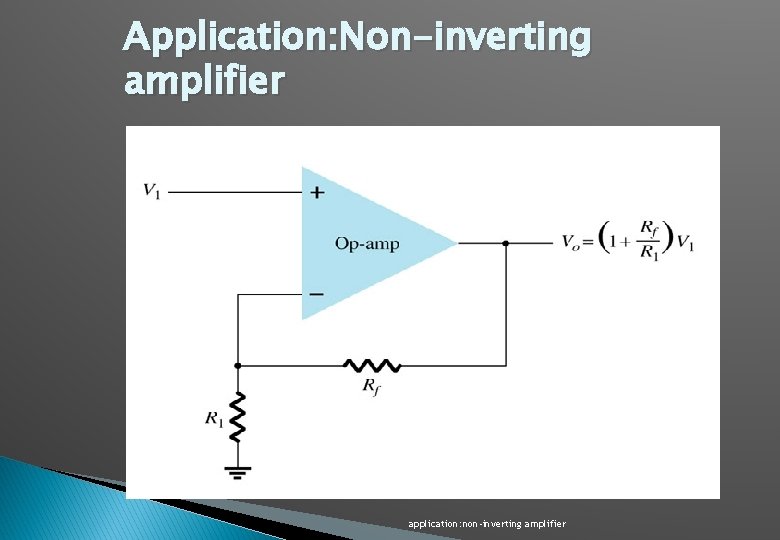

Application: Non-inverting amplifier application: non-inverting amplifier

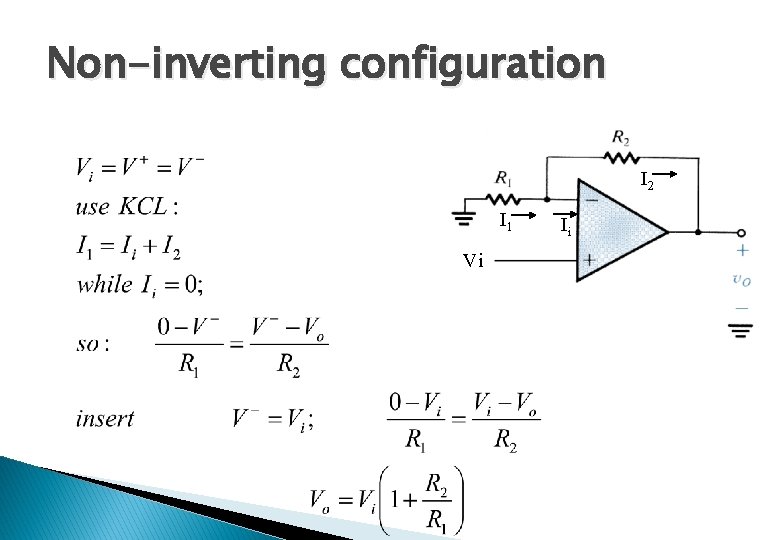

Non-inverting configuration I 2 I 1 Vi Ii

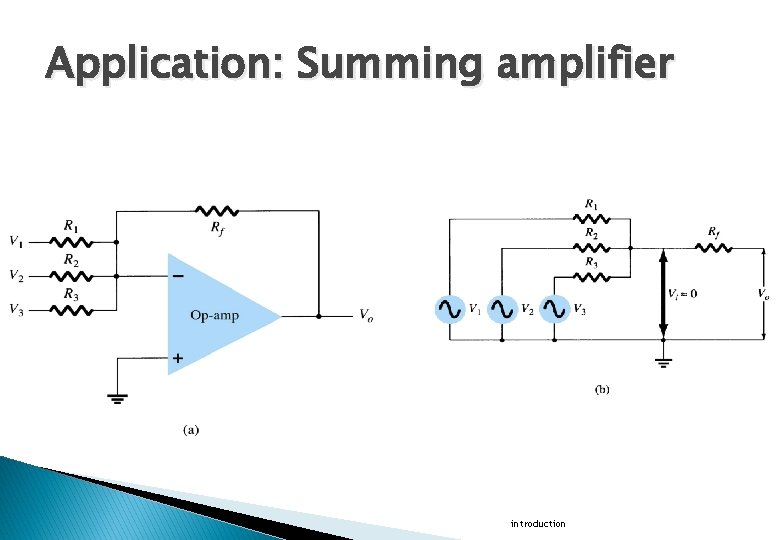

Application: Summing amplifier introduction

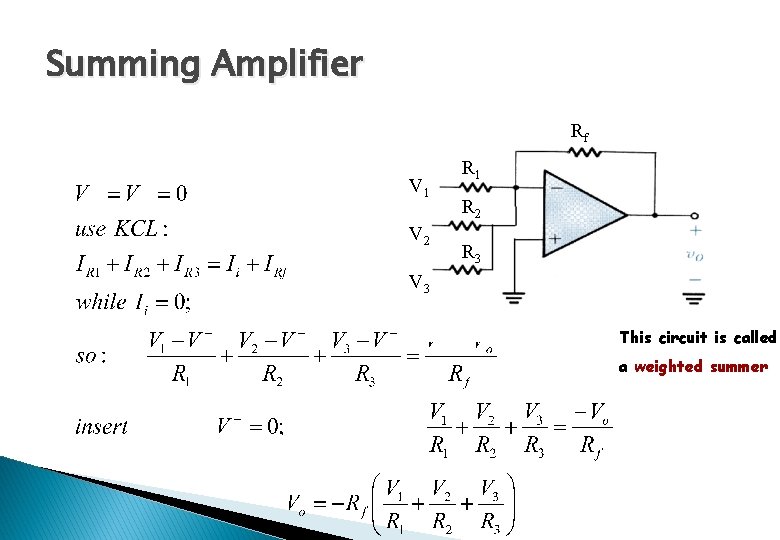

Summing Amplifier Rf V 1 V 2 R 1 R 2 R 3 V 3 This circuit is called a weighted summer

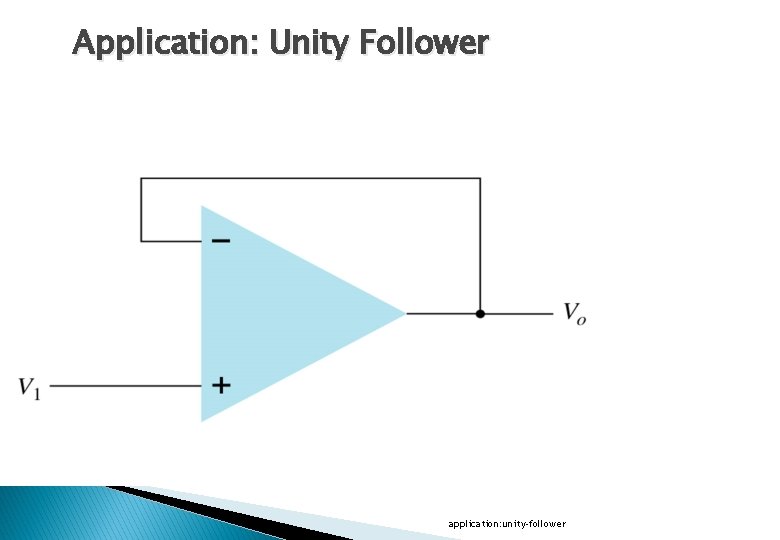

Application: Unity Follower application: unity-follower

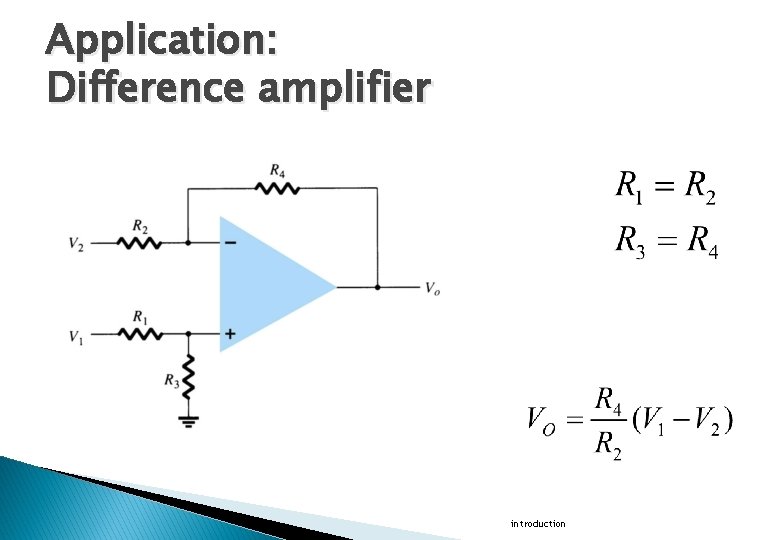

Application: Difference amplifier introduction

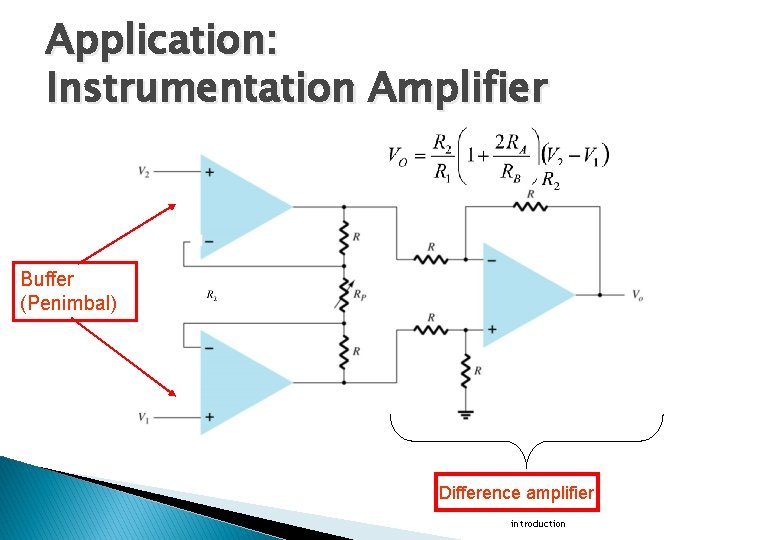

Application: Instrumentation Amplifier Buffer (Penimbal) Difference amplifier introduction

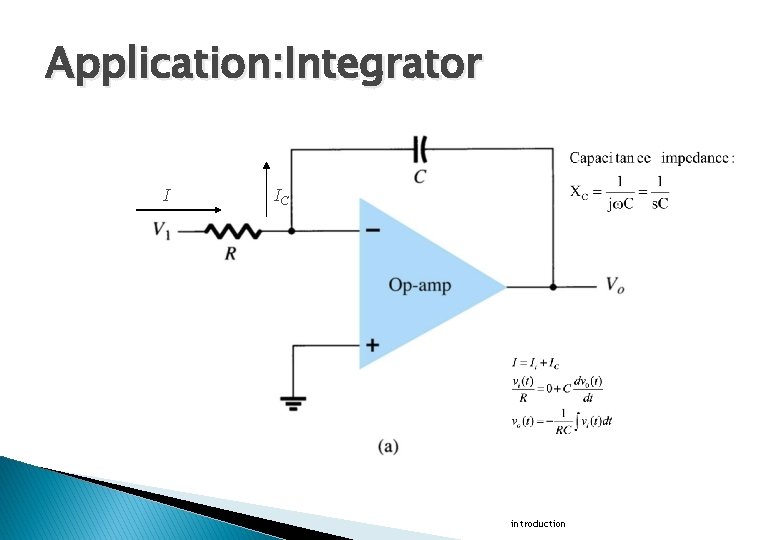

Application: Integrator I IC introduction

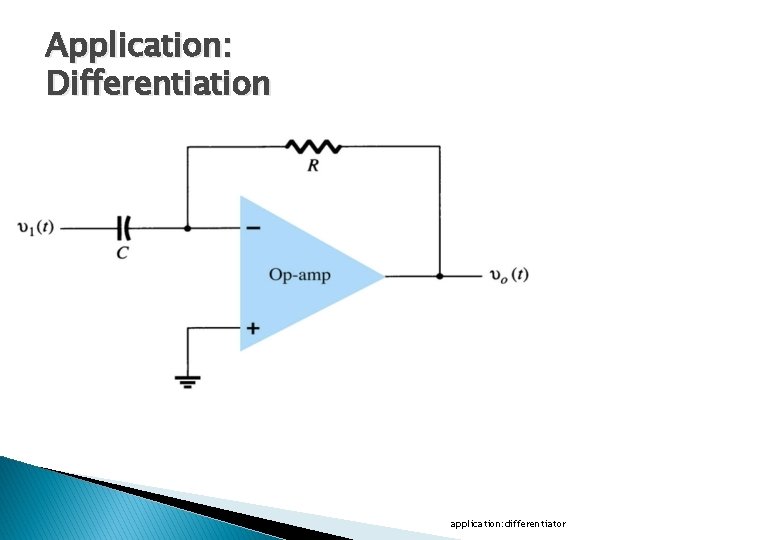

Application: Differentiation application: differentiator

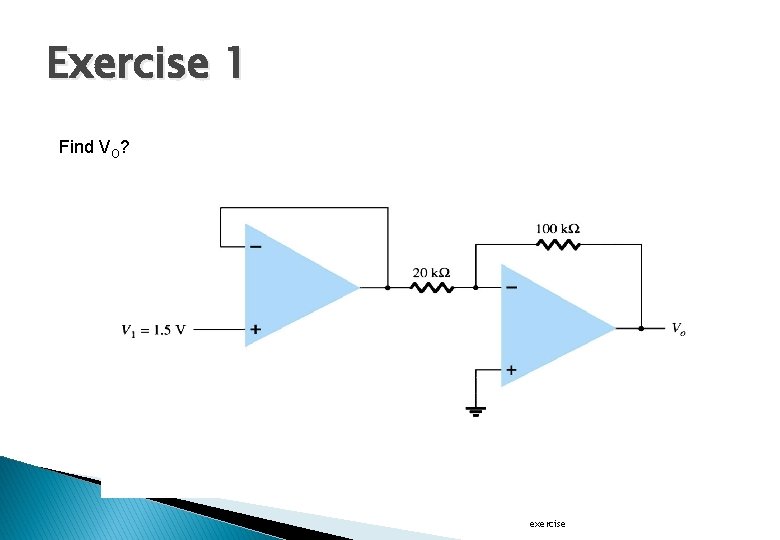

Exercise 1 Find VO? exercise

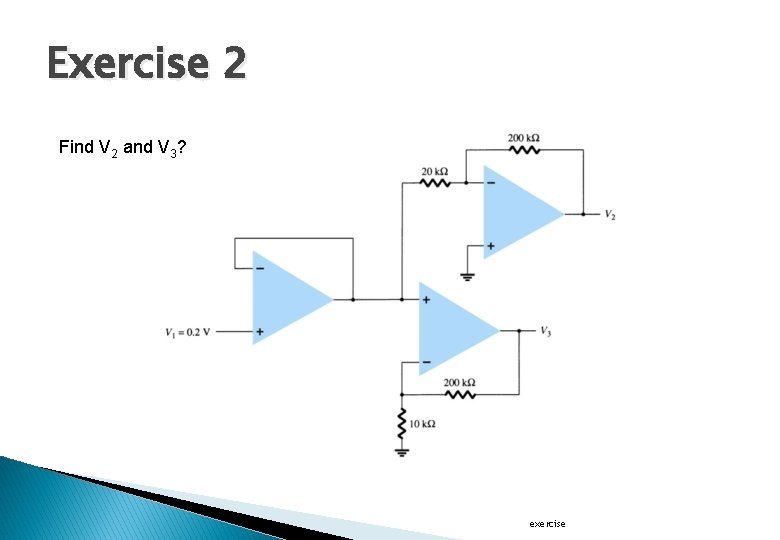

Exercise 2 Find V 2 and V 3? exercise

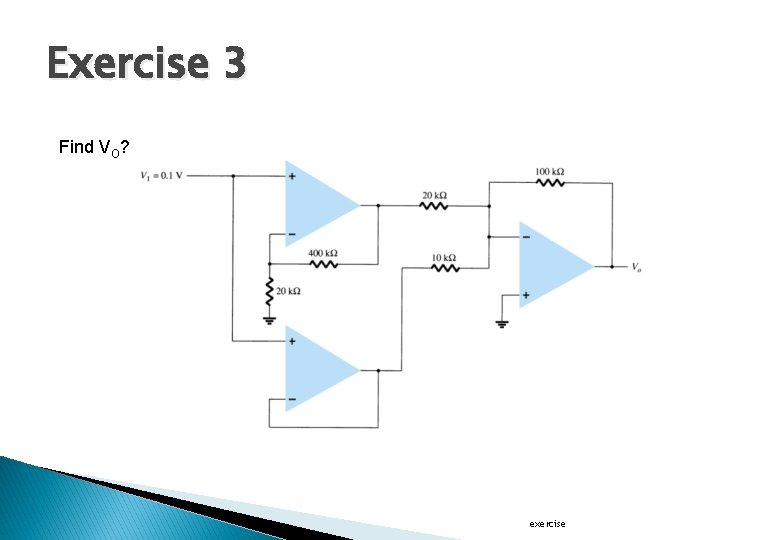

Exercise 3 Find VO? exercise

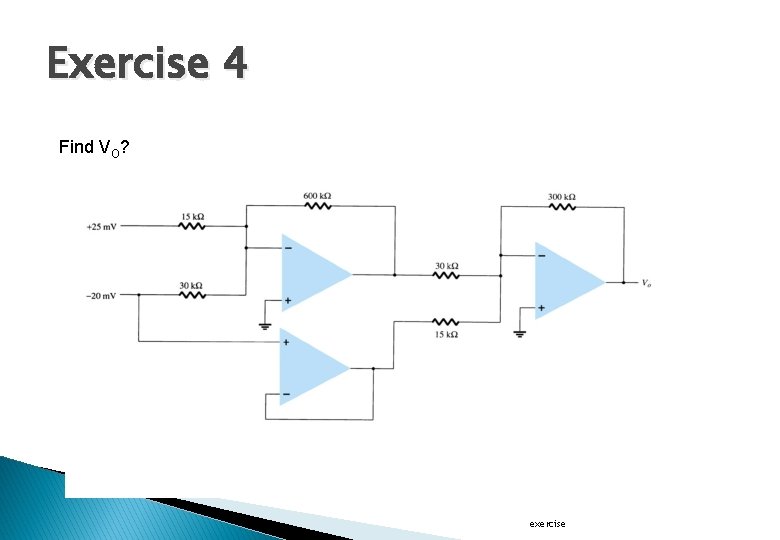

Exercise 4 Find VO? exercise

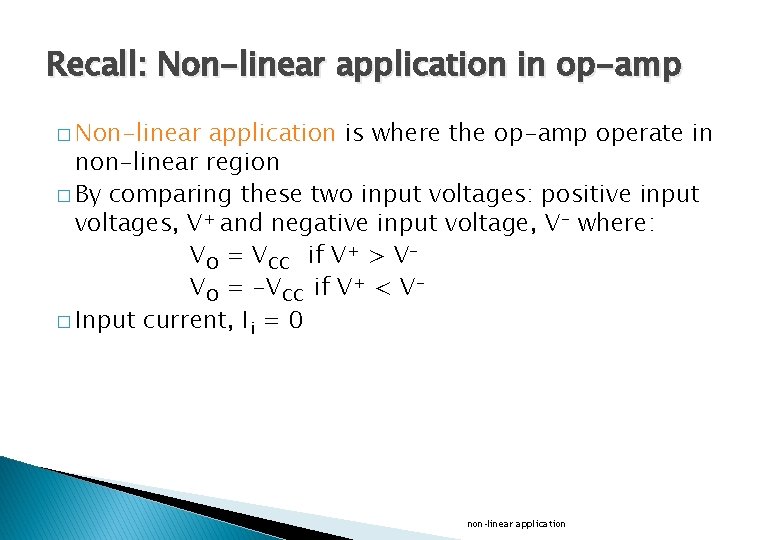

Recall: Non-linear application in op-amp � Non-linear application is where the op-amp operate in non-linear region � By comparing these two input voltages: positive input voltages, V+ and negative input voltage, V- where: VO = VCC if V+ > VVO = -VCC if V+ < V� Input current, Ii = 0 non-linear application

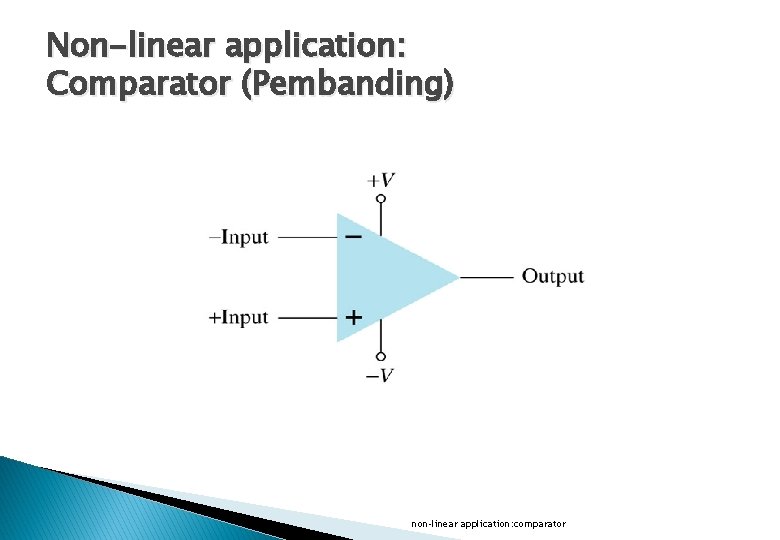

Non-linear application: Comparator (Pembanding) non-linear application: comparator

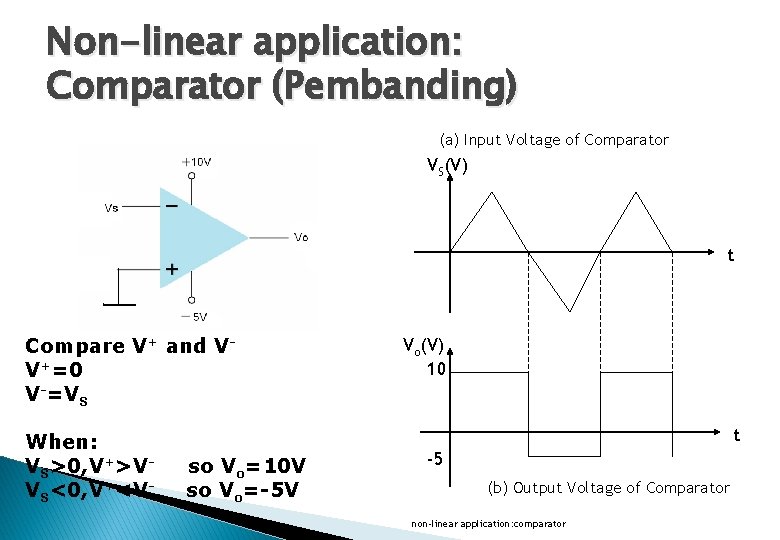

Non-linear application: Comparator (Pembanding) (a) Input Voltage of Comparator VS(V) t Compare V+ and VV+=0 V-=VS When: VS>0, V+>VVS<0, V+<V- Vo(V) 10 t so Vo=10 V so Vo=-5 V -5 (b) Output Voltage of Comparator non-linear application: comparator

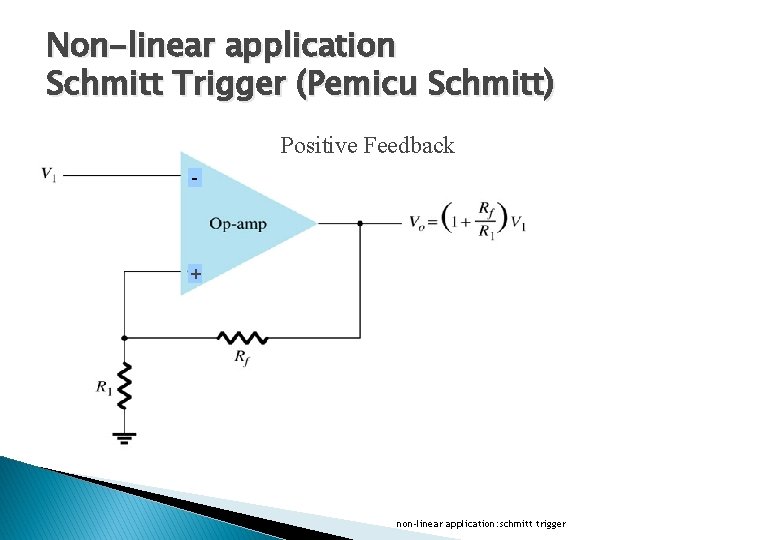

Non-linear application Schmitt Trigger (Pemicu Schmitt) Positive Feedback - + non-linear application: schmitt trigger

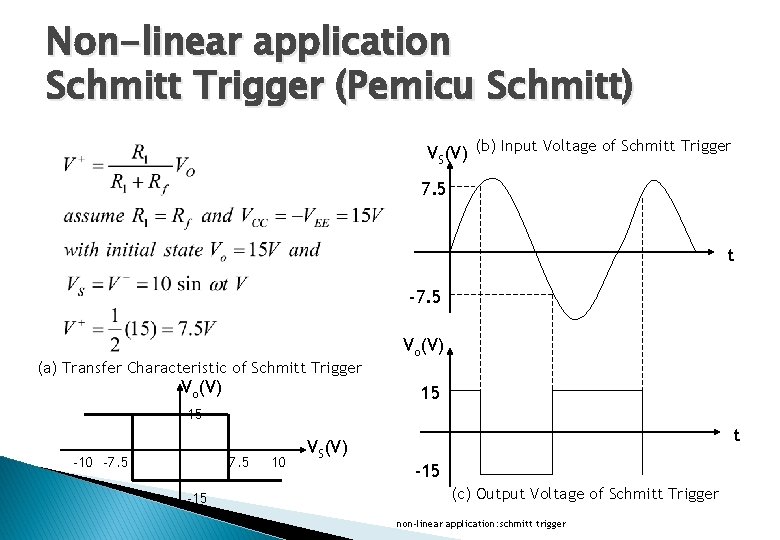

Non-linear application Schmitt Trigger (Pemicu Schmitt) VS(V) (b) Input Voltage of Schmitt Trigger 7. 5 t -7. 5 (a) Transfer Characteristic of Schmitt Trigger Vo(V) 15 15 -10 -7. 5 -15 10 VS(V) t -15 (c) Output Voltage of Schmitt Trigger non-linear application: schmitt trigger
