Web Deployment with Visual Studio Madhur Joshi Development

Web Deployment with Visual Studio Madhur Joshi Development Lead Madhur. Joshi@Microsoft. com Phone: +1 -425 -722 -3873

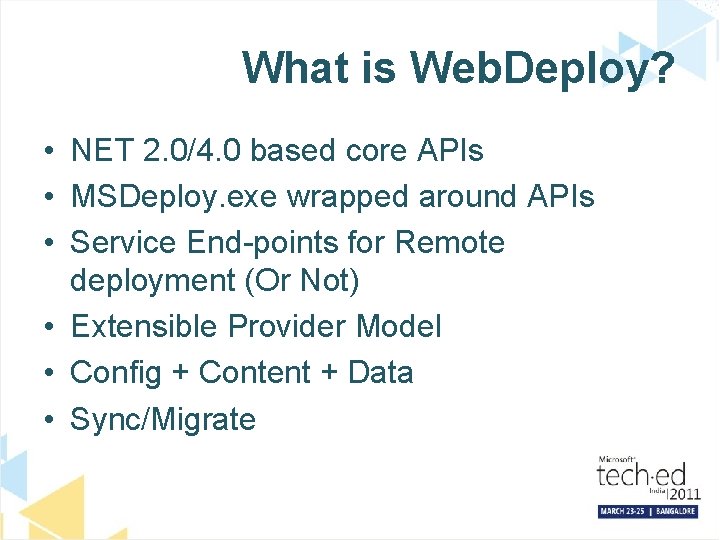

What is Web. Deploy? • NET 2. 0/4. 0 based core APIs • MSDeploy. exe wrapped around APIs • Service End-points for Remote deployment (Or Not) • Extensible Provider Model • Config + Content + Data • Sync/Migrate

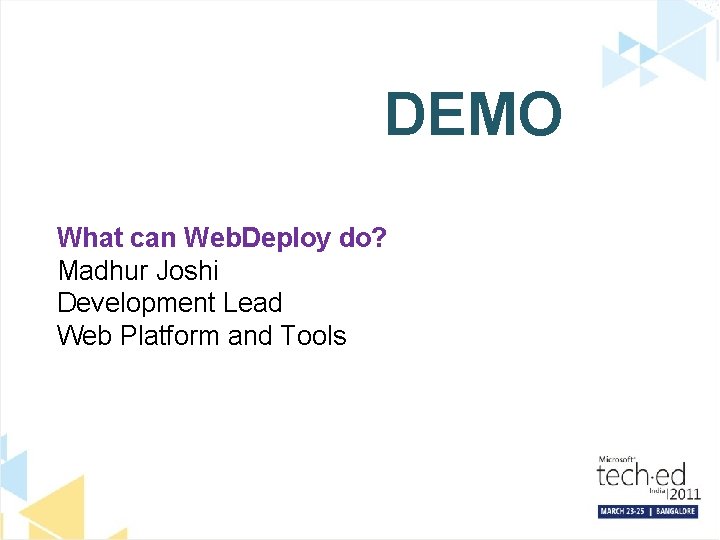

DEMO What can Web. Deploy do? Madhur Joshi Development Lead Web Platform and Tools

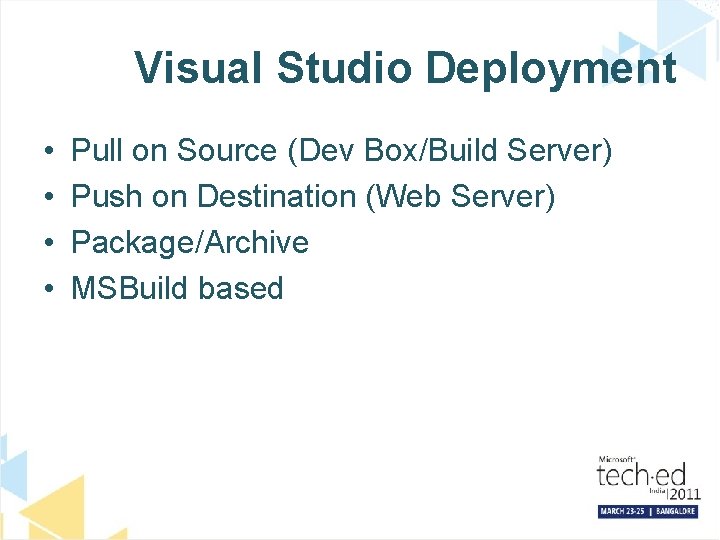

Visual Studio Deployment • • Pull on Source (Dev Box/Build Server) Push on Destination (Web Server) Package/Archive MSBuild based

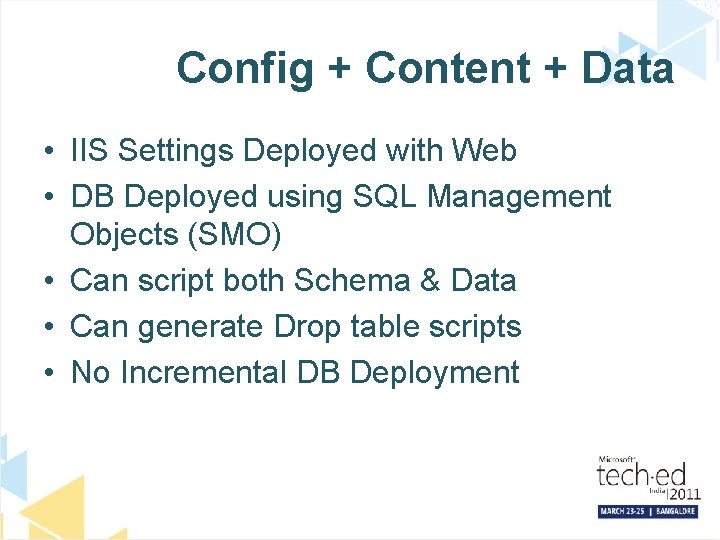

Config + Content + Data • IIS Settings Deployed with Web • DB Deployed using SQL Management Objects (SMO) • Can script both Schema & Data • Can generate Drop table scripts • No Incremental DB Deployment

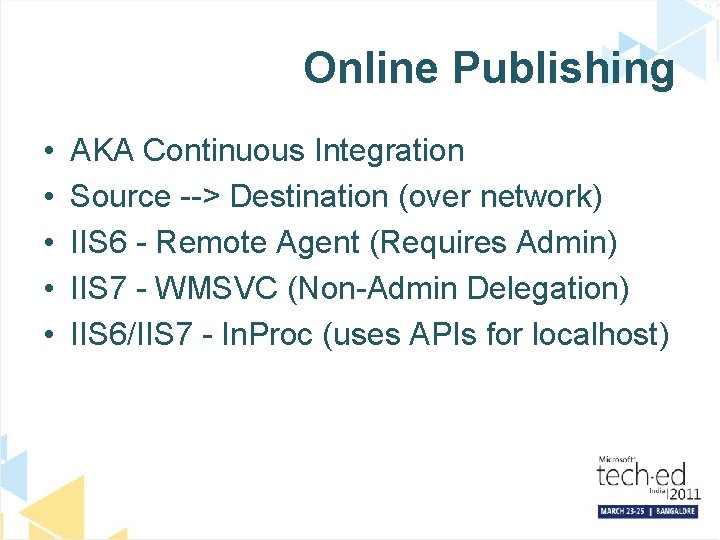

Online Publishing • • • AKA Continuous Integration Source --> Destination (over network) IIS 6 - Remote Agent (Requires Admin) IIS 7 - WMSVC (Non-Admin Delegation) IIS 6/IIS 7 - In. Proc (uses APIs for localhost)

DEMO Publish your application Madhur Joshi Development Lead Web Platform and Tools

Offline Packaging • Source --> Zip --> Destination • Use when you don't have access to server • Zip your files, IIS Settings, Configuration, DB etc • VS 2010 generates Deploy. cmd for installation • Supports What. If Analysis • Works on IIS 6, IIS 7 and IIS 7. 5

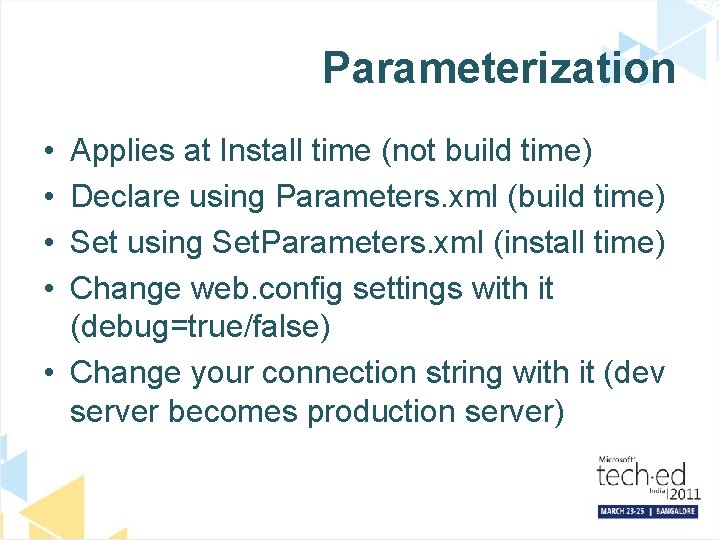

Parameterization • • Applies at Install time (not build time) Declare using Parameters. xml (build time) Set using Set. Parameters. xml (install time) Change web. config settings with it (debug=true/false) • Change your connection string with it (dev server becomes production server)

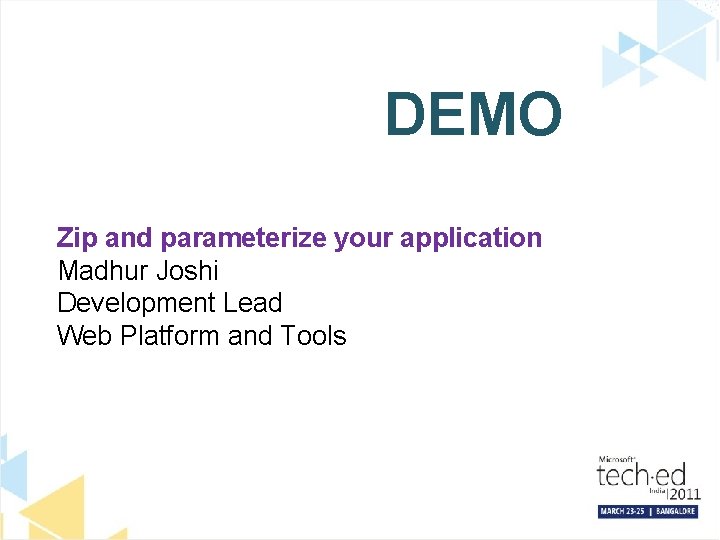

DEMO Zip and parameterize your application Madhur Joshi Development Lead Web Platform and Tools

Team Build Integration • Supports both Packaging/Publishing • /p: Deploy. On. Build=True • /p: Deploy. Target=Ms. Deploy. Publish/Packa ge • /p: Ms. Deploy. Publish. Method=In. Proc/WMS VC/Remote. Agent • /p: Create. Package. On. Publish=True

More Info • Mother of all Links (courtesy Vishal Joshi) – http: //bit. ly/21 na. YV • IIS. NET Download – http: //www. iis. net/download/Web. Deploy • MSDN Documentation – http: //msdn. microsoft. com/enus/library/bb 386521. aspx • Tech. Net Documentation – http: //technet. microsoft. com/enus/library/dd 568996%28 WS. 10%29. aspx
