Port of Niteri NITSHORE Location Rio de Janeiro

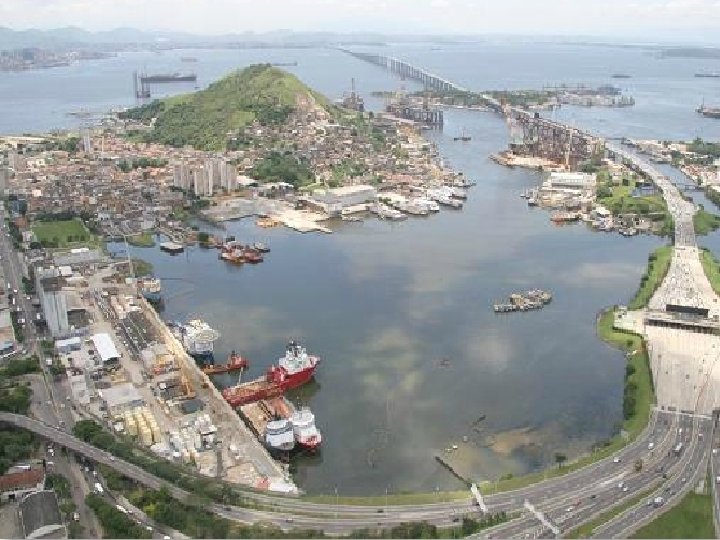

Port of Niterói - NITSHORE Location – Rio de Janeiro / Brazil

Available Areas � 1, 350 � 750 m² of indoor warehouse m² of bonded area � 20, 000 m² of outdoor area � 250, 000 m² of outdoor area in Guaxindiba

History � The federal government, in 1925, let the state of Rio de Janeiro built and explore the Port of Niterói. � After being administrated from 1960 by the State Department of Navigation – Portobrás (Company of Brazil’s Ports) took the concession and stated running the port � In 2005, Nitshore signed a contract of concession to explore the port activities in Niterói. Great development with heavy investments was the goal to build a modern port together with new growing market in the oil business in the State.

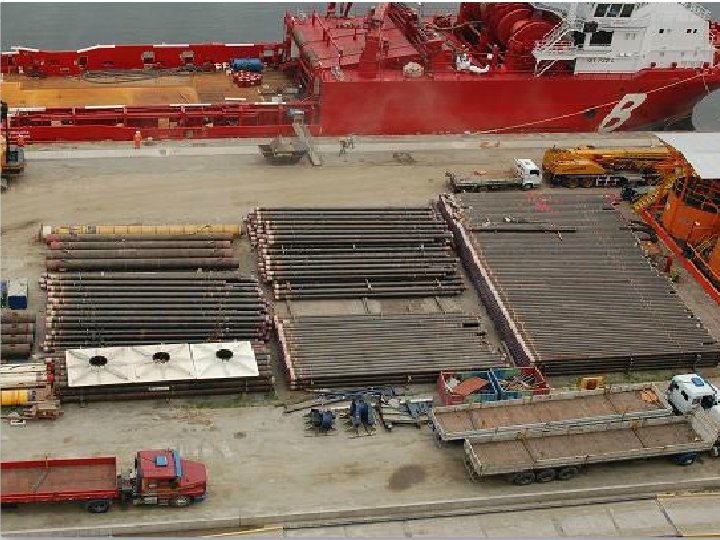

Logistics Services � Dedicated and programmed logistics services � Operational area coordination � Entrance and exit – Warehouse � Load and unload of trucks � Maritime communication � Operational control � Tubular storage control � Container storage control

Bonded Area Services � Importation � Agility and exportation on clearance of the cargoes

International Standards Being Implemented � ISO 9001/2000 – Quality � OSHAS 18001/1999 – Safety and Health � ISO 14001/2004 – Environment: ISO 14001: 2004 sets out the criteria for an environmental management system and can be certified to. It does not state requirements for environmental performance, but maps out a framework that a company or organization can follow to set up an effective environmental management system � � - The benefits of using ISO 14001: 2004 can include: Reduced cost of waste management Savings in consumption of energy and materials Lower distribution costs Improved corporate image among regulators, customers and the public

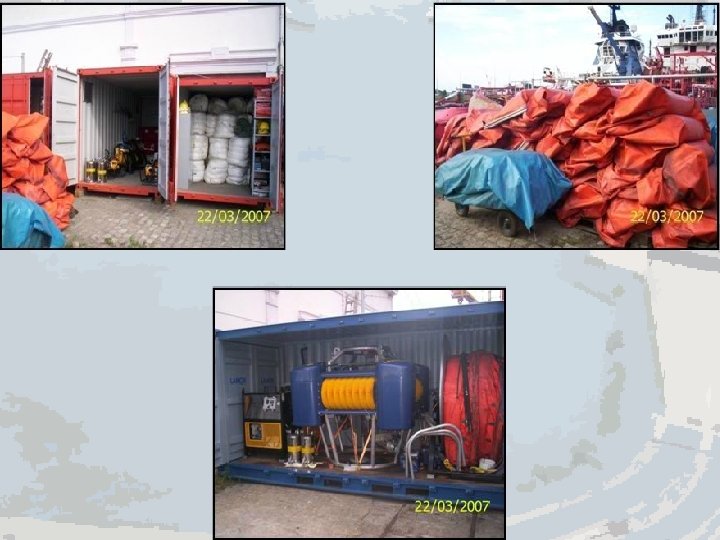

Environment Protection Center � Nitshore has a Environment Protecton Center from Alpina Briggs in alert 24/7 and ready to deal with any environmental problem. � And Nitshore has all the environmental licenses (Operational, Instalation and firestation licenses)

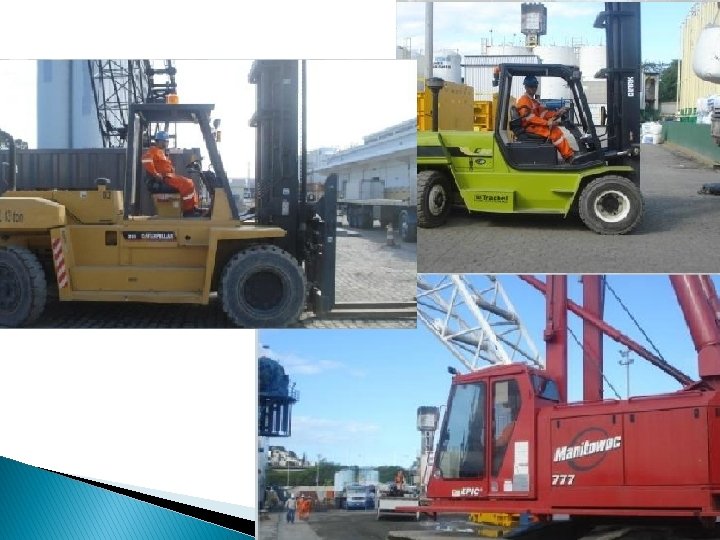

Equipments � 1 Crane – 200 tons � 2 Cranes – 115 tons � 4 Forklifts – 13 tons � 4 Forklifts – 7 tons � 2 Forklifts – 8 tons � 2 Forklifts – 2. 5 tons � 150 Containers

RIMA (Environmental Impacts Report) � The following aspects aborded will show what concerns the Port of Niterói must consider for the port’s activities: ◦ Environmental Diagnosis ◦ Evaluation of Environmental Impacts ◦ Environmental Programs Proposition

For Any Activity the Port Consider: � Implementation phase � Operational phase Implementation Operational Construction place Layout Noises and Vibration Atmospheric Emissions Infrastructure Artificial Luminosity Emissions Traffic of ships Water Consumption Solid Wastes Drainage Process Fuel Foundations Buildings Equipment Transportation Energy Consumed Area of Prohibited Fishing Environmental Concerns PHASE

Environmental Diagnosis � Physical Environment ◦ ◦ � Wheater changes Oceanography Morph dynamics and sedimentary study of Beaches Hydrodynamics and Sediment Transport Modeling Marine Environmental Dissolved Oxygen (DO) Temperature, salinity, conductivity Turbidity Suspended solids Nutrients (total ammonia nitrogen, nitrite, nitrate and phosphorus total) ◦ p. H ◦ Total organic carbon ◦ Coliform metals (Arsenic, Lead, Copper, Chromium, Mercury, Nickel and Zinc). ◦ ◦ ◦

� Water ◦ ◦ Resources Superficial water resources Underground water resources Sensibility of contamination Relation among superficial, underground and other waters � Geology and Geomorphology ◦ Environmental studies should contain a geological, geomorphological characterization in the Area of Direct Influence ◦ Soil - Indication of the most likely to suffer erosion classes, and stability analysis of soils ◦ Physical and chemical analysis of the different types of soils present in the area of influence of the project.

� Socioeconomic � Noise Levels � Luminosity � Biotic Environment Dispersion Levels Environment ◦ terrestrial ecosystem ◦ aquatic ecosystem ◦ Impacts in fauna and flora

Environmental Impacts Analysis � Direct and indirect impacts � Beneficial and adverse impacts (positive and negative) � Temporary and permanent impacts � Reversible and irreversible impacts � Local, regional and strategic impacts � Impacts of small, medium and large magnitude ◦ The most important thing is try to improve and follow some stantardized processes to acquire the desired sustainable processes, some examples of standards are shown in the following tables:

Discharge Conditions Oil tankers All waters Oily waste from cargo • More than 50 nautical miles from the nearest land; and tanks • Tanker is proceeding in route; and • Instantaneous rate of discharge < 30 liters per nautical mile; and • Total quantity discharge does not exceed 1/15, 000 or 1/30, 000 of the total cargo (depending on the age of the vessel); and • Oil discharge monitoring and control system and slop tank arrangement to be operating. All vessels > 400 gross tons All waters Machinery space bilges • Proceeding in route; and • Oil content less than 15 parts per million; and • Oil discharge monitoring and control system and oil filtering equipment to be operating In some circumstances, oil or oily mixtures, may be retained onboard for discharge to port reception. Note: 15 ppm discharges can be anywhere at sea (not within port limits) including the Great Barrier Reef Marine Park and Marine Protected Areas. Vessel must not be stationary when undertaking discharge. All vessels <400 gross tons All waters Machinery space bilges • Oil and all oily mixtures retain onboard for on shore disposal • OR Proceeding in route; and • Has in operation equipment of a design approved by the administration that ensures oil content less than 15 parts per million. Note: 15 ppm discharges can be anywhere at sea (not within port limits) including the Great Barrier Reef Marine Park and Marine Protected Areas. Vessel must not be stationary when undertaking discharge. Vessels operating in Great Barrier Reef Marine Park Bunkering utilizing ship to ship transfers • A Permit is required from GBRMPA under which certain conditions may be imposed.

type/Area Sub-Category All vessels (other than passenger ships Comminuted and disinfected sewage within special areas) using an approved system in accordance with regulation Discharge Conditions • Permitted as long as no less than 3 nm from nearest land; and • Sewage originating from holding tanks, or sewage originating from spaces containing live animals is discharged at a moderate* while the ship is proceeding en route at a speed not less than 4 knots. * The rate of discharge shall be approved by the Administration based upon standards approved by the Organization. Recommended standards for the rate of discharge of sewage from ships can be found in Marine Order 96. All vessels (other than passenger ships Sewage not comminuted or disinfected • Permitted as long as no less than 12 nm from nearest land; and within special areas) • Sewage originating from holding tanks, or sewage originating from spaces containing live animals is discharged at a moderate* while the ship is proceeding en route at a speed not less than 4 knots * The rate of discharge shall be approved by the Administration based upon standards approved by the Organization. Recommended standards for the rate of discharge of sewage from ships can be found in Marine Order 96 All vessels (other than passenger ships Treated sewage effluent discharged Permitted provided: within special areas) on International through an approved Sewage • Effluent does not produce visible floating solids nor cause discoloration of the surrounding water voyages to and continuing in Treatment Plant (STP) certified by the • Local laws may prohibit discharges in ports Australian waters Administration to meet the operational Additionally: requirements • When within port limits, check with port authority as permission may be required • All vessels should ensure that the STP is operating at optimum performance when in Australian waters Food or biological waste removed from filtration units of vessels on international voyages is prohibited from discharge within 12 nm from land (DAFF requirements) Passenger ships within special areas* * further information on special areas can be found in circular MEPC. 1/Circ. 778/Rev. 1 Treated sewage effluent from new passenger ships on, or after 1 January 2016 and for existing passenger ships on, or after 1 January 2018 Permitted unless: • The ship has in operation an approved sewage treatment plant certified by the Administration to meet the operational requirements referred to in regulation 9. 2. 1 of MARPOL Annex IV; and • Effluent does not produce visible floating solids nor cause discoloration of the surrounding water. Note: local laws may prohibit discharges in ports Great Barrier Reef Marine Park Vessels on International voyages to and continuing in Australian waters All sewage discharges In accordance with Annex IV requirements and where applicable with any additional restrictions imposed as conditions of a GBRMP permit Great Barrier Reef Marine Park Vessels on domestic voyages All sewage discharges • Recommended to comply with MARPOL Annex IV • Or, in accordance with requirements of Part 3 A of the GBRMPA Regulations (93 A-93 G) for both treated and untreated sewage • AND, where applicable, in accordance with any additional restrictions imposed as conditions of a GBRMP permit Queensland State Waters (small vessels/State registered and recreational) If vessel does not have a sewage • If a vessel has 16 or more persons on board, no discharge of untreated sewage is permitted anywhere in Queensland treatment system on board, options waters. include: • If a vessel has 7 to 15 persons on board, no discharge of untreated sewage is permitted within 1 nm of a reef or the • Using onshore toilet facilities mean low water mark of an island or the mainland. whenever possible • No discharge of untreated sewage is permitted within 1 nm of aquaculture fisheries resources, or within 0. 5 nm of a • Using a portable toilet to be later wharf or jetty other than a jetty that is a marina. emptied to a sewerage/septic system Retain sewage in onboard holding tank for pumping out to shore facilities.

Vessel/Voyage type/Area All vessels Sub-Category Discharge Conditions Ozone-depleting substances • Prohibited Nitrogen Oxides • Operation of diesel engines >130 k. W prohibited unless engine is certified to meet prescribed emission standards. • New Engines: • Tier I - 17 g/k. W from 1 January 2000 • Tier II - 14. 4 g/k. W from 1 January 2011 • Tier III - 3. 4 g/k. W from 1 January 2016 (in Emission Control Areas (ECA)) Existing Engines (installed on ship on or between 1 January 1990 to 1 January 2000) • 17 g/k. W for diesel engine with power output >5000 k. W and displacement per cylinder => 90 liters • Approved method by Administration Sulphur Oxides • Sulphur content of fuel oil not to exceed 4. 5%. ** • From 1 January 2012, sulphur content of fuel oil not to exceed 3. 5% ** • From 1 January 2020 sulphur content if fuel oil not to exceed 0. 5% ** ** Fuel oil to be purchased from a registered supplier Note: Feasibility review to be completed 2018 Incinerators • Incinerators installed after 1 January 2000 must be type approved and certified to meet prescribed emission standards. • Do not use within port limits

References � Port of Niterói (2014). Retrieved from http: //www. nitshore. com. br/ � Referential Term. (2010). Retrieved on August 29, 2014, from www. meioambiente. es. gov. br_download_chouest � Summary of Discharge Standards for Ships and smaller vessels (2012). Retrieved fromhttps: //www. amsa. gov. au/environment/legisla tion-and-prevention/maritimedischarges/index. asp
