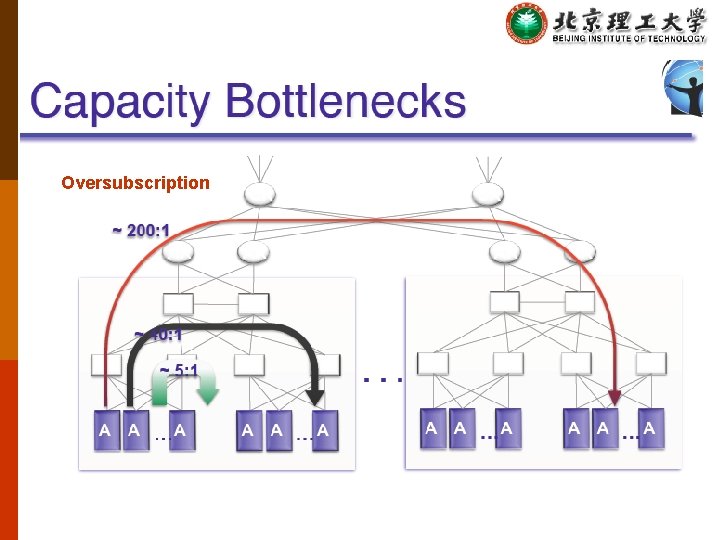

Oversubscription What is Virtualization p p p Run
Oversubscription

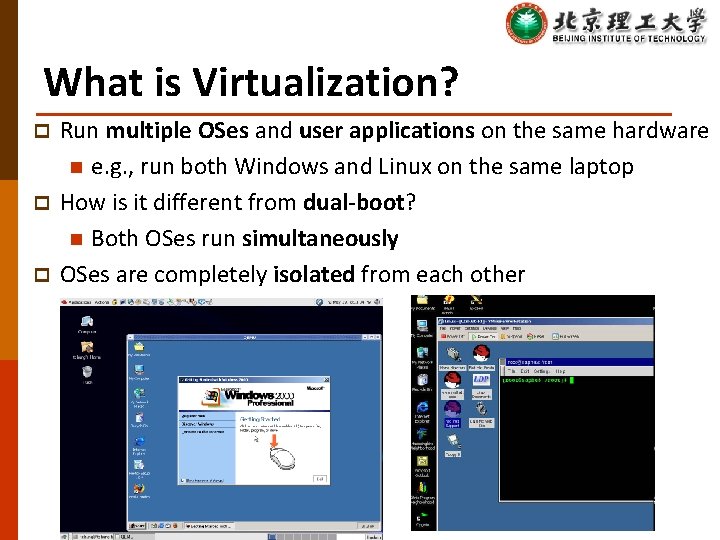

What is Virtualization? p p p Run multiple OSes and user applications on the same hardware n e. g. , run both Windows and Linux on the same laptop How is it different from dual-boot? n Both OSes run simultaneously OSes are completely isolated from each other
Reduce costs by consolidating services onto the fewest number of physical machines

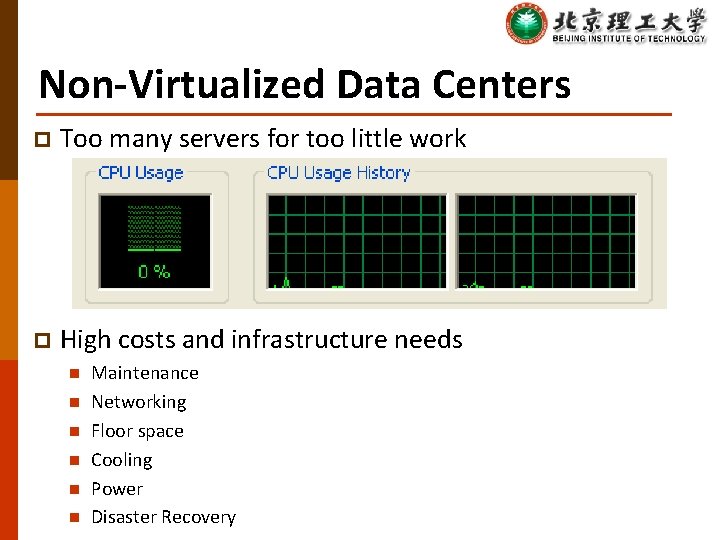

Non-Virtualized Data Centers p Too many servers for too little work p High costs and infrastructure needs n n n Maintenance Networking Floor space Cooling Power Disaster Recovery

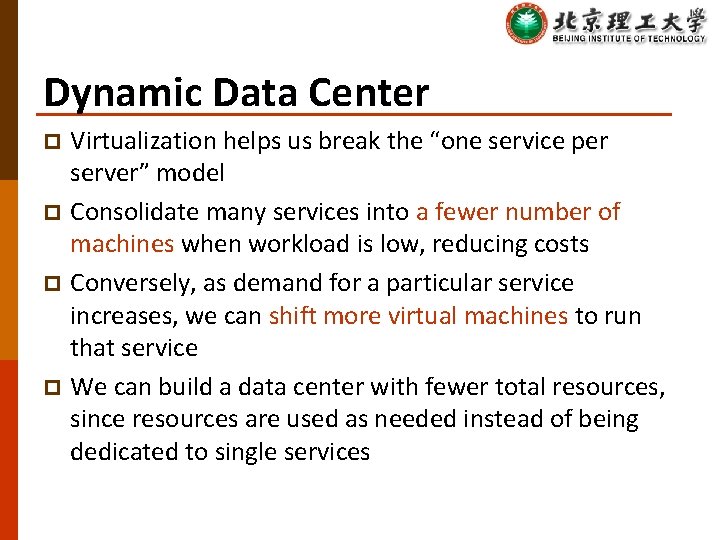

Dynamic Data Center p p Virtualization helps us break the “one service per server” model Consolidate many services into a fewer number of machines when workload is low, reducing costs Conversely, as demand for a particular service increases, we can shift more virtual machines to run that service We can build a data center with fewer total resources, since resources are used as needed instead of being dedicated to single services

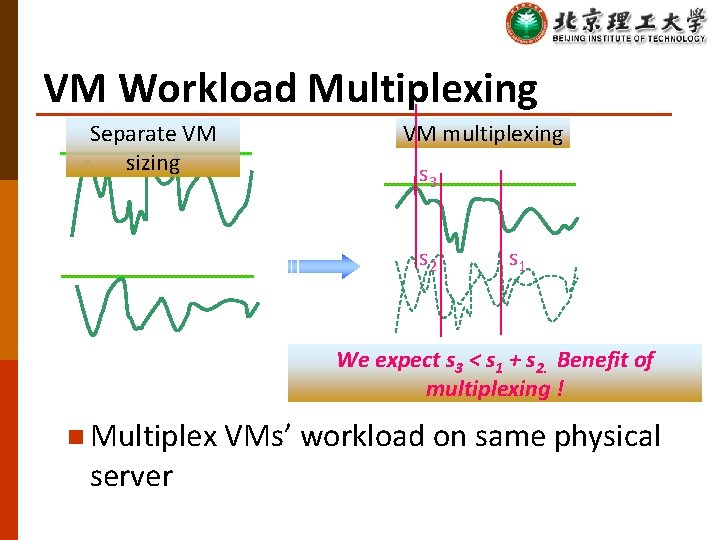

VM Workload Multiplexing Separate VM sizing VM multiplexing s 3 s 2 s 1 We expect s 3 < s 1 + s 2. Benefit of multiplexing ! n Multiplex VMs’ workload on same physical server

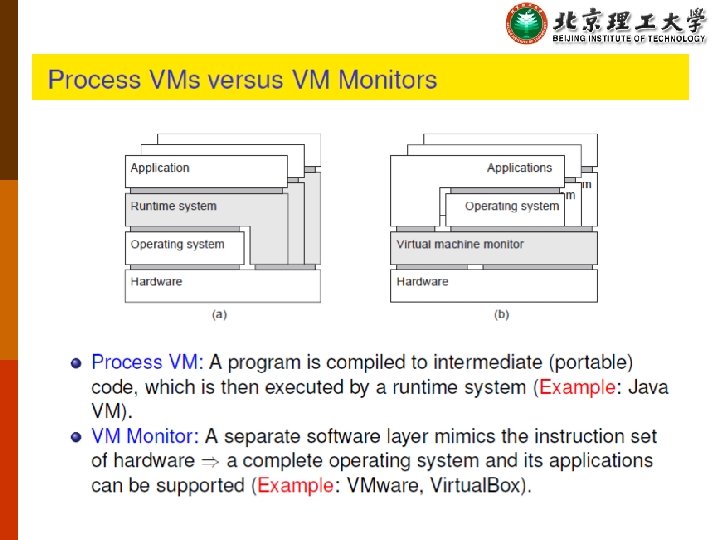

So, it is just like Java VM, right?

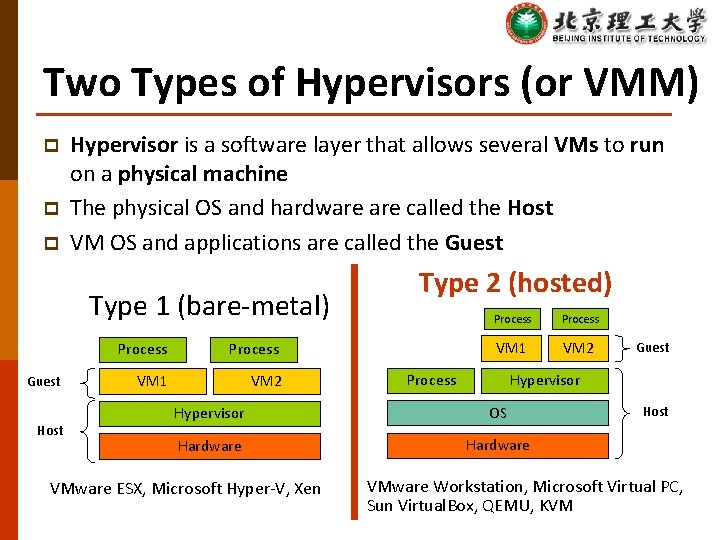

Two Types of Hypervisors (or VMM) p p p Hypervisor is a software layer that allows several VMs to run on a physical machine The physical OS and hardware called the Host VM OS and applications are called the Guest Type 1 (bare-metal) Guest Host Process VM 1 VM 2 Type 2 (hosted) Process VM 1 VM 2 Process Hypervisor OS Hardware VMware ESX, Microsoft Hyper-V, Xen Guest Host VMware Workstation, Microsoft Virtual PC, Sun Virtual. Box, QEMU, KVM
Bare-metal or Hosted? p p p Bare-metal n Has complete control over hardware n Doesn’t have to “fight” an OS Hosted n Avoid code duplication: need not code a process scheduler, memory management system – the OS already does that n Can run native processes alongside VMs n Familiar environment – how much CPU and memory does a VM take? Use top! How big is the virtual disk? ls –l n Easy management – stop a VM? Sure, just kill it! A combination n Mostly hosted, but some parts are inside the OS kernel for performance reasons, e. g. , KVM

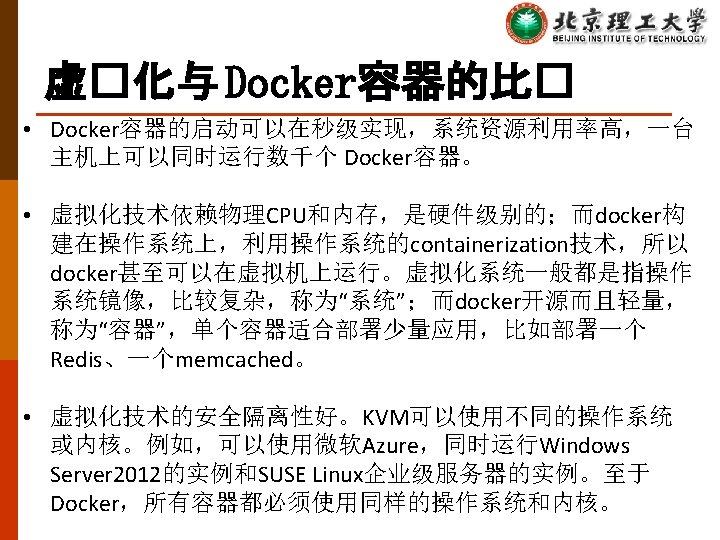

Hypervisor or Docker? 19

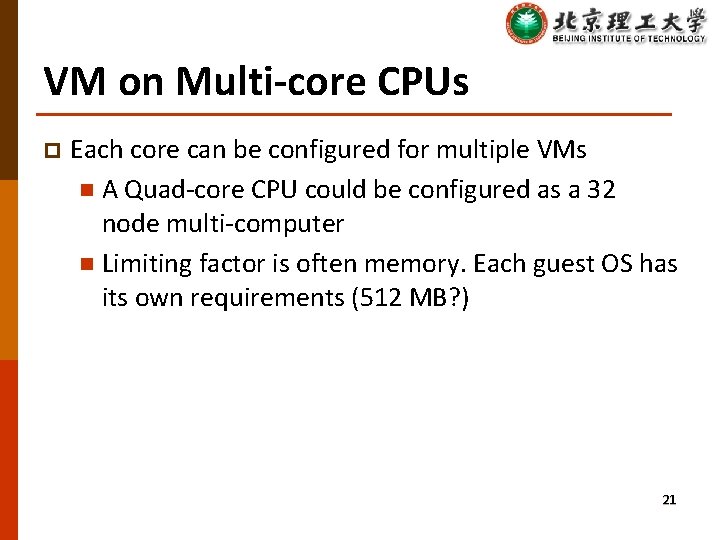

VM on Multi-core CPUs p Each core can be configured for multiple VMs n A Quad-core CPU could be configured as a 32 node multi-computer n Limiting factor is often memory. Each guest OS has its own requirements (512 MB? ) 21

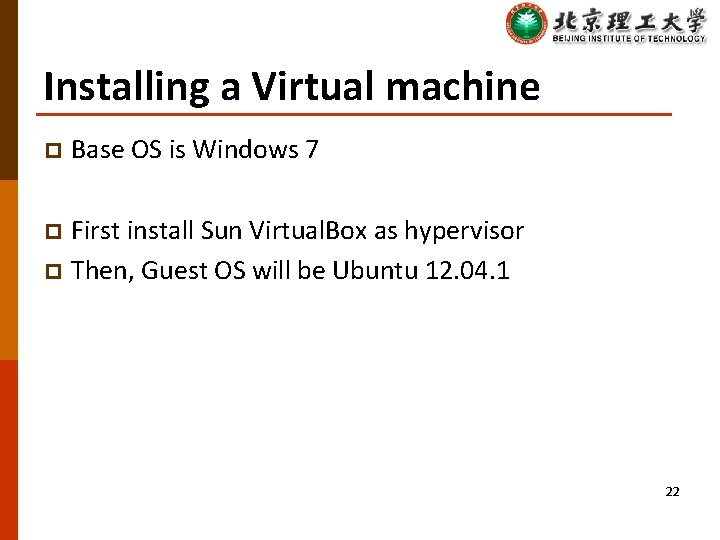

Installing a Virtual machine p Base OS is Windows 7 First install Sun Virtual. Box as hypervisor p Then, Guest OS will be Ubuntu 12. 04. 1 p 22

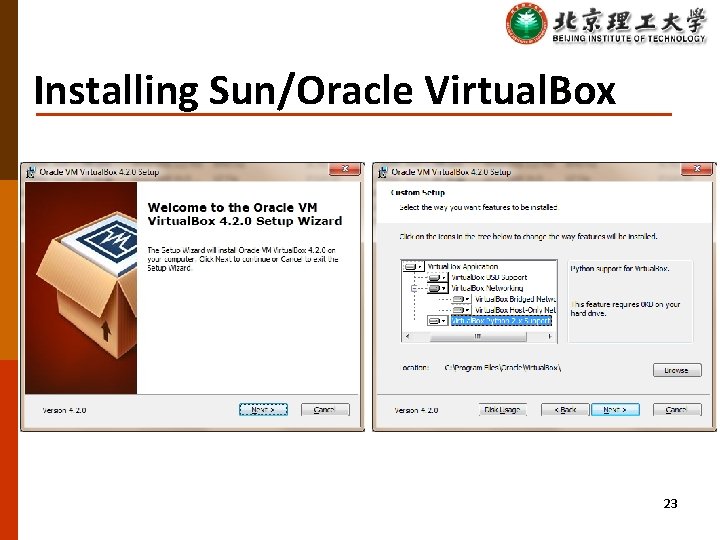

Installing Sun/Oracle Virtual. Box 23

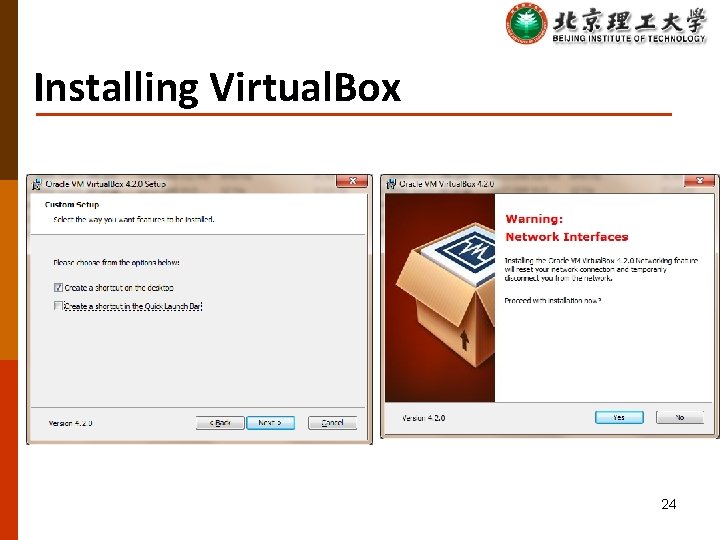

Installing Virtual. Box 24

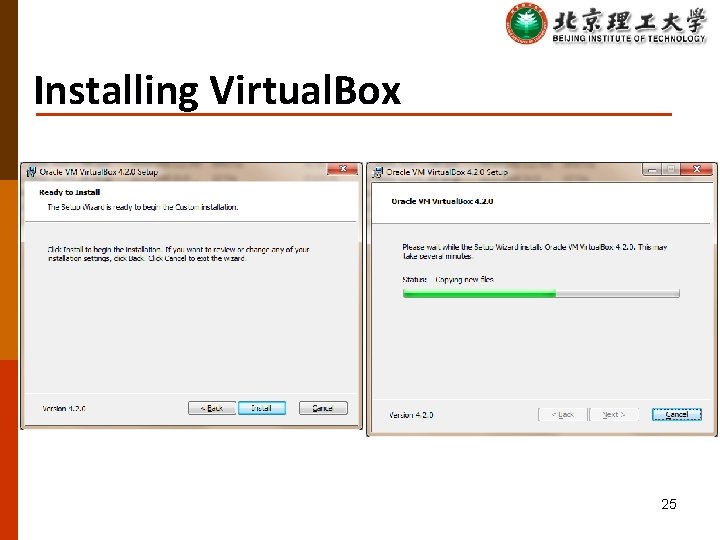

Installing Virtual. Box 25
Installing Virtual. Box 26

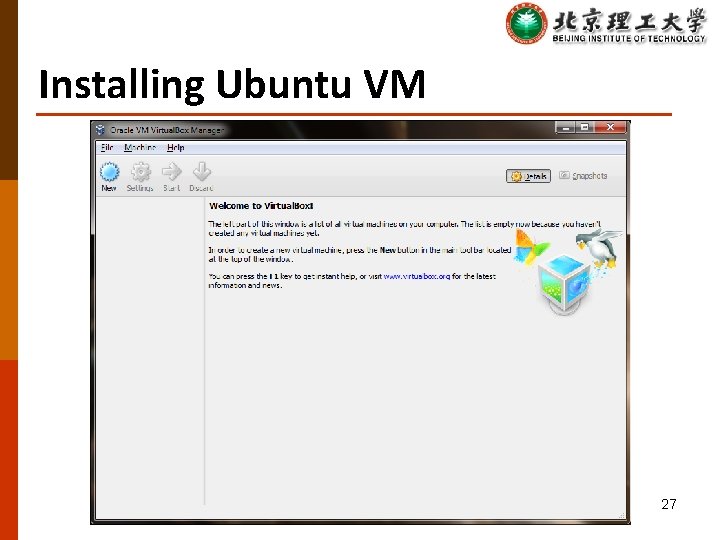

Installing Ubuntu VM 27

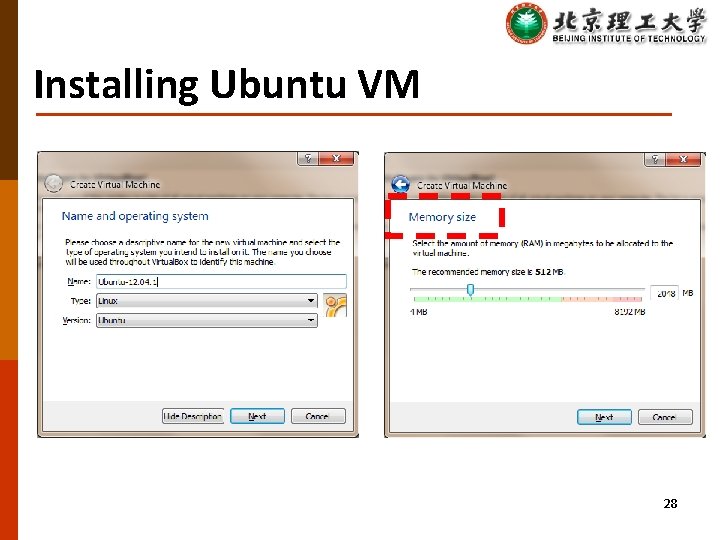

Installing Ubuntu VM 28
Installing Ubuntu VM 29

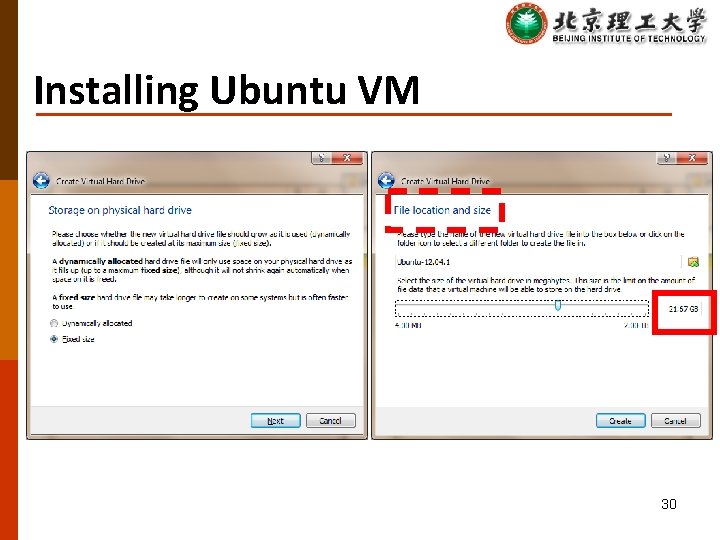

Installing Ubuntu VM 30

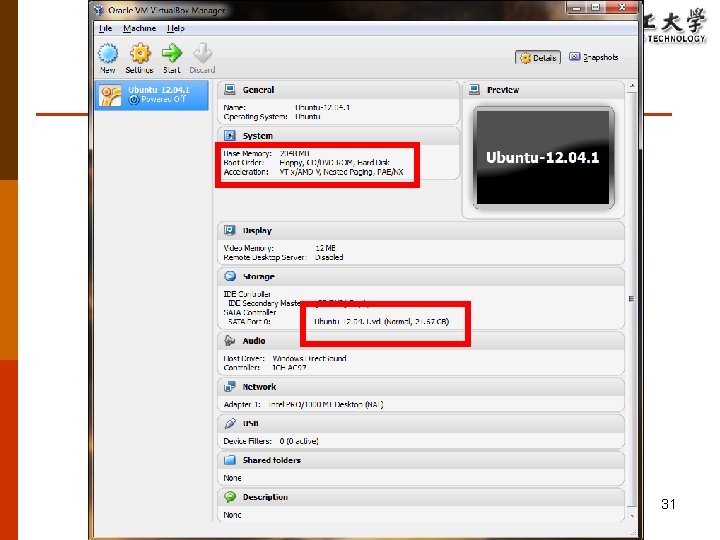

31
Installing Ubuntu VM 32

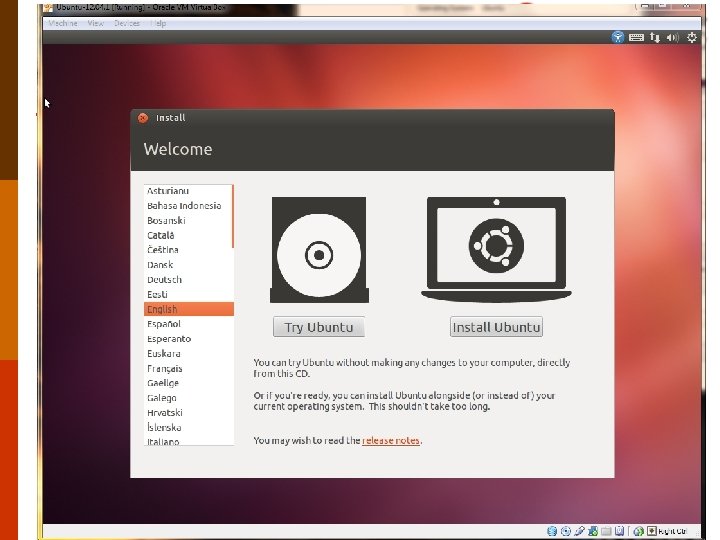

33

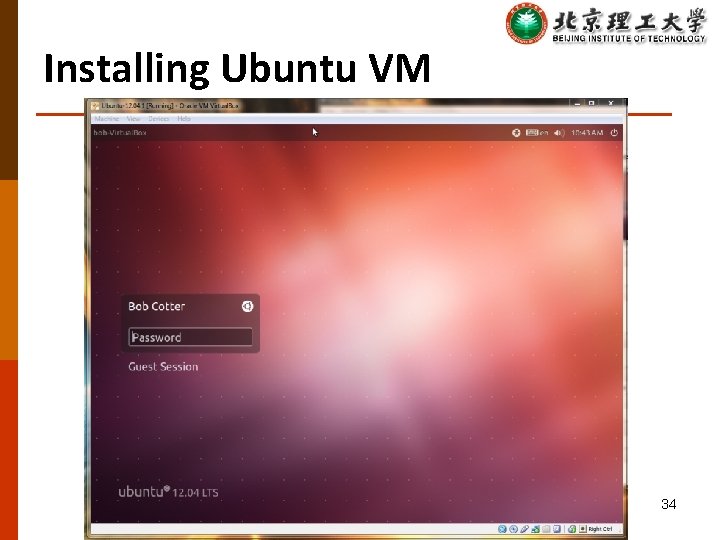

Installing Ubuntu VM 34
