Object Recognition in Images Slides originally created by
Object Recognition in Images Slides originally created by Bernd Heisele
Object Recognition Object Detection Object Identification Where is Jane? Where is a Face? Is there a face in the image? Who is it? Is it Jane or Erik? Fall 2002 Pattern Recognition for Vision
General Problems of Recognition Invariance: • “External parameters” • Pose • Illumination • “Internal parameters” • Person identity • Facial expression Applicable to many classes of objects Fall 2002 Pattern Recognition for Vision
Object Detection Task Given an input image, determine if there are objects of a given class (e. g. faces, people, cars. . ) in the image and where they are located. Fall 2002 Pattern Recognition for Vision
Detection—Problems 1. Classifier must generalize over all exemplars of one class. 2. Negative class consists of everything else. 3. High accuracy (small FP rate) required for most applications. Fall 2002 Pattern Recognition for Vision
Face Detection – basic scheme Face examples Classification Result Off-line training Classifier Feature vector (x 1, x 2 , …, xn) Feature Extraction Non-face examples Pixel pattern Search for faces at different resolutions and locations Fall 2002 Pattern Recognition for Vision
Training and Testing Training Set Train Classifier False Positive Labeled Test Set Correct Sensitivity Classify Fall 2002 Pattern Recognition for Vision
Image Features 19 x 19 Histogram Equalization Masking Gray 283 [0, 1] Histogram Equalization x-y-Sobel Filtering 17 x 17 [0, 1] Gradient Wavelets Fall 2002 Haar Wavelet Transform Normalization 1740 [0, 1] Pattern Recognition for Vision
ROC Image Features Fall 2002 Pattern Recognition for Vision
Classifiers Fall 2002 Pattern Recognition for Vision
Positive Training Data Real Synthetic 2900 faces + 2900 mirrored faces (T. Vetter, Univ. of Freiburg) Illumination Identity Rotation 3 D Morphing: Fall 2002 + = Pattern Recognition for Vision

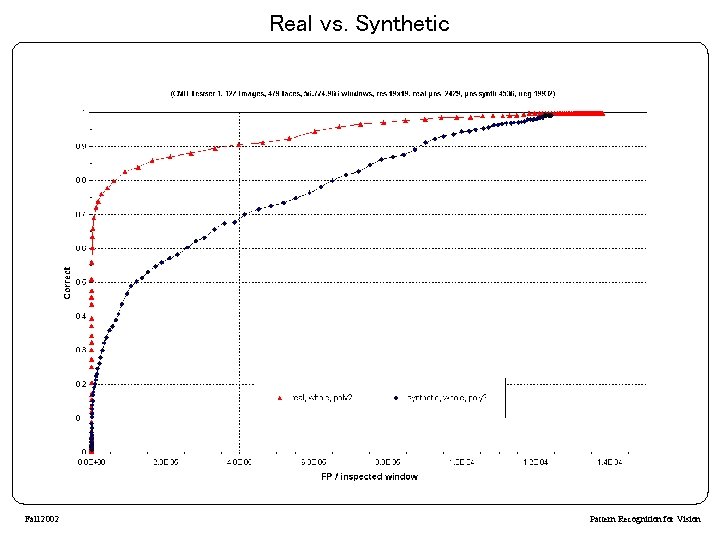

Real vs. Synthetic Fall 2002 Pattern Recognition for Vision
Negative Training Data Problem: 1 face in 116. 440 examined windows Add to training set Initial set of 25. 000 nonfaces Retrain Classifier Determine falsepositives on large set of non-face images Bootstrapping Fall 2002 Pattern Recognition for Vision
Bootstrapping 0. 9 FP/image Fall 2002 6. 7 FP/image Pattern Recognition for Vision
Performance of Global Face Detectors Fall 2002 Pattern Recognition for Vision
Rotation out of image plane Rotation in the image plane • Component-based classification • Train on rotated faces • Rotation invariant features • Apply 2 D rotation to image Fall 2002 Pattern Recognition for Vision
Global vs. Components Single template Component templates Fall 2002 Pattern Recognition for Vision
Component-based Detection Eyes 1 st Level: Components Nose Mouth classify 2 nd Level: Geometrical relation between components classify maximum response of each component classifier + x, y location Fall 2002 Pattern Recognition for Vision
Learning Components: • discriminatory • robust against changes in pose and illumination Synthetic faces: • 7 different 3 -D head models • 2, 500 faces Rotation: -30 o to + 30 o • 3 -D correspondences for automatic location of components Fall 2002 Pattern Recognition for Vision

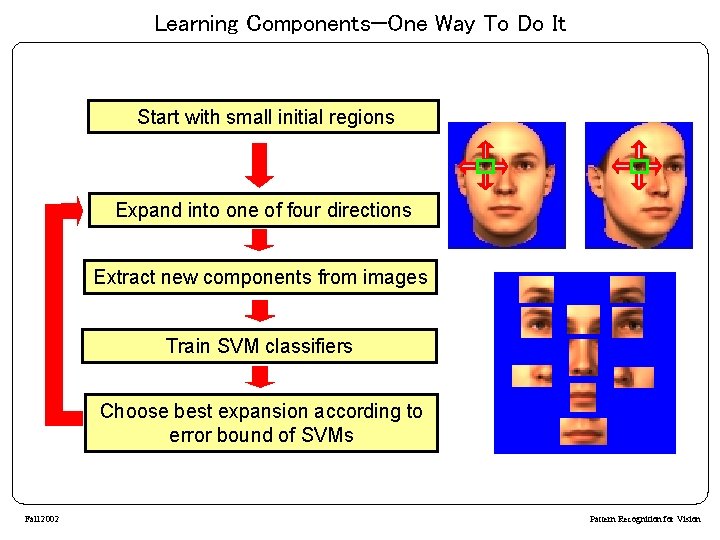

Learning Components—One Way To Do It Start with small initial regions Expand into one of four directions Extract new components from images Train SVM classifiers Choose best expansion according to error bound of SVMs Fall 2002 Pattern Recognition for Vision
Margin, Radius and Expected Error x*2 M M R Bound on error 2 E < c(R / M) x*1 Feature Space Cross Validation might be better Fall 2002 Pattern Recognition for Vision
Some Examples Fall 2002 Pattern Recognition for Vision
Test on CMU PIE Database Faces have been manually labeled (only – 45 o to 45 o of rotation) • About 40, 000 faces • 68 people • 13 poses • 43 illumination conditions • 4 different expressions Fall 2002 Pattern Recognition for Vision
ROC Component vs. Global Heisele, B. , T. Serre, M. Pontil, T. Vetter and T. Poggio. Categorization by Learning and Combining Object Parts. In: Advances in Neural Information Processing Systems (NIPS'01), Vancouver, Canada Fall 2002 Pattern Recognition for Vision
Advances on Component-base Face Detection Stan Bileschi Components are small, and prone to false detection, even within the face. Stan Bileschi Fall 2002 Pattern Recognition for Vision
Training on Faces Use the remainder of the face in the negative training set Positive Fall 2002 Negative Pattern Recognition for Vision

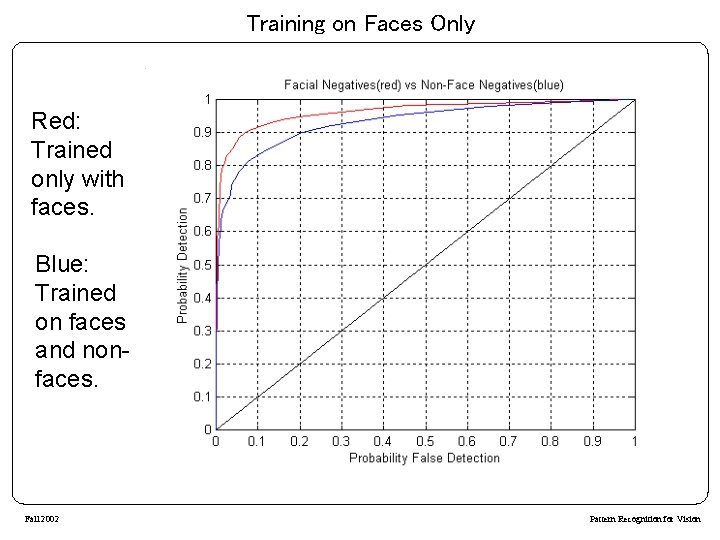

Training on Faces Only Red: Trained only with faces. Blue: Trained on faces and nonfaces. Fall 2002 Pattern Recognition for Vision
Errors Often, many components classify correctly, with only a few errors Fall 2002 Pattern Recognition for Vision
Using Models of Pair-wise Positions Fall 2002 Pattern Recognition for Vision

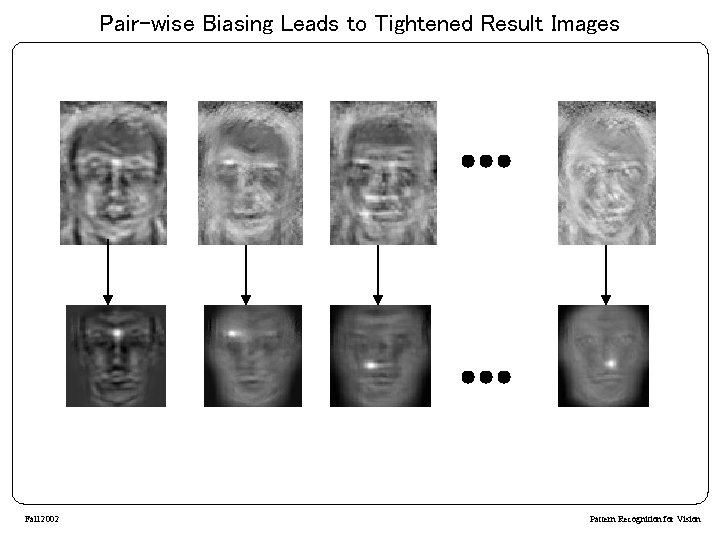

Pair-wise Biasing Leads to Tightened Result Images Fall 2002 Pattern Recognition for Vision
Pair-wise Biasing Fall 2002 Pattern Recognition for Vision
Application: Eye Detection Fall 2002 Pattern Recognition for Vision
Identification Task: Given an image of an object of a particular class (e. g. face) identify which exemplar it is. Fall 2002 A B C D Pattern Recognition for Vision
Identification—Problems 1. Multi-class problem 2. Classifier must distinguish between exemplars that might look very similar. 3. Classifier has to reject exemplars that were not in the training database. Fall 2002 Pattern Recognition for Vision
Problems in Face Identification Limited information in a single face image Illumination Fall 2002 Rotation Pattern Recognition for Vision
System Architecture Training Data Identification Result A Classifier Feature extraction Support Vector Machine, …. Gray, Gradient, Wavelets, … Face Image Fall 2002 Pattern Recognition for Vision
Multi-class Classification with SVM Bottom-Up 1 vs 1 1 vs. All A or B or C or D A or B A B C or D C D Training: L (L-1) / 2 Classification : L-1 Fall 2002 A B, C, D B A, C, D C A, B, D D A, B, C Training: L Classification : L Pattern Recognition for Vision
Global Approach Detect and extract face Feed gray values into N SVMs Classify based on maximum output SVM A SVM B SVM C SVM D Max Operation Identification result Fall 2002 Pattern Recognition for Vision
Global Approach with Clustering Partition training images of each person into viewpointspecific clusters Train a linear SVM on each cluster Take maximum over all SVM outputs SVM C Max Operation Identification result Fall 2002 Pattern Recognition for Vision
Component-based Approach Detect and extract components Feed gray values of components to N SVMs Take max. over all SVM outputs SVM A SVM B SVM C SVM D Max Operation Identification Results Fall 2002 Pattern Recognition for Vision
Why Components for Identification? Feature 1 != Feature 2 Feature 1 = Feature 2 Jennifer Huang Fall 2002 Component-based Face Recognition with 3 D Morphable Models Pattern Recognition for Vision

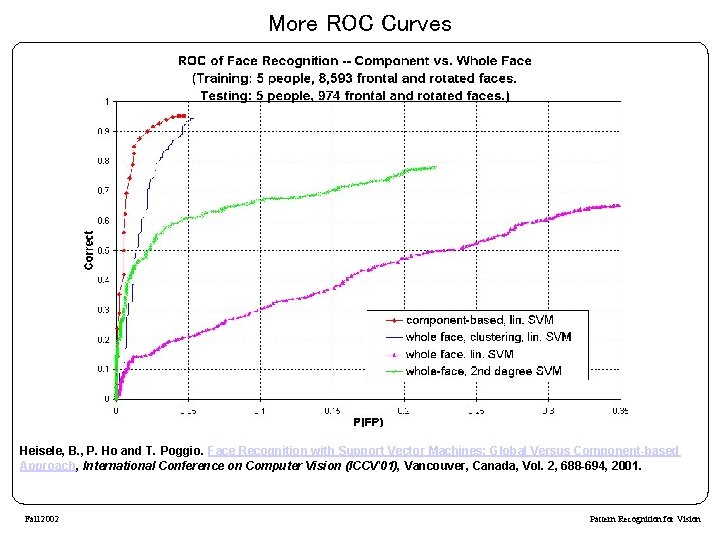

More ROC Curves Heisele, B. , P. Ho and T. Poggio. Face Recognition with Support Vector Machines: Global Versus Component-based Approach, International Conference on Computer Vision (ICCV'01), Vancouver, Canada, Vol. 2, 688 -694, 2001. Fall 2002 Pattern Recognition for Vision
Morphable Models for Face Identification, Jennifer Huang 3 D morphable models A Morphable Model for the Synthesis of 3 D Faces. Blanz, V. and Vetter, T. SIGGRAPH'99 Conference Proceedings, pp. 187 -194 Training data for component-based face recognition Jennifer Huang Fall 2002 Pattern Recognition for Vision
Morphable Model Generation of 3 D head model from two images See class on Morphable Models Jennifer Huang Fall 2002 Pattern Recognition for Vision
Some Training Images Synthetic images are easily rendered from 3 D head model under varying illuminations and rotations in depth Jennifer Huang Fall 2002 Pattern Recognition for Vision
Preliminary Results on Synthetic Images Jennifer Huang Fall 2002 Pattern Recognition for Vision
Current Work – Testing on Real Images Problems Encountered: Detection Inaccurate Component detection Recognition Accuracy of 3 D models Choice of Illumination and Pose Jennifer Huang Fall 2002 Pattern Recognition for Vision
Literature B. Heisele, A. Verri and T. Poggio: Learning and Vision Machines. Proceedings of the IEEE, Visual Perception: Technology and Tools, Vol. 90, No. 7, pp. 1164 -1177, 2002. See also CBCL Web page Fall 2002 Pattern Recognition for Vision
