NCDOT Project Wise and Open Roads Designer ORD

NCDOT Project. Wise and Open Roads Designer (ORD) Update NCLUG Winter Conference Dec 5, 2018 Presenter: Bryan Edwards, PE

Organizational Changes Effective July 1, 2018 NCDOT Information Technology moved to NCDIT Transportation

NCDOT Project. Wise Update Transportation

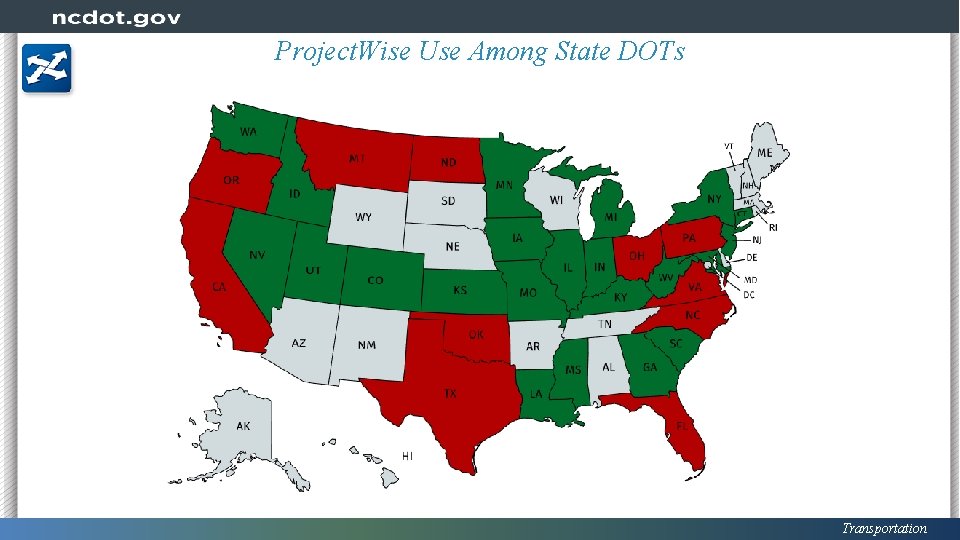

Project. Wise Use Among State DOTs Transportation

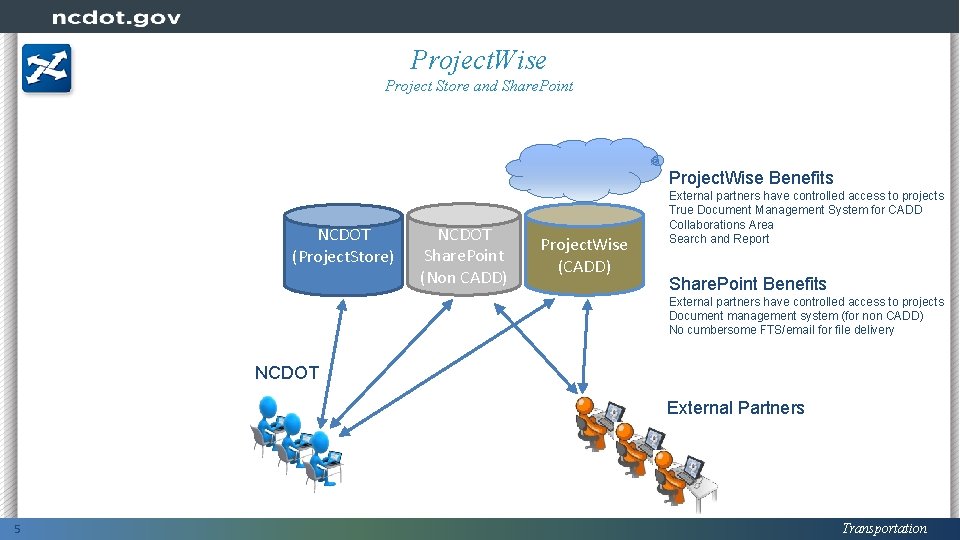

Project. Wise Project Store and Share. Point Project. Wise Benefits NCDOT (Project. Store) NCDOT Share. Point (Non CADD) Project. Wise (CADD) External partners have controlled access to projects True Document Management System for CADD Collaborations Area Search and Report Share. Point Benefits External partners have controlled access to projects Document management system (for non CADD) No cumbersome FTS/email for file delivery NCDOT External Partners 5 Transportation

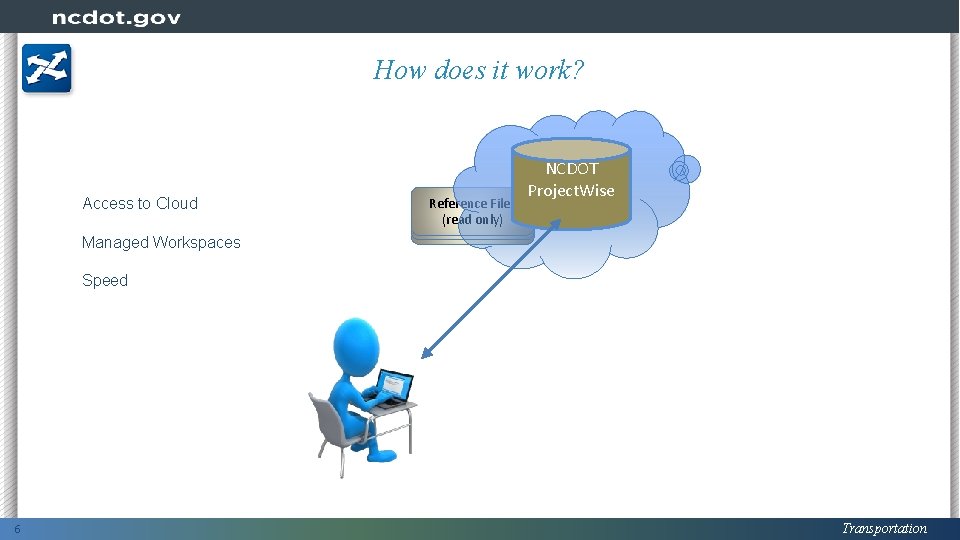

How does it work? Access to Cloud Managed Workspaces Reference Files DGN file CADD Workspace (read only) (checked-out) Standards NCDOT Project. Wise Speed 6 Transportation

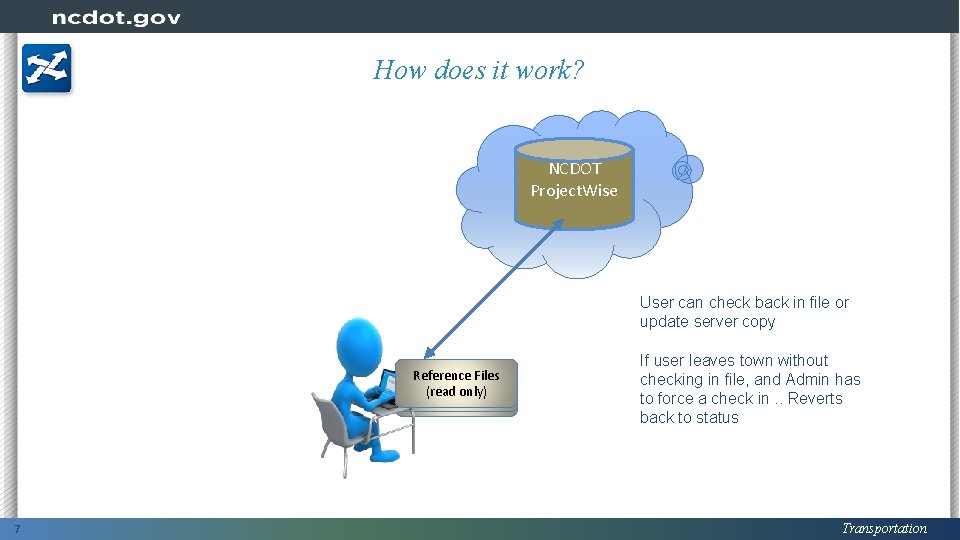

How does it work? NCDOT Project. Wise User can check back in file or update server copy Reference Files DGN file CADD Workspace (read only) (checked-in) Standards 7 If user leaves town without checking in file, and Admin has to force a check in. . Reverts back to status Transportation

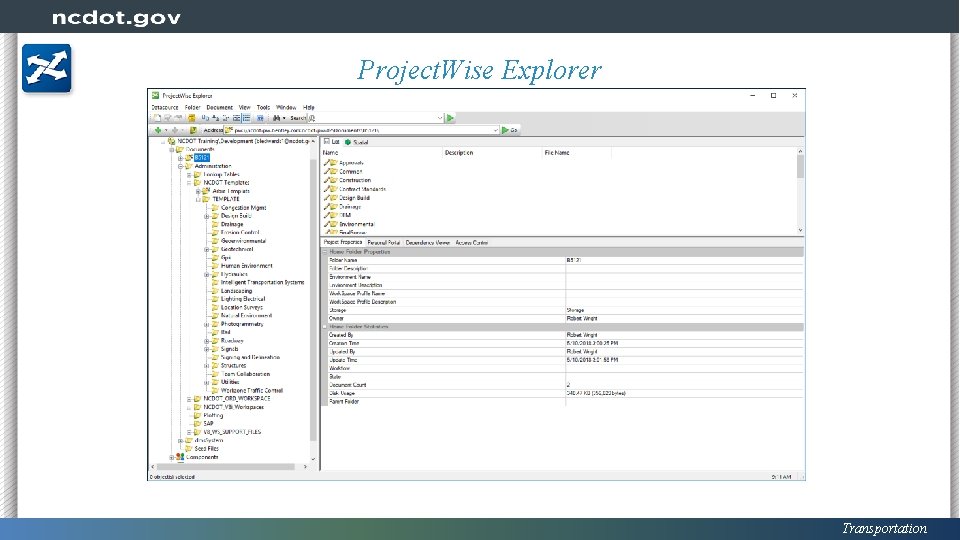

Project. Wise Explorer Transportation

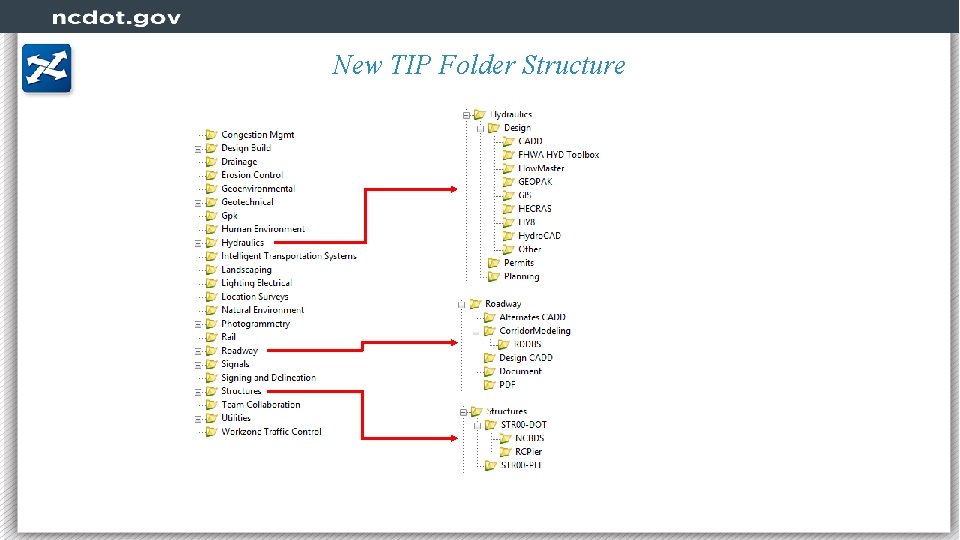

New TIP Folder Structure

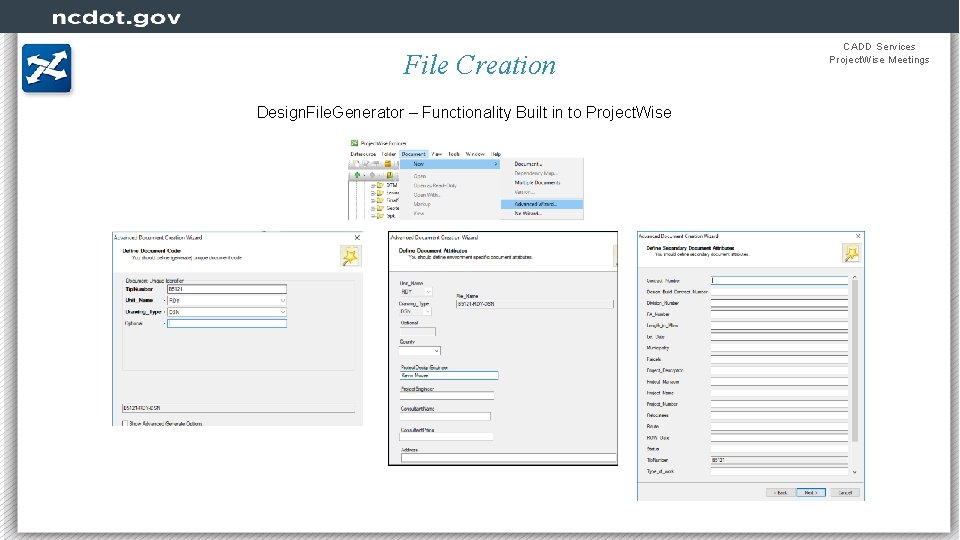

File Creation Design. File. Generator – Functionality Built in to Project. Wise CADD Services Project. Wise Meetings

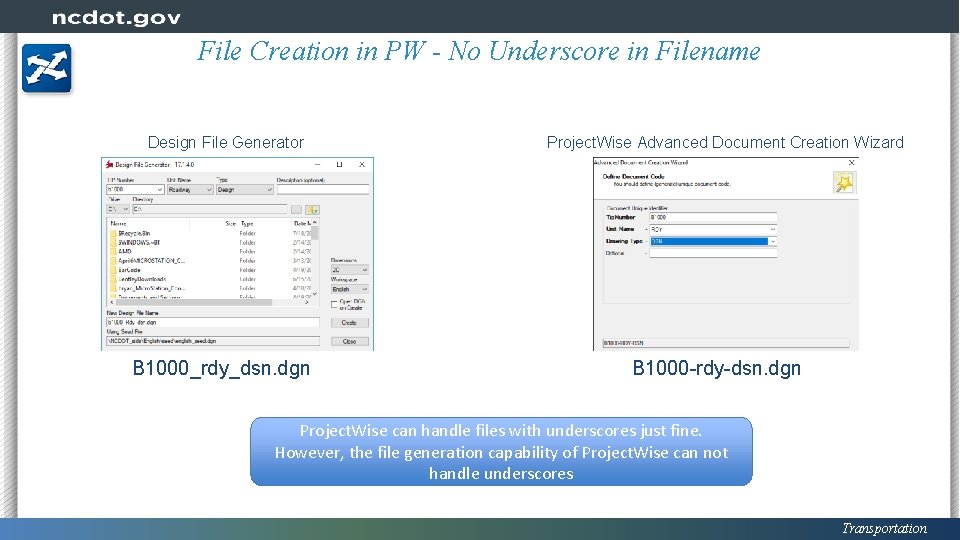

File Creation in PW - No Underscore in Filename Design File Generator B 1000_rdy_dsn. dgn Project. Wise Advanced Document Creation Wizard B 1000 -rdy-dsn. dgn Project. Wise can handle files with underscores just fine. However, the file generation capability of Project. Wise can not handle underscores Transportation

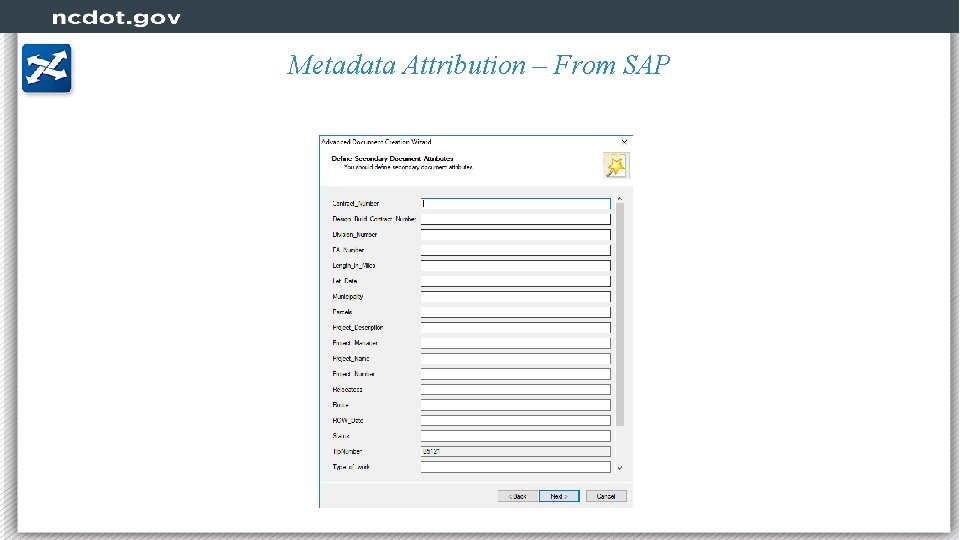

Metadata Attribution – From SAP

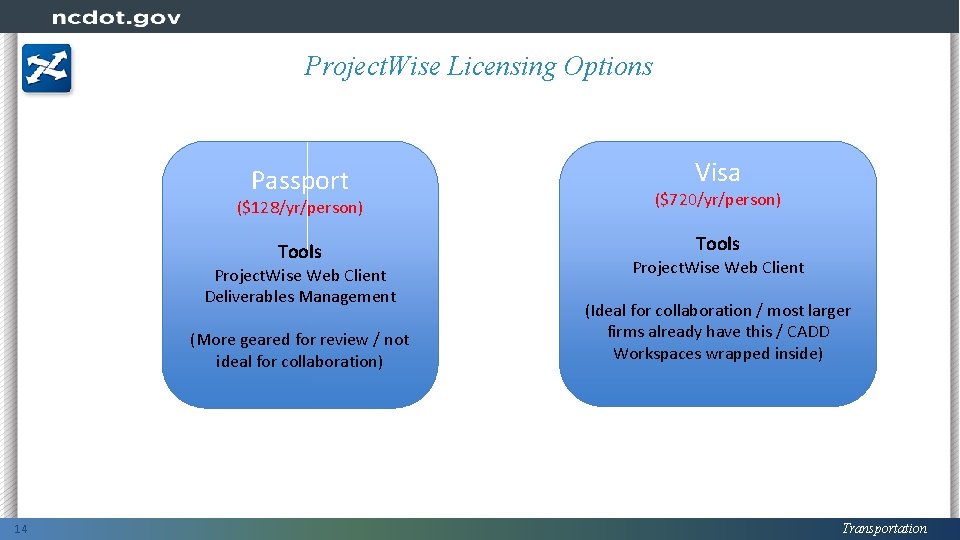

Project. Wise Licensing Options Passport ($128/yr/person) ($720/yr/person) Tools Project. Wise Web Client Deliverables Management (More geared for review / not ideal for collaboration) 14 Visa Project. Wise Web Client (Ideal for collaboration / most larger firms already have this / CADD Workspaces wrapped inside) Transportation

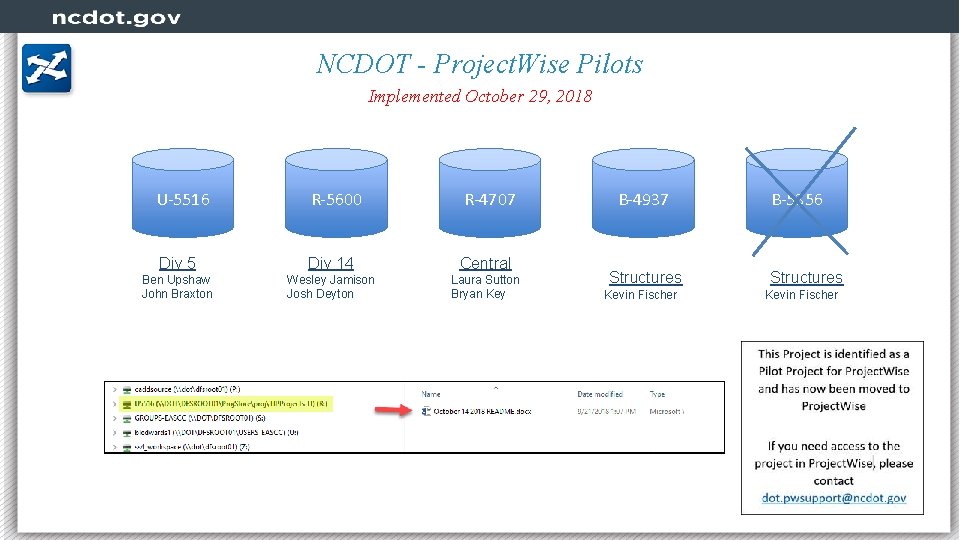

NCDOT - Project. Wise Pilots Implemented October 29, 2018 U-5516 R-5600 R-4707 Div 5 Div 14 Central Ben Upshaw John Braxton Wesley Jamison Josh Deyton Laura Sutton Bryan Key B-4937 Structures Kevin Fischer B-5356 Structures Kevin Fischer

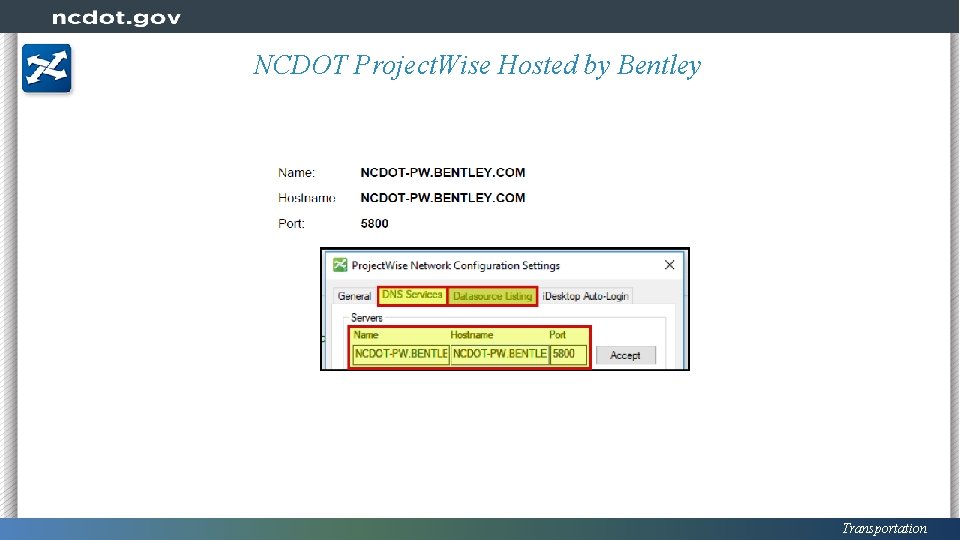

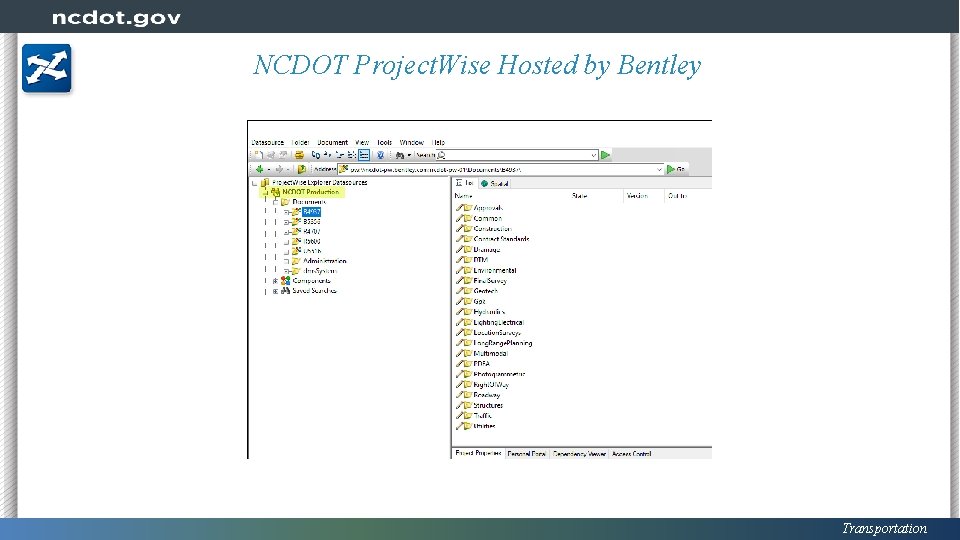

NCDOT Project. Wise Hosted by Bentley Transportation

NCDOT Project. Wise Hosted by Bentley Transportation

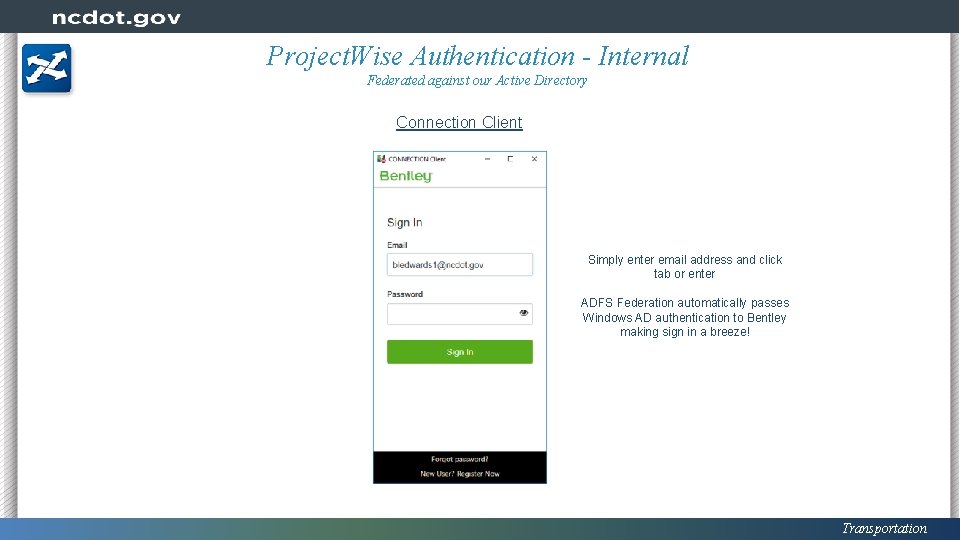

Project. Wise Authentication - Internal Federated against our Active Directory Connection Client Simply enter email address and click tab or enter ADFS Federation automatically passes Windows AD authentication to Bentley making sign in a breeze! Transportation

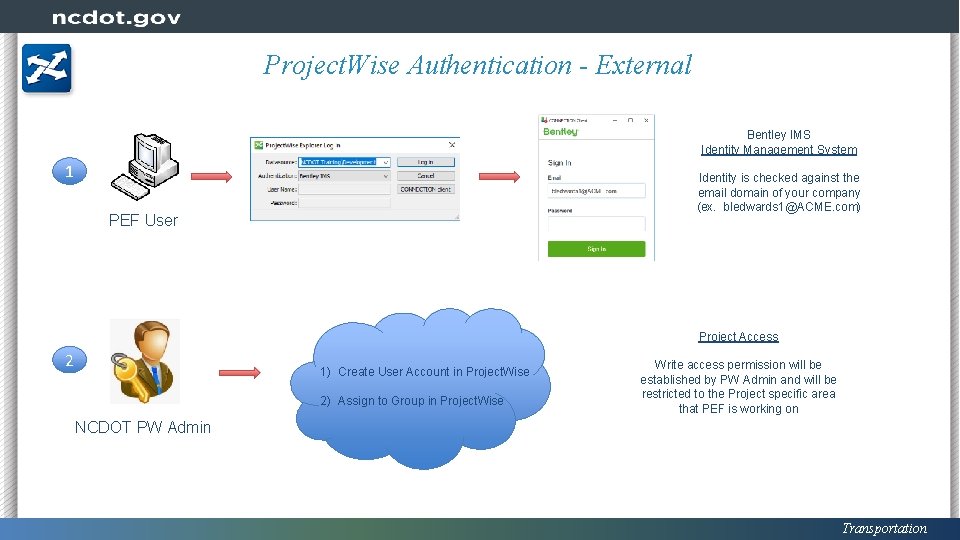

Project. Wise Authentication - External Bentley IMS Identity Management System 1 Identity is checked against the email domain of your company (ex. bledwards 1@ACME. com) PEF User Project Access 2 1) Create User Account in Project. Wise 2) Assign to Group in Project. Wise Write access permission will be established by PW Admin and will be restricted to the Project specific area that PEF is working on NCDOT PW Admin Transportation

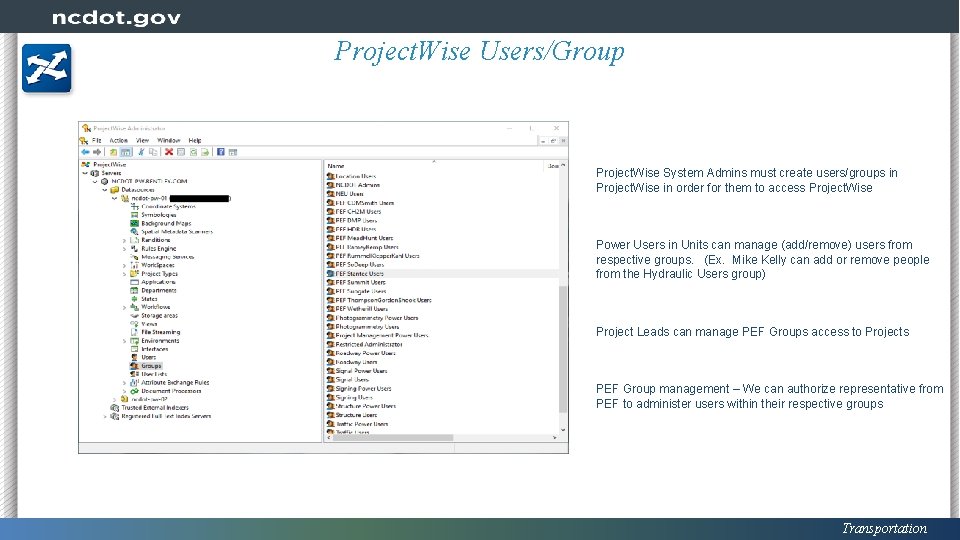

Project. Wise Users/Group Project. Wise System Admins must create users/groups in Project. Wise in order for them to access Project. Wise Power Users in Units can manage (add/remove) users from respective groups. (Ex. Mike Kelly can add or remove people from the Hydraulic Users group) Project Leads can manage PEF Groups access to Projects PEF Group management – We can authorize representative from PEF to administer users within their respective groups Transportation

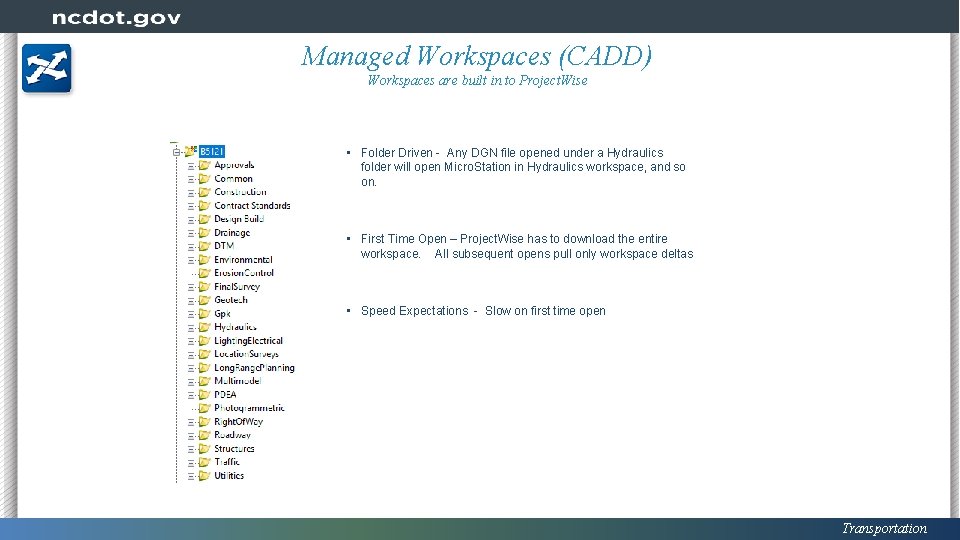

Managed Workspaces (CADD) Workspaces are built in to Project. Wise • Folder Driven - Any DGN file opened under a Hydraulics folder will open Micro. Station in Hydraulics workspace, and so on. • First Time Open – Project. Wise has to download the entire workspace. All subsequent opens pull only workspace deltas • Speed Expectations - Slow on first time open Transportation

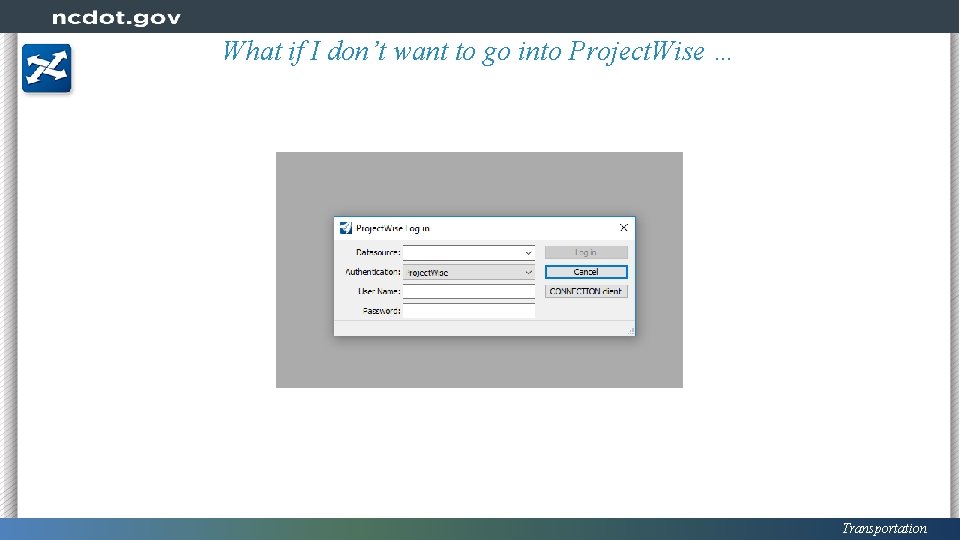

What if I don’t want to go into Project. Wise … Transportation

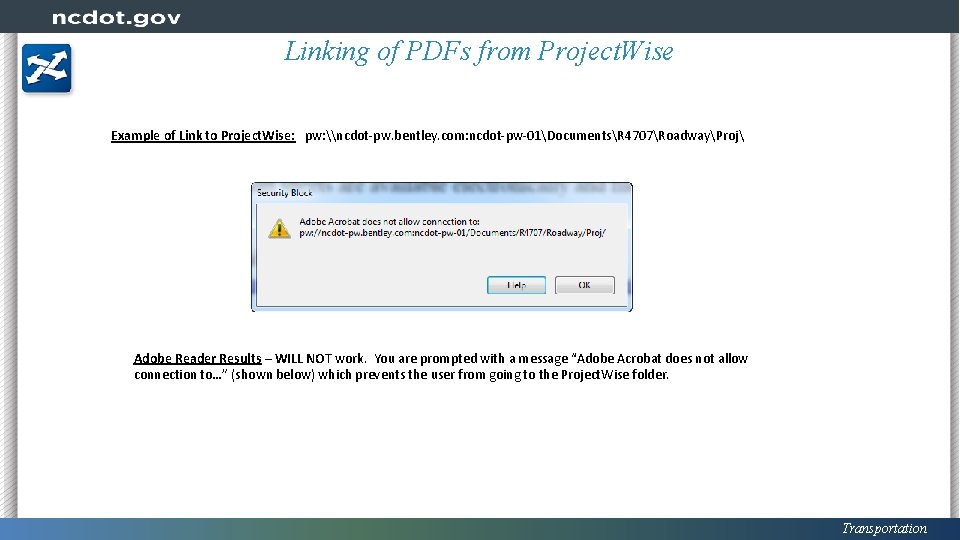

Linking of PDFs from Project. Wise Example of Link to Project. Wise: pw: \ncdot-pw. bentley. com: ncdot-pw-01DocumentsR 4707RoadwayProj Adobe Reader Results – WILL NOT work. You are prompted with a message “Adobe Acrobat does not allow connection to…” (shown below) which prevents the user from going to the Project. Wise folder. Transportation

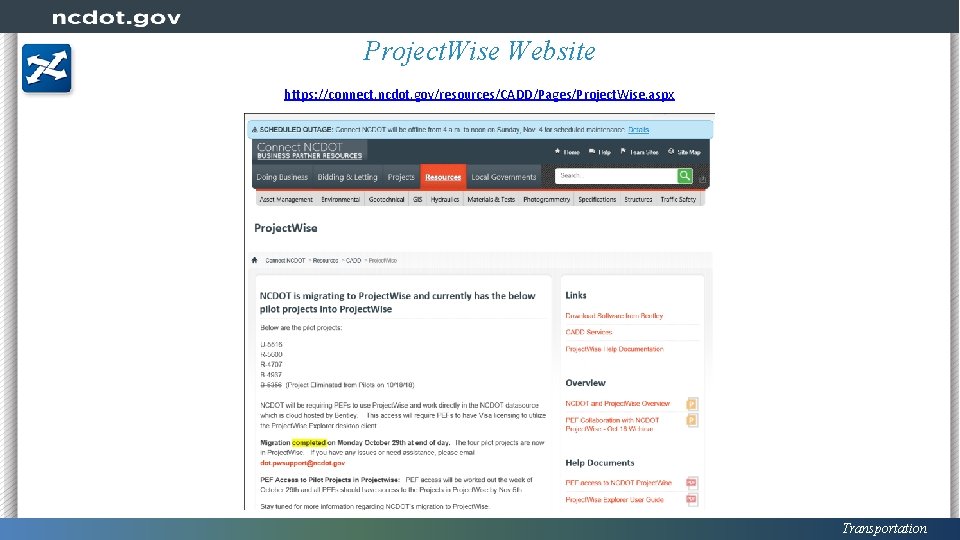

Project. Wise Website https: //connect. ncdot. gov/resources/CADD/Pages/Project. Wise. aspx Transportation

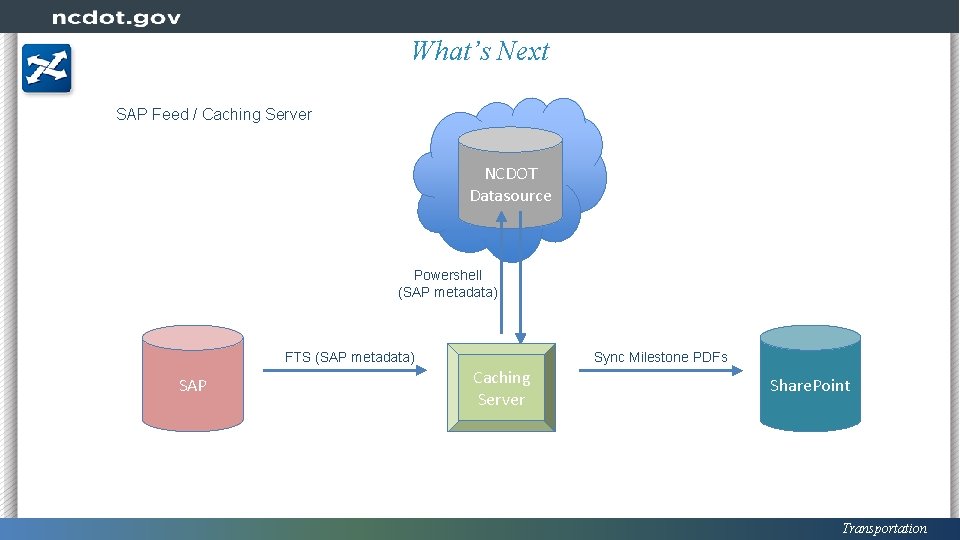

What’s Next SAP Feed / Caching Server NCDOT Datasource Powershell (SAP metadata) FTS (SAP metadata) SAP Sync Milestone PDFs Caching Server Share. Point Transportation

NCDOT Project. Wise If you have issues or questions regarding the pilot projects and Project. Wise, please contact dot. pwsupport@ncdot. gov 26 Transportation

NCDOT Open. Roads Designer Update Transportation

What are other DOTs doing with ORD? Virginia Currently on SS 4 Targeting end of 2019 for ORD implementation UTAH Have already started a small number of Projects in ORD; otherwise 95% still in SS 4 Texas Currently on SS 4 Targeting Spring of 2019 for ORD implementation South Carolina Currently on SS 4 Targeting 2020 for ORD implementation Transportation

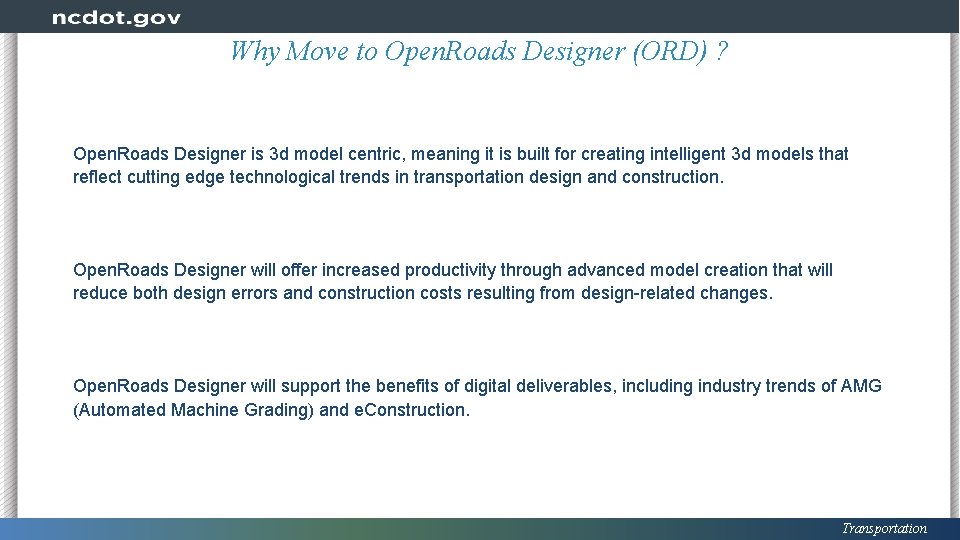

Why Move to Open. Roads Designer (ORD) ? Open. Roads Designer is 3 d model centric, meaning it is built for creating intelligent 3 d models that reflect cutting edge technological trends in transportation design and construction. Open. Roads Designer will offer increased productivity through advanced model creation that will reduce both design errors and construction costs resulting from design-related changes. Open. Roads Designer will support the benefits of digital deliverables, including industry trends of AMG (Automated Machine Grading) and e. Construction. Transportation

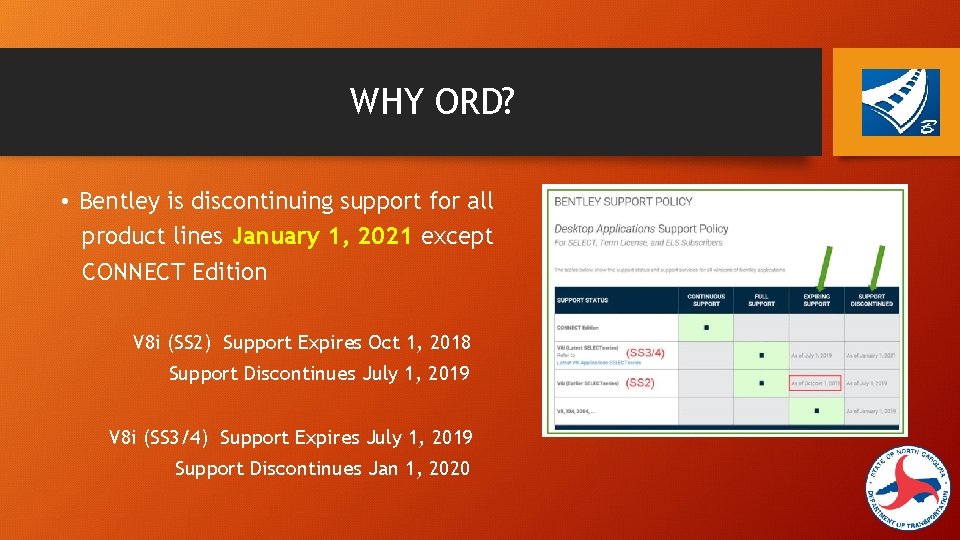

WHY ORD? • Bentley is discontinuing support for all product lines January 1, 2021 except CONNECT Edition V 8 i (SS 2) Support Expires Oct 1, 2018 Support Discontinues July 1, 2019 V 8 i (SS 3/4) Support Expires July 1, 2019 Support Discontinues Jan 1, 2020

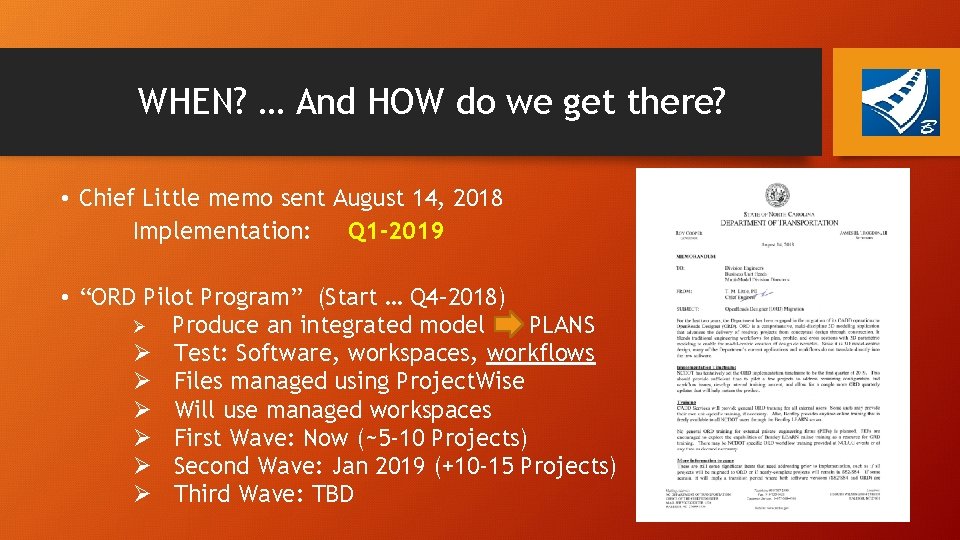

WHEN? … And HOW do we get there? • Chief Little memo sent August 14, 2018 Implementation: Q 1 -2019 • “ORD Pilot Program” (Start … Q 4– 2018) Ø Produce an integrated model PLANS Ø Test: Software, workspaces, workflows Ø Files managed using Project. Wise Ø Will use managed workspaces Ø First Wave: Now (~5 -10 Projects) Ø Second Wave: Jan 2019 (+10 -15 Projects) Ø Third Wave: TBD

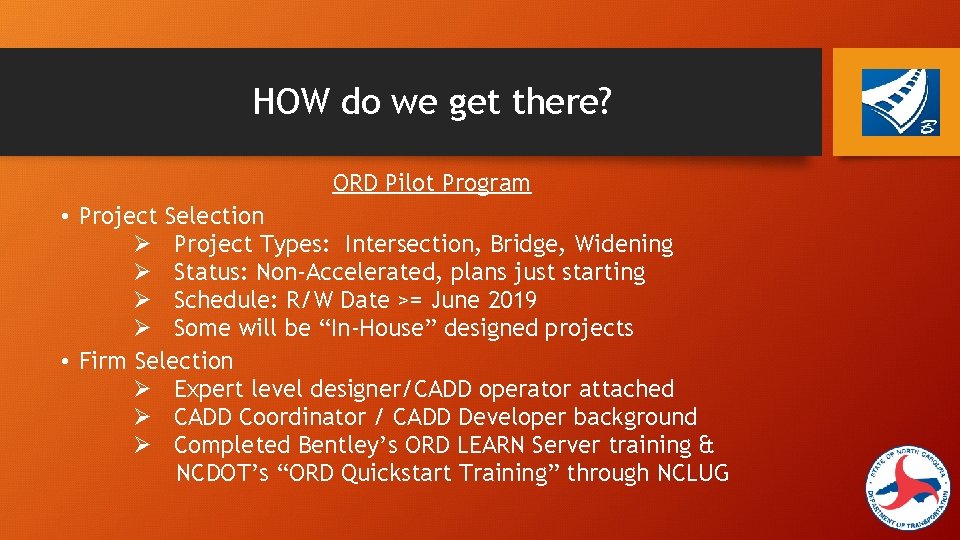

HOW do we get there? ORD Pilot Program • Project Selection Ø Project Types: Intersection, Bridge, Widening Ø Status: Non-Accelerated, plans just starting Ø Schedule: R/W Date >= June 2019 Ø Some will be “In-House” designed projects • Firm Selection Ø Expert level designer/CADD operator attached Ø CADD Coordinator / CADD Developer background Ø Completed Bentley’s ORD LEARN Server training & NCDOT’s “ORD Quickstart Training” through NCLUG

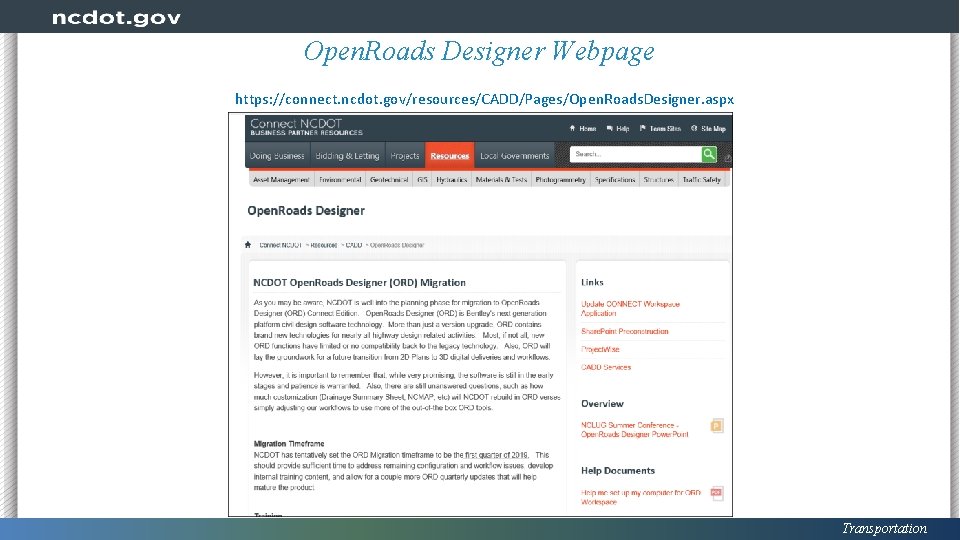

Open. Roads Designer Webpage https: //connect. ncdot. gov/resources/CADD/Pages/Open. Roads. Designer. aspx Transportation

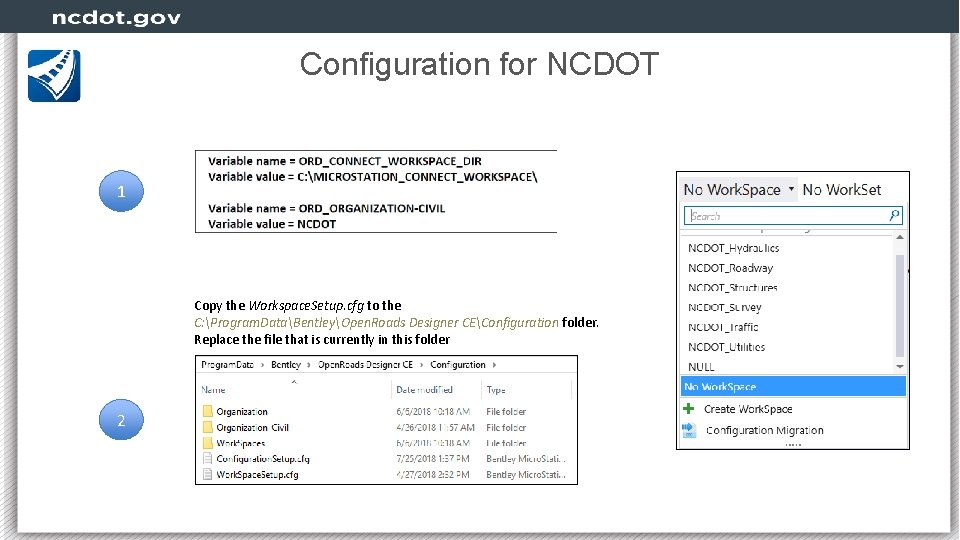

Configuration for NCDOT 1 Copy the Workspace. Setup. cfg to the C: Program. DataBentleyOpen. Roads Designer CEConfiguration folder. Replace the file that is currently in this folder 2

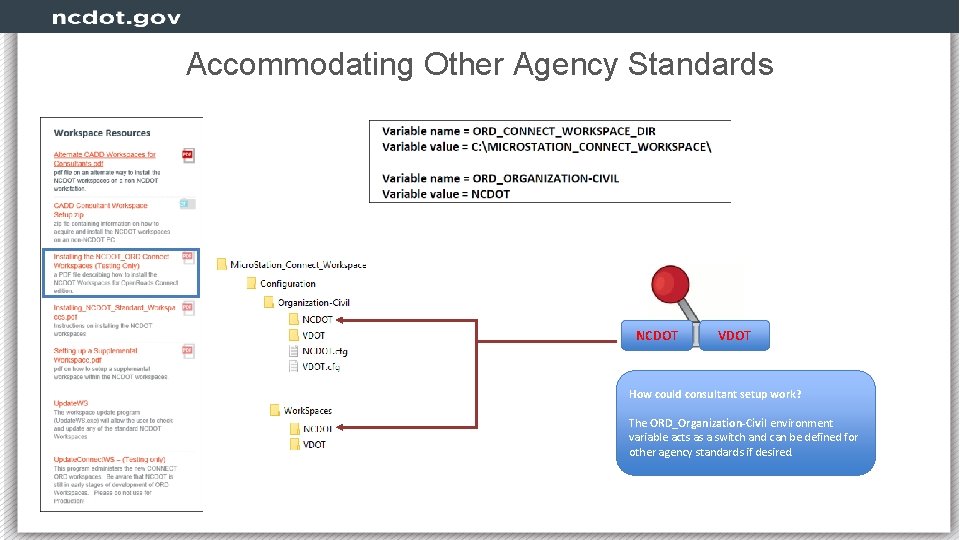

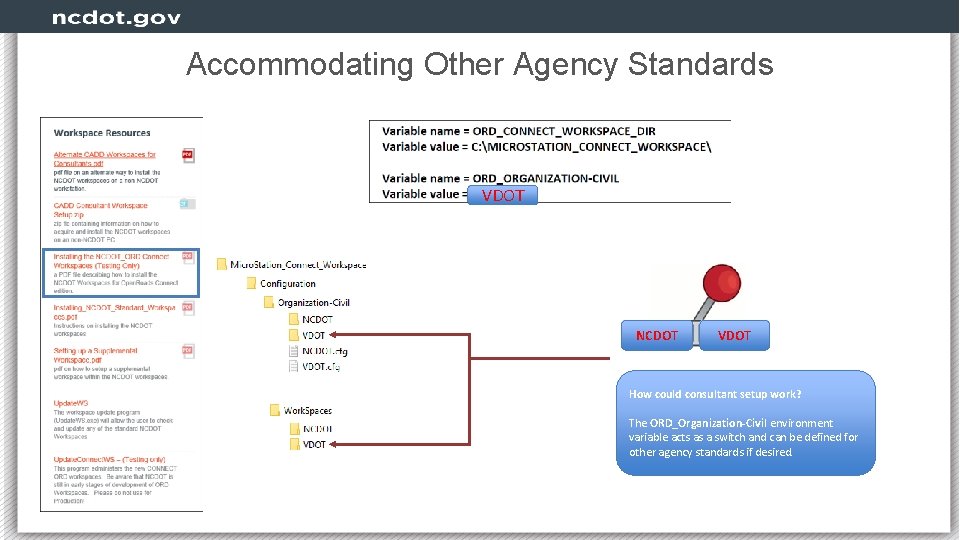

Accommodating Other Agency Standards NCDOT VDOT How could consultant setup work? The ORD_Organization-Civil environment variable acts as a switch and can be defined for other agency standards if desired.

Accommodating Other Agency Standards VDOT NCDOT VDOT How could consultant setup work? The ORD_Organization-Civil environment variable acts as a switch and can be defined for other agency standards if desired.

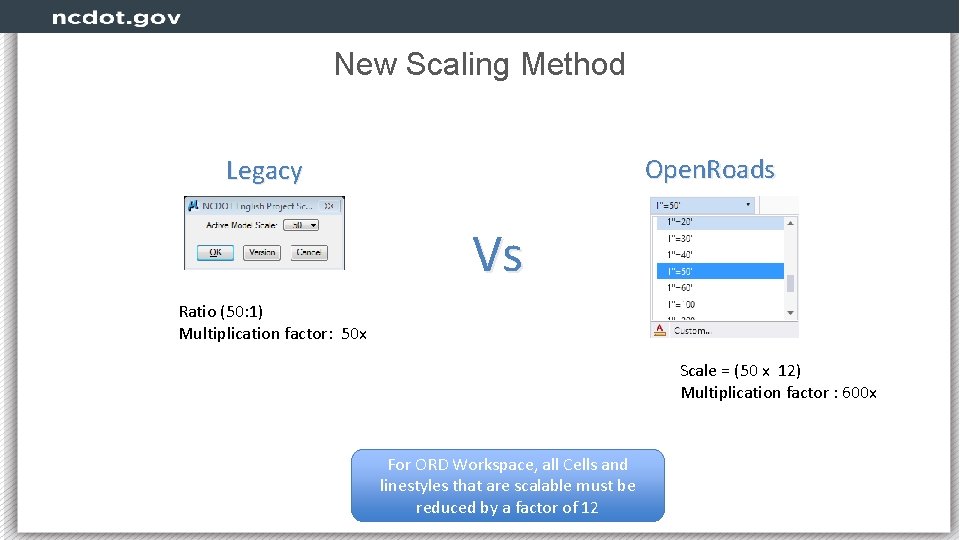

New Scaling Method Open. Roads Legacy Vs Ratio (50: 1) Multiplication factor: 50 x Scale = (50 x 12) Multiplication factor : 600 x For ORD Workspace, all Cells and linestyles that are scalable must be reduced by a factor of 12

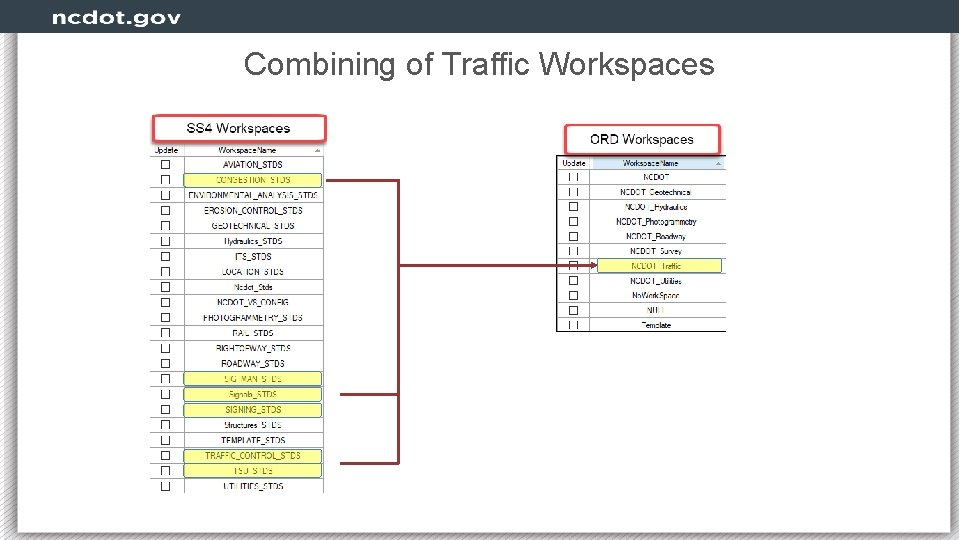

Combining of Traffic Workspaces

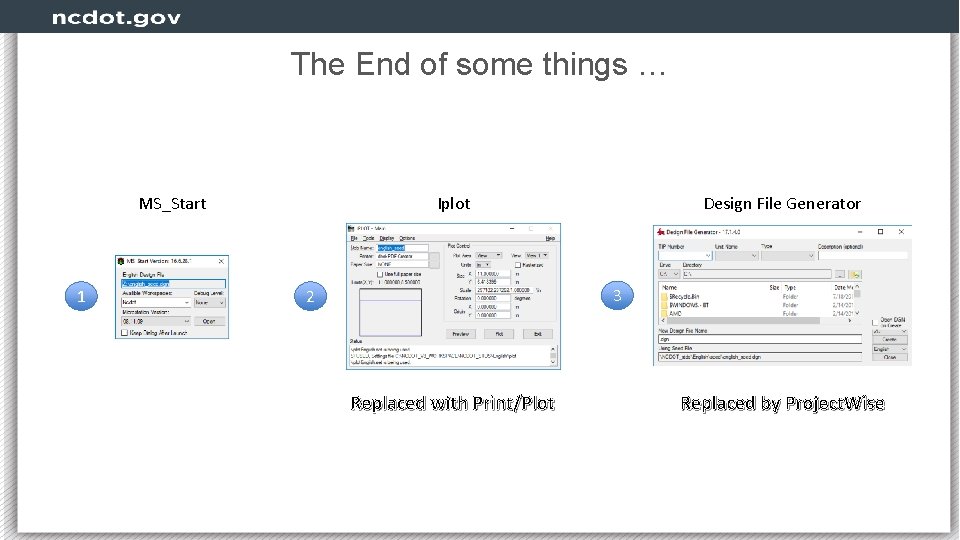

The End of some things … MS_Start 1 Iplot Design File Generator 3 2 Replaced with Print/Plot Replaced by Project. Wise

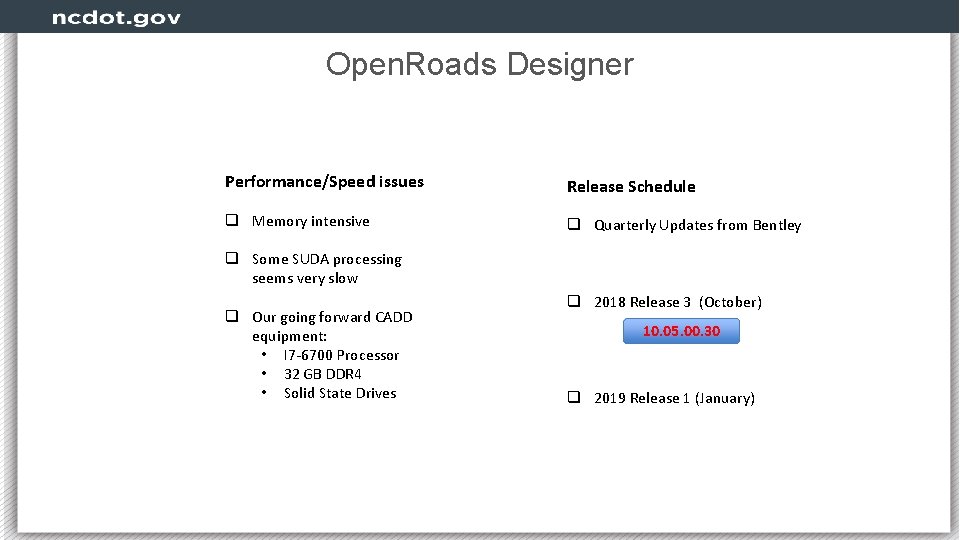

Open. Roads Designer Performance/Speed issues Release Schedule q Memory intensive q Quarterly Updates from Bentley q Some SUDA processing seems very slow q Our going forward CADD equipment: • I 7 -6700 Processor • 32 GB DDR 4 • Solid State Drives q 2018 Release 3 (October) 10. 05. 00. 30 q 2019 Release 1 (January)

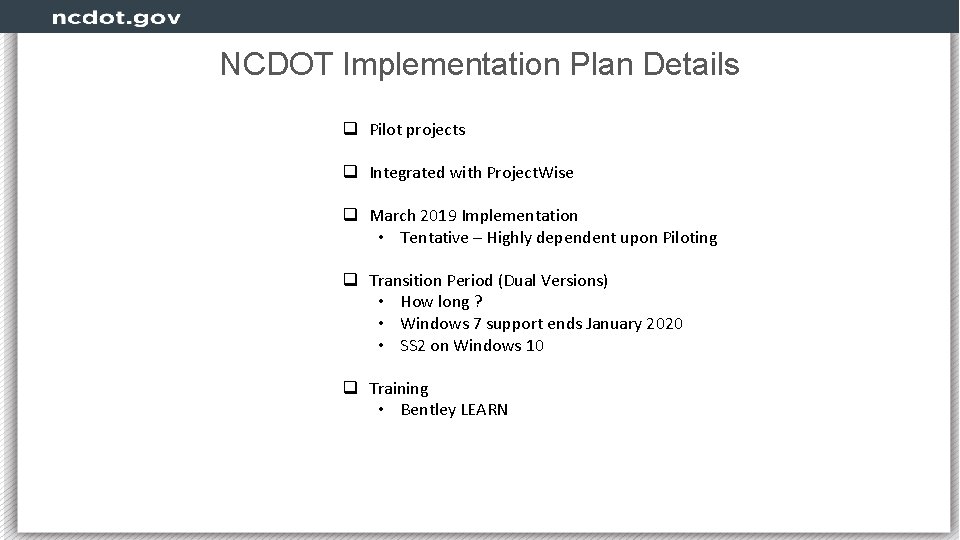

NCDOT Implementation Plan Details q Pilot projects q Integrated with Project. Wise q March 2019 Implementation • Tentative – Highly dependent upon Piloting q Transition Period (Dual Versions) • How long ? • Windows 7 support ends January 2020 • SS 2 on Windows 10 q Training • Bentley LEARN

NCDOT Project. Wise Thank You! 42 Transportation
