Nano Films 9 10 nanofilm Thin Film Deposition
- Slides: 31

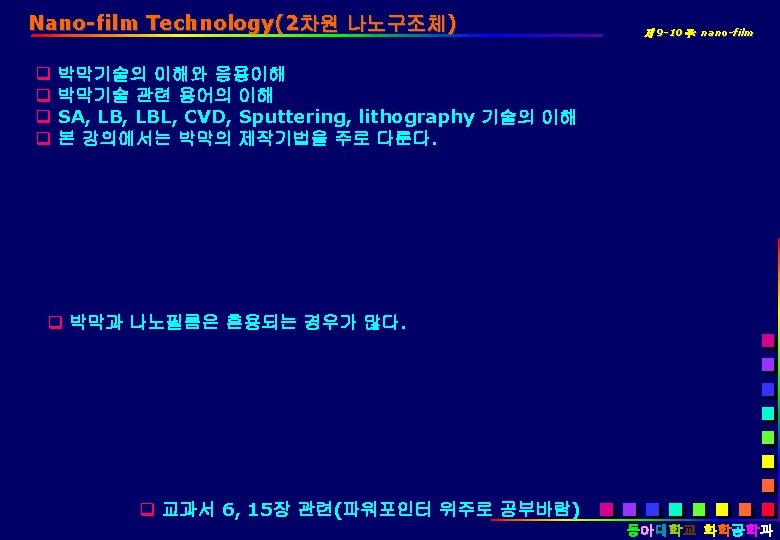

• 나노필름(Nano Films) 제 9 -10주: nano-film 박막제조법 (Thin Film Deposition Techniques) • Spin coating (회전력에 의한 물질 코팅) • Thermal evaporation (5) • Molecular beam epitaxy –(초진공 분자 결정형 성장, 증착, flash 파일참조) • Sputtering(6) • Chemical Vapor Deposition(7) • Electrochemical Methods • Self Assembly(1) • LB-film(2) • Layer-by-Layer (Lb. L) process(3) • Lithography techniques (Soft lithography, 4) 분자성 나노박막 관능기의 배향의 조절이 분자수준에서 가능한 막 q 숫자는 수업진행 순서입니다. 동아대학교 화학공학과

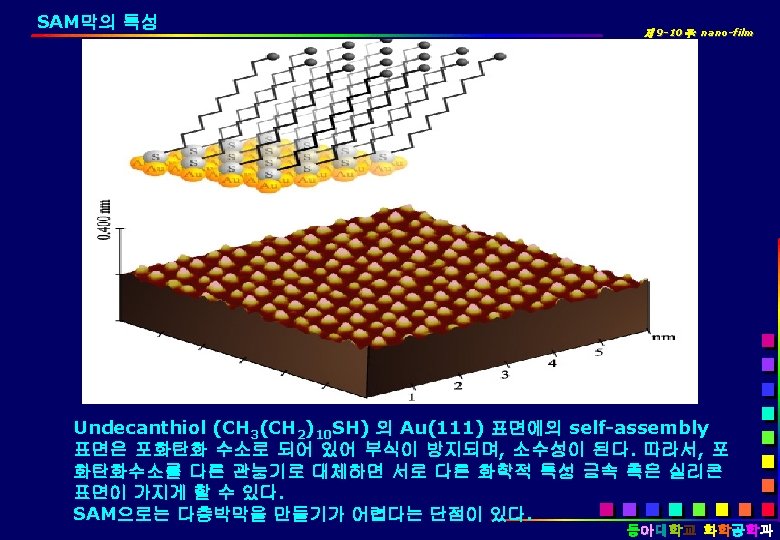

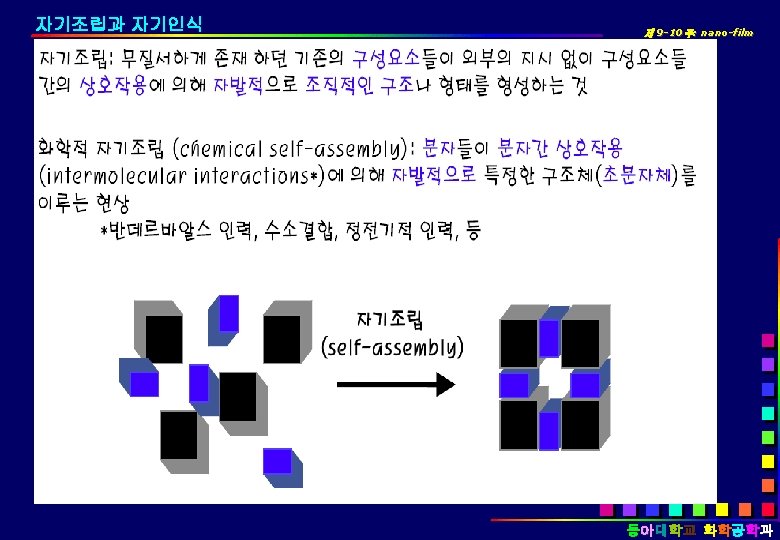

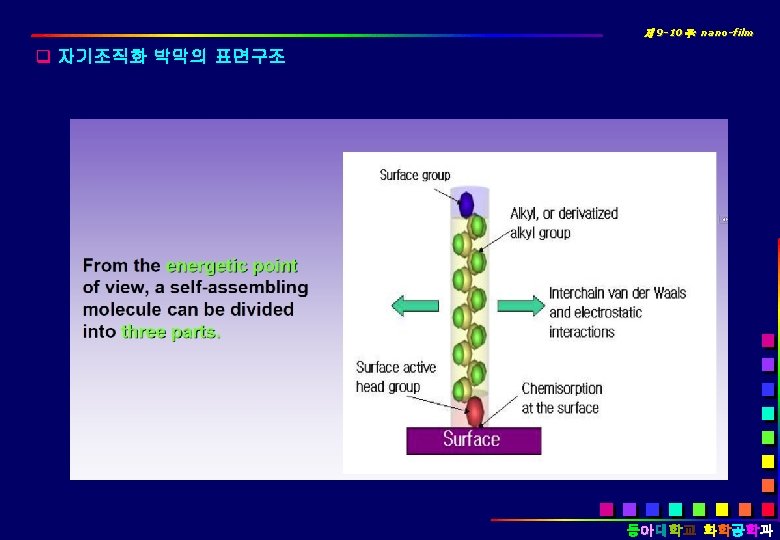

Self-Assembled monolayer란 무엇인가? 제 9 -10주: nano-film q 특정 표면위에 특정 관능성 기가 외부의 힘 없이 배열됨(자기조립)을 의미하며, 그 결과 단분자 수준의 막이 형성될 때 SAM(self-assembled monolayer)라 한다. A schematic of SAM (n-alkanethiol CH 3(CH 2)n. SH molecules) formation on a metallic surface. The self-assembly process. An n-alkane thiol is added to an ethanol solution (0. 001 M). A gold (111) surface is immersed in the solution and the self-assembled structure rapidly evolves. A properly assembled monolayer on gold (111) typically exhibits a lattice. q 일반적으로 Chemisorption이라고 불린다. 다른 예로 Si표면에 Silane(Si. H 4) 이 assembly하는 것도 이 범주에 속한다. 동아대학교 화학공학과
물과 기름은 어떤관계? 제 9 -10주: nano-film Seawater Different color from center Freshwater 기름은 물위에 뜨는가? 동아대학교 화학공학과

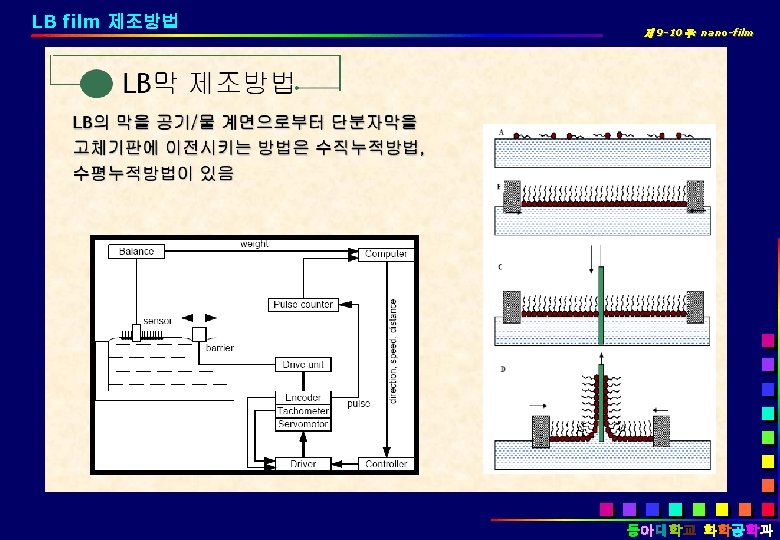

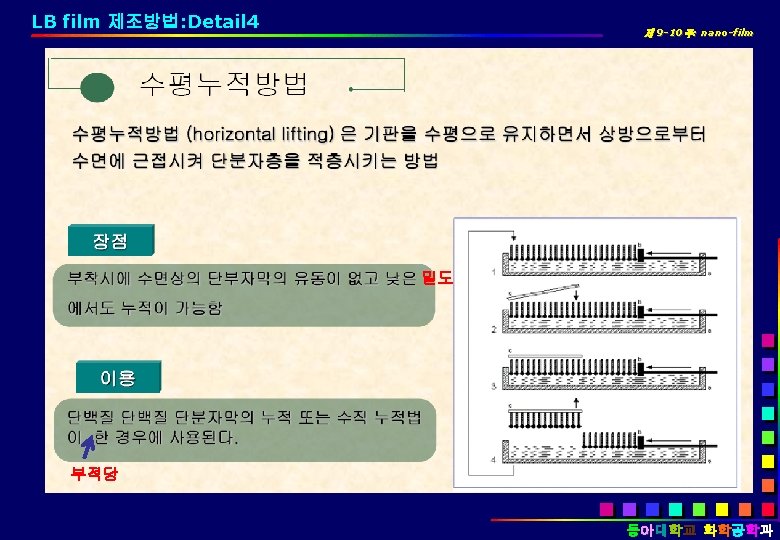

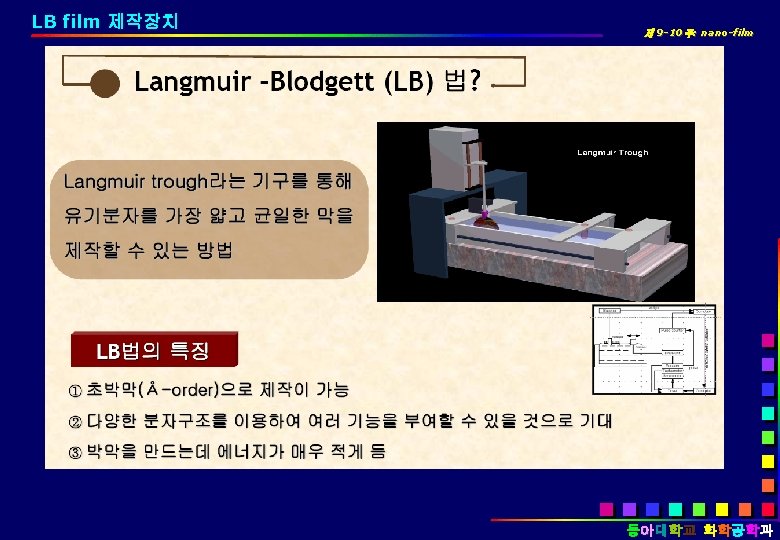

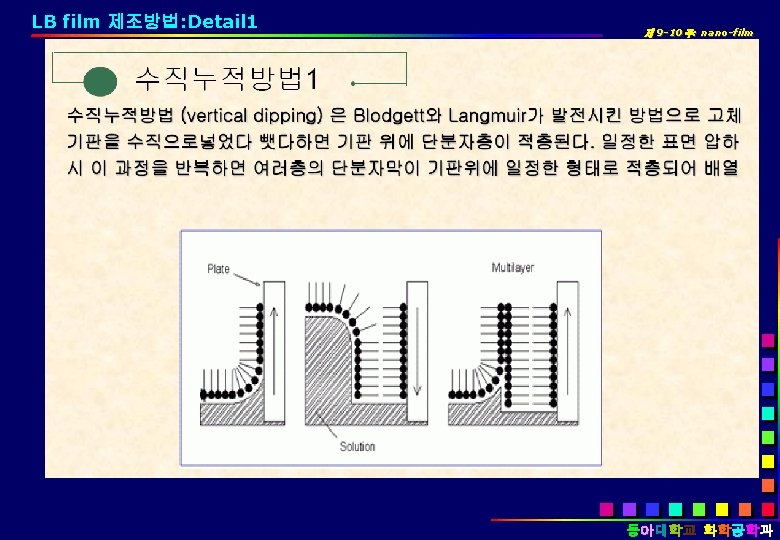

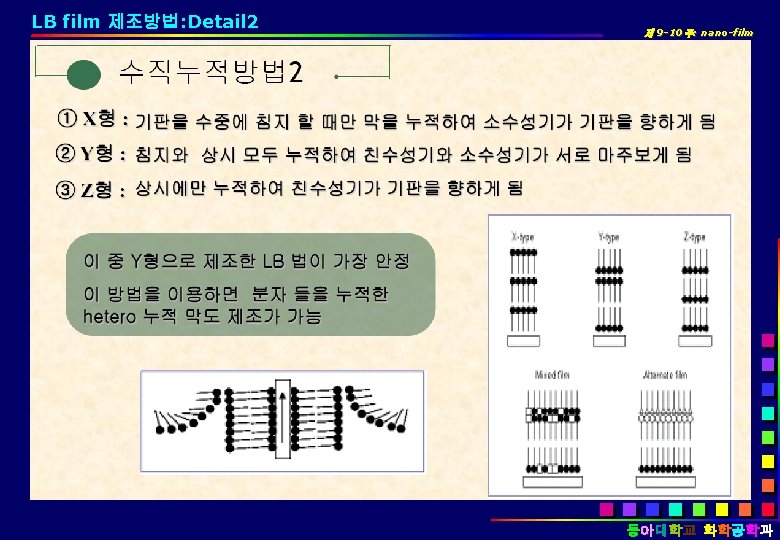

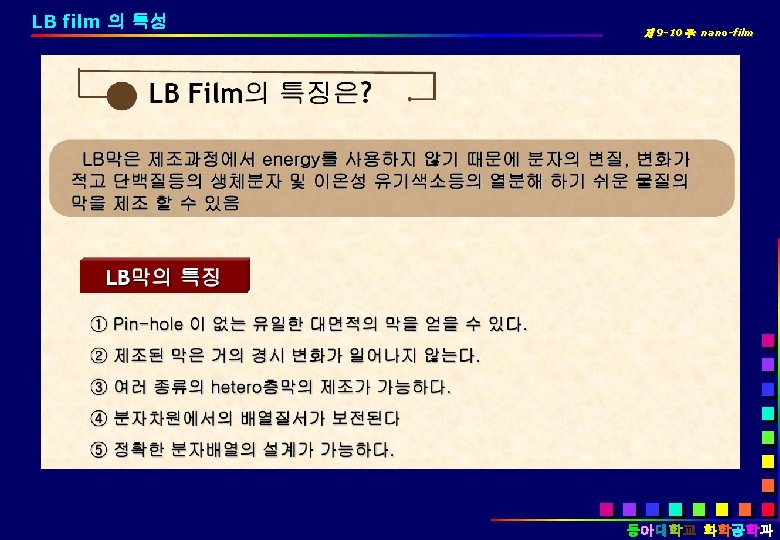

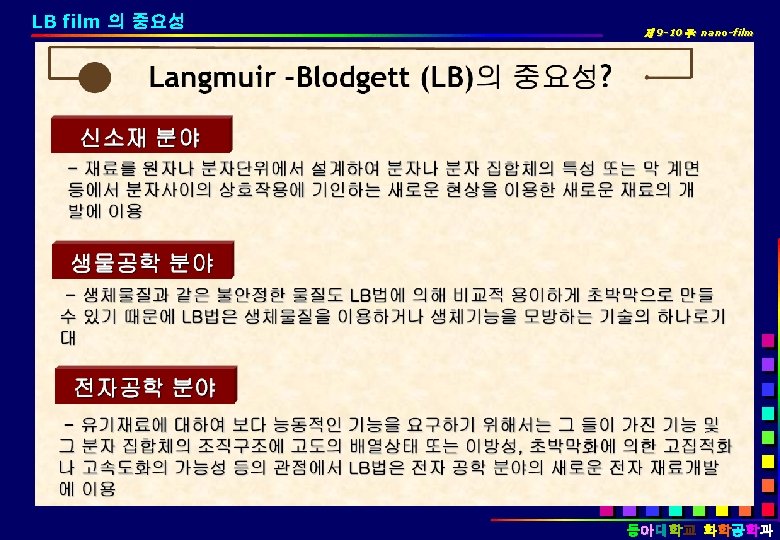

제 9 -10주: nano-film q LB film deposition 동아대학교 화학공학과

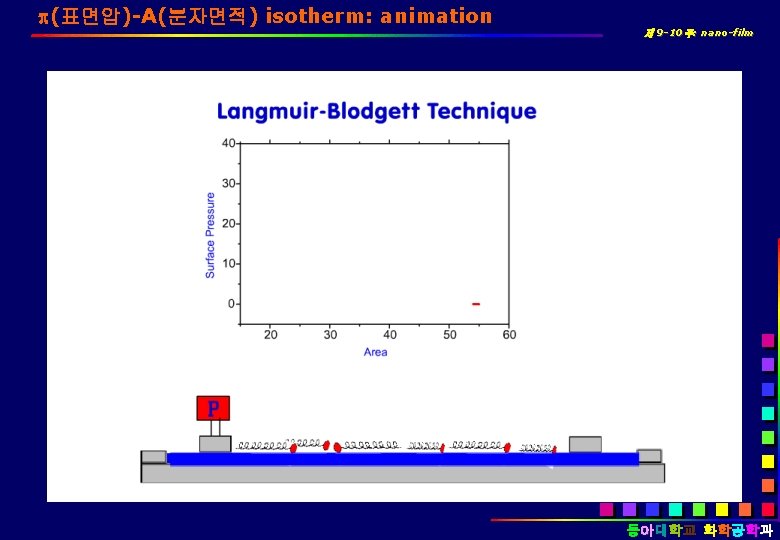

(표면압)-A(분자면적) isotherm 제 9 -10주: nano-film q 분자의 밀도조절법 (표면압)-A(분자면적) isotherm 표면압센서 q barrier의 위치에 따라 -A 특성이 달라진다. 적층된 박막의 밀도 조정이 가능하다. qhttp: //www. virlab. virginia. edu/nanoscience_class/lecture_notes/Lecture_6_Supporting_Materials. htm 동아대학교 화학공학과
Layer-by-Layer (LBL) Assembly 제 9 -10주: nano-film q 순차적층법: 정전기적 인력, 수소결합, 소수성 상호결합 등을 이용하고, 용액을 바 꾸어 줌으로서 연속적으로 막을 형성하는 방법 substrates Rinse polymer Rinse glass, silicon, polystyrene, etc electrostatic, hydrogen bonding, hydrophobic interactions 동아대학교 화학공학과
제 9 -10주: nano-film q Movie: LBL Process 동아대학교 화학공학과
