March 2003 doc. : IEEE 802. 15 -03/141 r 0 TI Physical Layer Proposal: Time-Frequency Interleaved OFDM Anuj Batra, Jaiganesh Balakrishnan, Anand Dabak Ranjit Gharpurey, Paul Fontaine, Jerry Lin Jin-Meng Ho, Simon Lee, Michel Frechette Steven March, Hirohisa Yamaguchi Texas Instruments 12500 TI Blvd, MS 8649 Dallas, TX March 3, 2003 Submission 2 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Outline · Examine the trade-offs in the design of a UWB system: - Choice of operating bandwidth - Spreading gain vs. Pulse repetition frequency (PRF) · Overview of Time-Frequency Interleaved OFDM (TFI-OFDM) · Performance results for the TFI-OFDM system · Selected responses to the selection criteria · Advantages of the TFI-OFDM system · Summary Submission 3 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Trade-offs in Designing a UWB system: - Choice of Operating Bandwidth - Spreading Gain vs. PRF Submission 4 Anuj Batra et al. , Texas Instruments

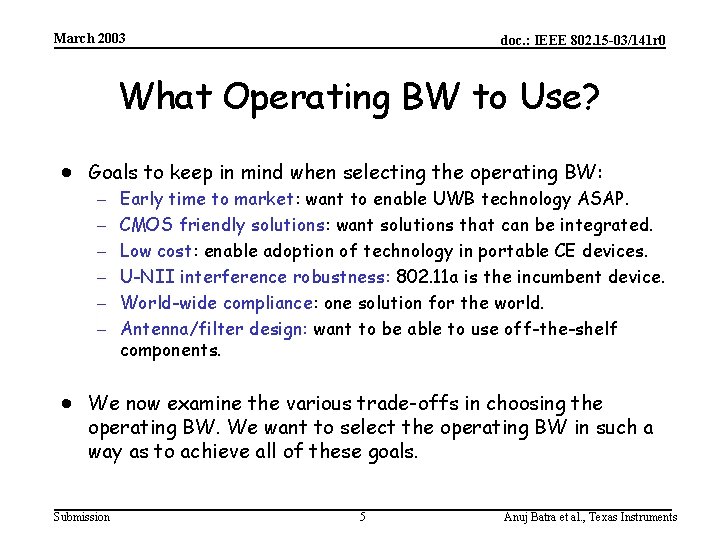

March 2003 doc. : IEEE 802. 15 -03/141 r 0 What Operating BW to Use? · Goals to keep in mind when selecting the operating BW: - Early time to market: want to enable UWB technology ASAP. CMOS friendly solutions: want solutions that can be integrated. Low cost: enable adoption of technology in portable CE devices. U-NII interference robustness: 802. 11 a is the incumbent device. World-wide compliance: one solution for the world. Antenna/filter design: want to be able to use off-the-shelf components. · We now examine the various trade-offs in choosing the operating BW. We want to select the operating BW in such a way as to achieve all of these goals. Submission 5 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Small Gains by Increasing BW (1) · Assume that the TX signal occupies the BW from f. L to f. U. - Assume that f. L is fixed at 3. 1 GHz. Vary upper frequency f. U between 4. 8 GHz and 10. 6 GHz. Assume that the transmit spectrum is flat over entire BW. TX power = -41. 25 d. Bm + 10 log 10(f. U – f. L). · 802. 15. 3 a has specified a free-space propagation model: - fg is the Geometric mean of lower/upper frequencies (10 -d. B points) - d is the UWB transmitter-receiver separation distance (assume d = 10 m) - c is the speed of light · Look at Received Power = TX Power - Path Loss, as a function of upper frequency. Submission 6 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Small Gains From Increasing BW (2) · Increasing the upper frequency to 7. 0 GHz (10. 5 GHz) gives at most a 2. 0 d. B (3. 0 d. B) advantage in total received power. · On the other hand, increasing the upper frequency, results in an increased noise figure: - For fu = 7. 0 GHz, by at least 1. 0 d. B. For fu = 10. 5 GHz, by at least 2. 0 d. B. · Result: using frequencies larger than 4. 8 GHz increases the overall link margin by at most 1. 0 d. B with the current RF technology, but at the cost of higher complexity and higher power consumption. · Conclusion: only incremental gains in the link budget can be realized by using frequencies above 4. 8 GHz. Submission 7 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Optimal Operating Bandwidth · Start with the frequency band from 3. 1 to 4. 8 GHz: - Simplifies the front-end design: LNA and mixers (CMOS friendly). Can use higher precision, lower sampling rate ADCs. Rake implementation, needed to collect multi-path, is easier. U-NII rejection is simplified. Quicker time to market! U-NII band: 802. 11 a Start with this band 3. 1 GHz Use this band in the future as technology improves 4. 8 GHz 5. 9 GHz 10. 6 GHz · As the RF technology improves, start using the higher band as well. Submission 8 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Spreading vs. PRF · A full-band system obtains its processing gain by spreading (high PRF) the signal across the entire UWB bandwidth. · A sub-band system obtains its processing gain by using a lower pulse repetition frequency (PRF) in each of the sub-bands. Coding UWB system parameters TFI-OFDM Sub-band Full-band Coding Spreading (High PRF) Low PRF Spreading Higher A/D speed, accurate timing Submission Lower rate ADC, low transmit power, single receive chain, relaxed timing Higher transmit power, multiple receiver chains 9 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Proposed System: TFI-OFDM Submission 10 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Time-Frequency Interleaved OFDM · Basic idea is to use OFDM over the entire BW: - Start with frequencies from 3168 MHz to 5280 MHz. · Total of 512 tones, where each tone has a bandwidth of 4. 125 MHz. · Use different subsets of frequency tones from one OFDM symbol to the next. · Equivalent to interleaving OFDM symbols across time and across frequency. Submission 11 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Simplified TFI-OFDM · The implementation of TFI-OFDM can be simplified by introducing a small guard interval (9. 5 ns) between the OFDM symbols. The simplified TFI-OFDM system can now be implemented using a single TX/RX chain, 128 -point IFFT/FFT, and low rate DACs/ADCs. Submission 12 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Alternative Views of TFI-OFDM · TFI-OFDM can be looked upon as a full-band OFDM system using a 512 -point IFFT/FFT. · TFI-OFDM can also be interpreted as a sub-band OFDM system using a 128 -point IFFT/FFT on each of the sub-channels. · Because TFI-OFDM can be viewed as both a full-band a sub- band approach, it inherits strengths from both types of systems. · We choose to view TFI-OFDM in terms of the second approach, because it leads to a much lower complexity solution and can be realized in today’s CMOS technology. Submission 13 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Details of the TFI-OFDM System *More details about the TFI-OFDM system can be found in the latest version of 03/142. Submission 14 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 TFI-OFDM: Example TX Architecture · Block diagram of an example TX architecture: · Architecture is similar to that of a conventional and proven OFDM system. Can leverage existing OFDM solutions for the development of the TFI-OFDM physical layer. · For a given superframe, the interleaving pattern is specified in the beacon by the PNC. The interleaving pattern is rotated across multiple superframes to mitigate multi-piconet interference. Submission 15 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 TFI-OFDM System Parameters · System parameters for rates specifically mentioned in selection criteria document: Info. Data Rate 110 Mbps 200 Mbps 480 Mbps Modulation/Constellation OFDM/QPSK FFT Size 128 128 Coding Rate (K=7) R = 11/32 R = 5/8 R = 3/4 Spreading Rate 2 2 1 Information Tones 50 50 100 Data Tones 100 100 Info. Length 242. 4 ns Cyclic Prefix 60. 6 ns Guard Interval 9. 5 ns Symbol Length 312. 5 ns Channel Bit Rate 640 Mbps Frequency Band 3168 – 4752 MHz Multi-path Tolerance 60. 6 ns Submission 16 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Simplified TX Analog Section · For rates up to 200 Mb/s, the input to the IFFT is forced to be conjugate symmetric (for spreading gains 2). Output of the IFFT is REAL. · The analog section of TX can be simplified when the input is real: Need to only implement the “I” portion of DAC and mixer. Only requires half the analog die size of a complete “I/Q” transmitter. · For rates > 200 Mb/s, need to implement full “I/Q” transmitter. Submission 17 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 OFDM Parameters · Transmit information using orthogonal carriers: Carriers are efficiently generated using a 128 -point IFFT. Use 100 tones for data (QPSK modulation). Use 12 tones for standard pilots. Use 10 tones for user-defined pilots (used to meet 500 MHz BW requirement). - Remaining 6 orthogonal tones are NULL (zero). - · Sub-carrier frequency spacing = 4. 125 MHz. · Cyclic prefix length = 32 samples (60. 6 ns). · Guard interval length = 5 samples (9. 5) – time used for switching. · Total OFDM symbol length = 165 samples (312. 5 ns). Submission 18 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Convolutional Encoder and Bit Interleaver · Assume a mother convolutional code of R = 1/3, K = 7. Having a single mother code simplifies the implementation. · Generator polynomial: g 0 = [1338], g 1 = [1458], g 2 = [1758]. · Higher rate codes are achieved by puncturing the mother code. · Bit interleaving is performed across bits within an OFDM symbol and across at most three OFDM symbols. - Exploits frequency diversity and randomizes any interference. Submission 19 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Channelization · The relationship between fc and channel number nch is · Initially, only the first 3 channels will be defined. CHNL_ID (nch) Center Frequency (fc) 1 3432 MHz 2 3960 MHz 3 4488 MHz · More channels can be added as RF technology improves. Submission 20 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 TFI-OFDM: PLCP Frame Format · PLCP frame format: · Rates supported: 55, 80, 110, 160, 200, 320, 480 Mb/s. Support for 55, 110, · · and 200 Mb/s is mandatory. Preamble length = 9. 38 ms. Burst preamble length = 4. 69 ms. For the sake of robustness, the PLCP header, MAC header, HCS, and tail bits are always sent at the information data rate of 55 Mb/s. PLCP header + MAC header + HCS + tail bits = 2. 19 ms. Maximum frame payload supported is 4095 bytes. Submission 21 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Link Budget and Receiver Sensitivity · Assumption: AWGN and 0 d. Bi gain at TX and RX antennas. Submission Parameter Value Information Data Rate 110 Mb/s 200 Mb/s 480 Mb/s Average TX Power -10. 3 d. Bm Total Path Loss 64. 2 d. B (@ 10 meters) 56. 2 d. B (@ 4 meters) 50. 2 d. B (@ 2 meters) Average RX Power -74. 5 d. Bm -66. 5 d. Bm -60. 5 d. Bm Noise Power Per Bit -93. 6 d. Bm -91. 0 d. Bm -87. 2 d. Bm RX Noise Figure 6. 6 d. B Total Noise Power -87. 0 d. Bm -84. 4 d. Bm -80. 6 d. Bm Required Eb/N 0 4. 0 d. B 4. 7 d. B 4. 9 d. B Implementation Loss 3. 0 d. B Link Margin 5. 5 d. B 10. 2 d. B 12. 2 d. B RX Sensitivity Level -80. 0 d. Bm -76. 7 d. Bm -72. 7 d. B 22 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 System Performance (1) · PER as a function of distance and information data rate in an AWGN and CM 2 environment*. * Results obtained using old channel model. Submission 23 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 System Performance (2) · PER as a function of distance and information data rate in an CM 3 and CM 4 environment*. * Results obtained using old channel model. Submission 24 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 System Performance (3) · The distance at which the TFI-OFDM system can achieve a PER of 8 % for a 90% link success probability is tabulated below **: Range* AWGN CM 1 CM 2 CM 3 CM 4 110 Mbps 19. 1 m N/A 9. 8 m 9. 7 m 8. 8 m 200 Mbps 13. 5 m N/A 6. 3 m 5. 8 m 5 m 480 Mbps 8. 7 m 2 m 2 m N/A * Includes losses due to front-end filtering, ADC degradation, multi-path degradation, channel estimation, carrier tracking, packet acquisition, etc. ** Results obtained using old channel model. Submission 25 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Simultaneously Operating Piconets · Assumptions: - Received signal is 6 d. B above sensitivity dref = 9. 55 meters · Single co-channel interferer separation distance as a function of the reference and interfering multipath channel environments. Test Link/Interferer CM 1 CM 2 CM 3 CM 4 CM 1 12. 6 m 13. 0 m 12. 3 m 12. 4 m CM 3 13. 0 m 12. 3 m 12. 2 m 12. 5 m CM 4 13. 8 m 12. 7 m 12. 2 m 12. 7 m Submission 26 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Signal Robustness/Coexistence · Assumption: received signal is 6 d. B above sensitivity. · Value listed below are the required distance or power level needed to obtain a PER 8% for a 1024 byte packet. Interferer Value IEEE 802. 11 b @ 2. 4 GHz dint = 0. 3 meter IEEE 802. 11 a @ 5. 3 GHz dint = 0. 3 meter Modulated interferer SIR -3. 8 d. B Tone interferer SIR -4. 8 d. B · Coexistence with 802. 11 a/b and Bluetooth is relatively straightforward because these bands are completely avoided. Submission 27 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 PHY-SAP Throughput · Assumptions: - MPDU (MAC frame body + FCS) length is 1024 bytes. - SIFS = 10 ms. - MIFS = 2 ms. Number of frames Throughput @ 110 Mb/s Throughput @ 200 Mb/s Throughput @ 480 Mb/s 1 85. 1 Mb/s 130. 4 Mb/s 211. 4 Mb/s 5 95. 2 Mb/s 155. 6 Mb/s 286. 4 Mb/s · Assumptions: - MPDU (MAC frame body + FCS) length is 4024 bytes. Number of frames Throughput @ 110 Mb/s Throughput @ 200 Mb/s Throughput @ 480 Mb/s 1 102. 3 Mb/s 175. 9 Mb/s 362. 4 Mb/s 5 105. 7 Mb/s 186. 3 Mb/s 409. 2 Mb/s Submission 28 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Complexity · Unit manufacturing cost (selected information): - Process: CMOS 90 nm technology node in 2005. Analog section: die size of 2. 7 mm 2. Digital section: 295 K gates, die size of 1. 5 mm 2. · Power consumption: Rate TX RX Deep Sleep 110 Mb/s 93 m. W 142 m. W 15 m. W 200 Mb/s 93 m. W 156 m. W 15 m. W · Manufacturability: Leveraging standard CMOS technology results in a straightforward development effort. OFDM solutions are mature and have been demonstrated in 802. 11 a and 802. 11 g solutions. · Time to market: the earliest a complete CMOS PHY solution would be ready for integration is 2005. · Size: Solutions for PC card, compact flash, memory stick, SD memory in 2005. Submission 29 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 MAC Enhancements · Add a time-frequency interleaving information element (TFI IE) to the beacon: - TFI IE contains parameters for synchronizing DEVs using TFI-OFDM PHY. IE payload contains Interleaving Sequence (IS) and Rotation Sequence (RS) parameters. - IS field specifies the current pattern for interleaving over the channels. RS field specifies the current rotation pattern for the interleaving sequences. · PNC updates the IS parameter in the beacon for each superframe according to the RS parameter. - DEVs that miss the beacon can determine the IS based on the definition of the RS in the last beacon received. · PNC may change the RS parameter by applying the piconet parameter change procedure specified in the IEEE 802. 15. 3 draft standard. - Submission Reuse “New Channel Index” as “New Channel Index/RS Number”. 30 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 MAC Controlled Rules for Interleaving · Piconet #1: - Ex: RS_2 = {IS_2, IS_3, IS_1, IS_3, IS_2, IS_1, Repeat} Ex: IS_1 = {Chan_2, Chan_1, Chan_3, Chan_1, Chan_2, Chan_3, Repeat} · Piconet #2: Submission Ex: RS_2 = {IS_1, IS_3, IS_2, IS_1, IS_2, IS_3, Repeat} 31 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 TFI-OFDM Advantages (1) · Suitable for CMOS implementation. · Only one transmit and one receive chain. · Antenna and pre-select filter are easier to design (can possibly use off-the-shelf components). Early time to market! · Low cost, low power, and CMOS integrated solution leads to: Early market adoption! Submission 32 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 TFI-OFDM Advantages (2) · Excellent robustness to ISM and U-NII interference. · Excellent robustness to narrowband interference. · Ability to comply with world-wide regulations: - Channels and tones can be dynamically turned on/off to comply with changing regulations. · Coexistence with current and future systems: - Channels and tones can be dynamically turned on/off for enhanced coexistence with the other devices. · Scalability: - More channels can be added as the RF technology improves. - Digital section complexity/power scales with improvements in technology nodes (Moore’s Law). Submission 33 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Summary · The proposed system is specifically designed to be a low power, low complexity CMOS solution. · Expected range for 110 Mb/s: 19. 1 meters in AWGN, and nearly 10 meters in multipath environments. · Expected power consumption for 110 Mb/s: 93 m. W (TX), 142 m. W (RX), 15 m. W (deep sleep) · TFI-OFDM is coexistence friendly and complies with world-wide regulations. · PHY solution are expected to be ready for integration in 2005. · TFI-OFDM offers the best trade-off between the various system parameters. Submission 34 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Backup slides Submission 35 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Signal Acquisition · Preamble was designed to be robust and work at 3 d. B below sensitivity for 55 Mbps. Channel Environment Pm @ 110 Mb/s Pf Acquisition Time AWGN < 2 10 -5 7. 2 10 -4 < 4. 69 ms CM 1 < 2 10 -5 7. 2 10 -4 < 4. 69 ms CM 2 < 2 10 -5 7. 2 10 -4 < 4. 69 ms CM 3 < 2 10 -5 7. 2 10 -4 < 4. 69 ms CM 4 < 2 10 -5 7. 2 10 -4 < 4. 69 ms · The start of a valid OFDM transmission at a receiver sensitivity level -83 d. Bm shall cause CCA to indicate busy with a prob. > 90% in 4. 69 ms. Submission 36 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Is Cyclic Prefix (CP) Sufficient? · For a data rate of 110 Mb/s, studied effect of CP length on performance. · Curves were averaged over 100 realizations of CM 3. · For a CP length of 60 ns, the average loss in collected multipath energy is approx. 0. 1 d. B. · Inter-carrier interference (ICI) due to multi-path outside the CP is approximately 18. 5 d. B below the signal. Submission 37 Anuj Batra et al. , Texas Instruments

March 2003 doc. : IEEE 802. 15 -03/141 r 0 Peak-to-Average Ratio (PAR) for TFI-OFDM · Average TX Power = – 9. 5 d. Bm (this value includes pilot tones) · PAR of 9 d. B results in: - 0. 04 % packets being clipped at TX DAC. - Loss of less than 0. 1 d. B in AWGN. - Loss of less than 0. 1 d. B in multipath. · Peak TX power 0 d. Bm. · Implication: TX can be built completely in CMOS. Submission 38 Anuj Batra et al. , Texas Instruments
