Knotting Mathematics and Art University of Southern Florida
- Slides: 66
Knotting Mathematics and Art University of Southern Florida, Nov. 3, 2007 Naughty Knotty Sculptures Carlo H. Séquin U. C. Berkeley Knotty problems in knot theory
Sculptures Made from Knots (1) 2004 - 2007: Knots as constructive building blocks.
Tetrahedral Trefoil Tangle (FDM)
Tetra Trefoil Tangles Simple linking (1) {over-under-under} -- Complex linking (2) {over-under-over-under}
Tetra Trefoil Tangle (2) Complex linking -- two different views

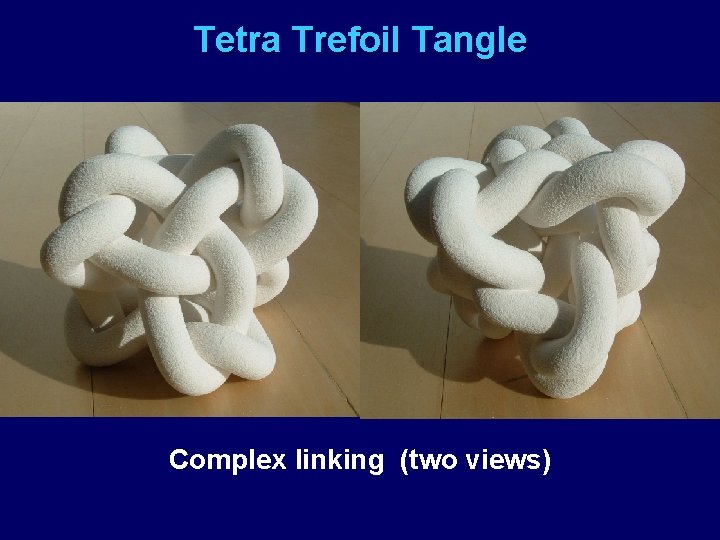

Tetra Trefoil Tangle Complex linking (two views)
Octahedral Trefoil Tangle
Octahedral Trefoil Tangle (1) Simplest linking
Platonic Trefoil Tangles ü u Take ü a Platonic polyhedron made from triangles, u Add a trefoil knot on every face, u Link with neighboring knots across shared edges. u Tetrahedron, Octahedron, . . . done !
Icosahedral Trefoil Tangle Simplest linking (type 1)
Icosahedral Trefoil Tangle (type 3) Doubly linked with each neighbor
Arabic Icosahedron

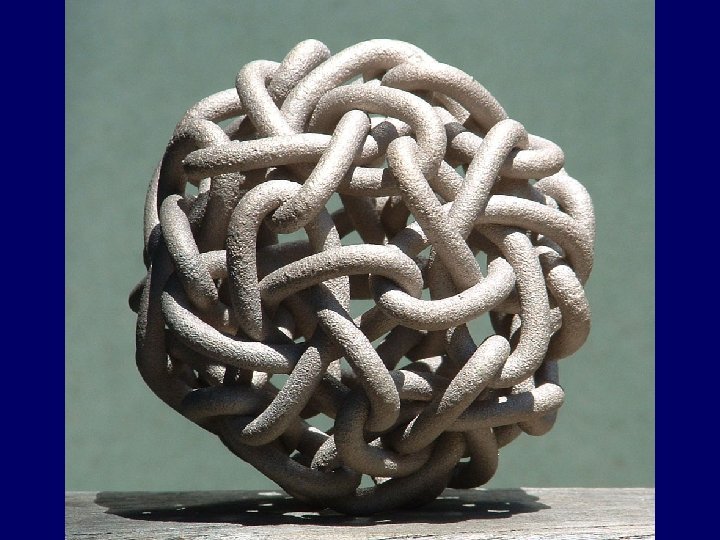

Dodecahedral Pentafoil Cluster
Realization: Extrude Hone - Pro. Metal sintering and infiltration process
Sculptures Made from Knots (2) For this conference I have been looking for sculptures where the whole piece is just a single knot and which also involve some “interesting” knots. Generate knots & increase their complexity in a structured, procedural way: I. Bottom-up assembly of knots II. Top-down mesh infilling III. Longitudinal knot splitting Make aesthetically pleasing artifacts
Outline I. Bottom-up assembly of knots II. Top-down mesh infilling III. Longitudinal knot splitting

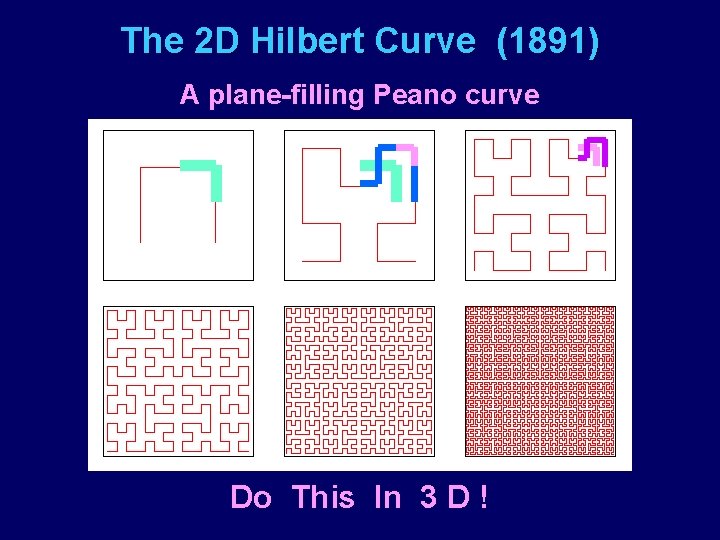

The 2 D Hilbert Curve (1891) A plane-filling Peano curve Do This In 3 D !
“Hilbert” Curve in 3 D Replaces an “elbow” Start with Hamiltonian path on cube edges and recurse. . .
Jane Yen: “Hilbert Radiator Pipe” (2000) Flaws ( from a sculptor’s point of view ): 4 coplanar segments Not a closed loop Broken symmetry .
Metal Sculpture at SIGGRAPH 2006
A Knot Theorist’s View It is still just the un-knot ! Thus our construction element should use a “more knotted thing”: e. g. an overhand knot:
Recursion Step Replace every 90° turn with a knotted elbow.
Also: Start from a True Knot e. g. , a “cubist” trefoil knot.
Recursive Cubist Trefoil Knot
A Knot Theorist’s View This is just a compound-knot ! It does not really lead to a complex knot ! Thus our assembly step should cause a more serious entanglement: Perhaps knotting together crossing strands. . .
2. 5 D Celtic Knots – Basic Step
Celtic Knot – Denser Configuration
Celtic Knot – Second Iteration
Recursive 9 -Crossing Knot 9 crossings Is this really a 81 -crossing knot ?
From Paintings to Sculptures Do something like this in 3 D ! Perhaps using two knotted strands (like your shoe laces).
INTERMEZZO: Homage to Frank Smullin (1943 – 1983)

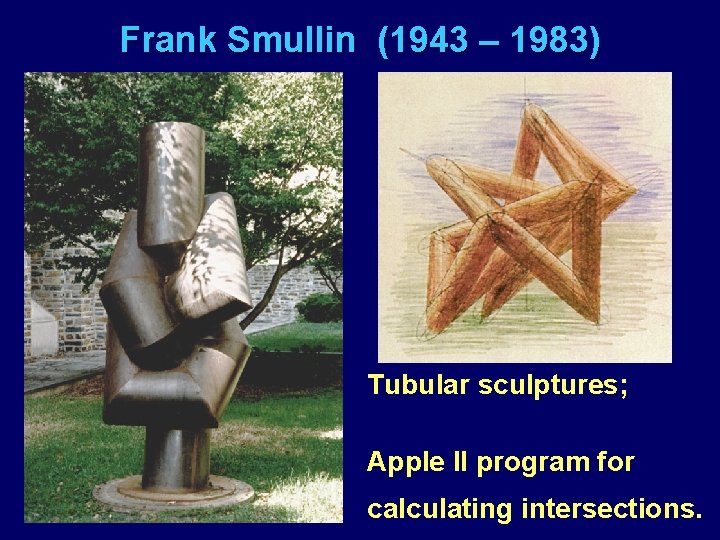

Frank Smullin (1943 – 1983) Tubular sculptures; Apple II program for calculating intersections.
Frank Smullin (Nashville, 1981): “ The Granny-knot has more artistic merits than the square knot because it is more 3 D; its ends stick out in tetrahedral fashion. . . ” Square Knot Granny Knot
Granny Knot as a Building Block Smullin: “Tetra. Granny” Four tetrahedral links, like a carbon atom. . . can be assembled into diamond-lattice. . . leads to the “Granny-Knot-Lattice”
Strands in the Granny-Knot-Lattice
Granny-Knot-Lattice (Sé (S quin, 1981)
A “Knotty” “ 3 D” Recursion Step Use the Granny knot as a replacement element where two strands cross. . .
Next Recursion Step Substitute the 8 crossings with 8 Granny-knots
One More Recursion Step Now use eight of these composite elements; connect; beautify. o o T h c u m ti y x e l p m o c !
A Nice Symmetrical Starting Knot Granny Knot with cross-connected ends 4 -fold symmetric Knot 819
Recursion Step Placement of the 8 substitution knots
Establishing Connectivity Grow knots until they almost touch
Work in Progress. . . Connectors added to close the knot
Outline I. Bottom-up assembly of knots II. Top-down mesh infilling III. Longitudinal knot splitting
Recursive Figure-8 Knot Result after 2 more recursion steps Recursion step Mark crossings over/under to form alternating knot
Recursive Figure-8 Knot Scale stroke-width proportional to recursive reduction
2. 5 D Recursive (Fractal) Knot Trefoil Recursion Robert Fathauer: “Recursive Trefoil Knot”
Recursion on a 7 -crossing Knot . . . Map “the whole thing” into all meshes of similar shape Robert Fathauer, Bridges Conference, 2007
From 2 D Drawings to 3 D Sculpture Too flat ! Switch plane orientations
Recursive Figure-8 Knot 3 D Maquette emerging from FDM machine
Recursive Figure-8 Knot 9 loop iterations
Outline I. Bottom-up assembly of knots II. Top-down mesh infilling III. Longitudinal knot splitting
A Split Trefoil To open: Rotate around z-axis
Split Trefoil (side view, closed)
Split Trefoil (side view, open)
Another Split Trefoil How much “wiggle room” is there ?
Trefoil “Harmonica”
An Iterated Trefoil-Path of Trefoils
Splitting Moebius Bands Litho by M. C. Escher FDM-model thin, colored FDM-model thick
Split Moebius Trefoil (Séquin, 2003)
“Knot Divided” by Team Minnesota
Knotty Problem How many crossings does this Not-Divided Knot have ?
A More General Question u Take any knot made from an n-sided prismatic cord. u Split that cord lengthwise into n strands. u Cut the bundle of strands at one point and reconnect, after giving the bundle of n strands a twist equivalent of t strand-spacings (where n, t are mutually prime). u How complex is the resulting knot ?
Conclusions u Knots are mathematically intriguing and they are inspiring artistic elements. u They can be used as building blocks for sophisticated constellations. u They can be extended recursively to form much more complicated knots. u They can be split lengthwise to make interesting knots and tangles.
Is It Math ? Is It Art ? it is: “KNOT-ART”
