Group 13 Senior Design Acoustic Triangulation Device Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Project Description The Acoustic Triangulation Device (ATD) is an electronic system designed to detect the location of a sonic event, specifically gunshots or explosions, and relay that location in real time to the user. � Its main subsystems include but are not limited to a microphone array, GPS locator, and real time triangulation software. These systems will work together to determine the origin of any sonic event within a predetermined frequency range. � As will be shown, the philosophy of use is broad and the device will prove useful in a variety of applications. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Philosophy of Use �VIP Protection (Speeches etc. ) �Inner city law enforcement �Military use �Civilian Property / National Park Regulation Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Requirements and Specifications Requirement Specifications High Accuracy Within 5 Meters of true target position Long Range Locates a target within 400 meters Low Costs less than $500 Portability Under 10 lbs and less than 1 cubic meter Ease of Use Less than 5 minute setup time for inexperienced users Highly Discriminate Able to distinguish categorized sounds with 90% accuracy Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

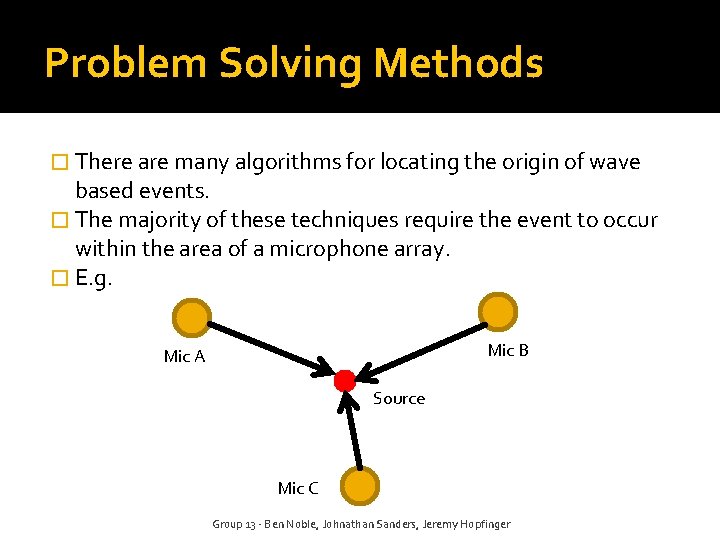

Problem Solving Methods � There are many algorithms for locating the origin of wave based events. � The majority of these techniques require the event to occur within the area of a microphone array. � E. g. Mic B Mic A Source Mic C Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

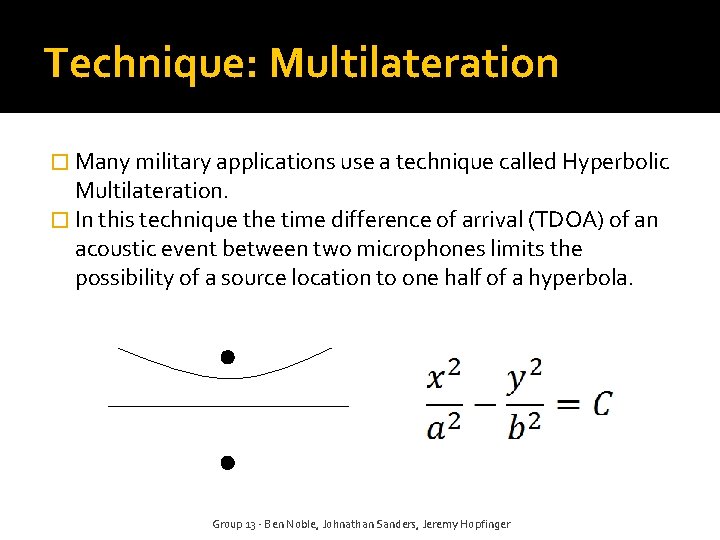

Technique: Multilateration � Many military applications use a technique called Hyperbolic Multilateration. � In this technique the time difference of arrival (TDOA) of an acoustic event between two microphones limits the possibility of a source location to one half of a hyperbola. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

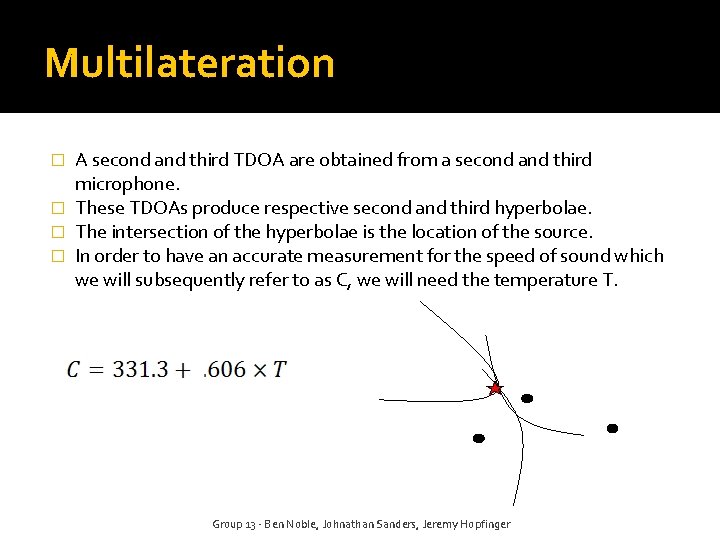

Multilateration A second and third TDOA are obtained from a second and third microphone. � These TDOAs produce respective second and third hyperbolae. � The intersection of the hyperbolae is the location of the source. � In order to have an accurate measurement for the speed of sound which we will subsequently refer to as C, we will need the temperature T. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

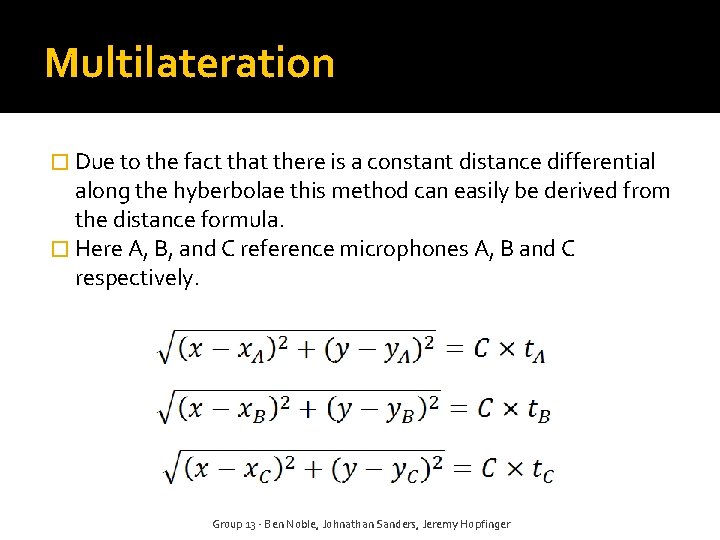

Multilateration � Due to the fact that there is a constant distance differential along the hyberbolae this method can easily be derived from the distance formula. � Here A, B, and C reference microphones A, B and C respectively. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

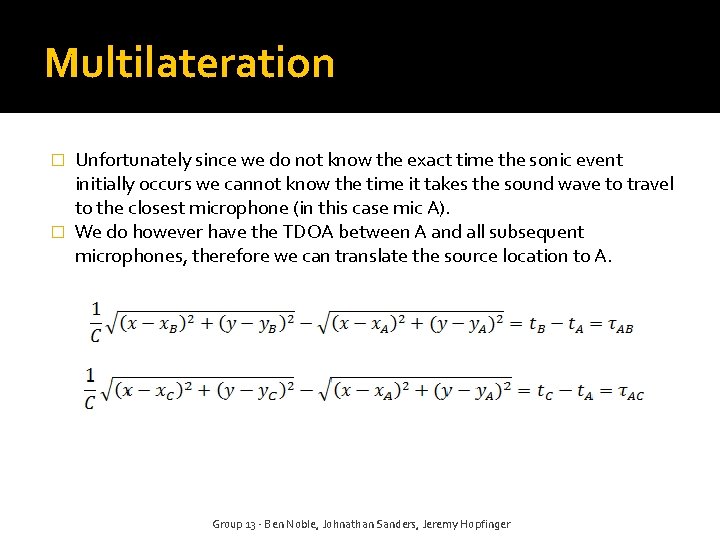

Multilateration Unfortunately since we do not know the exact time the sonic event initially occurs we cannot know the time it takes the sound wave to travel to the closest microphone (in this case mic A). � We do however have the TDOA between A and all subsequent microphones, therefore we can translate the source location to A. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Multilateration Also if we choose an origin for the system at microphone A then we can simplify further. � This means that the locations for microphone B and C are relative locations with respect to microphone A. � There are then two equations and two unknowns which are the xcoordinate and y-coordinate for the sound source. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Multilateration � This can be easily expanded to the 3 dimensional case using a 3 rd dimensional hyperboloid. � All this takes is one additional mic and a third equation. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

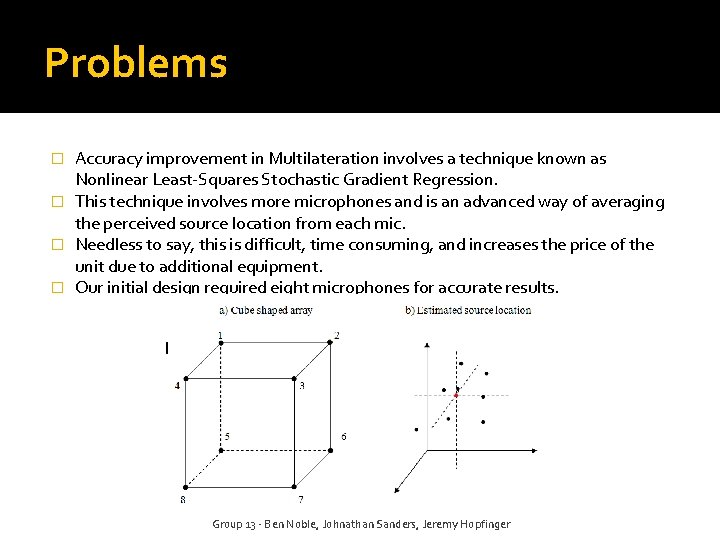

Problems Accuracy improvement in Multilateration involves a technique known as Nonlinear Least-Squares Stochastic Gradient Regression. � This technique involves more microphones and is an advanced way of averaging the perceived source location from each mic. � Needless to say, this is difficult, time consuming, and increases the price of the unit due to additional equipment. � Our initial design required eight microphones for accurate results. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

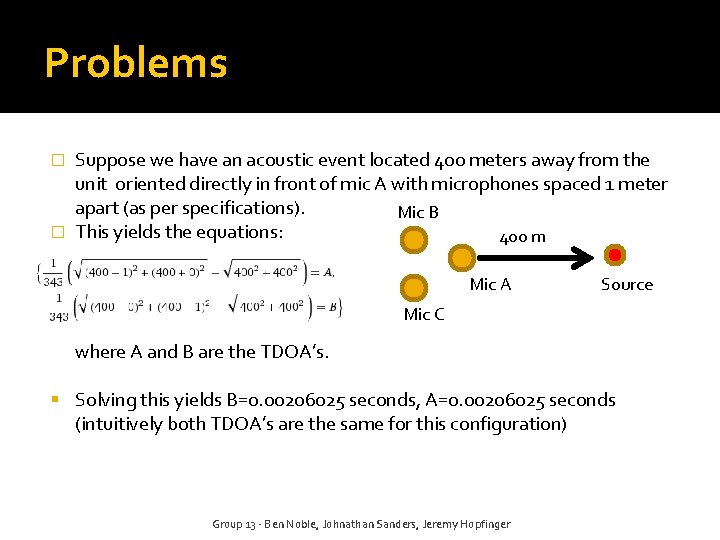

Problems Suppose we have an acoustic event located 400 meters away from the unit oriented directly in front of mic A with microphones spaced 1 meter apart (as per specifications). Mic B � This yields the equations: 400 m � Mic A Source Mic C where A and B are the TDOA’s. Solving this yields B=0. 00206025 seconds, A=0. 00206025 seconds (intuitively both TDOA’s are the same for this configuration) Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Problems Now suppose we have an acoustic event located 405 meters away from the unit oriented directly in front of mic A. with microphones spaced 1 meter apart. Mic B � This yields the equations: 405 m � Mic A Source Mic C where A and B are the TDOA’s. Solving this yields B=0. 00206026 seconds, A=0. 00206026 seconds Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Problems � Problem: A 5 meter difference in position yielded only a. 00000001 second TDOA differential. That is 10 nanosecond difference. In order to be accurate to within 5 meters we must sample nearly 100 million times a second for each of 8 microphones. � This would require a 800 MHz sample rate. � This along with the clock time for each instruction (assignment statements, conditional operators etc. ) needed to process each sample, would require a very expensive processor. � A microcontoller with this processor would push the project out of budget, as would a PC sound card with 8 inputs. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Technique: Triangulation For 2 -dimensional triangulation we need 2 arrays of 3 microphones each, oriented in an equilateral triangle. � Each array will give us an angle which tells us the direction of the source. � Using these two directions and the known distance between the two arrays we can determine the sound source’s location. � If the microphones are close enough together and the sound source is sufficiently far away we can assume the sound wave approaches as a straight line perpendicular to the line originating from the source. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Triangulation � We can find the distance Δx 1 using the distance formula. � C is the speed of sound and t. B – t. A is the difference between the time of first detection and the time of second detection. � Knowing the distance Δx and the side of the array S we can find the angle θ 1 using trigonometry. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

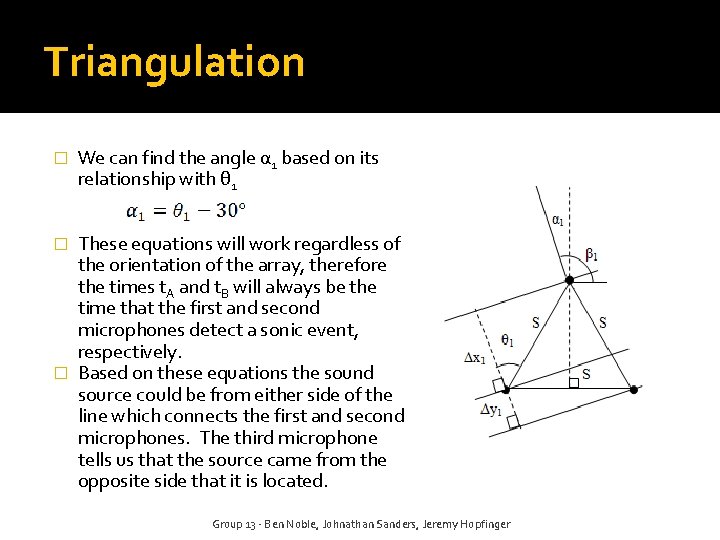

Triangulation � We can find the angle α 1 based on its relationship with θ 1 These equations will work regardless of the orientation of the array, therefore the times t. A and t. B will always be the time that the first and second microphones detect a sonic event, respectively. � Based on these equations the sound source could be from either side of the line which connects the first and second microphones. The third microphone tells us that the source came from the opposite side that it is located. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

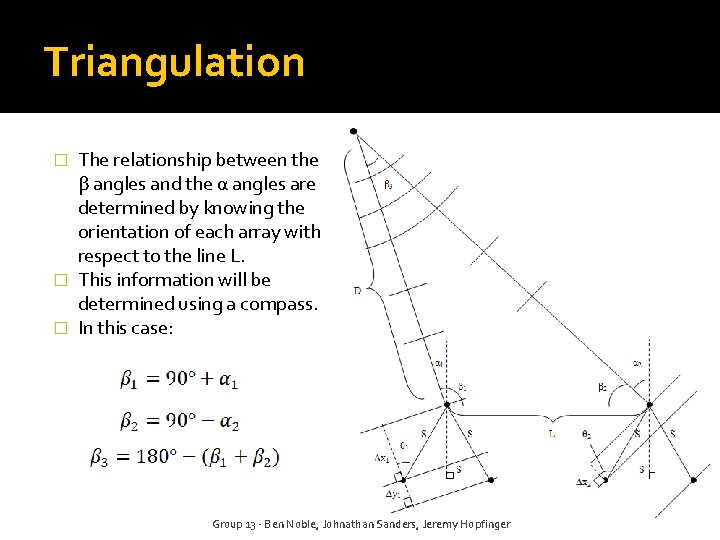

Triangulation The relationship between the β angles and the α angles are determined by knowing the orientation of each array with respect to the line L. � This information will be determined using a compass. � In this case: � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

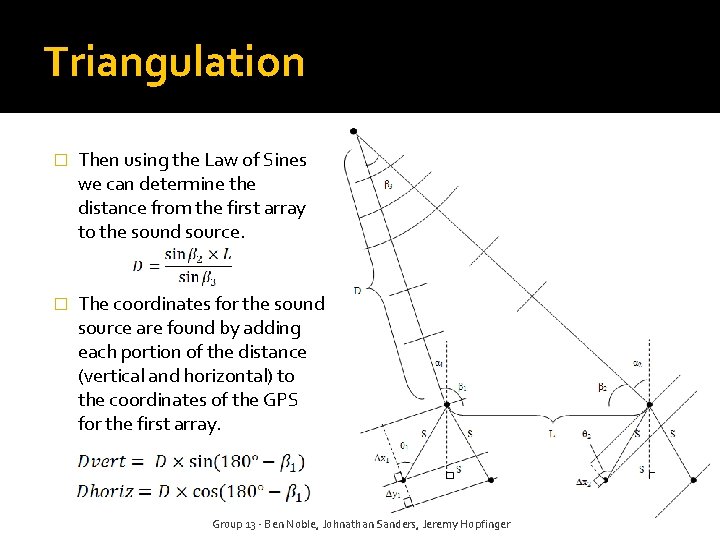

Triangulation � Then using the Law of Sines we can determine the distance from the first array to the sound source. � The coordinates for the sound source are found by adding each portion of the distance (vertical and horizontal) to the coordinates of the GPS for the first array. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Triangulation � Combining these equations we get α for each array. � We can also combine the previous equations to find D. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

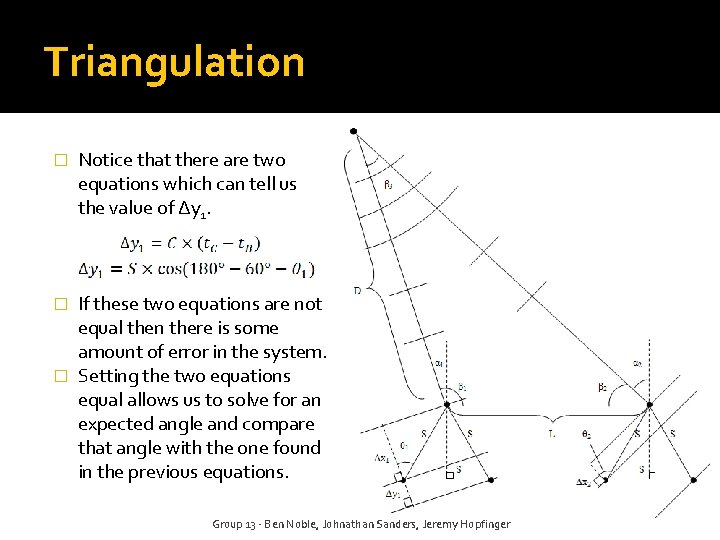

Triangulation � Notice that there are two equations which can tell us the value of Δy 1. If these two equations are not equal then there is some amount of error in the system. � Setting the two equations equal allows us to solve for an expected angle and compare that angle with the one found in the previous equations. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

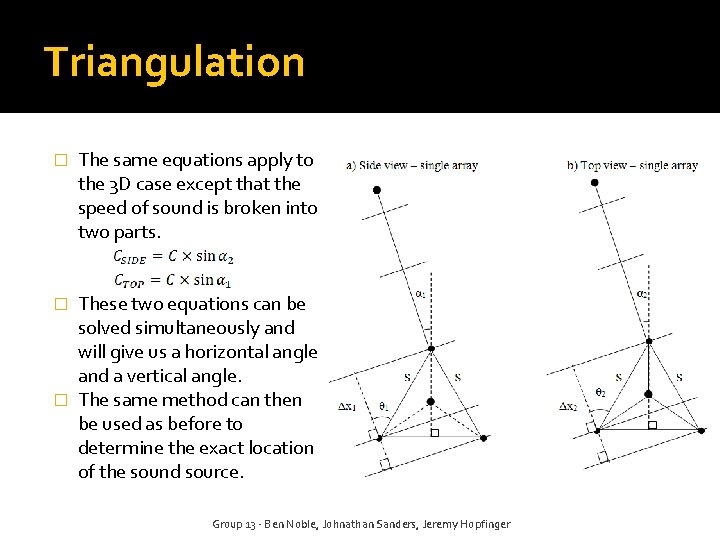

Triangulation � The same equations apply to the 3 D case except that the speed of sound is broken into two parts. These two equations can be solved simultaneously and will give us a horizontal angle and a vertical angle. � The same method can then be used as before to determine the exact location of the sound source. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Solutions Lets return to the same event located 400 meters away from the unit oriented directly in front of mic A of the first array with mics spaced 1 m apart and 10 m between arrays. Mic B � This yields the equations: 400 m � Mic A Source Mic C where t 1 and t 2 are the TDOA’s. Solving this yields t 1=0. 00248763 seconds, t 2=0. 00252485 seconds Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

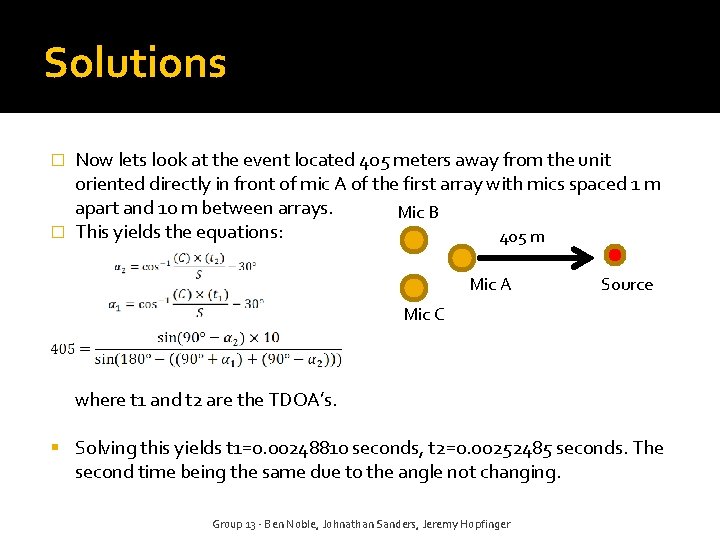

Solutions Now lets look at the event located 405 meters away from the unit oriented directly in front of mic A of the first array with mics spaced 1 m apart and 10 m between arrays. Mic B � This yields the equations: 405 m � Mic A Source Mic C where t 1 and t 2 are the TDOA’s. Solving this yields t 1=0. 00248810 seconds, t 2=0. 00252485 seconds. The second time being the same due to the angle not changing. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Solutions � This time a 5 meter difference in position yielded only a . 00000047 second TDOA differential. That is 470 nanosecond difference. � This is a significant decrease in necessary sample rate. The sample rate required for this worst case scenario which used only 6 microphones is 12 MHz. � This allowed us to use a significantly cheaper microcontroller. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

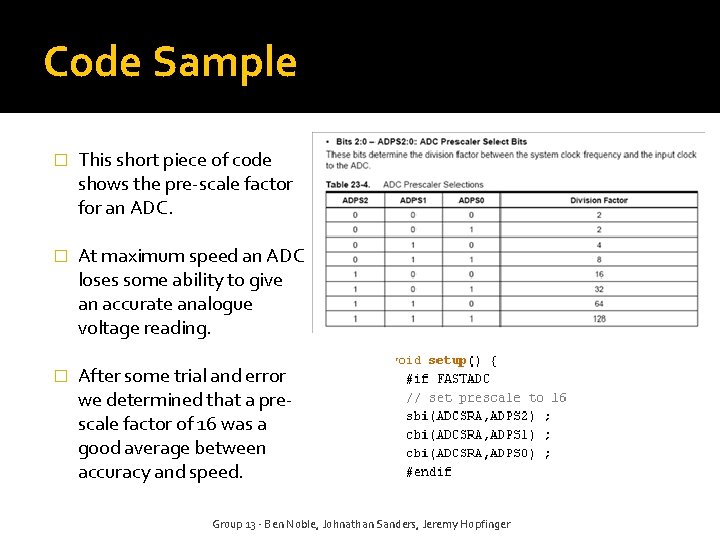

Code Sample � This short piece of code shows the pre-scale factor for an ADC. � At maximum speed an ADC loses some ability to give an accurate analogue voltage reading. � After some trial and error we determined that a prescale factor of 16 was a good average between accuracy and speed. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Signal Analysis Wavelet Vs. Fourier Transforms � Time Domain Signal: � The Fourier transform shows the frequency spectrum of the time domain signal. � � Fourier Transform: Frequency Domain Signal Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Signal Analysis Problem: Notice that the Fourier transform graph tells us nothing about the times at which a frequency occurs. � Example: Observe the following two signals. (Note: Both the signals contain only the frequencies 5, 10, 20, and 50 Hz) � Stationary Non-Stationary Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

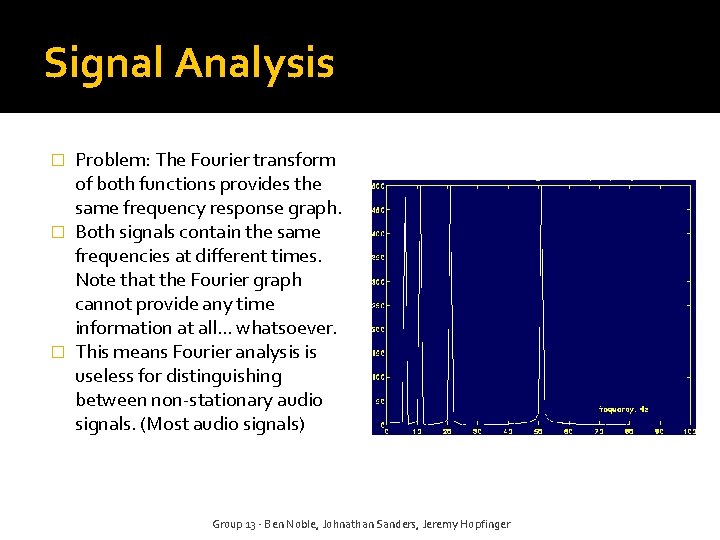

Signal Analysis Problem: The Fourier transform of both functions provides the same frequency response graph. � Both signals contain the same frequencies at different times. Note that the Fourier graph cannot provide any time information at all… whatsoever. � This means Fourier analysis is useless for distinguishing between non-stationary audio signals. (Most audio signals) � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

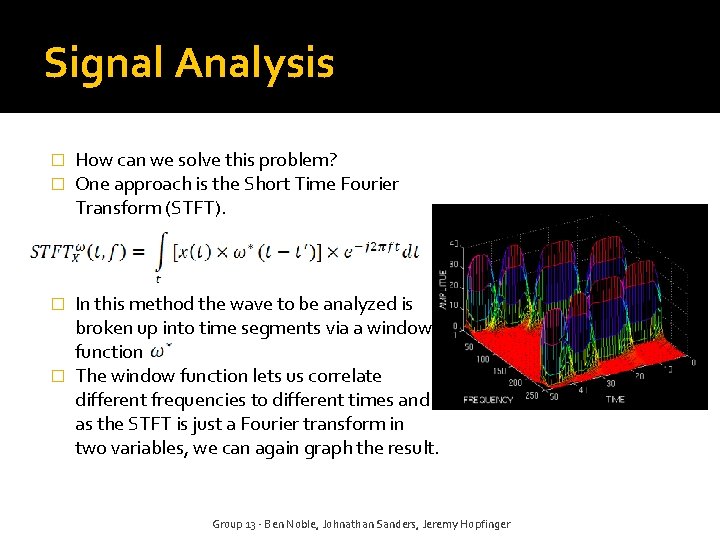

Signal Analysis � � How can we solve this problem? One approach is the Short Time Fourier Transform (STFT). In this method the wave to be analyzed is broken up into time segments via a window function � The window function lets us correlate different frequencies to different times and as the STFT is just a Fourier transform in two variables, we can again graph the result. � Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Signal Analysis � � � Notice now that for each frequency there exists a band in time, with a certain amplitude (amount of that frequency, in that time band) Notice also that the width in frequency is small but non-zero. This indicates that the frequency resolution is not perfect. We should have impulse responses at 5, 10, 20, and 50 Hz. Instead there are bands around these frequencies. This is known as frequency resolution and the wider the band, the poorer the resolution. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

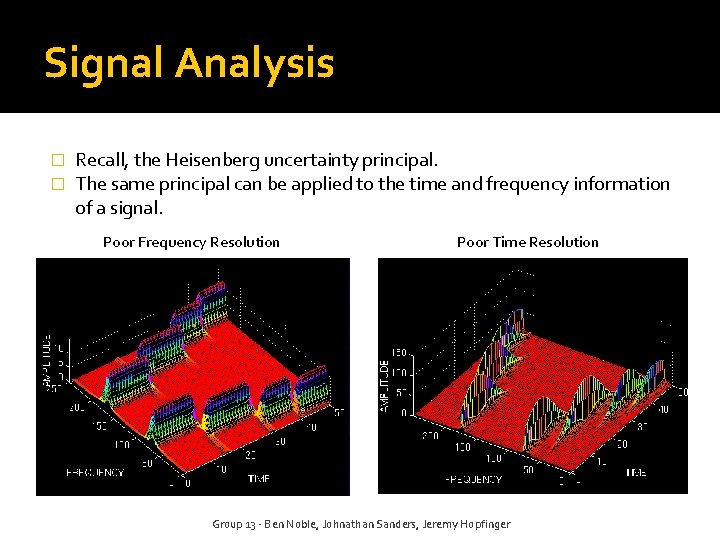

Signal Analysis � � Recall, the Heisenberg uncertainty principal. The same principal can be applied to the time and frequency information of a signal. Poor Frequency Resolution Poor Time Resolution Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

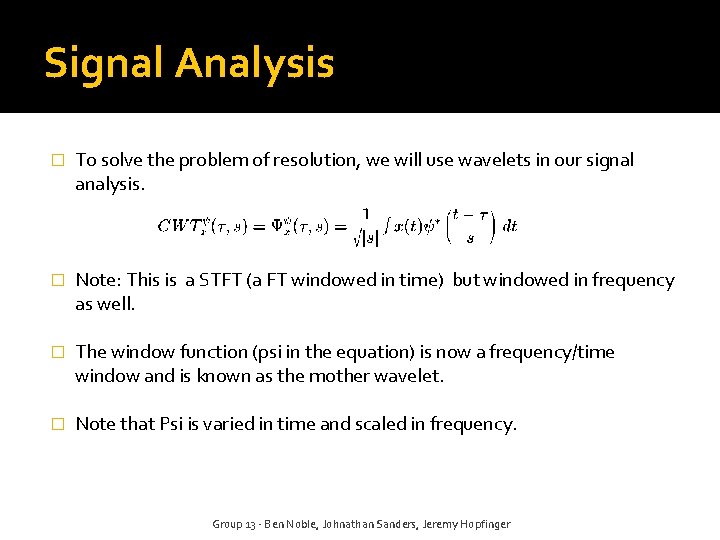

Signal Analysis � To solve the problem of resolution, we will use wavelets in our signal analysis. � Note: This is a STFT (a FT windowed in time) but windowed in frequency as well. � The window function (psi in the equation) is now a frequency/time window and is known as the mother wavelet. � Note that Psi is varied in time and scaled in frequency. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Signal Analysis � Examples of suitable mother wavelets: Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

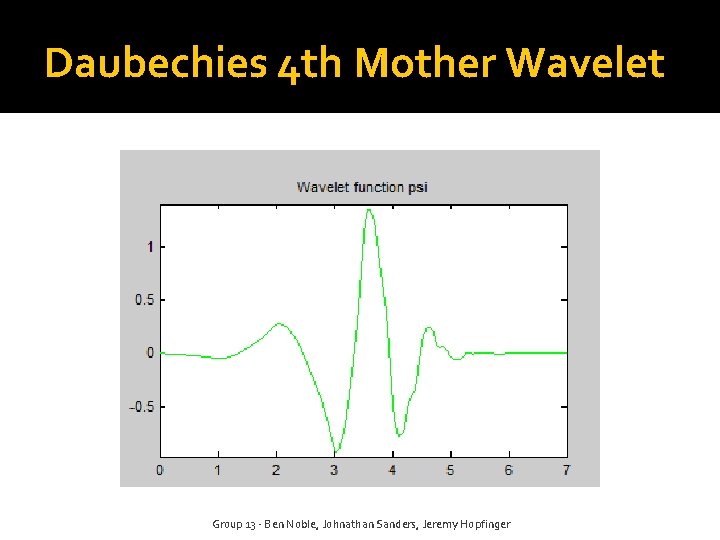

Daubechies 4 th Mother Wavelet Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Signal Analysis � Gun shot comparison: � By using the wavelet transforms of prerecorded gunshots and comparing the frequency time wavelet coefficients to an event currently occurring, we can distinguish between gunshot types with a high degree of accuracy. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

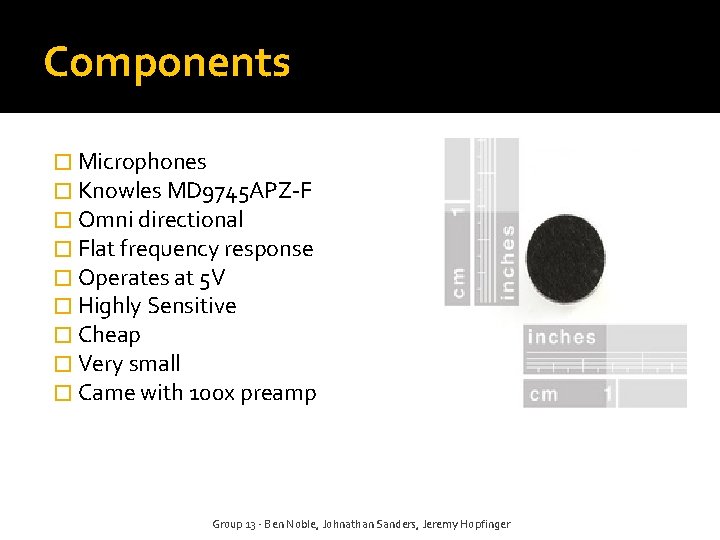

Components � Microphones � Knowles MD 9745 APZ-F � Omni directional � Flat frequency response � Operates at 5 V � Highly Sensitive � Cheap � Very small � Came with 100 x preamp Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

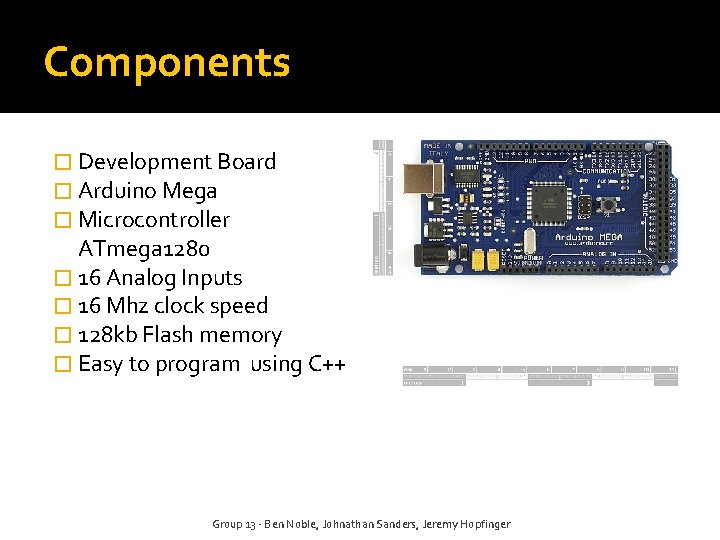

Components � Development Board � Arduino Mega � Microcontroller ATmega 1280 � 16 Analog Inputs � 16 Mhz clock speed � 128 kb Flash memory � Easy to program using C++ Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Components � GPS � EM 408 � Extremely high sensitivity : -159 d. Bm � 5 m Positional Accuracy � Cold Start : 42 s � 75 m. A at 3. 3 V � 20 gram weight � Outputs NMEA 0183 binary protocol Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

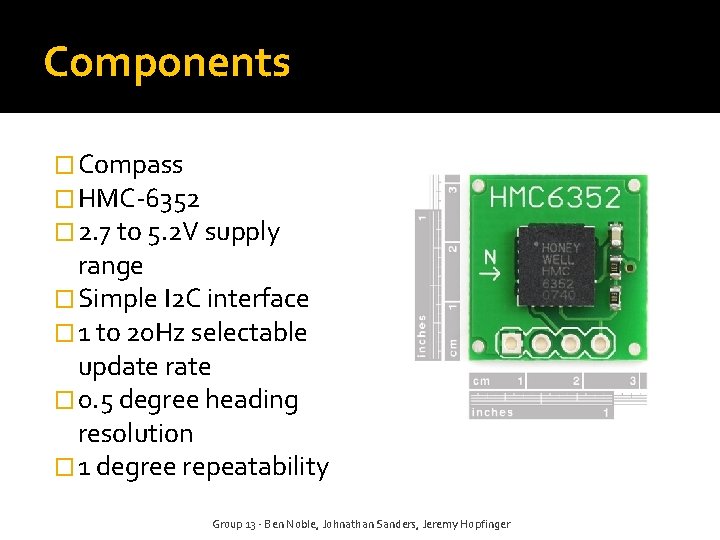

Components � Compass � HMC-6352 � 2. 7 to 5. 2 V supply range � Simple I 2 C interface � 1 to 20 Hz selectable update rate � 0. 5 degree heading resolution � 1 degree repeatability Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

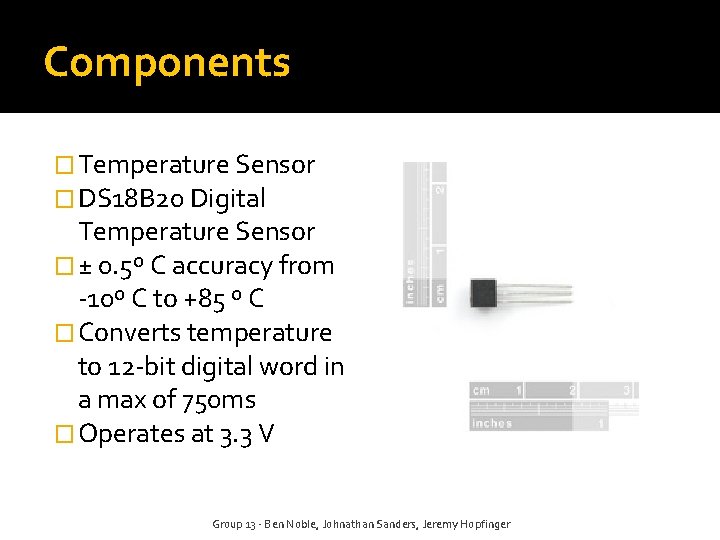

Components � Temperature Sensor � DS 18 B 20 Digital Temperature Sensor � ± 0. 5º C accuracy from -10º C to +85 º C � Converts temperature to 12 -bit digital word in a max of 750 ms � Operates at 3. 3 V Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

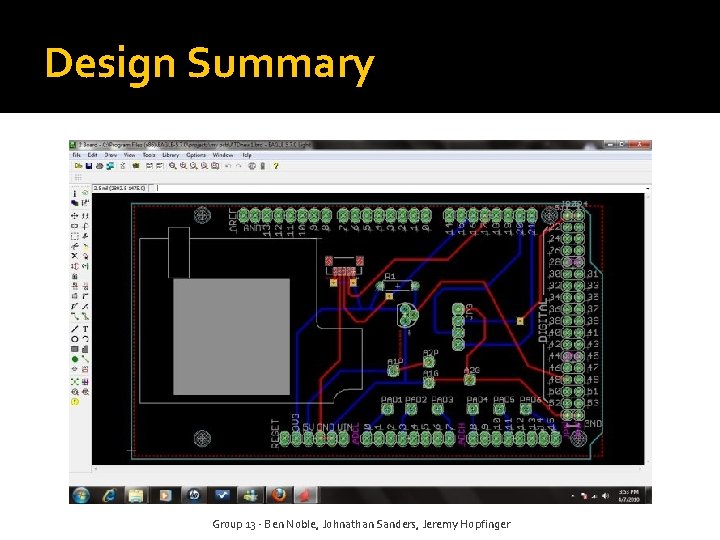

Design Summary Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

Design Summary Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

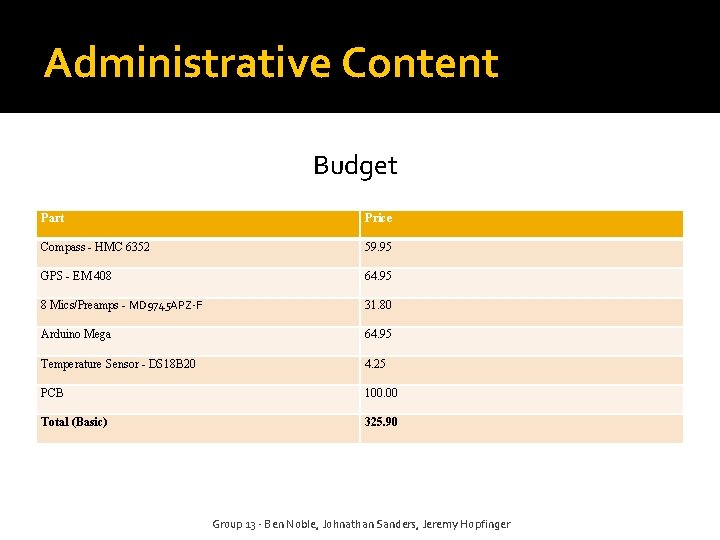

Administrative Content Budget Part Price Compass - HMC 6352 59. 95 GPS - EM 408 64. 95 8 Mics/Preamps - MD 9745 APZ-F 31. 80 Arduino Mega 64. 95 Temperature Sensor - DS 18 B 20 4. 25 PCB 100. 00 Total (Basic) 325. 90 Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

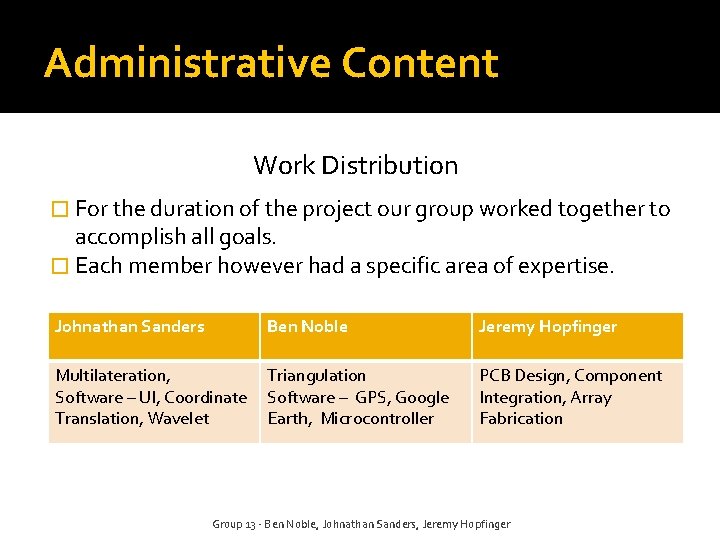

Administrative Content Work Distribution � For the duration of the project our group worked together to accomplish all goals. � Each member however had a specific area of expertise. Johnathan Sanders Ben Noble Jeremy Hopfinger Multilateration, Software – UI, Coordinate Translation, Wavelet Triangulation Software – GPS, Google Earth, Microcontroller PCB Design, Component Integration, Array Fabrication Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger

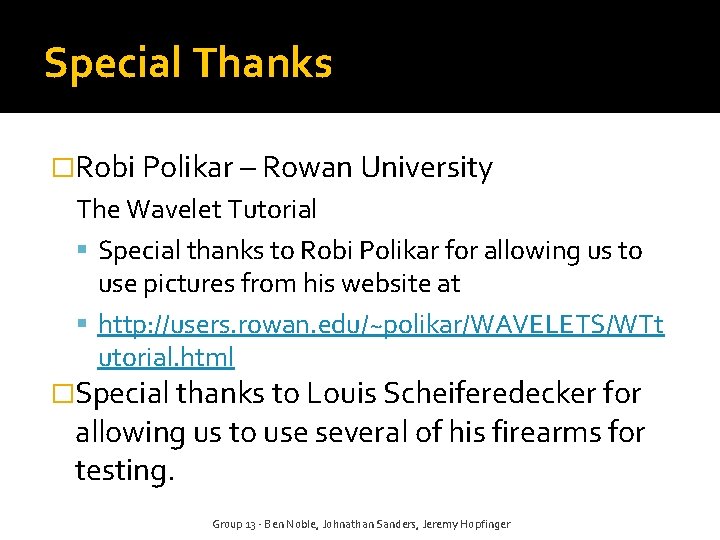

Special Thanks �Robi Polikar – Rowan University The Wavelet Tutorial Special thanks to Robi Polikar for allowing us to use pictures from his website at http: //users. rowan. edu/~polikar/WAVELETS/WTt utorial. html �Special thanks to Louis Scheiferedecker for allowing us to use several of his firearms for testing. Group 13 - Ben Noble, Johnathan Sanders, Jeremy Hopfinger
